Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
1 / 5
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System
Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System

Sunrange Containerized 20FT 40 FT 1mwh -3mwh off Grid Hybrid Container Solar Power System Energy Storage Container System

Customization: Available
Container Size: 12192mm(L)*2438mm( W)*2591mm(H)
Weight: 22 Ton
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
SR-500KW/1000KWH-CON
Nominal Voltage
Customize
Warranty
5-10 Years
Nominal Capacity
500kwh, 1mwh, 2mwh, 3mwh, 4mwh
Cycle Life
8000 cycles
Battery Type
LiFePO4/Lithium Battery
BMS
Integrated Battery Management System
DoD
0.5/1c@90%
Certification
ISO, CB, CE, Un3536
Application
Home, Industrial, Commercial
Pre-Sales Design
Yes
Monitoring
Enerlog Datalogger
✔

Product Description

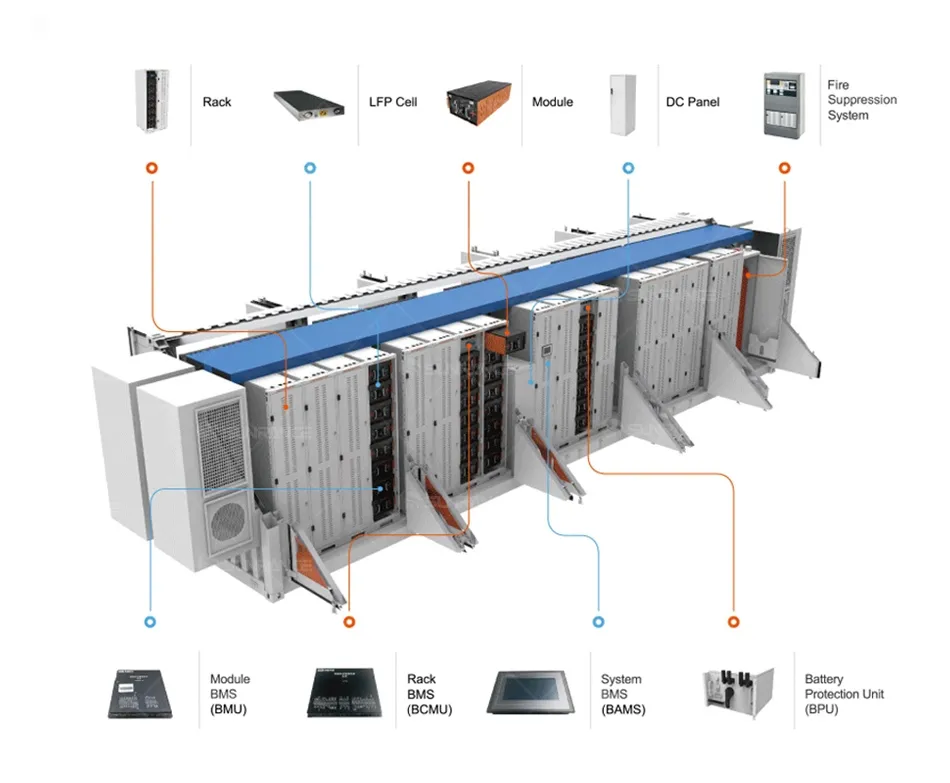

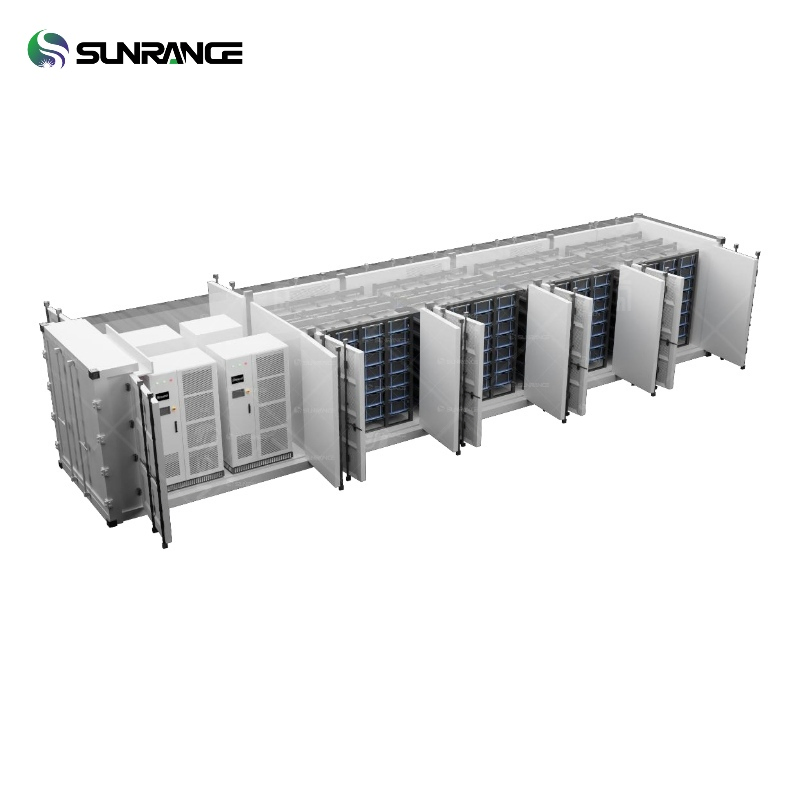

Container Energy Storage System
20FT/40FT Container Energy Storage System Parameters
Rated output power500KW / 1000KW / 2000KW
Rated capacity1000KWH / 2000KWH / 4000KWH
AC PhasesThree-phase Four-wire
Grid ParametersRated voltage380V (±15%)
Rated frequency50Hz (47.5~51.5Hz)
Power factor≥0.99
IP GradeIP54
Dimensions12192mm(L) * 2438mm(W) * 2591mm(H)
Weight22 Ton

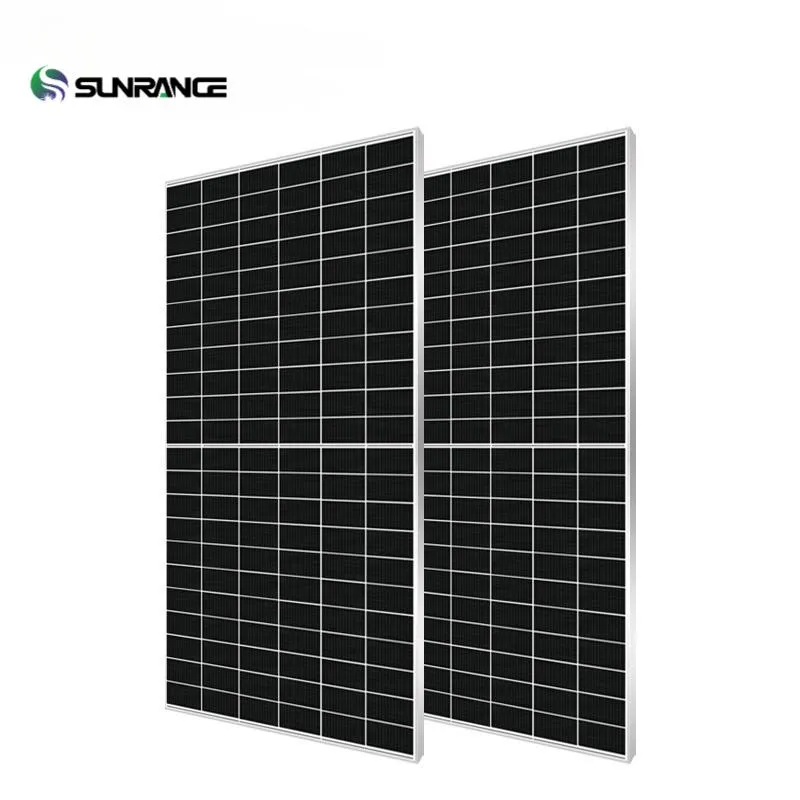

PV Modules

PV Modules: High efficiency Mono/Poly panels up to 700W. PID Resistant with more than 30 years life expectancy.

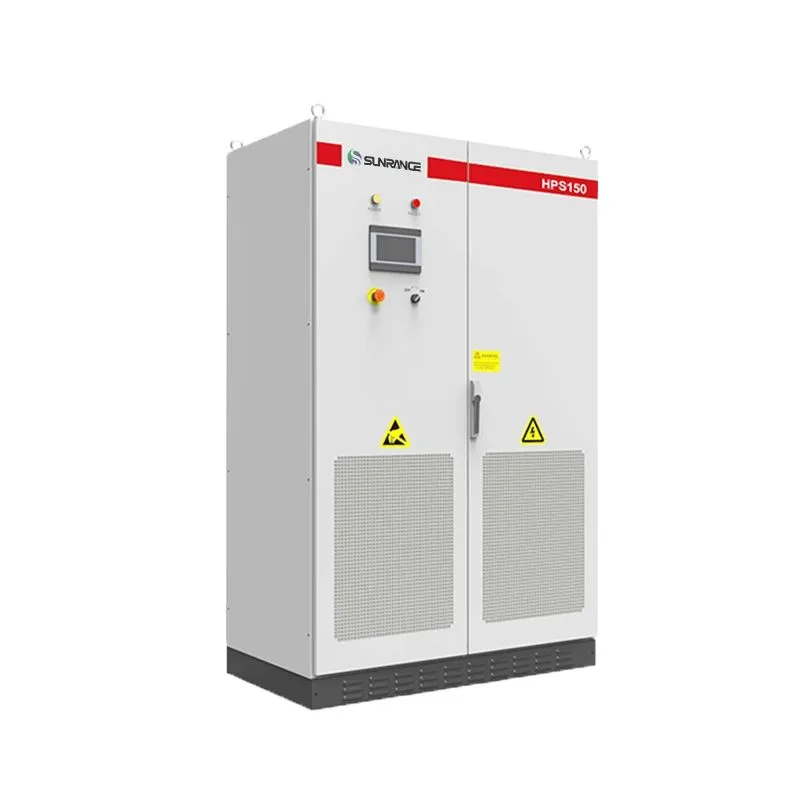

Hybrid Inverter

Hybrid Inverter: Automatic switch between loads, batteries, or grid backup. Includes WiFi monitoring for real-time data.

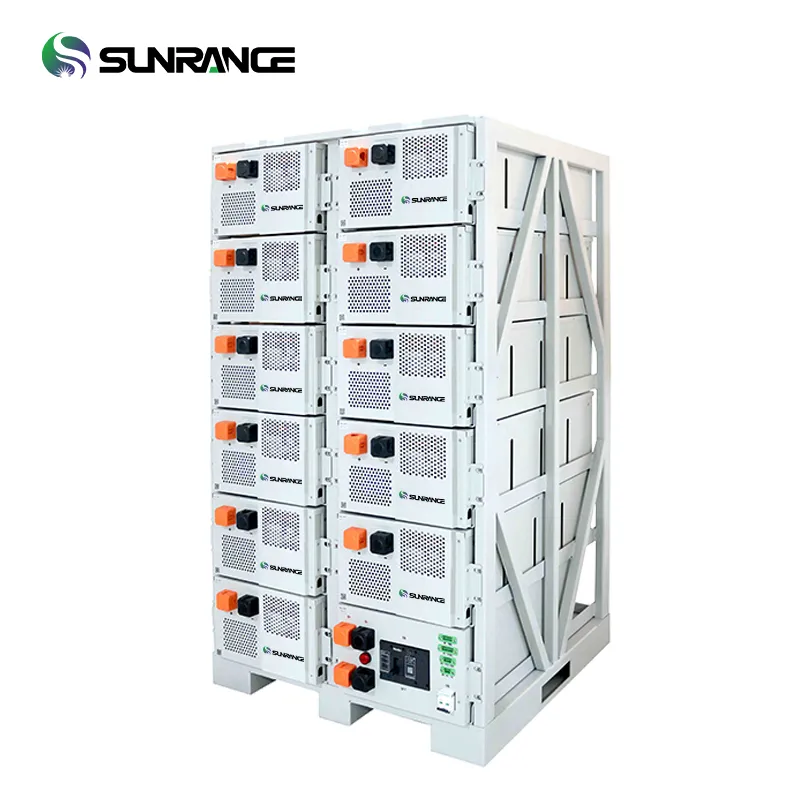

Lithium Battery Packs

Lithium Battery Packs: 280Ah/314Ah cells, flexible capacity options. Integrated BMS compatible with major hybrid inverters.

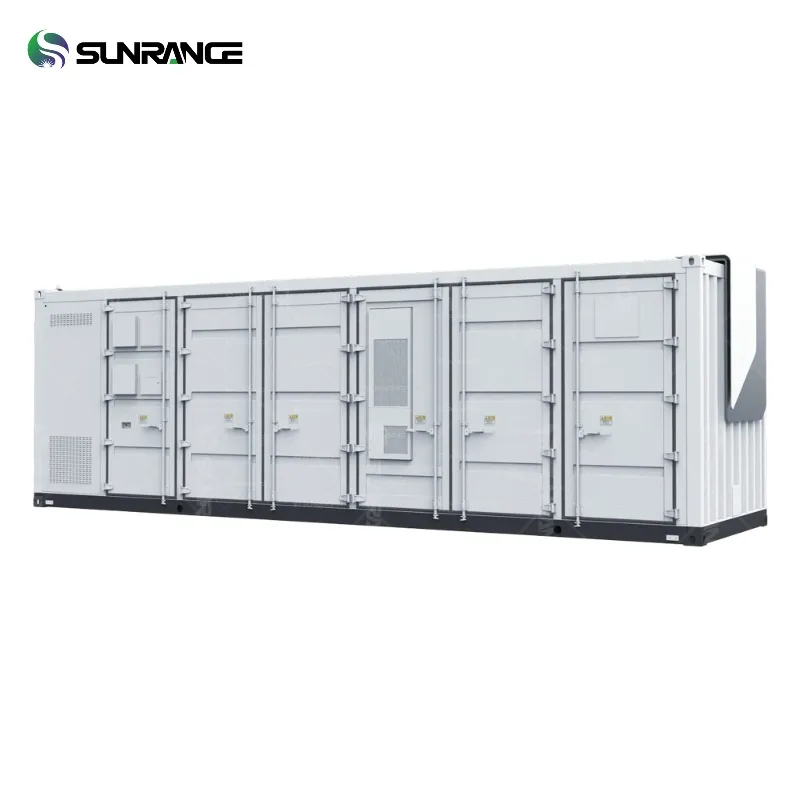

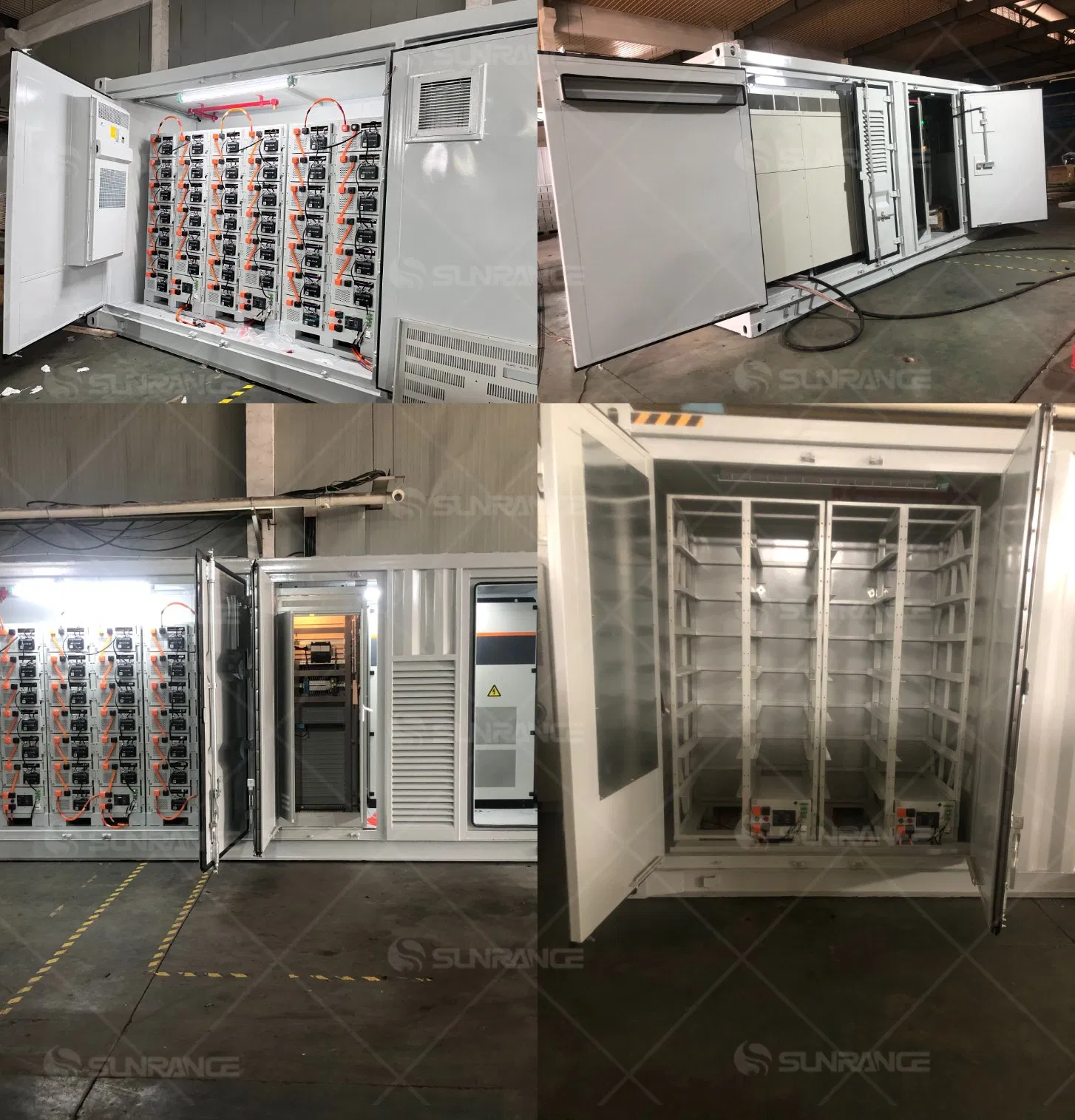

Outdoor Container

Outdoor Container: Includes lighting, fire protection, and air conditioning. Heat insulation for extreme environments.

⚙

Technical Support & Logistics

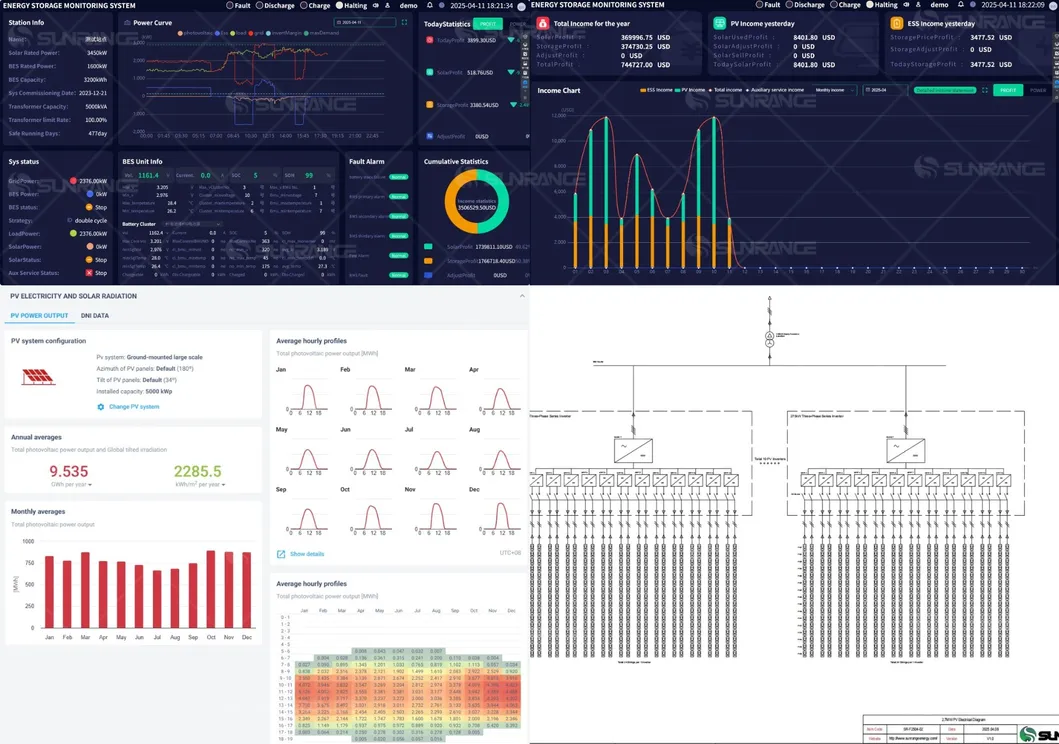

Technical Support
Packaging and Shipping
★

Professional Certifications

Certificates
Frequently Asked Questions
What is the expected lifespan of the battery system?
The system utilizes high-quality LiFePO4 cells with a cycle life of approximately 8000 cycles and comes with a 5-10 year warranty.
What capacities are available for the containerized system?
We offer standard configurations of 1MWh, 2MWh, 3MWh, and 4MWh, all of which can be customized to meet specific project requirements.
Can the system be installed outdoors?
Yes, the containers are rated IP54 and include integrated air conditioning and insulation, making them suitable for both indoor and outdoor environments.
Does the system support remote monitoring?
Yes, it includes an Enerlog monitoring datalogger and WiFi communication to track electricity production and consumption in real-time.
Is the system compatible with existing power grids?
Yes, it supports grid-connected charging and discharge modes, as well as isolated (off-grid) network operation.
Are safety systems included in the container?
Absolutely. Each container is equipped with integrated fire protection, access control, and a comprehensive Battery Management System (BMS).
