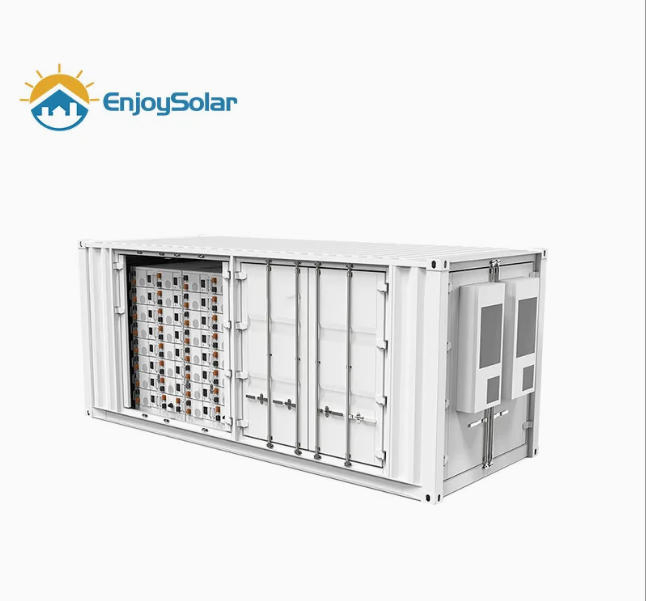

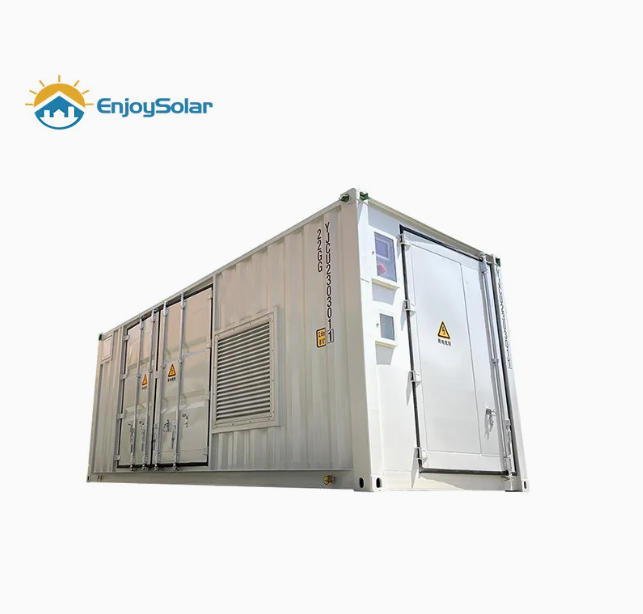

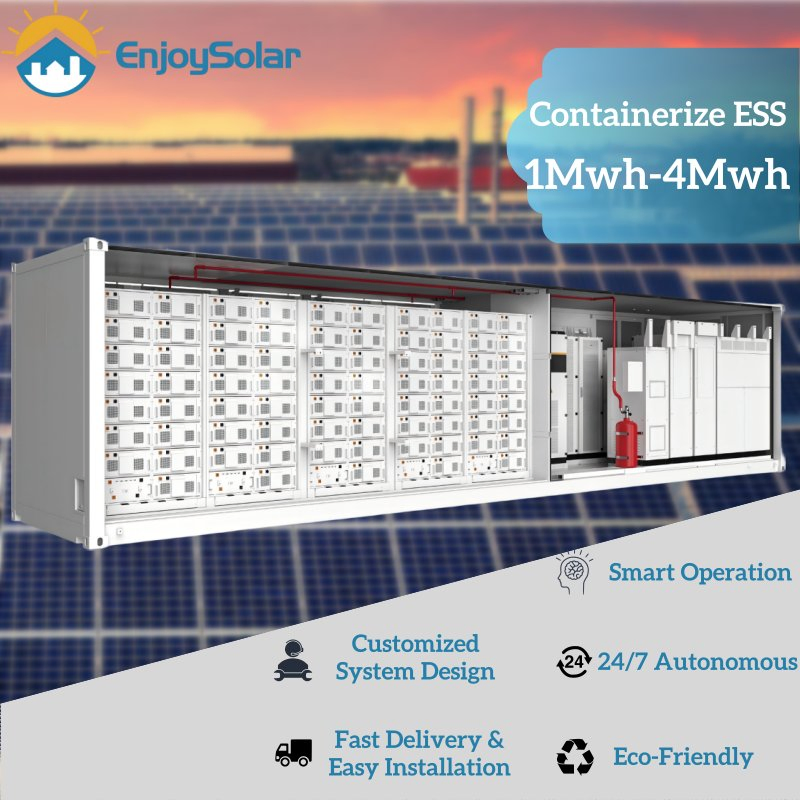

High-Capacity 1mwh to 4mwh Containerized Energy Storage System for Solar System Planets

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
ES-ESS-20FT
Nominal Voltage
400V/380V 3phase
Warranty
10 Years
Nominal Capacity
800kWh
Cycle Life
6000 Times
Battery Type
Lithium Ion Battery
Communication Interface
Can, RS485
Grid Connection
Hybrid Grid, on Grid, off Grid
Cooling
Air Cooling or Liquid Cooling
Product Name
Integrated Energy Storage System BESS
PCS Power
250kw/500kw/1MW
Battery Capacity
500kwh/1mwh/2mwh
Isolated Transformer
Include
BMS
3 Levels Active BMS
Application
Peak Shaving, Energy Storage, Mobile Energy, etc
Certification
CE, Un38.3, En50549, G99, VDE4105
Safety
Built in Fire Protection System
Specification
12192*2591*2438mm
Production Capacity
2gw/Years
⚡ Product Description

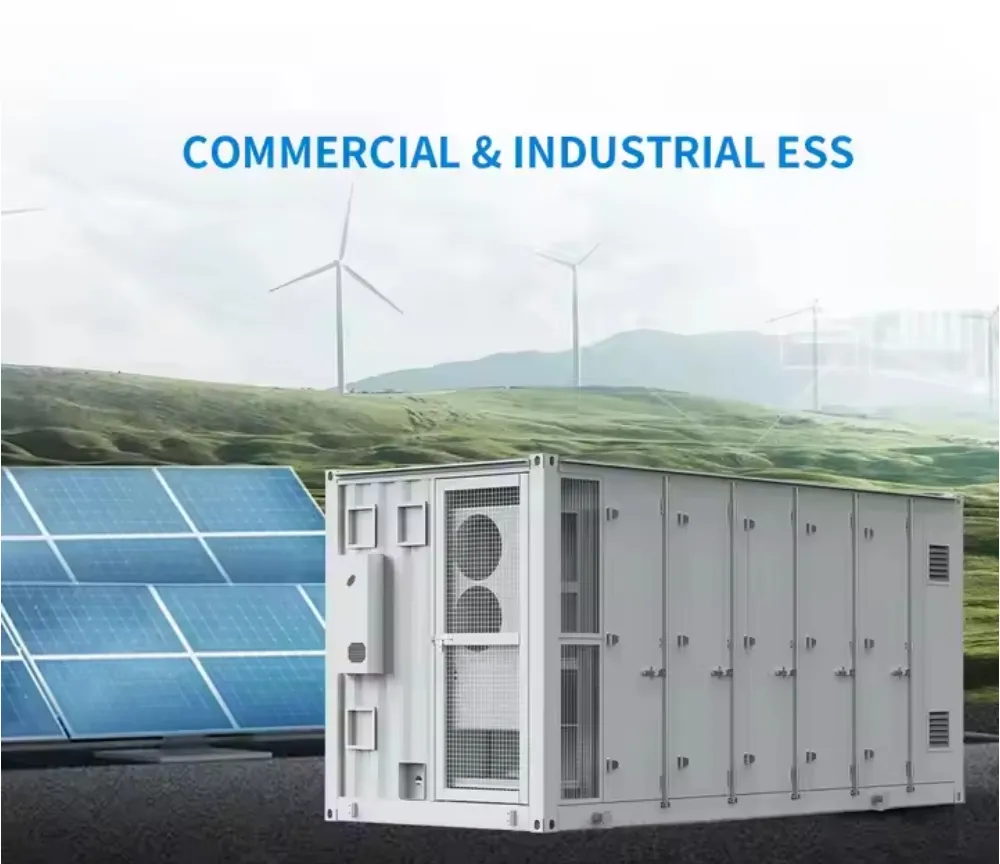

Containerized Energy Storage System

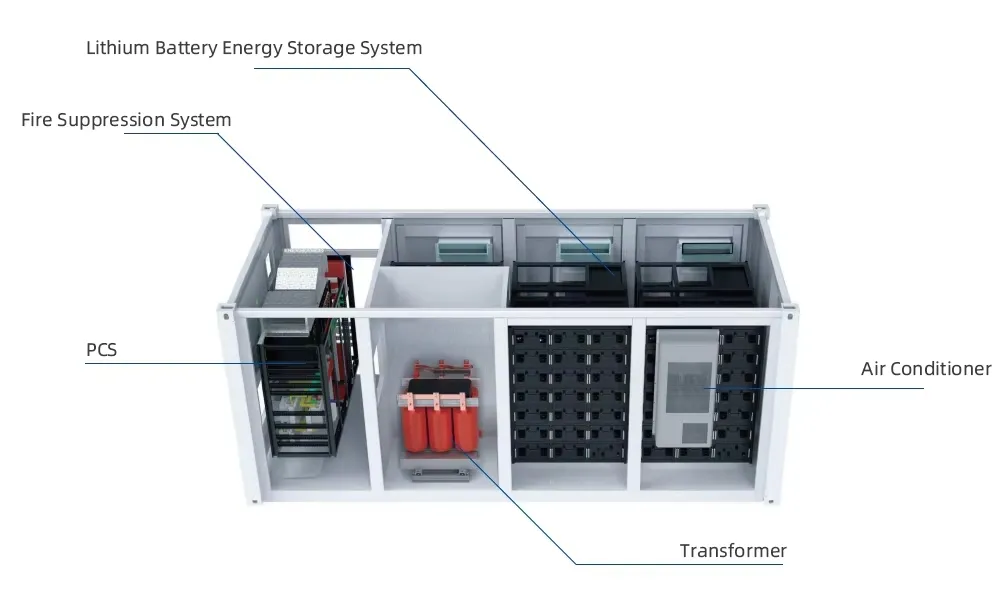

Energy Storage System Overview
⚙️ Solutions Design
20FT System Configuration
Item Specific Quantity Description
PVPanel: 600W42012pieces/string, total 35 strings. Capacity: 252kw
PV Combiner BoxPV Combiner Box57 inputs 1 output For Combination of Multiple PV strings
InverterPBD2501250kW solar charge controller
PCS2501250kW battery inverter
Bypass 2501Switch Between On grid and Off grid
EnerlogMonitor1System Monitoring
BatteryBAT-Combiner box1For combination of multiple battery racks
51.2V 280AH module60Battery With BMU module 14.3kWh each
HV Controller Box41500V 300A High Voltage Controller
20ft ContainerContainer1Outdoor IP54, lighting, fire-resistance, AC included
40FT System Configuration
Item Specific Quantity Description
PVPanel: 600W84012pieces/string, total 70 strings. Capacity: 504kw
PV Combiner BoxPV Combiner Box107 inputs 1 output For Combination of Multiple PV strings
InverterPBD2502250kW solar charge controller
PCS5001500kW battery inverter
Isolation Transformer1500KVA Isolation Transformer
Bypass 5001Switch Between On grid and Off grid
EnerlogMonitor1System Monitoring
BatteryBAT-Combiner box1For combination of multiple battery racks
51.2V 280AH module150Battery With BMU module 14.3kWh each
HV Controller Box101000V 300A High Voltage Controller
40ft ContainerContainer1Outdoor IP54, lighting, fire-resistance, AC included

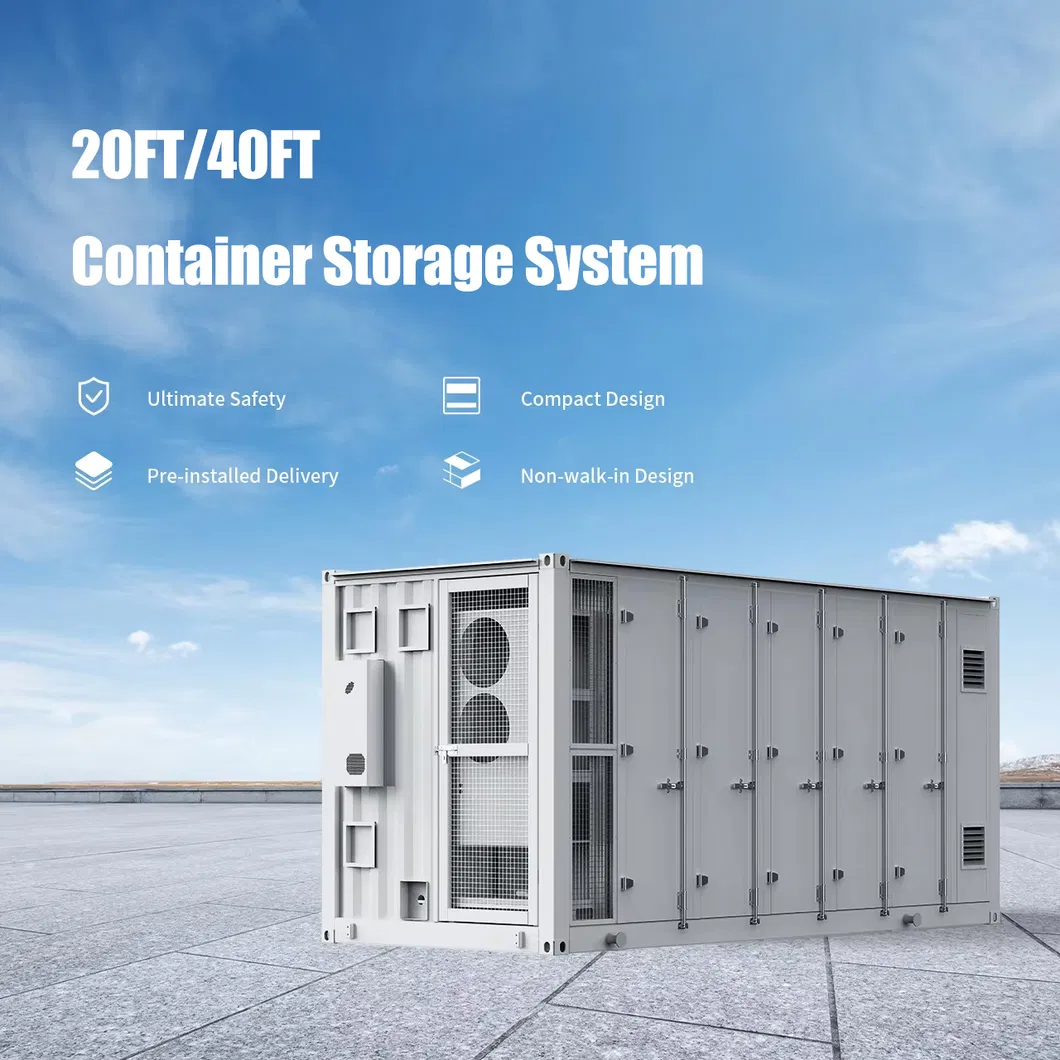

System Configuration Diagram

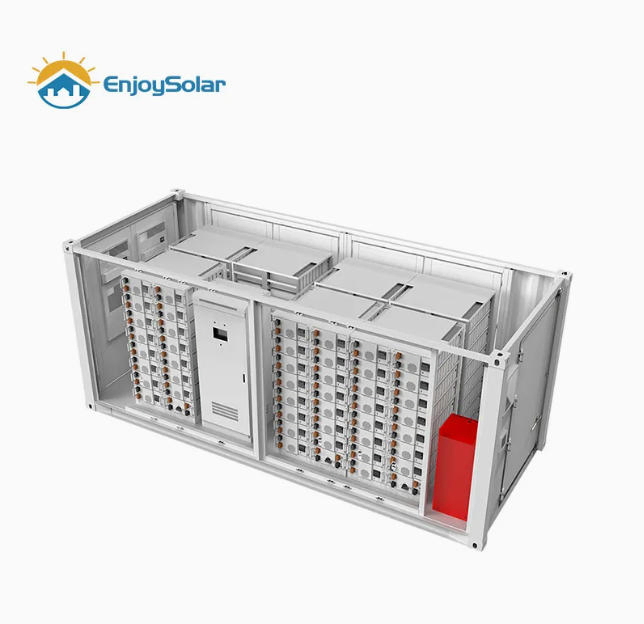

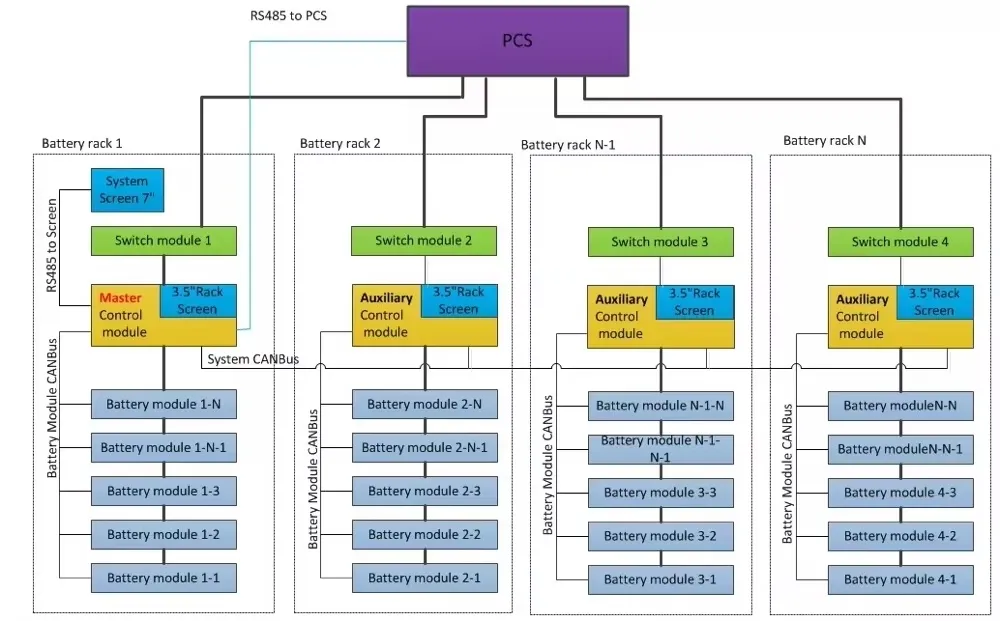

Internal Structure
🏭 Our Factory

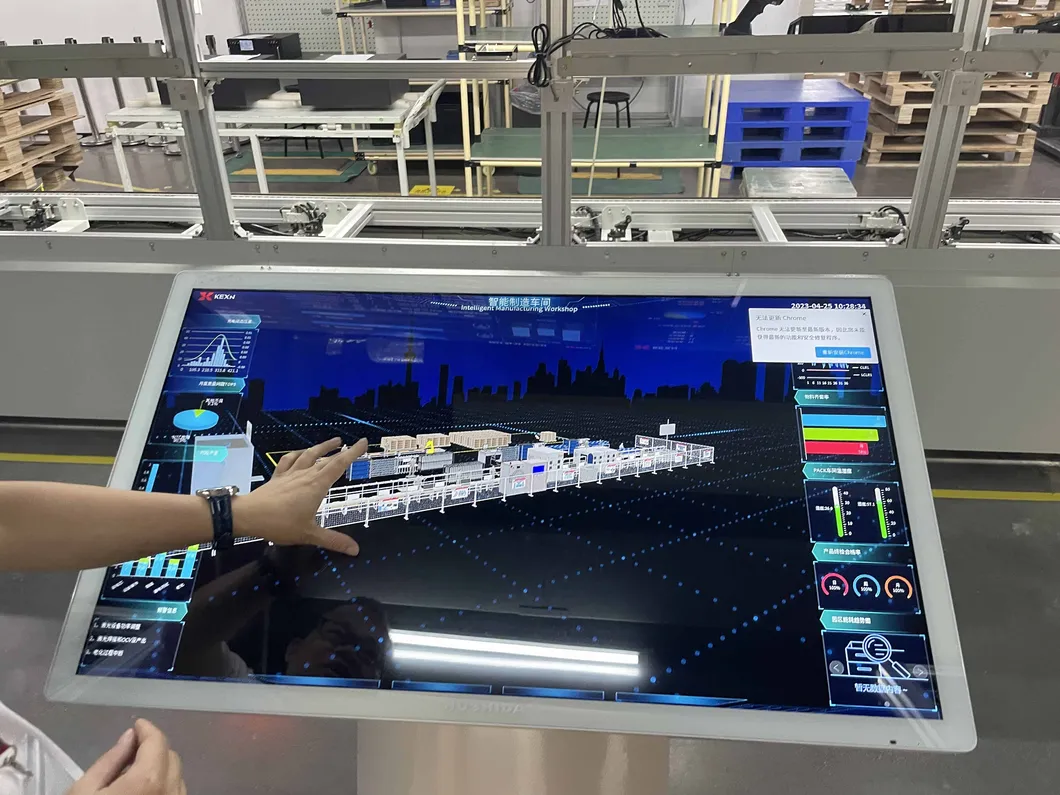

Factory View 1

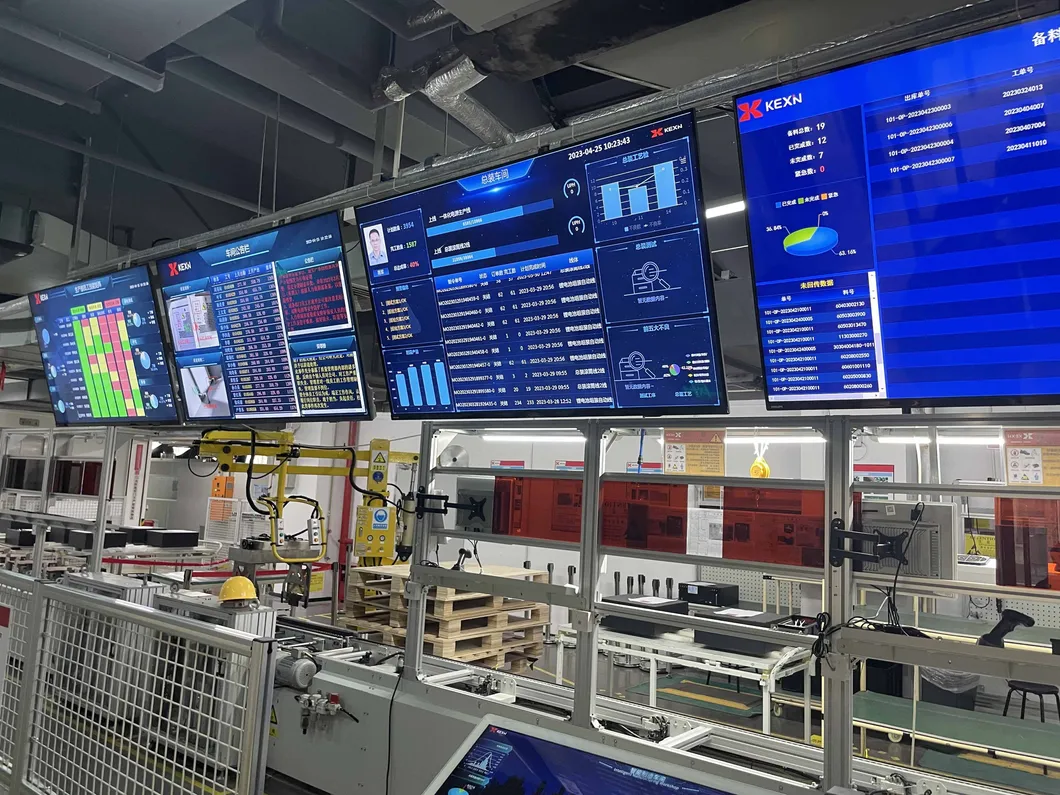

Factory View 2

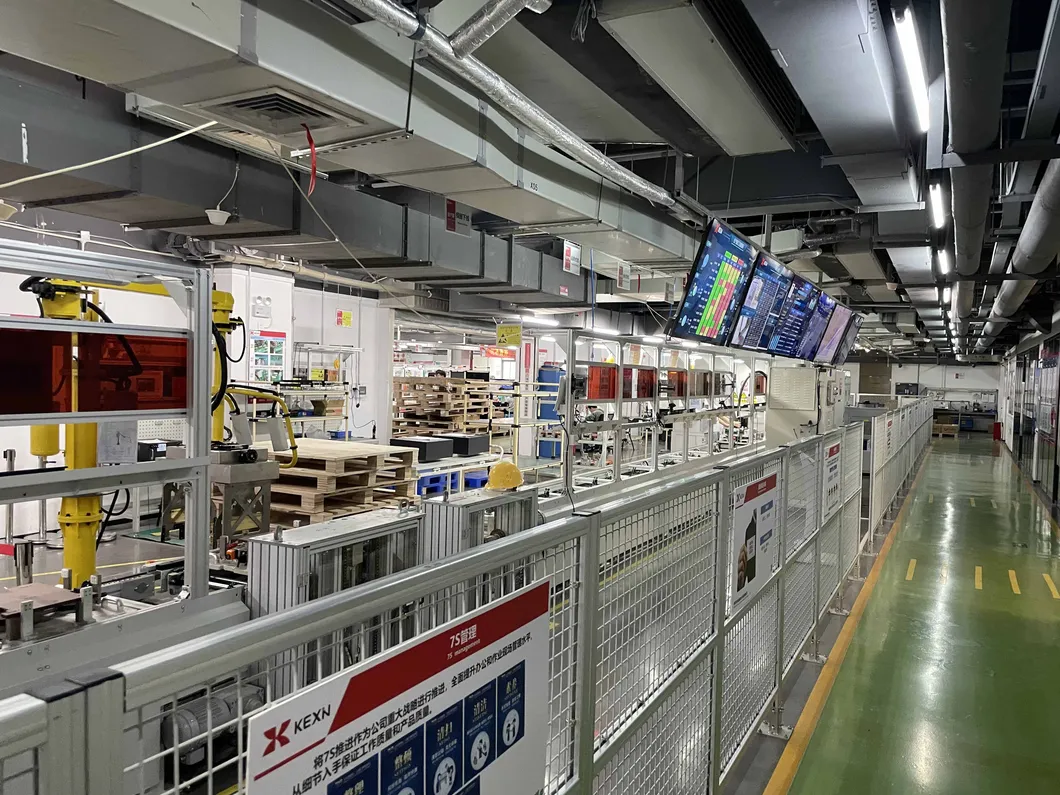

Factory View 3

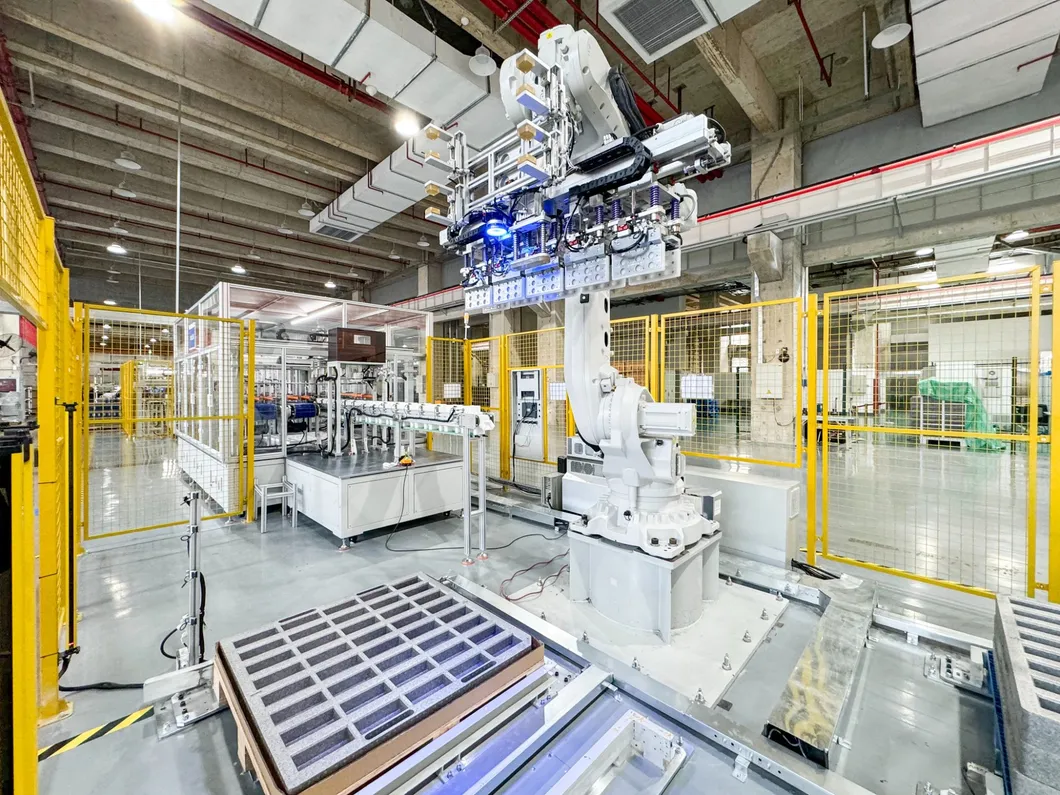

Factory View 4
🏗️ Projects

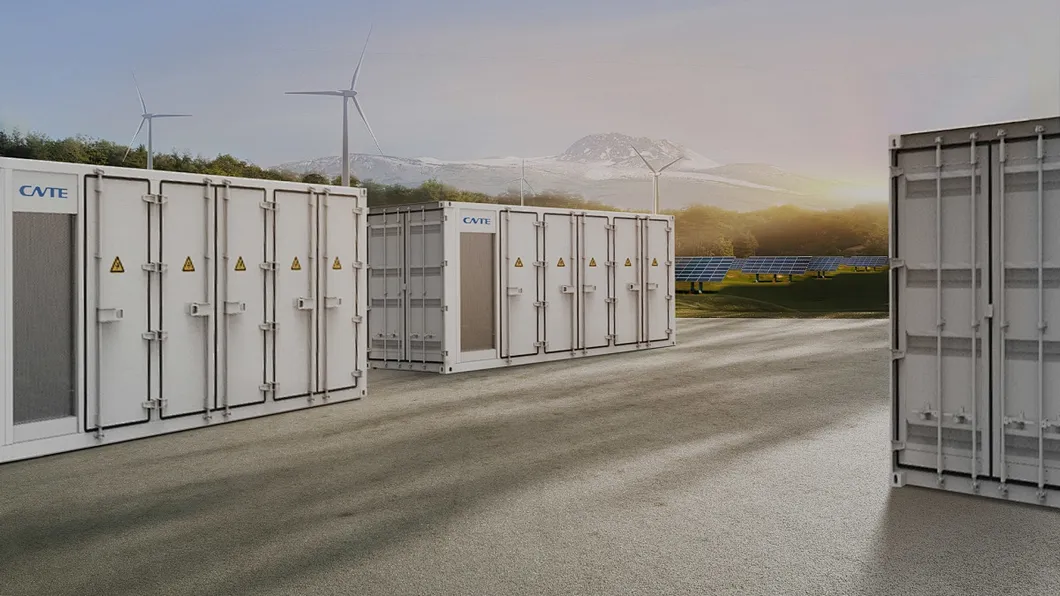

Project Installation 1

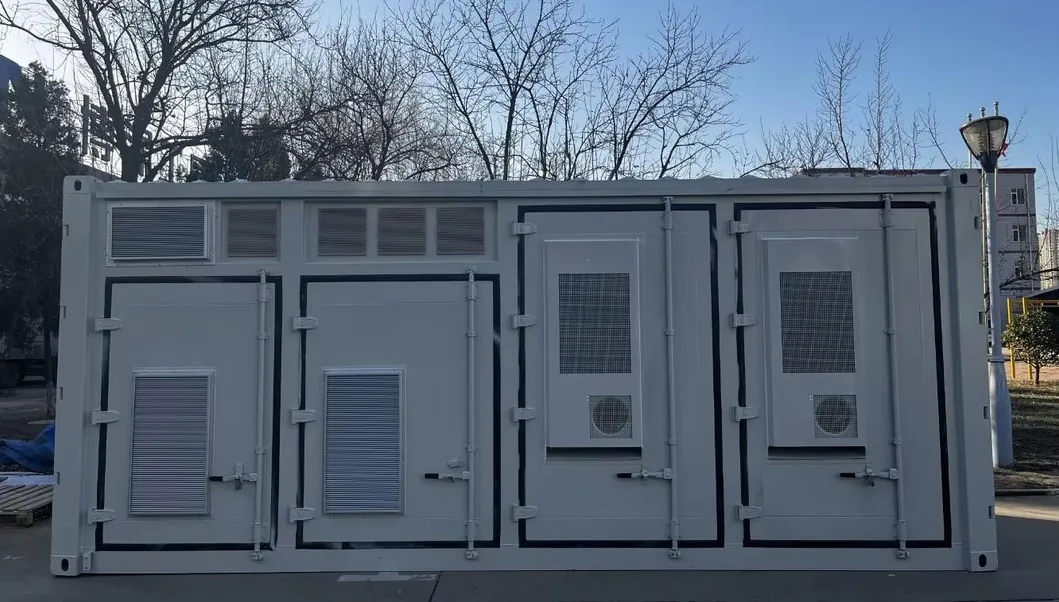

Project Installation 2
