| DC Side Parameter | |
|---|---|
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 48.2 kWh / 1P48S |
| System Configuration | 2170 kWh / 9P240S |
| Rated DC Voltage | 768 V |
| Max. Charge/Discharge Rate | 0.5 P |
| AC Side Parameter | |
| Rated Output Power | 1000 kW |
| Rated AC Voltage | 400 V |
| Grid Type | 3W+N+PE |
| THDi | ≤3% |
| General Data | |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Fire Suppression | Aerosol system + Water spray system |
| Dimensions (W*D*H) | 6,058 * 2,438 * 2,591 mm |
| Weight | 28 t |

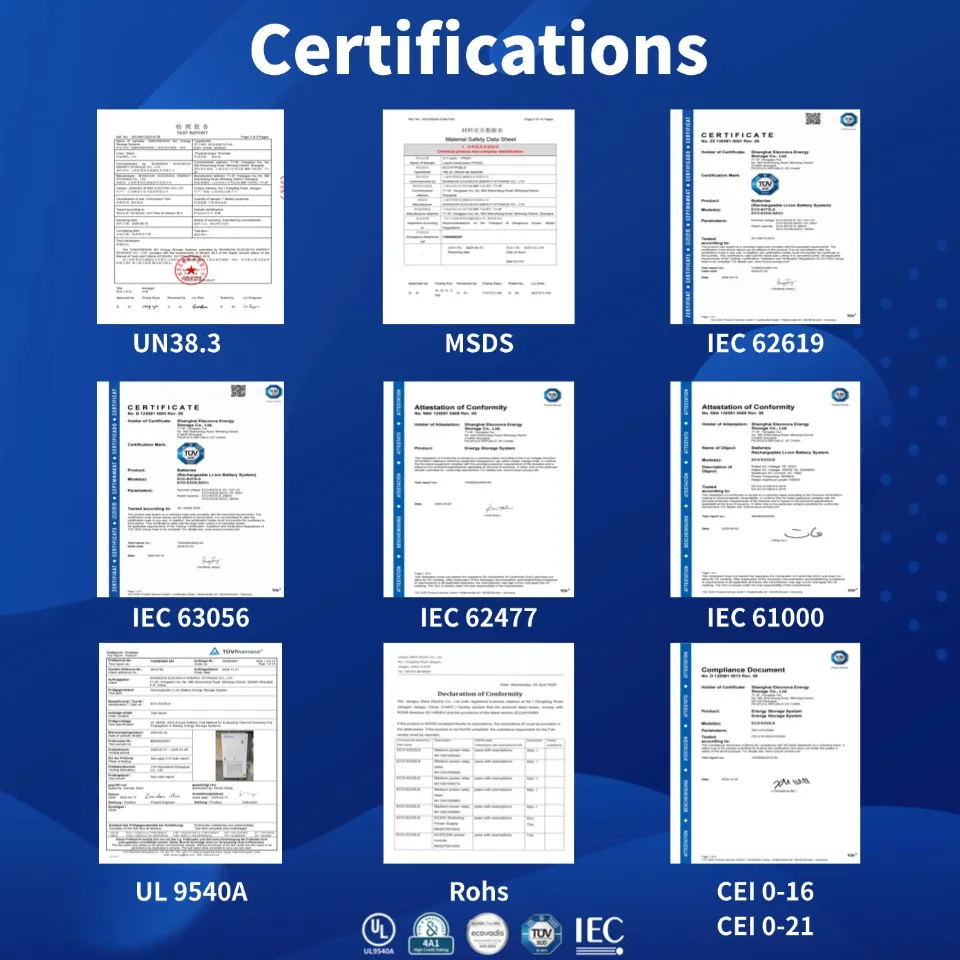

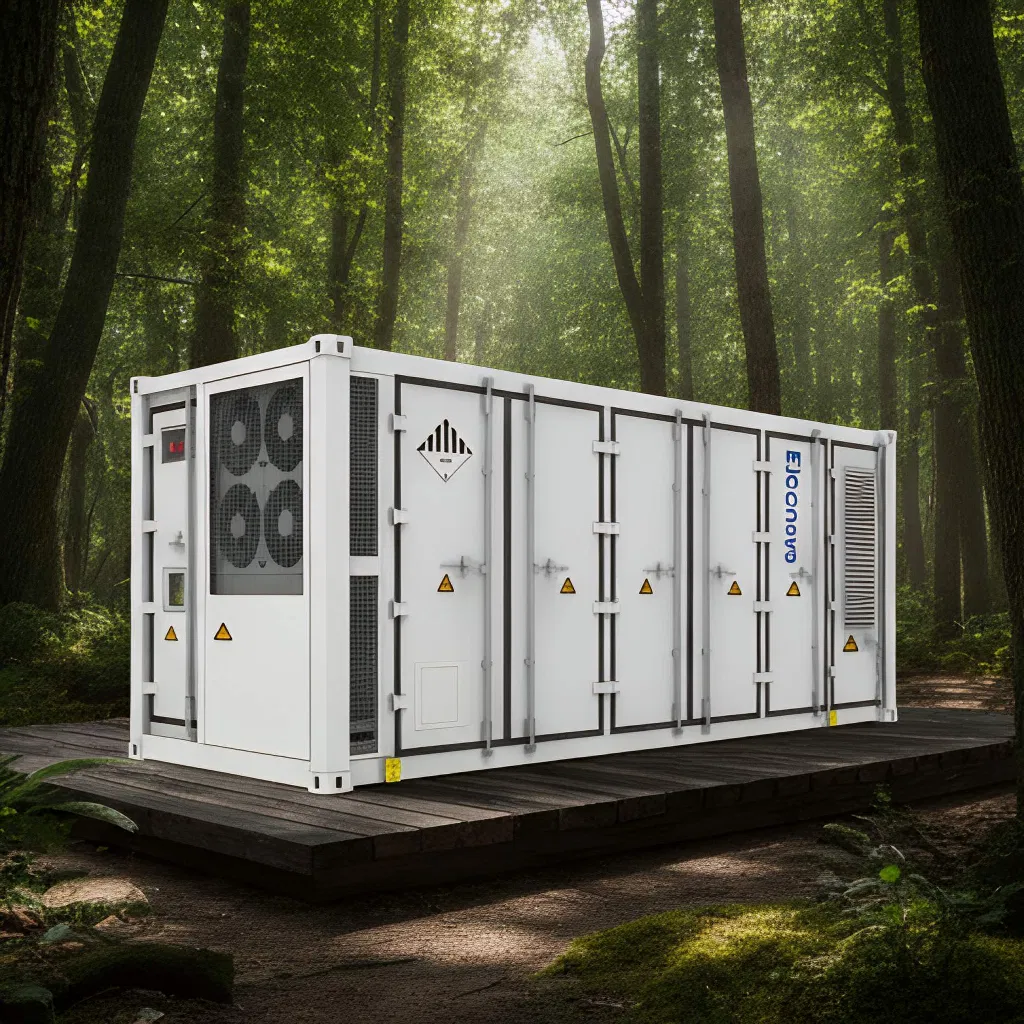

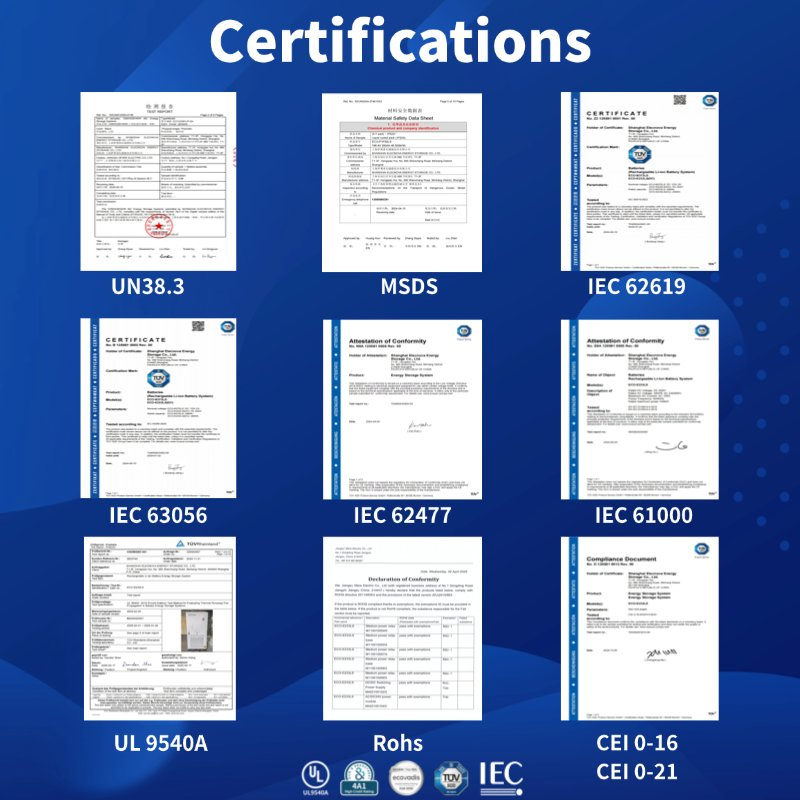

Our 2MWh liquid-cooled energy storage system complies with key global safety, battery, grid, and environmental standards, including UN38.3, IEC 62619/63056, UL 9540A, CEI 0-16/21, G99, and more. This ensures smooth market access and safety compliance worldwide.
We offer a robust warranty of up to 5+5 years, with cell performance guaranteed for up to 8000 cycles. Support includes on-site training and comprehensive technical guidance.

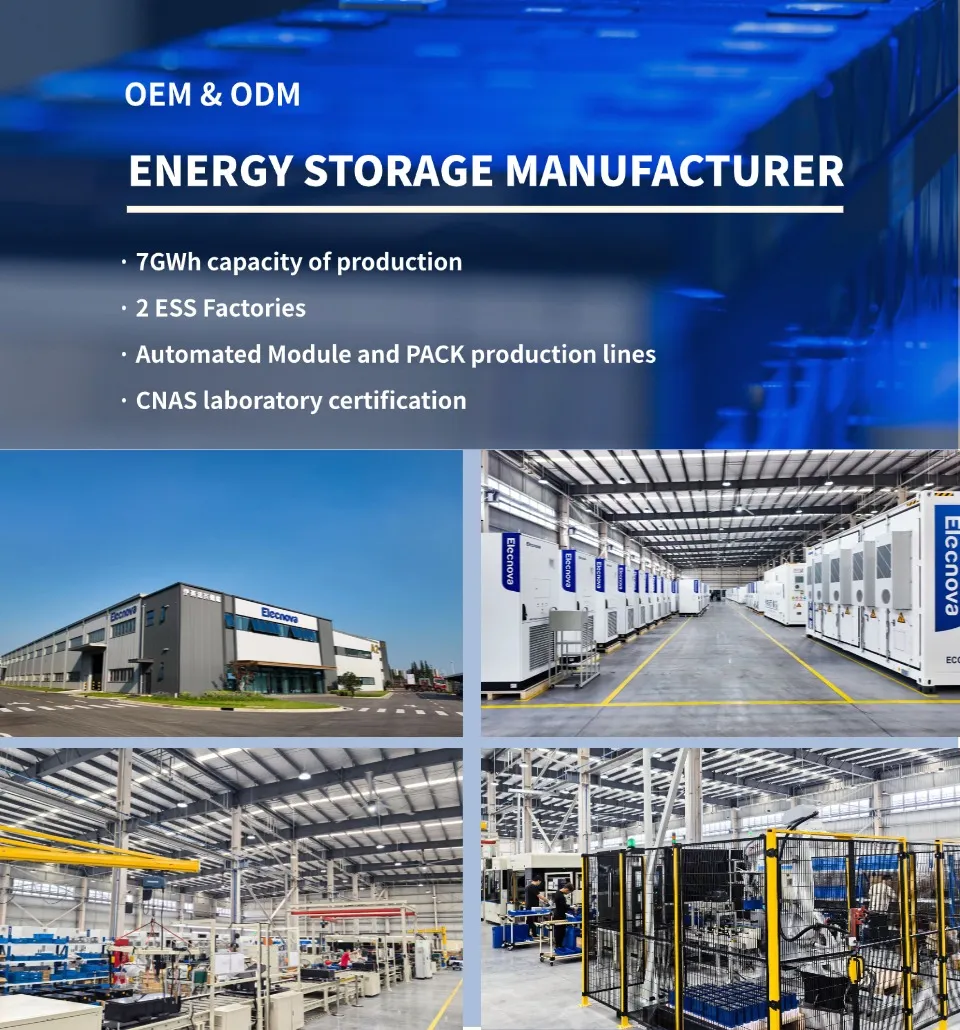

With 28 years of industry experience, the manufacturer dedicates 10% of revenue to R&D. Our facilities feature automated Module and PACK production lines and hold CNAS laboratory certification, ensuring efficient and standardized manufacturing.
