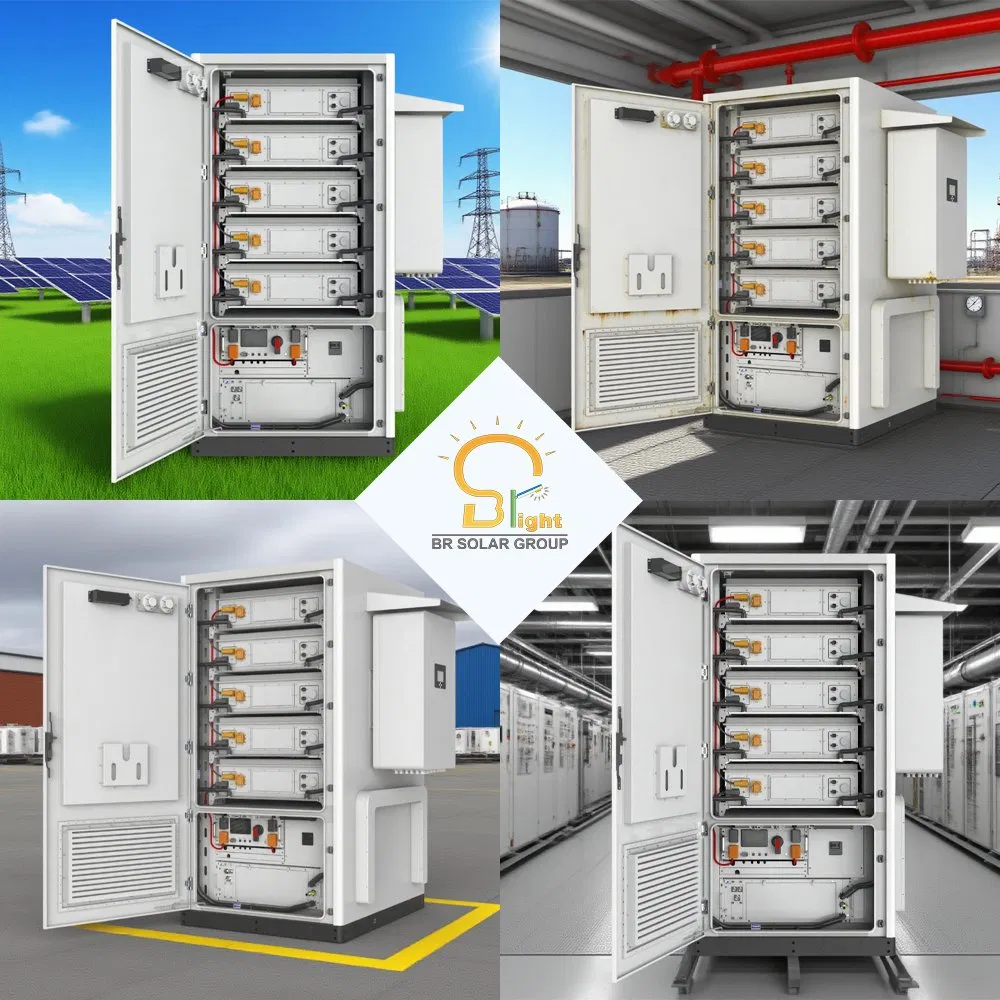

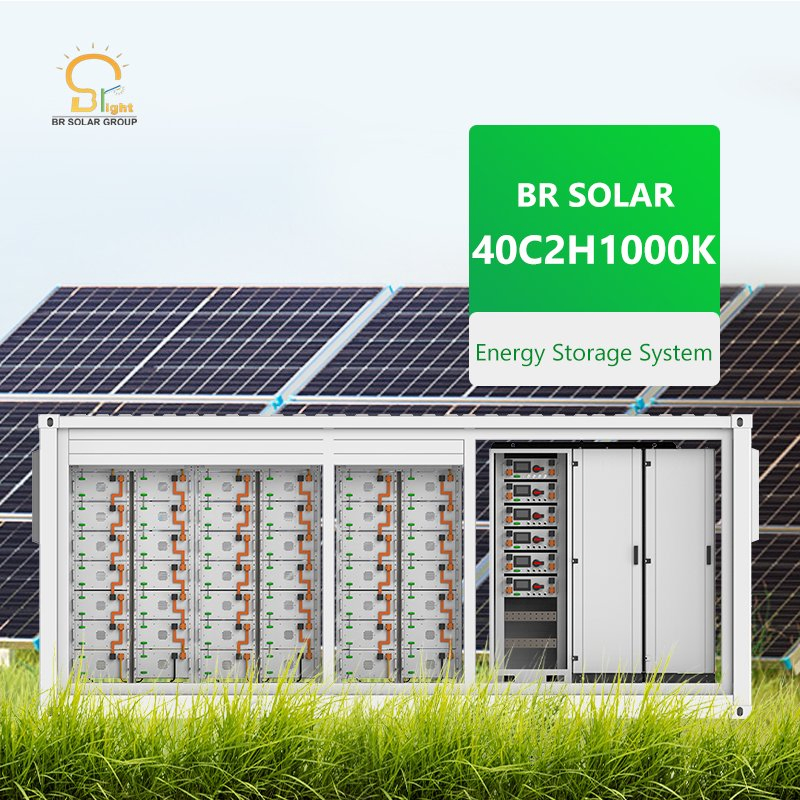

1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1 / 5
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage
1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage

1p416sx12 School, Factory Br Solar Carton and Pallet Containerized System Grid-Tied Energy Storage

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Information
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate (LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Power
0.5c Charge/Discharge
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Origin
China

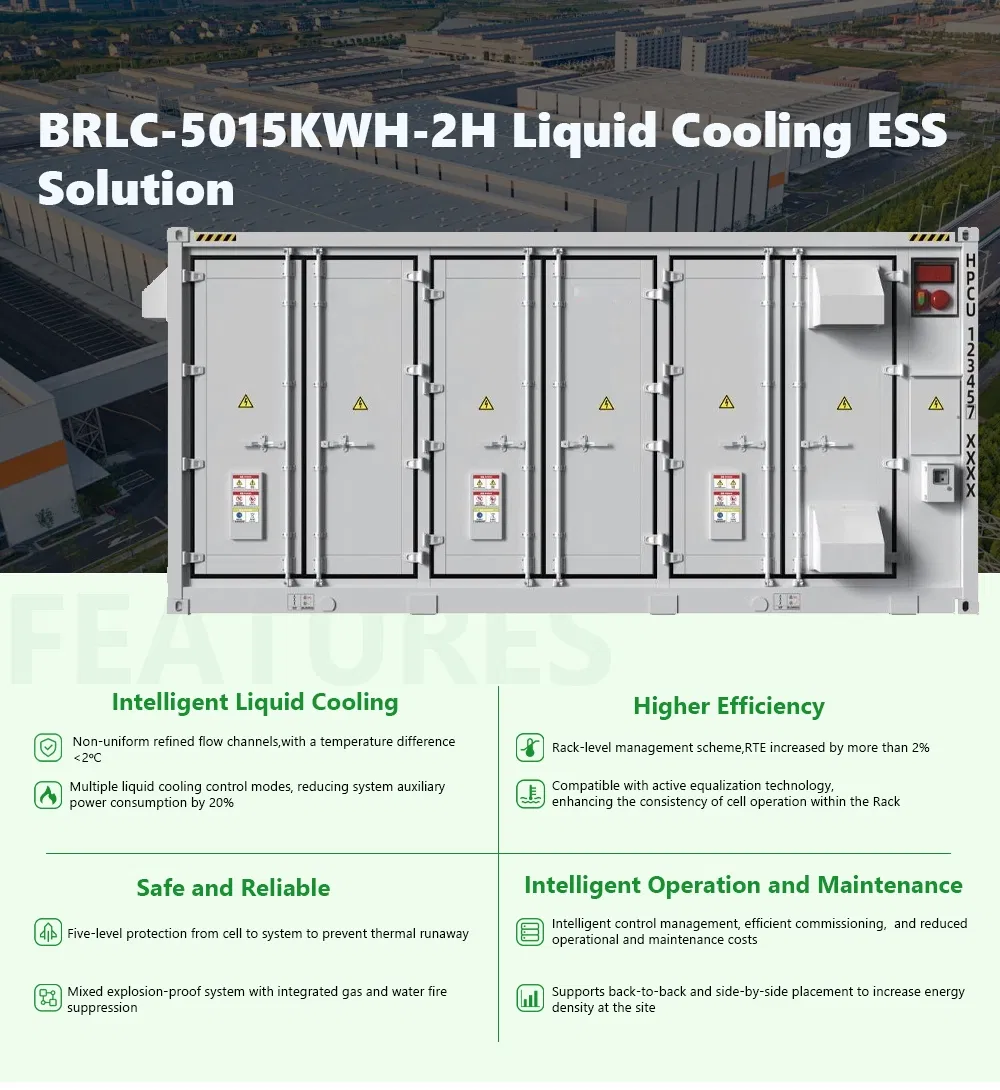

Grid-Tied Energy Storage System
Technical Specifications
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Storage temperature−20~45ºC
Corrosion-proof gradeC4/C5(optional)
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communicationEthernet / CAN / RS485
Dimension (L×W×H)6058×2438×2896mm
Weight≈42000 kg
Packaging & Delivery
Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Transport Package
Carton and Pallet
Product Visuals

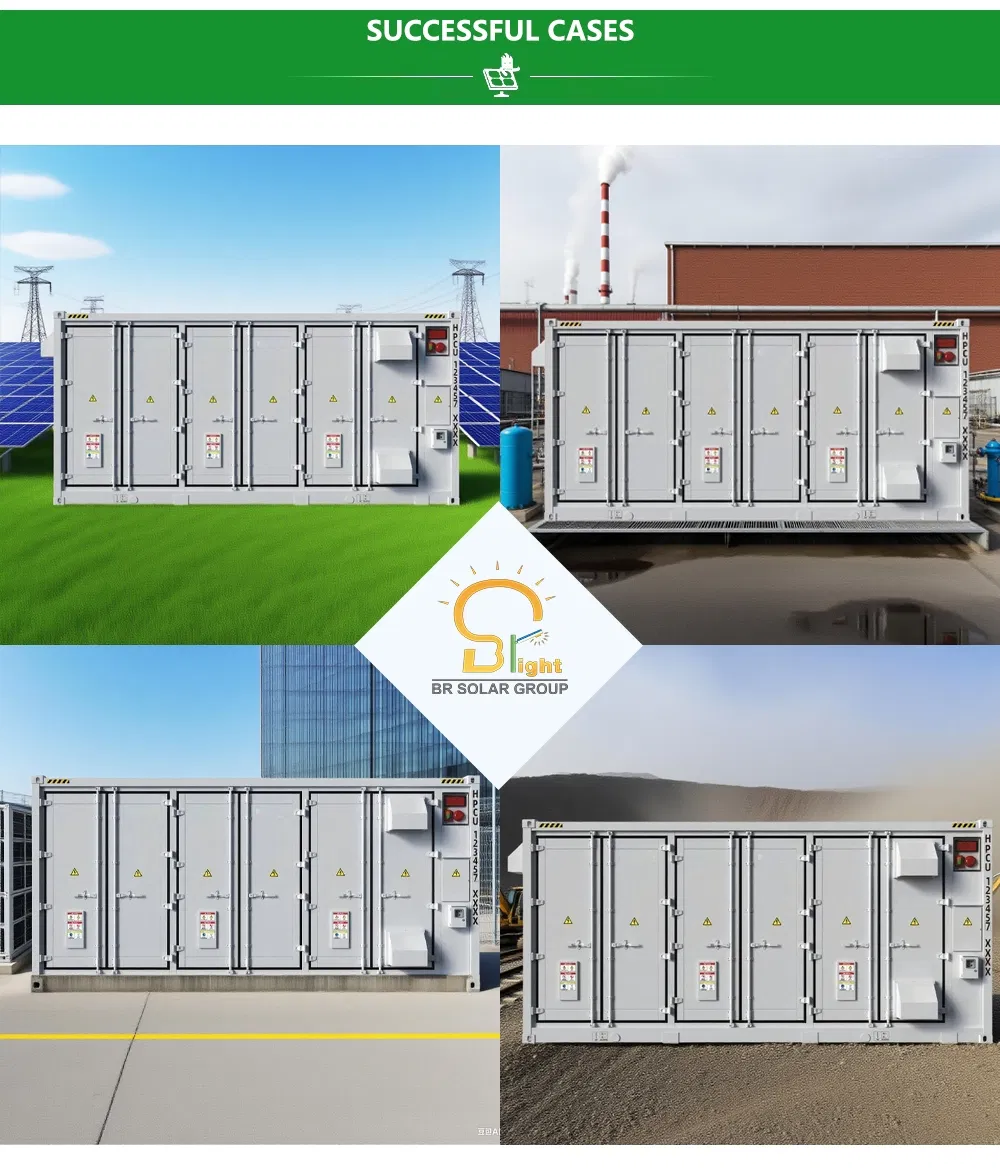

Energy Storage Detail 1

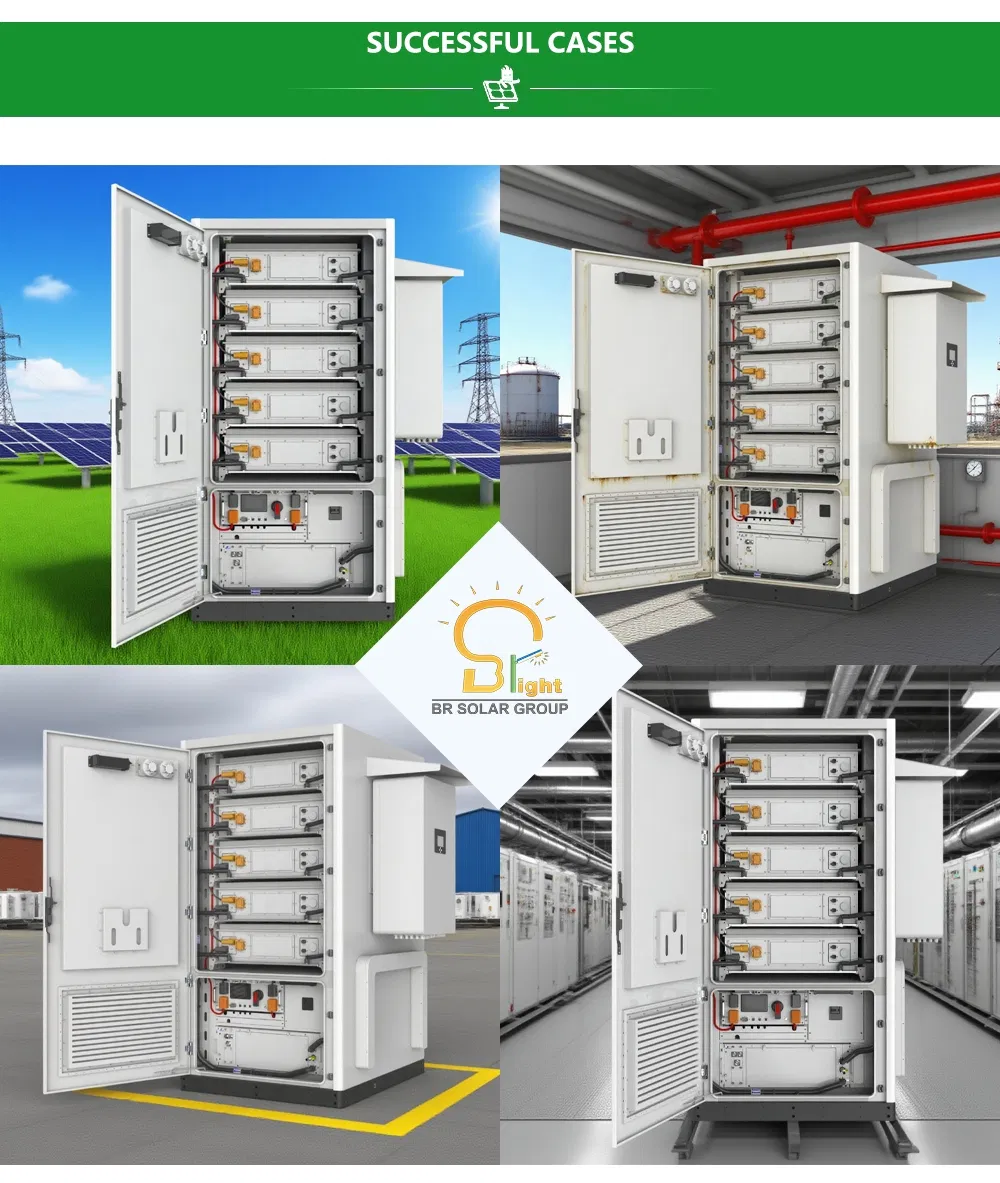

Energy Storage Detail 2
Energy Storage Detail 3
Energy Storage Detail 4

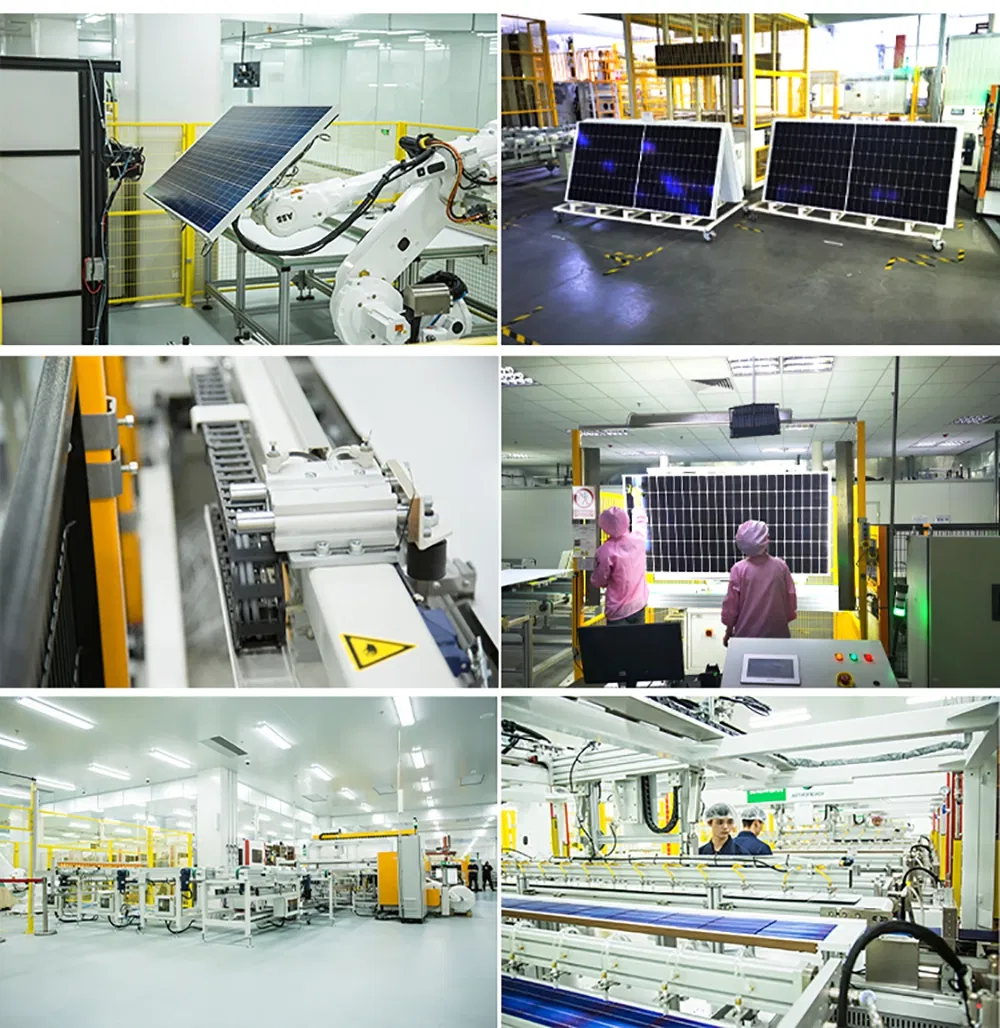

Energy Storage Detail 5
Energy Storage Detail 6

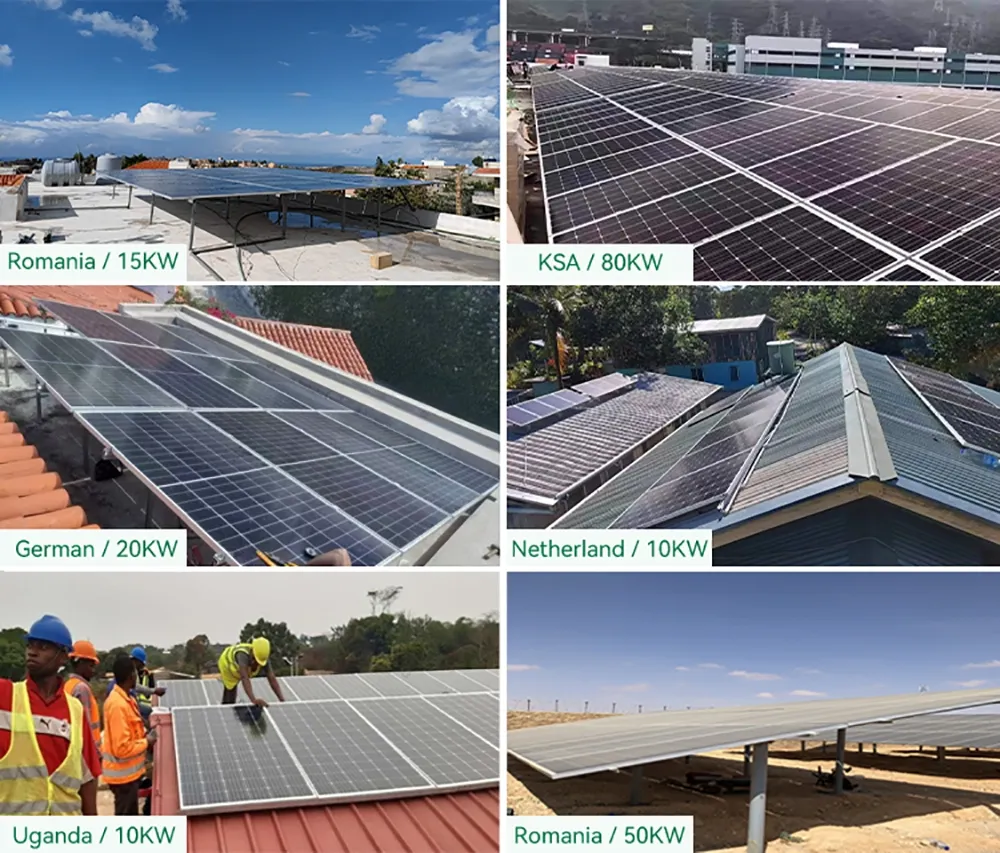

Energy Storage Detail 7
Energy Storage Detail 8

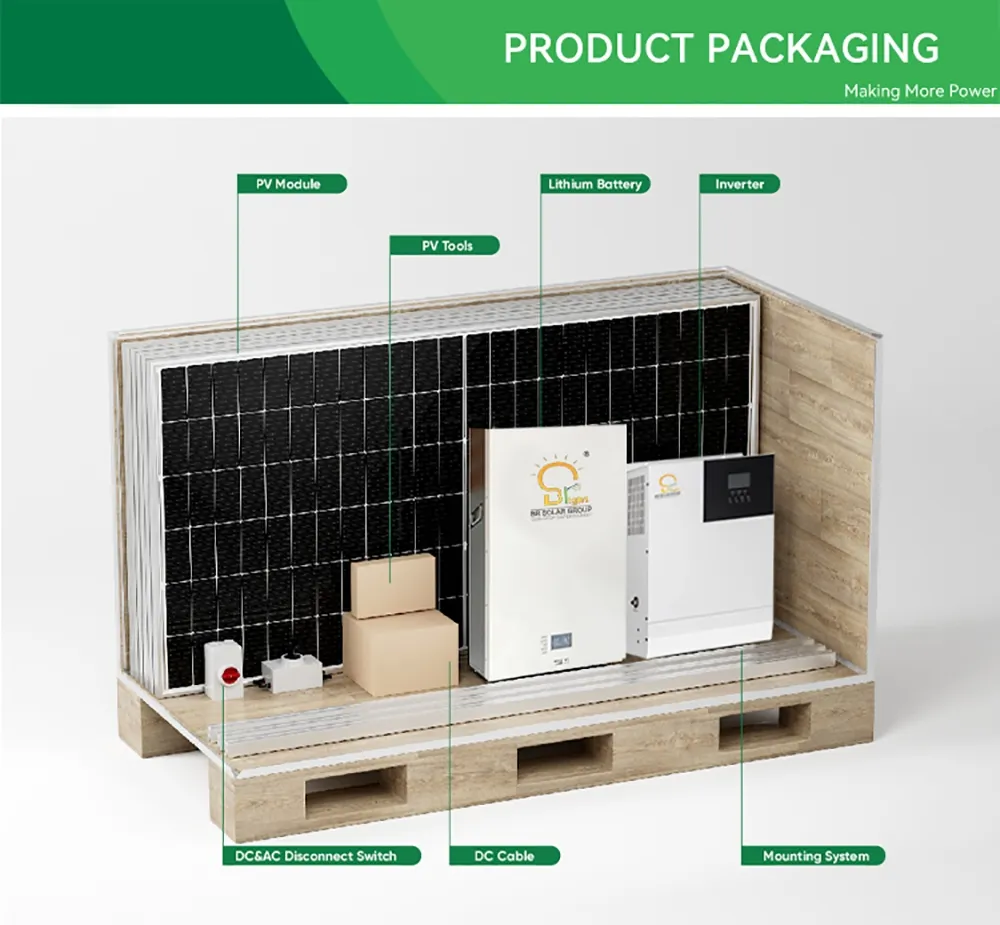

Energy Storage Detail 9
Frequently Asked Questions
1. What battery technology is used in this system?
The system utilizes Lithium Iron Phosphate (LFP) cells, which are known for their high thermal stability, safety, and long cycle life compared to other lithium-ion chemistries.
2. How does the liquid cooling system work?
The liquid cooling method actively manages the temperature of the battery cells, ensuring uniform heat distribution. This prevents overheating and significantly extends the operational lifespan of the system.
3. Is this energy storage system suitable for outdoor use?
Yes, the system features an IP55 protection rating and optional C4/C5 corrosion-proof grading, making it highly durable for industrial, commercial, and outdoor factory environments.
4. What safety features are integrated into the unit?
Safety is a priority. The unit includes temperature sensors, smoke and combustible gas detectors, deflagration venting, fire extinguishing gas systems, and water sprinklers for comprehensive fire protection.
5. What are the typical applications for this 5.01 MWh system?
This containerized system is ideal for large-scale energy storage needs including industrial factories, commercial complexes, schools, and grid-tied renewable energy support.
6. What communication interfaces are supported?
The system supports standard industrial communication protocols including Ethernet, CAN, and RS485 for seamless integration with existing monitoring and management systems.
