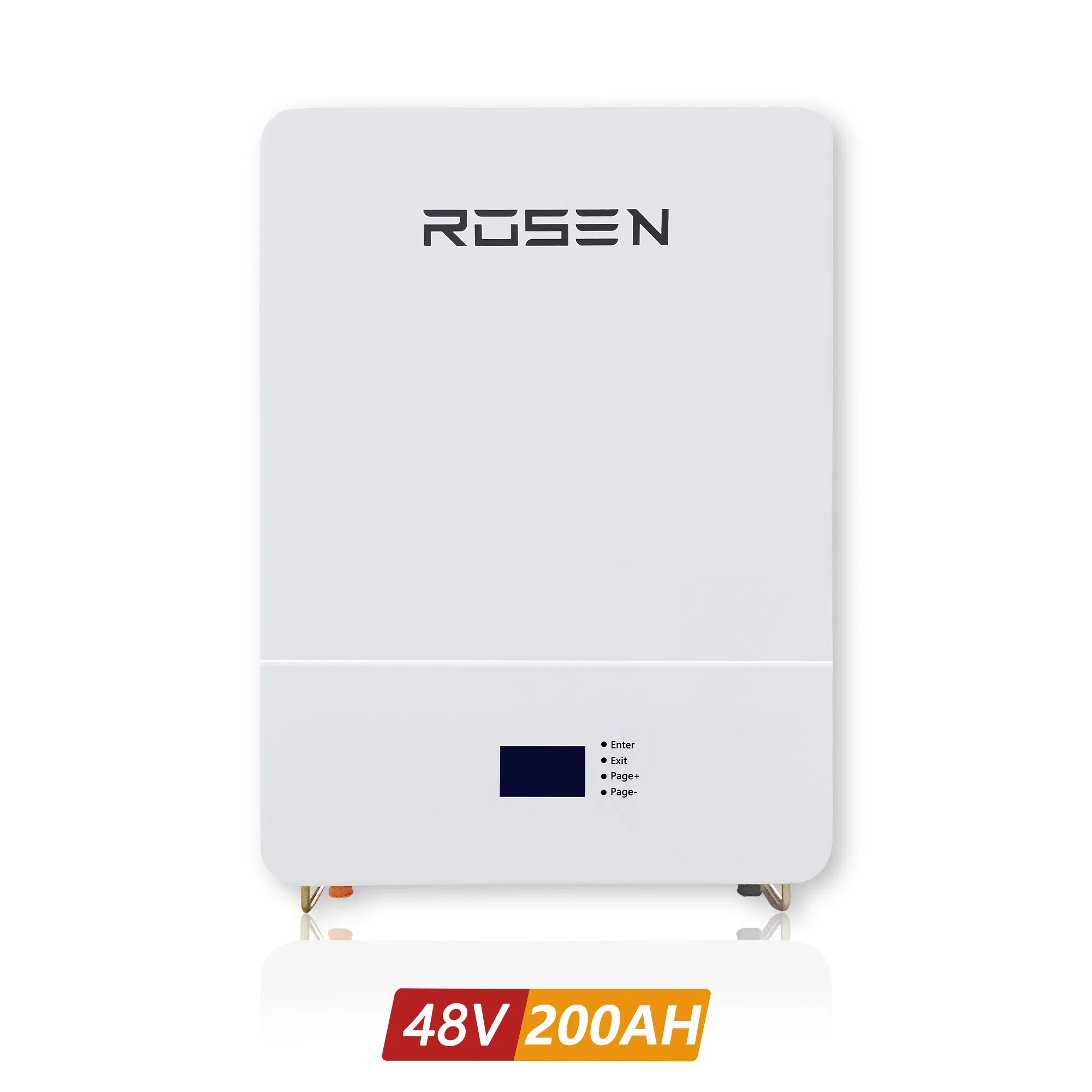

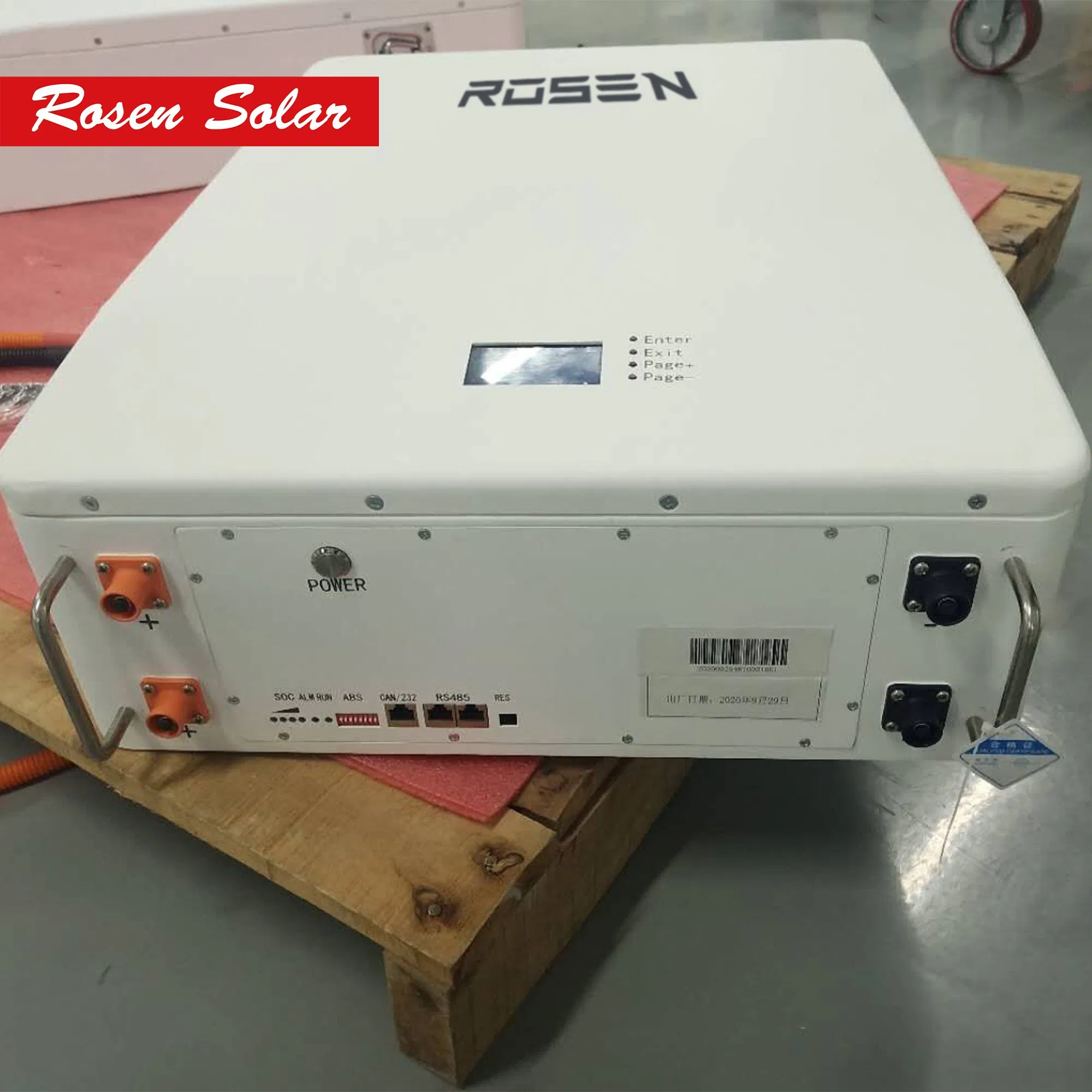

Our Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables & accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

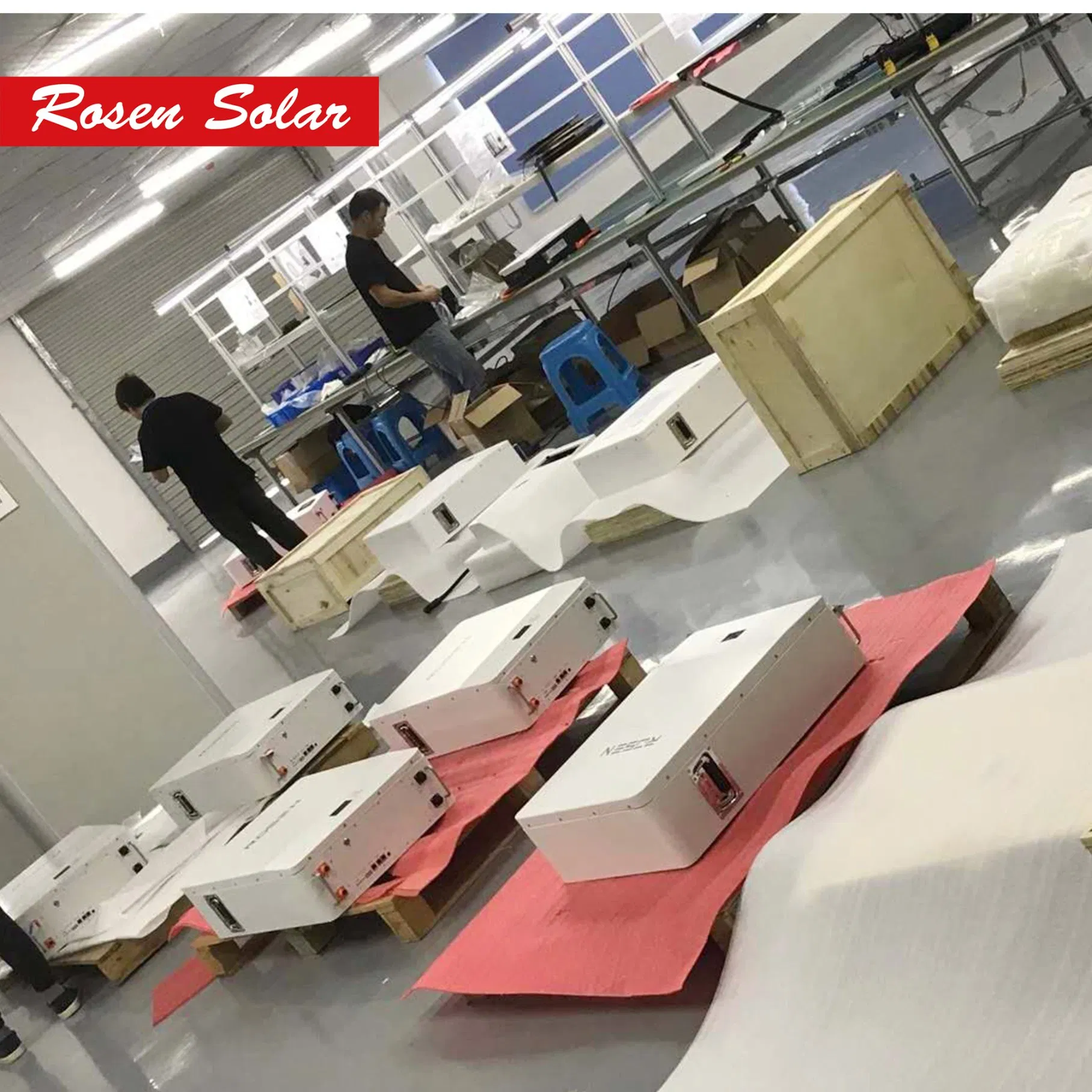

Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Powerwall has won global approval!
Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
| Type | Module | Powerwall | |||
|---|---|---|---|---|---|
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | |
| Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 | |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 | |
| Net Weight (kg) | 35 | 68 | 95 | 108 | |
| Dimension [H*W*D, mm] | 442*480*88 | 680*495*185 | 680*495*185 | 680*495*185 | |
| Operating Temp Range | -20 ~ 50 [ºC] | ||||
| Communication | CAN / RS485 / DRY CONTACT | ||||
| Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||
| Warranty | 10 Years | ||||

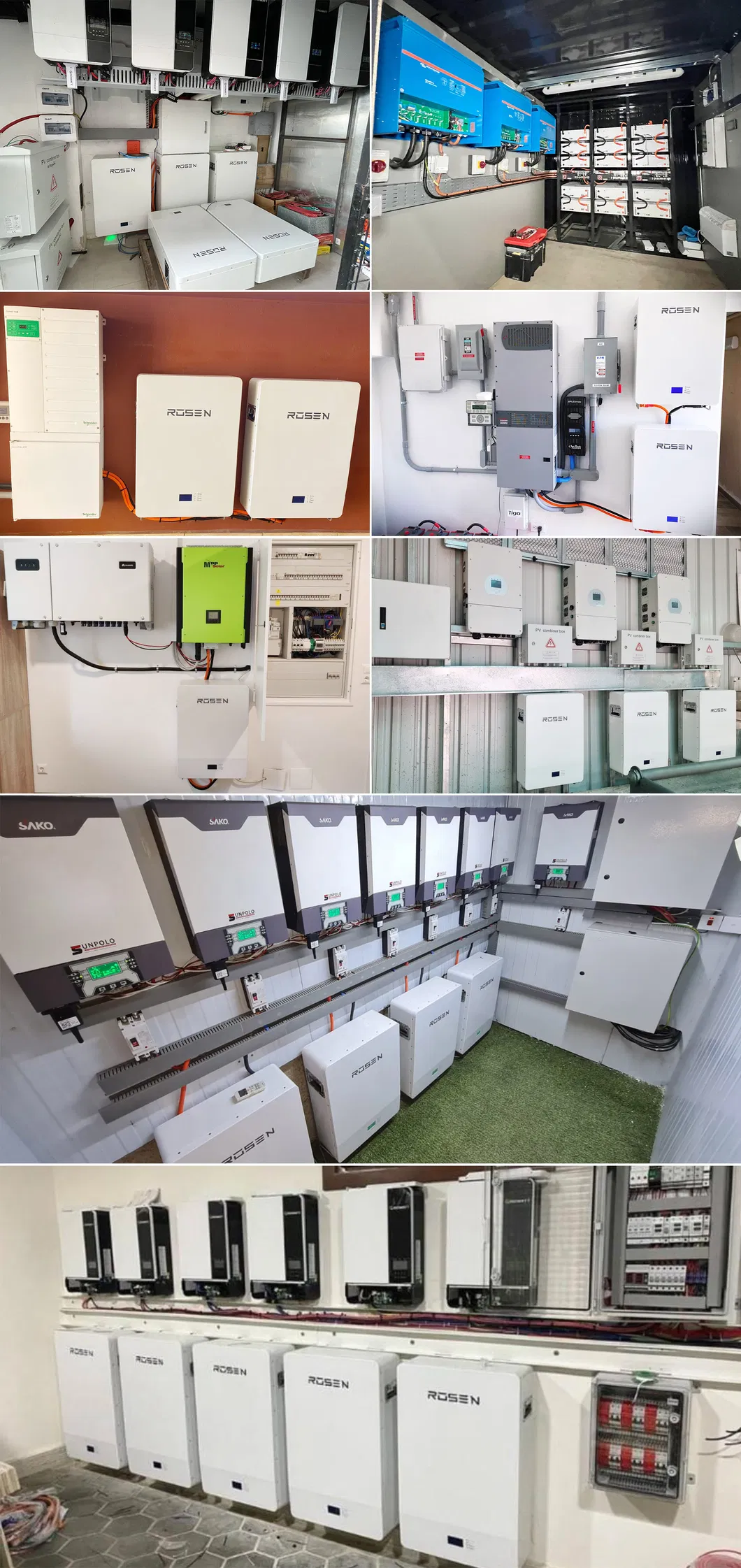

Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types 48Vdc or 51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage inverters 3kw, 5kw, 8kw, 10kw, 12kw etc. DOD more than 6000 cycles for long life usage.
Commercial projects BESS are more for factories like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc, with containerized design and EMS programmable. Lithium battery warranty is up to 10 years, and MSDS/UN38.3 certificates are listed for safety installation.
