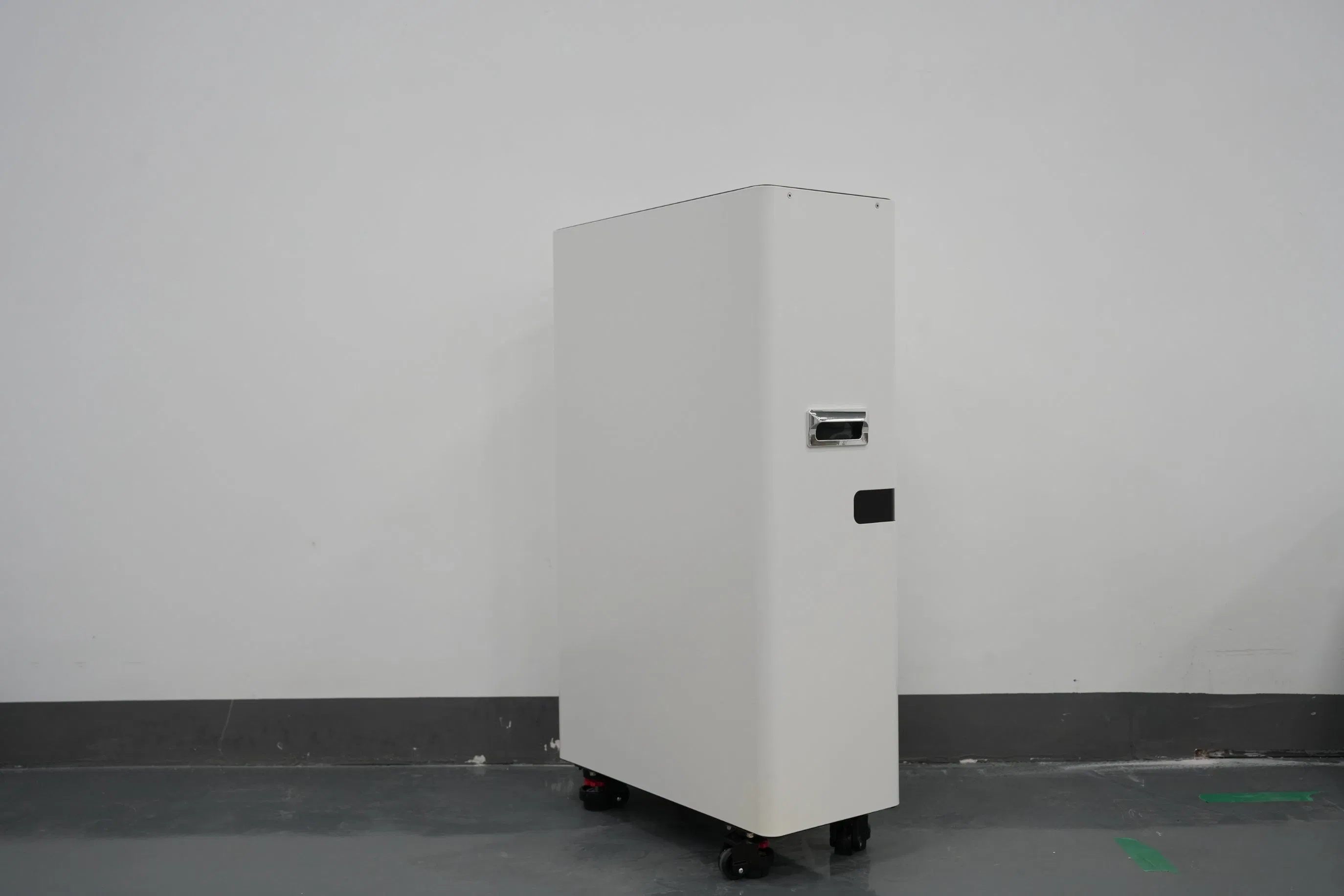

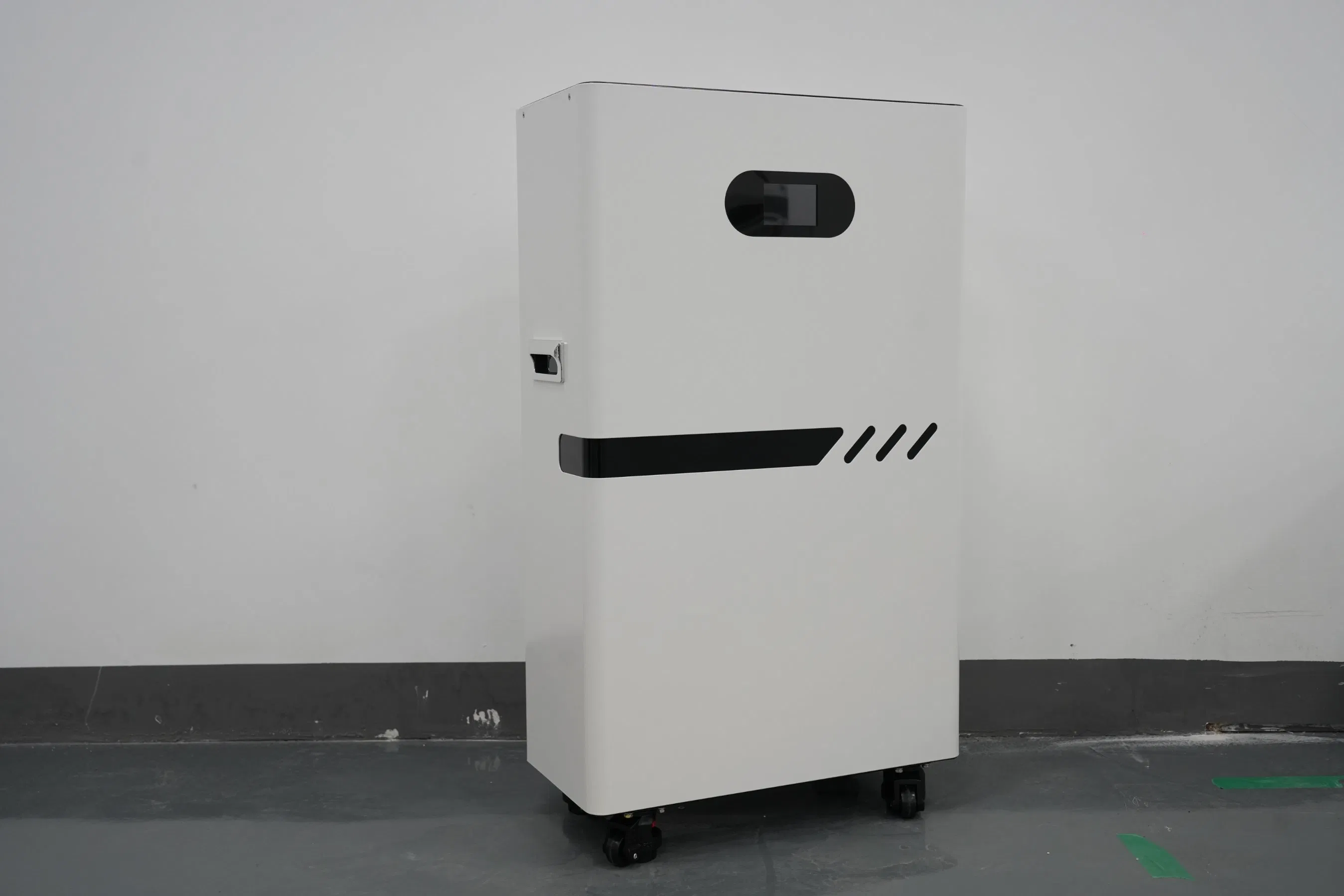

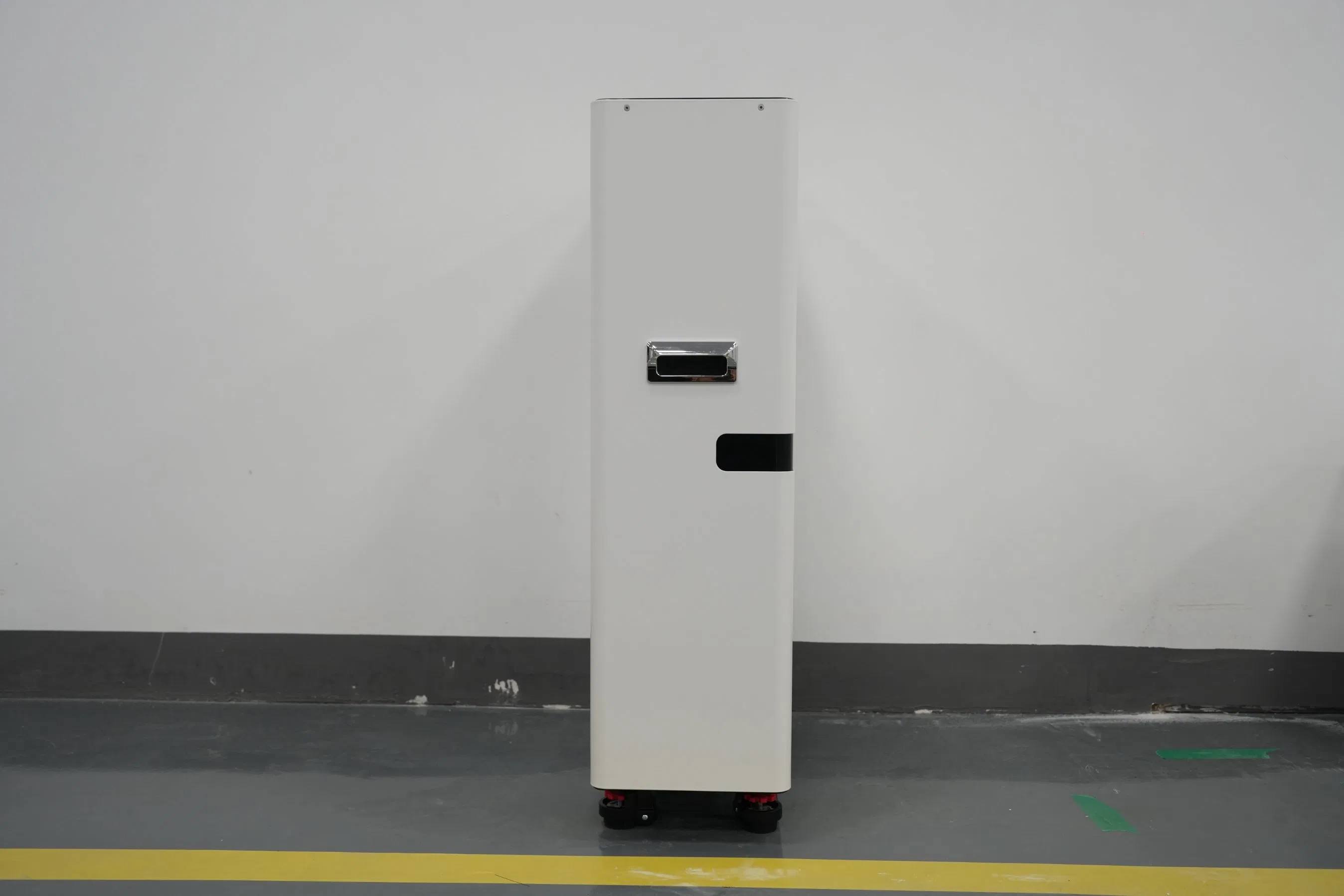

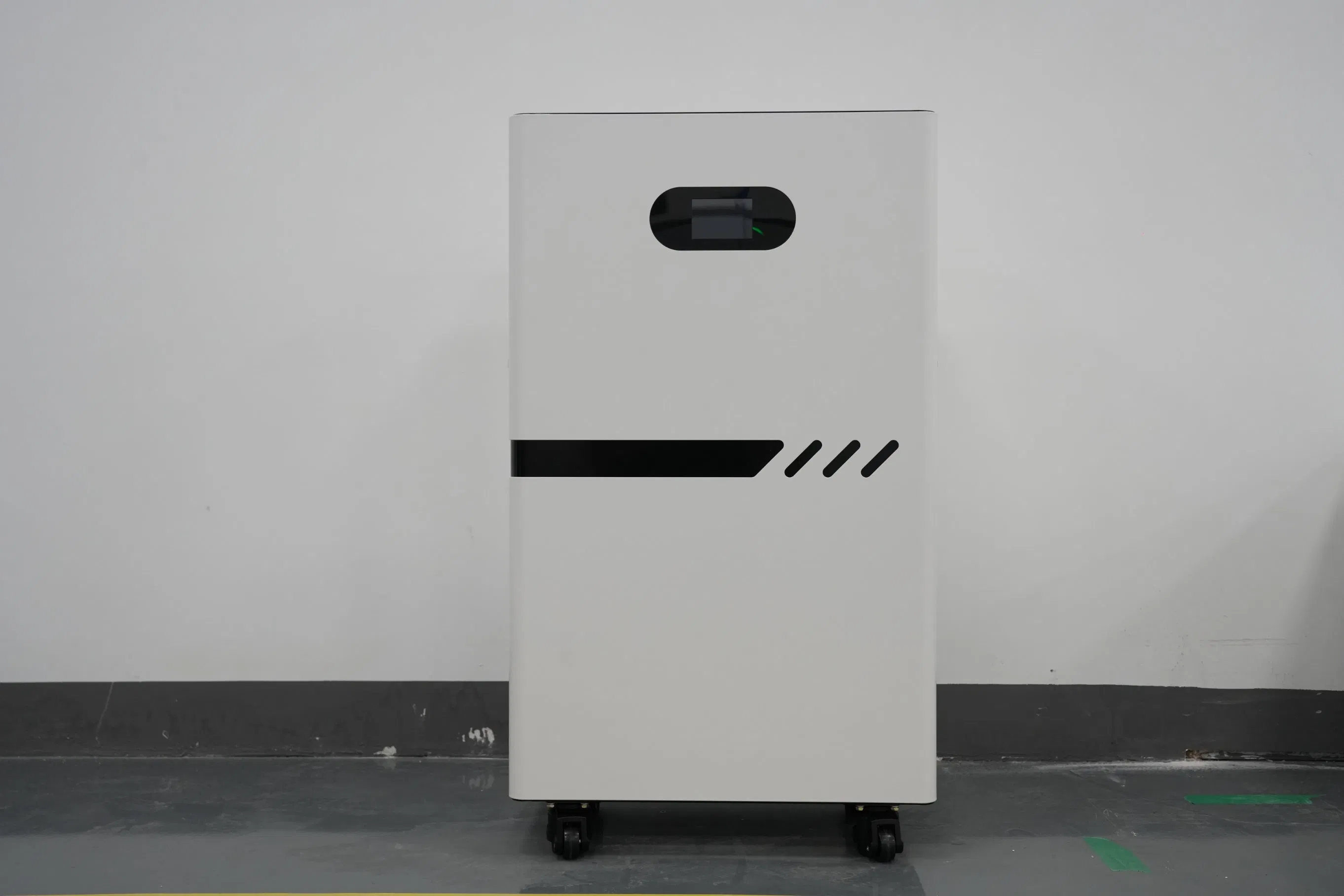

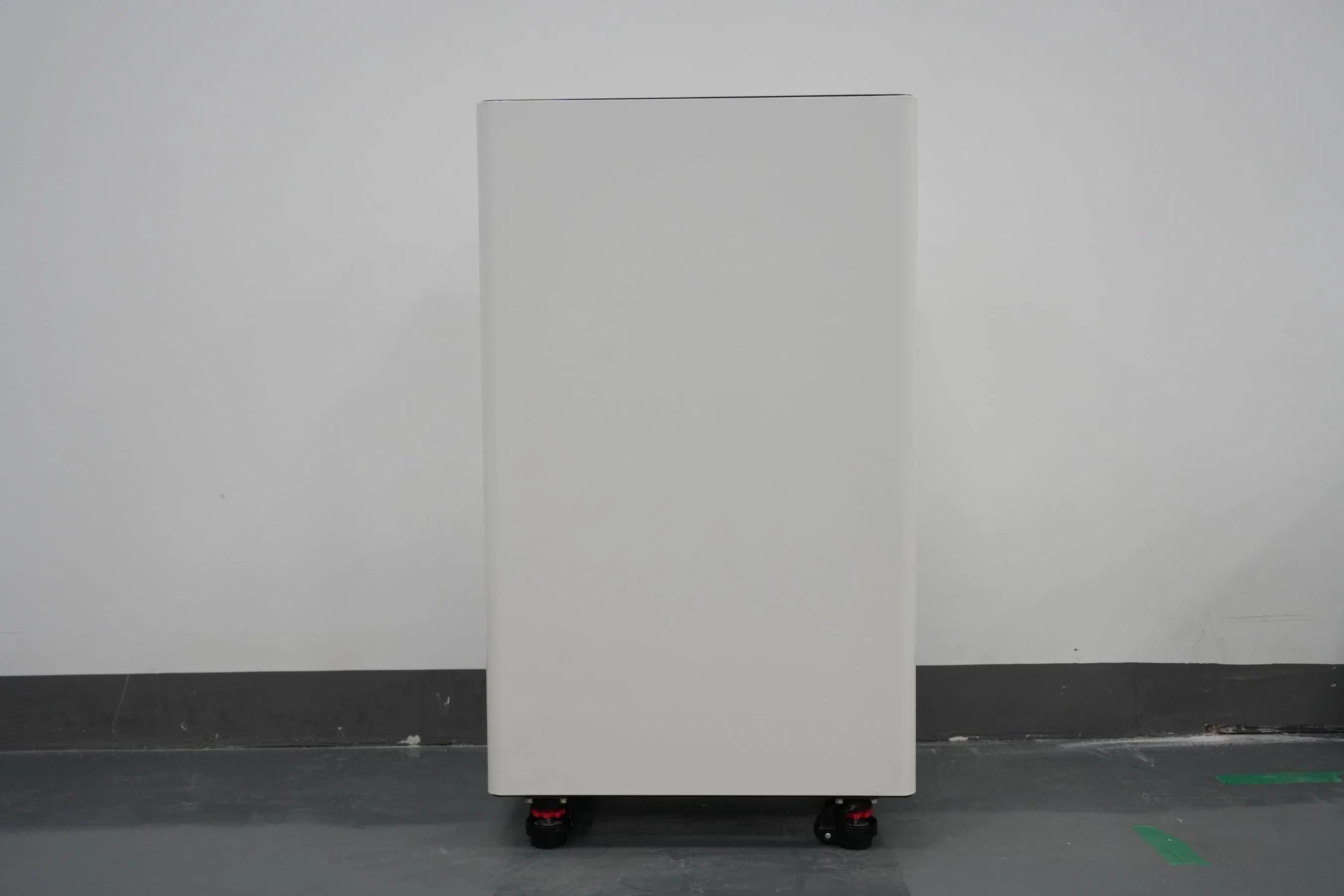

Unlock true energy independence with our Stackable Home Energy Storage System — a powerful, modular solution designed for residential solar storage, backup power, and off-grid living.

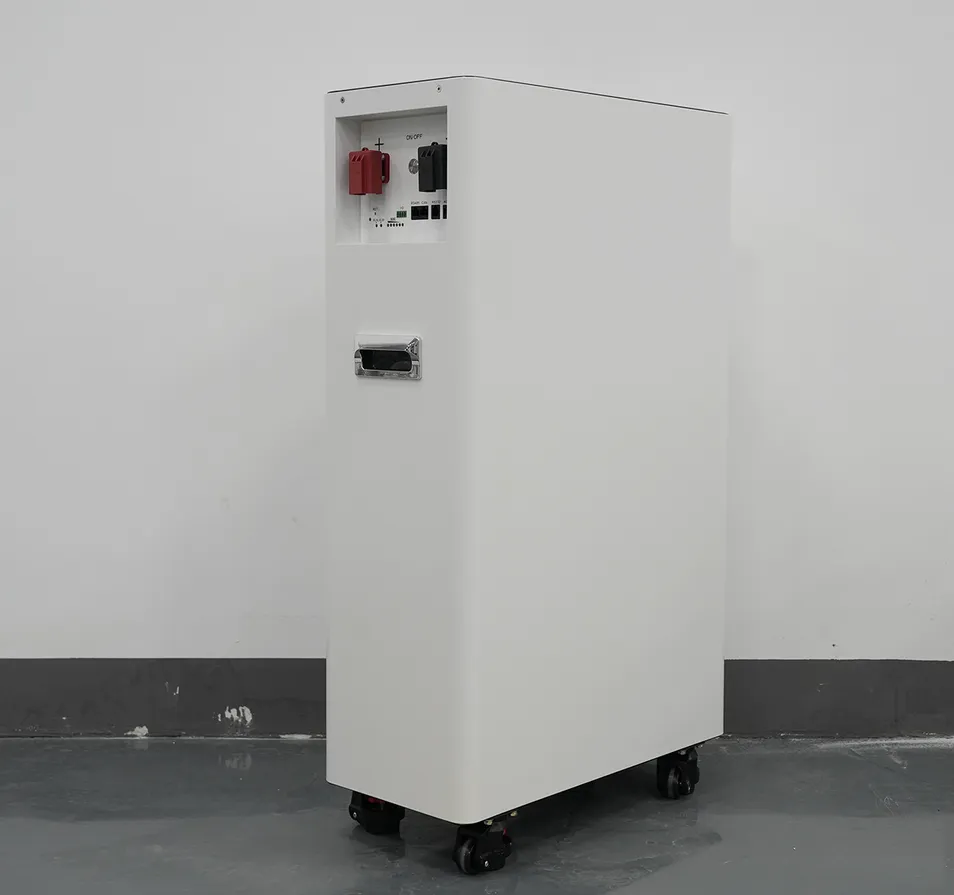

Each 5.12kWh LiFePO4 battery module can be stacked from 1 to 5 units, delivering a scalable capacity of up to 25.6kWh to match your household's unique energy demands.

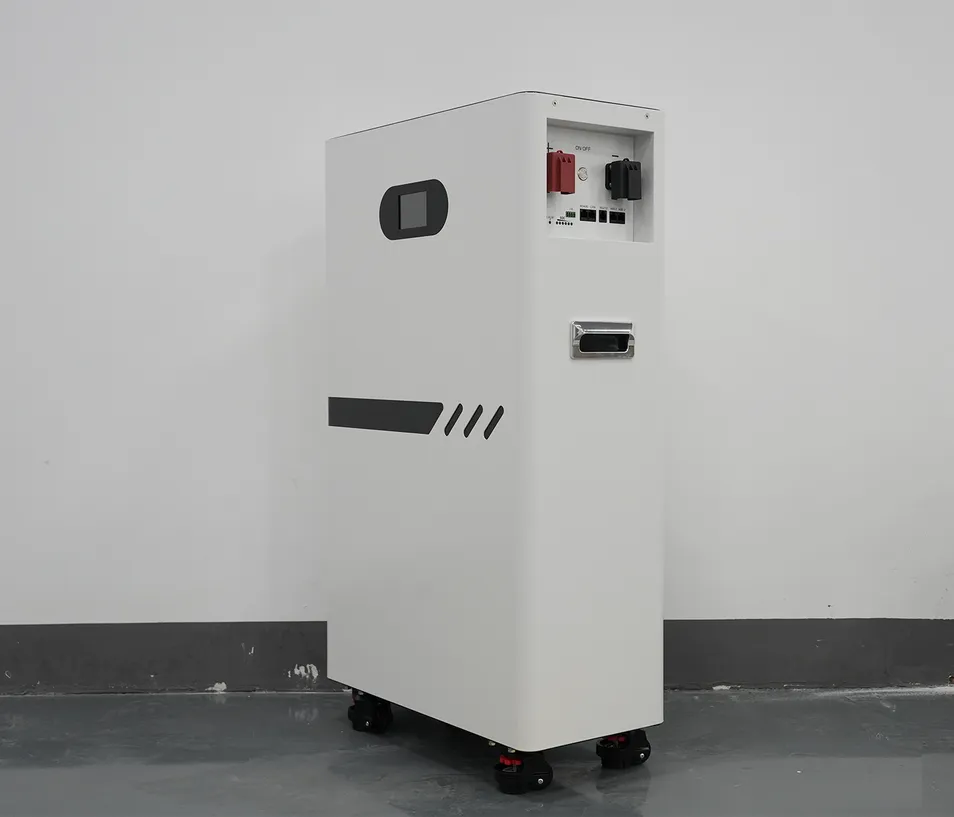

This all-in-one ESS integrates a high-efficiency 5000W pure sine wave inverter and a 5500W MPPT solar charge controller (120–500VDC input range), enabling seamless compatibility with most residential PV systems.
With a 90% depth of discharge (DOD), 100A discharge current, and built-in UPS functionality, this system ensures reliable, uninterrupted power for your home — day or night, on-grid or off-grid.
| Model | SMP-EU202-2 | SMP-EU202-3 | SMP-EU202-4 | SMP-EU202-5 |
|---|---|---|---|---|
| Single Module Capacity | 5.12kWh | |||
| Module Number | 2PCS | 3PCS | 4PCS | 5PCS |
| Total Energy | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh |
| Standard Voltage | 51.2V | |||
| DOD | 90% | |||
| PV Input Range | 100~500VDC (MPPT: 125~425VDC) | |||
| Max Input Power | PV1: 5500W / PV2: 5500W | |||
| AC Output Power | 10000W (Battery mode) | |||
| Net Weight (Module) | 46kg | |||
| Communication | CAN / RS485 / RS232 / WIFI (Optional) | |||
Stack 1 to 5 battery modules (5.12kWh each) to create a customized energy storage system ranging from 5.12kWh to 25.6kWh. Easily expand your capacity as your energy needs grow.
Built with safe, long-lasting lithium iron phosphate (LFP) cells, offering superior thermal stability, a lifespan of 6,000+ cycles, and 90% usable DOD.
Features a powerful built-in pure sine wave inverter with 5000W rated output power. Automatic switchover during grid failures (response within milliseconds) keeps critical devices running without interruption.
