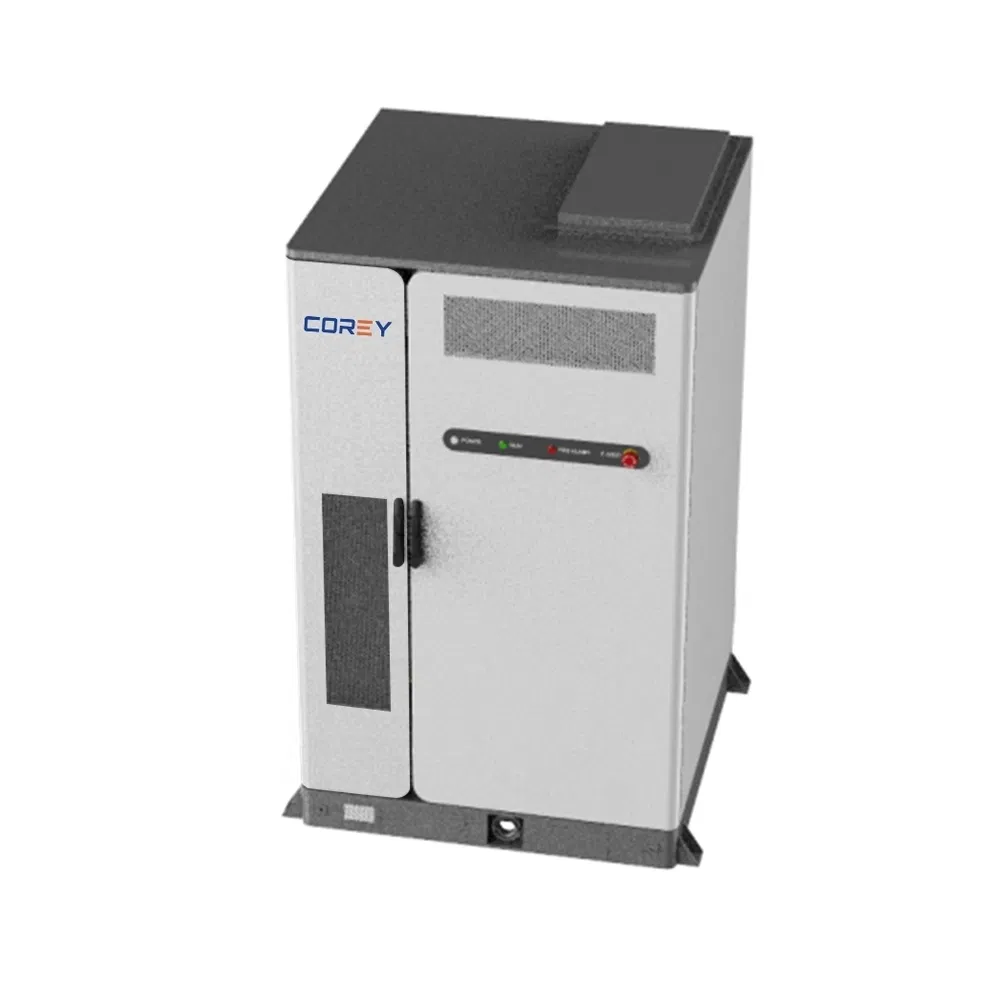

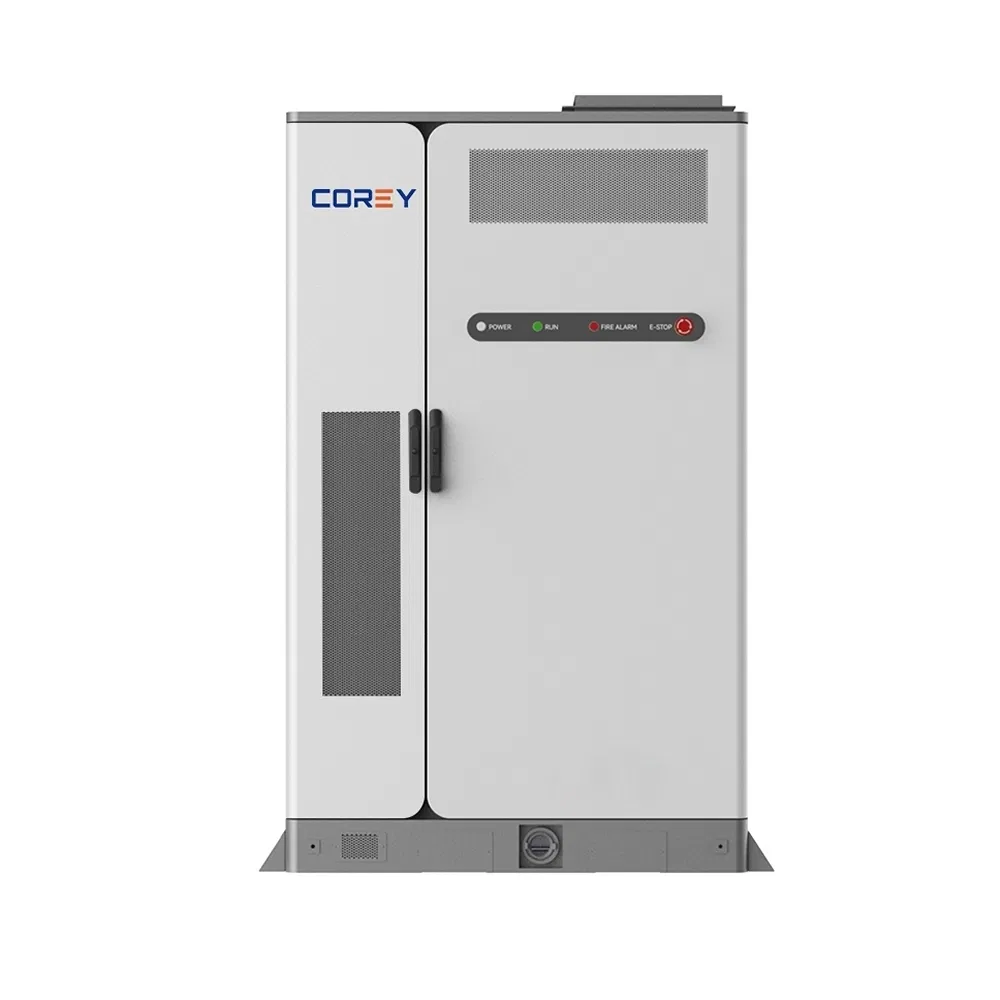

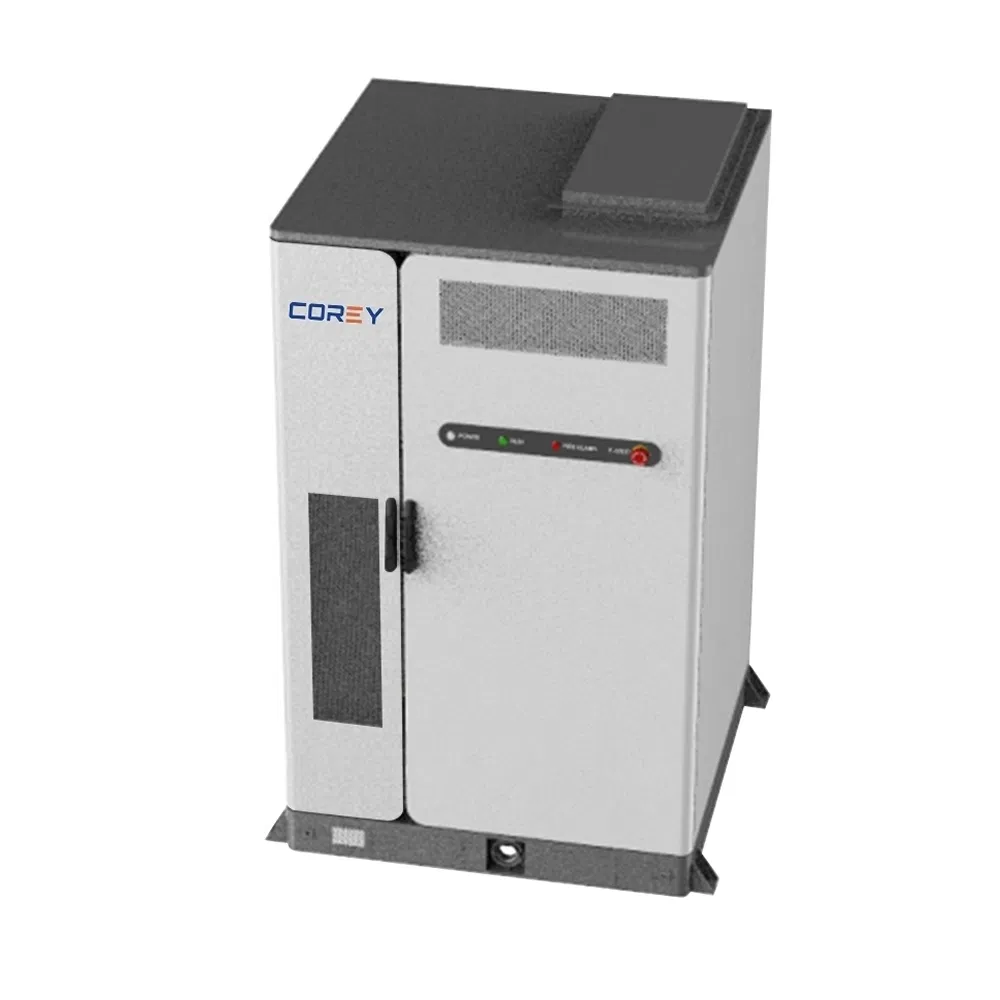

Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
1 / 5
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System
Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System

Insulation Detection 233 Kwh Liquid-Cooled Containerized Solar Energy Storage System

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2800kg+-50kg
Send Inquiry

Product Description

i

Basic Information

Model
233 CE
Nominal Voltage
105kw
Warranty
5 Year
Nominal Capacity
233kWh
Cycle Life
9000
System Capacity
233kwh
Battery Cell
LFP(LiFePO4) 3.2V 280Ah
Cooling Method
Intelligent Liquid Cooling
Protection Level
IP54
Anti-Corrosion
C4 Level
★

Product Description

Industrial Commercial Energy Storage System

Industrial & Commercial Energy Storage System

The industrial and commercial energy storage cabinets use an integrated design with high flexibility. This modular approach ensures that facilities can easily expand their storage capacity to meet growing electricity demands or adapt to changing operational requirements.

  • Safe & Reliable: Features C4 anti-corrosion, IP54 protection, and multi-stage fire suppression systems.
  • Smart Management: Integrated Intelligent Battery Management System (BMS) to optimize performance and extend cycle life.
  • Versatile Application: Ideal for factories, commercial complexes, remote areas, and regions with power stability challenges.
⚙

Technical Parameters

System Specification Details
System ParameterBattery CellLFP(LiFePO4) 3.2V 280Ah
Rated Power105KW
Fire FightingAerosol (Pack + Cluster Level) + Water (Cabinet Level)
Operating Temp-20ºC to 50ºC (Discharge)
Dimensions1560mm * 1380mm * 2385mm
AC SideRated Voltage230V/400V (±15%)
Rated Frequency50/60 Hz
Maximum Current167A
Conversion Time<100ms
DC SideRated Voltage832V
Voltage Range728~936V
Discharge Depth95% DOD
♦

Key Features & Details

Strong Flexibility: Modular design adapts to various power requirements and supports seamless expansion.
Intelligent Management: Equipped with Energy Management System (EMS) for remote monitoring and load optimization.
Economic Efficiency: Perfect for peak-shaving, reducing electricity costs by utilizing valley pricing.
Environmental Protection: Facilitates renewable energy integration, helping achieve carbon neutrality.

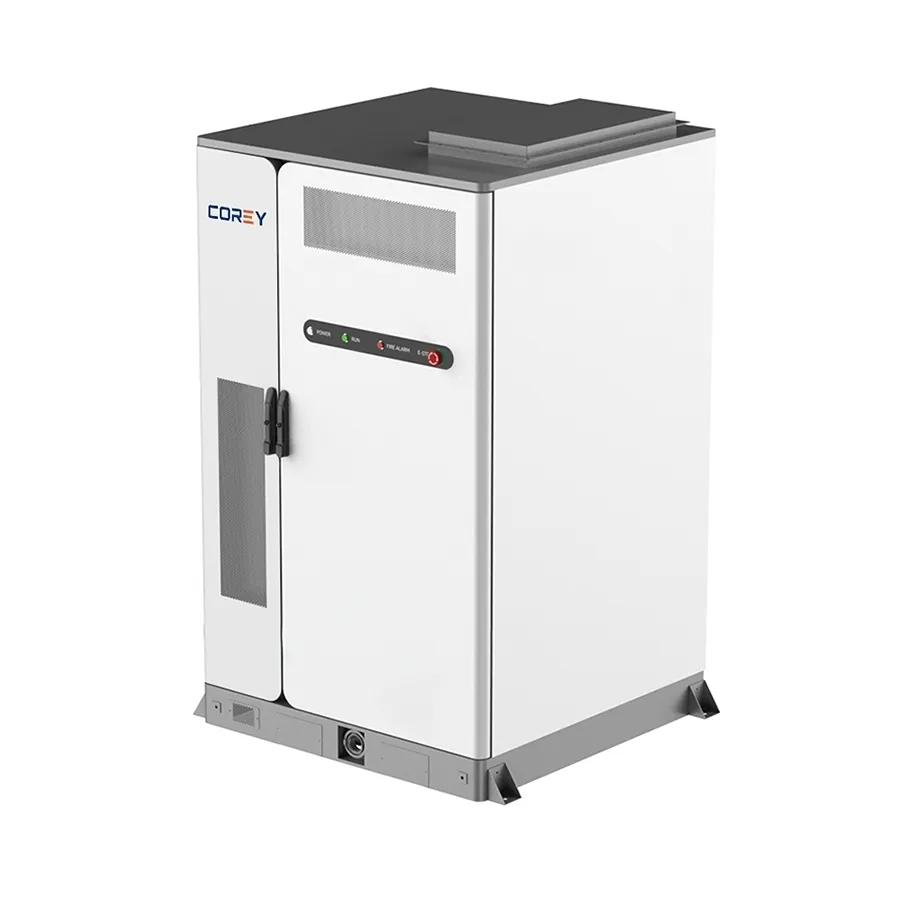

Details 1
Details 2

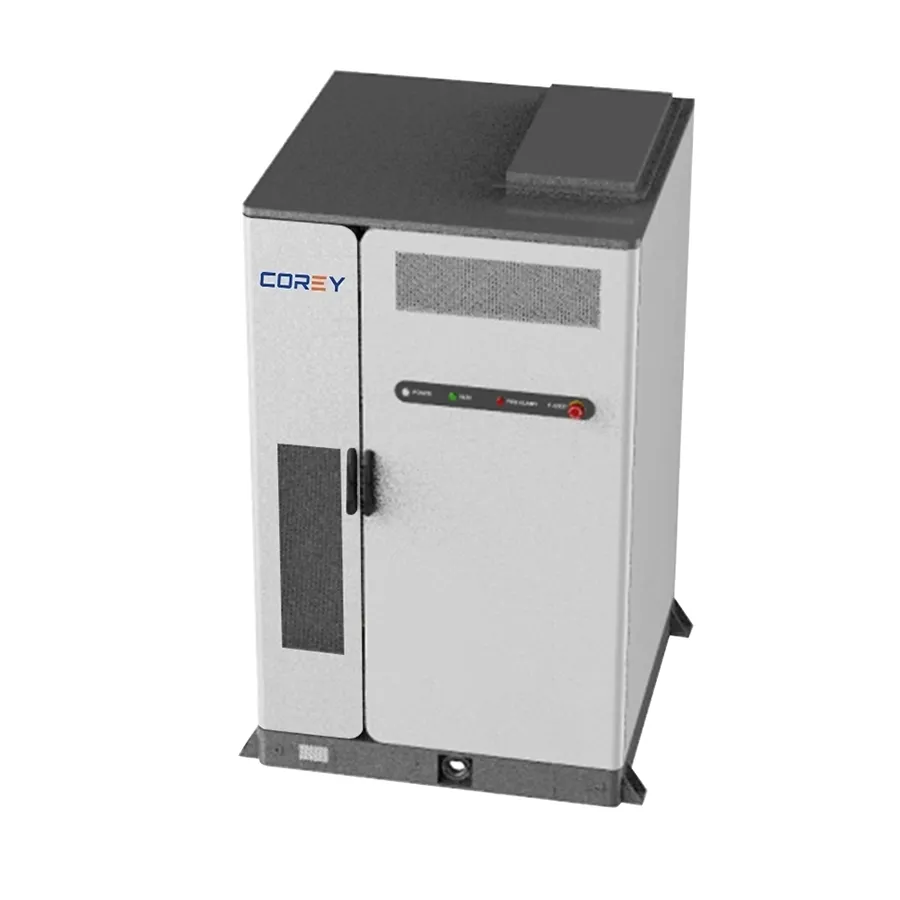

Details 3
Details 4
Details 5

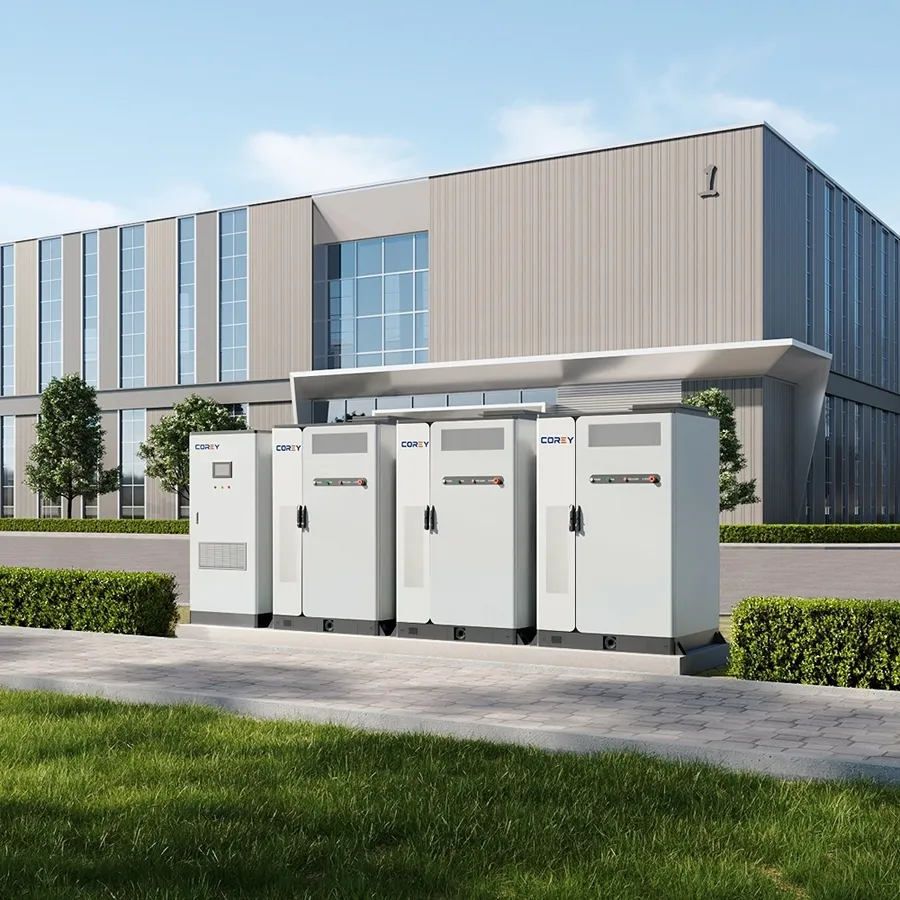

Details 6

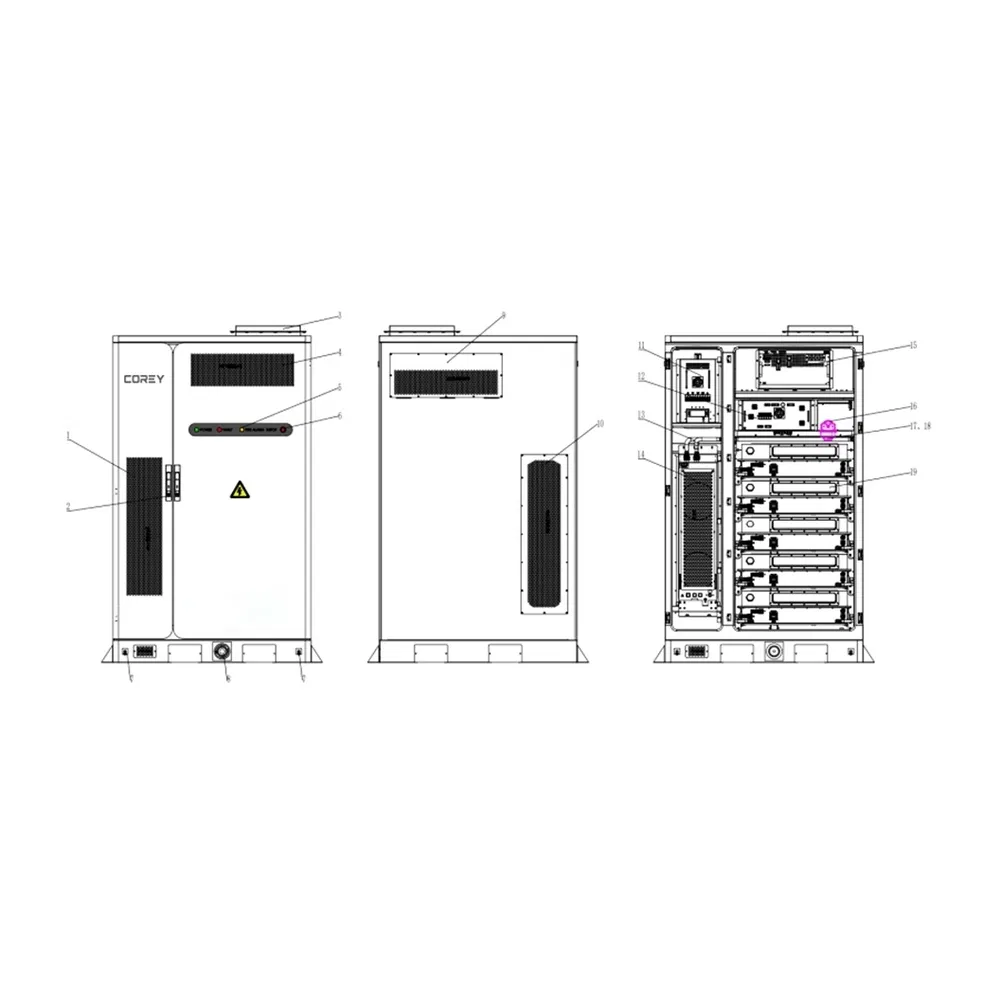

System Internal Structure
Certifications and Testing
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer integrating industry and trade, focusing on advanced energy storage solutions.
Is customization available for these systems?
Yes, we support on-demand customization including color, appearance, dimensions, and logo integration to suit your specific project needs.
What is the typical lifespan and cycle count of the battery cells?
The system utilizes high-quality LFP cells with a cycle life of up to 9000 cycles, ensuring long-term operational reliability.
What safety standards do your storage systems meet?
Our systems are designed to meet international safety standards, including C4 anti-corrosion, IP54 protection, and multiple fire suppression certifications like UN38.3 and EN 62619.
How is the cooling handled in the energy storage cabinet?
The system employs an Intelligent Liquid Cooling method, which is more efficient than traditional air cooling for maintaining optimal battery temperatures.
What is the turnaround time for a customized quotation?
Once you provide your specific energy requirements and application scenarios, we can typically provide a tailored solution and quotation within 24-48 hours.
