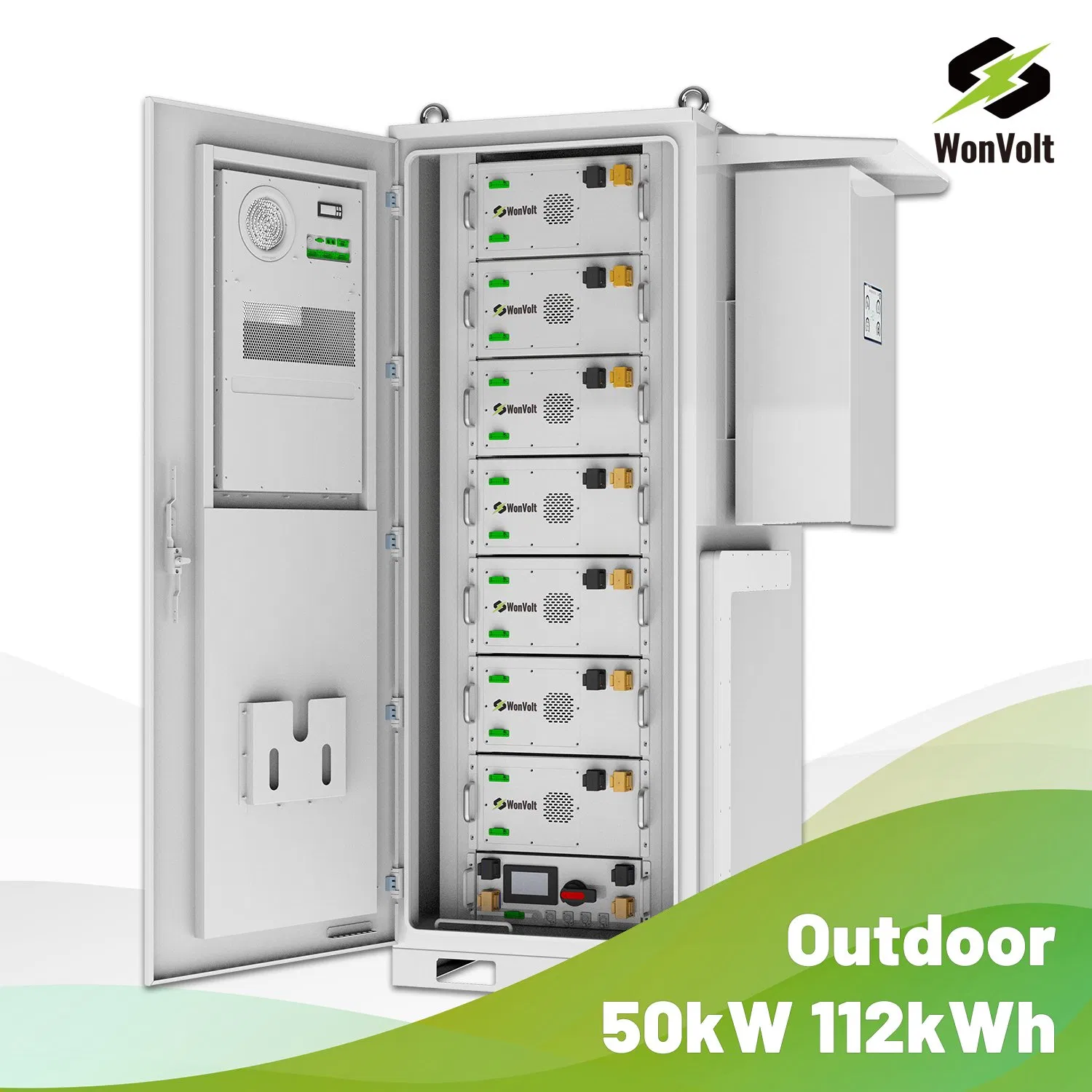

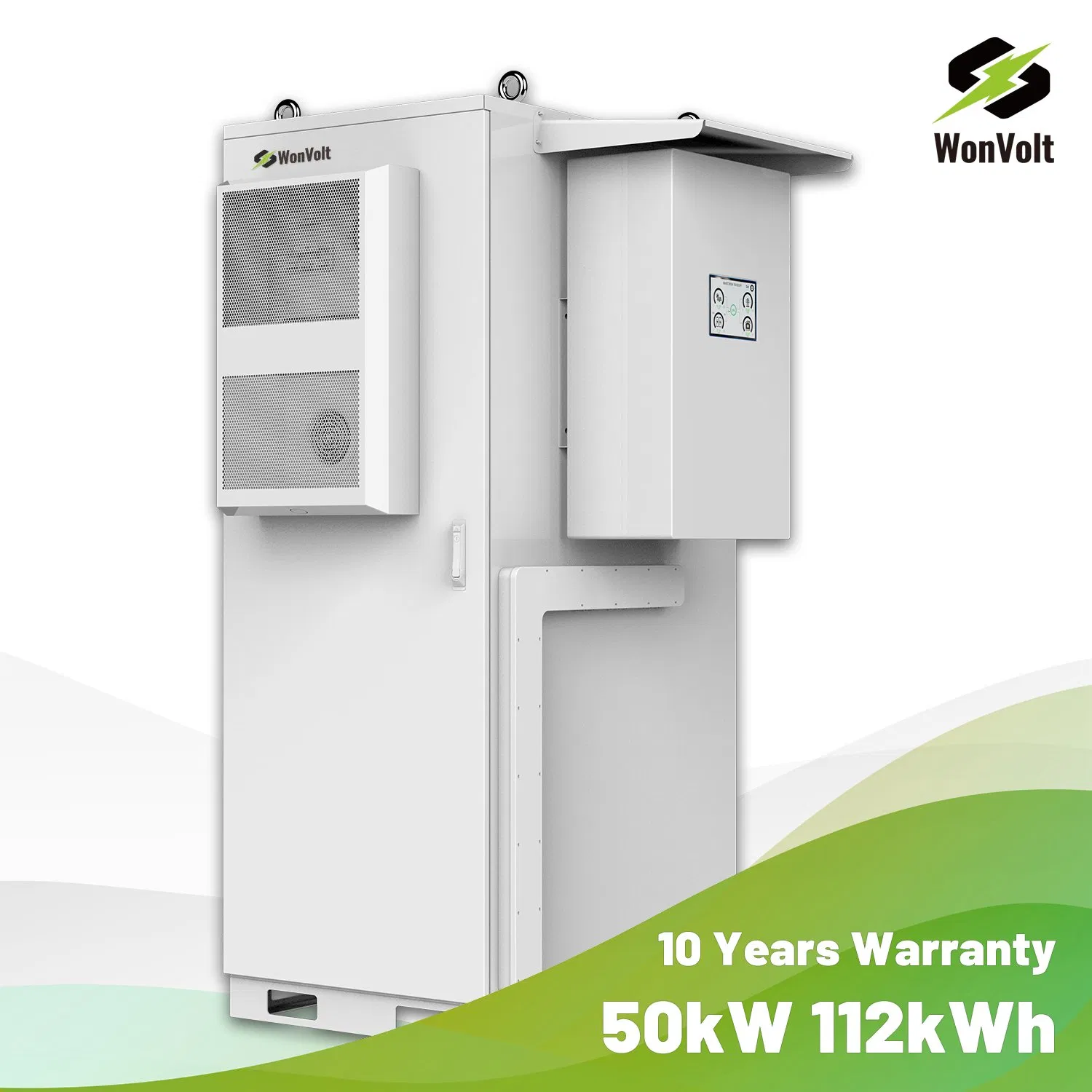

All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
1 / 5
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage
All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage

All-in-One Hybrid Battery Cabinet 100kwh 200kwh Bess Battery Energy Storage Container for Commercial Solar Storage

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specification
Model NO.
PowerPLANT-H112
Rechargeable
Yes
Size
Medium
Communication
RS485 / CAN
Design Life
15 Years+ (25°C)
Cycle Life
10000 Times (25°C)
Certificates
CE/RoHS/Un38.3/MSDS
Application
Supermarket, Restaurant, Peak Shaving
Firefighting
Aerosol
AC Voltage
220VAC 400VAC 480VAC
Net Weight
1260kg
Cooling Method
Industrial AC
HS Code
8507600090
Production Capacity
5 Gwh/Year
🔍 Product Overview

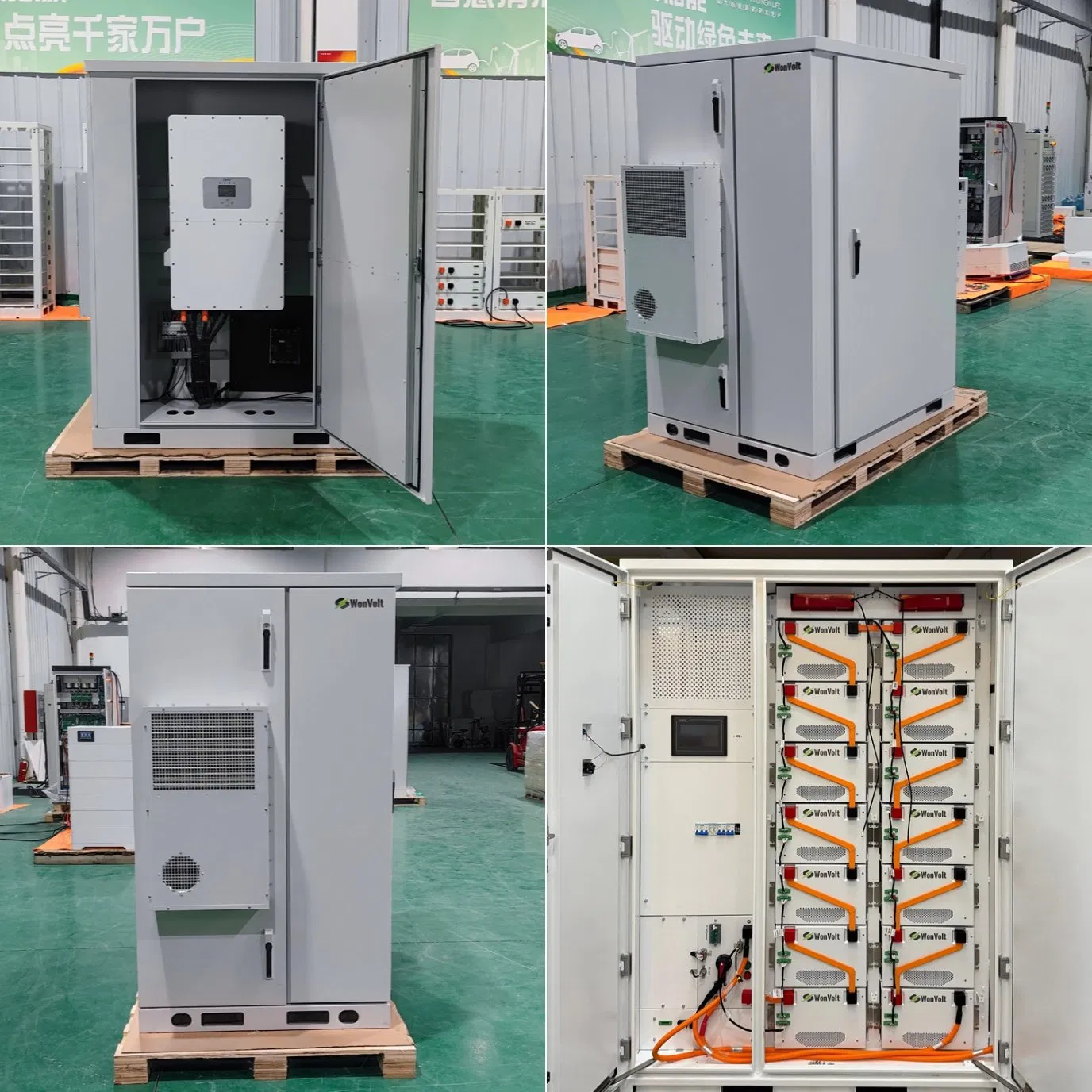

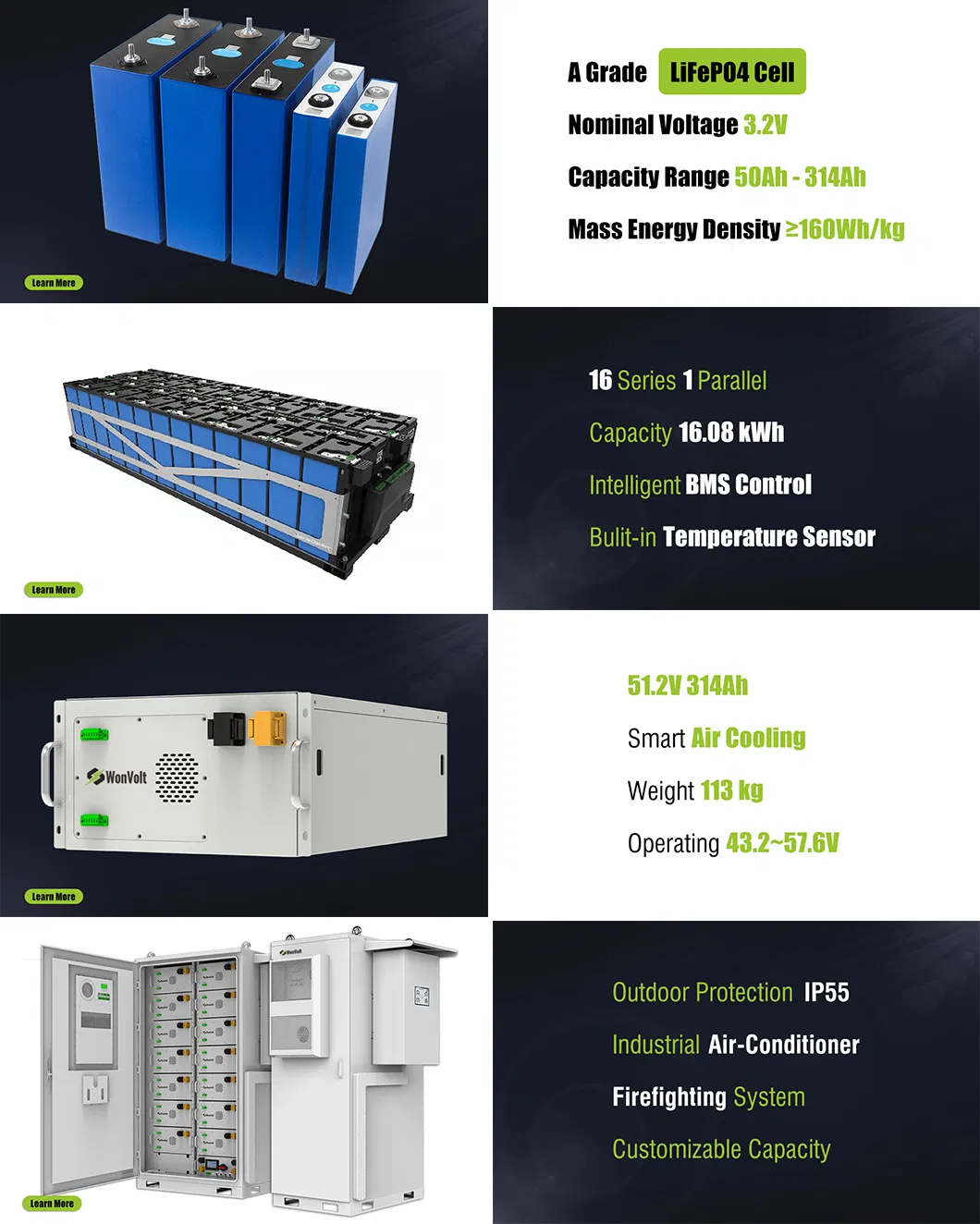

Battery Energy Storage Container
📊 Technical Parameters
Model PowerPLANT-H112
System General Specification
Product H112 ESS Cabinet
System Nominal Voltage 358.4V
System Nominal Energy 112kWh
Max. Charge / Discharge Current 140A
Protection Class IP54 / IP55
Cooling Method Industrial Air-conditioner
Dimensions(W*D*H) 1250x1245x2175mm
Battery Specification

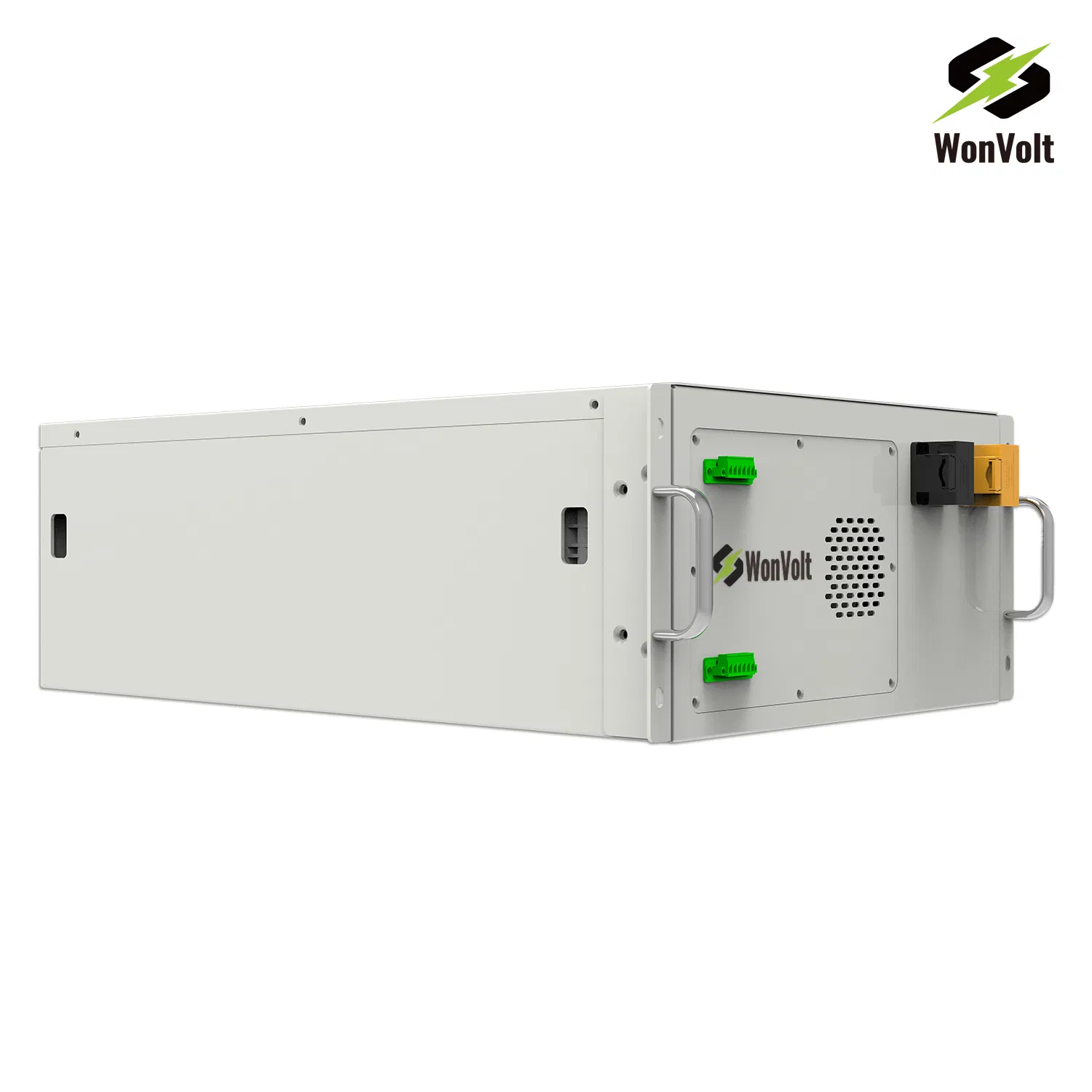

Battery Type LiFePO4 51.2V 314Ah
Cell Brand HIGEE / CATL / REPT / etc.
Cycle Times 10000 Times (0.5C - 25ºC - 90%DOD)
Design Life 10 Years+
AC Side Specification
Inverter Power 30kW / 50kW
Rated AC Voltage 380VAC / 360VAC ~ 440VAC
Communication Ethernet / Modbus / TCP / IP
🏭 Manufacturing Center

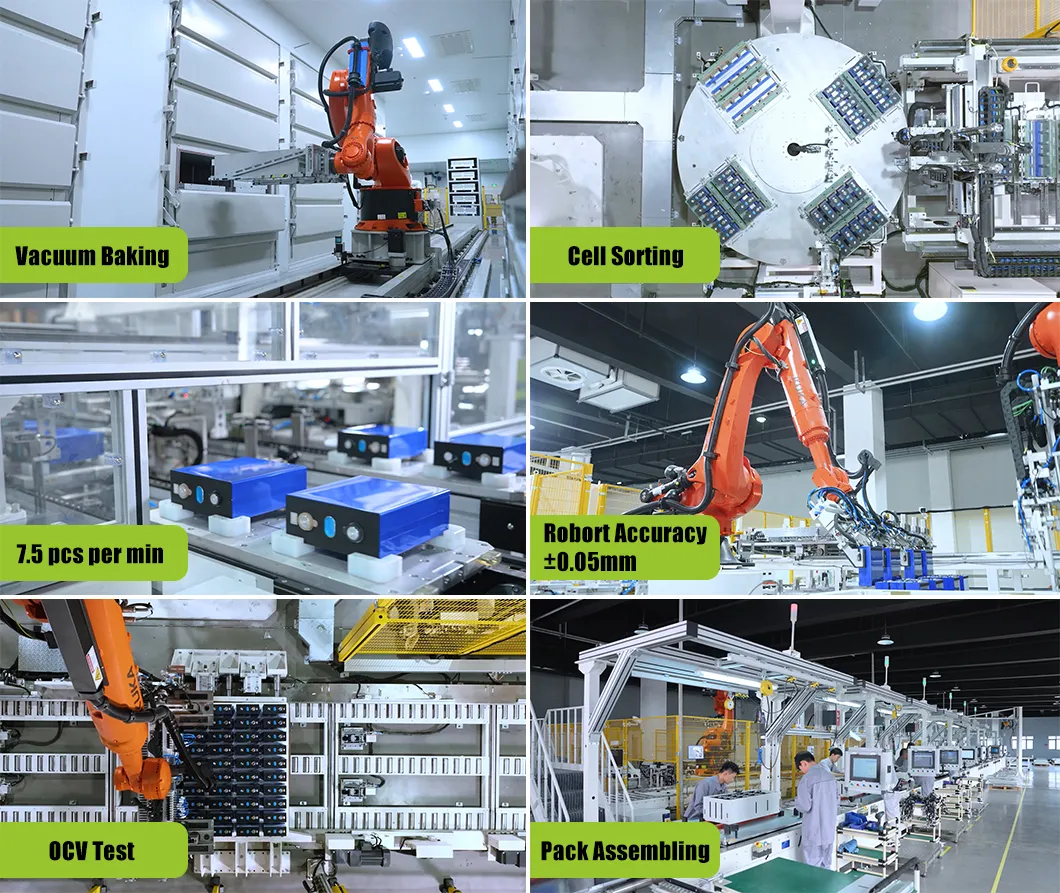

Production Line
Testing Area
🛠️ Technical Support
Technical Layout

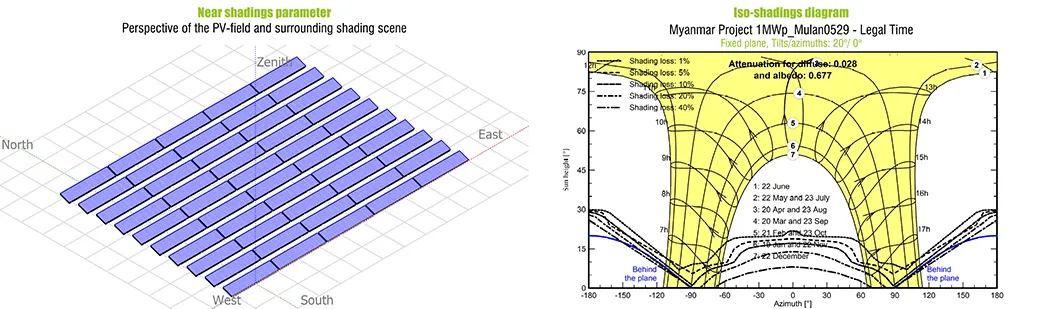

Monitoring System
Internal Components
🌍 Reference Projects

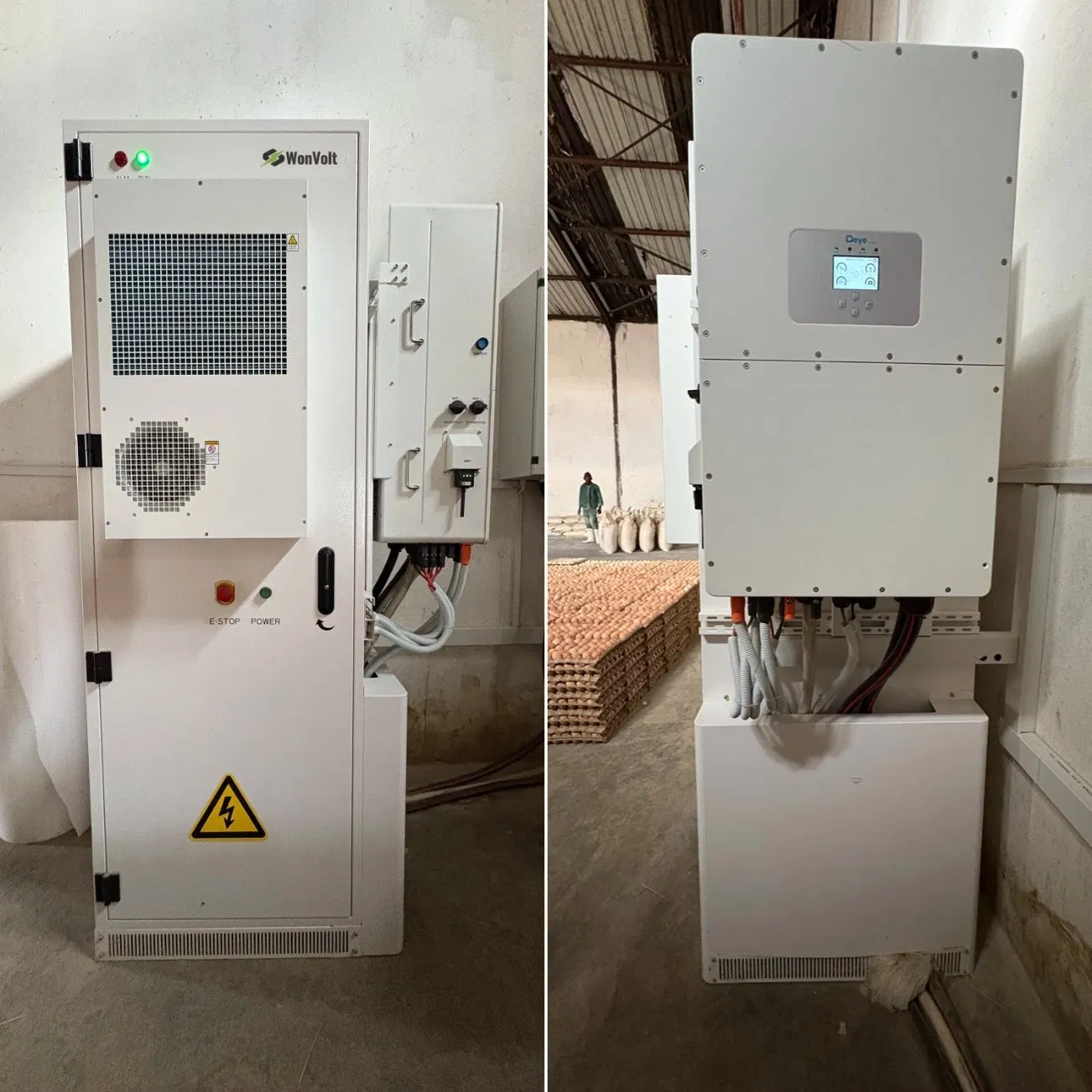

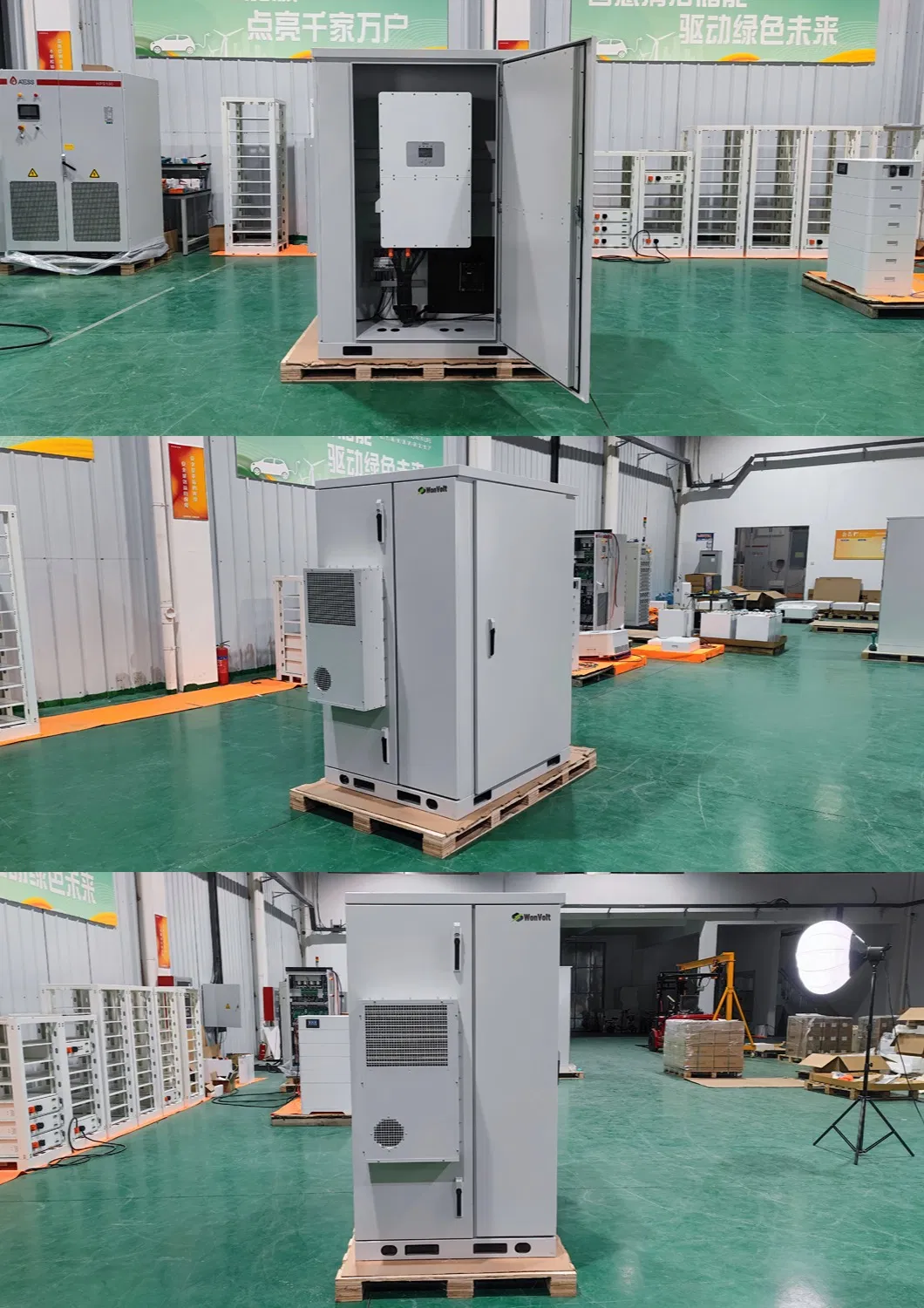

Project Installation

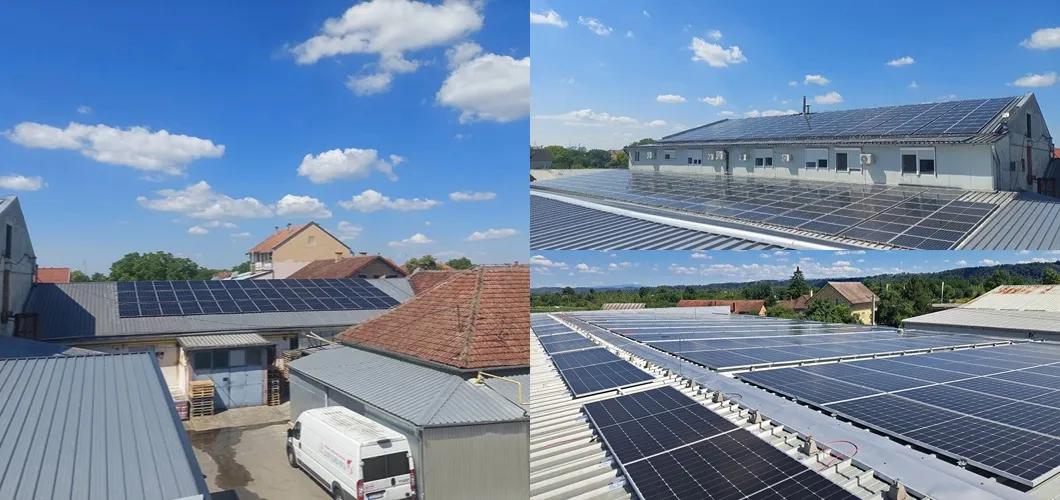

Commercial Application

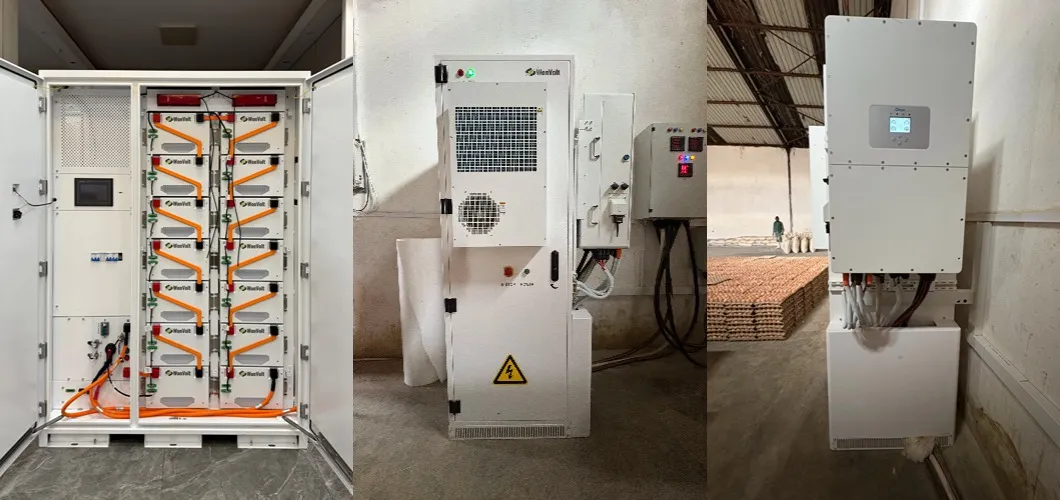

Outdoor Installation
Frequently Asked Questions
What is the estimated design life of this energy storage system?
The system is designed for a long service life of over 15 years under standard operating conditions (25°C), with a battery cycle life of up to 10,000 times.
How does the integrated firefighting system work?
The cabinet is equipped with an automated gas aerosol firefighting system to ensure rapid suppression and maximum safety in case of thermal emergencies.
What cooling method is used for temperature management?
The system utilizes an industrial-grade air-conditioner to maintain optimal internal temperatures, ensuring battery stability and performance even in harsh environments.
Which communication protocols are supported for system monitoring?
The system supports RS485 and CAN communication as standard, and is compatible with Ethernet, Modbus, TCP, and IP for remote monitoring and integration.
Is this system suitable for outdoor installation?
Yes, the cabinet features an IP54/IP55 protection rating, making it robust enough for outdoor commercial and industrial applications like supermarkets and restaurants.
What inverter brands are compatible with this battery cabinet?
The system is highly flexible and supports various leading inverter brands including Deye, Solis, Afore, ATESS, Growatt, and Megarevo.
