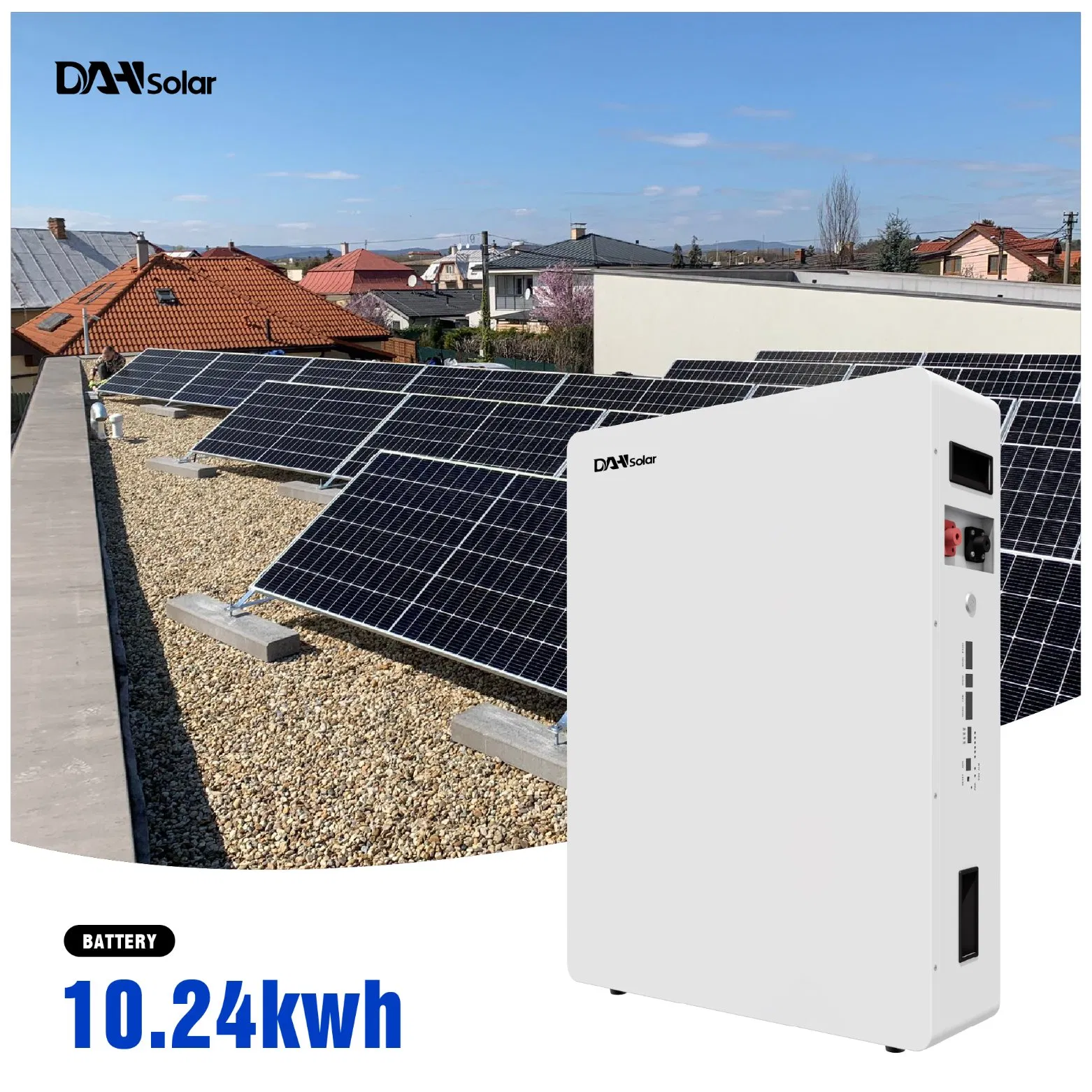

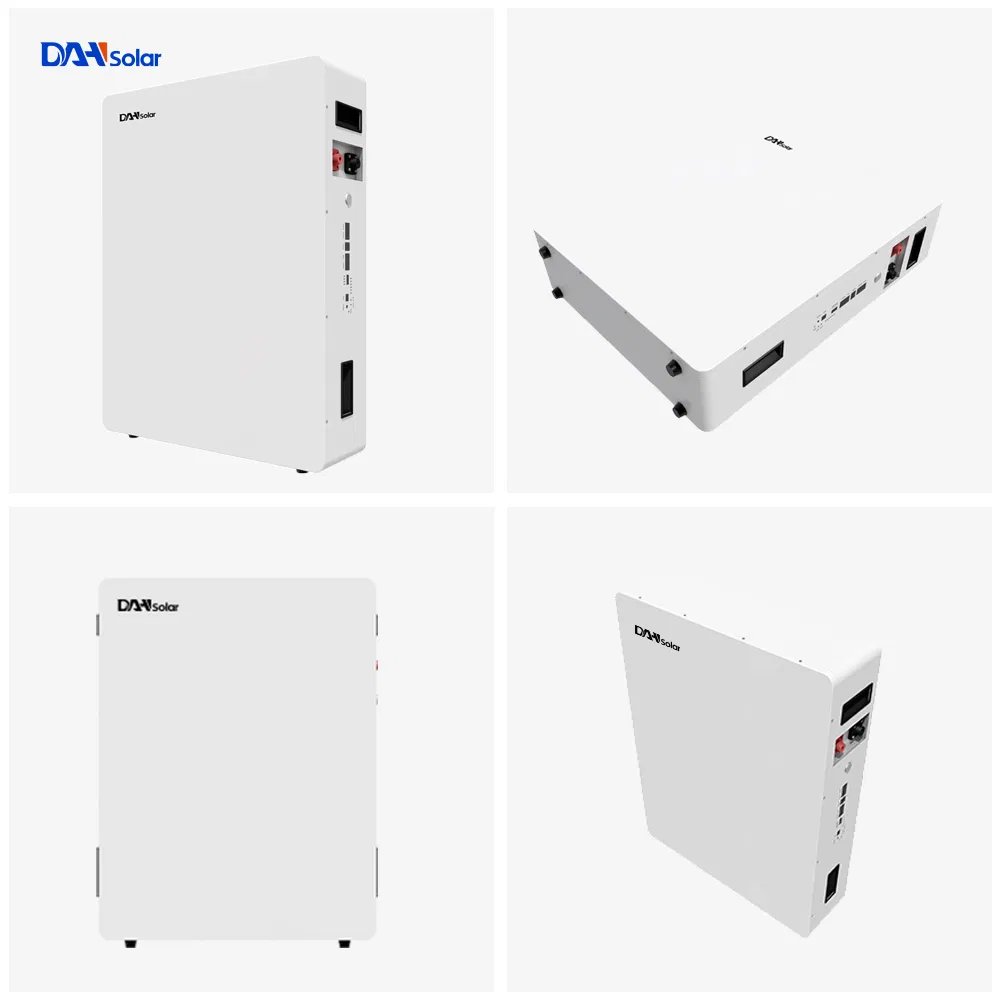

Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
1 / 5
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use
Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use

Dah Solar 15kwh 10kwh 5kwh Hybrid System Energy Storage Battery for Home Commercial 51.2V System Use

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

📋

Basic Specifications

Model No.
DH-A10-V2
Battery Type
LiFePO4
Cycle Life
≥ 6000 Times @ 80% Dod
Rechargeable
Yes
Communication
RS232/RS485/Can
IP Protection
IP 21
Display
LCD Display
Origin
China

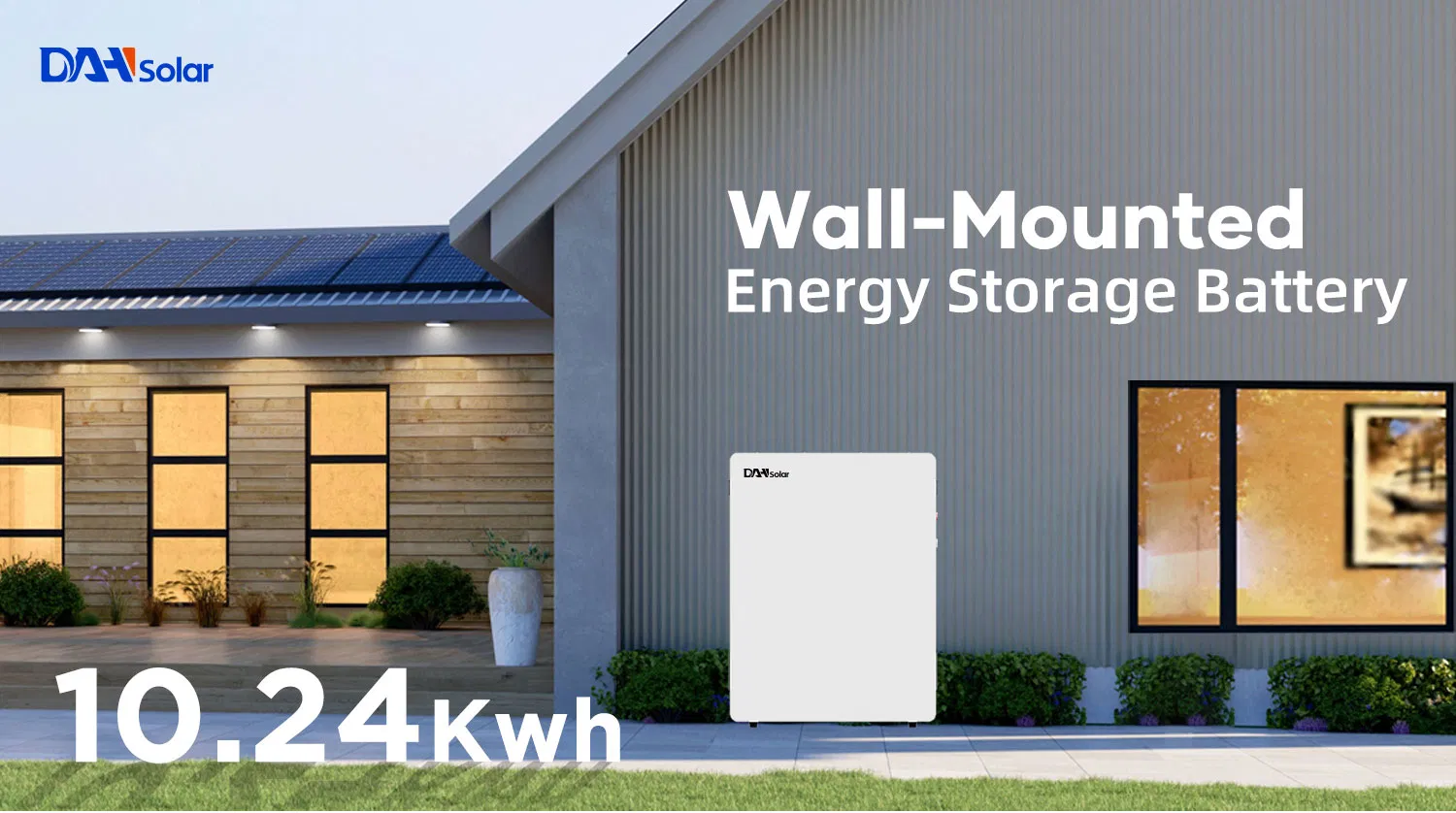

Energy Storage System Overview
⚙️

Technical Data

System Parameters
Rated Energy (KWh)10.24
Rated Voltage (V)51.2
Cells In Series16S
Charging Voltage (V)58.4
Discharge Cut-off Voltage (V)42
Standard Charge Current (A)40
Max Charging/Discharging Current (A)100
Charging Temperature0~60℃
Discharge Temperature-10~65℃
Net Weight (Kg)80
Product Dimensions (mm)520×150×680
System Detail 1
System Detail 2

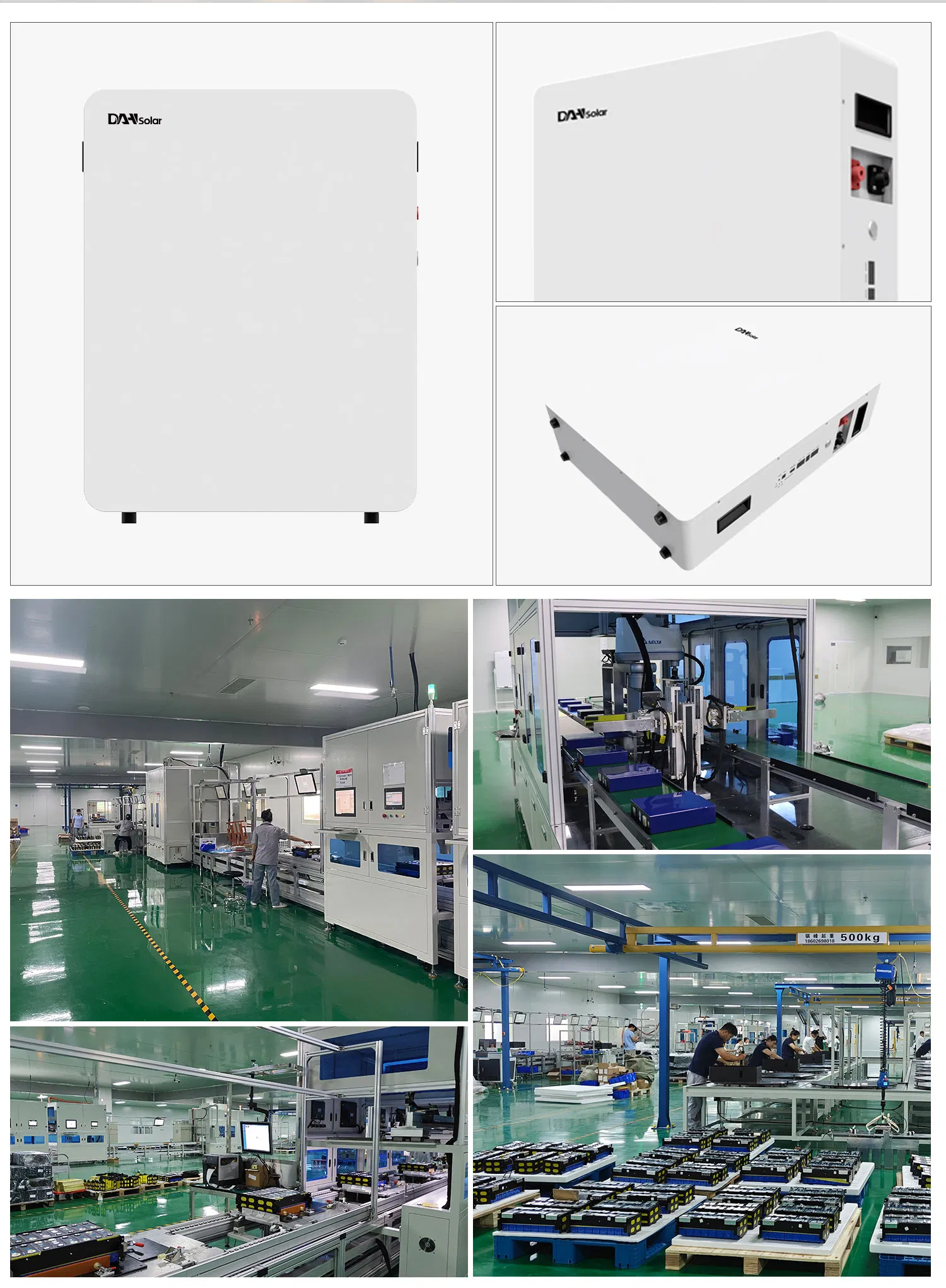

Dimensions and Installation
🌟

Why Choose Our Energy Storage Solutions

Our technology powers the future with advanced solar energy storage product. With a strong commitment to innovation, sustainability, and quality, we empower homes, businesses, and communities worldwide to harness the full potential of solar energy.

  • Residential Energy Storage Systems: Compact and efficient batteries for homeowners to store excess solar energy.
  • Commercial and Industrial Solutions: Scalable systems for businesses, reducing energy costs and enhancing grid independence.
  • Off-Grid and Hybrid Systems: Robust batteries for remote areas, providing reliable power in unstable grid environments.
  • Customized Solutions: Tailored battery systems to meet specific project requirements.

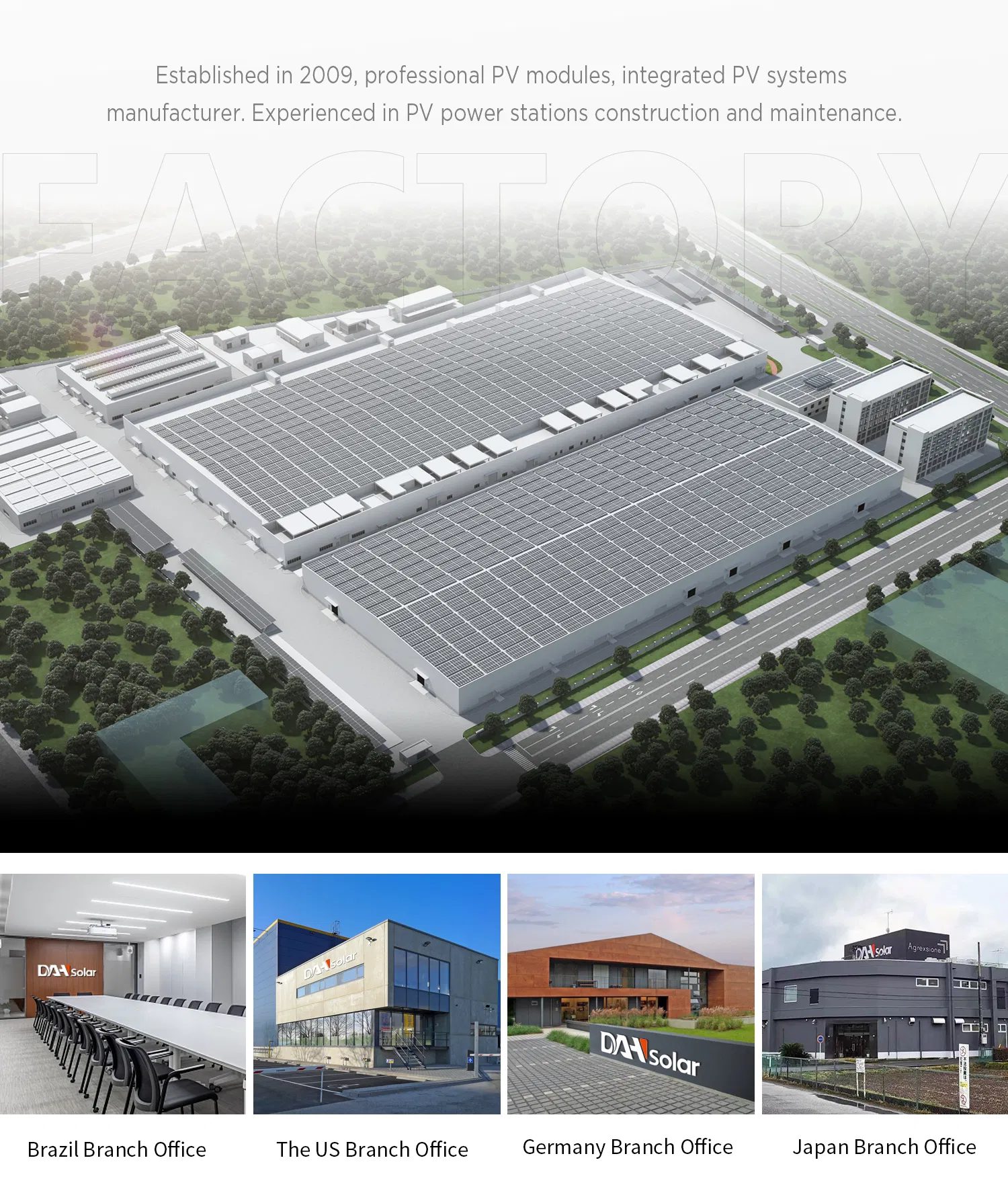

Manufacturing Quality

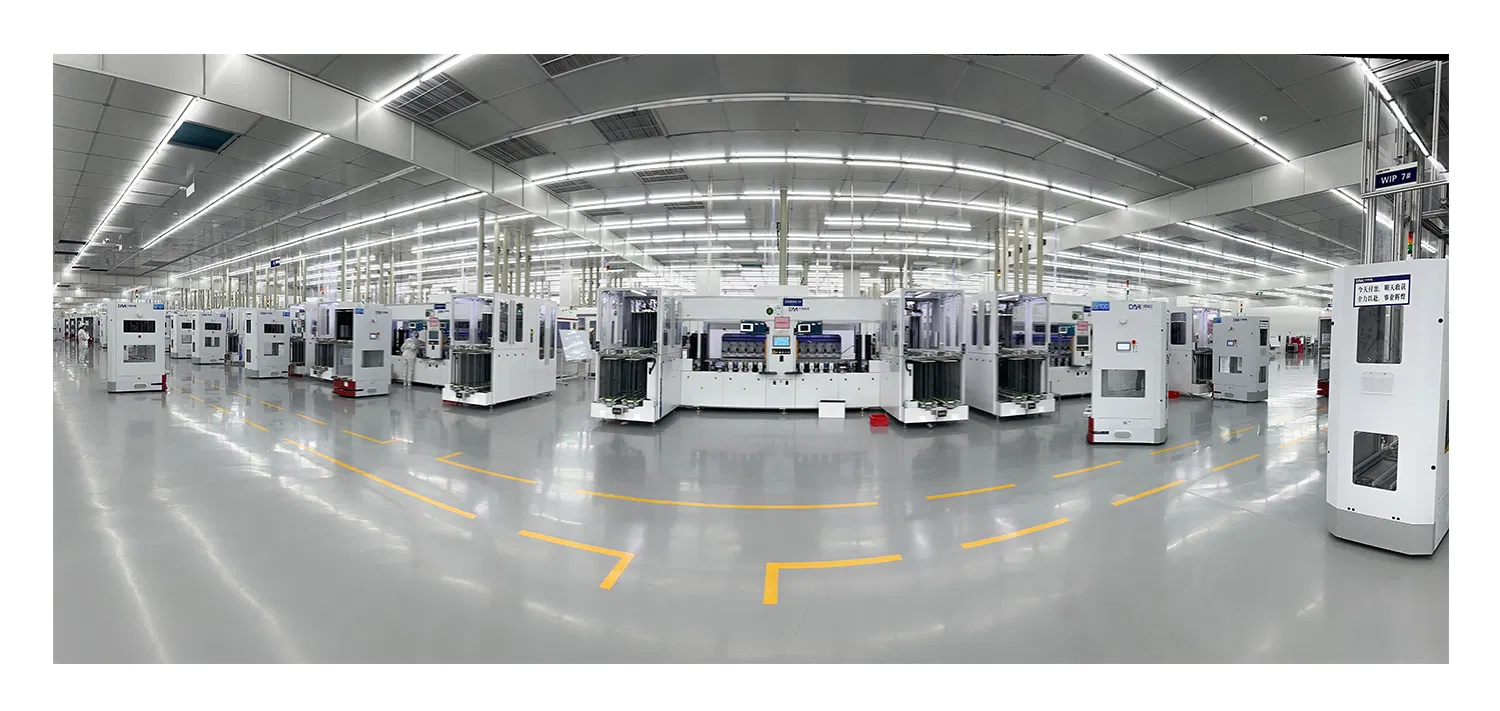

System Application

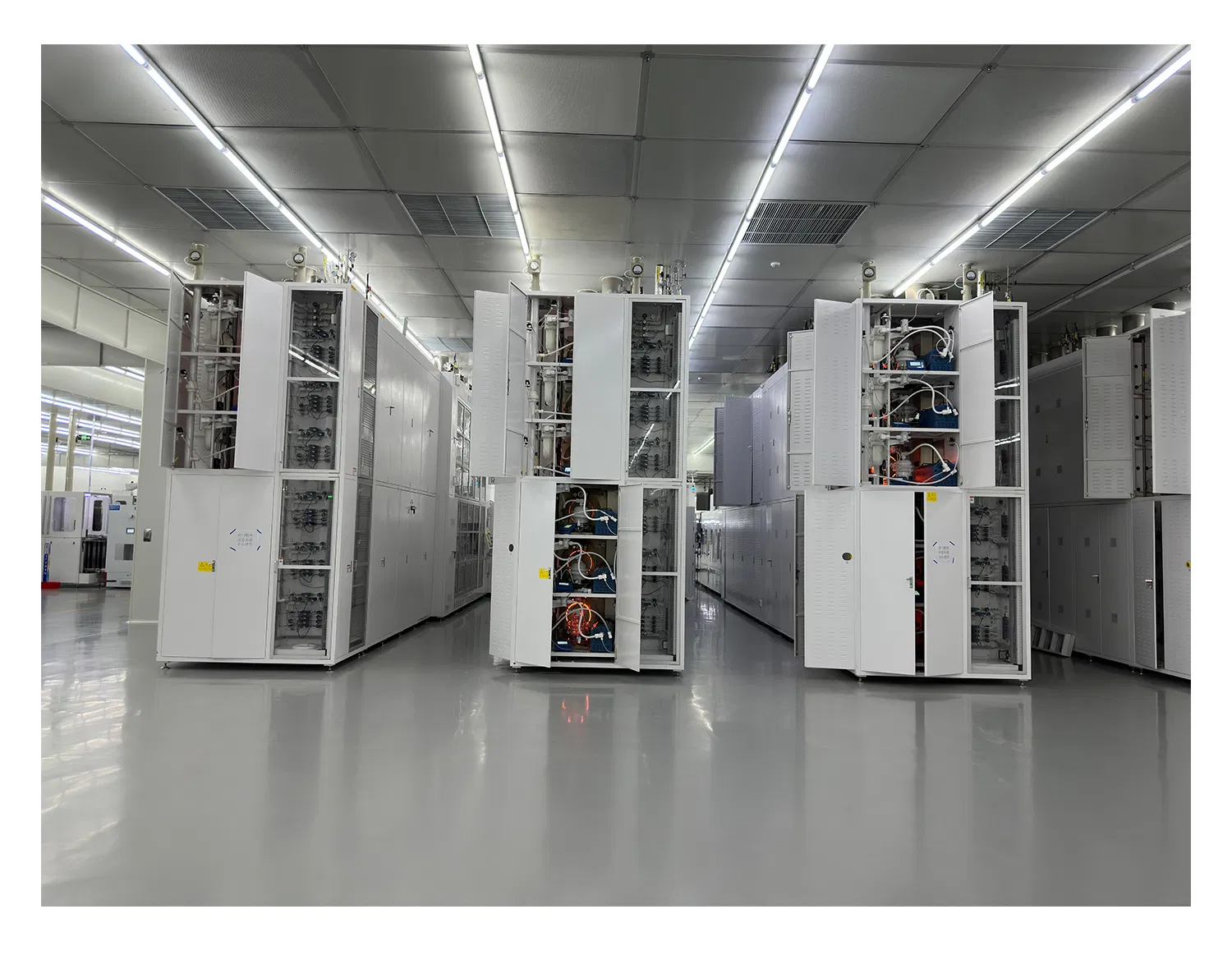

Sustainable Future

Frequently Asked Questions

What is the cycle life of the DH-A10-V2 battery?
The system provides a cycle life of ≥ 6000 times at 80% Depth of Discharge (DOD) at 25°C, ensuring long-term reliability.
What type of battery technology is used in this system?
This energy storage system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) cells, known for their safety and thermal stability.
What communication methods does the battery support?
The system is highly compatible and supports RS232, RS485, and CAN communication protocols for seamless integration with various inverters.
Is the system suitable for outdoor installation?
The system has an IP 21 protection rating, making it suitable for indoor environments or protected enclosures.
What is the maximum charging and discharging current?
Both the maximum charging and discharging currents are rated at 100A, allowing for rapid energy transfer when needed.
Can this battery be used in cold environments?
The battery can discharge at temperatures as low as -10°C, though charging should occur between 0~60°C to maintain cell health.
