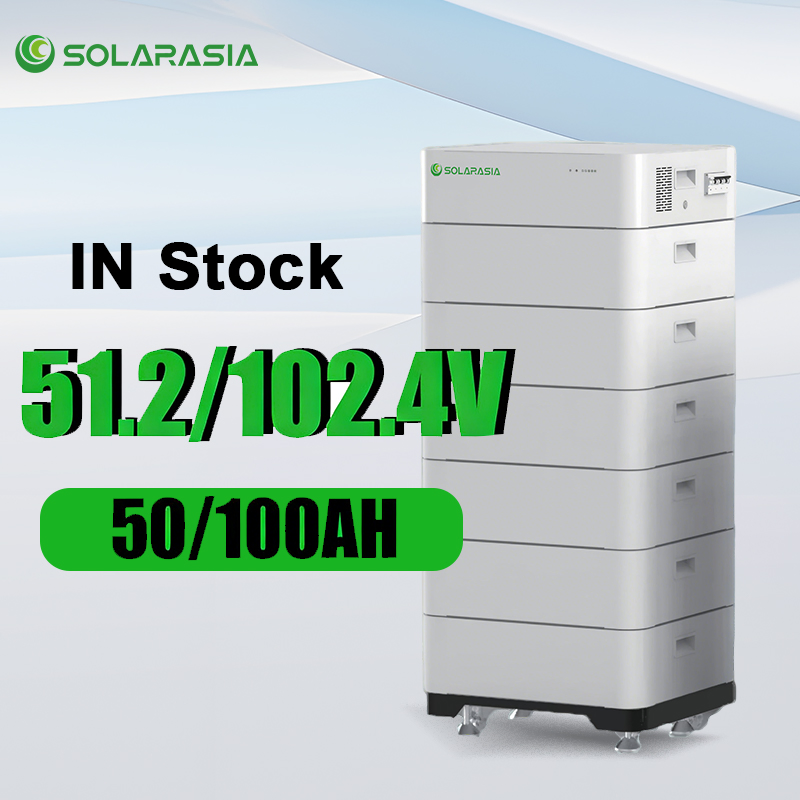

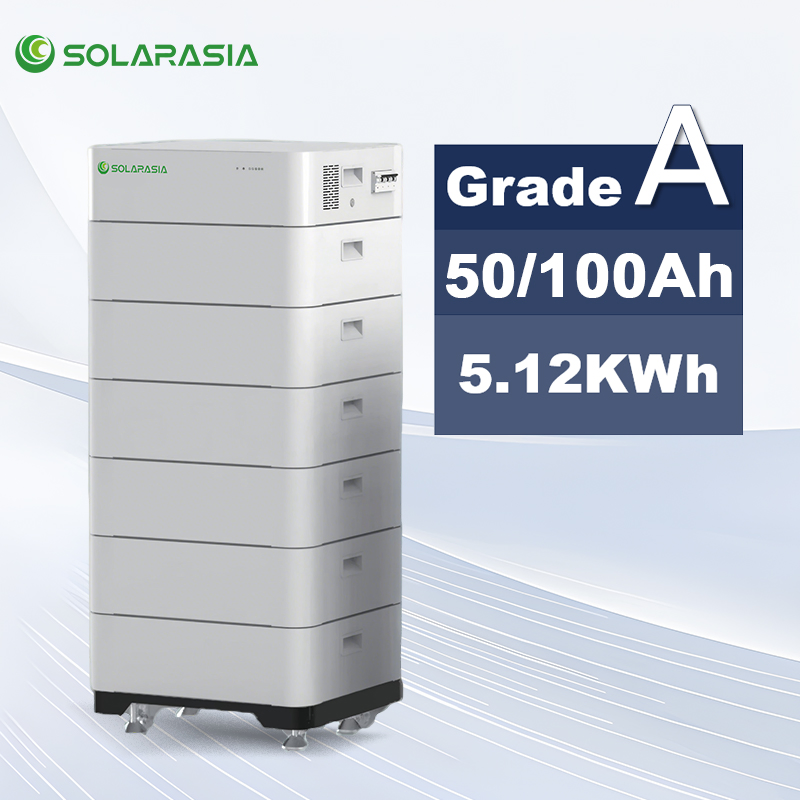

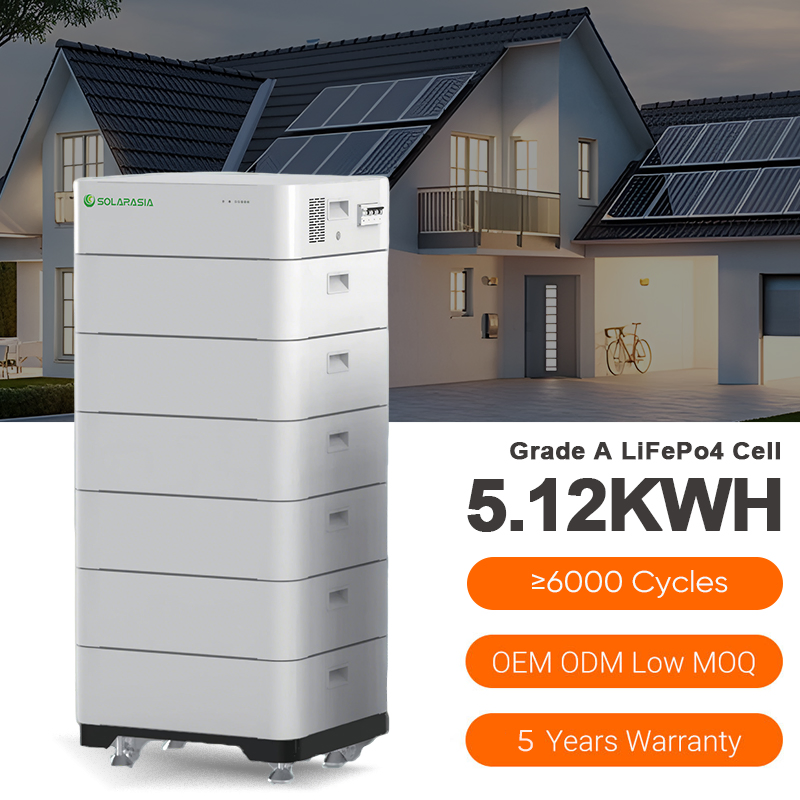

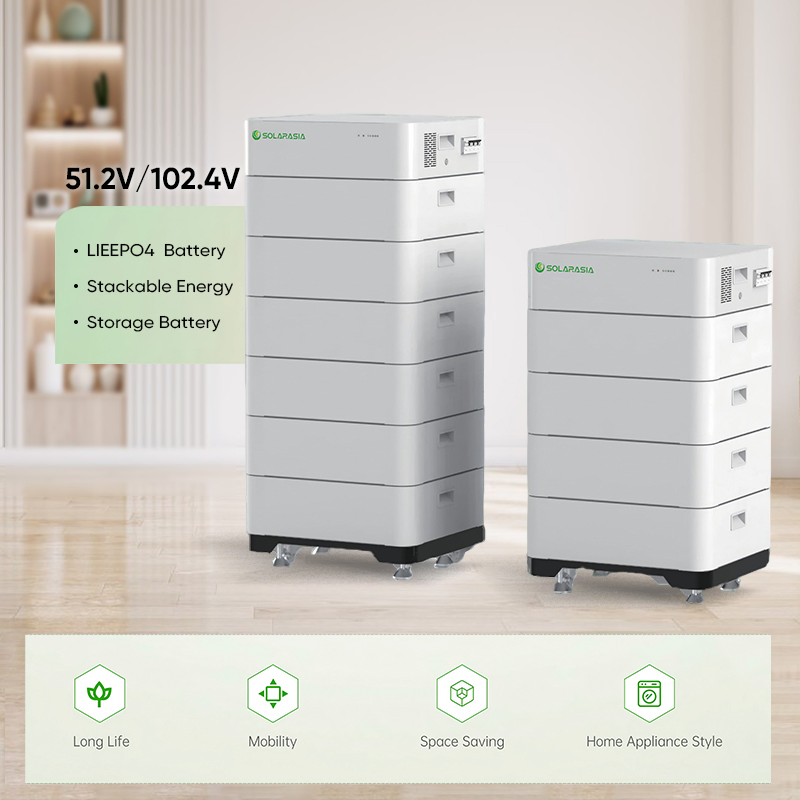

China Manufacturer Wholesale Price All in One 51.2V 100ah Hybrid Inverter 40kwh 30kwh LiFePO4 Lithium Battery 102.4V 50ah for Home Solar Energy Storage System

Customization:	Available
Nominal Voltage:	51.2/102.4V
Warranty:	5/10

Basic Information

Model NO.

SMP-CU001/002

Nominal Capacity

40.96/30.72kwh

Cycle Life

6000 Cycles

Rated Energy

5.12kwh

Net Weight

41kg

Max Stacking Quantity

8 / 6 PCS

Installation

Stacked

Specification

550*500*171mm

Product Description

Product Parameters

Model	SMP-CU001	SMP-CU002
Battery Specifications
Standard Voltage	51.2V	102.4V
Nominal Capacity	100Ah	50Ah
Rated Energy	5.12kWh	-
Max Charge-Discharge Rate	1C / 100A	1C / 50A
Product Dimension	550500171mm
Net Weight	41kg
Cycle Life	≥6000 @ 25℃, 80% DOD
Stacking Parameters
Max Stacking Quantity	8 PCS	6 PCS
Standard Voltage (Stacked)	409.6V	614.4V
Working Voltage	345.6~460.8V	518.4~691.2V
Total Rated Energy	40.96kWh	30.72kWh
General Parameters
IP Rating	IP20
Communication	CAN / RS485 / WiFi / Optional
Working Temperature	0~55℃

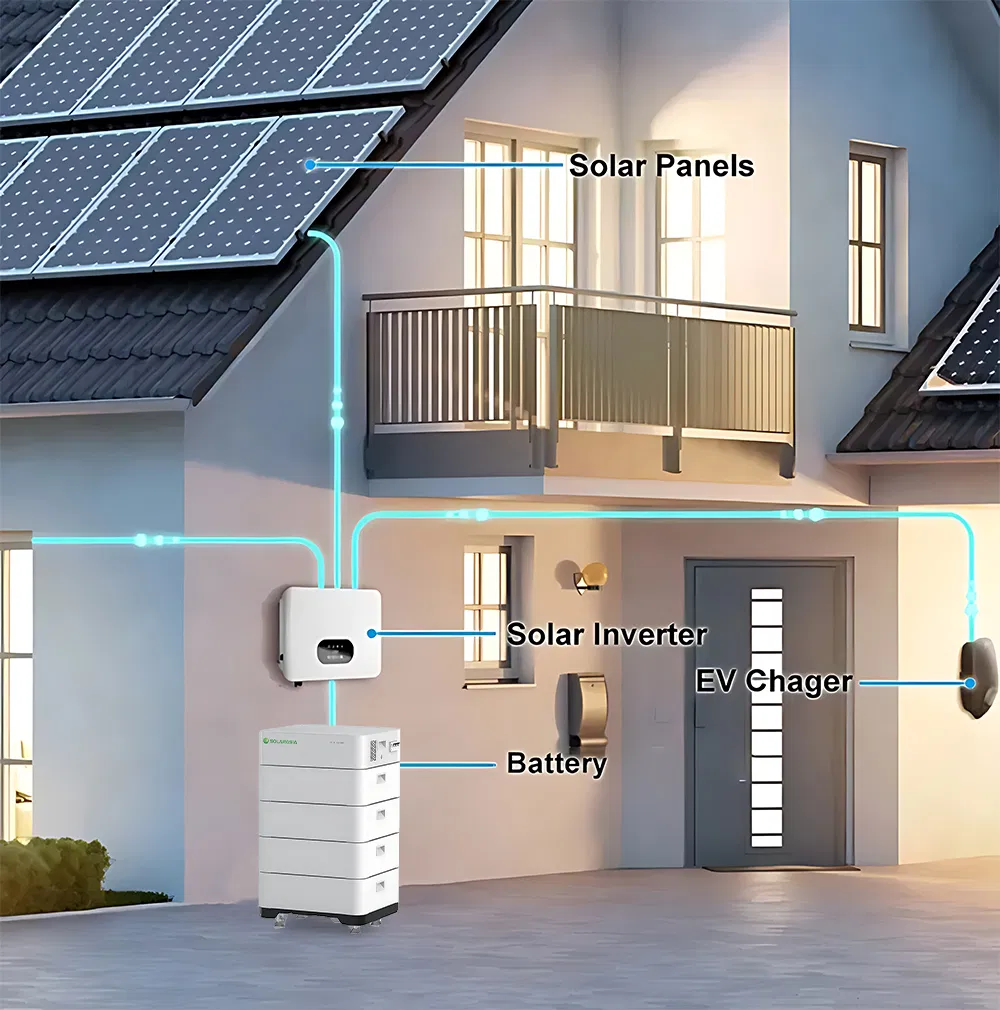

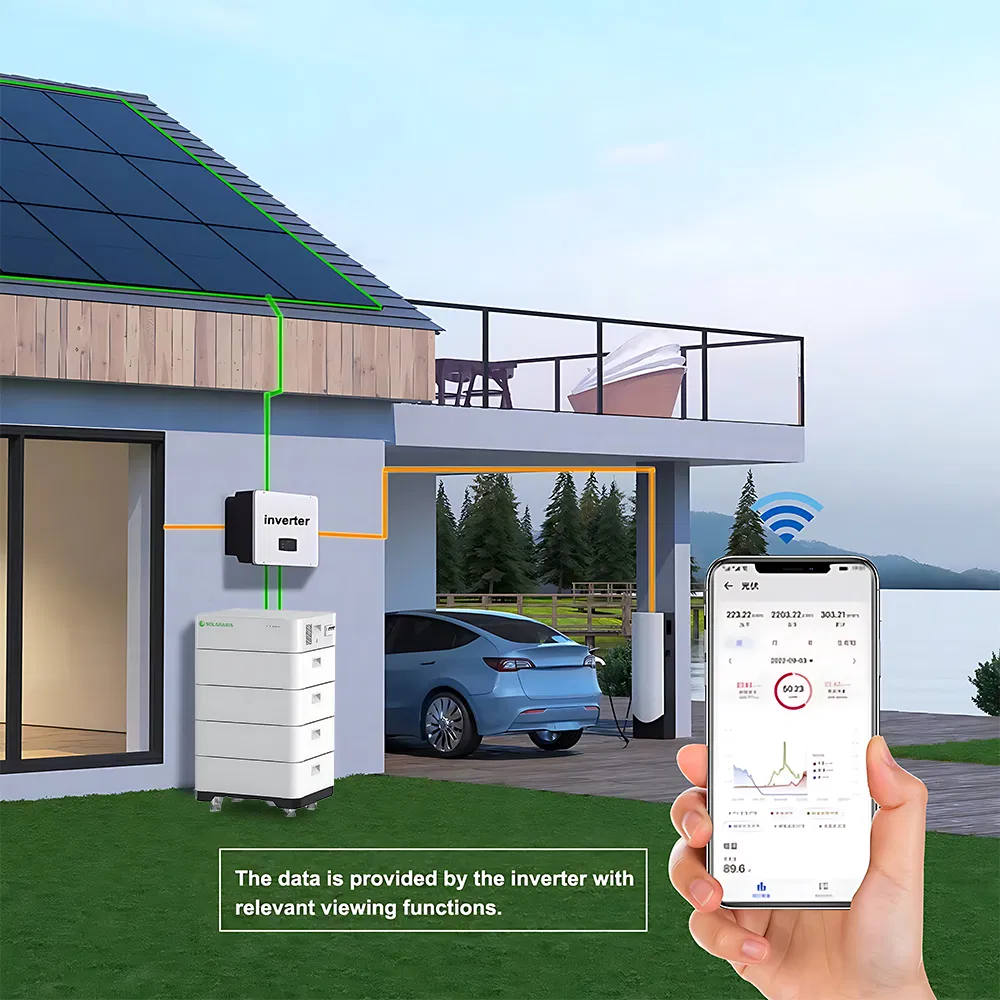

Working Principle

Certifications

Manufacturing & Quality

Frequently Asked Questions

What type of battery is this?

It is a high-capacity lithium-ion / LiFePO4 energy storage battery designed for residential, commercial, and industrial applications.

Where can this energy system be used?

The system is suitable for solar energy storage, off-grid power systems, emergency backup power, and general industrial energy management.

What is the expected lifespan of the battery?

The battery supports up to 6,000 cycles or approximately 10 years of service life under recommended operating conditions.

Is the system safe and easy to install?

Yes, the battery is fire-resistant and explosion-proof. Its modular, stackable design makes it easy to install and compatible with most modern inverters.

What maintenance is required for these batteries?

The system requires minimal maintenance. We recommend periodically checking connections, keeping terminals clean, and monitoring performance via the built-in Battery Management System (BMS).

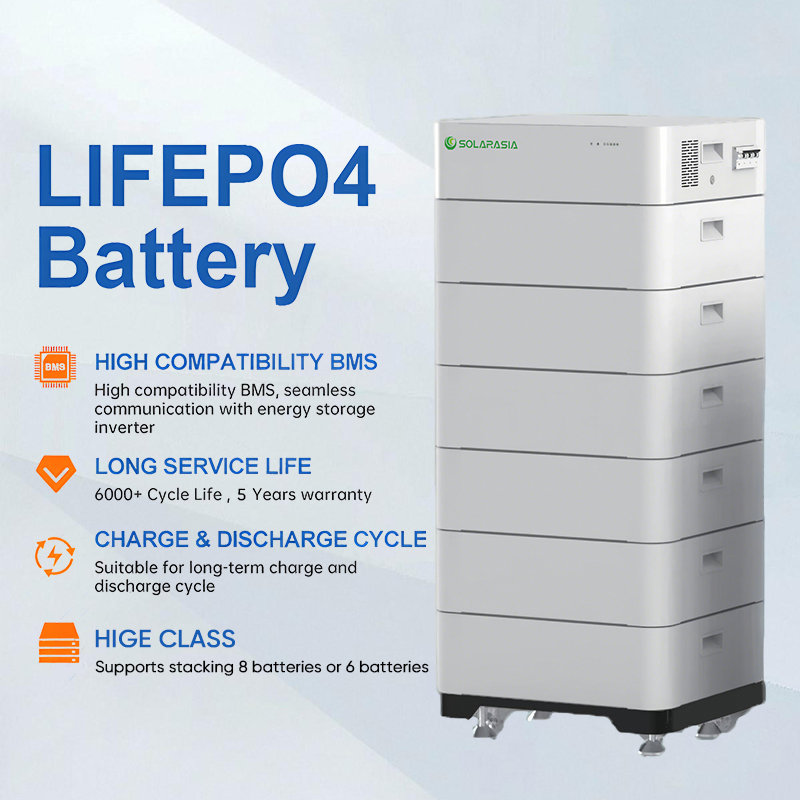

How many units can be stacked together?

Depending on the model, you can stack up to 8 units (for SMP-CU001) or 6 units (for SMP-CU002) to increase total energy capacity.
