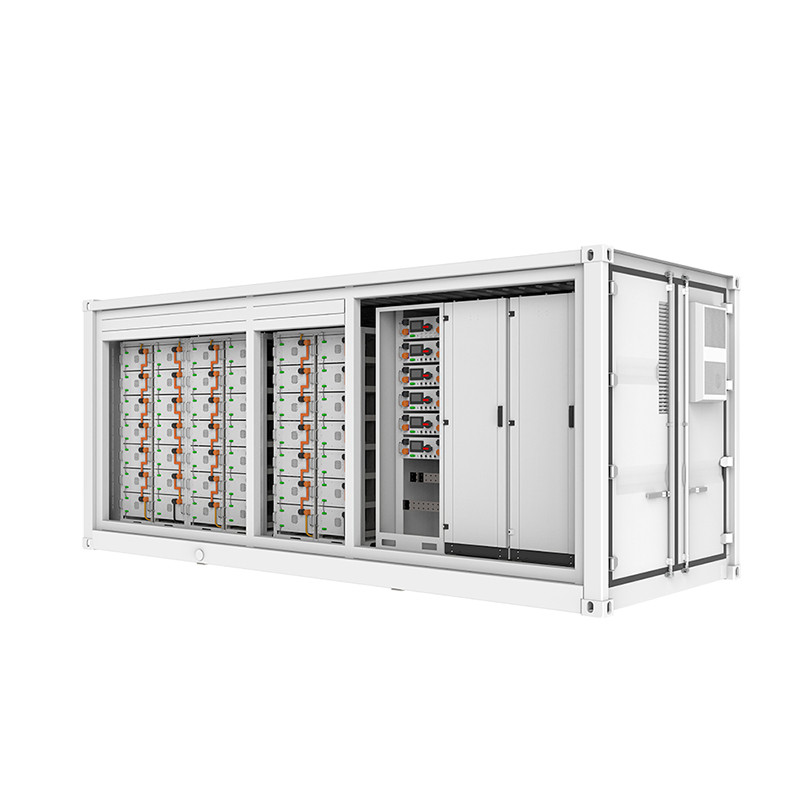

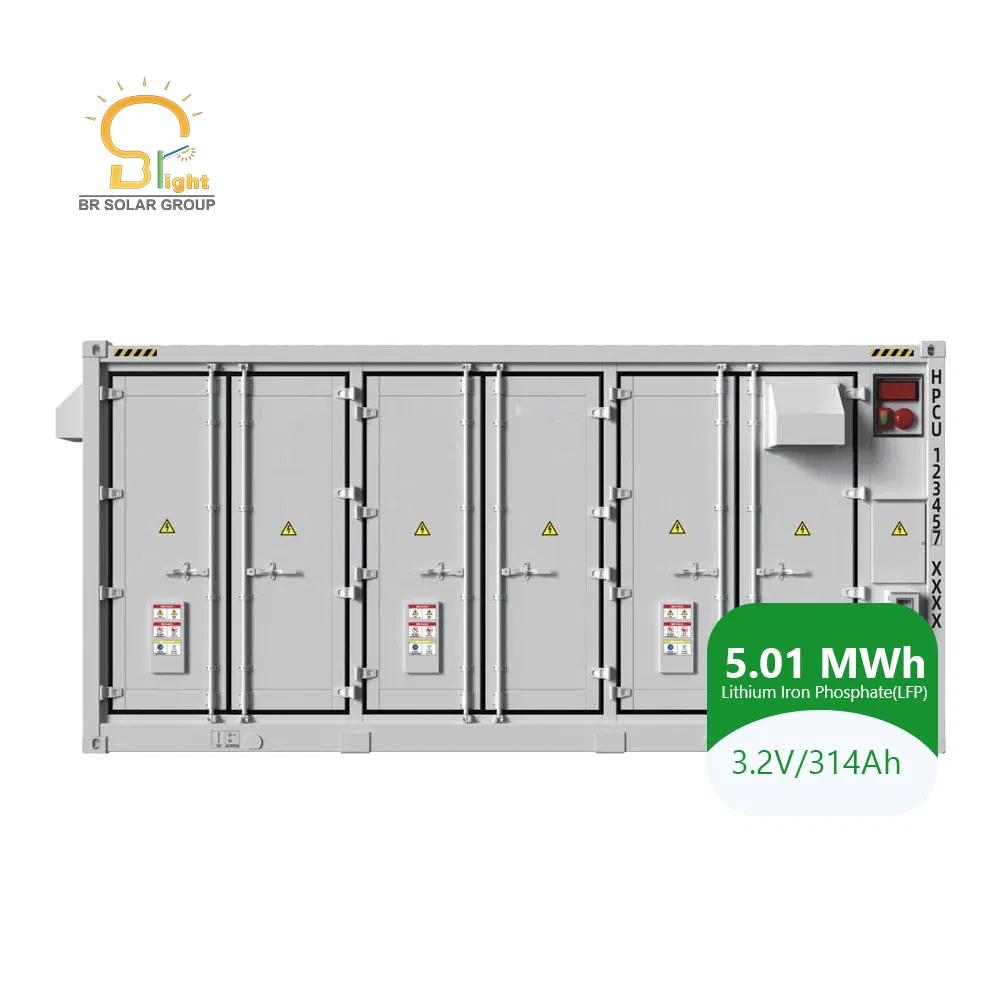

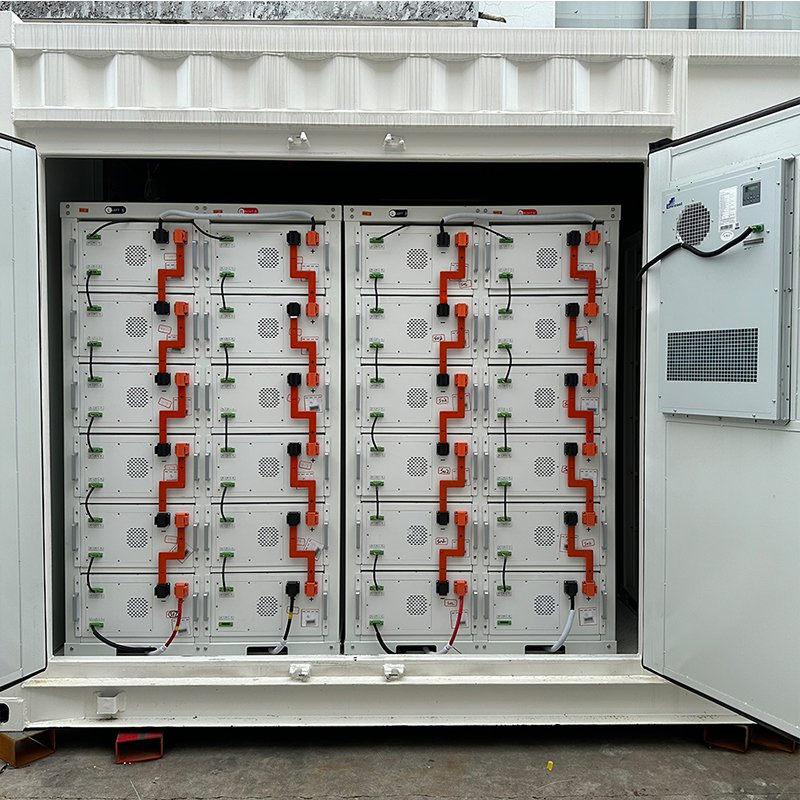

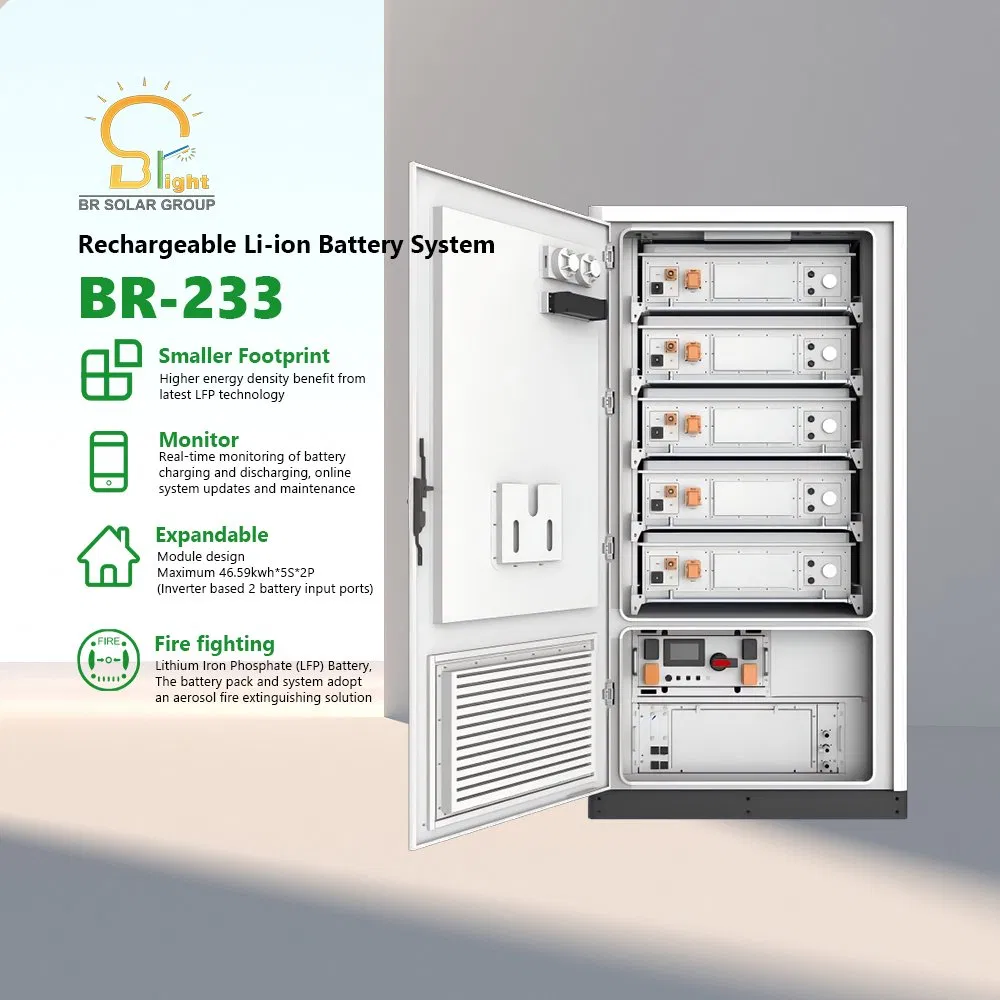

1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1 / 5
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE
1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE

1p416sx12 Br Solar Containerized Energy Storage System Bess Container with CE

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📊

Basic Information

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Power
0.5c Charge/Discharge
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Origin
China
📦

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Transport Package
Carton and Pallet
Capacity
1000set/Month
⚡

Product Description

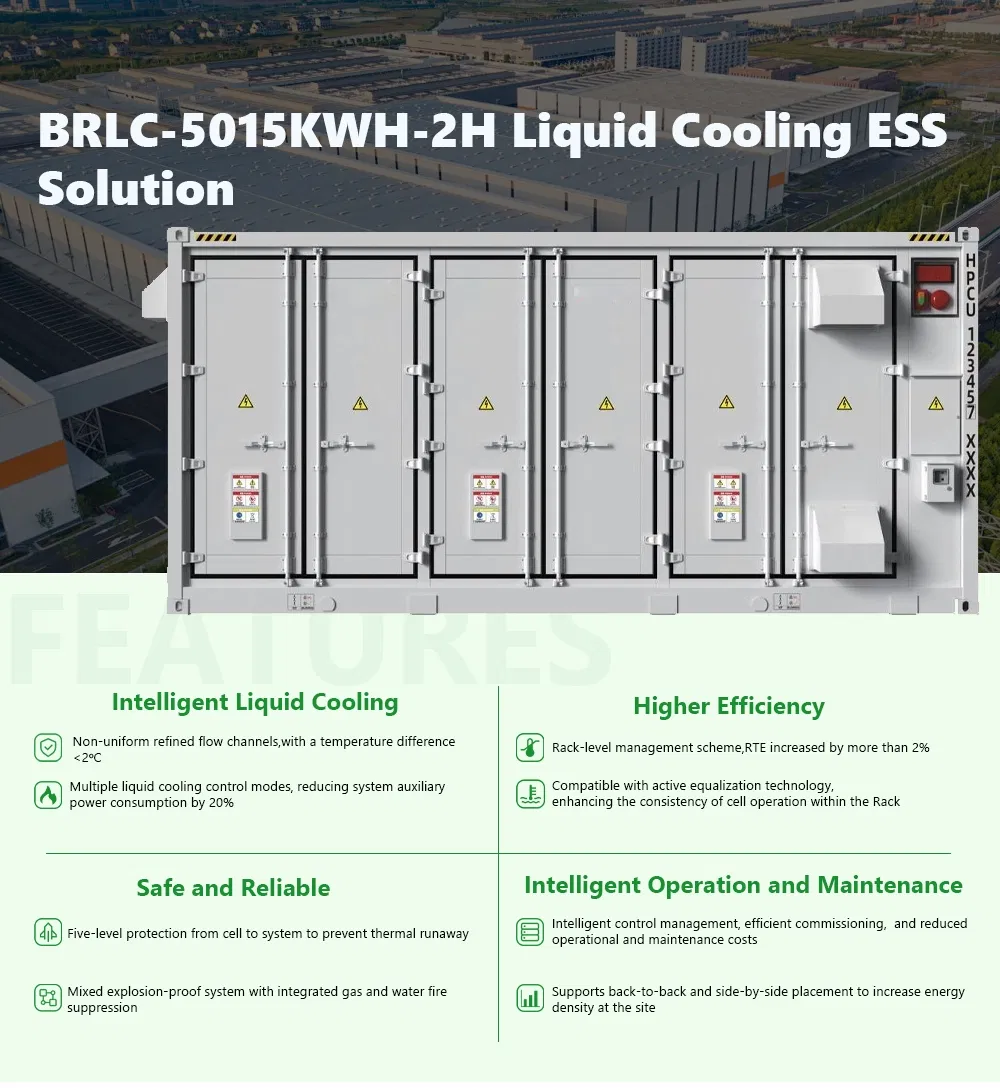

Containerized Energy Storage System Overview
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communicationEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

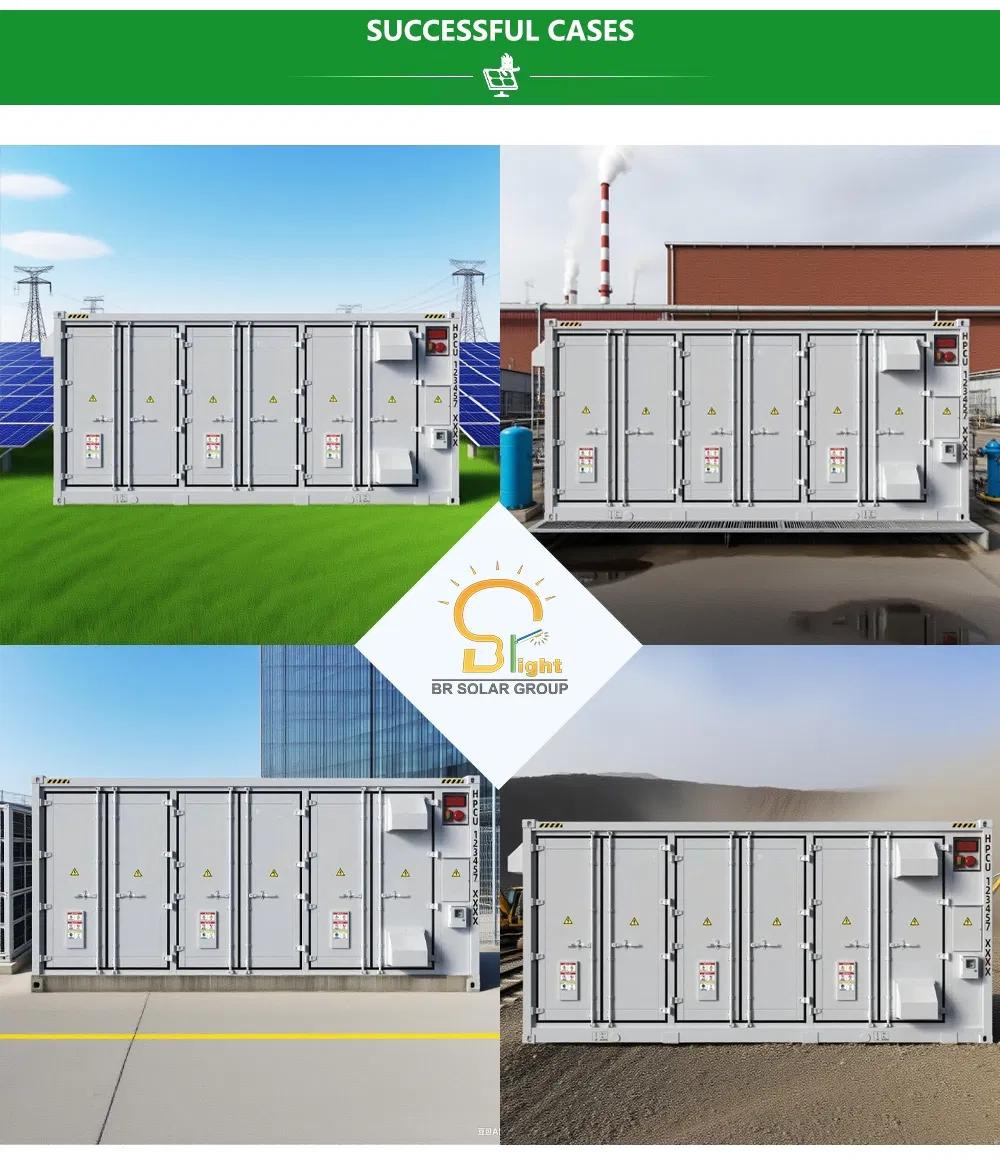

Energy Storage System Detail 1

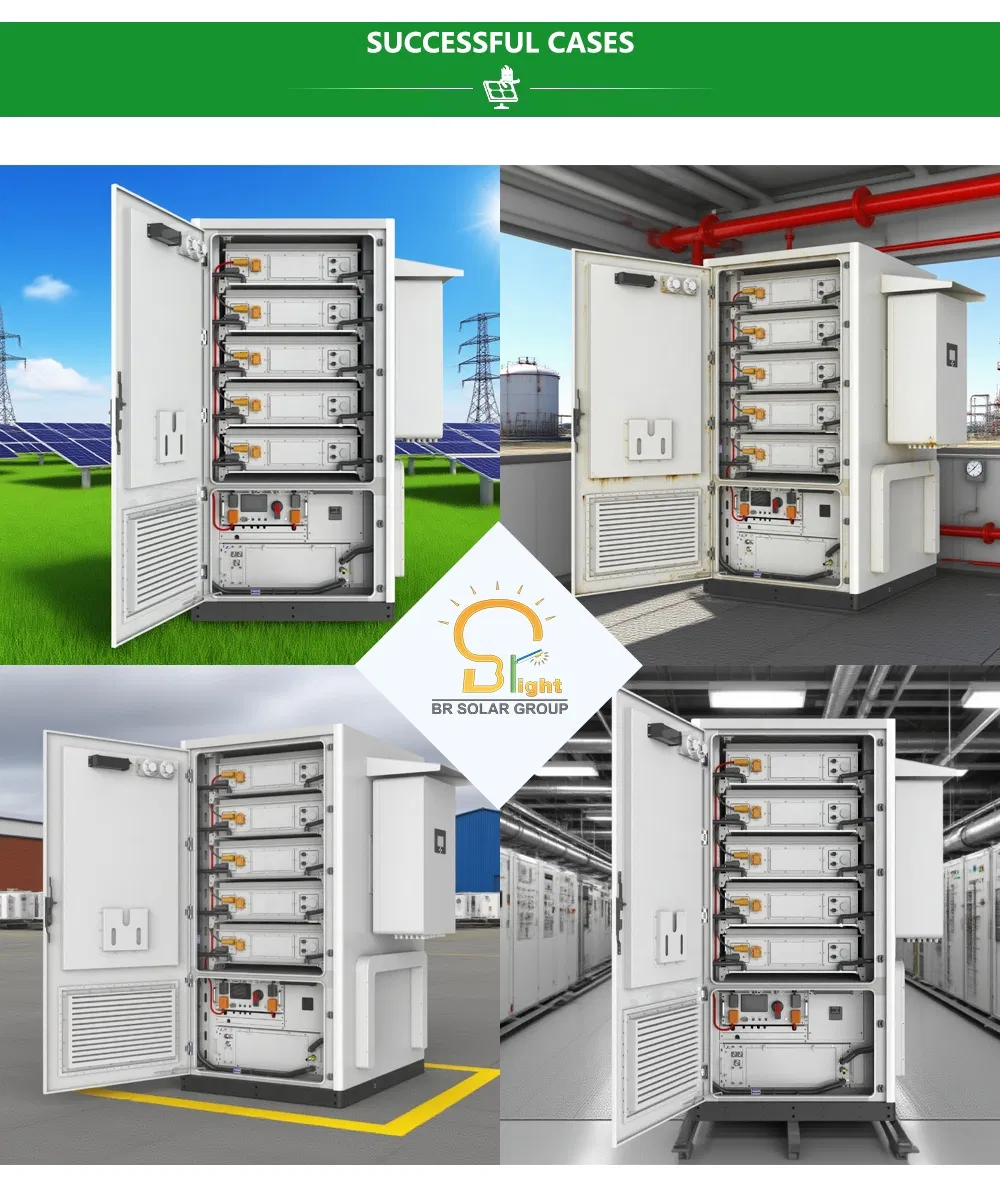

Energy Storage System Detail 2
Energy Storage System Detail 3
Energy Storage System Detail 4

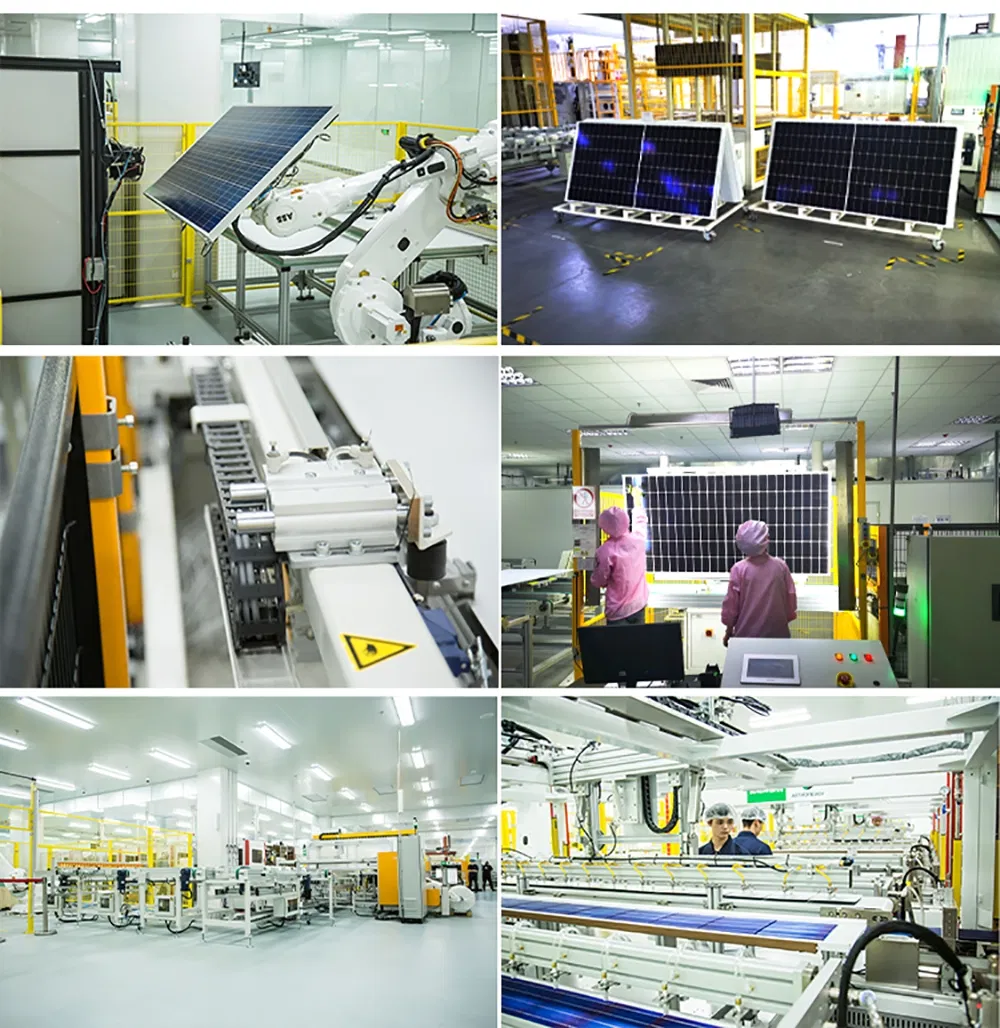

Energy Storage System Detail 5
Energy Storage System Detail 6

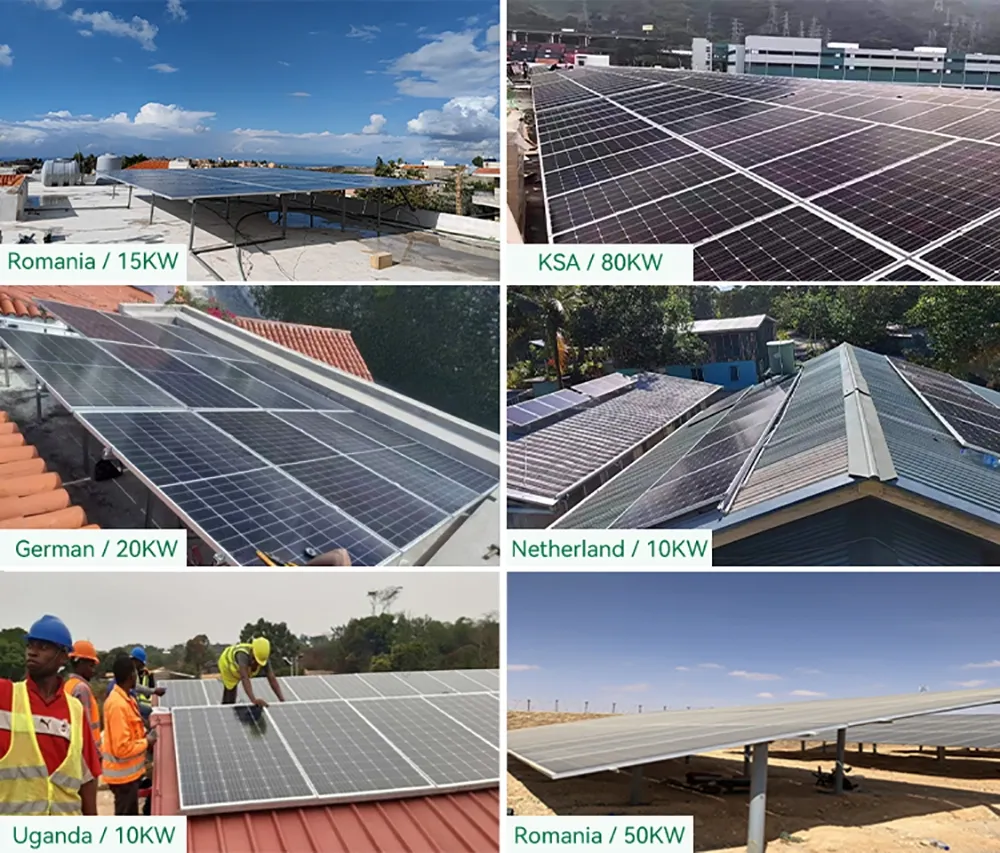

Energy Storage System Detail 7
Energy Storage System Detail 8

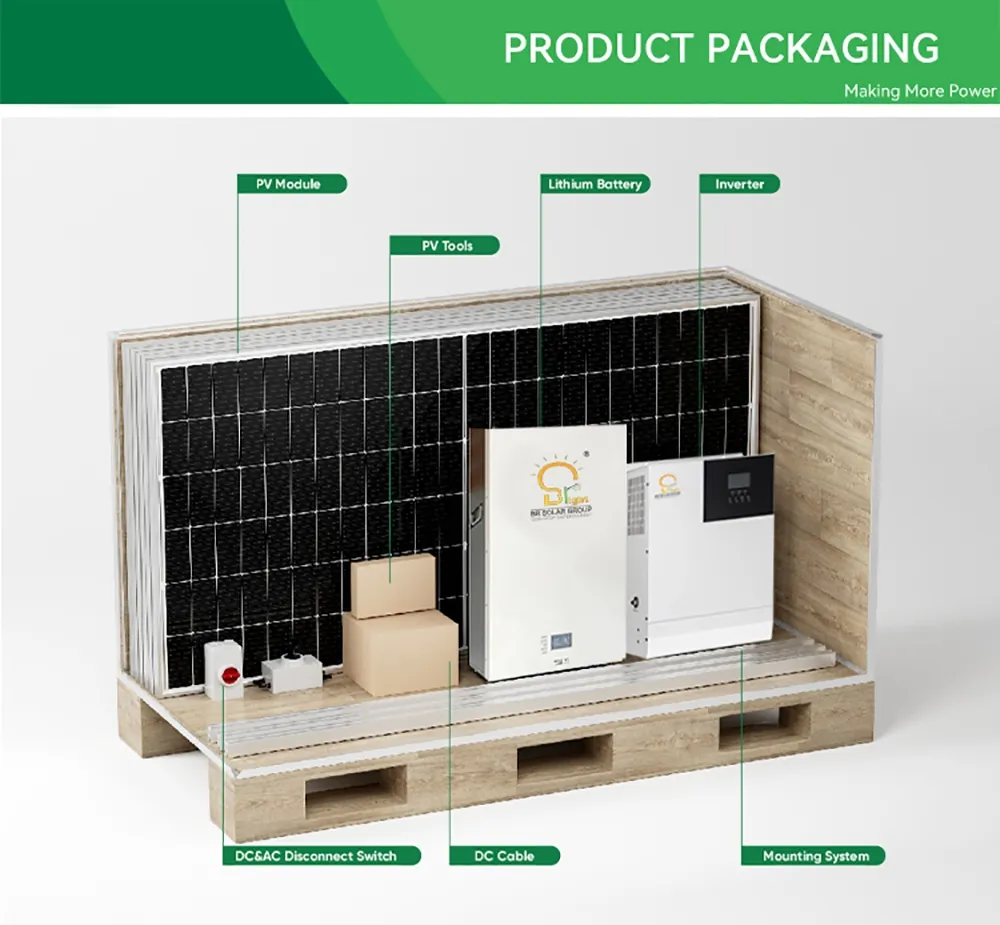

Energy Storage System Detail 9
❓

Frequently Asked Questions

What type of battery technology is used in this containerized system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
What is the cooling method for the energy storage system?
It employs an advanced Liquid Cooling system, which ensures efficient thermal management and consistent performance even under heavy loads.
Is the system suitable for outdoor industrial environments?
Yes, the system has an IP55 protection rating and is designed to operate in temperatures ranging from -30ºC to 50ºC, making it ideal for industrial, commercial, and utility-scale applications.
What safety features are integrated into the container?
Safety is a priority; the system includes temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
What are the communication interfaces for external monitoring?
The system supports multiple communication protocols, including Ethernet, CAN, and RS485, allowing for seamless integration with local or remote management systems.
What is the rated capacity and voltage range?
The system has a rated capacity of 5.01 MWh with a rated voltage of 1331.2V and an operating voltage range of 1164.8V to 1497.6V.
