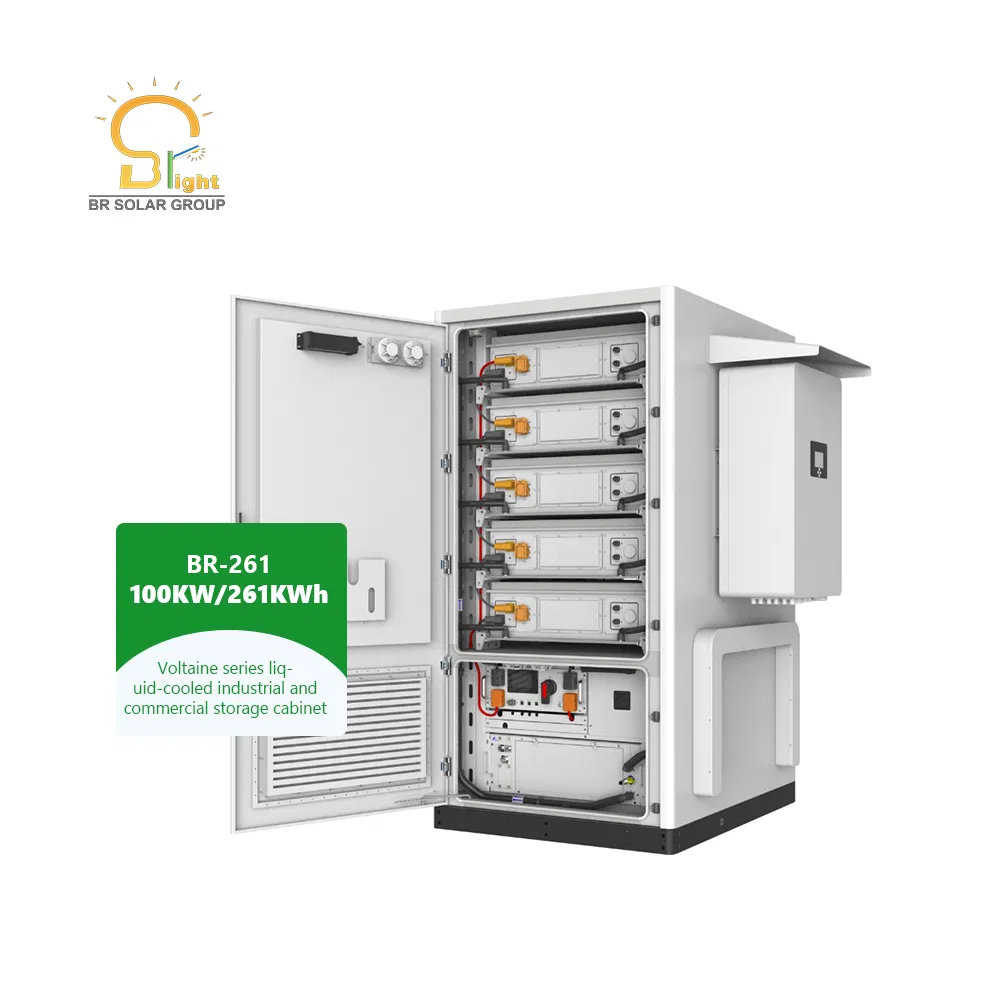

100kwh Home Br Solar Carton and Pallet Containerized System Energy Storage Solution

1 / 5

100kwh Home Br Solar Carton and Pallet Containerized System Energy Storage Solution

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Specifications

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial, School, Factory

Specification100kwh, 233kwh

Type of CellLithium Iron Phosphate(LFP)

Cell Parameter3.2V/314ah

CoolingLiquid Cooling

Protection ClassIP55

Max. Charge/Discharge0.5c

Rated Capacity5.01 Mwh

Rated Voltage1331.2V

OriginChina

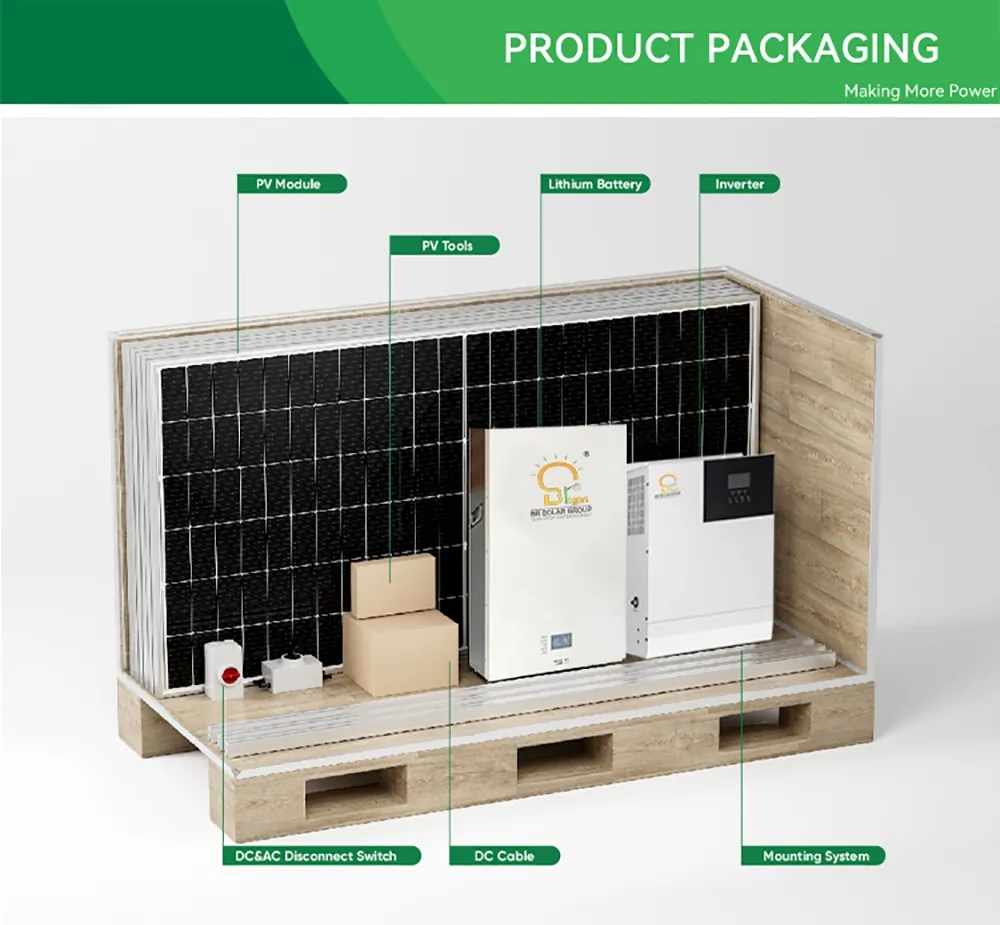

Packaging & Delivery

Package Size110.00cm * 140.00cm * 238.00cm

Gross Weight2000.000kg

Transport PackageCarton and Pallet

Product Details

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m
IP grade	IP55
Storage temperature	−20~45ºC
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Fire extinguishing gas
Interface	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

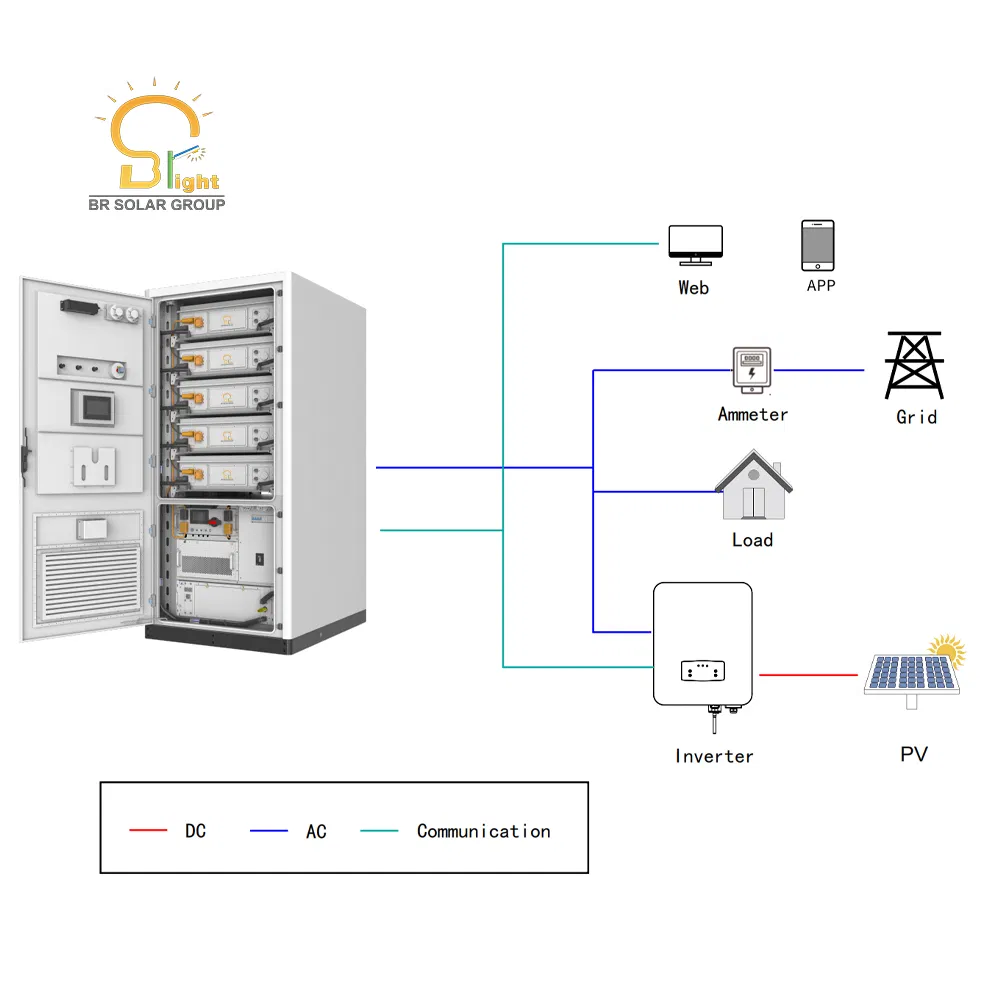

Technical Showcase

Frequently Asked Questions

What type of battery cell technology is used in this system?

The system utilizes Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.

Is the system suitable for outdoor installation?

Yes, the system is designed with an IP55 protection rating and supports operating temperatures from -30ºC to 50ºC, making it highly durable for various environments.

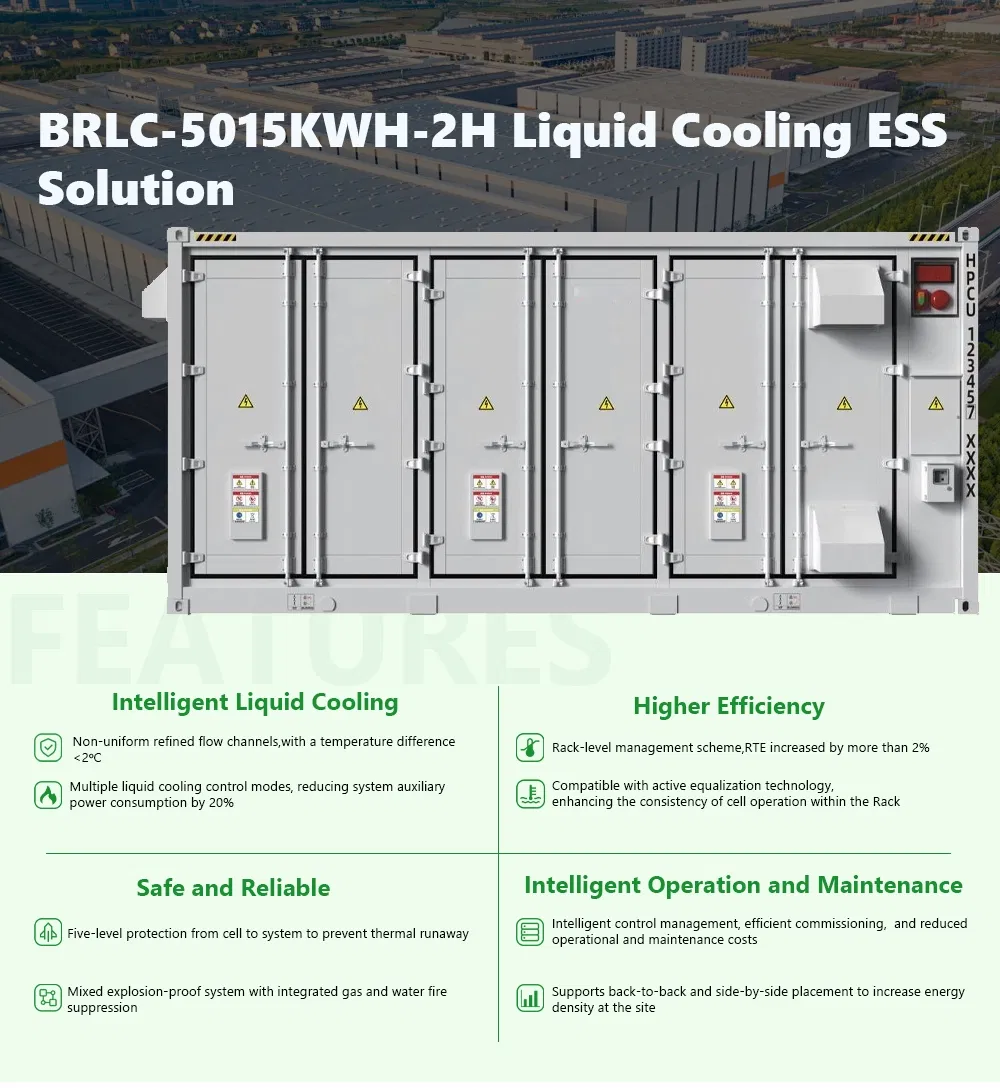

How does the cooling system work?

It uses an advanced liquid cooling method to efficiently manage heat, ensuring the battery cells operate within their optimal temperature range.

What safety features are integrated for fire protection?

The unit is equipped with temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, and fire extinguishing gas systems.

What are the primary applications for this energy storage solution?

This system is versatile and can be used in residential, industrial, commercial, schools, and factory settings for reliable energy management.

What certifications does the product hold?

The system is fully certified with ISO and CE standards, complying with international quality and safety regulations.
