Product Description

Basic Specification
Model NO.
LFP-PW
Rechargeable
Yes
Nominal Voltage
12V / 51.2V Options
Product Name
LiFePO4 Battery LFP-PW
Cycle Life
6000 Times
Operation Temp
-20°C to 60°C
Display
LED or LCD
Capacity
100-200AH

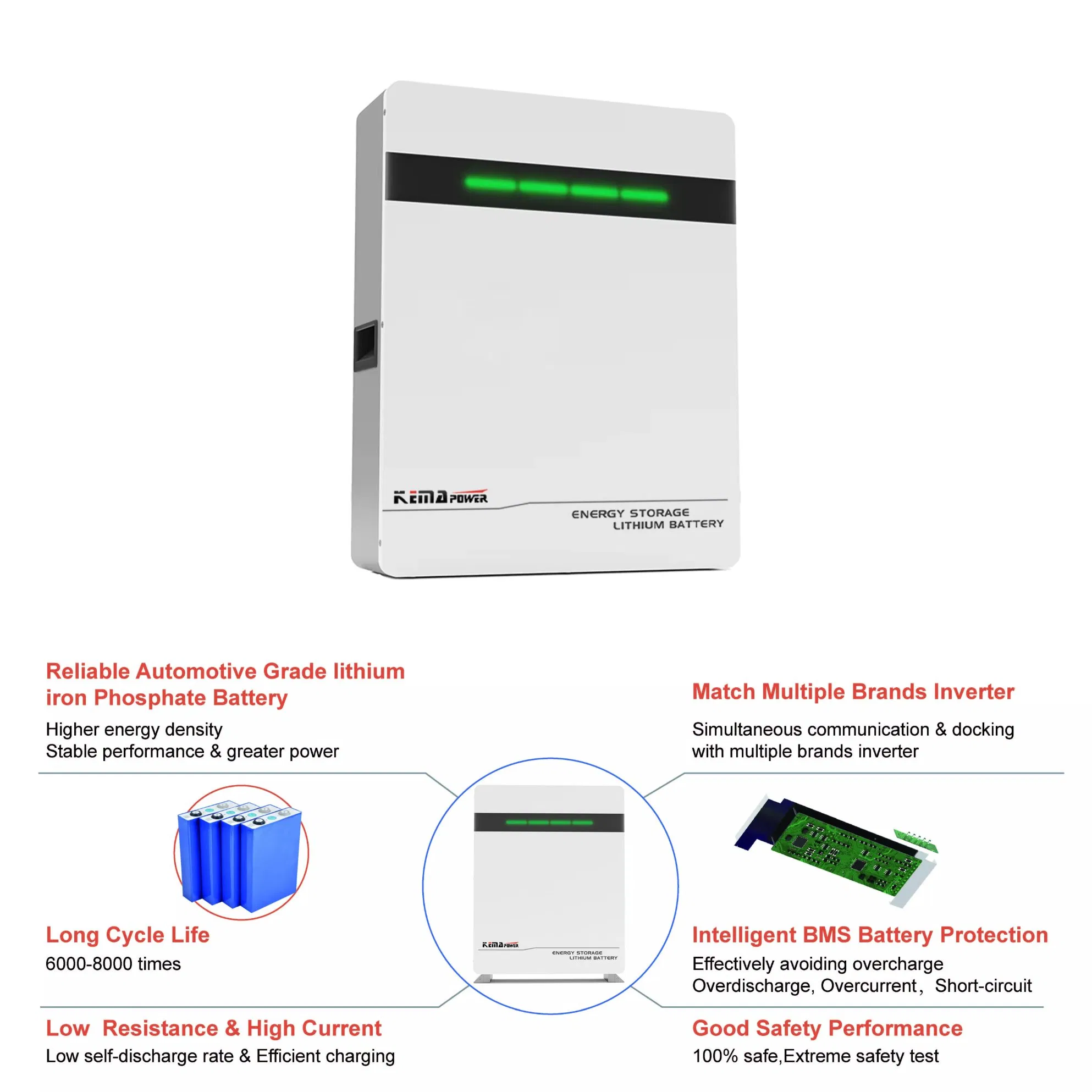

💡 KEY FEATURES
  • LiFePo4 lithium energy storage powerwall battery: 2.56KWH to 16.07KWH options.
  • 4K-8K times Cycle life (80% DOD@25ºC), 10 times more than AGM batteries.
  • Usable Energy Ratio up to 95%, 25-50% more than AGM batteries.
  • Compact size and light weight, over 50% less than AGM batteries.
  • RS485 and CAN communication interface for seamless inverter integration.
  • LED and LCD display for monitoring Cell / Pack / BMS status.
  • Embedded BMS with full protection and cell balancing technology.
  • Supports up to 15 modules in parallel (recommend 2-8 PCS).
📊 TECHNICAL SPECIFICATIONS
MODEL LFP256100-PW LFP512100-PW LFP512206-PW LFP512280-PW LFP512314-PW
Rated Voltage 25.6V 51.2V 51.2V 51.2V 51.2V
Rated Energy 2.56KWH 5.12KWH 10.34KWH 14.34KWH 16.07KWH
Cycle Life 4000 times 6000 times 8000 times 8000 times 8000 times
BMS Protection Over charge / Over Discharge / Over Temperature / Over Current / Short Circuit
Communication RS485 / CAN / USB Interface
Installation Wall Mounted / Ground Mounted
📸 PRODUCT DISPLAY

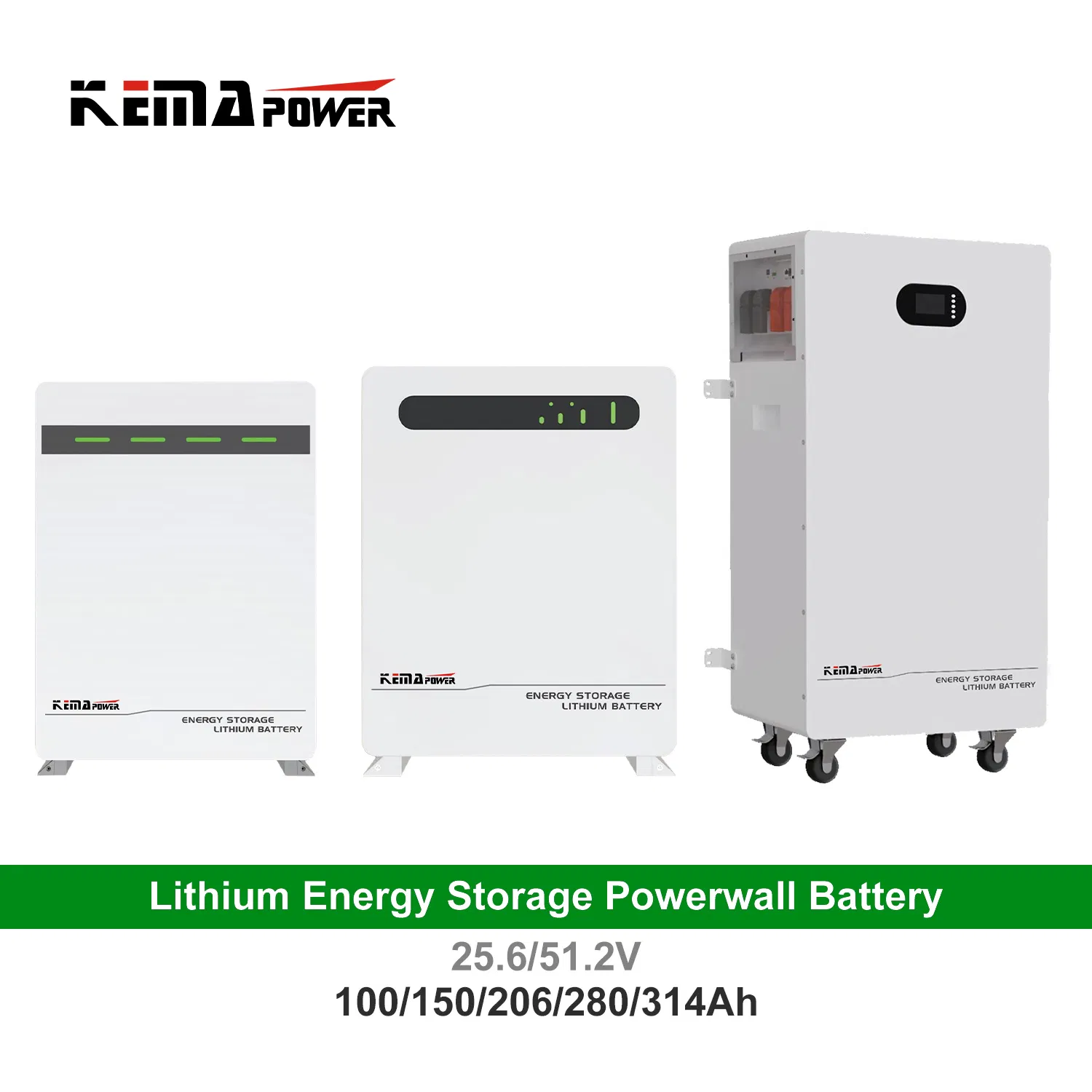

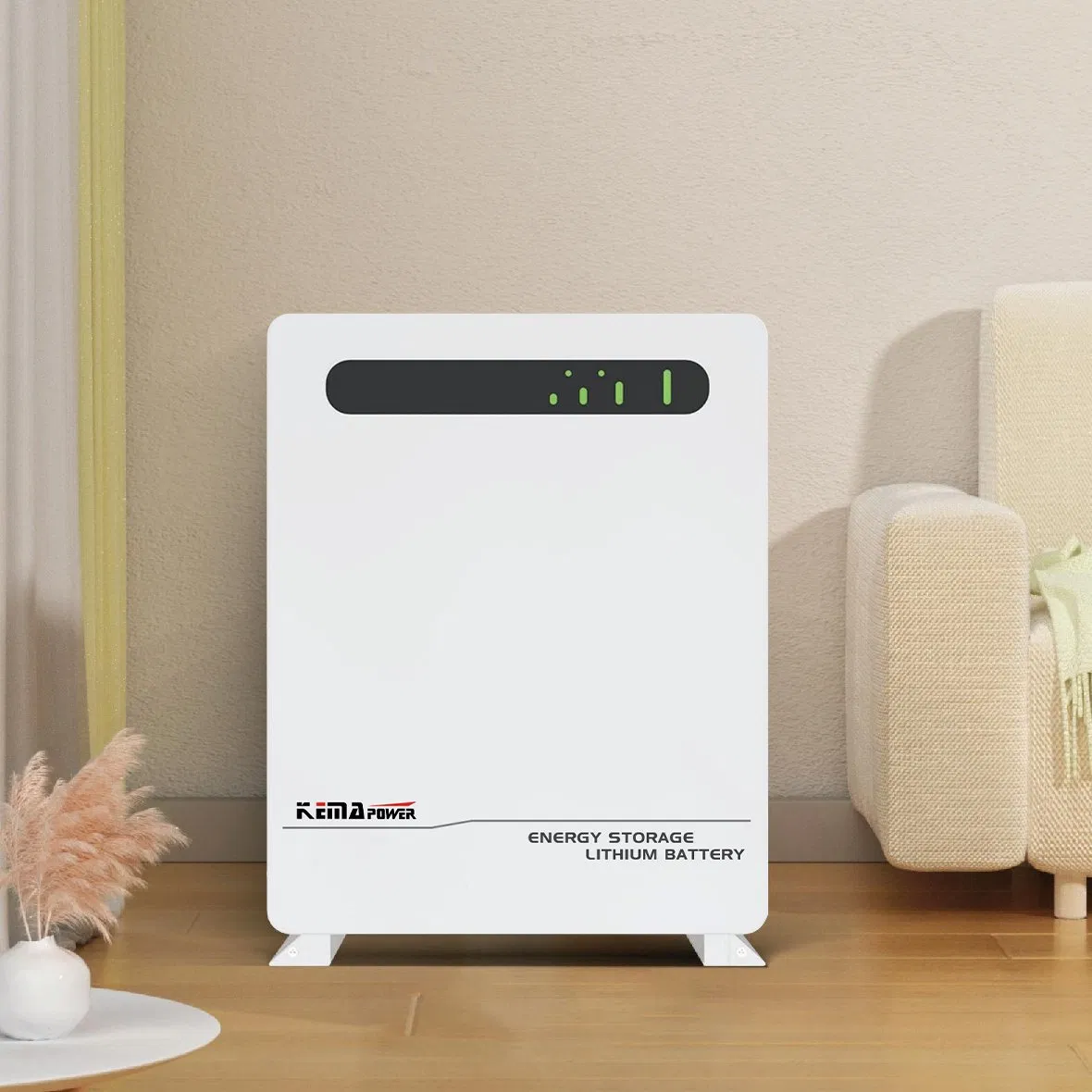

Powerwall Battery Front View
Powerwall Battery Side View
Powerwall Battery Details
Battery Internal Structure

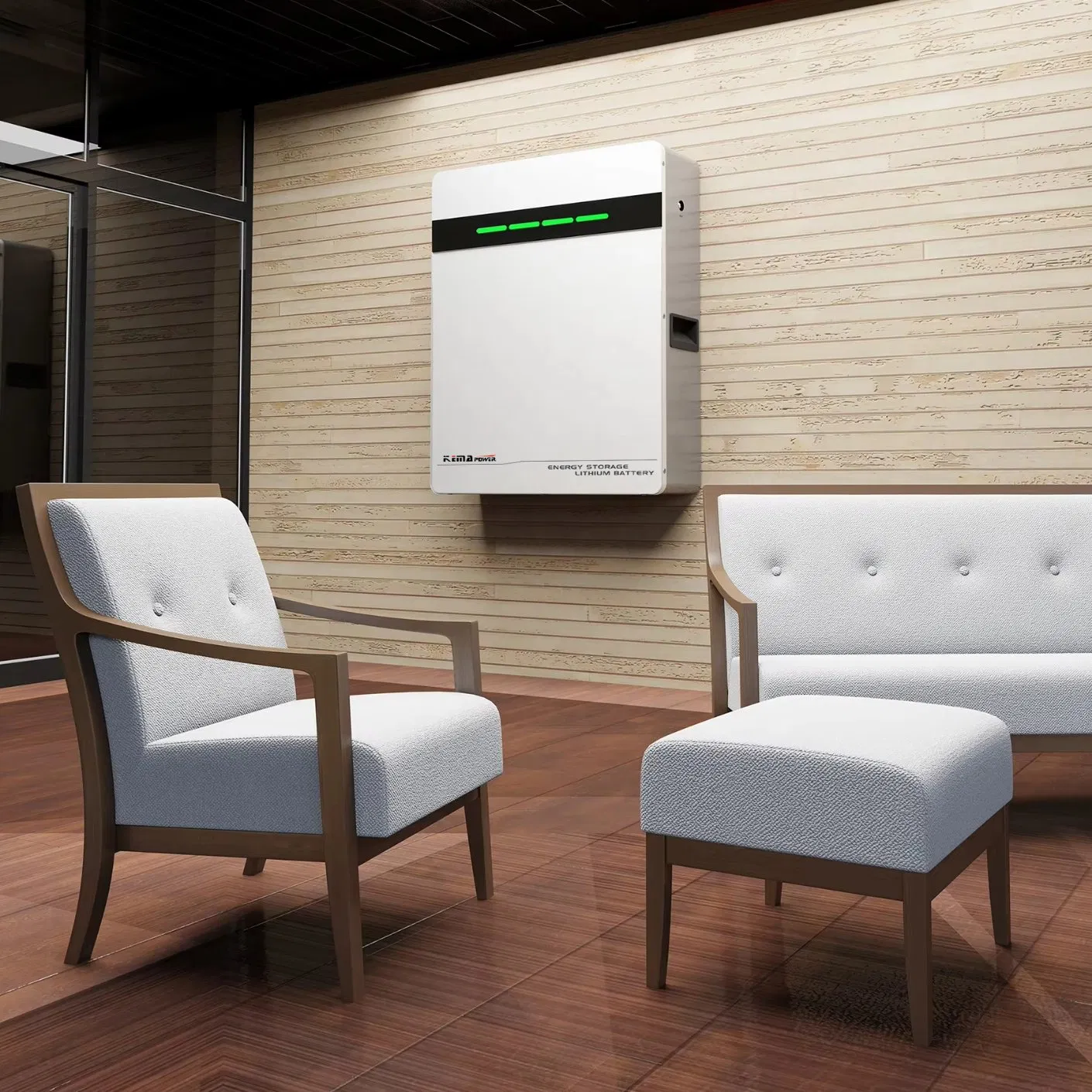

Wall Mounting System

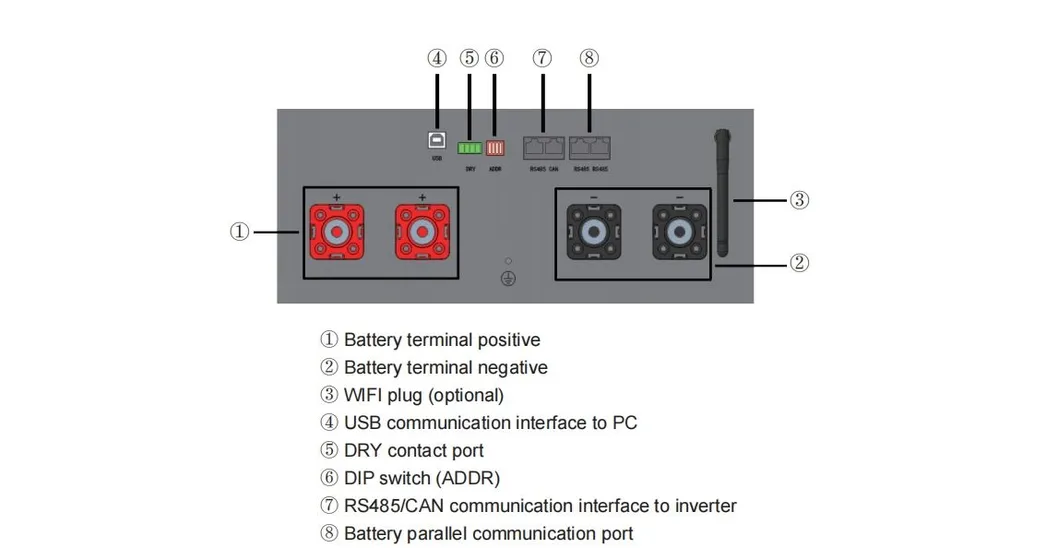

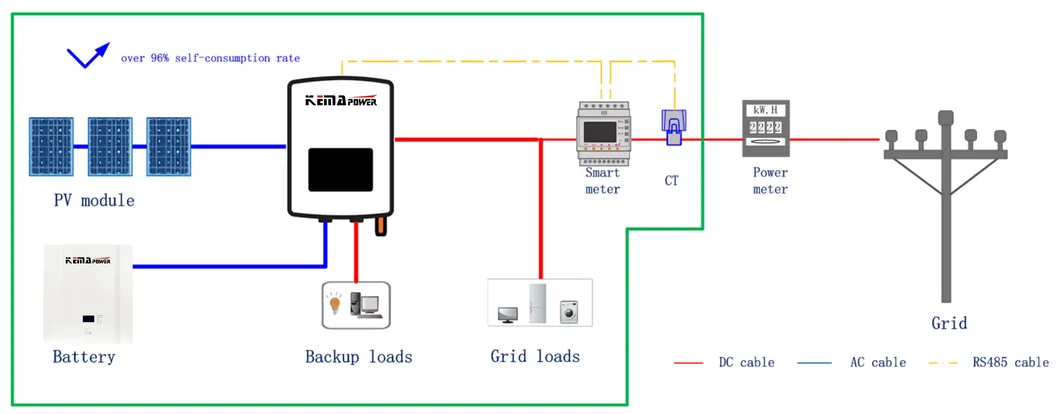

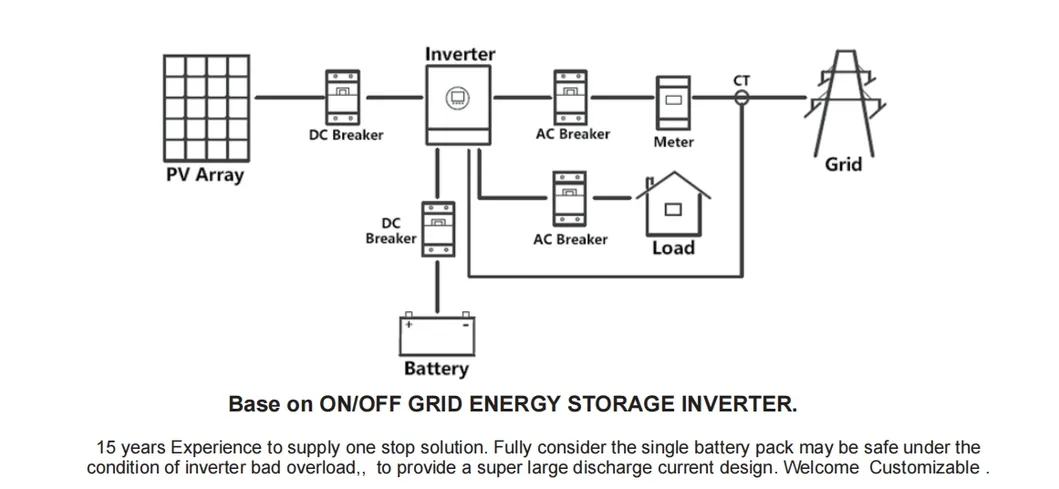

Product Application Diagram Battery Connection Guide
Inverter Compatibility
LCD Display Interface

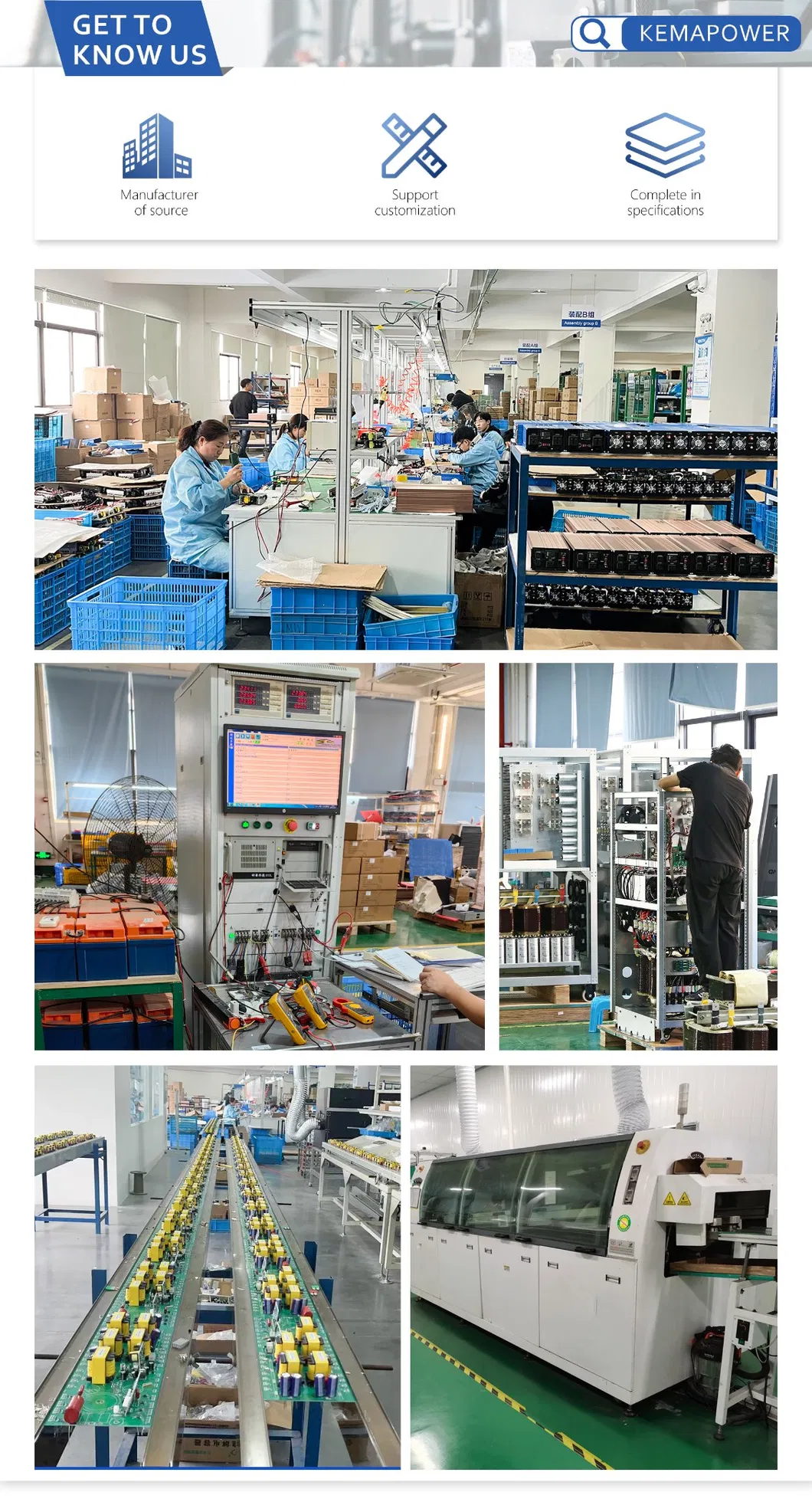

Certification and Testing Production Process Quality Control Packaging Details
❓ FREQUENTLY ASKED QUESTIONS
What is the expected lifespan of the LiFePO4 Powerwall battery?
The battery offers a cycle life of 4,000 to 8,000 times at 80% Depth of Discharge (DOD), which translates to over 10 years of design life under normal operating conditions.
Can multiple batteries be connected to increase capacity?
Yes, the system supports parallel connection. You can connect up to 15 modules in parallel, though we recommend 2-8 units for optimal performance and communication.
Does this battery include a management system?
Yes, each unit features an embedded Battery Management System (BMS) that provides full protection against over-charging, over-discharging, over-current, short circuits, and temperature fluctuations.
Is this battery compatible with my existing solar inverter?
The LFP-PW series features wide compatibility and supports communication via RS485 and CAN protocols, allowing it to work seamlessly with most mainstream hybrid and off-grid inverters.
What are the advantages of LiFePO4 over traditional AGM batteries?
LiFePO4 batteries are over 50% lighter, provide 10 times the cycle life of AGM, have a 95% usable energy ratio, and are much more compact in size for the same power output.
Can the battery be installed outdoors?
The standard model is rated IP21 for indoor use. For outdoor installations, a dedicated protective enclosure or a higher IP-rated model should be considered to ensure longevity.
