Ansar Energy
1 / 5

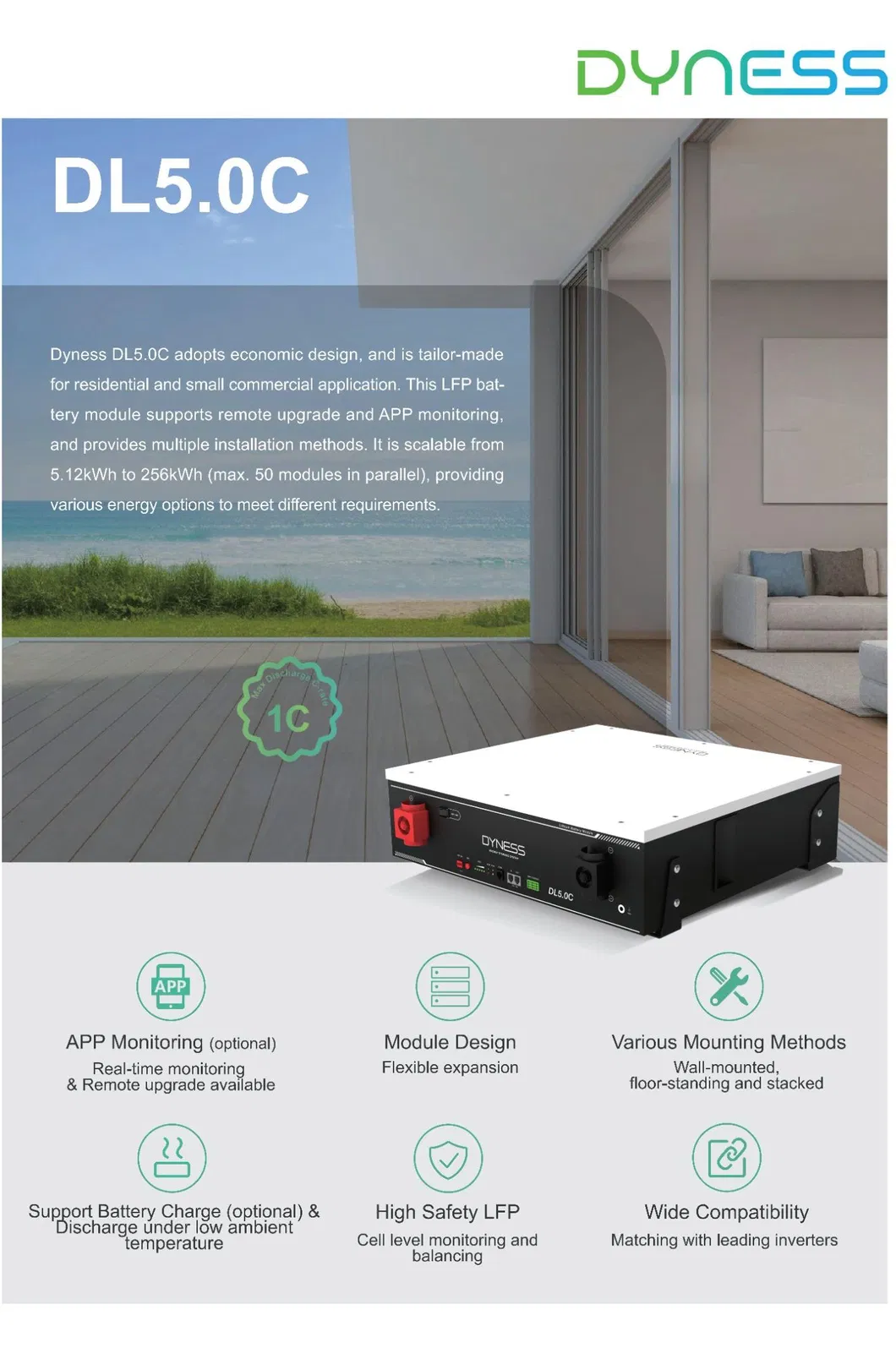

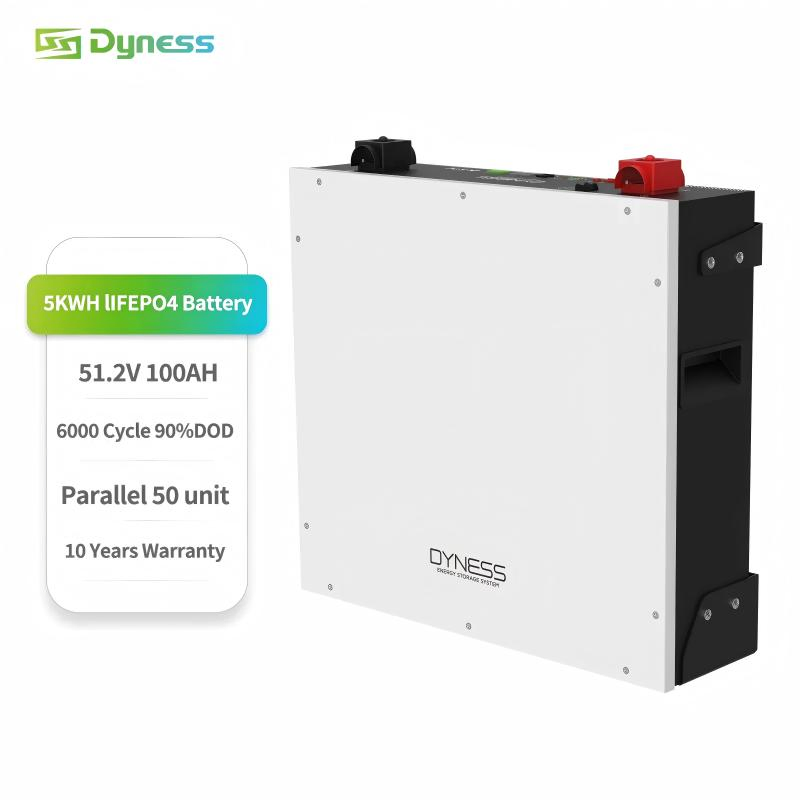

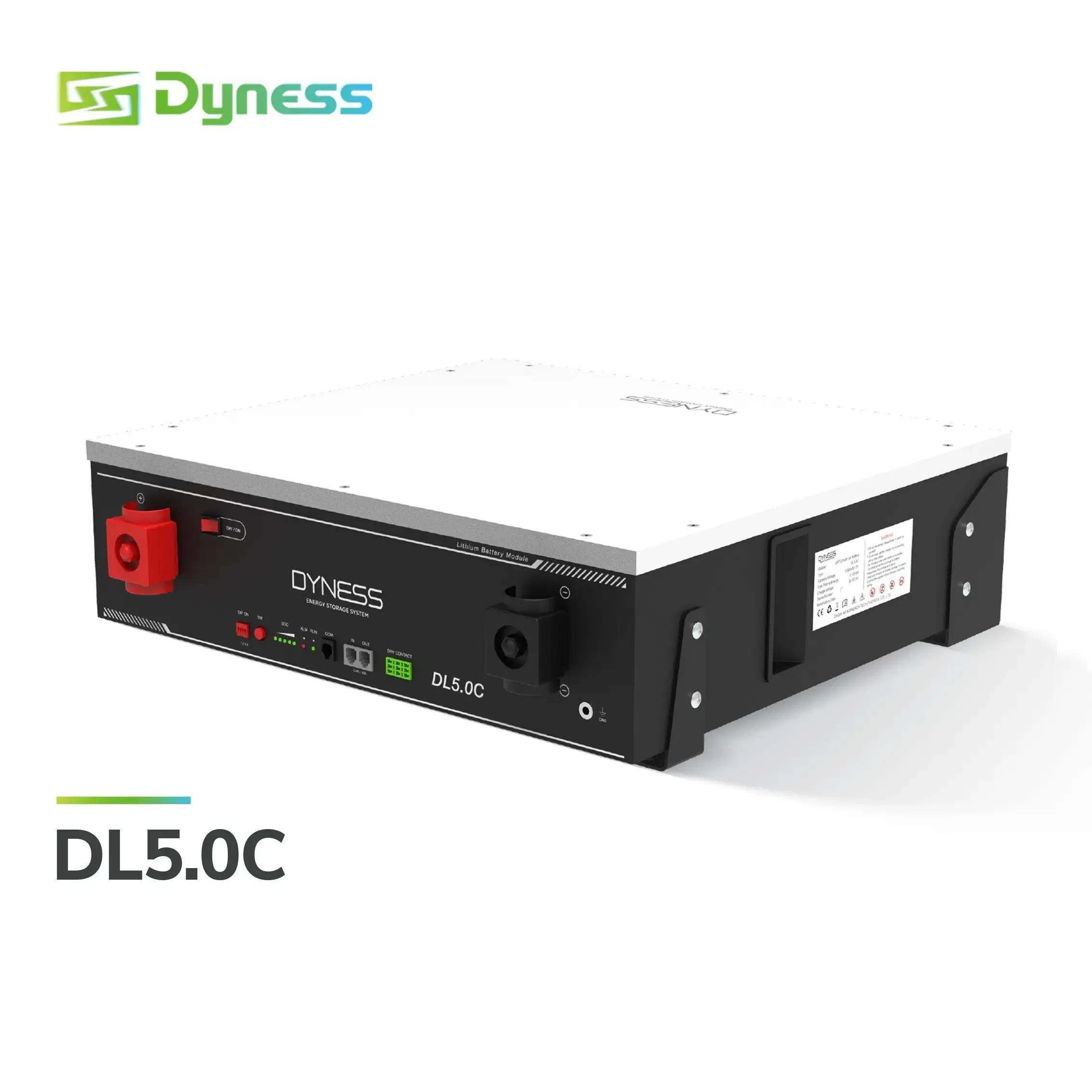

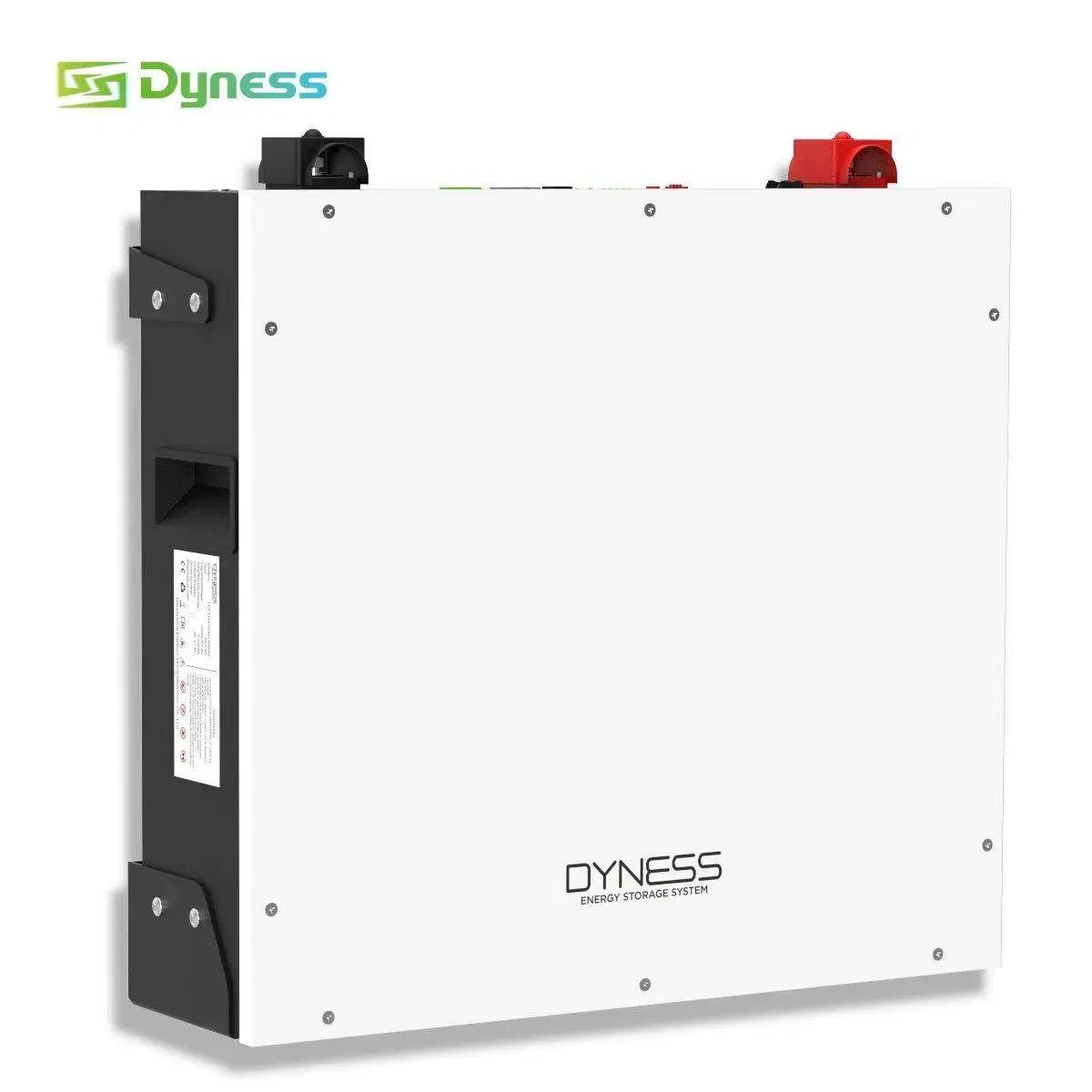

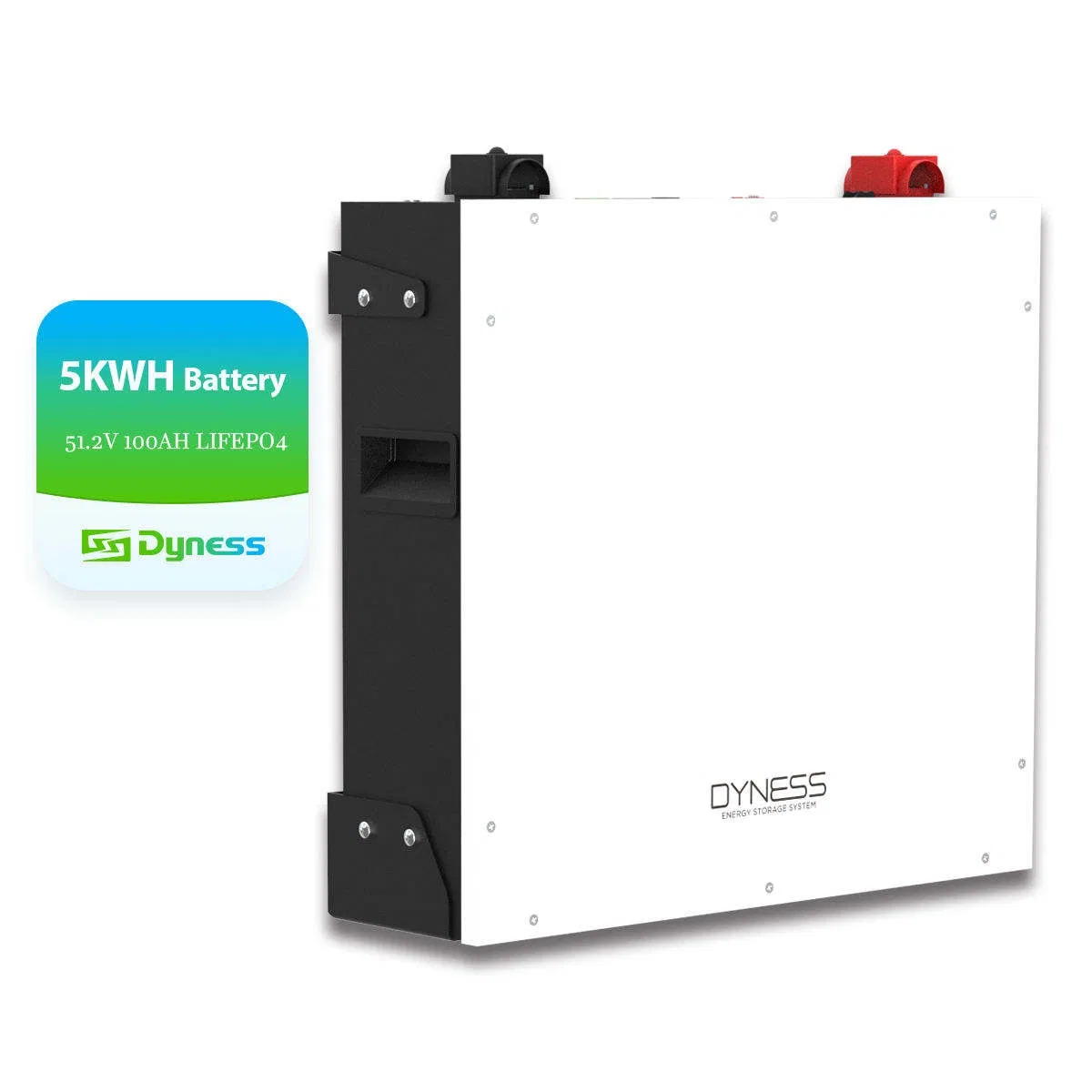

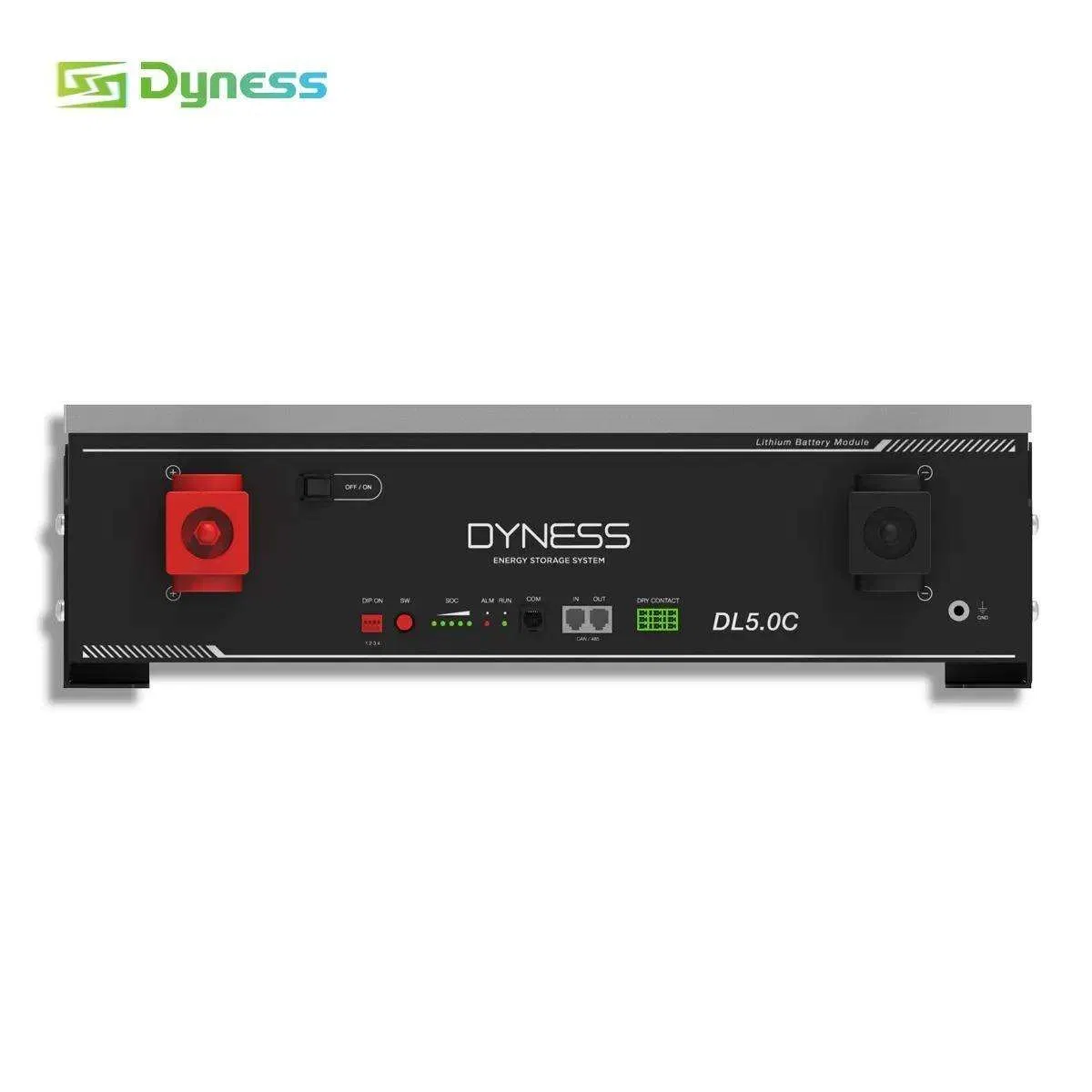

| Model | DL5.0C |
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 5.12kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8~57.6V |
| Recommended Charge & Discharge Rate | 0.5C |
| Maximum Discharge Rate | 1C |
| Recommended Charge/Discharge Current | 50A |
| Max. Charge/Discharge Current | Charge 75A / Discharge 100A |
| Peak Discharge Current | 110A(15s) |
| Depth of Discharge (DOD) | 90% |
| Net Weight | 49.9kg |
| Dimension [W/D/H] (mm) | 558/545/150 |
| Charging Temp. Range | 0~55℃ / -20~55℃ (with heating) |
| Discharging Temp. Range | -20~55℃ |
| Communication | CAN/RS485/RS232 |
| Cycle Life | More than 6000 Cycles |
| Protection Level | IP20 |
| Expansion | Up to 50 units in parallel |
| Certification | UN38.3/CE-EMC/IEC62619/CEI-021 |
| Compatible Inverters | SMA/Victron energy/Ingeteam/Solis/GoodWe/Growatt/Solplanet/Luxpower/DEYE/Apsystem etc. |
As a professional provider of smart solar solutions, we deliver PV products, applications, and services to promote global sustainable development. Through constant innovation, we continue to push the PV industry forward by creating greater grid parity of PV power and popularizing renewable energy. Our mission is to boost global renewable energy development around the world for the benefit of all humanity.
The provider is pioneering development in Smart PV Energy and Energy Internet Solutions. With over 10 years of combined solar energy experience, we continue to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world.

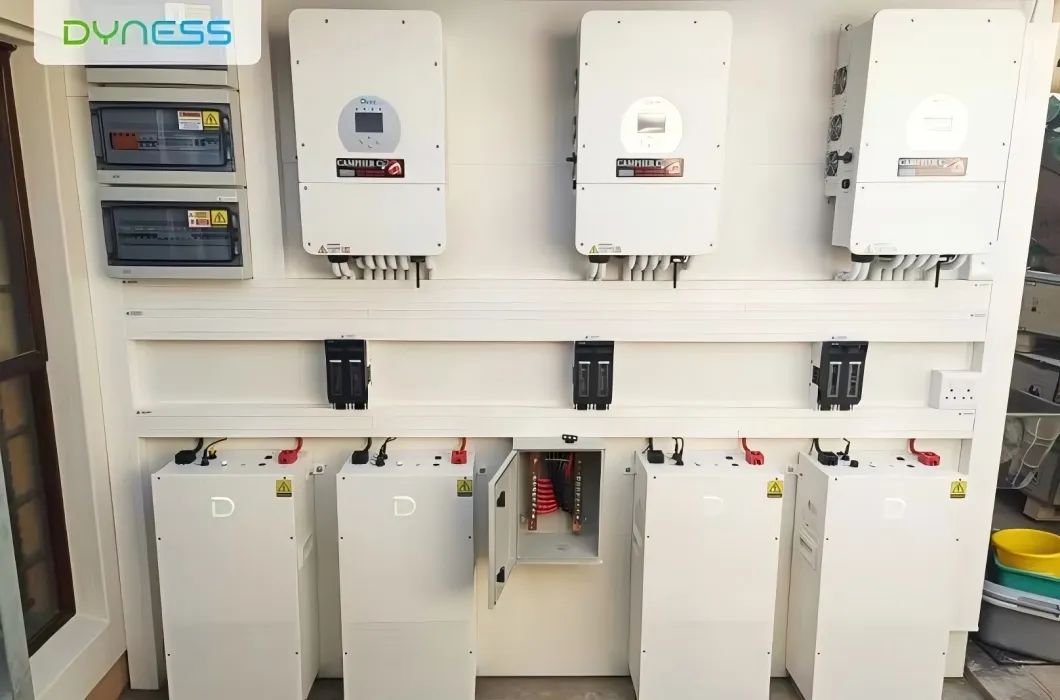

Our solar projects follow a professional six-step process approach. This will guarantee the success of the installation, commissioning, maintenance, and monitoring of your photovoltaic plant.
