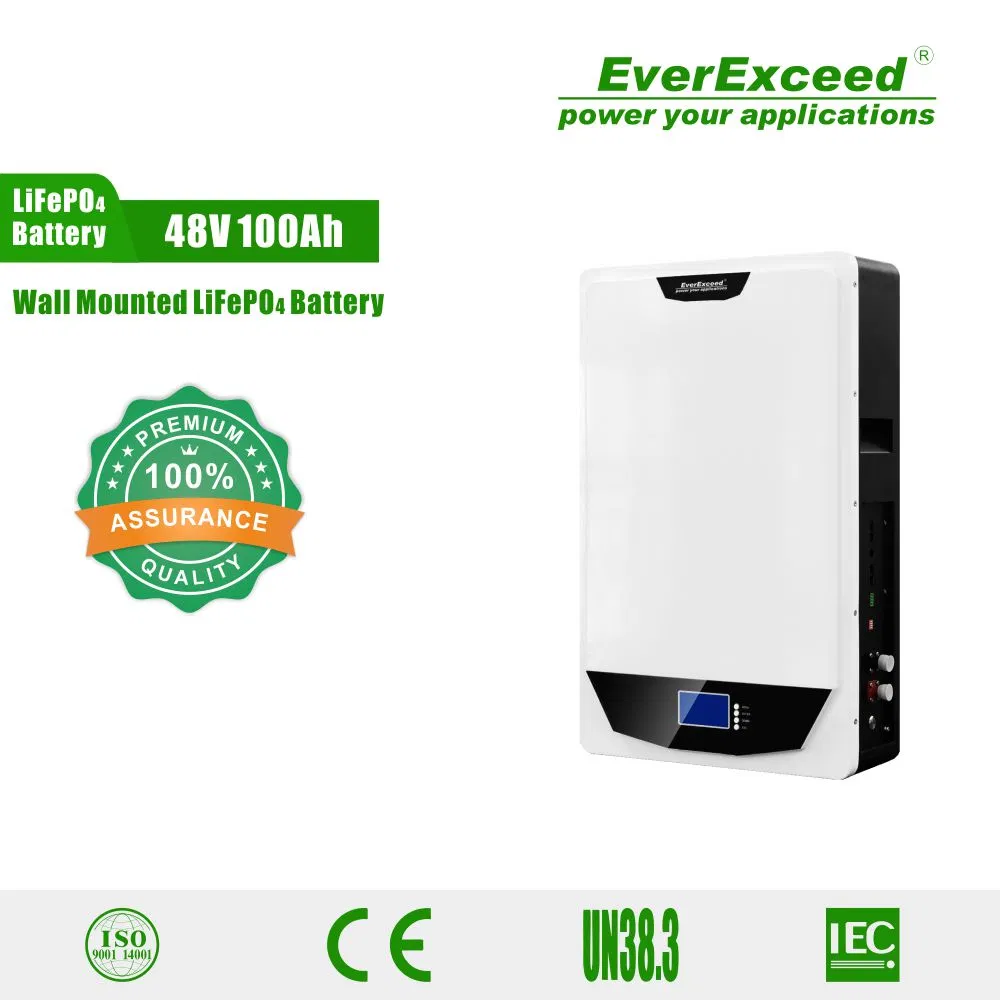

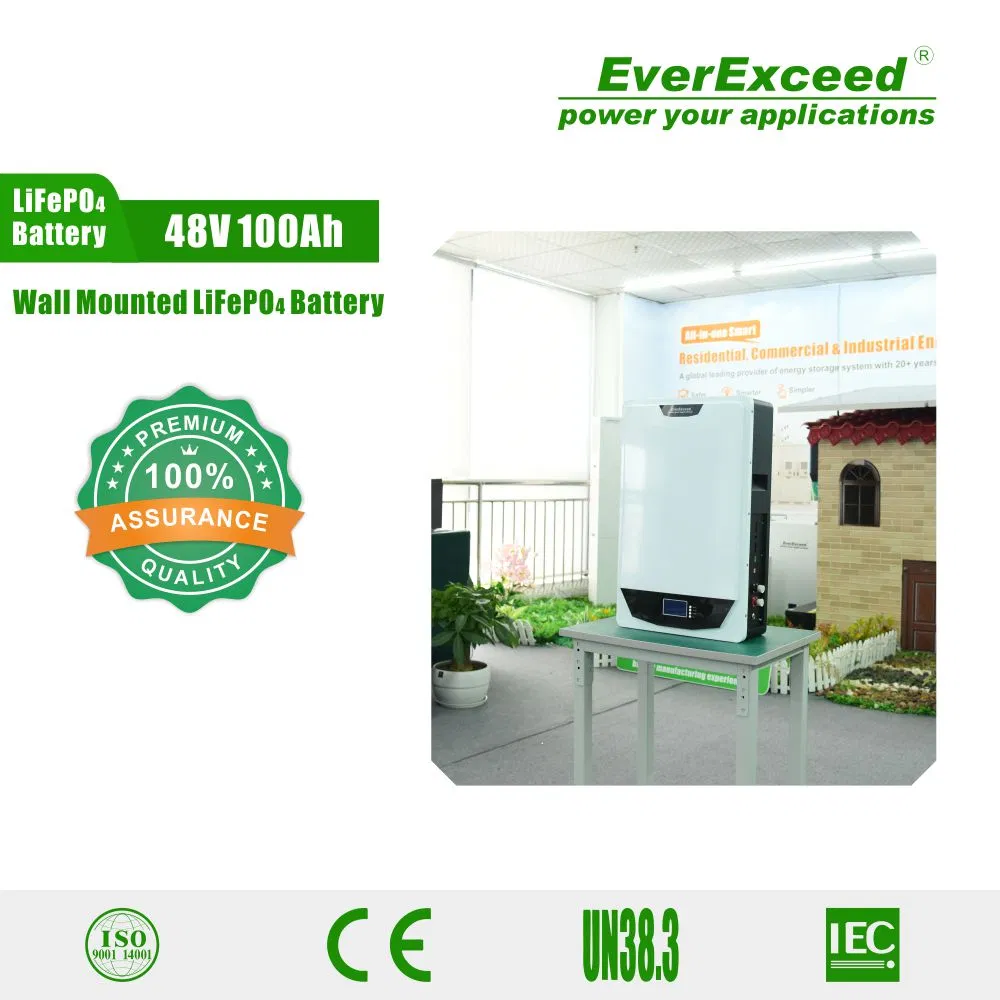

This battery adopts a shield appearance design and ultra-high quality cells, constructed from flame-retardant materials. The optimized internal heat dissipation structure increases safety and fire prevention at multiple levels, achieving a perfect balance between aesthetics and safety for peace of mind.
Enhanced Four-Level Safety Design:
• Cell Level: Built-in Grade A LiFePO4 cells from top suppliers.
• Electrical: BMS protection against overcharging, over current, and temperature issues.
• Structural: Insulating flame-retardant materials and unique shield shell.
• Emergency: Equipped with physical aerosol fire extinguisher for risk elimination.
• Built-in smart BMS with intelligent automatic protection.
• High compatibility with mainstream brand inverters.
• Versatile communication protocols available (RS232, RS485, CAN).
• Plug and play design for easy installation.

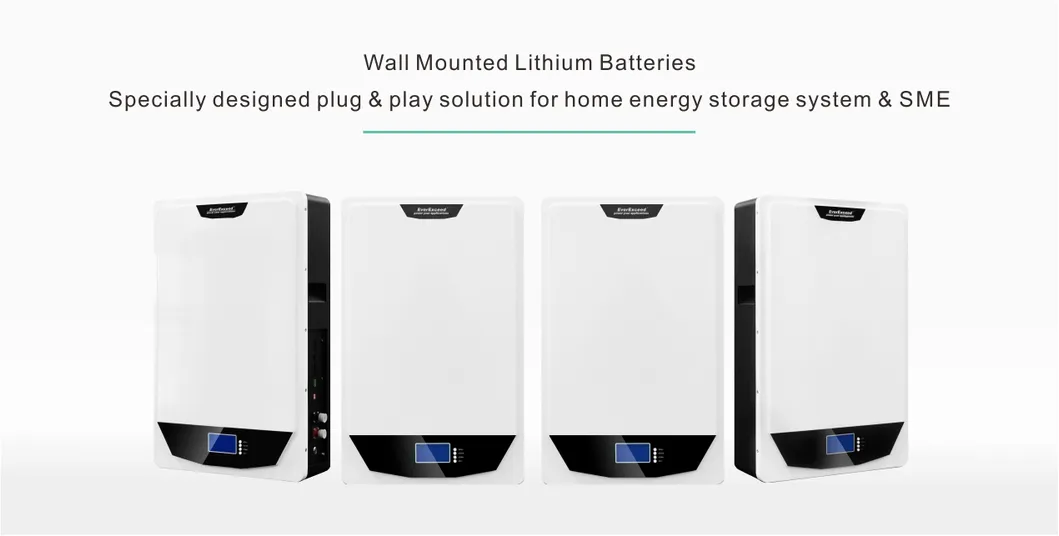

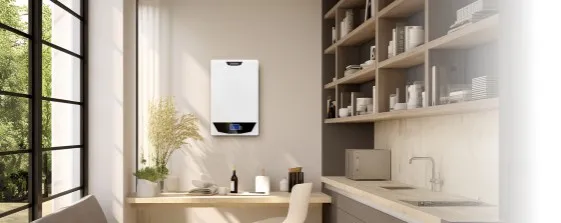

• Wall-mounted and space-saving structure.
• Modular design supporting up to 15 sets in parallel for capacity expansion.
• Optional IP65 protection for indoor and outdoor versatility.
| Battery Model | EP48-100W2 | EP48-200W2 | ||
|---|---|---|---|---|
| Nominal Voltage | 48V | 51.2V | 48V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | ||
| Nominal Energy | 4.8KWh | 5.12KWh | 9.6KWh | 10.24KWh |
| Dimension (H*W*D) | 630*400*165 mm | 780*490*175 mm | ||
| Weight | 49kg | 53kg | 83kg | 91kg |
| Max Discharge Current | 100A | |||
| Cycle Life | ≥ 8000 cycles @ 80%DOD @ 25ºC | |||
| Working Temp. | Discharge: -20ºC to +60ºC / Charge: 0ºC to +45ºC | |||

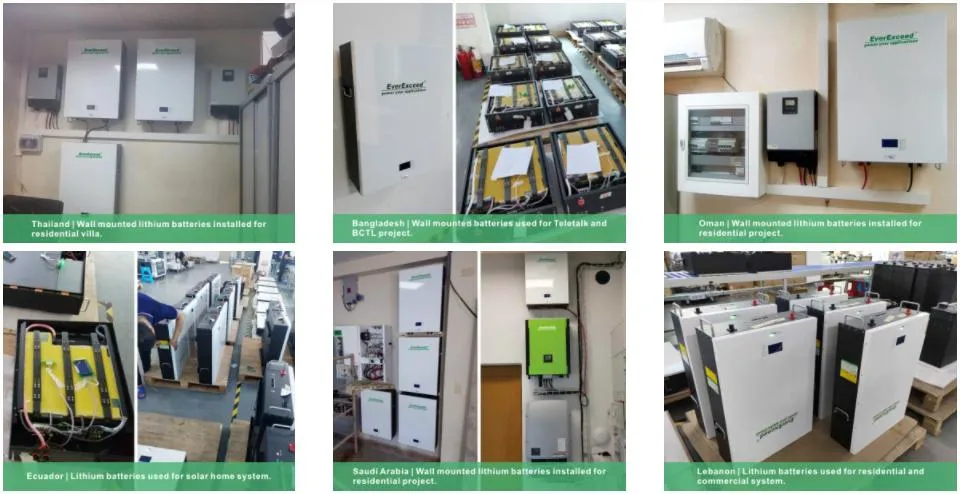

Optimized for Residential Solar Storage, Wind Energy Systems, and Backup Power Solutions.
