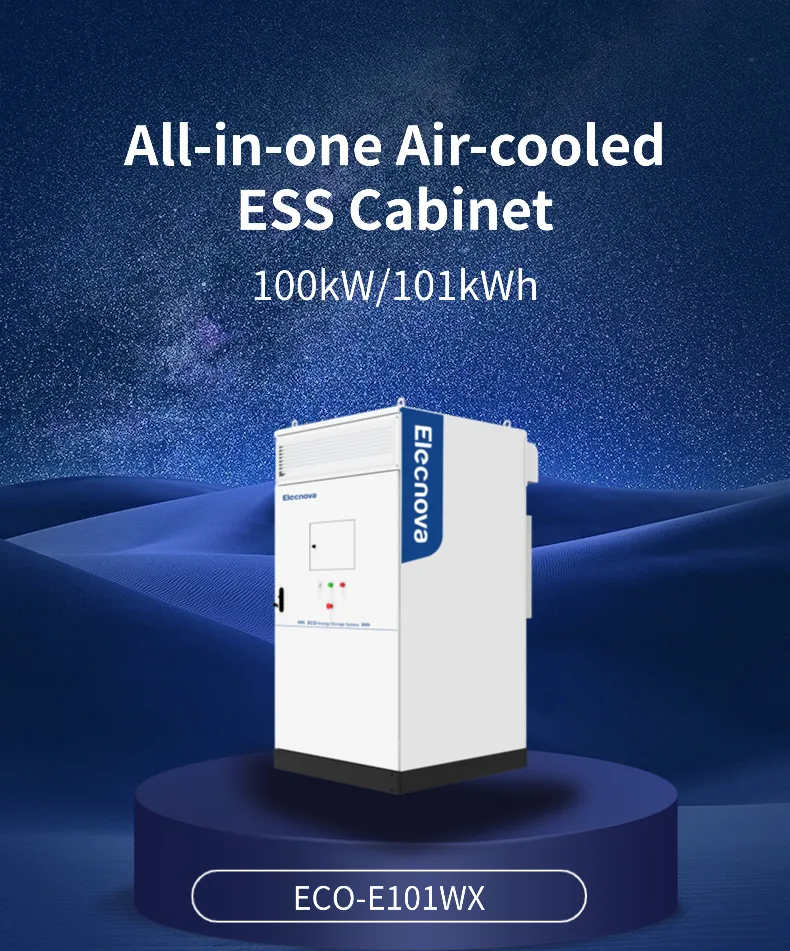

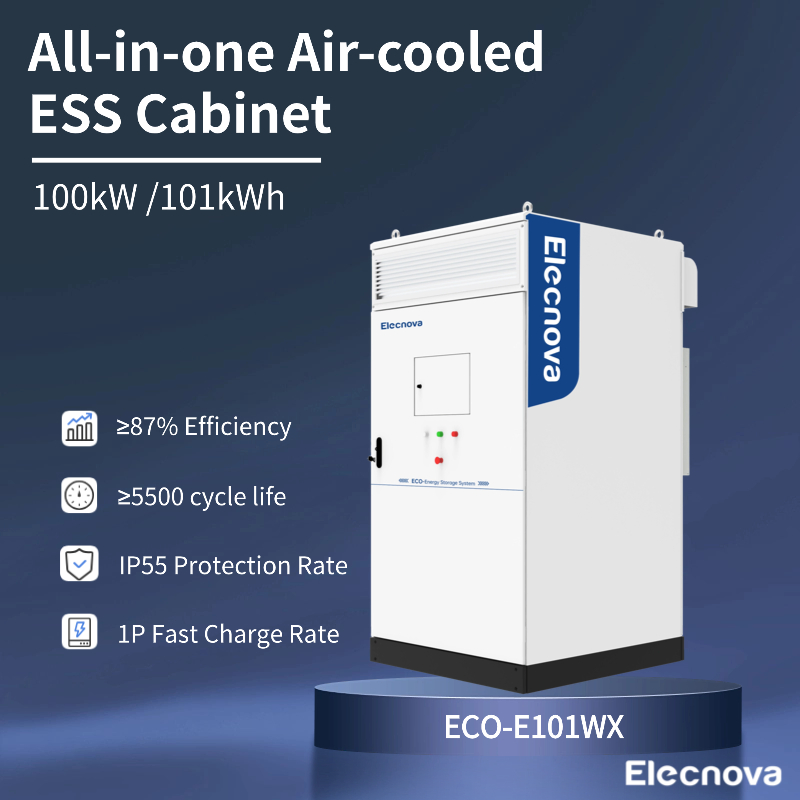

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| DC Voltage Range | 739.2 ~ 950.4 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

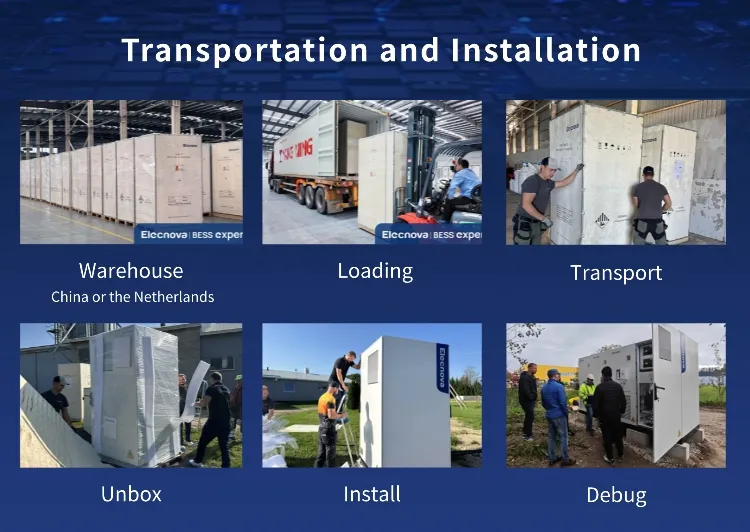

A systematic delivery process ensures your BESS operates reliably from warehouse to grid connection:

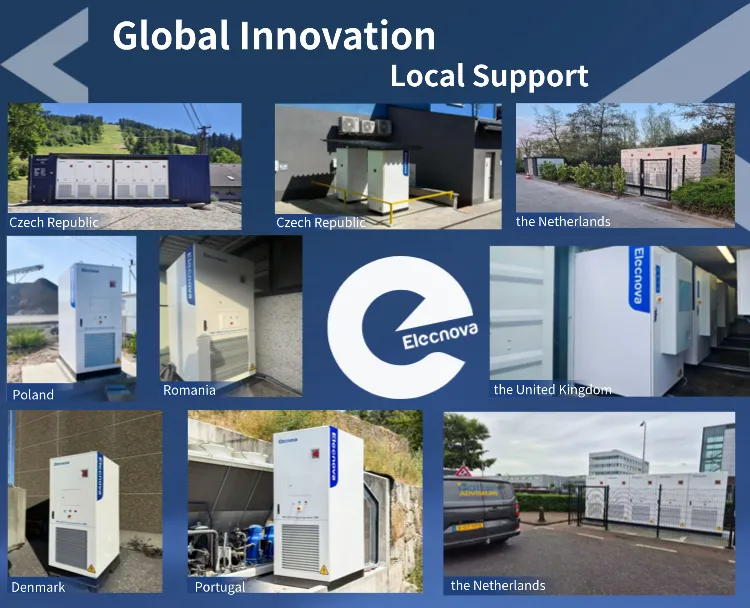

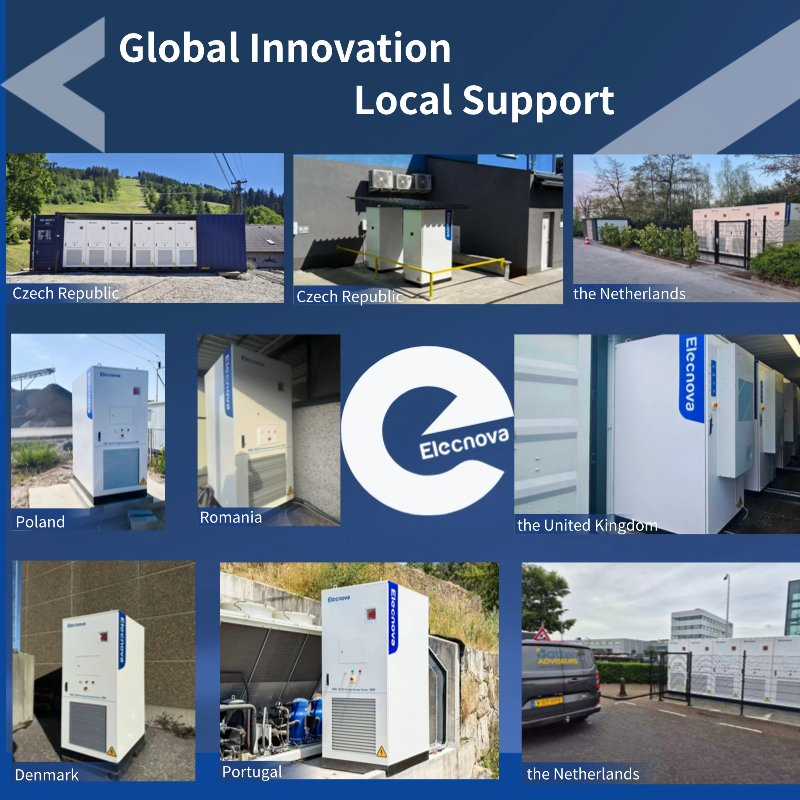

Transforming energy landscapes from Europe (Italy, Netherlands, Belgium, Czech Republic, Poland) to Southeast Asia, Africa, and the Middle East. We provide localized timely support, an industry-leading warranty (up to 5+5 years), and cells performance warranty of up to 8000 cycles at 75% SOH.
With 28 years of industry experience and 2 ESS factories, we boast a production capacity of 2GWh. Our facility holds CNAS laboratory certification, ensuring efficient, standardized manufacturing and rigorous quality control for all modular and PACK production lines.
