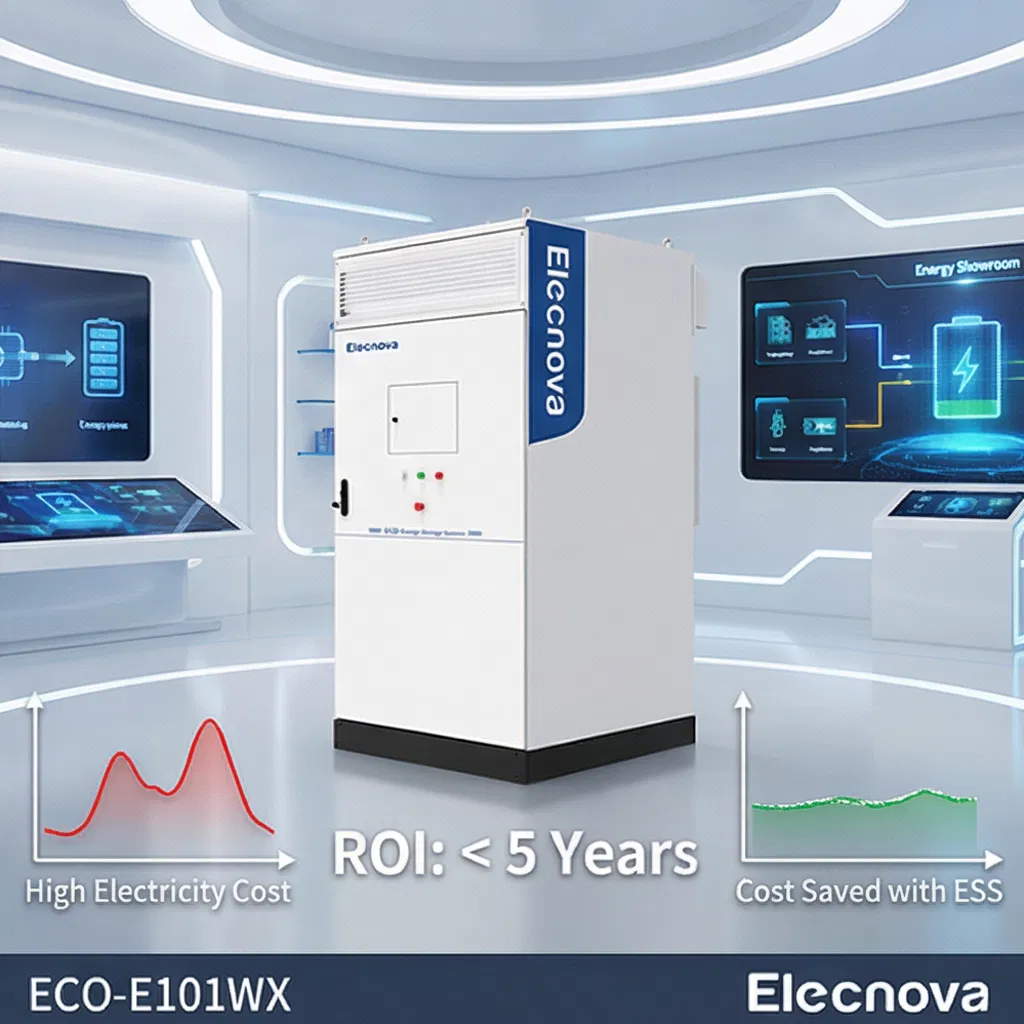

Model: ECO-E101WX

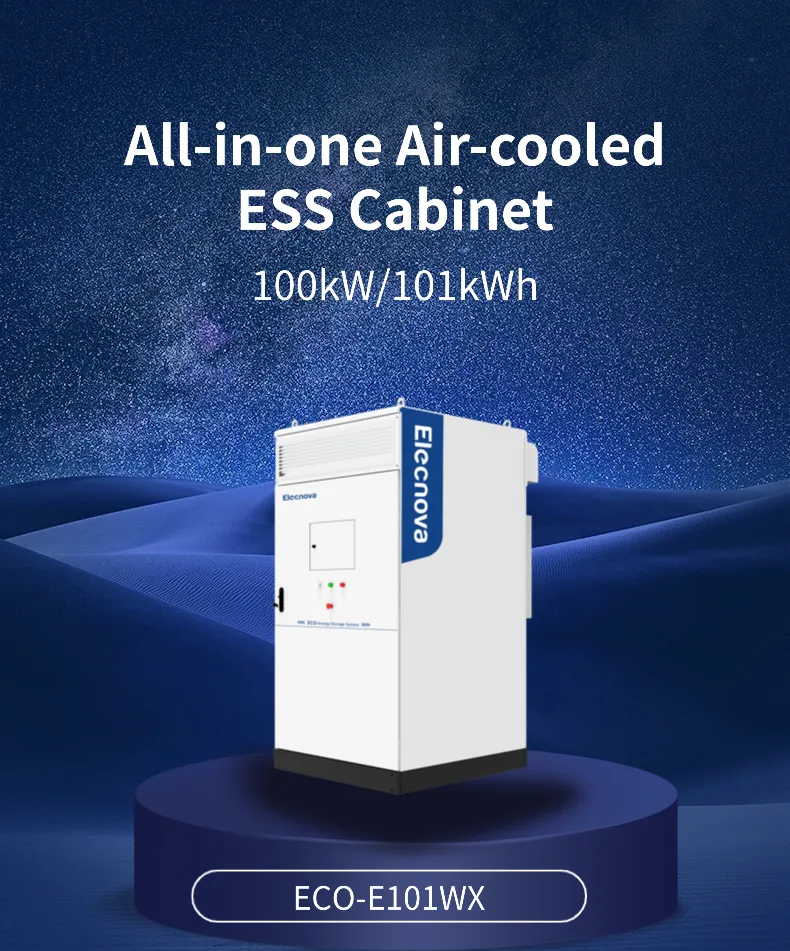

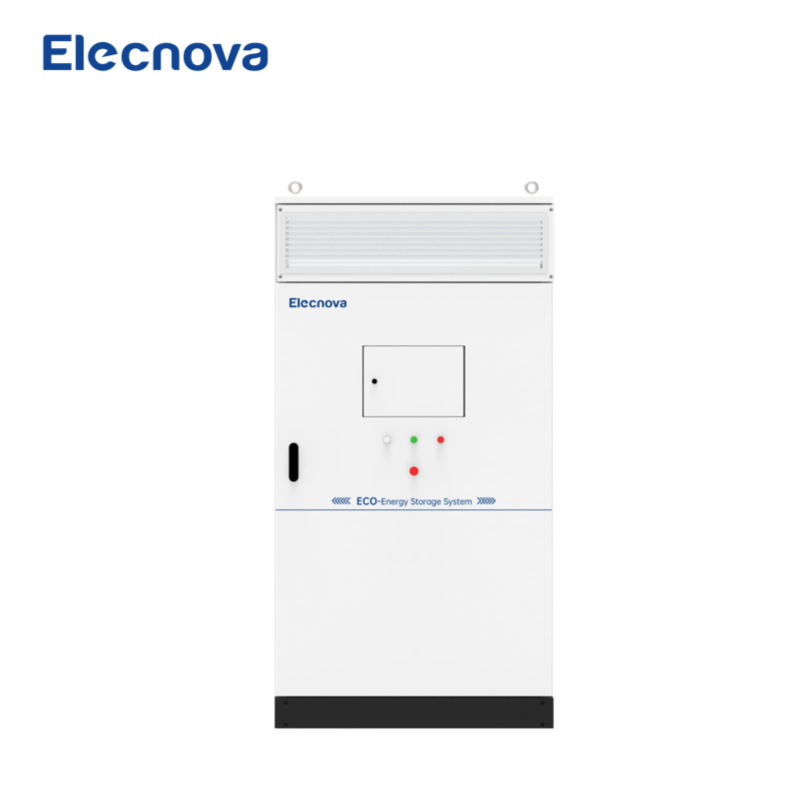

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of energy storage power stations with flexible capacity expansion.
This high-performance energy storage solution is ideal for EV charging stations and similar applications. With a max charge/discharge rate of 1P, ≥87% efficiency, and a robust cycle life of ≥5500 cycles, it delivers consistent power. Its IP55 ingress rating and forced air cooling ensure durability in varied environments.
| DC Side Parameters | |
|---|---|
| Cell Type | LFP / 120 Ah |
| PACK Configuration | 9.2 kWh / 1P24S |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Parameters | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Rated Frequency | 50 Hz / 60 Hz |
| General Information | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Certification | UN38.3, IEC62477-1, IEC62619, IEC63056, EN50549 |

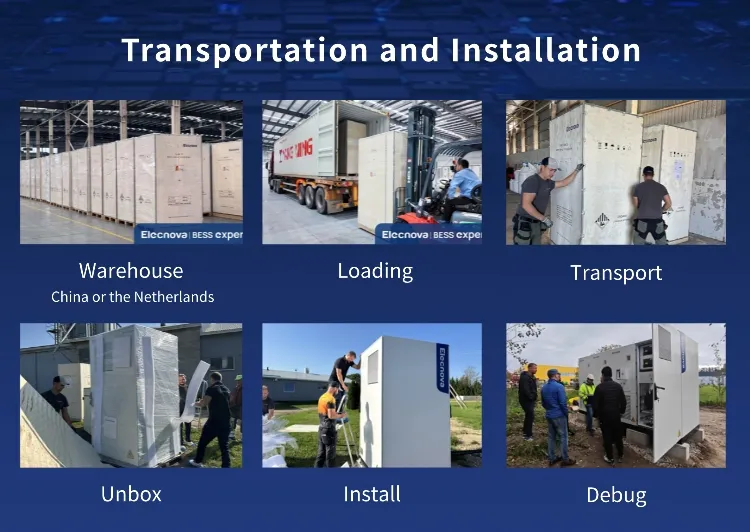

A systematic and professional transportation & installation process is key to ensuring your BESS operates reliably. We deliver a full-cycle service from warehouse to commissioning:
Our energy storage solutions are backed by an industry-leading max 5+5 years warranty, coupled with a cells performance warranty of up to 8000 cycles at 75% SOH. We provide comprehensive technical guidance and on-site training for maintenance and installation.

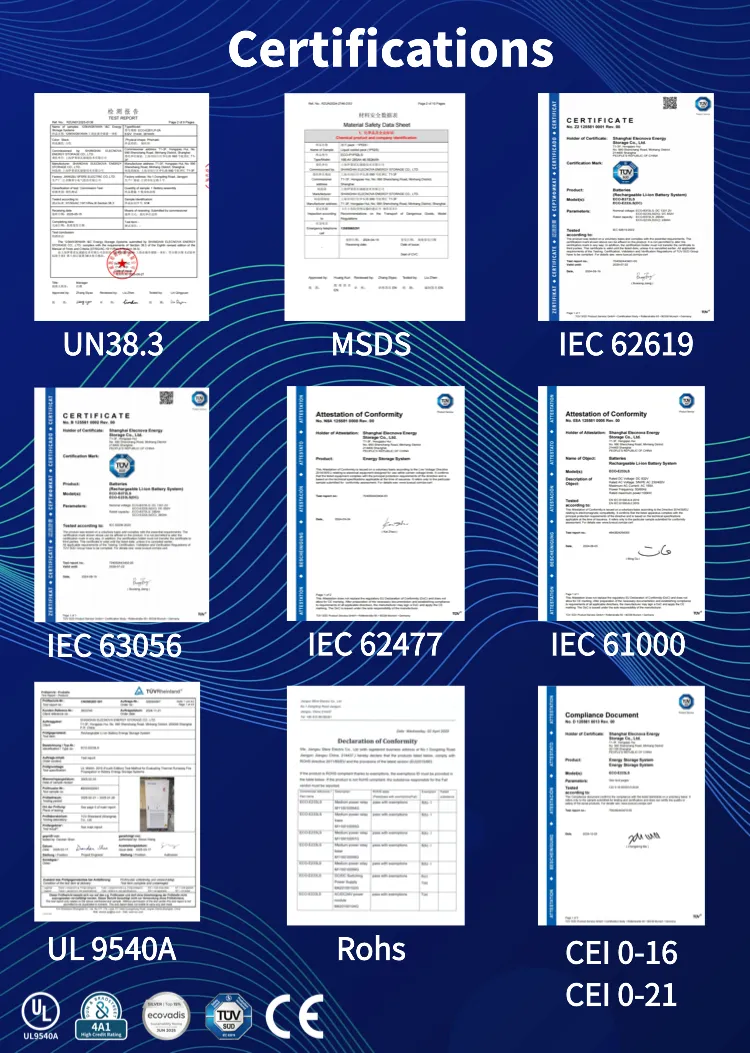

Certified Quality:
• Safety: UN38.3, MSDS, UL 9540A
• Standards: IEC 62619, IEC 63056, IEC 62477, IEC 61000
• Regional: CEI 0-16, CEI 0-21, RoHS
