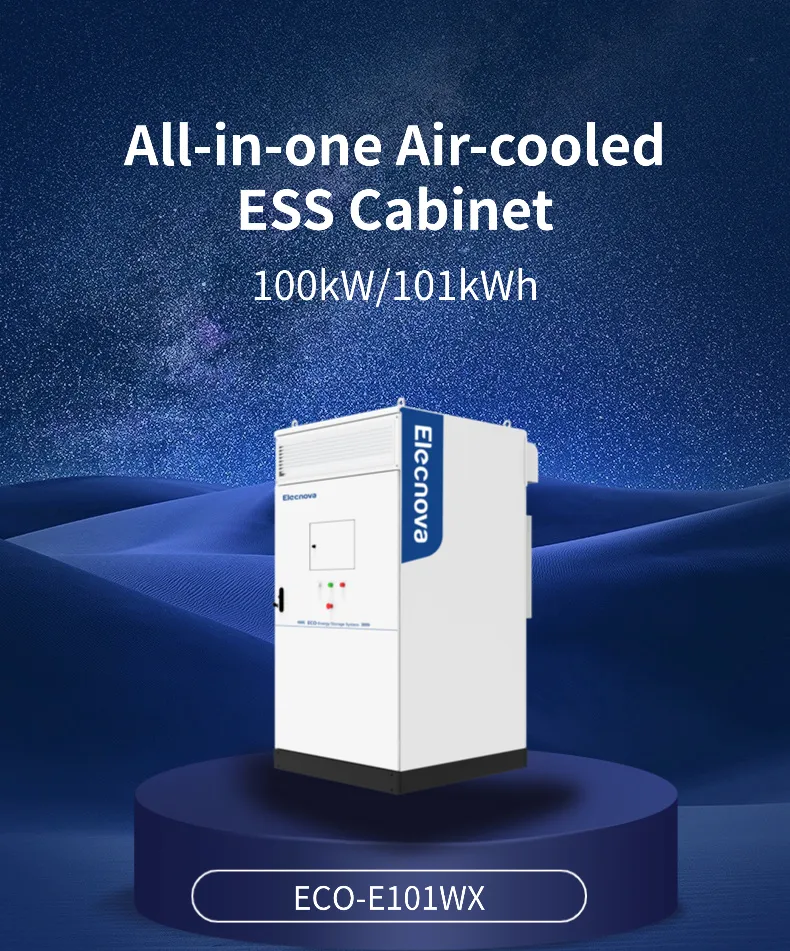

Model: ECO-E101WX

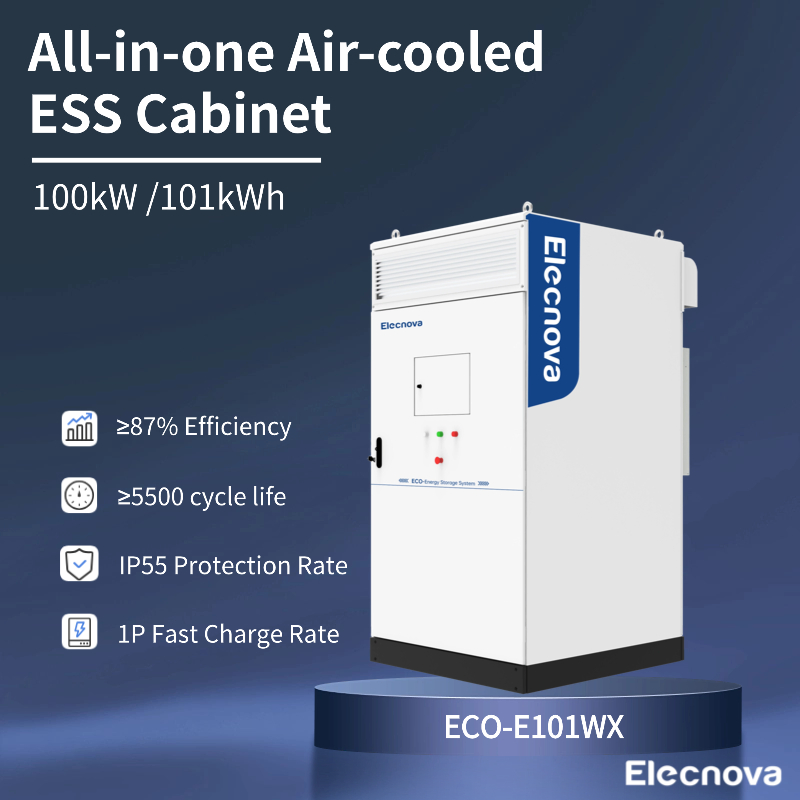

The all-in-one air-cooled Energy Storage System (ESS) cabinet integrates long-life battery technology, efficient balancing BMS, high-performance PCS, active safety systems, smart distribution, and HVAC into a single unit. This design ensures long-term safety, stability, and reliability. Through AC side parallel connection, it enables agile deployment and flexible capacity expansion for energy stations.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| THDi | ≤3% |
| General Information | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC (Derating after 45ºC) |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

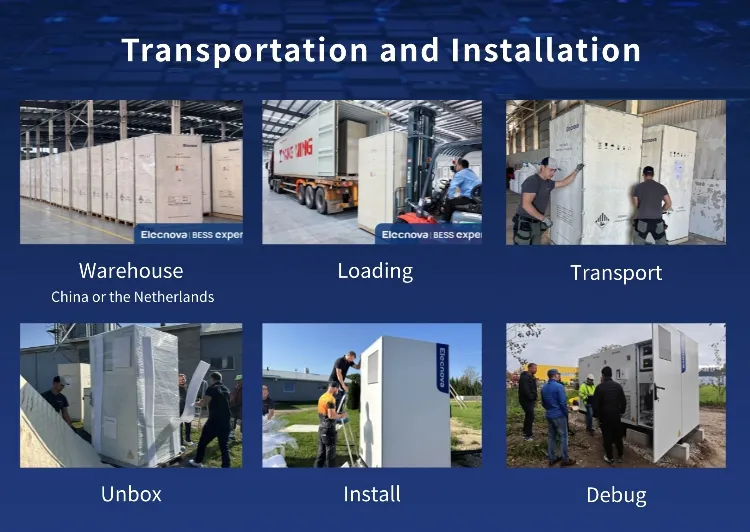

We provide a systematic delivery process: professional warehousing, specialized loading, global transport, careful unboxing, precision installation, and expert debugging to ensure your energy storage system is fully optimized for grid connection.

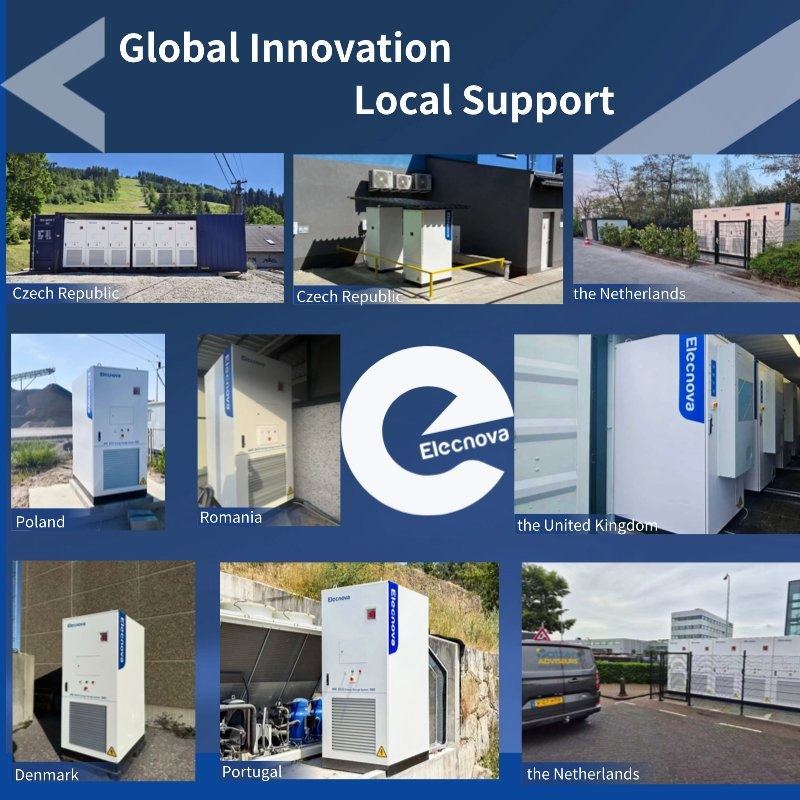

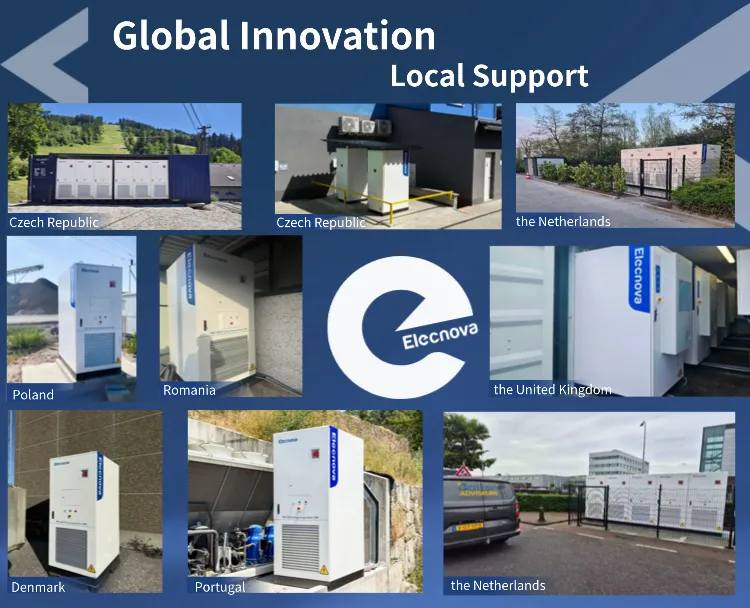

Our energy storage solutions are transforming landscapes worldwide, spanning across Europe (Italy, Netherlands, Belgium, Czech Republic, Poland), Ukraine, Southeast Asia, Africa, and the Middle East.
Comprehensive Support: We offer a 5+5 years warranty and a performance warranty of up to 8000 cycles. Support includes on-site/online training and detailed technical guidance.

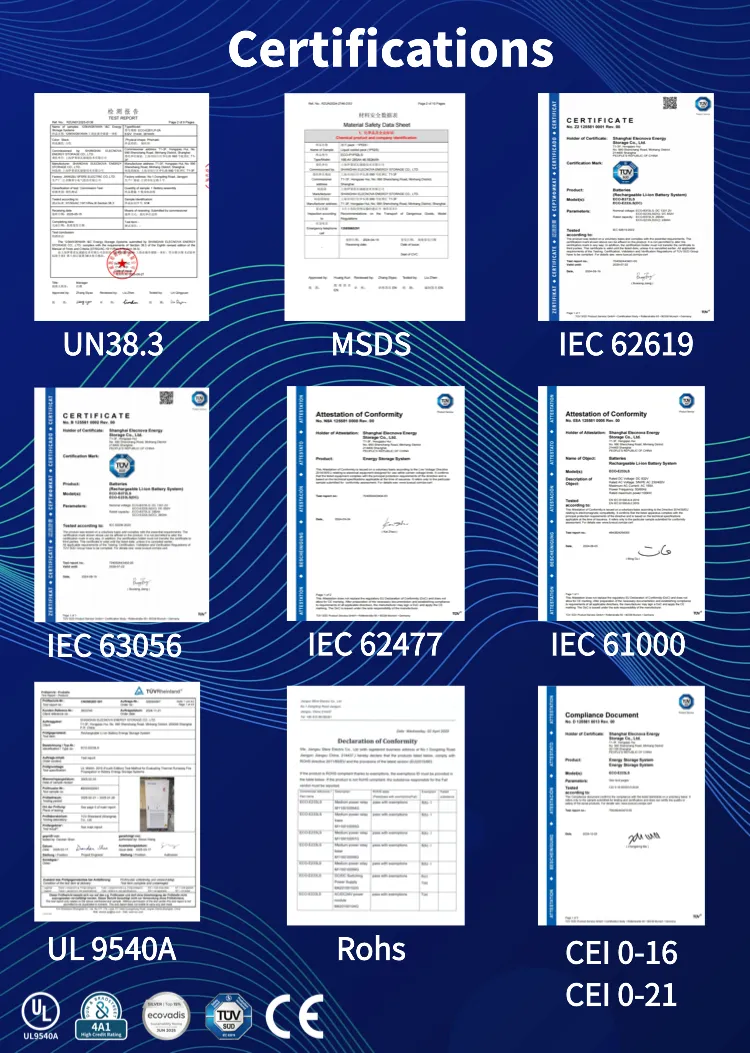

Compliance: Our systems meet international standards including UN38.3, IEC 62619, IEC 63056, IEC 62477, IEC 61000, and UL 9540A.
