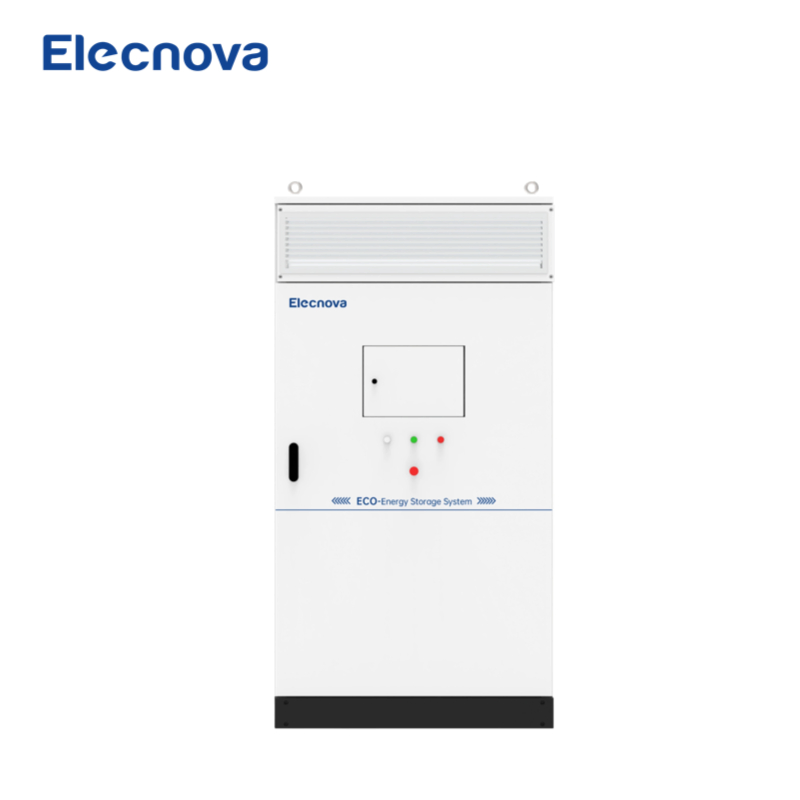

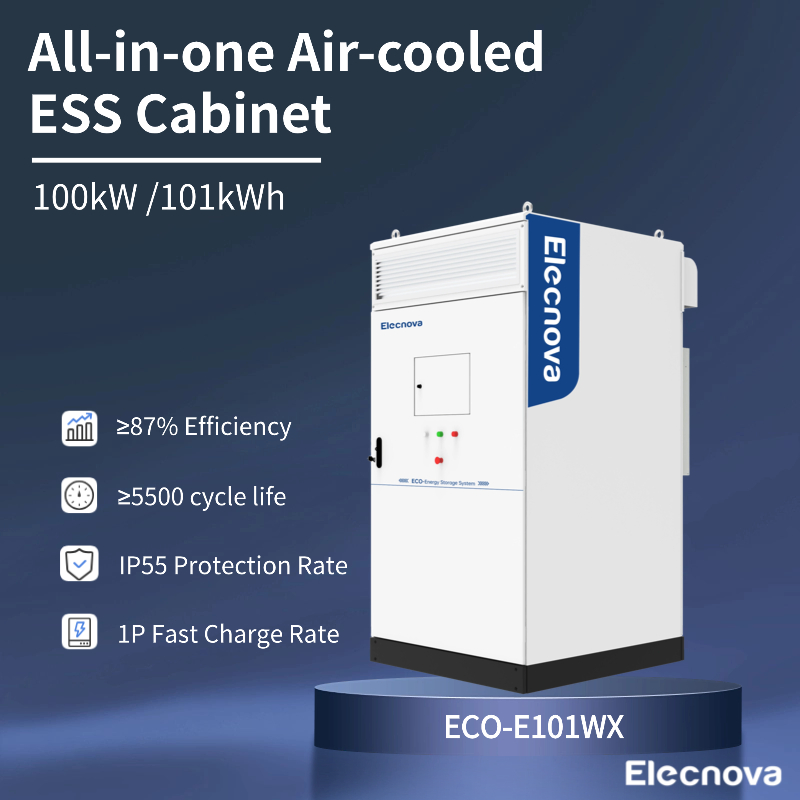

The all-in-one air-cooled energy storage system (ESS) cabinet integrates long-life battery modules, an efficient balancing BMS, a high-performance PCS, active safety systems, smart distribution, and HVAC into a single cabinet. This design ensures long-term operation with safety, stability, and reliability. Through AC-side parallel connection, it enables agile deployment and flexible capacity expansion for various power station needs.

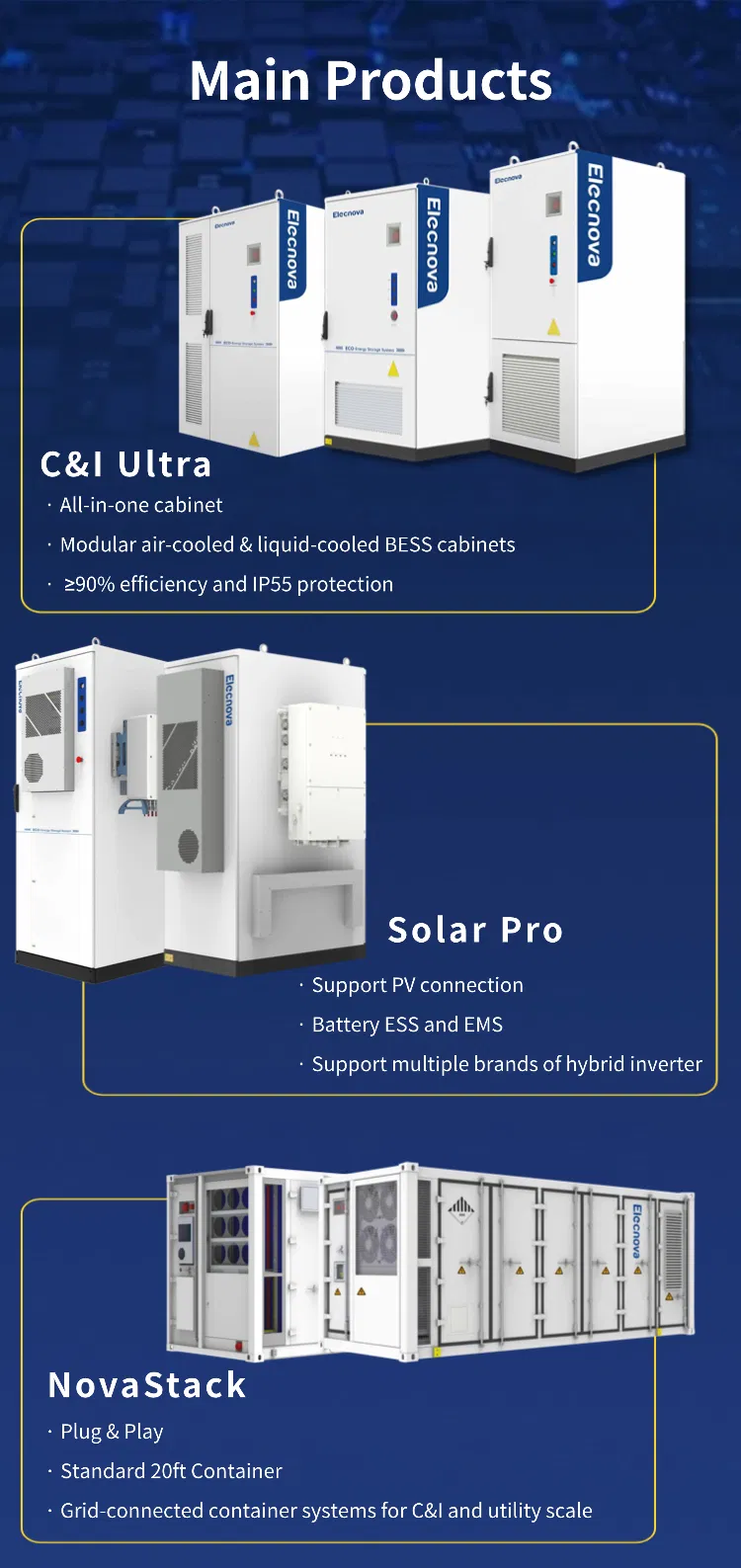

All-in-one modular BESS cabinets (air/liquid cooled) with ≥90% efficiency and IP55 protection.
Seamlessly integrates with PV systems, compatible with multiple hybrid inverter brands.
Plug-and-play 20ft container systems for utility-scale energy storage projects.

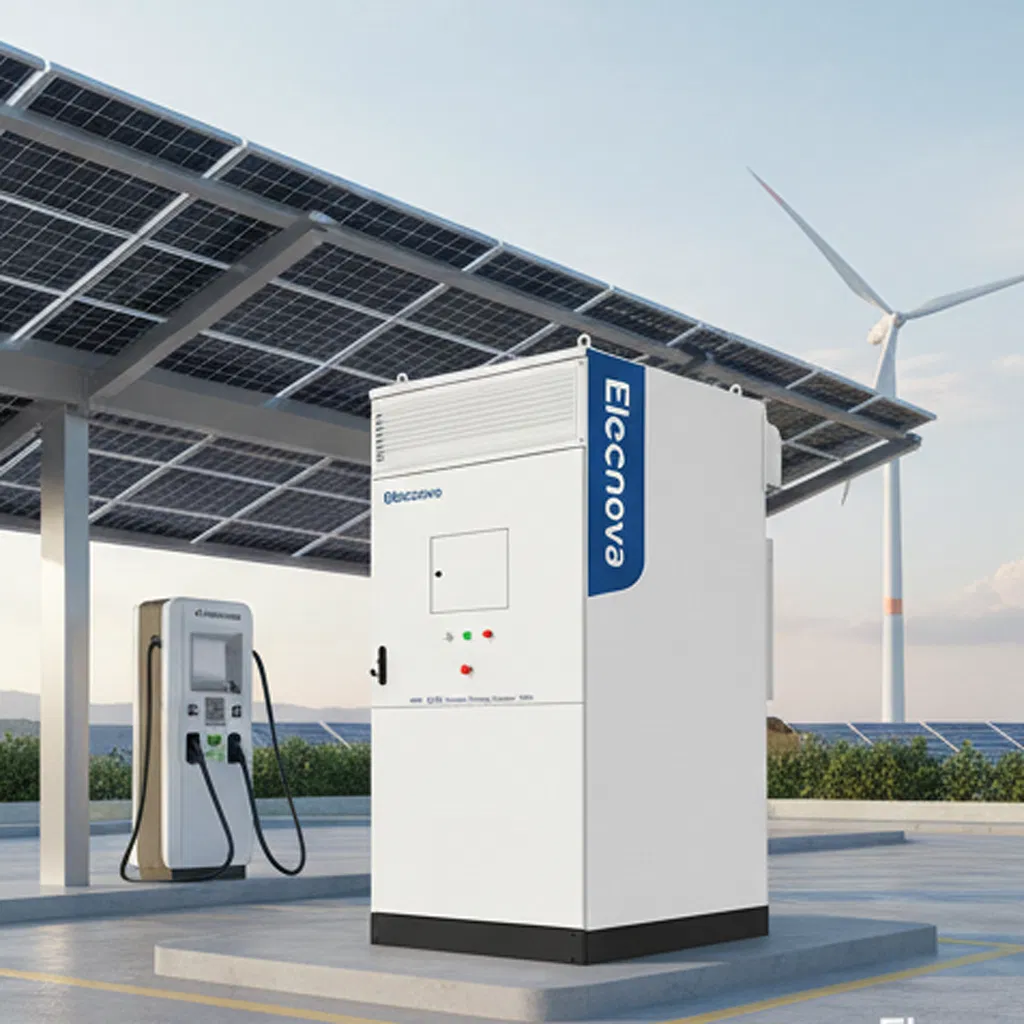

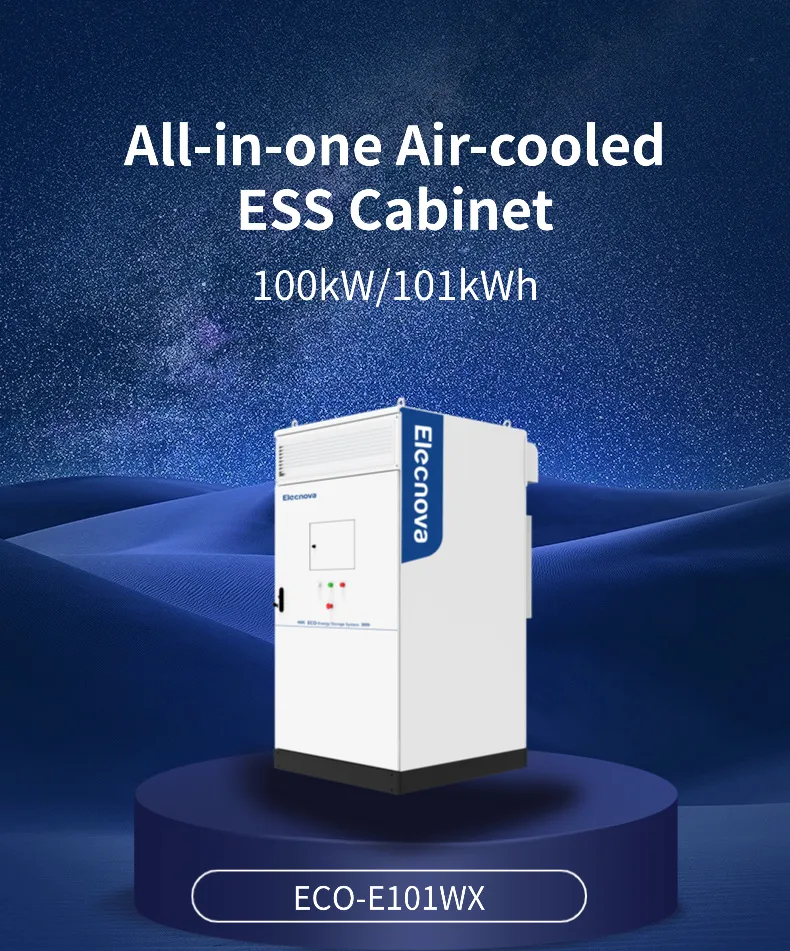

The ECO-E101WX is a high-performance solution ideal for EV charging stations. With a max charge/discharge rate of 1P and over 5500 cycles, it provides reliable power in diverse environments thanks to its IP55 rating.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Rated Frequency | 50 Hz / 60 Hz |
| THDi | ≤3% |
| General Data | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

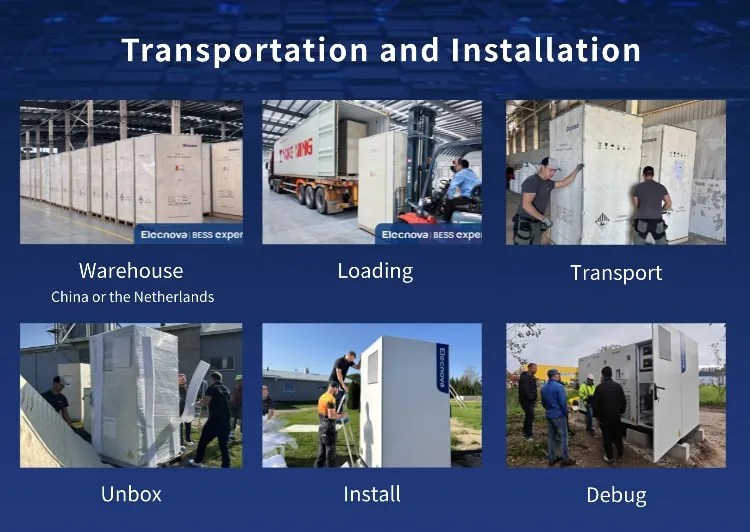

We deliver a full-cycle service from warehouse to commissioning. Our process includes professional warehousing, specialized loading, global transport, careful unboxing, and rigorous on-site installation and debugging by technical experts to ensure your BESS is fully optimized for grid connection.

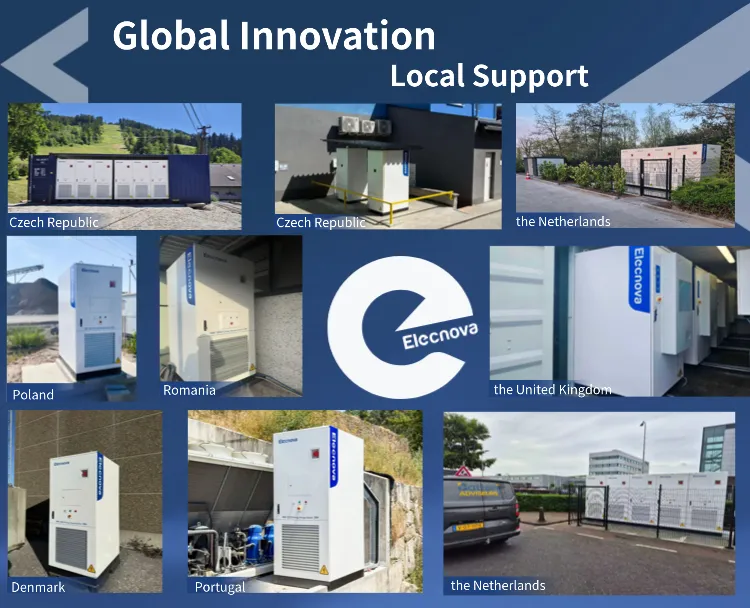

Our energy storage solutions are transforming landscapes worldwide, from Europe (Italy, Netherlands, Belgium, Czech Republic, Poland) to Southeast Asia, Africa, and the Middle East. We provide reliable, scalable BESS to empower energy security globally.

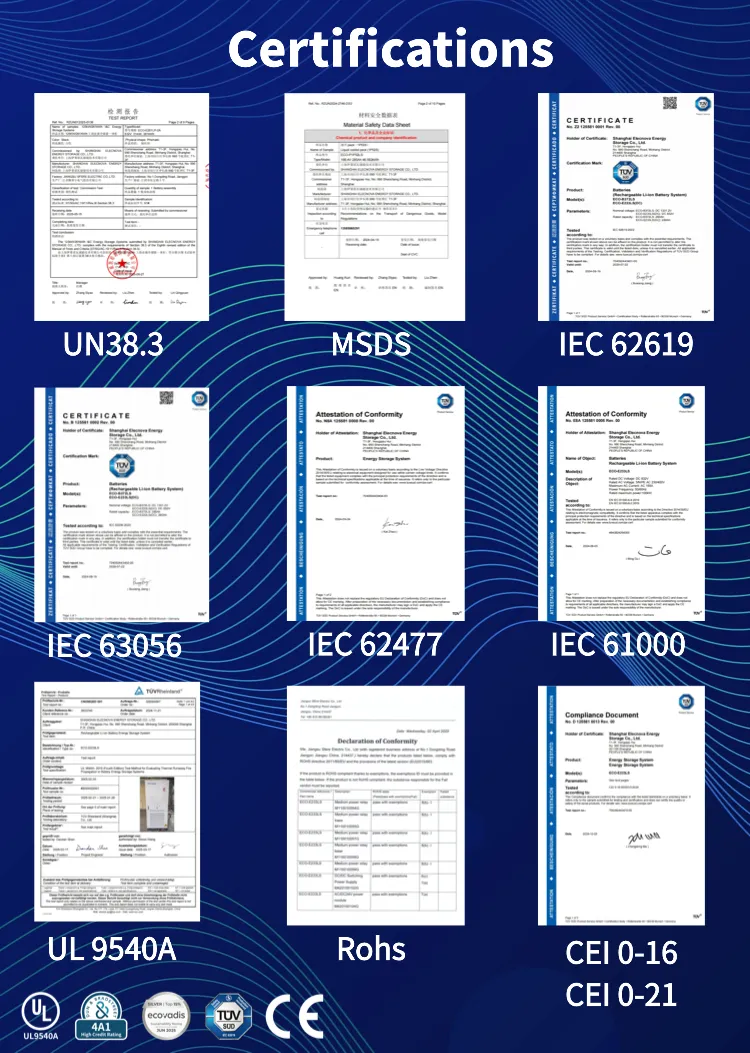

We offer a robust after-sales ecosystem, including a dedicated service center in Europe and multiple service partners. Our products carry an industry-leading warranty of up to 5+5 years and cell performance guarantees. Compliance with international standards like UN38.3, IEC 62619, IEC 63056, and UL 9540A ensures maximum safety.
With nearly three decades of industry experience, we operate two ESS factories with a 2GWh production capacity. Our automated PACK production lines and CNAS-certified laboratory guarantee rigorous quality control and continuous innovation in the energy storage sector.
