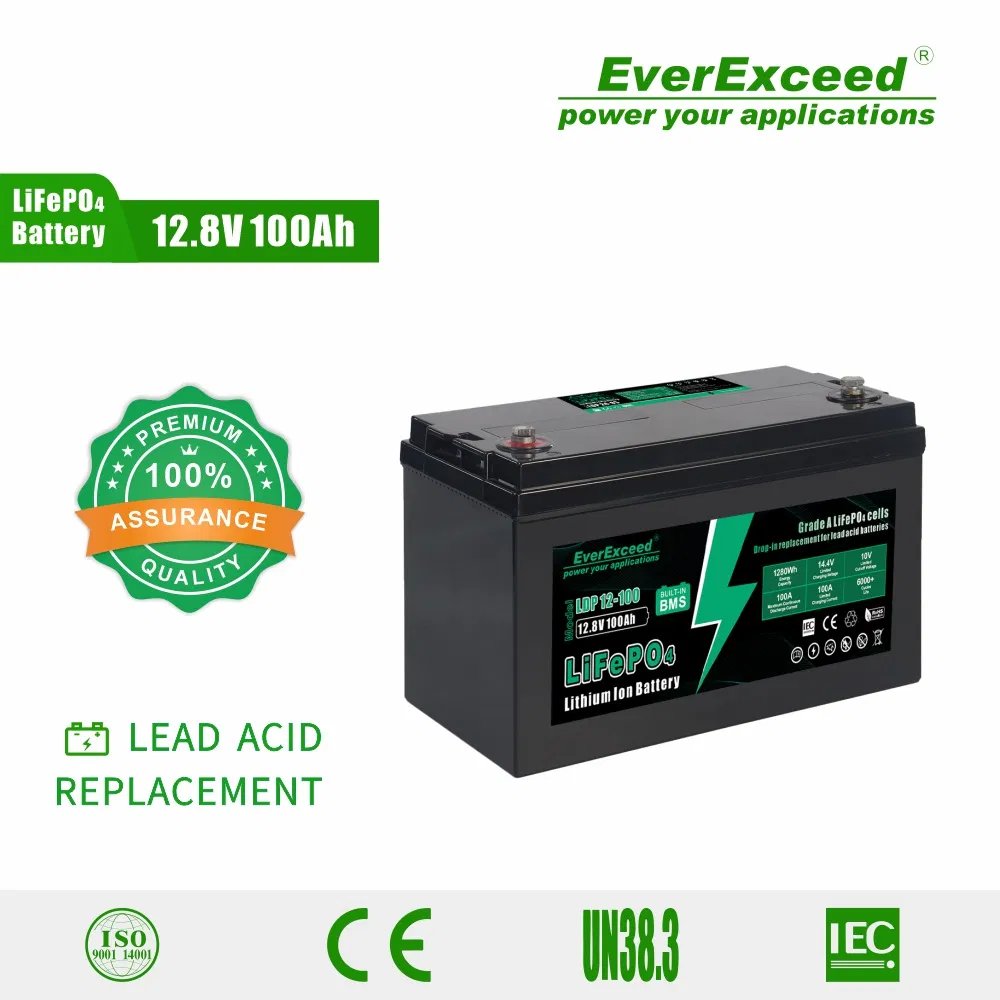

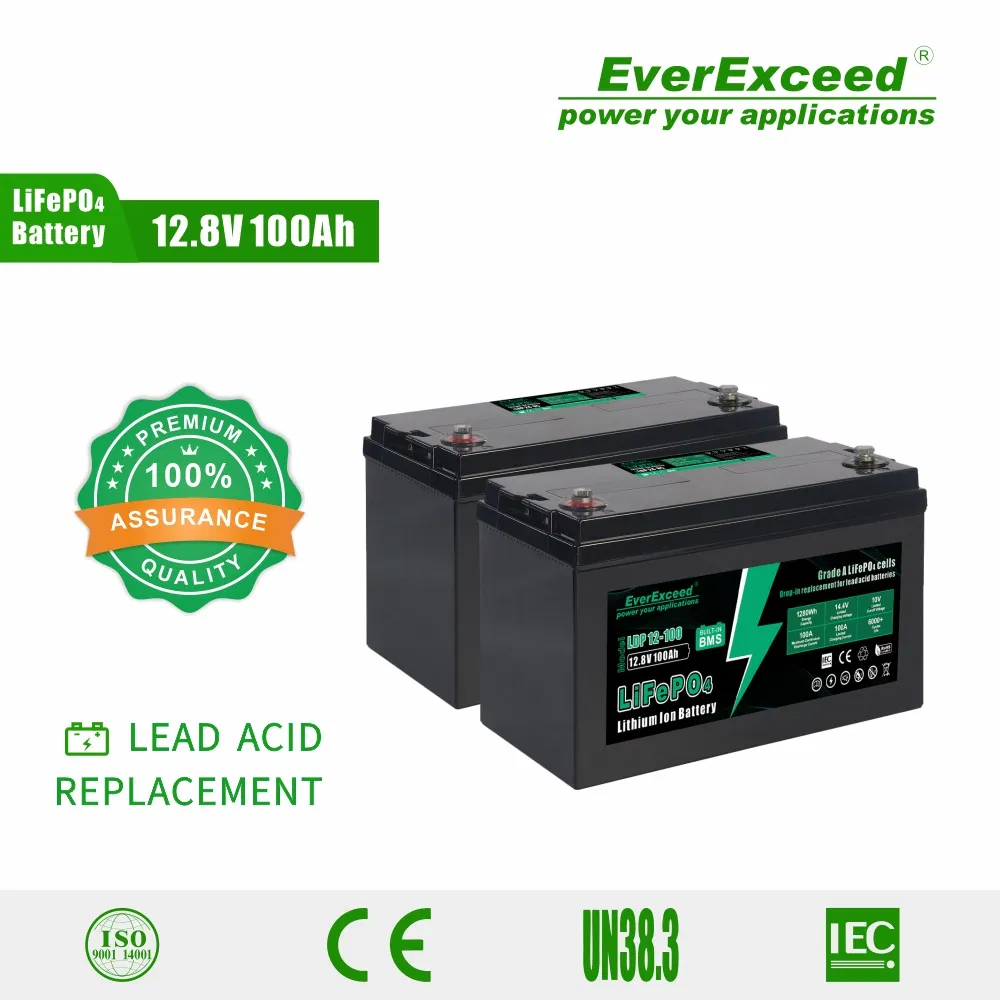

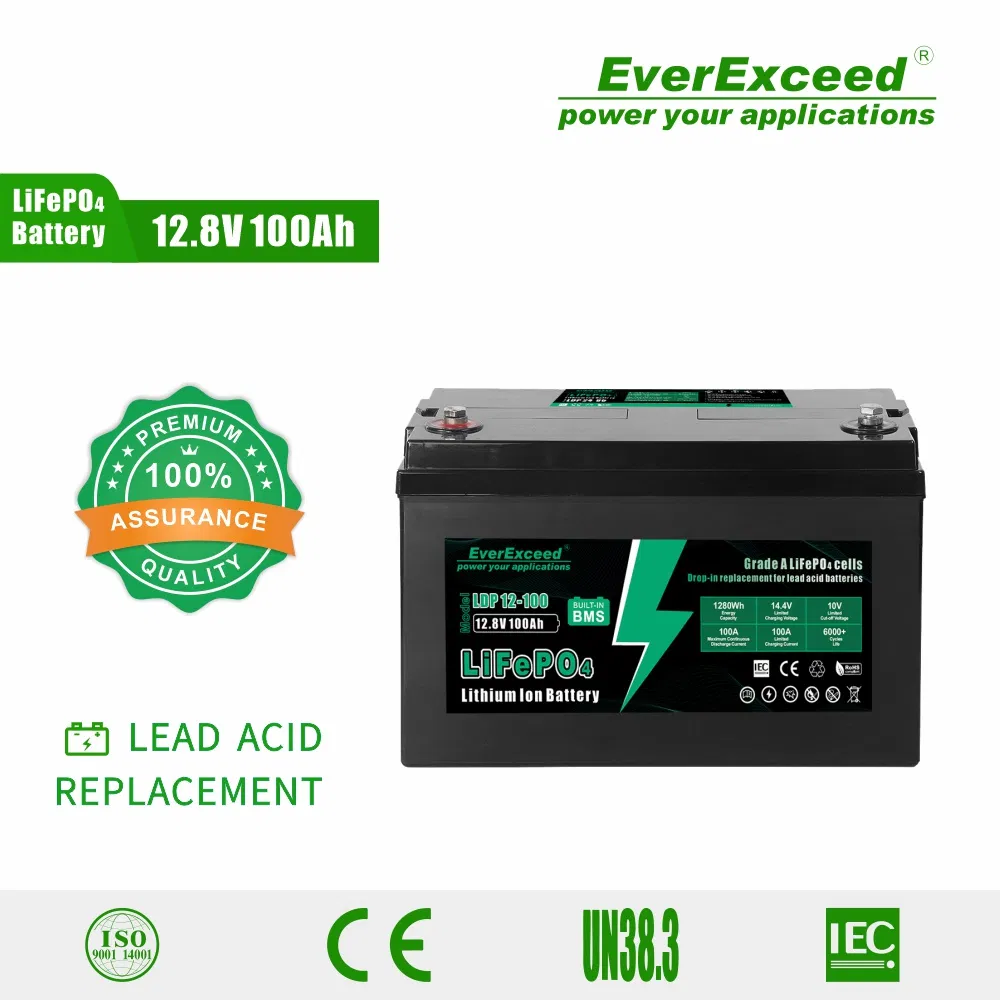

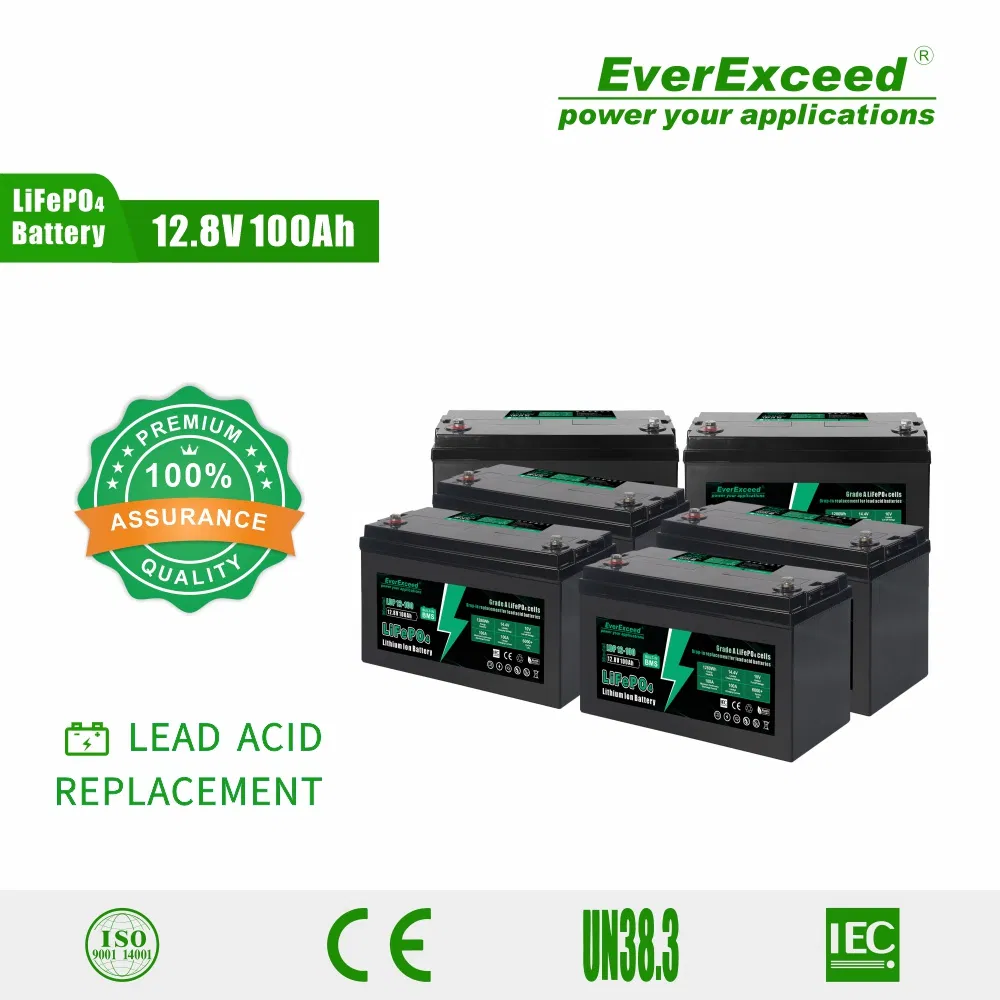

Solar Rechargeable Lithium Battery 12V 100ah Deep Cycle LiFePO4 Battery Pack for Lead Acid Battery Replacement

1 / 5

Solar Rechargeable Lithium Battery 12V 100ah Deep Cycle LiFePO4 Battery Pack for Lead Acid Battery Replacement

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

📊

Product Overview

As a factory-direct manufacturer with 20+ years of battery production experience, we deliver lithium battery solutions that combine durability, safety, and performance. Our batteries are fully certified with UL, CE, UN38.3, IEC, and RoHS standards.

From golf carts, sailboats, commercial equipment and more, these lithium batteries offer a long-lasting, maintenance-free energy solution trusted by users worldwide.

📋

Basic Specifications

Model NO.	LDP-12100	Rechargeable	Yes
Battery Voltage	12V	Battery Size	300X240X30mm
Certificates	UL/ CE/ IEC/ Un38.3	Design Life	12 Years
Usage	UPS, Lighting, Solar/Telecom	Electrolyte	Li-ion

🌟

Key Features

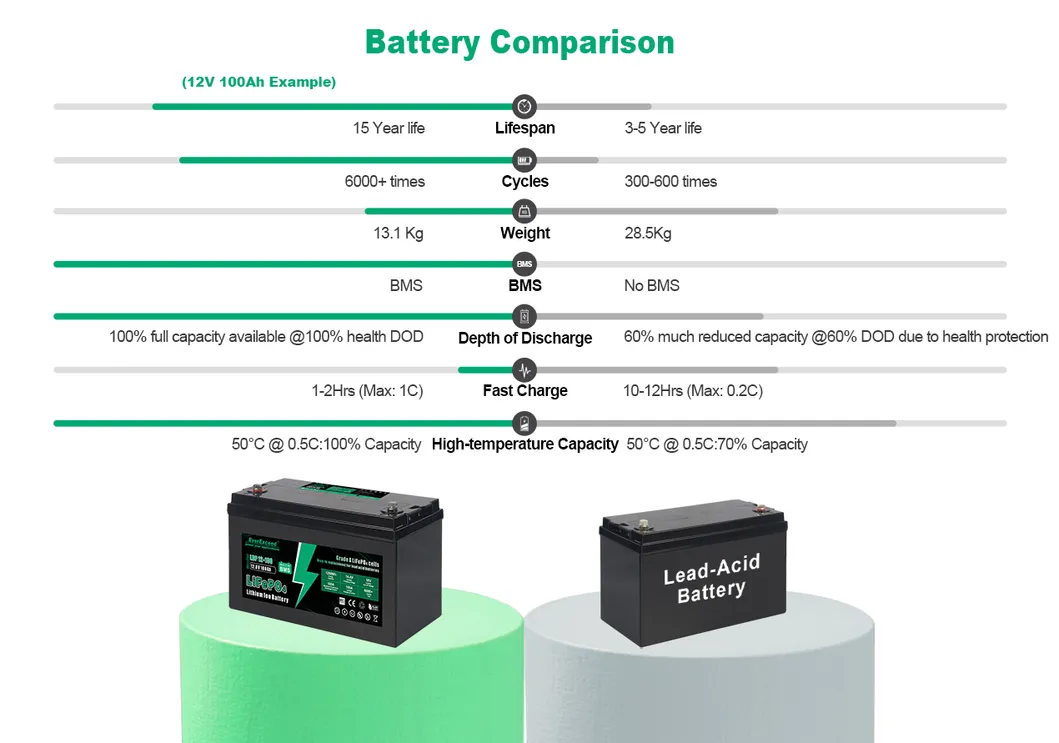

LDP series Lithium batteries can directly replace lead-acid batteries as well as offer superior performance, making it an efficient and cost-effective choice for various applications.

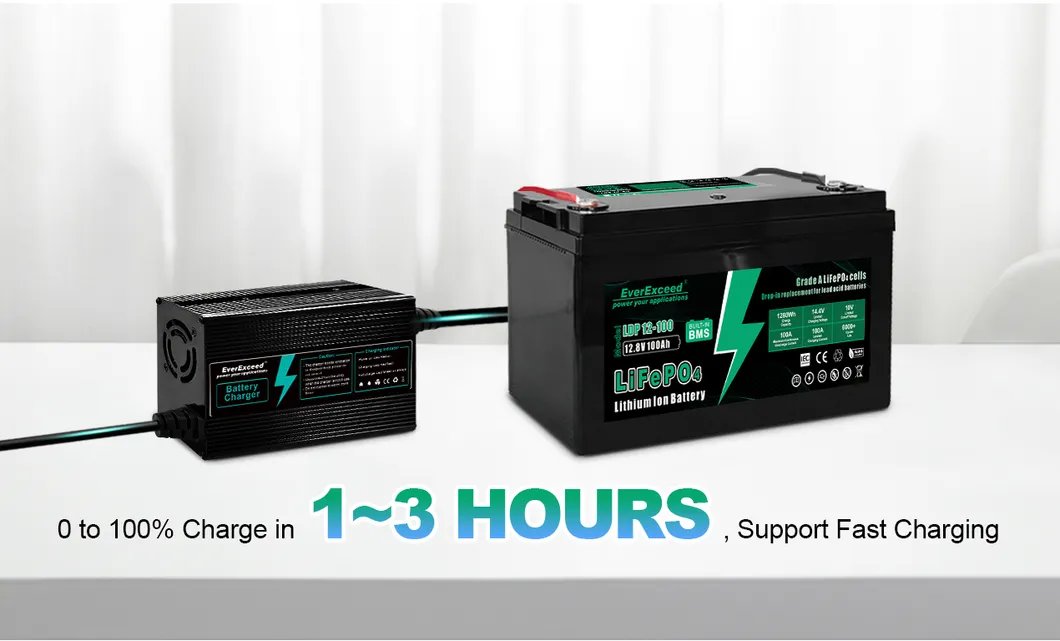

⚡ Fast Charging

Accepts up to 1C continuous charging amps, allowing for a full charge within 1-3 hours, greatly improving load service efficiency.

📱 Smart Monitoring

Check battery data and operating status at any time through the mobile APP, manage parameters intelligently and conveniently.

🛡️ Superior Safety

Internally insulated with epoxy resin plates, flame-retardant ABS material, and high-density EVA foam for shock resistance.

⚙️

Technical Parameters

BASIC PARAMETERS
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Energy	1280Wh
Series/Parallel Connections	4 Units Max
Protection	Over voltage, low voltage, over current, high/low temperature, short circuit
DISCHARGE SPECIFICATIONS
Max Continuous Discharge	100A
Peak Discharge Current	200A (5S)
CHARGE SPECIFICATIONS
Max Continuous Charge	100A
Recommended Charge Voltage	14.2V-14.6V
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	328x172x220mm
Weight	11.5kg
Waterproof Rating	IP55 (IP68 Optional)

🌍

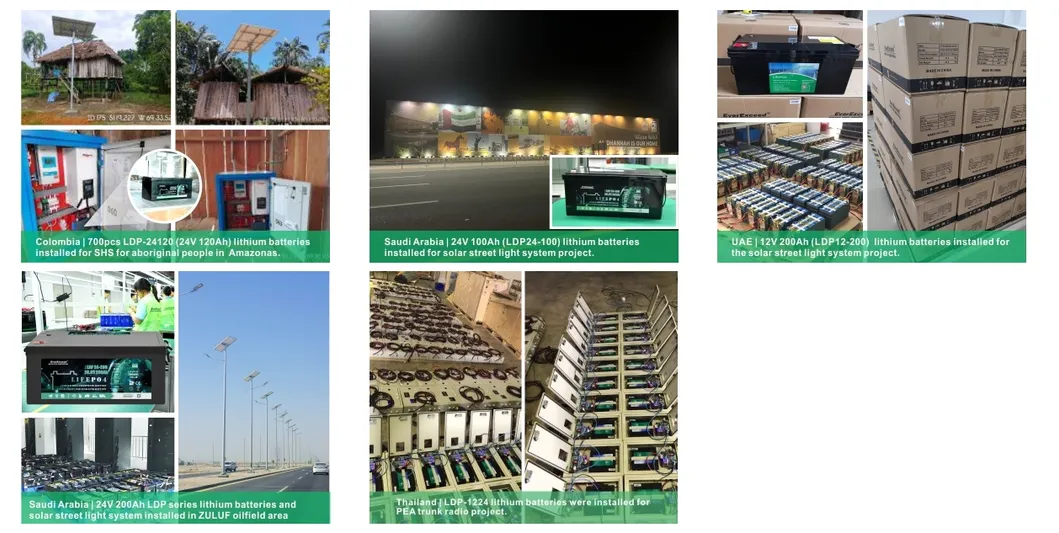

Applications & Industrial Cases

Our high-performance lithium batteries are designed for:

Wheelchairs & Sweepers
Solar/Wind Storage
UPS Backup Power
Telecommunication
Medical Equipment
Emergency Lighting

✅

Why Choose Our Solutions?

Quality	Highly reliable quality guaranteed by advanced production equipment and European technology standards.
Warranty	Standard 2 years, with options for 5+ years upon request.
Experience	Founded in 1985, with over 30 years of battery manufacturing excellence.
Global Reach	Serving 65+ countries with a robust network of research centers and production bases.

❓

Frequently Asked Questions

1. What type of cells are used in the battery?

We use lithium iron phosphate (LiFePO4) cells. For capacities below 50Ah, we use cylindrical cells; for capacities above 50Ah, we utilize large-capacity square cells to ensure consistency and safety.

2. What is the operating temperature range?

The charging working temperature is 0°C to 50°C, and the discharge operating temperature ranges from -20°C to 60°C.

3. Does the battery include a Management System (BMS)?

Yes, the battery has a built-in BMS with protection against overcharge, over-discharge, over-current, short circuits, and temperature extremes.

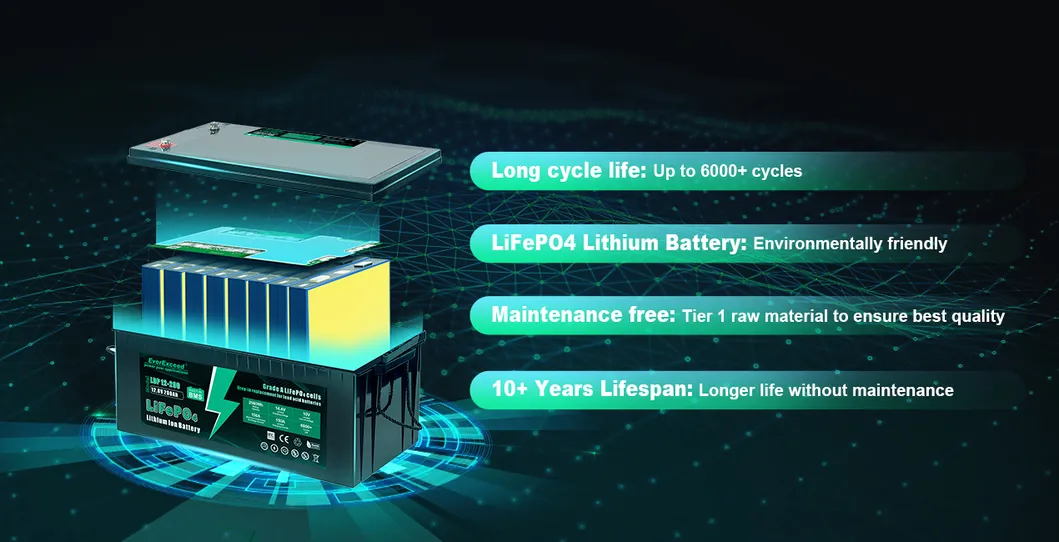

4. What is the expected cycle life?

The battery is designed for a 15-year life span, and the cycle life can reach up to 6,000 cycles.

5. How many batteries can be connected in series or parallel?

You can connect up to 4 units in series (max 51.2V) and a maximum of 4 units in parallel.

6. Can these batteries replace lead-acid batteries?

Yes, they can replace lead-acid battery packs up to 48V, provided the maximum output current meets your system's requirements.
