12V LiFePO4 Batteries 12V 200ah Lithium Solar Storage Deep Cycle Battery

1 / 5

12V LiFePO4 Batteries 12V 200ah Lithium Solar Storage Deep Cycle Battery

Send Inquiry

Product Description

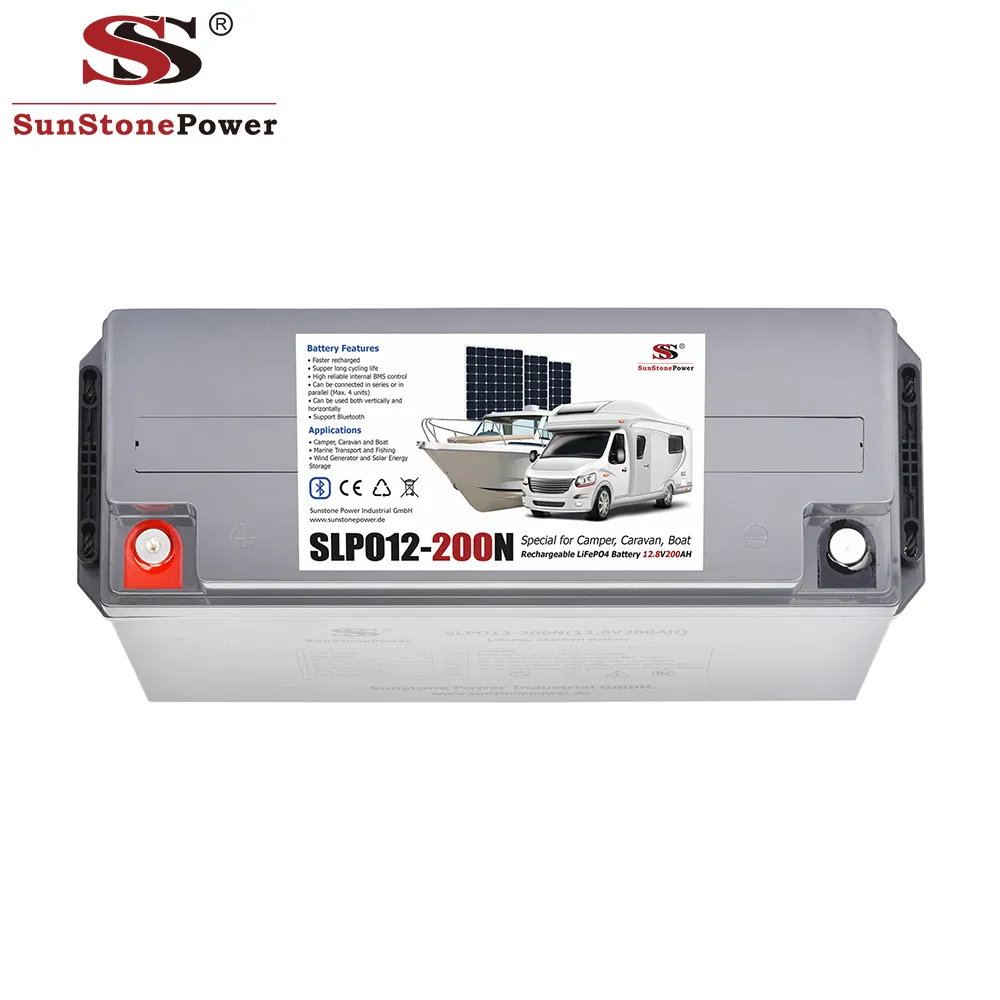

12V LiFePO4 Batteries 12V 200ah Lithium Solar Storage Deep Cycle Battery

Product Overview

The SLPO series is a LiFePO4 (lithium iron phosphate) battery pack designed for premium backup power applications. Utilizing advanced battery technology, it offers significant advantages including long cycle life, compact size, lightweight design, and superior safety.

Equipped with Bluetooth functionality, users can monitor detailed battery status in real-time via a dedicated mobile app. This battery is highly adaptable to various environmental conditions, making it an ideal choice for sustainable energy storage.

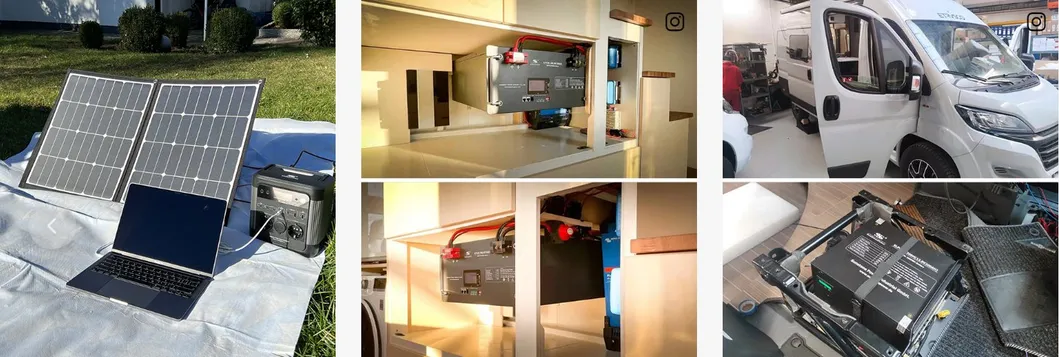

Suitable for 12V solar systems and photovoltaic energy storage.

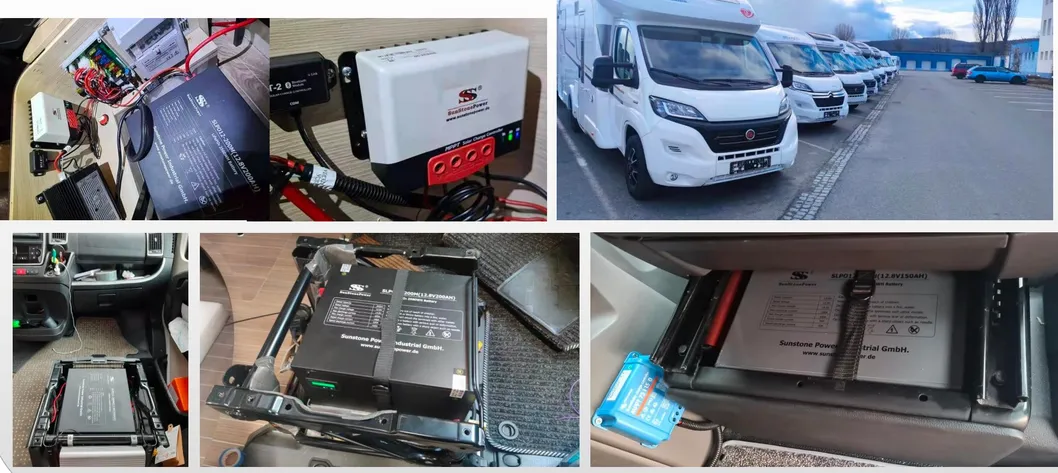

Perfect for RV power supply, outdoor lighting, and marine use.
Compatible with CCTV cameras and emergency backup systems.

Product Specification

Model	SLPO12-200N (12V 200AH Lithium battery)
Capacity (0.5c)	200Ah
Related Voltage	12.8V (3.2V per cell)
Weight	Approx. 20 kg
Battery Material	LiFePO4 (Lithium Iron Phosphate)
BMS Cycle Life	6000 times @ 0.5C, 80% Capacity @ 25ºC

Key Features

Super Long Cycle Life

Over 6000 cycles at 80% DOD, ensuring years of reliable service.

Fast Charge Capability

Supports maximum charge and discharge currents up to 100A.

Intelligent BMS

Built-in protection against over-charge, over-discharge, over-temperature, and short-circuits.

Maintenance Free

Completely maintenance-free throughout its lifetime, saving operational costs.

Eco-Friendly Material

Non-polluting, no lead, no acid, and no hazardous substances.

Expandable Design

Supports up to 4 units in series or 4 units in parallel for higher capacity/voltage.

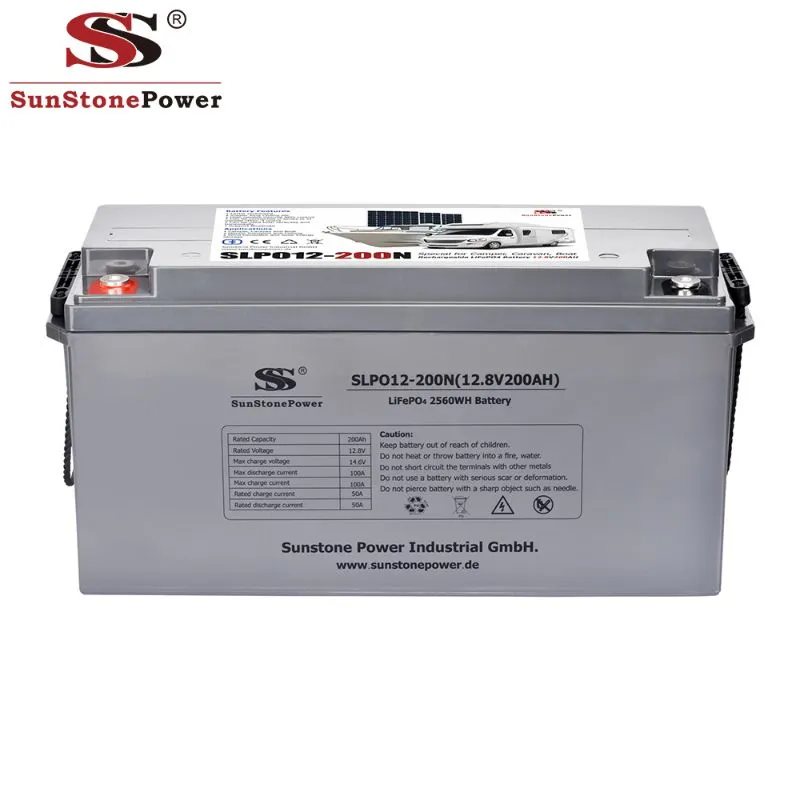

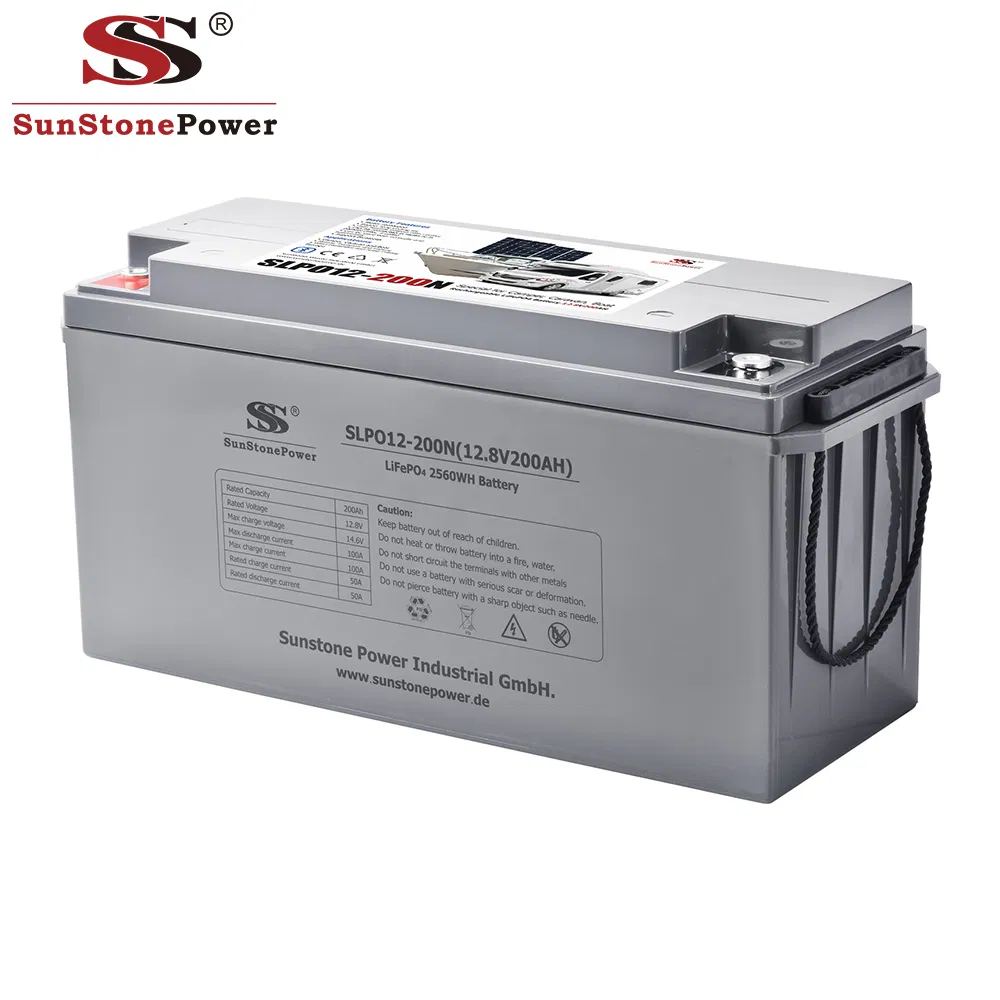

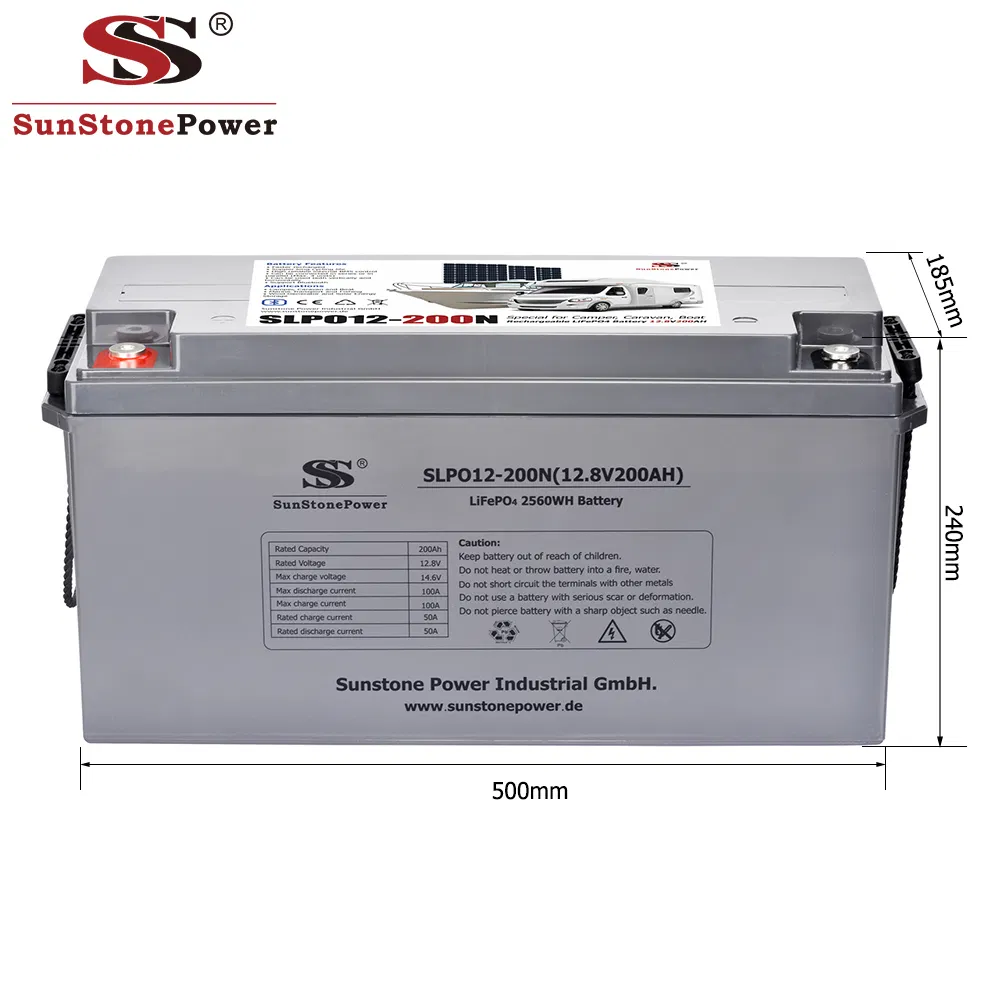

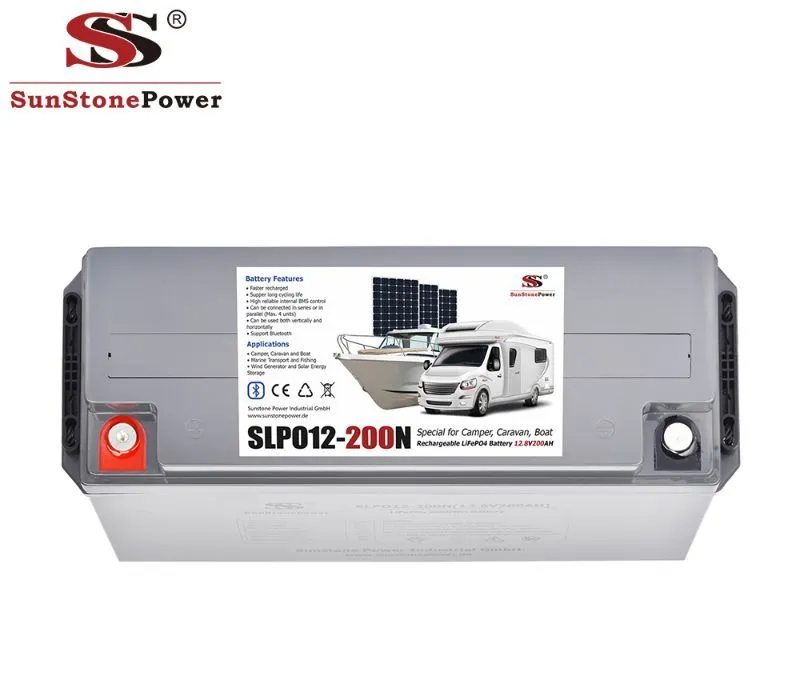

Detailed Photos

Daily Maintenance

Regularly check BMS voltage data against actual values for accuracy.
Monitor temperature sensors to ensure the battery operates within safe thermal limits.
Inspect connections for tightness and ensure no accumulation of dust or metal particles.
Ensure charging equipment follows the voltage and current regulations specified by the BMS.

Safety Cautions

Do not disassemble or short-circuit the battery terminals.
Keep away from fire, high-temperature environments, and corrosive materials.
Do not immerse the battery in water or any conductive liquids.
Stop use immediately if the casing ruptures, cracks, or shows swelling.

Frequently Asked Questions

Q1: How long will the 12V 200Ah LiFePO4 battery last? A: It is designed with a cycle life of over 6000 cycles at 80% DOD, which typically translates to over 10 years of use under standard conditions at 25°C.

Q2: Can I connect these batteries in series for a 24V or 48V system? A: Yes, you can connect a maximum of 4 units in series (to reach 48V) or 4 units in parallel to increase your total capacity.

Q3: Does this battery come with a monitoring system? A: Yes, it features an Integrated Battery Management System (BMS) with Bluetooth functionality, allowing you to check parameters like SOC, voltage, and temperature via a mobile app.

Q4: What is the benefit of LiFePO4 over lead-acid batteries? A: LiFePO4 batteries are much lighter, have a much longer cycle life (6000 vs 500), charge faster, and are environmentally friendly without hazardous acids.

Q5: Is it safe to use in hot environments? A: The built-in BMS protects the cells from over-temperature. However, for maximum lifespan, it is recommended to operate the battery within the specified temperature range.

Q6: What is the self-discharge rate of this lithium battery? A: The self-discharge rate is extremely low, at less than 1% per month when stored at 25ºC.
