Constant Safe Power For You!

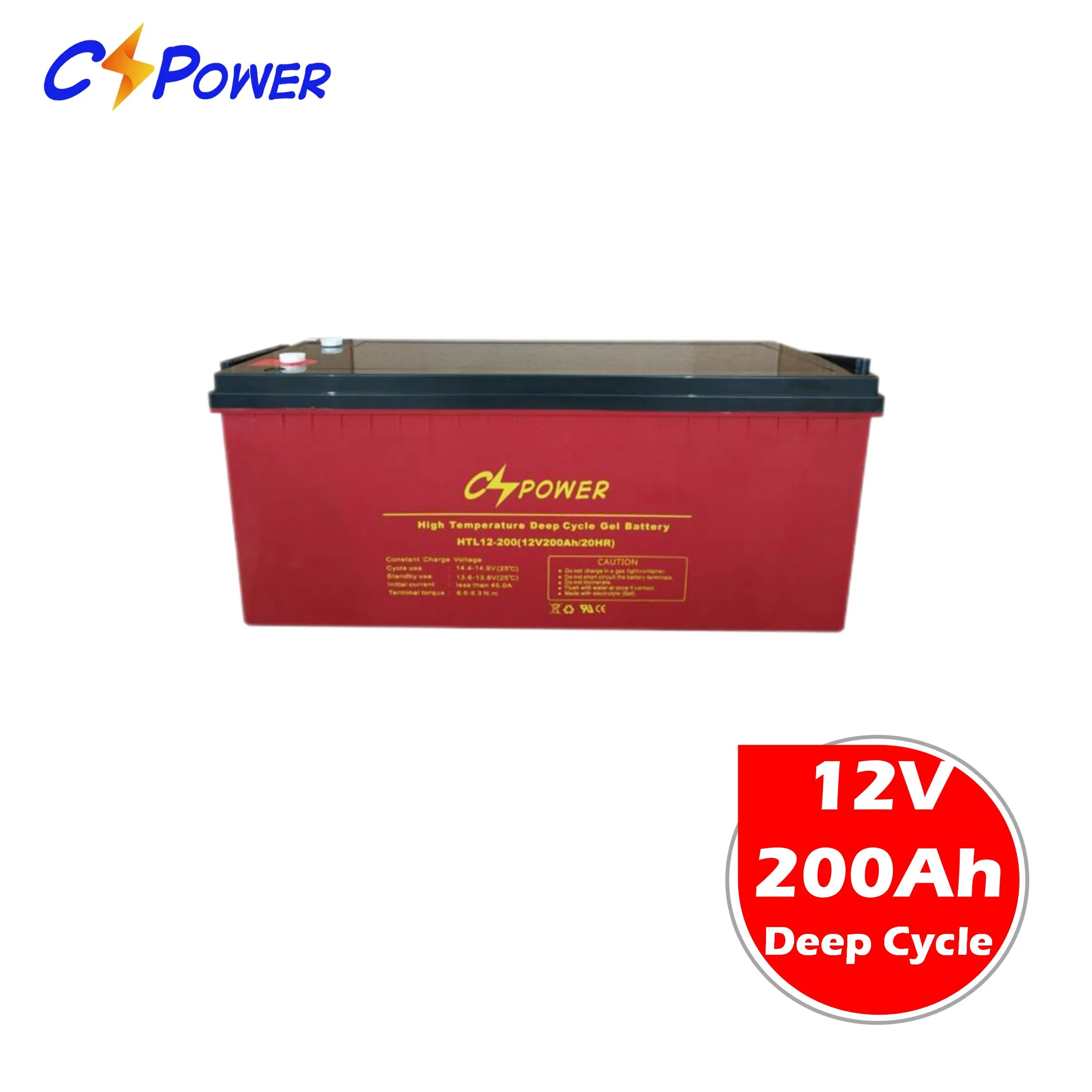

HTL12V Patented High-Temp Deep Cycle Solar Gel Battery
Our patented High-Temp Deep Cycle Solar gel battery offers a 15-20 year long life, making it the ideal partner for solar markets and high-temperature regions. These batteries are recognized as reliable systems in the industry, complying with international standards like IEC60896-21/22 and BS6290-4.

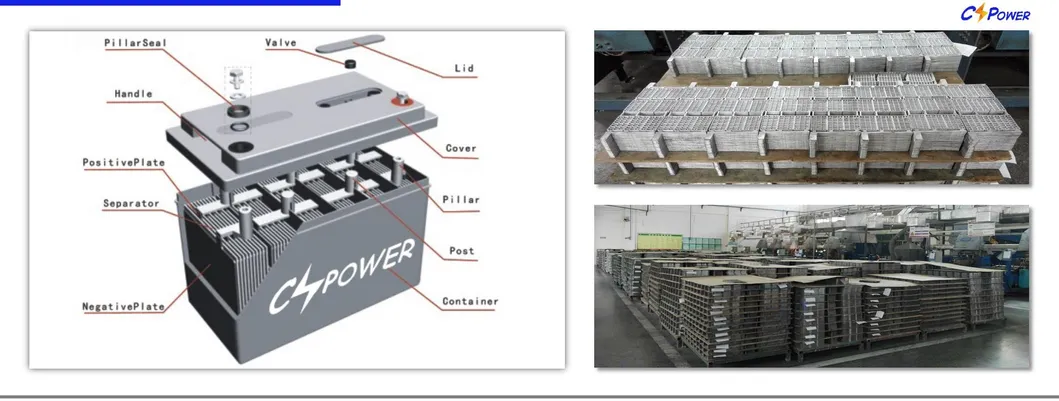

| Component | Positive plate | Negative plate | Container & Cover | Safety valve | Separator | Electrolyte |
|---|---|---|---|---|---|---|
| Features | Thick high Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Aging resistance Si-Rubber | Advanced PVC/AGM | Silicon Gel |
| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Net Weight (kg) | Terminal |
|---|---|---|---|---|---|---|---|
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 30.5 | M6/M8 |
| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 45.8 | M8 |
| HTL12-200 | 12 | 200 | 532 | 206 | 215 | 58.7 | M8 |
| HTL6-200 | 6 | 200 | 306 | 168 | 220 | 30.3 | M8 |
| HTL6-420 | 6 | 420 | 295 | 178 | 404 | 57.1 | M8 |
| HTL8-200 | 8 | 200 | 260 | 182 | 295 | 38.3 | M8 |

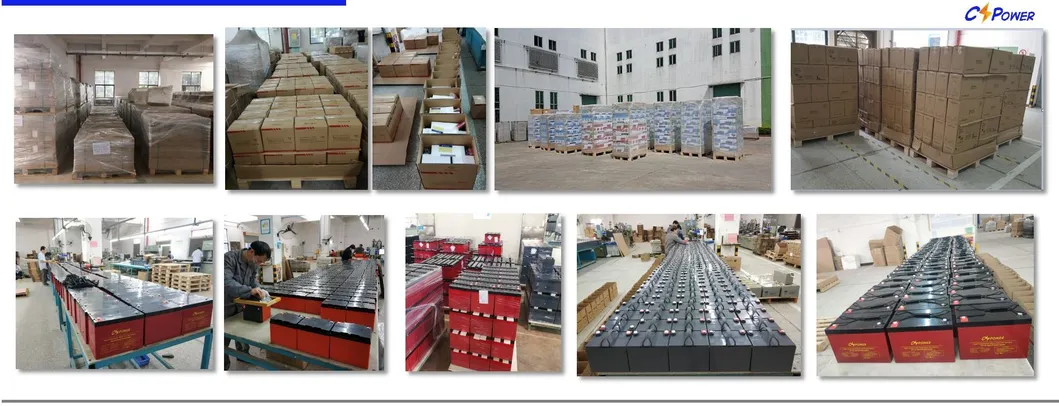

Yes, our batteries are suitable for both sea and air transport. We provide MSDS and testing reports for safe transport as non-dangerous goods.
Fast charging is generally not recommended as it can be harmful to the long-term health and cycle life of the battery.
Stock products usually ship within 7 days. For full 20ft containers, the production lead time is approximately 30 days.
Batteries should be recharged at least every 6 months when stored at 25°C. In hotter climates, a recharge every 3 months is recommended.
The capacity (Ah) is dynamic. Lower discharge currents (like a 20-hr rate) allow the battery to deliver more total energy compared to high-current discharge rates.

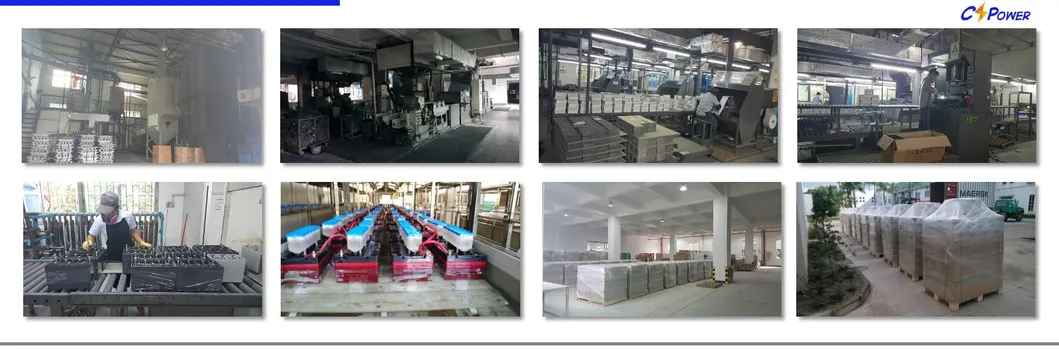

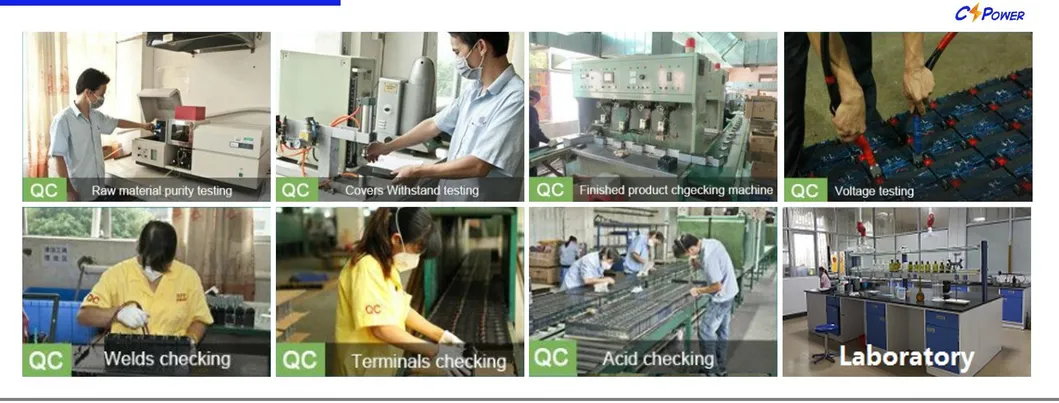

Our products are manufactured under ISO 9001 systems and carry CE, UL, and IEC 61427 test reports to ensure global quality standards.
