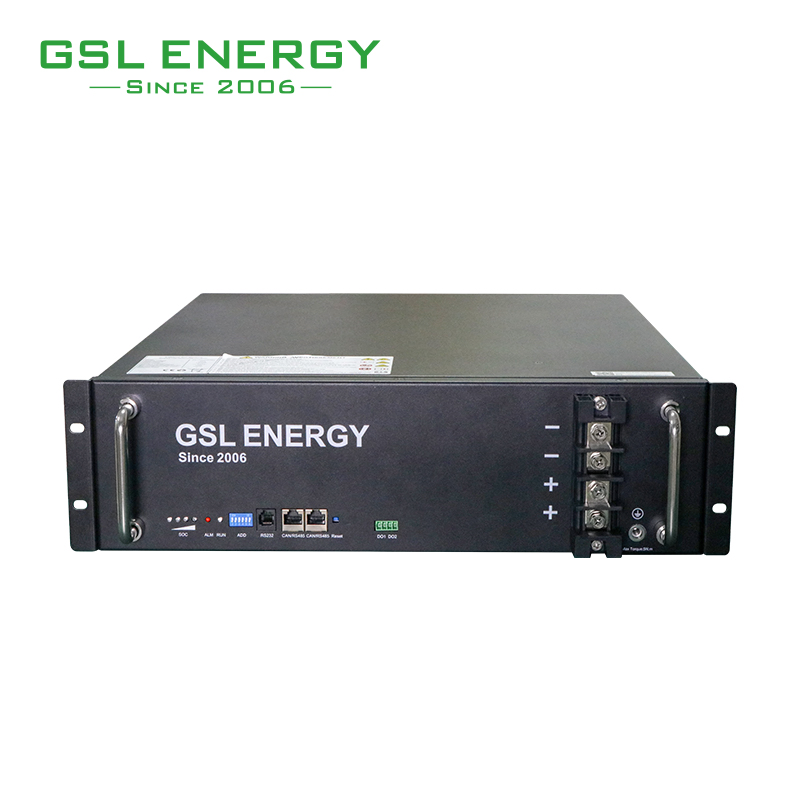

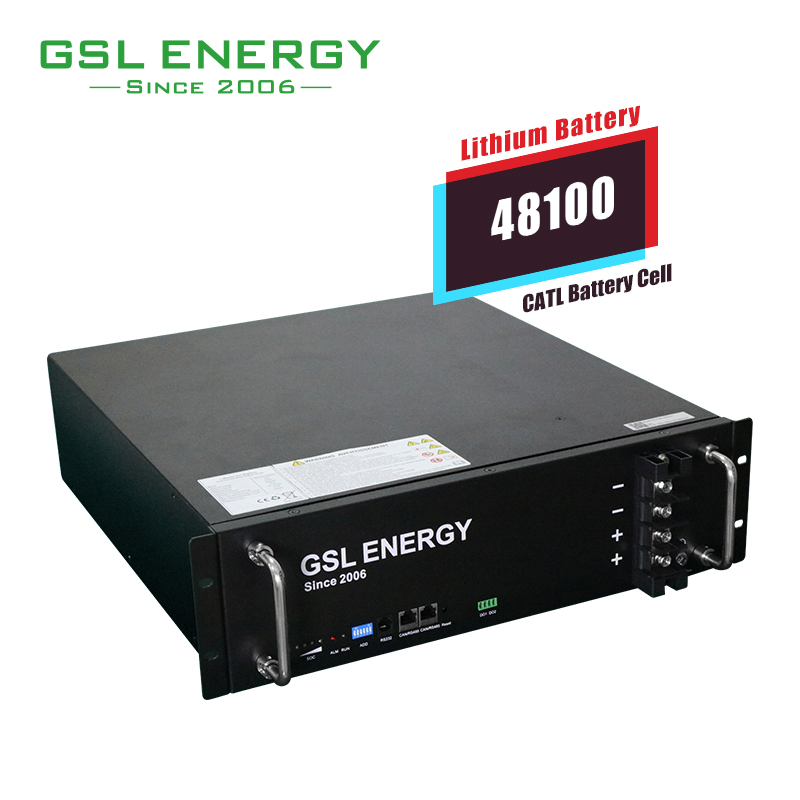

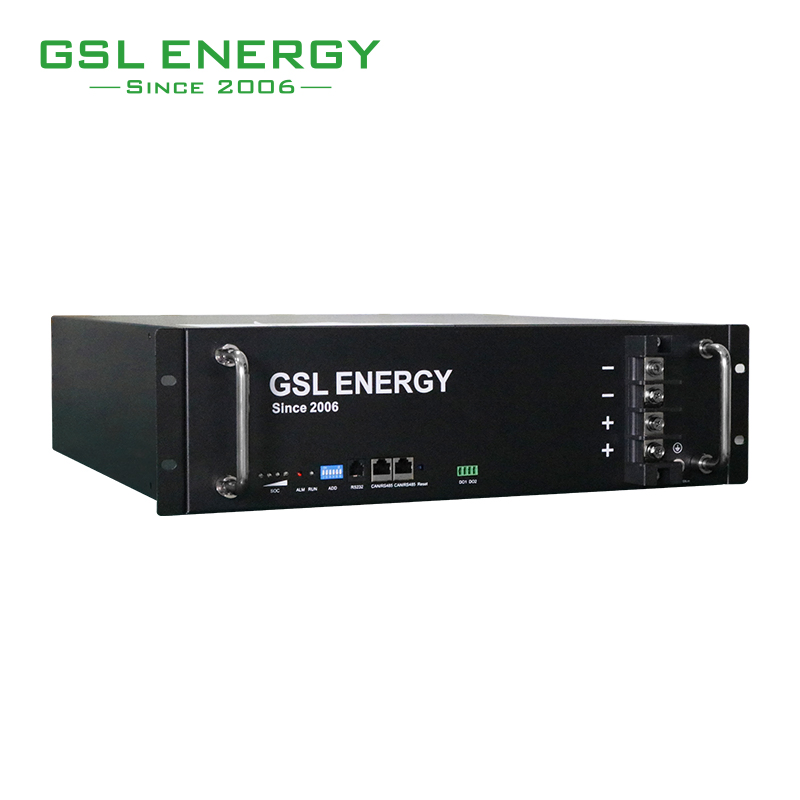

Deep Cycle 5G Telecom Based Station Power Battery 3U 48V 100Ah 5Kwh UPS Battery

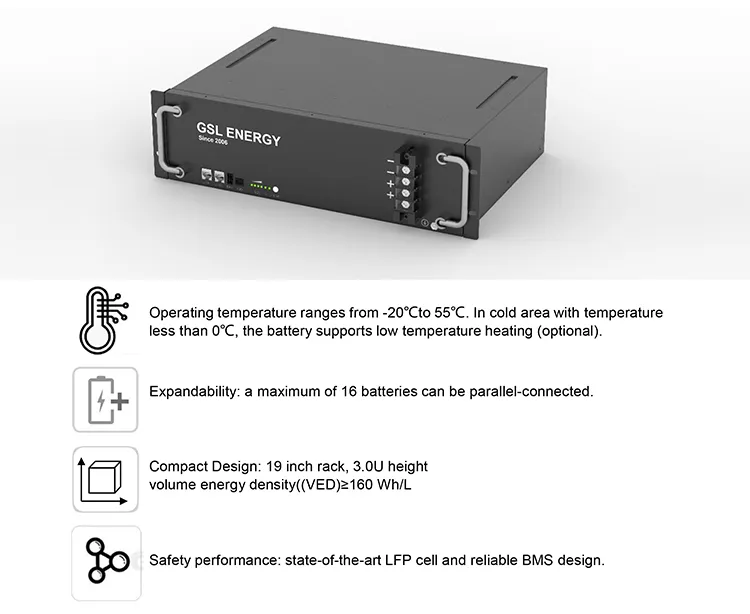

The Telecom Energy Storage System is an excellent energy source for 48V applications. It is specifically designed for telecom sites due to its extraordinary features: superior charging and discharging performance, longer lifespan, compact size, and theft-proof design. This energy storage system provides a perfect replacement for traditional Lead Acid Batteries.
| Basic parameters | GSL48100-3U | GSL48100-4U | GSL48200-4U |
|---|---|---|---|
| Nominal Voltage(V) | 48 | 48 | 48 |
| Nominal Capacity(Wh) | 4800 | 4800 | 9600 |
| Dimension (mm) | 442*480*130 | 430*445*177 | 620*445*177 |
| Weight (Kg) | 40 | 46.8 | 84 |
| Discharge Voltage (V) | 45 ~ 54 | 45 ~ 54 | 45 ~ 54 |
| Charge Voltage (V) | 52.5 ~ 54 | 52.5 ~ 54 | 52.5 ~ 54 |
| Max Discharge Current (A) | 100 | 100 | 120 |
| Max Charge Current (A) | 100 | 100 | 120 |
| Communication | RS232, RS485, CAN | RS232, RS485, CAN | RS232, RS485, CAN |
| Charging Temperature | 0°C~50°C | 0°C~50°C | 0°C~50°C |
| Discharging Temperature | -20°C~55°C | -10°C~50°C | -10°C~50°C |
| Certification | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 |
| Design life | 20+ Years | 10+ Years | 10+ Years |
| Cycle Life | >6500 (80%) | >4500 (90%) | >4500 (90%) |
Considerate safe package for sea and air shipping.

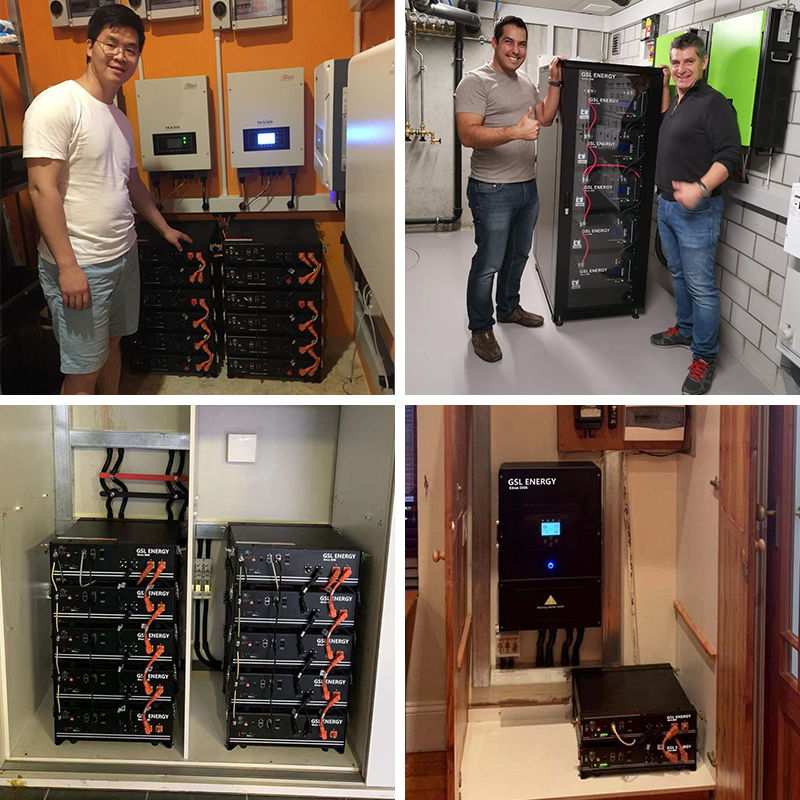

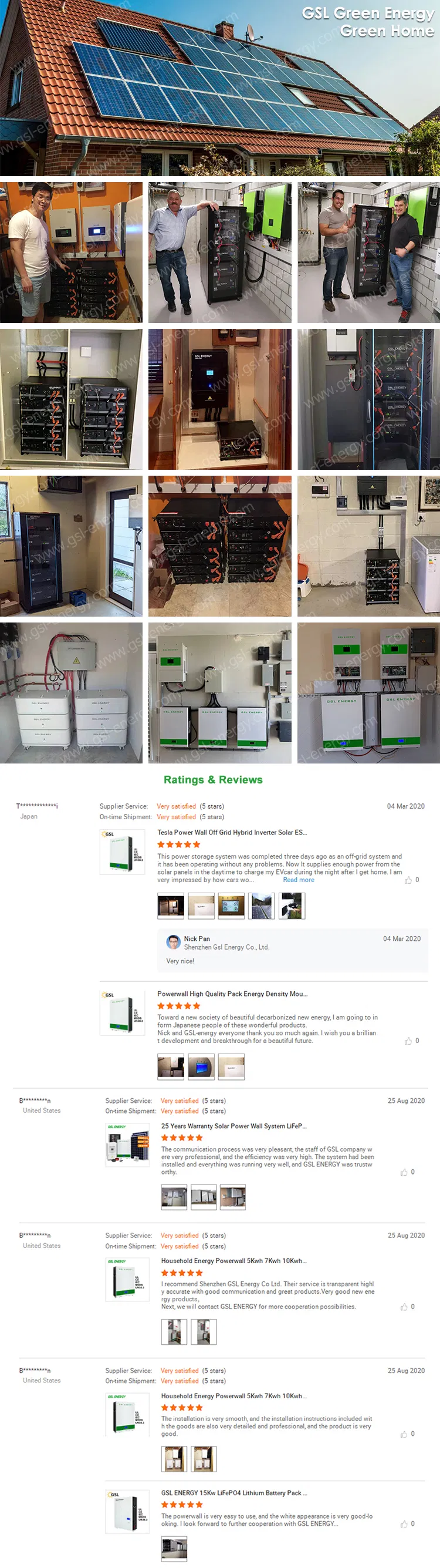

Global Projects & Real-world Application

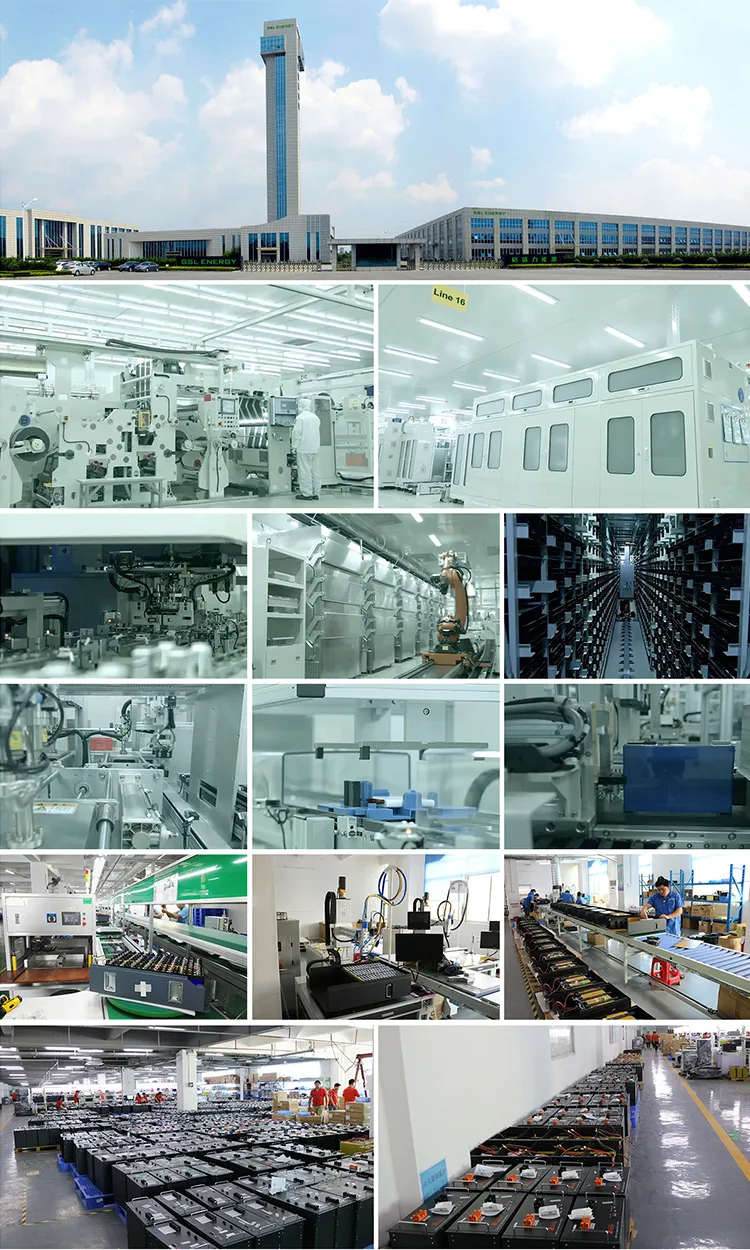

Our manufacturing base spans 12,000 sqm with over 500 skilled workers dedicated to battery cell production and pack assembly.
Quality Certifications: VDE, IEC62133, IEC62219, CE, UN38.3, MSDS.
