Microgrid Solar Storage System 150kw 250kw 500kw 1MW Industrial Solar Power System with LiFePO4 Lithium Ion Battery or Lead Acid Gel Battery

1 / 5

Microgrid Solar Storage System 150kw 250kw 500kw 1MW Industrial Solar Power System with LiFePO4 Lithium Ion Battery or Lead Acid Gel Battery

Send Inquiry

Product Description

Commercial Energy Storage System (ESS)

System Configuration Options

Equipment	Model	30KW/46kWh	50KW/100kWh	100KW/201kWh
N type Solar Panel	WV-72KUN605-H8NS	51pcs	96pcs	170pcs
Hybrid Inverter	220/380/480VAC	30KW	50KW	100KW
Lithium Ion Battery	WV51280H	46kWh	100kWh	201kWh
Connector	MC4	20 pairs	30 pairs	40 pairs

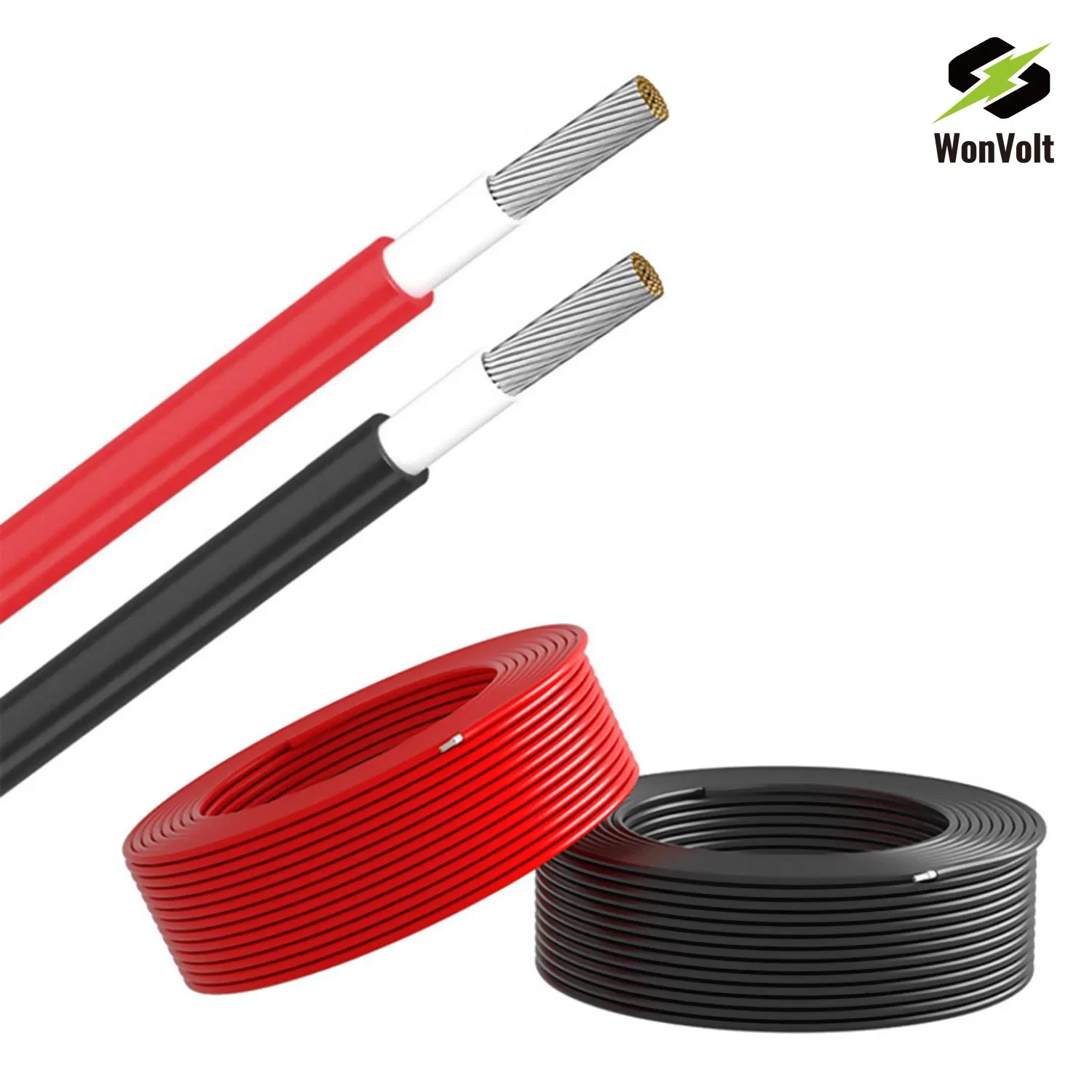

PV cable	PV1-F 1*4/6mm2	300m	600m	1000m
ATS (opt)	ATS**KW	ATS30KW	ATS50KW	ATS100KW
Remote Control	WIFI/Enterlog/BR300	1	1	1
Mounting Structure	Roof/Ground	1	1	1
Equipment	Model	150KW/286kWh	250KW/559kWh	500KW/1075kWh
N type Solar Panel	WV-72KUN605-H8NS	255pcs	420pcs	840pcs
Hybrid Inverter	220/380/480VAC	150KW	250KW	500KW
Lithium Ion Battery	WV51280H	286kWh	559kWh	1075kWh
Connector	MC4	50 pairs	80 pairs	160 pairs
PV cable	PV1-F 1*4/6mm2	1500m	2500m	5000m
ATS (opt)	ATS**KW	ATS150KW	ATS250KW	ATS500KW
Remote Control	WIFI/Enterlog/BR300	1	1	1
Mounting Structure	Roof/Ground	1	1	1

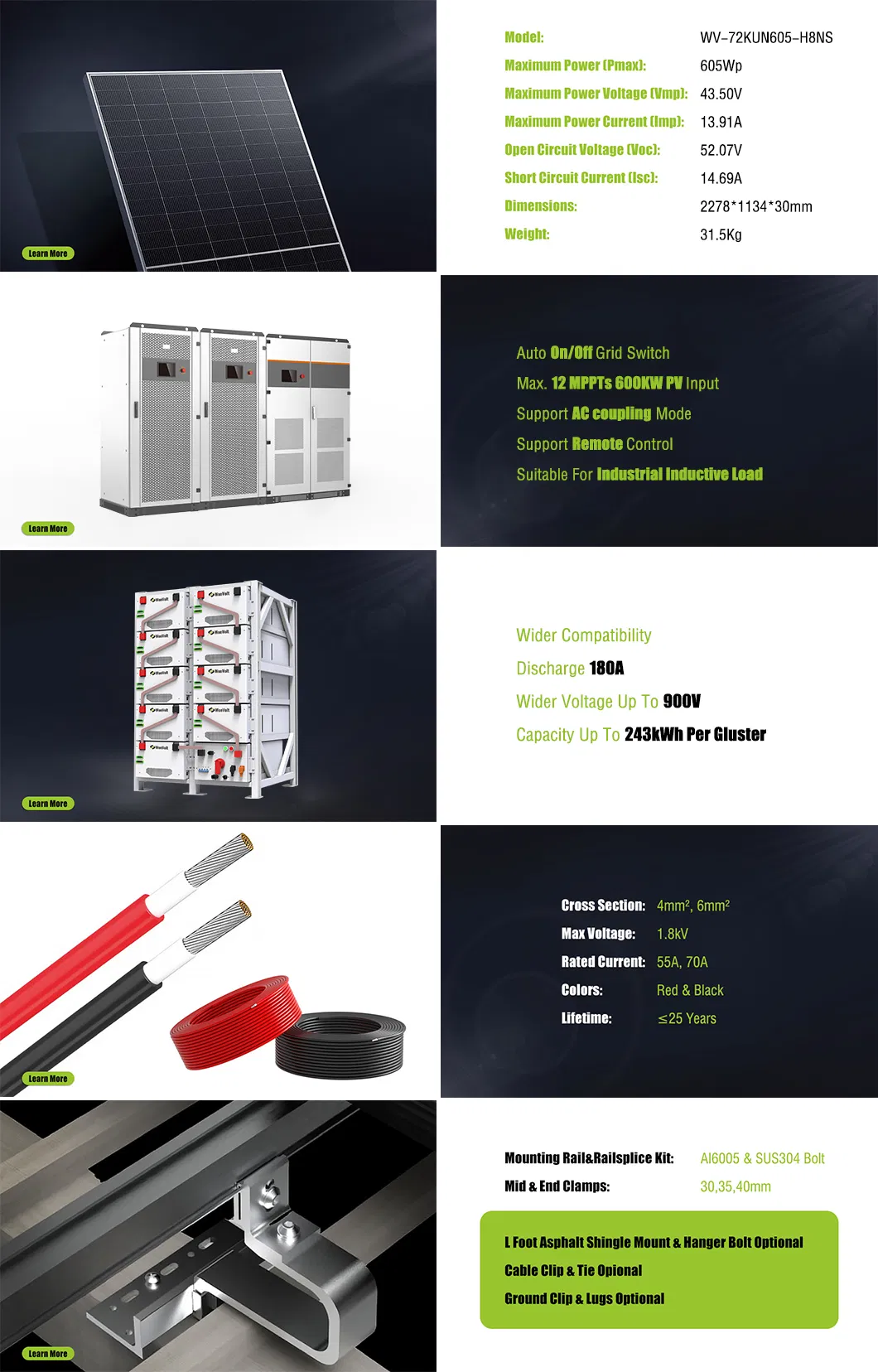

Technical Specifications

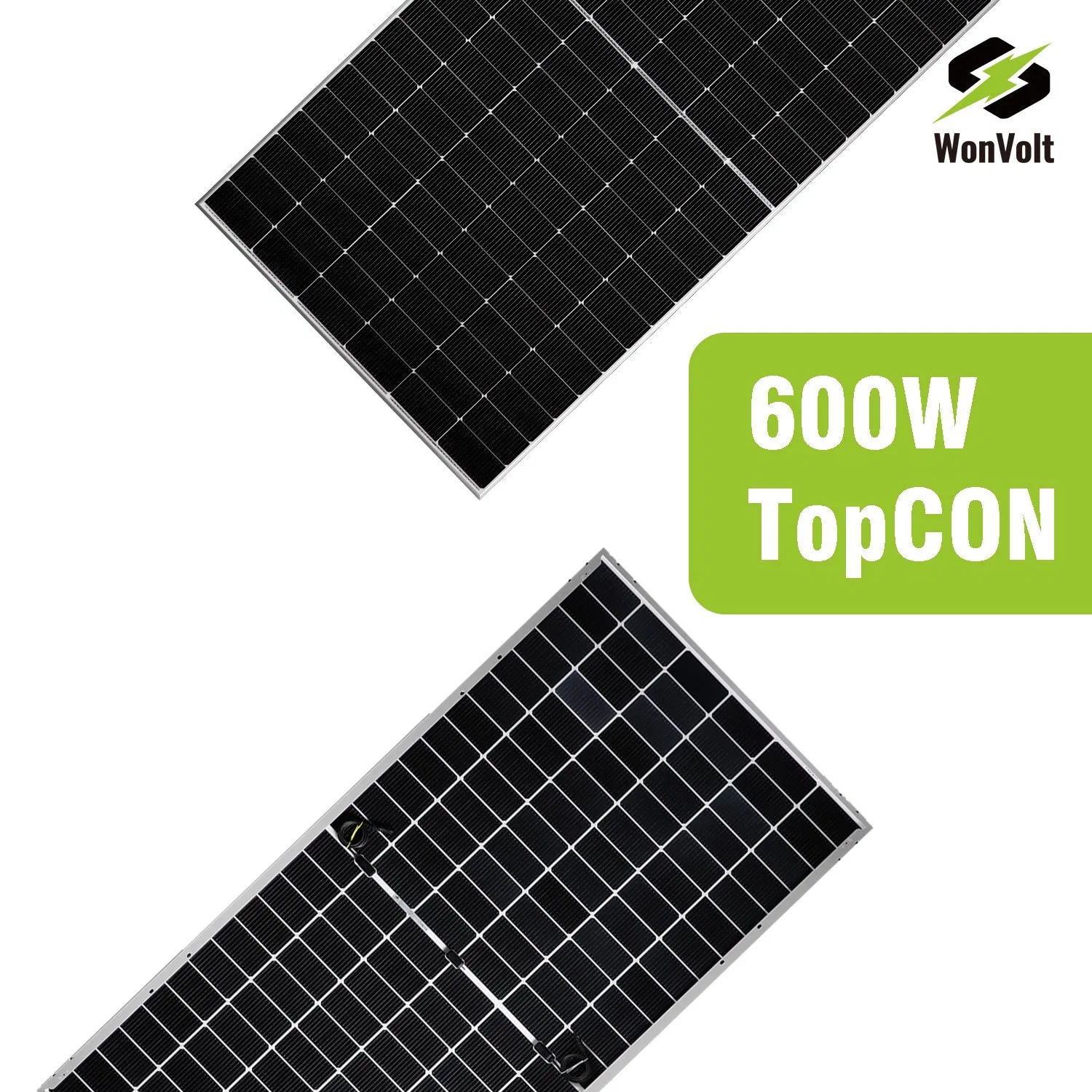

Solar Panel: N type Monofacial or Bifacial dual glasses solar PV panel 420W-750W optional, black frame or silver frame.

Solar Inverter: Stand alone off-grid and hybrid on-off grid systems, 1KW-100MWH storage. Support for 220V-230V single phase, 110V/220VAC split phase, and 208V/220V/380V/480VAC three phases.

Battery Storage System: 0.5C or 1C battery cell lithium solutions, battery cluster with BMS, includes battery cables; EMS optional.

BESS Container & Outdoor Cabinet: IP65 rated, fire protection and ventilation systems included. Available in 10ft, 20ft, or 40ft configurations (e.g., 100KW/215KWH, 100KW/260KWH).

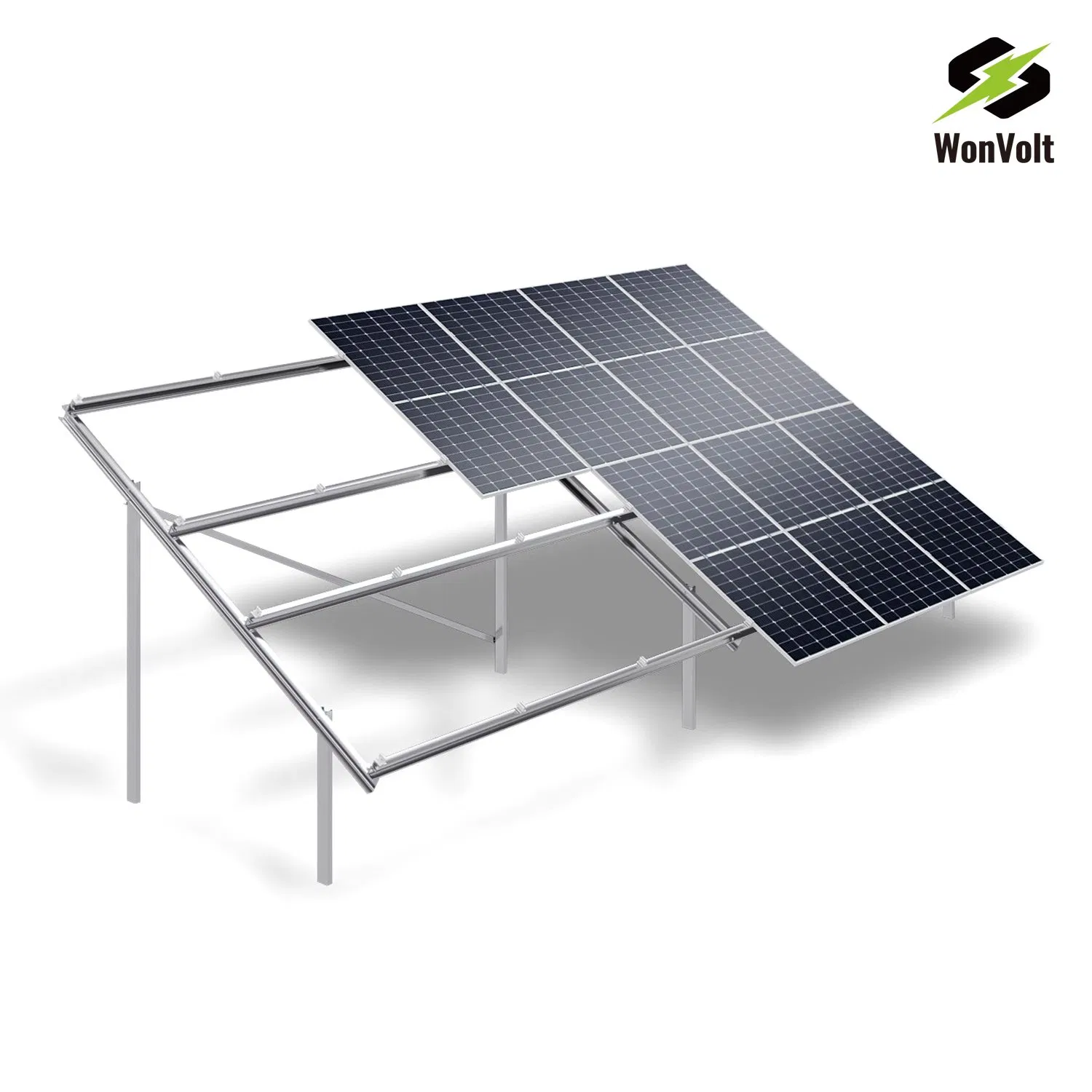

Mounting Structure: Aluminum roof mounting, ground mounting, adjustable brackets, and screw piles.

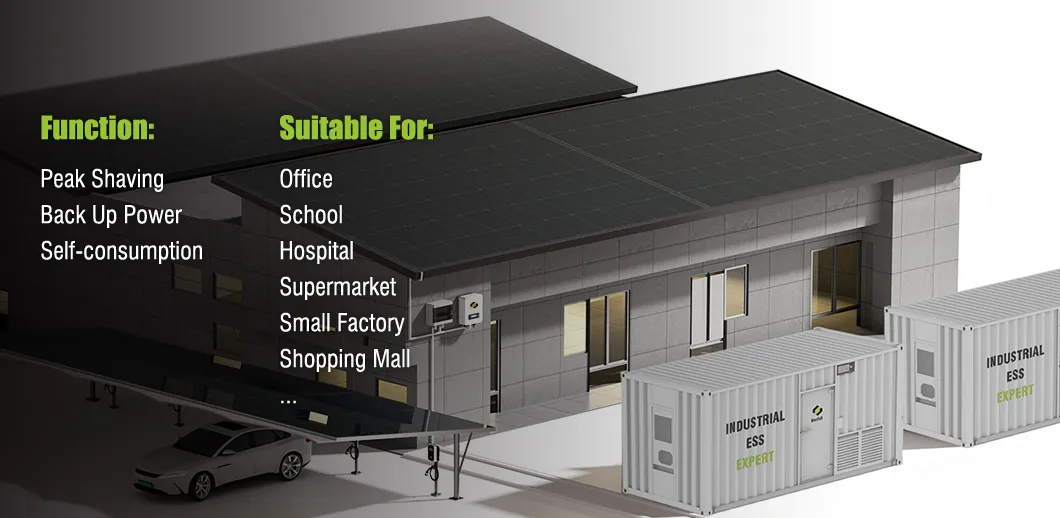

Product Overview

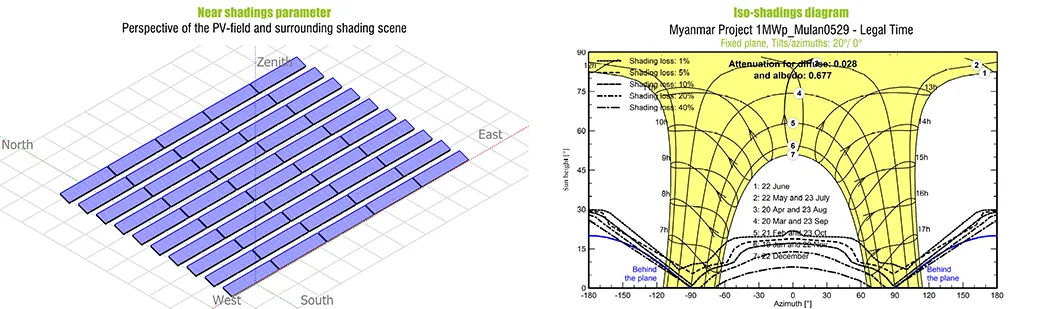

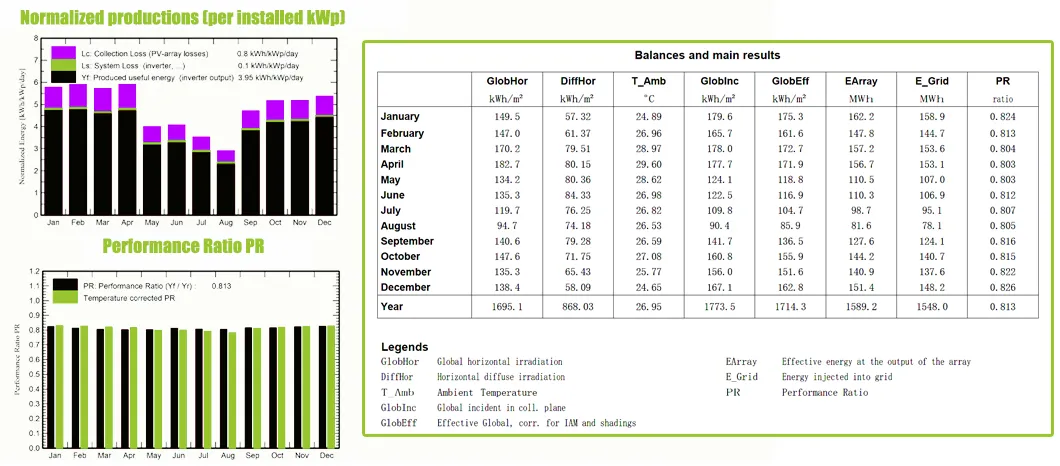

Technical Support & Layout

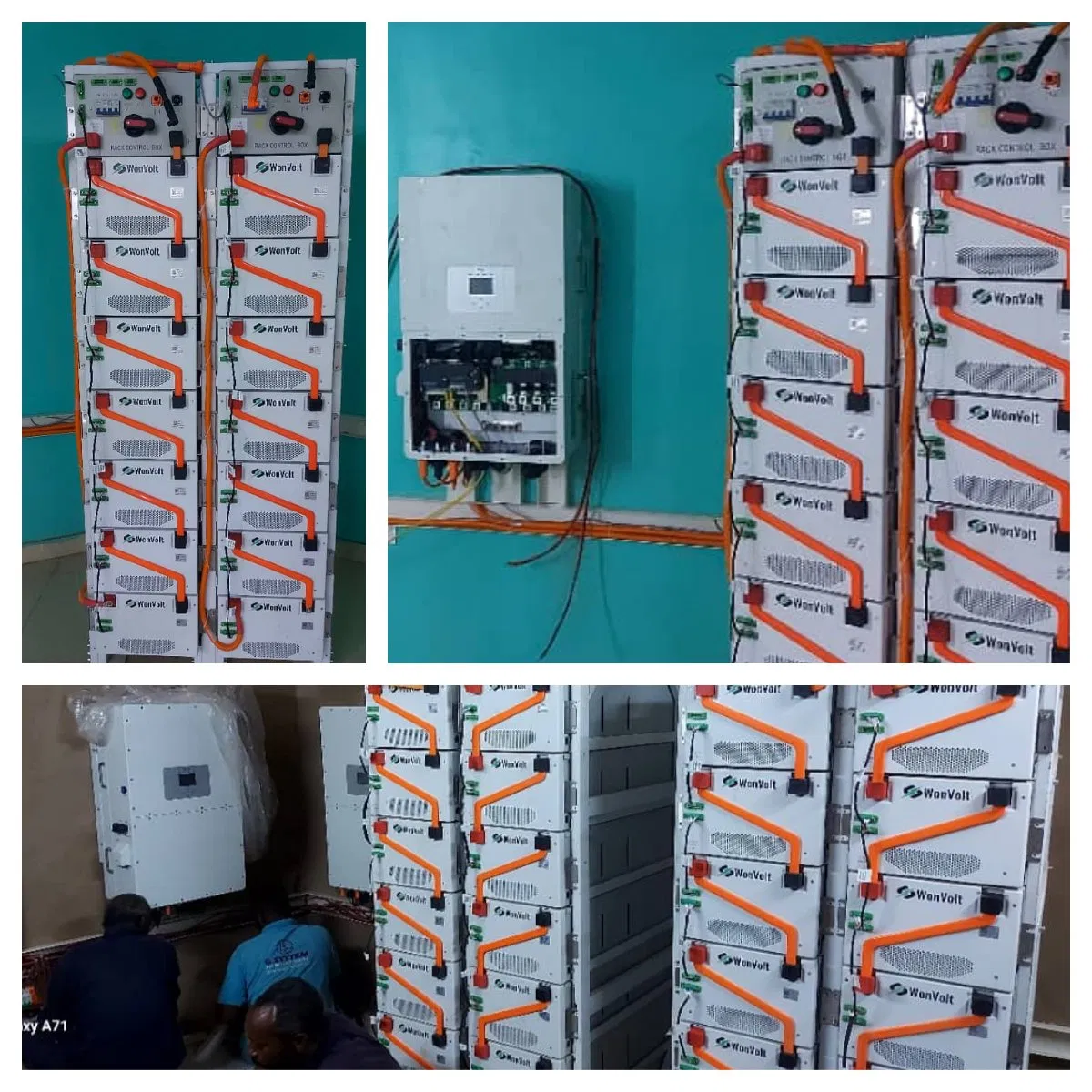

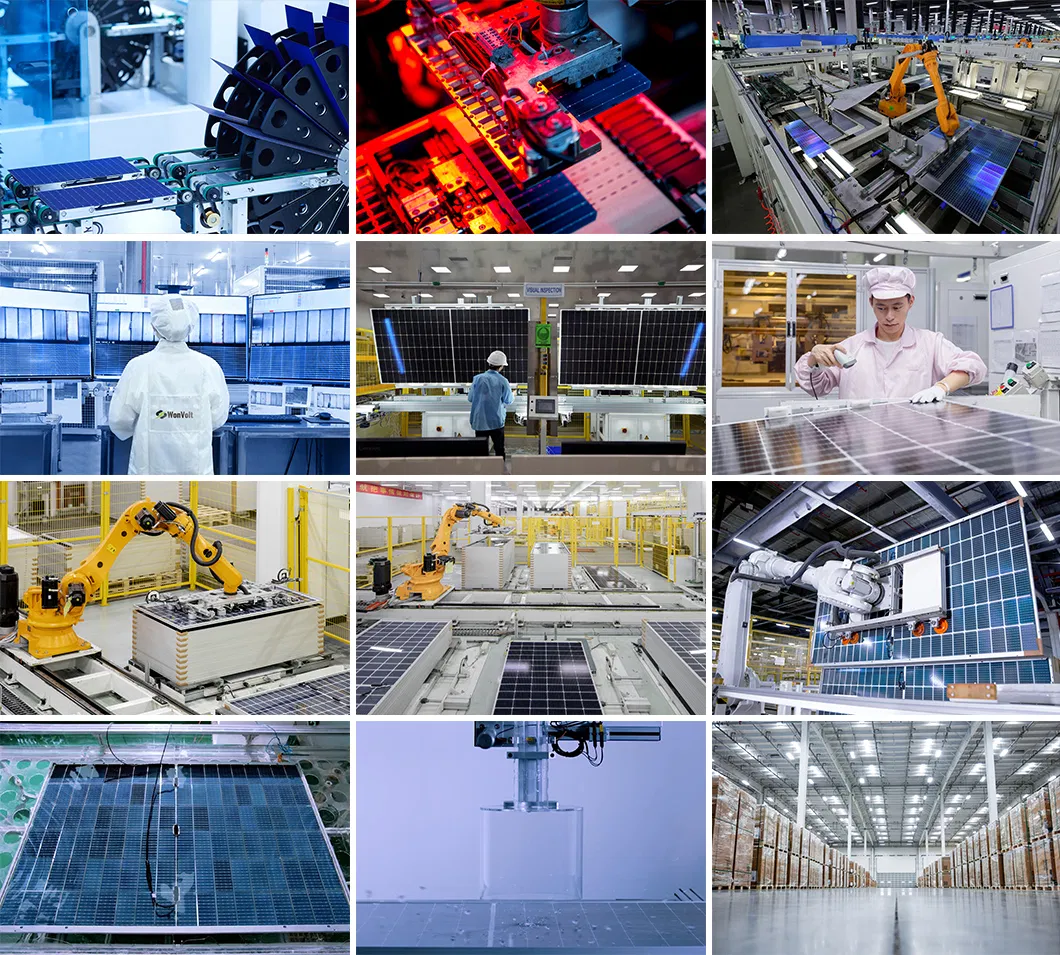

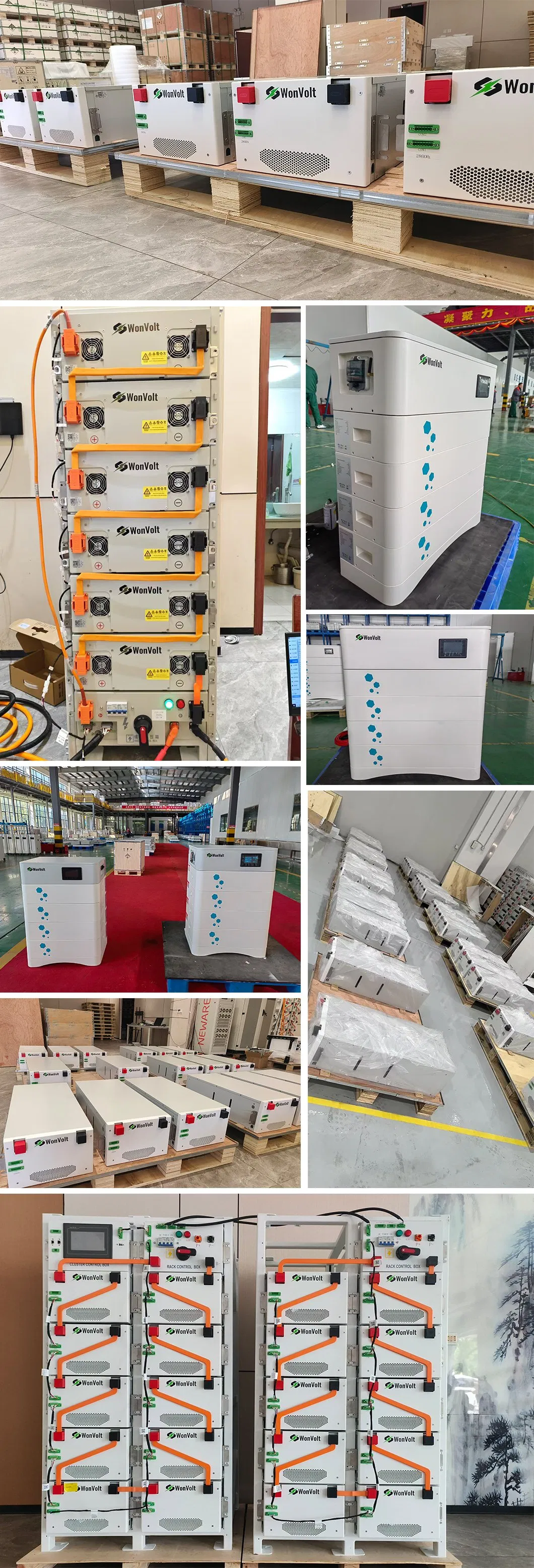

Production Facility & Reference Projects

Frequently Asked Questions

What types of solar panels are used in these systems?

The systems primarily utilize high-efficiency N-type Monofacial or Bifacial dual glass solar PV panels, ranging from 420W to 750W.

Is the Energy Storage System compatible with three-phase power?

Yes, the system is highly customizable and supports single-phase (220V-230V), split-phase (110V/220VAC), and three-phase configurations (208V/220V/380V/480VAC).

What is the protection rating for the outdoor ESS cabinets?

Our BESS containers and outdoor cabinets are IP65 rated, featuring integrated fire protection and professional ventilation systems for maximum safety.

Can the system be monitored remotely?

Absolutely. The system includes remote control options such as WIFI, Enterlog, or BR300 modules for real-time monitoring and management.

What mounting options are available for the solar panels?

We provide versatile mounting structures including aluminum roof mounts, ground mounts, adjustable brackets, and screw piles to suit various installation environments.

What battery technology is utilized in the ESS?

The system uses advanced Lithium-Ion (LiFePO4) battery cells, typically configured with high-standard BMS and optional EMS for optimized energy management.
