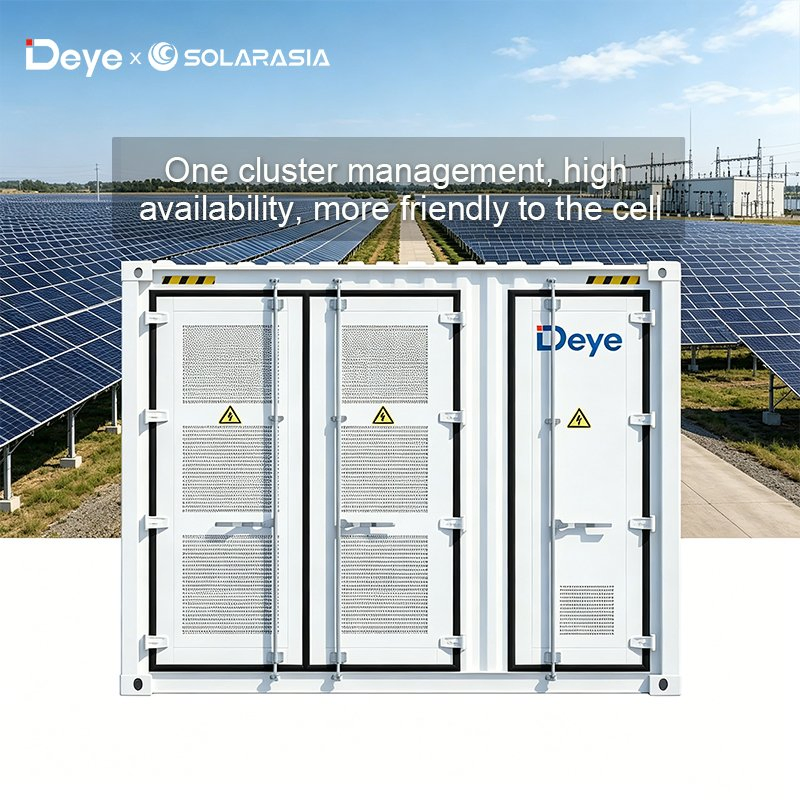

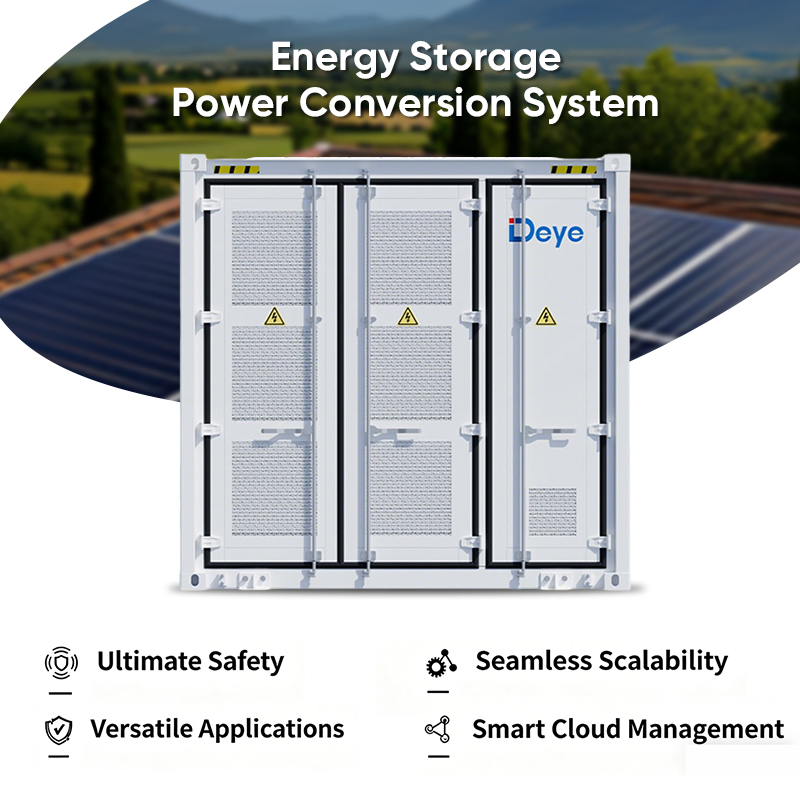

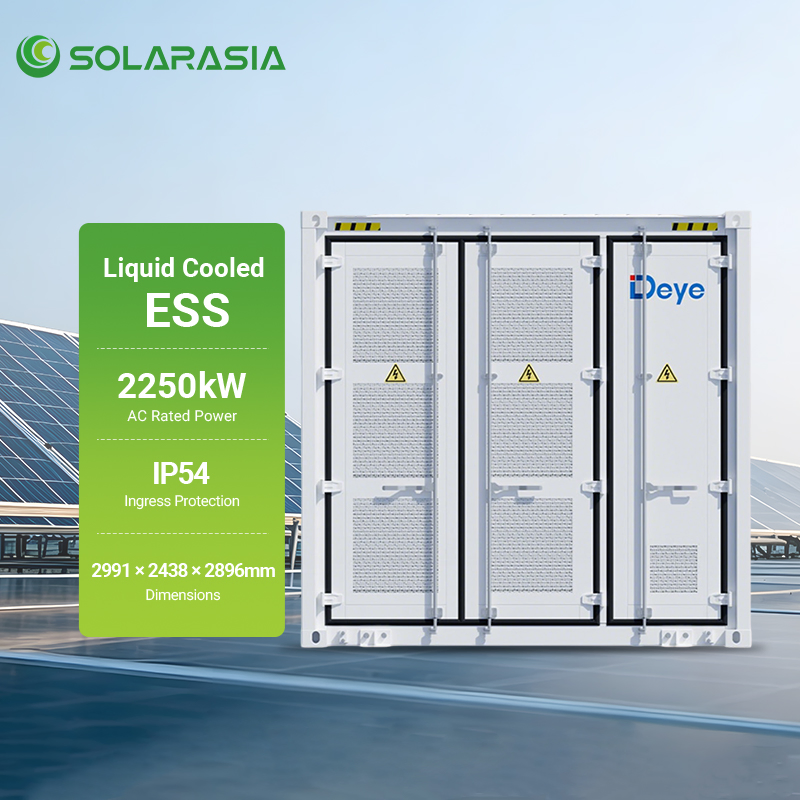

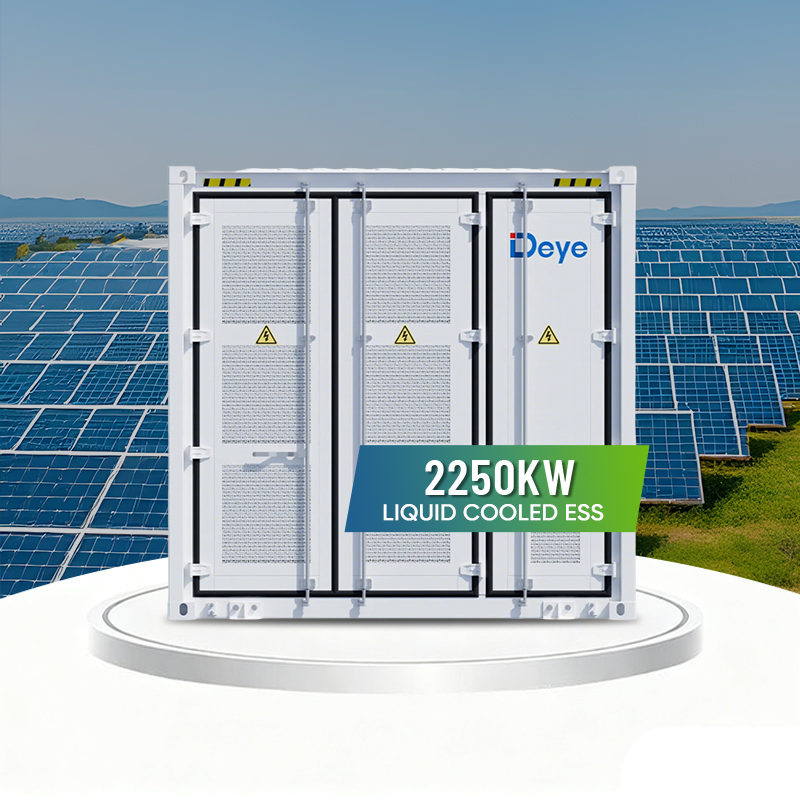

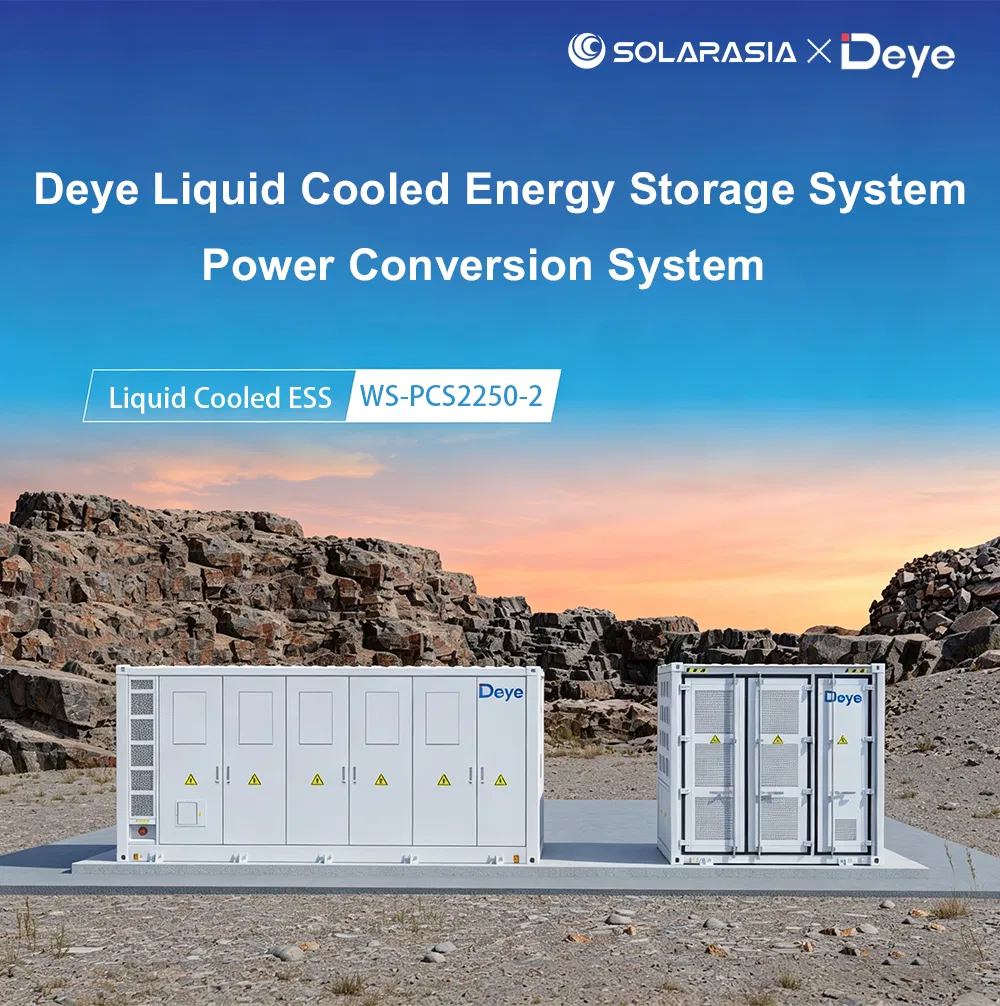

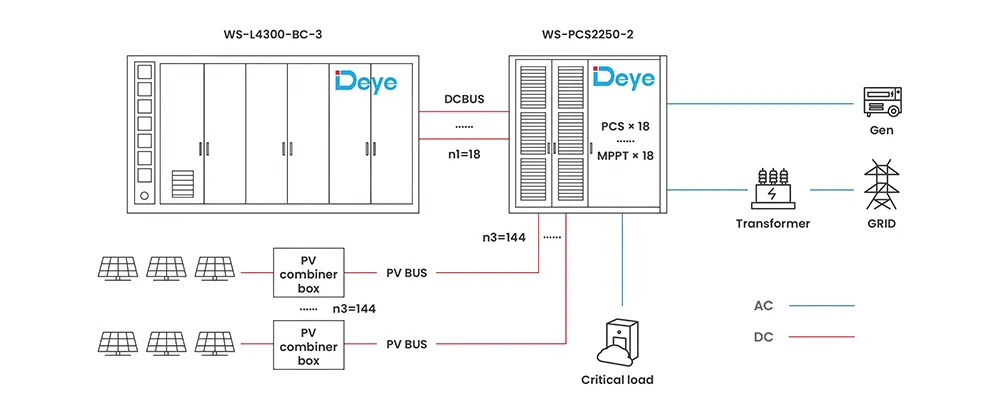

The Deye WS-PCS2250-2 is a high-power utility-scale Power Conversion System (PCS) designed for large-scale battery energy storage systems (BESS). It integrates bi-directional AC/DC conversion, PV inverter functionality, and grid-forming capability into a single 10ft compact container. Ideal for peak shaving, microgrids, VPP, and hybrid diesel-PV-storage applications.
| Technical Specification | |
|---|---|
| AC Rated Power | 2250 kW (18 × 125 kW) |
| AC Rated Voltage/Frequency | 400 Vac / 50 Hz (3L+N+PE) |
| AC Rated Current | 3248 A (18 × 180.4 A) |
| Max Power | 2475 kW (18 × 137.5 kW) |
| Power Factor | -1 ~ +1 |
| Battery Input Voltage Range | 630 Vdc – 1000 Vdc |
| Max Charging/Discharging Current | 3420 A (18 × 190 A) |
| Max PV Input Power | 3600 kW (18 × 200 kW) |
| Max PV Input Voltage | 800 Vdc |
| Start-up Voltage | 200 Vdc |
| Max Operating PV Input Current | 18 × (8 × 40A) |
| No. of MPP Trackers | 144 (18 × 8) |
| Grid Side AC Max Current | 5400 A |
| Gen Side AC Max Current | 3600 A |
| Load Side AC Max Current | 2700 A |
| Operating Temperature | -25°C ~ +55°C |
| Ingress Protection | IP54 |
| Anticorrosion Grade | C4-M (C5 optional) |
| Weight | 11,500 kg |

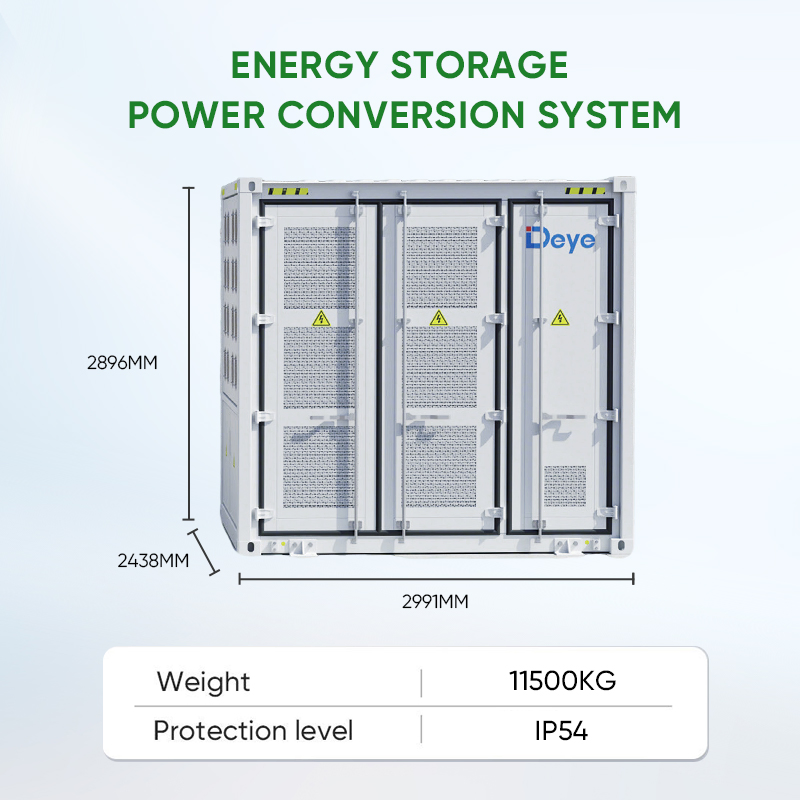

| Dimensions (W×D×H) | 2991 × 2438 × 2896 mm |
