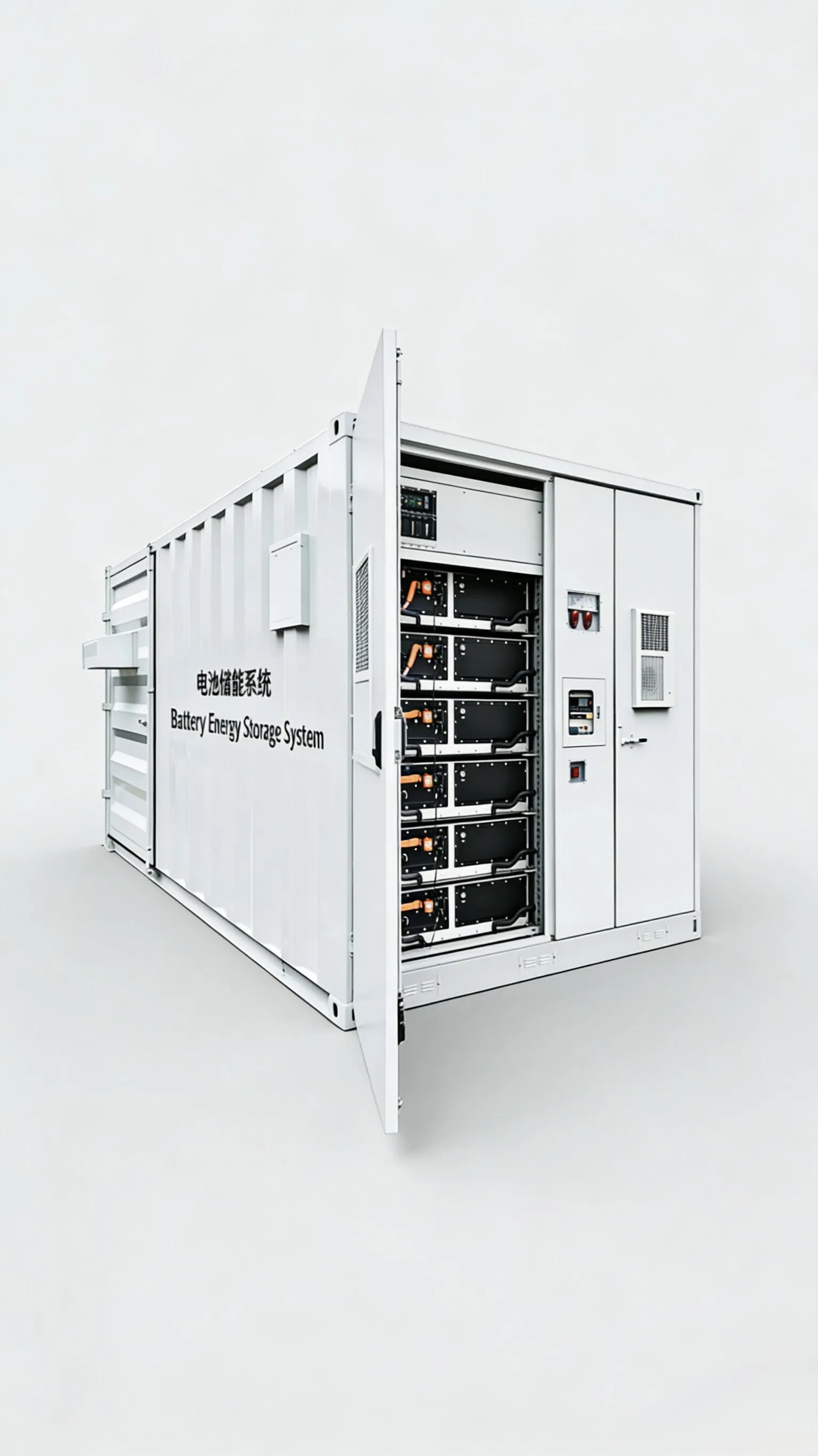

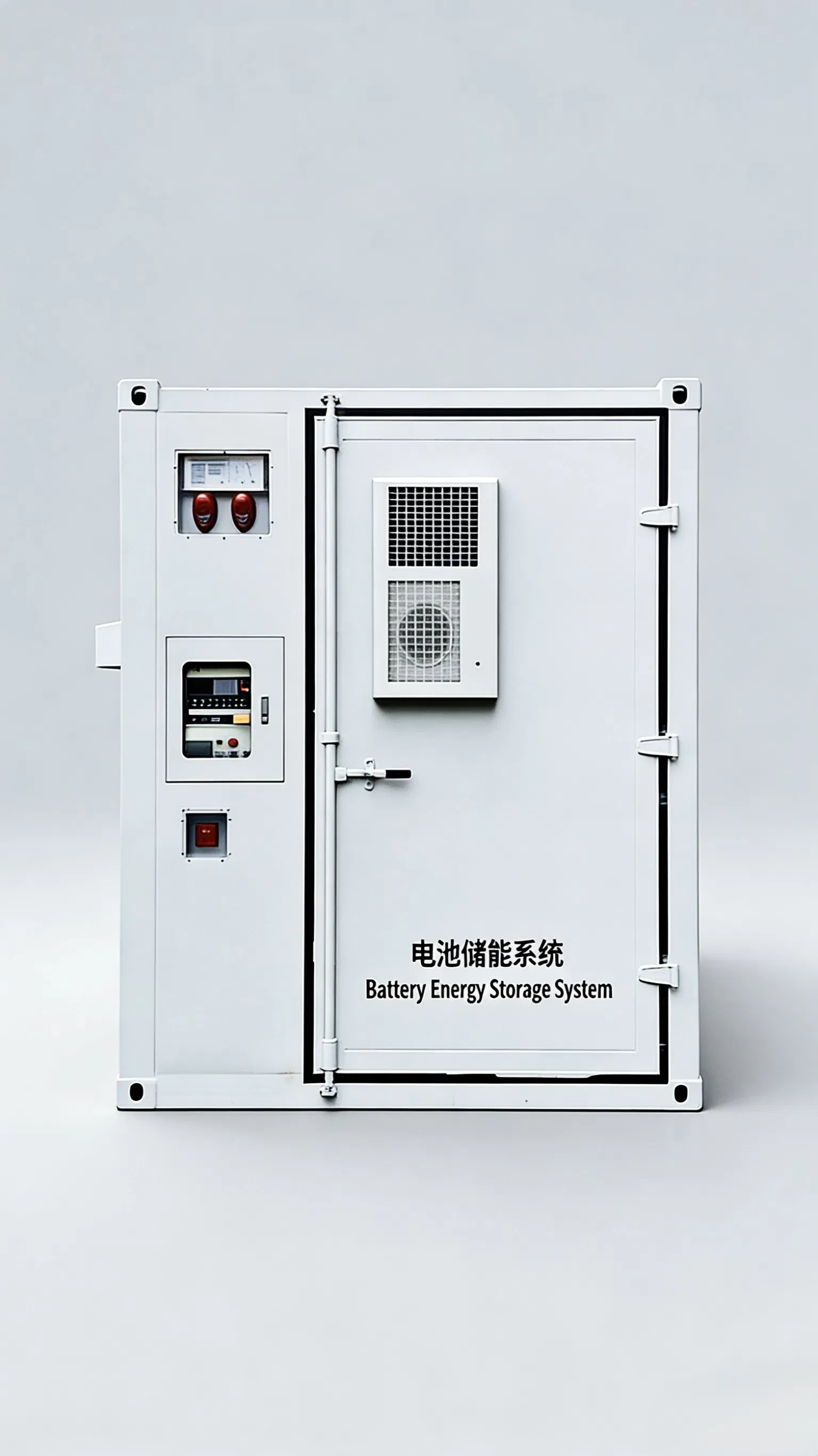

5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
1 / 5
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use
5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use

5mwh Liquid Cooled Containerized Bess LiFePO4 Battery Energy Storage for Industrial Commercial Use

Customization: Available
Container Size: 6050*2438*2400mm
Weight: 22t
Send Inquiry

Product Description

Technical Specifications

Model NO.
ZKSD-1250-5015000-H-00
Nominal Voltage
768V
Warranty
3 Years
Nominal Capacity
5015kWh
Cycle Life
8000 Cycles
Battery Type
Lithium Ion, LiFePO4
Fire Safety
Aerosol
Protection Level
IP65 / IP54
Certifications
ISO, CB, CE, TUV, UN38.3, EN50549
Communication
Ethernet, CAN, RS485

5000KWh Containerized Energy Storage System

Containerized Bess LiFePO4 Battery

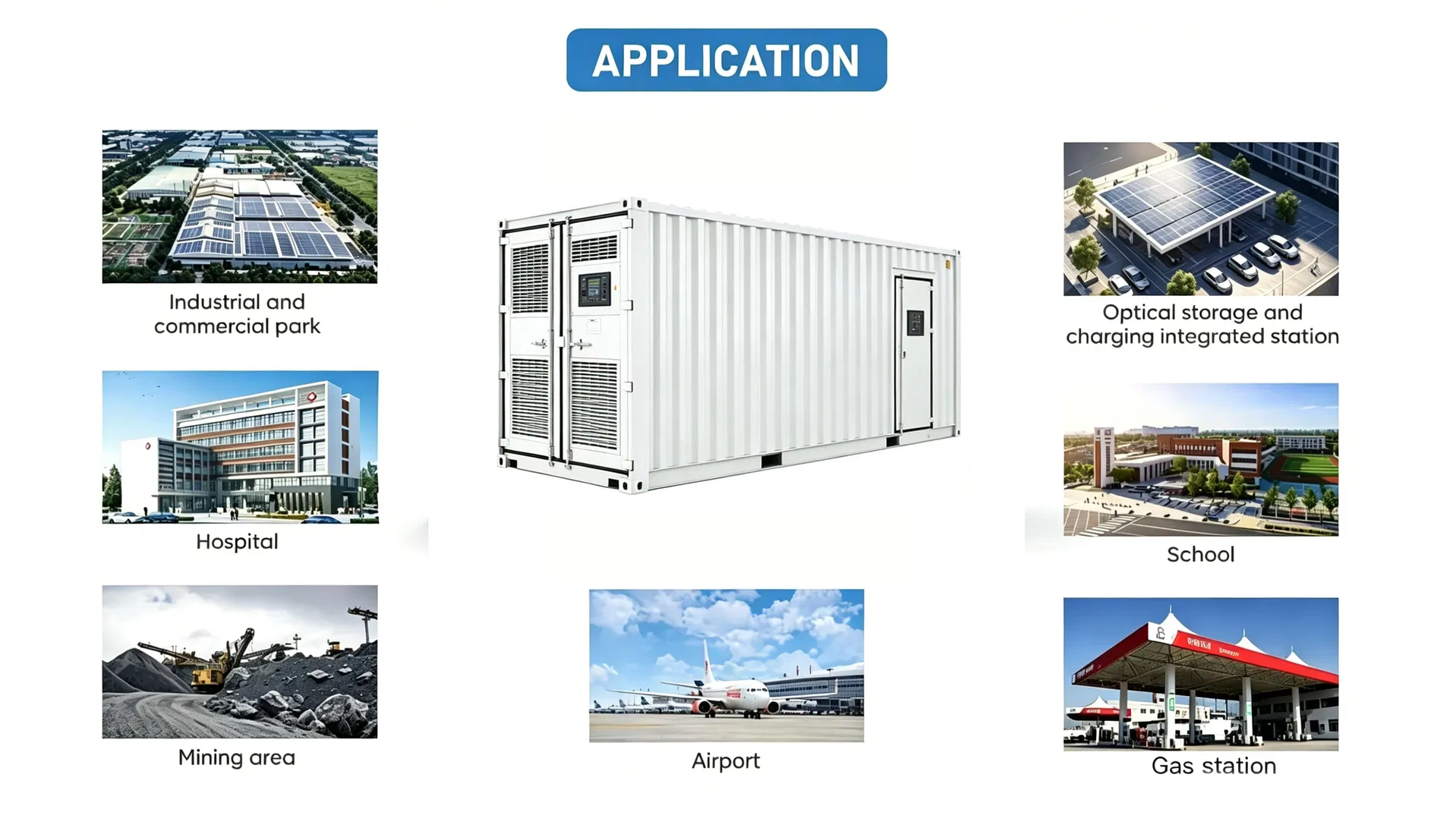

Introducing our 5000KWh high-capacity containerized energy storage system, a cutting-edge solution designed for industrial, commercial, and utility-scale energy needs. We deliver reliable, customizable, and cost-effective energy storage solutions that empower businesses to achieve energy independence and reduce electricity costs.

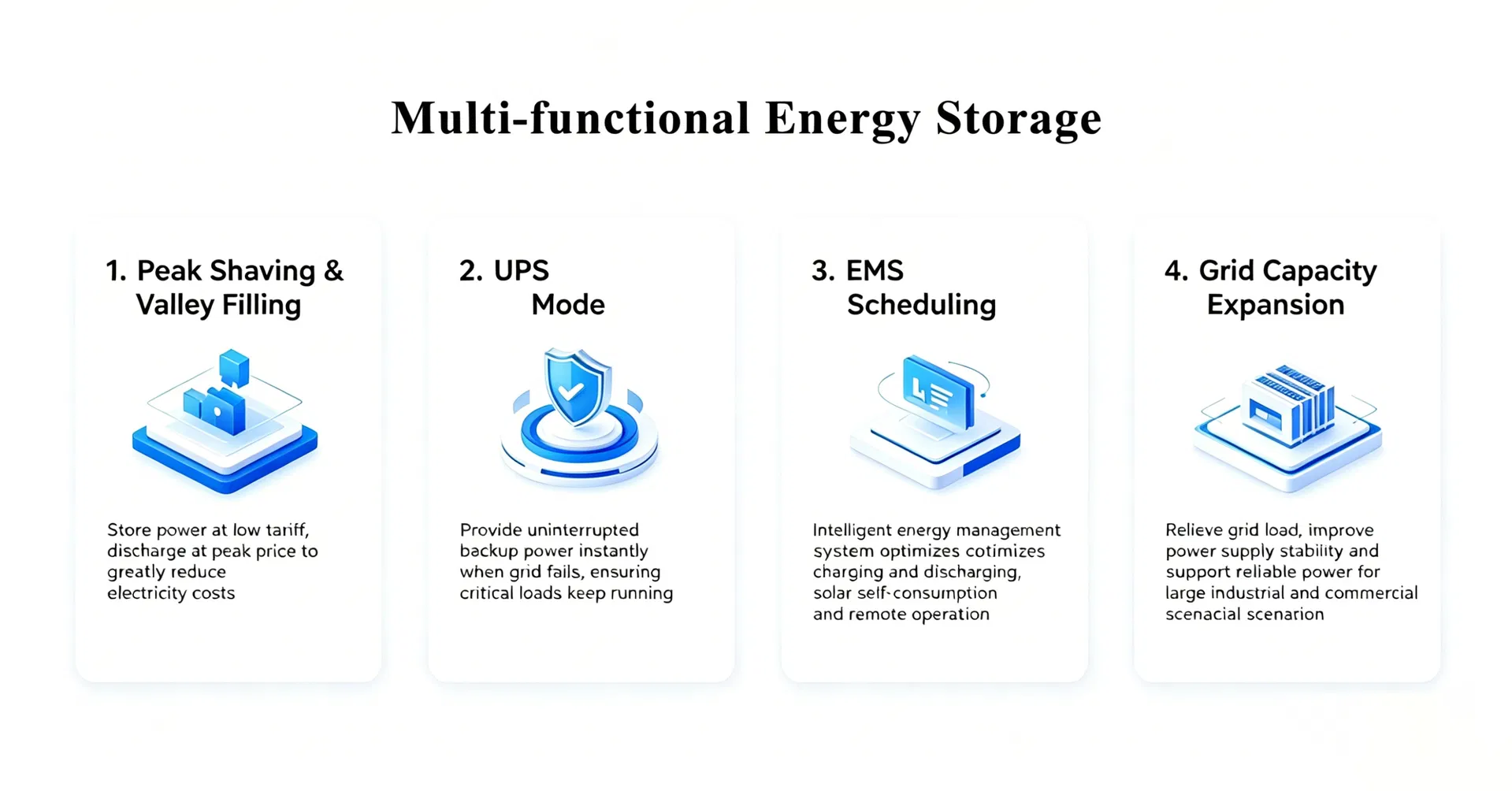

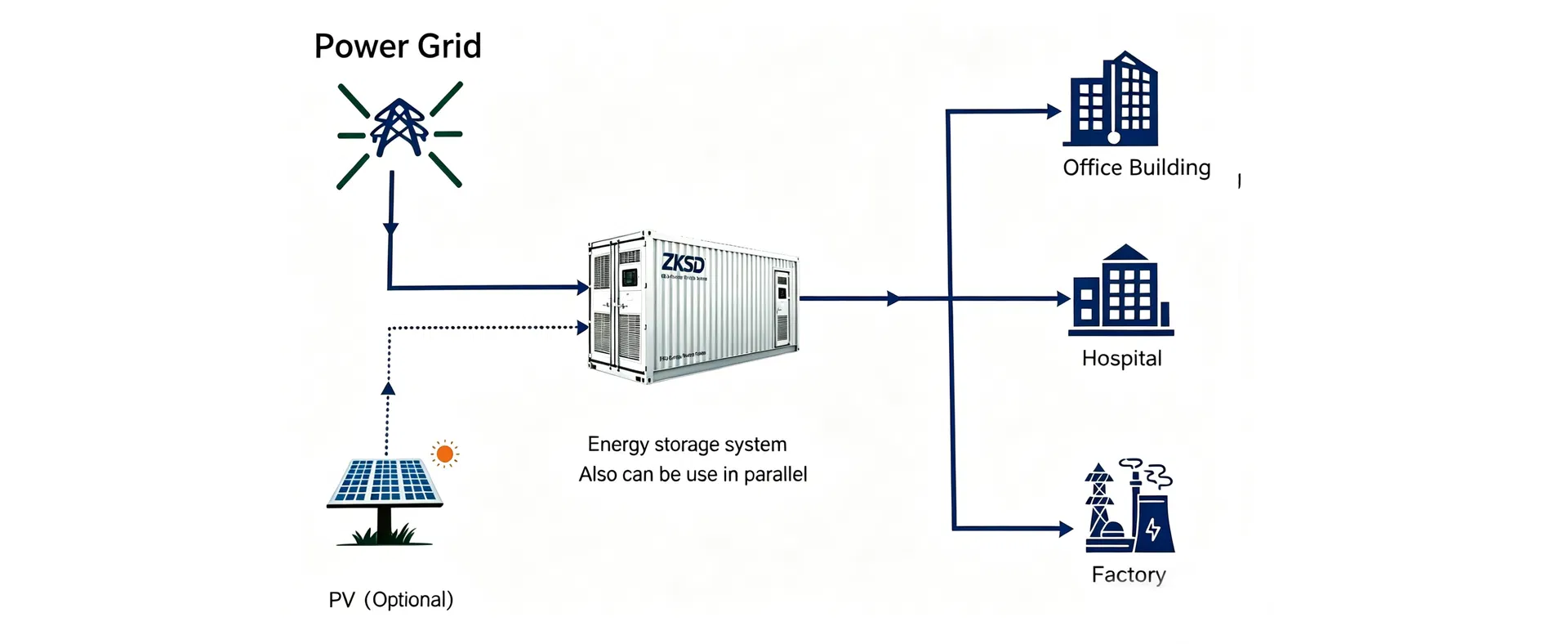

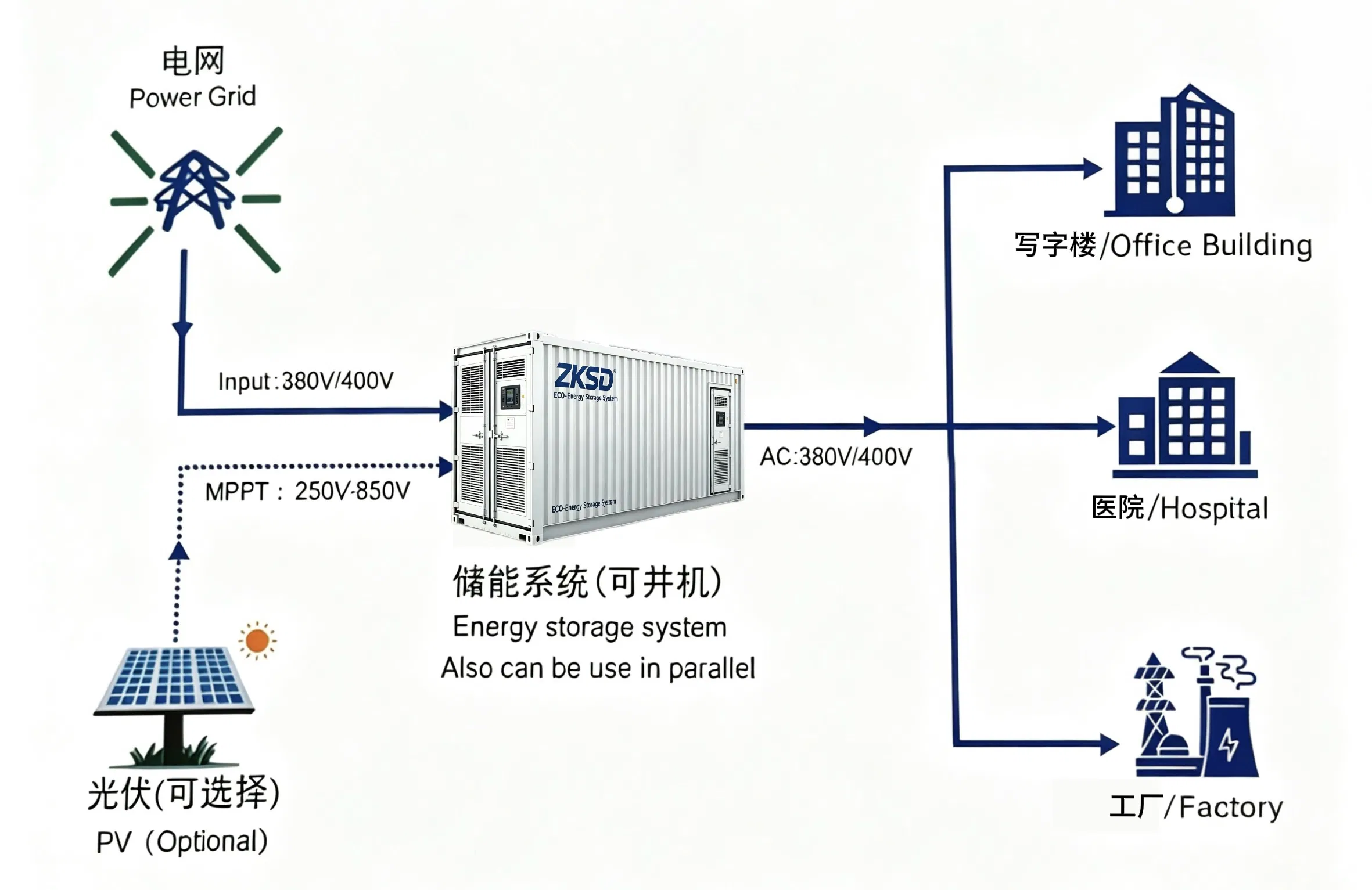

Three Intelligent Working Modes

Energy System Modes
On-Grid Mode

Grid-tied solar storage system connects to the public grid, stores solar power for peak shaving, cuts electricity bills, and supports feeding excess energy back to the grid.

Off-Grid Mode

Runs independently without grid access, providing 24/7 stable power for remote areas, islands and off-grid sites.

Hybrid Mode

Combines on-grid and off-grid functions, intelligently switches modes, ensures backup power during outages, and maximizes solar self-consumption.

System Parameters

Model 1044kWh-500kW 1720kWh-800kW 2610kWh-1250kW 5015kWh-2500kW
Cell TypeLFP 3.2V 314AhLFP 3.2V 280AhLFP 3.2V 314AhLFP 3.2V 314Ah
Nominal Voltage832V768V832V1331.2V
Life CycleOver 8,000 Cycles @ 25°C
Rated AC Power500kW800kW1250kW2500kW

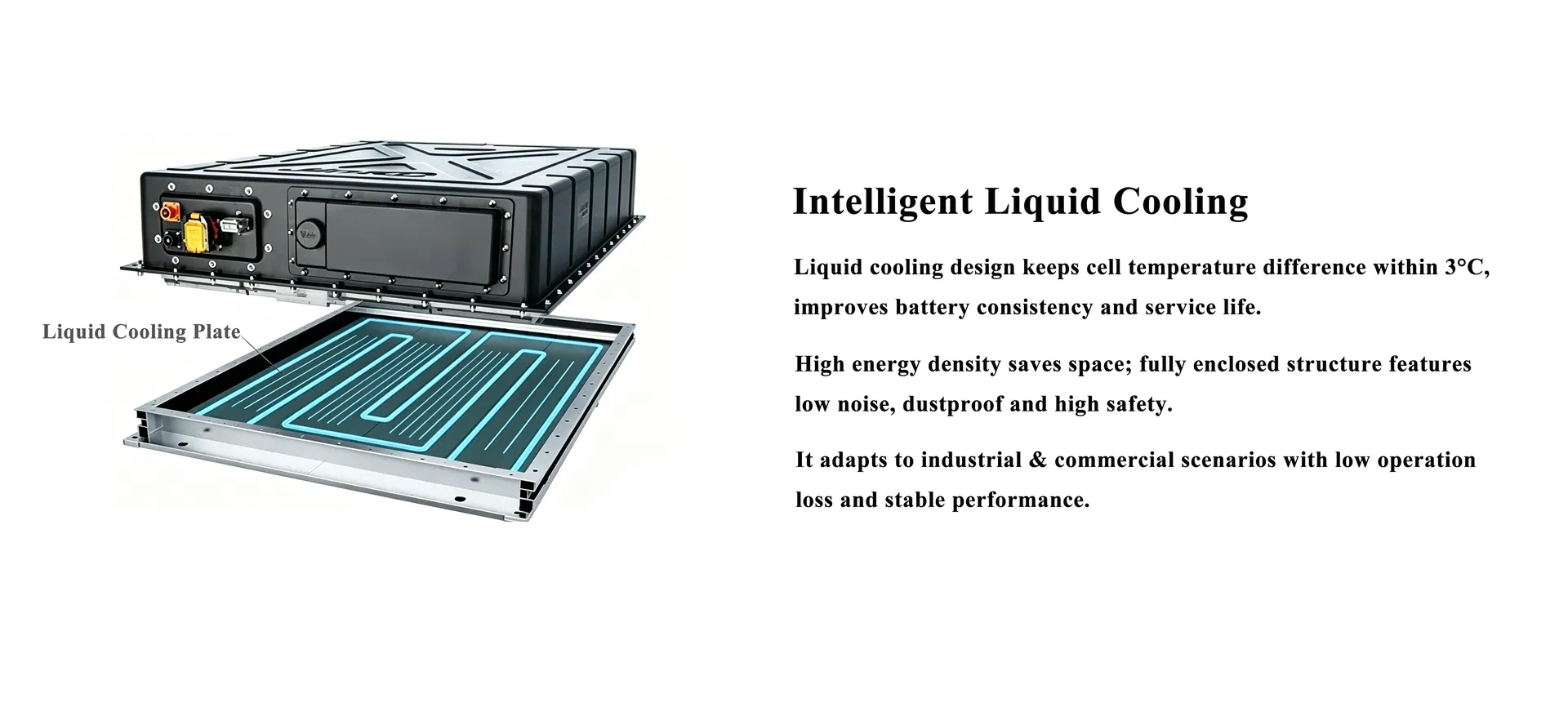

Cooling MethodIntelligent Liquid Cooling
Fire FightingAerosol (Pack + Cluster Level) + Water Protection
Size (mm)6050 * 2438 * 2400

Production & Design

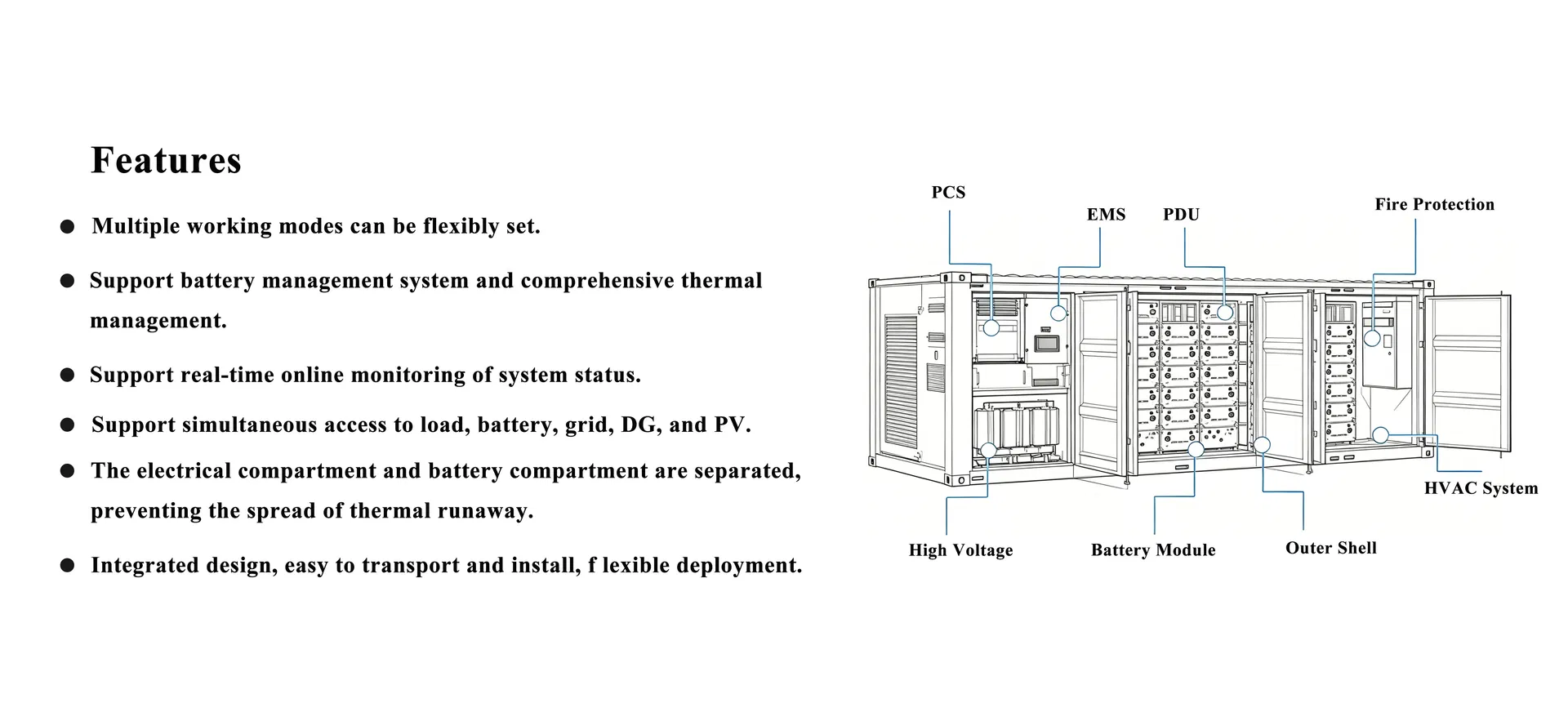

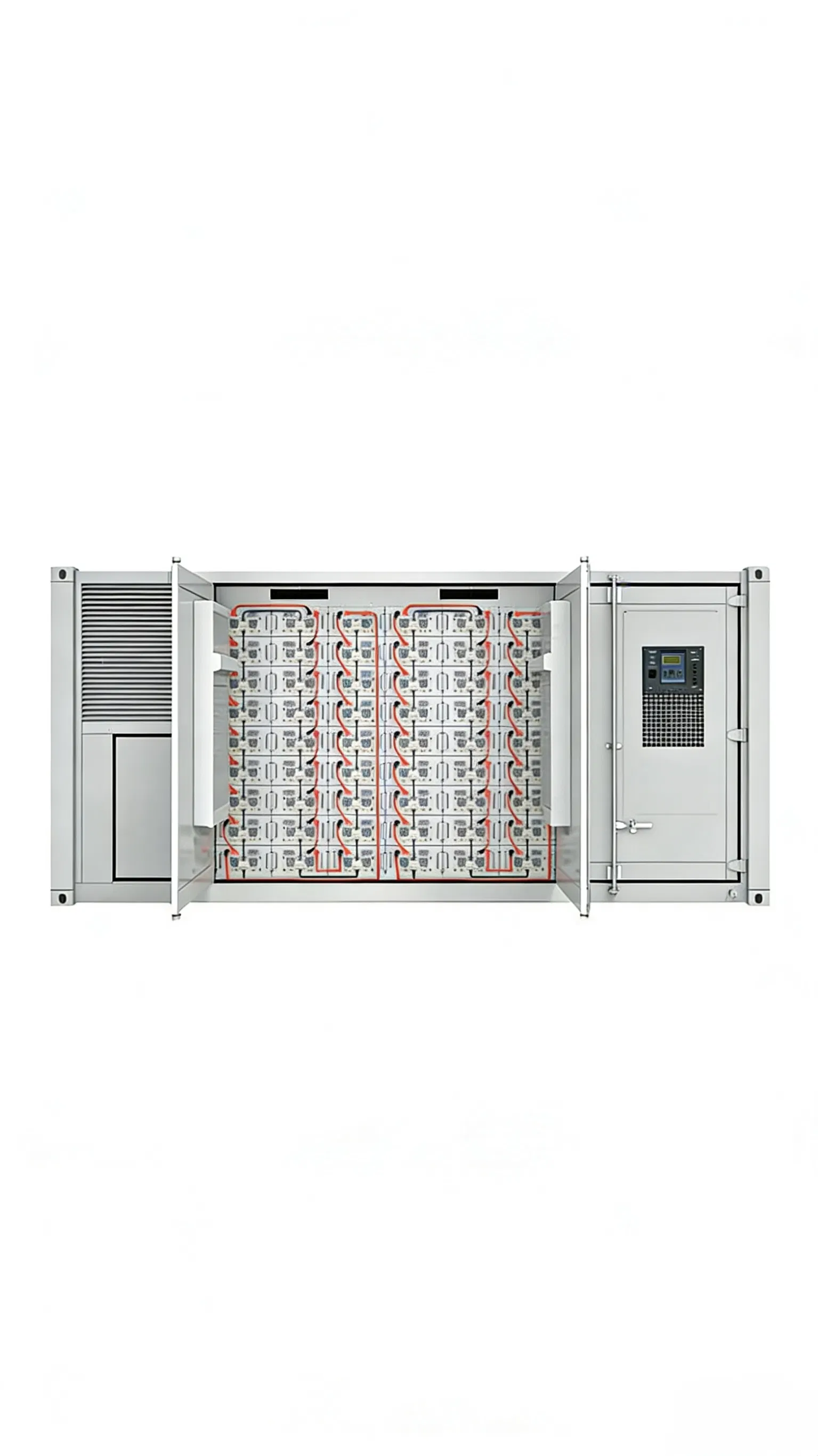

Internal Structure Battery Rack Control System
Cooling Unit Container View

OEM & ODM Services

Manufacturing Service
Tailored Manufacturing
We provide comprehensive OEM & ODM services. From standard cabinet manufacturing under your brand to full custom design, engineering optimization, and prototype testing, our team partners with you to launch differentiated energy storage solutions tailored to your market.

Our Factory & Certifications

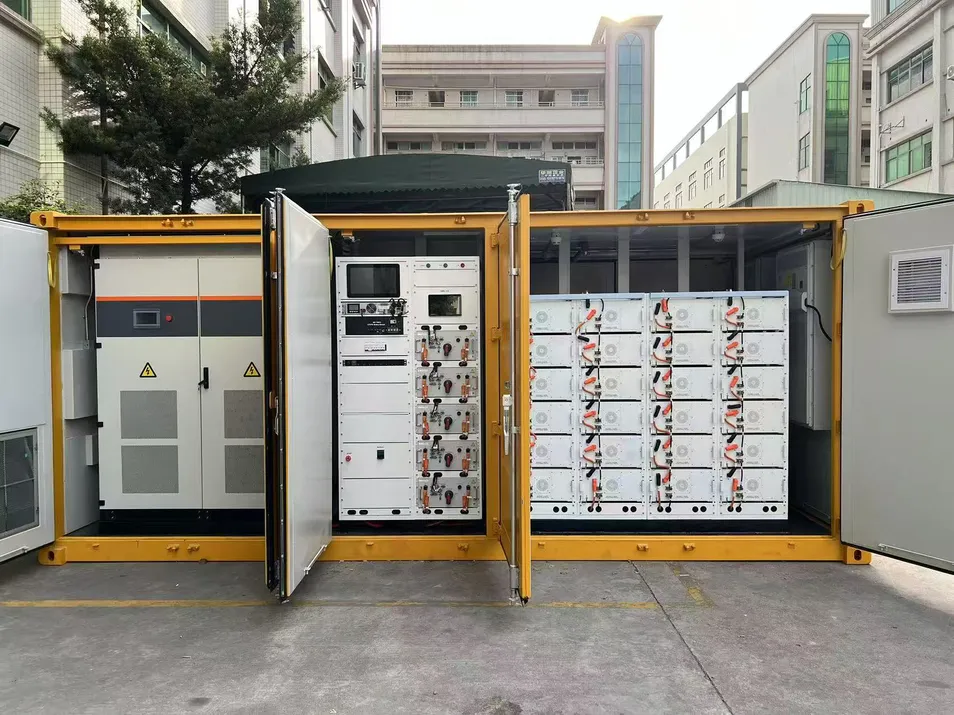

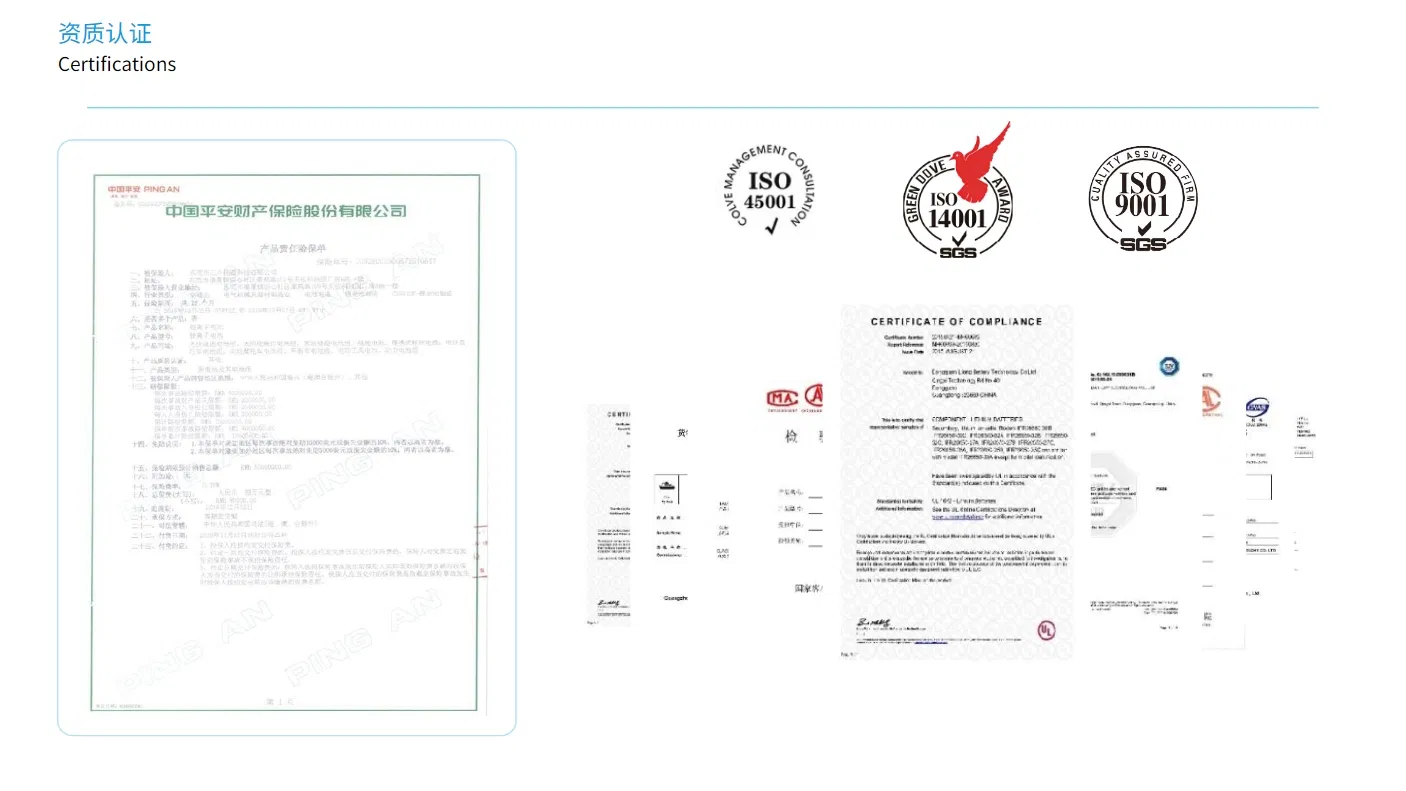

Factory Workshop Production Line Certifications

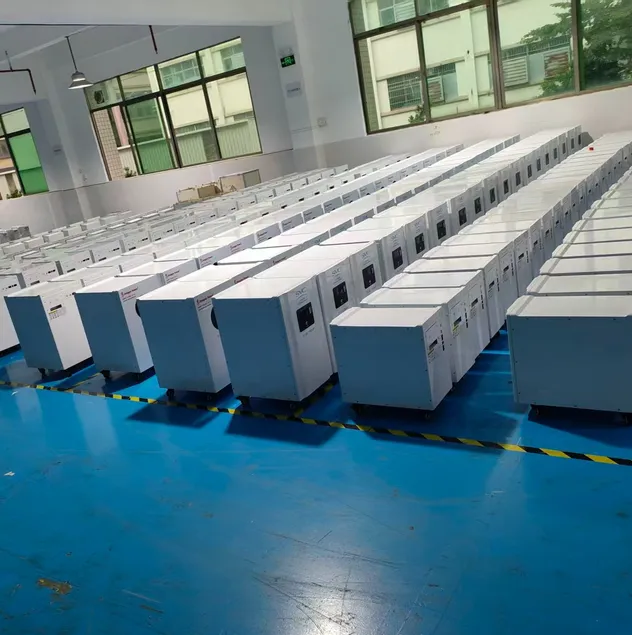

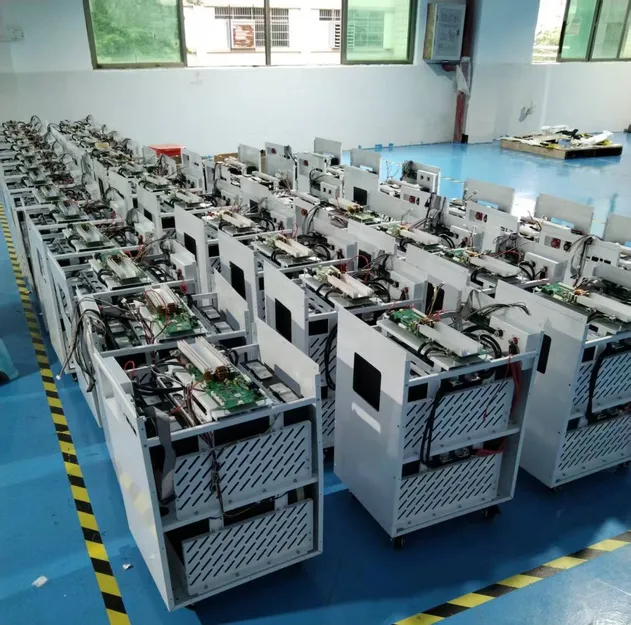

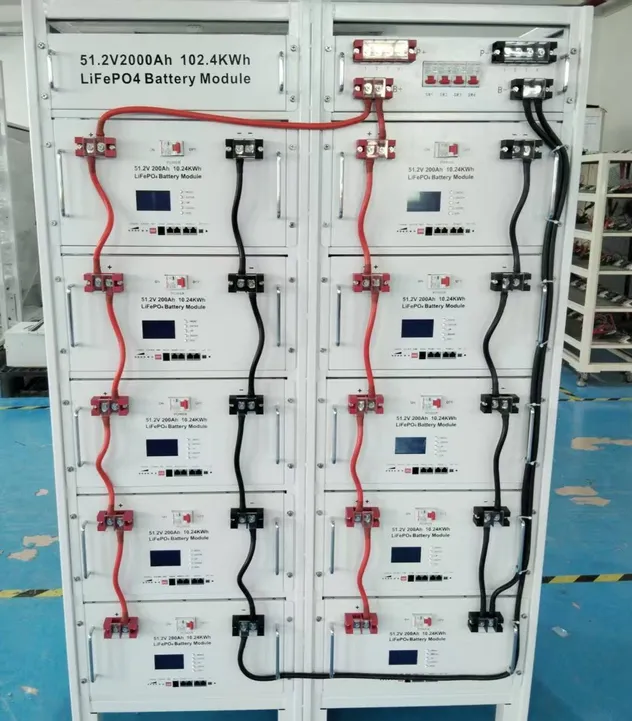

Testing Lab Quality Control Assembly

Frequently Asked Questions

What is the typical lead time for an order?
Standard models generally ship within 20–30 days, while fully customized units require approximately 40–55 days depending on complexity.
Is overseas after-sales service available?
Yes, we maintain partnerships with service centers in key global regions to provide technical support and maintenance.
Can the capacity and dimensions be customized?
Absolutely. We offer tailored designs for both the capacity and the physical dimensions of the containerized systems to meet specific site requirements.
What documents are provided for international export?
We provide a full export documentation package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
How can I initiate a purchase or request a quote?
You can reach out to our sales team directly to discuss your project needs; we will provide a detailed quote followed by a formal Purchase Order process.
What cooling and fire protection systems are used?
Our systems utilize intelligent liquid cooling for thermal management and a multi-level fire protection system including aerosol and water-based suppression.
