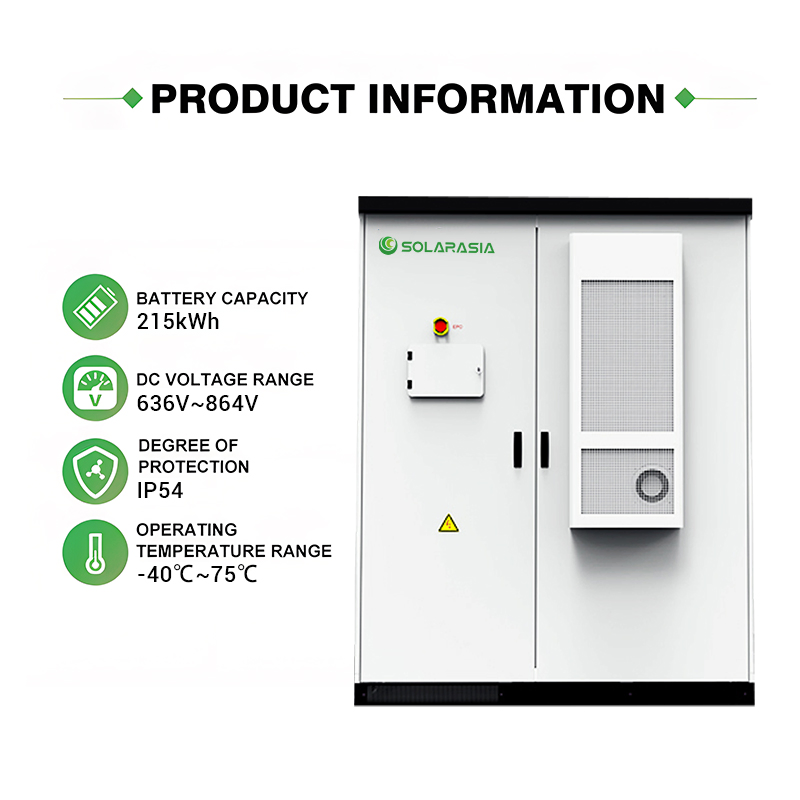

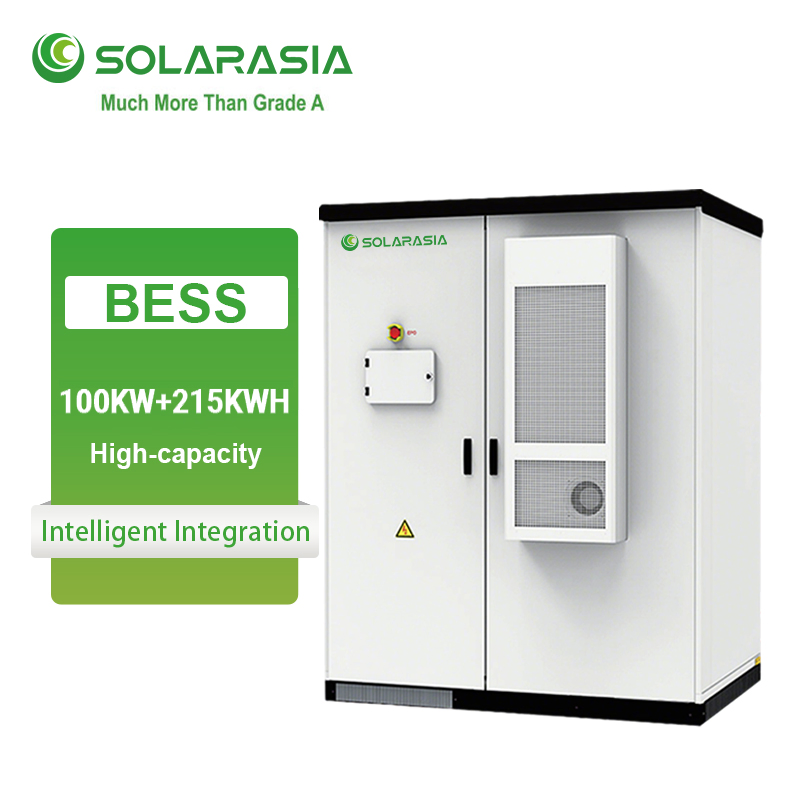

Advanced 100kw 215kwh Storage Battery Energy Storage System Solution All in One Containerized Design for Industrial Commercial and Utility Scale Solar Projects

i

Basic Specifications

Model No.TG-eBank-215FS2

Nominal Voltage768V

Nominal Capacity215kWh

Cycle Life6000 Times

Warranty5 Years

Cooling SystemAir Cooling

Charge Rate0.5c Rated

DOD95%

1

Product Description

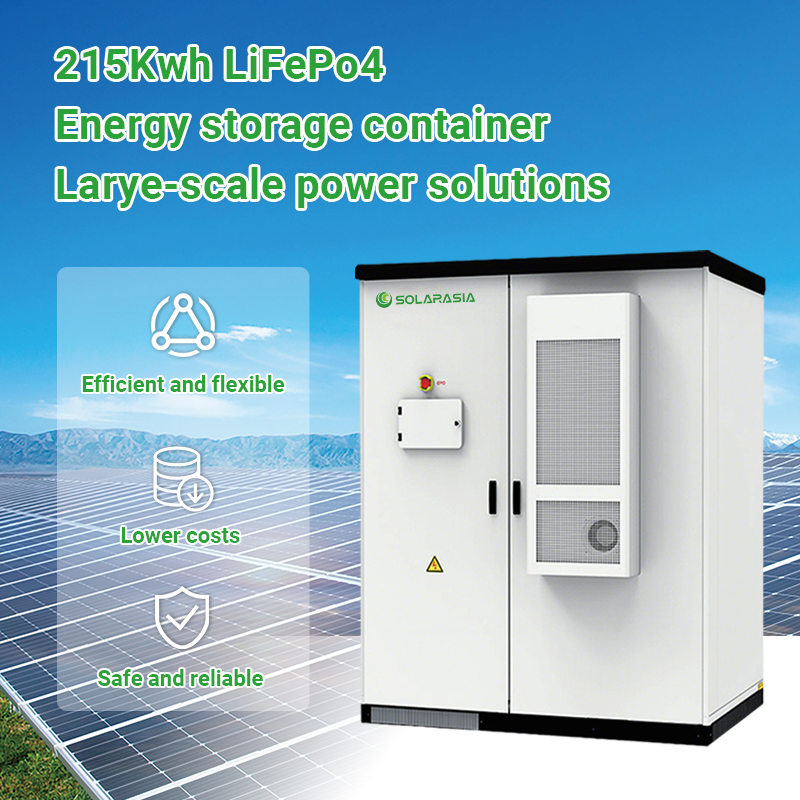

Advanced 100kw 215kwh Storage Battery Energy Storage System Solution. Featuring an All-in-One containerized design optimized for industrial, commercial, and utility-scale solar projects.

2

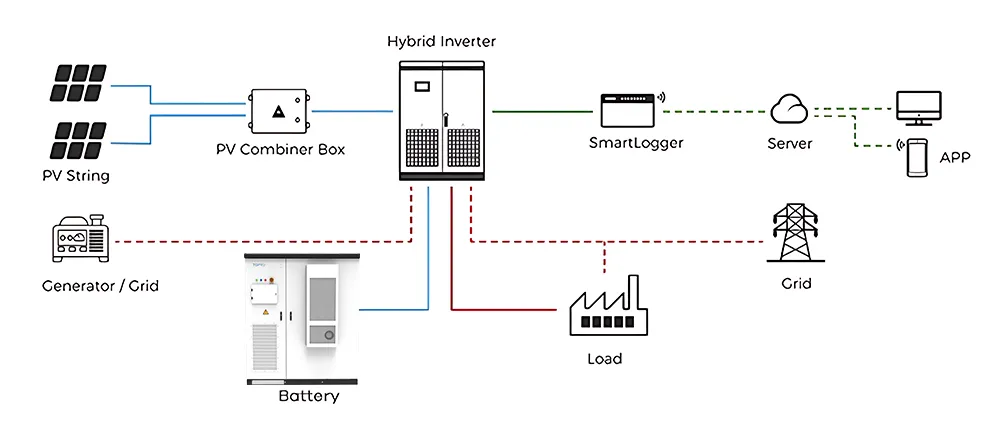

Working Principle

3

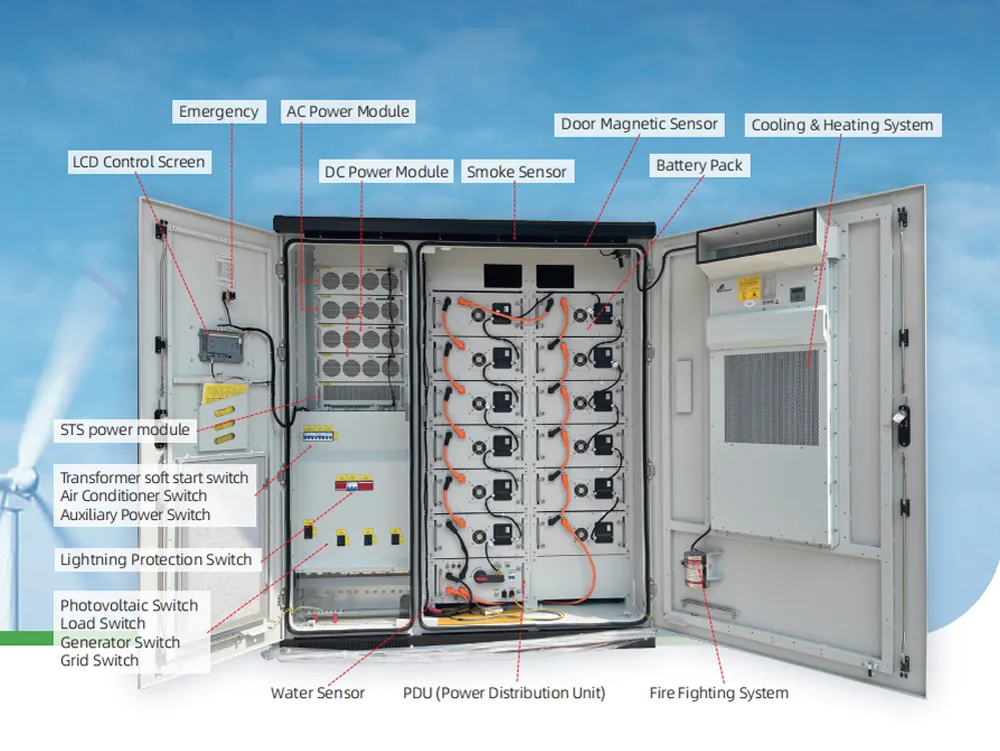

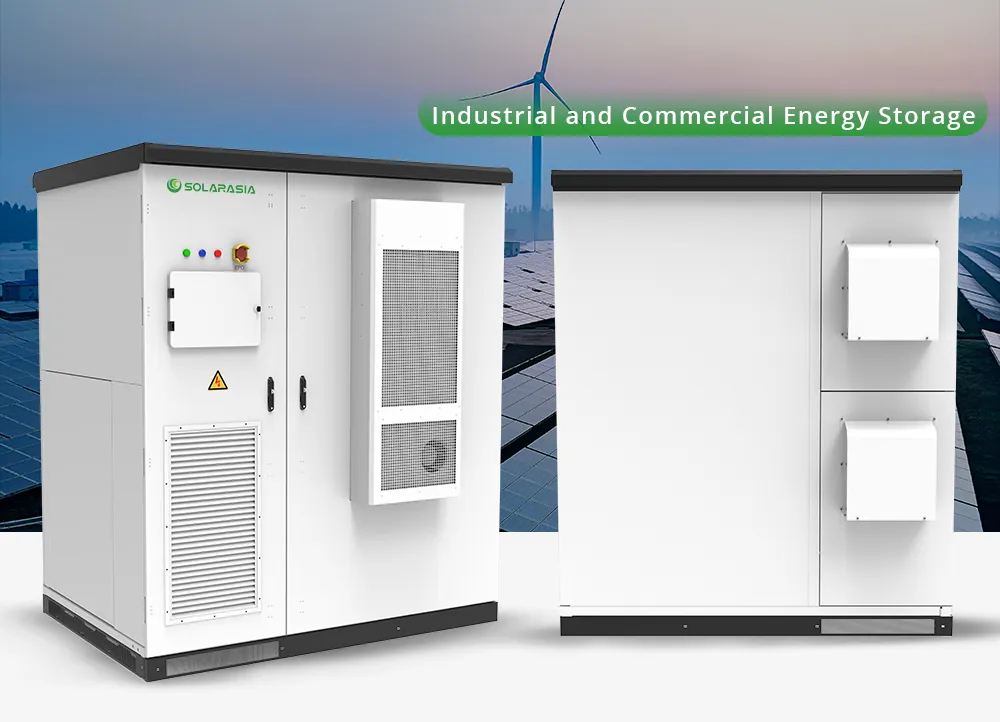

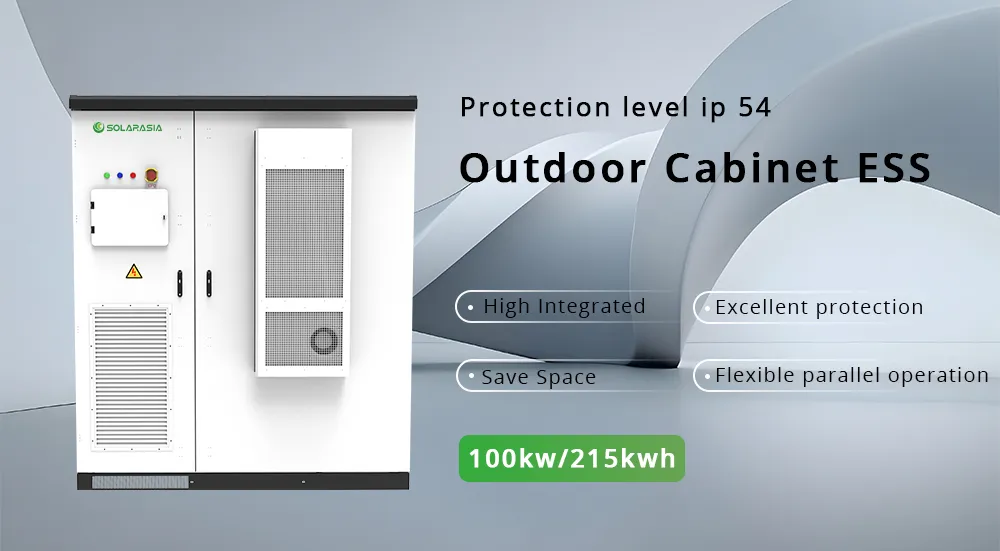

Product Details

4

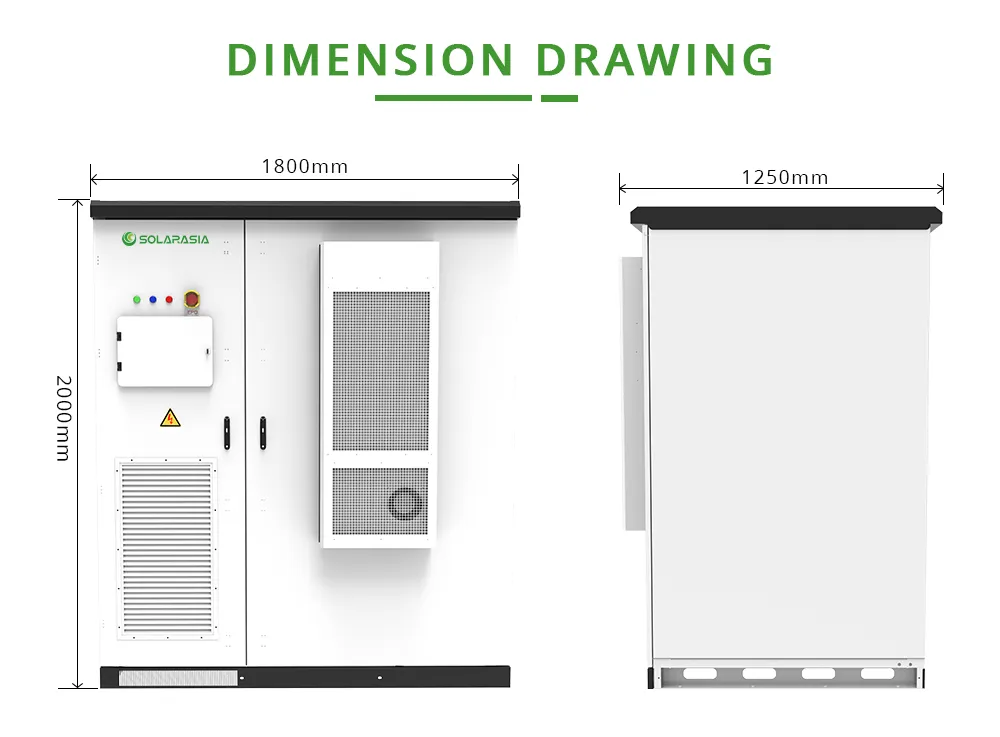

Technical Parameters

MODEL	TG-eBank-215FS2
Battery Specification
Battery type	LFP (LiFePO4)
Cell capacity	3.2V/280Ah
Rated capacity	215kWh
Rated voltage	768V
Cooling system	Air Cooling
Fire fighting system	Two Level Protection (Aerosol/HFC-227ea)
AC Specifications
Rated voltage	400Vac
Grid system	3P+N+PE
Peak power	110kW
Transfer time	<20ms
PV Specification
Max. PV input power	110kW
MPPT voltage range	350-1000V
MPPT efficiency	99%

5

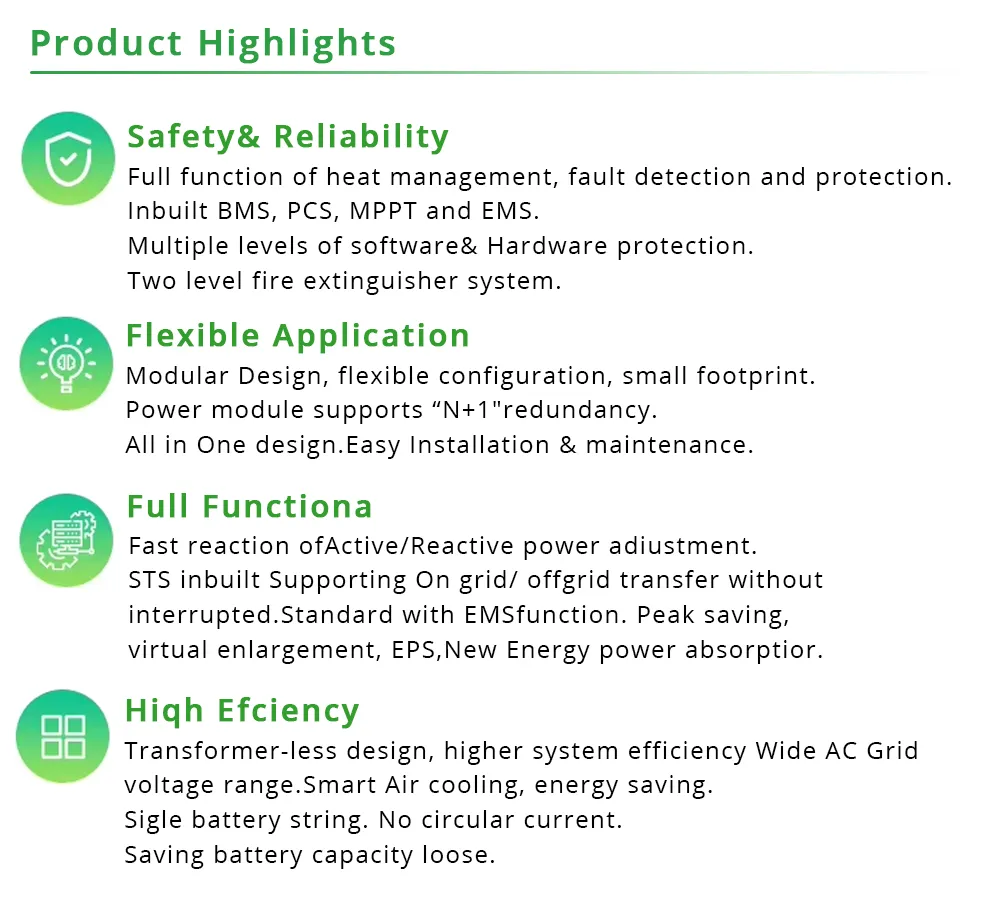

Our Advantages & Certifications

6

Global Cooperation

?

Frequently Asked Questions

1. What is the total capacity of this BESS system?

The system provides a nominal capacity of 215kWh with a high-voltage battery string of 768V, ideal for industrial and commercial energy management.

2. What type of battery cells are used?

We use premium LiFePO4 (Lithium Iron Phosphate) cells with 280Ah capacity, known for their safety, thermal stability, and long cycle life of over 6000 times.

3. Is the system suitable for outdoor installation?

Yes, the system is designed as an all-in-one containerized solution with a robust cooling system and fire protection, suitable for various outdoor environmental conditions.

4. How fast can the system switch during a power outage?

The system features a transfer time of less than 20ms between on-grid and off-grid modes, ensuring a seamless power transition for critical loads.

5. Can the capacity be expanded for larger projects?

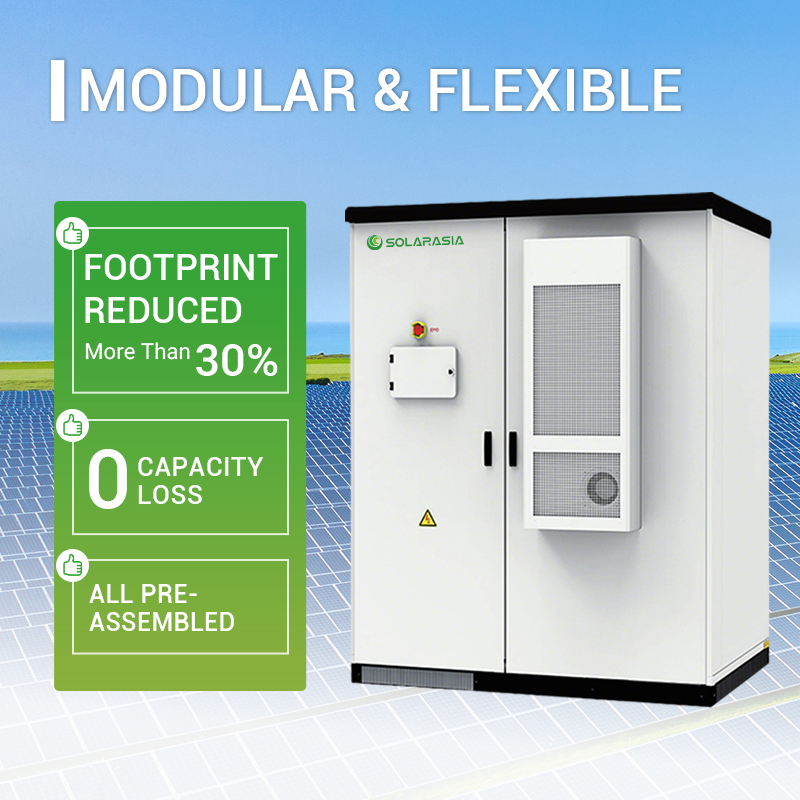

Yes, the modular design allows for scalability. Multiple units can be integrated to meet higher energy storage requirements for utility-scale applications.

6. What safety features are included in the container?

The system includes a two-level fire-fighting protection system using Aerosol or HFC-227ea, integrated BMS for cell monitoring, and a professional air-cooling system.
