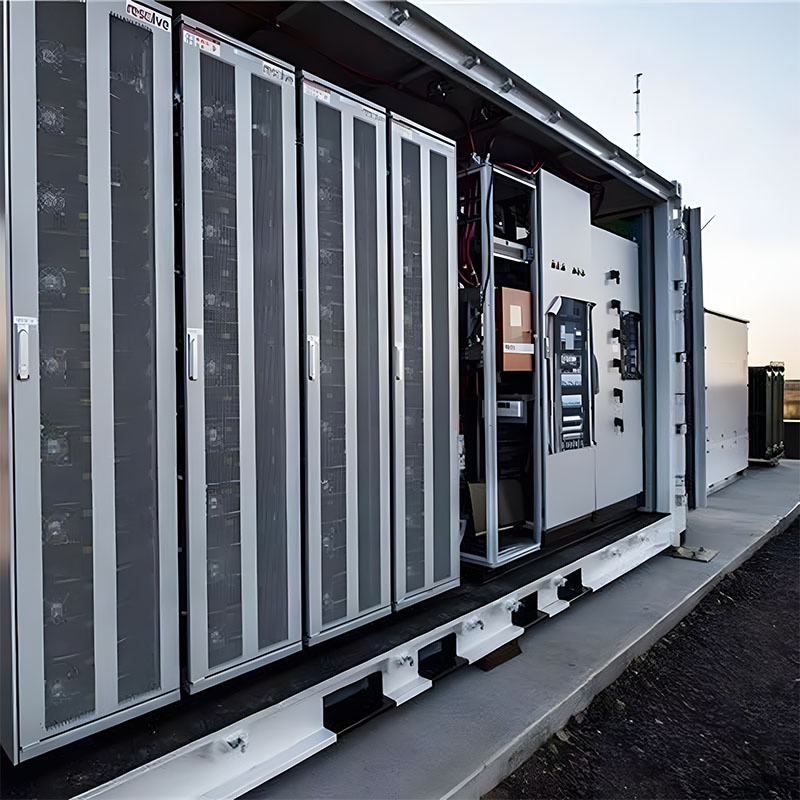

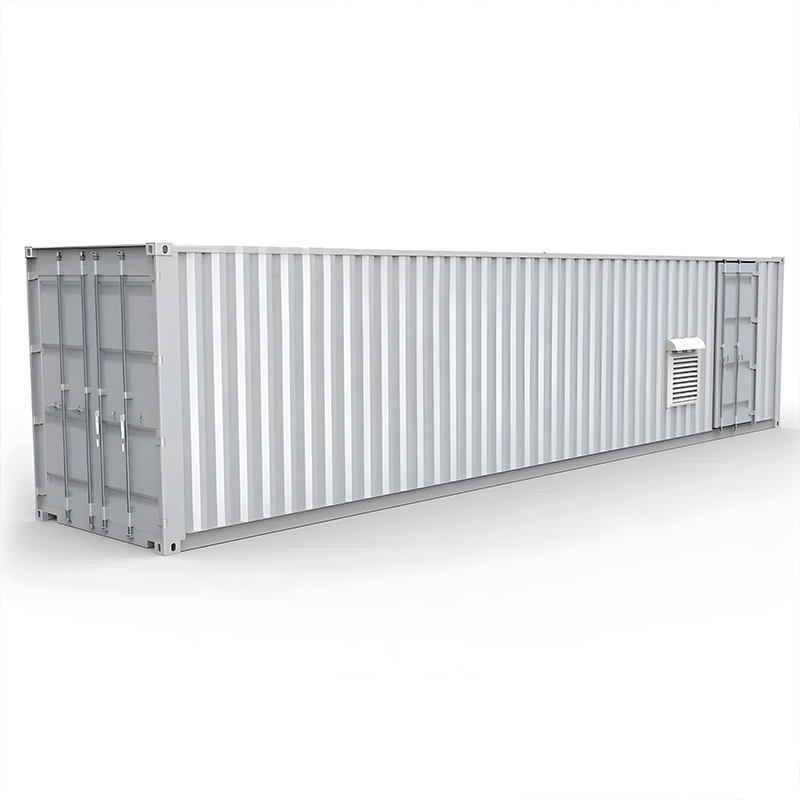

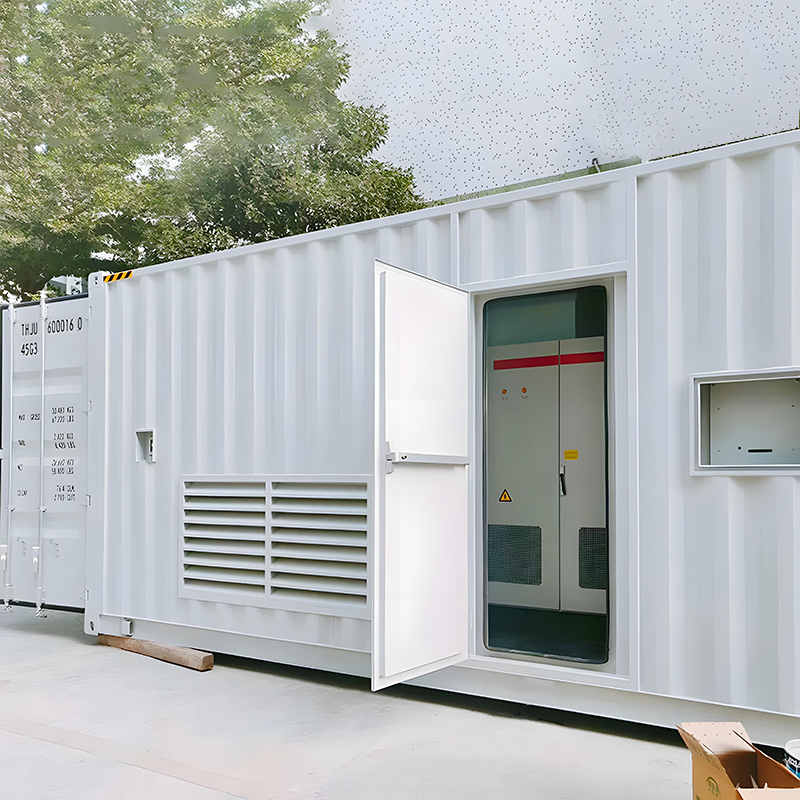

1MW Bess Lithium Battery Energy Storage System Utility Scale Solar Power Storage Solution for Industrial and Commercial Applications

Customization:	Available
Container Size:	6058X2438X2896mm
Weight:	25.5t

Basic Information

Nominal Voltage 1.1MW

Warranty 10 Years

Nominal Capacity 1.1MW

Cycle Life 80% Retention with 8,000 Cycles

Communication Interface RS485

Grid Connection Hybrid Grid

Cooling Air Cooling

Battery Type Lithium Ion

Protection IP65

Transport Package 6058X2438X2896mm

Product Description

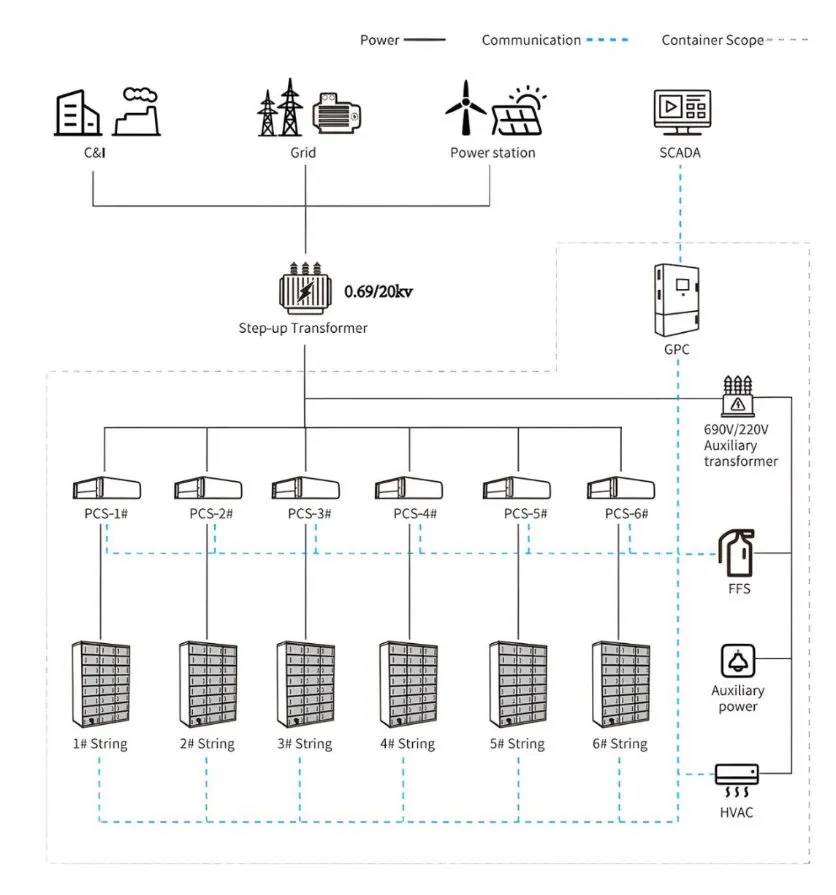

1MW Bess Lithium Battery Energy Storage System

Product Parameters

Item	1MW/2.0MWh	1.1MW/2.2MWh
Battery chemistry	Lithium Iron Phosphate (LFP)
Cell spec	3.2V/280Ah
String configuration	1P3845	1P416S
Rated energy capacity	2MWh	2.2MWh
DC rated energy capacity	2,064.36kWh	2236.44kWh
Rated voltage	1,228.8V	1,331.2V
Communication interface	RS485, Ethernet
Rated AC power	1,000kw	1,100kw
Maximum AC power	1,320kW
Rated voltage (AC)	690V
Dimensions (LWH)	6058x2438x2591mm	6058x2438x2896mm
Weight	24t	25.5t
Certificates	UL9540, IEC62619, IEC62109, IEC62933, UN3536, etc.

Key Components

✔ SC Charge / Discharge Management
✔ Power supply can be single battery string or parallel battery strings
✔ Easy configuration and maintenance

✔ Single-stage three-level modularization
✔ Multi-branch input to reduce battery series and parallels connection
✔ One-to-one Management of Battery string and PCS

✔ All-round signal collection and comprehensive logical control
✔ Multilevel electric & control protection
✔ Intelligentize Communication management

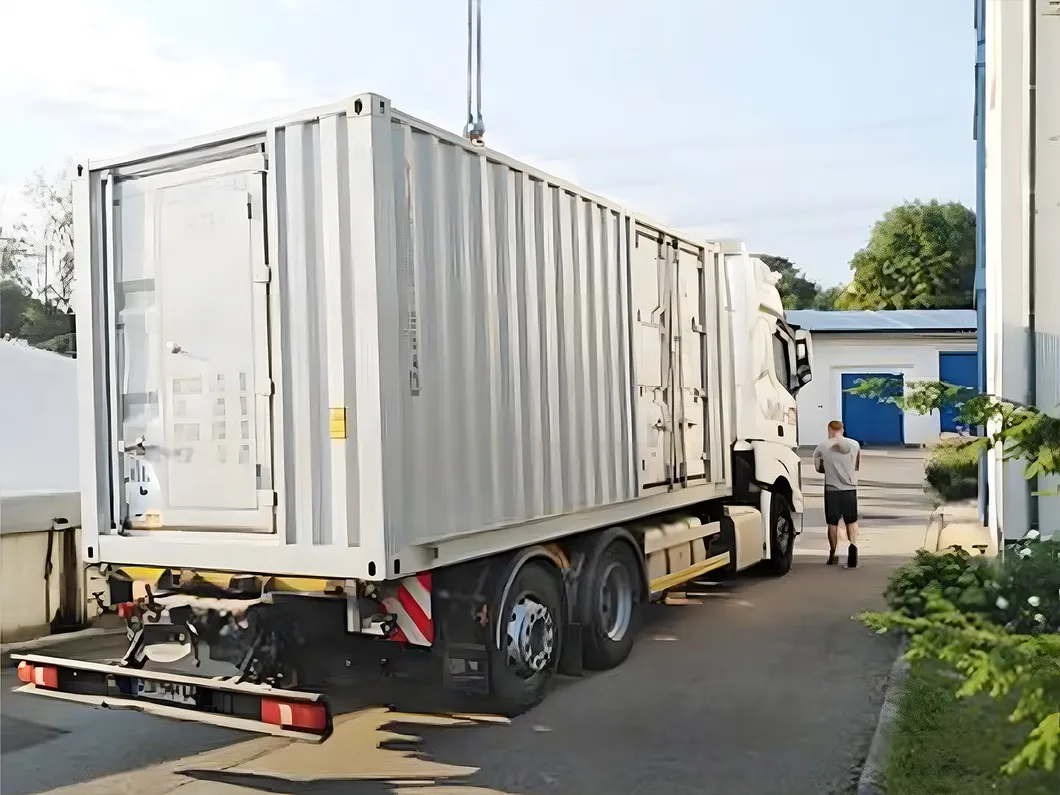

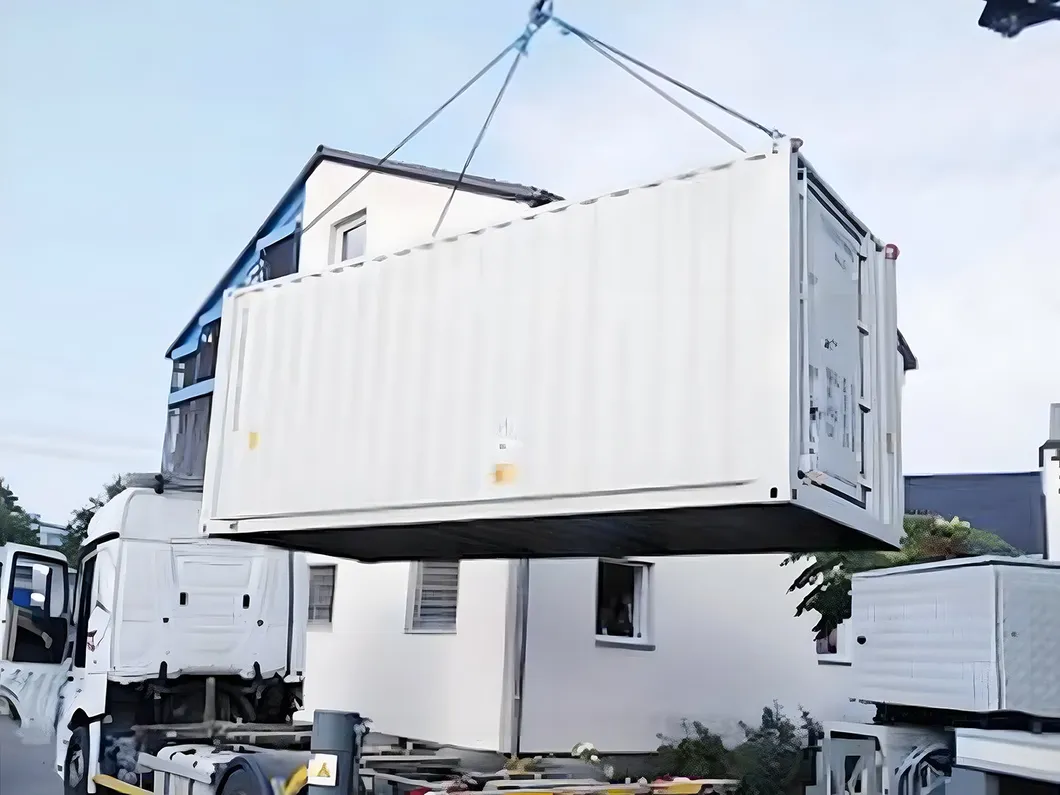

Packaging & Shipping

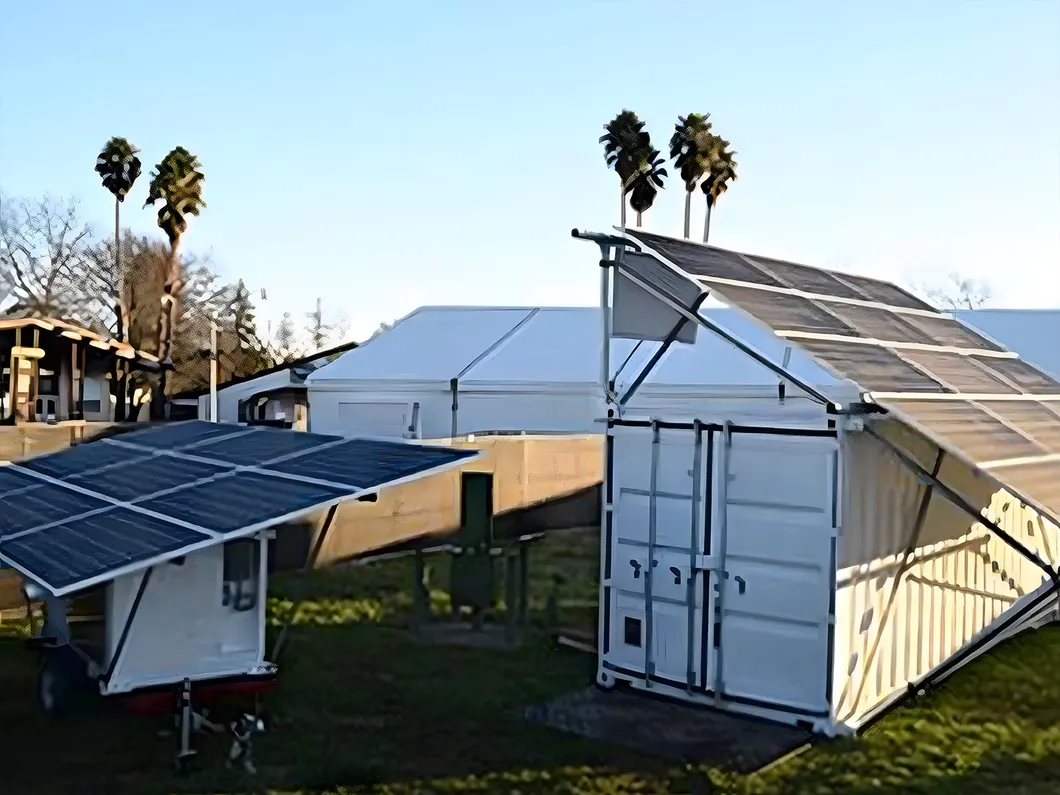

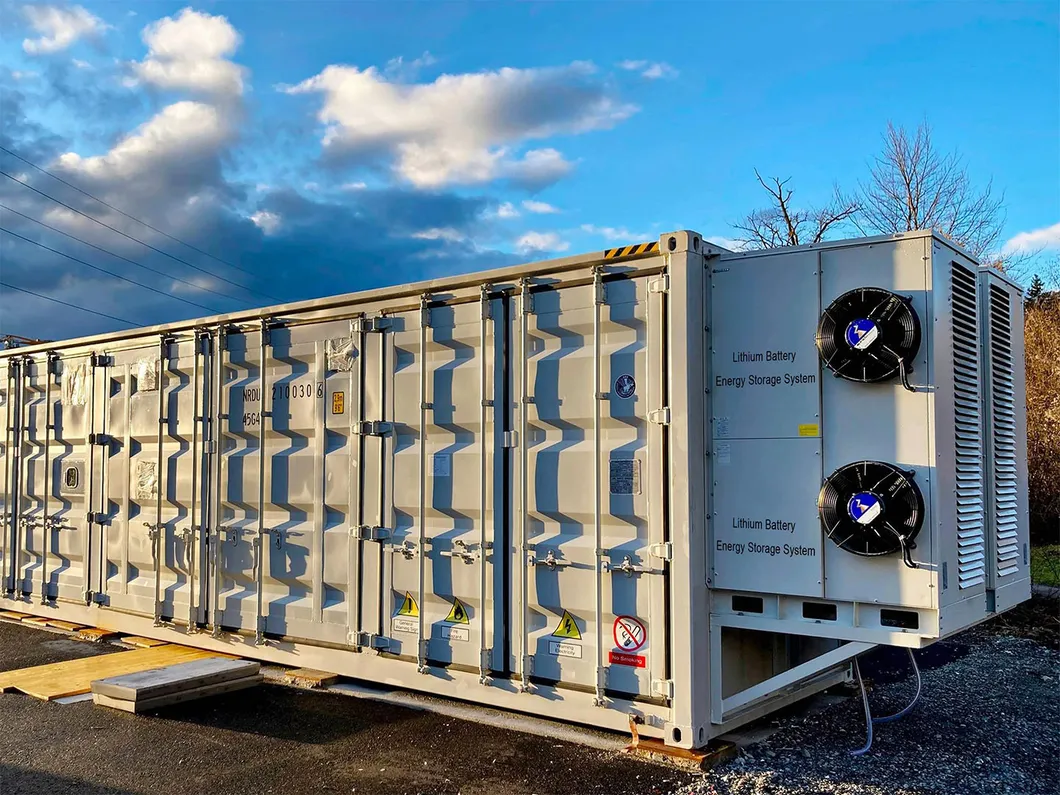

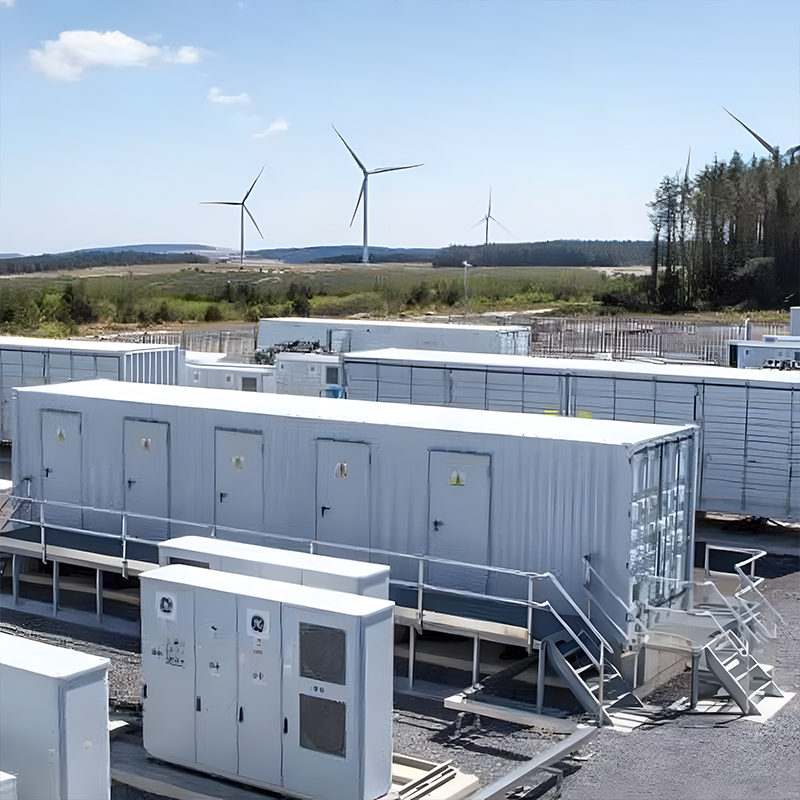

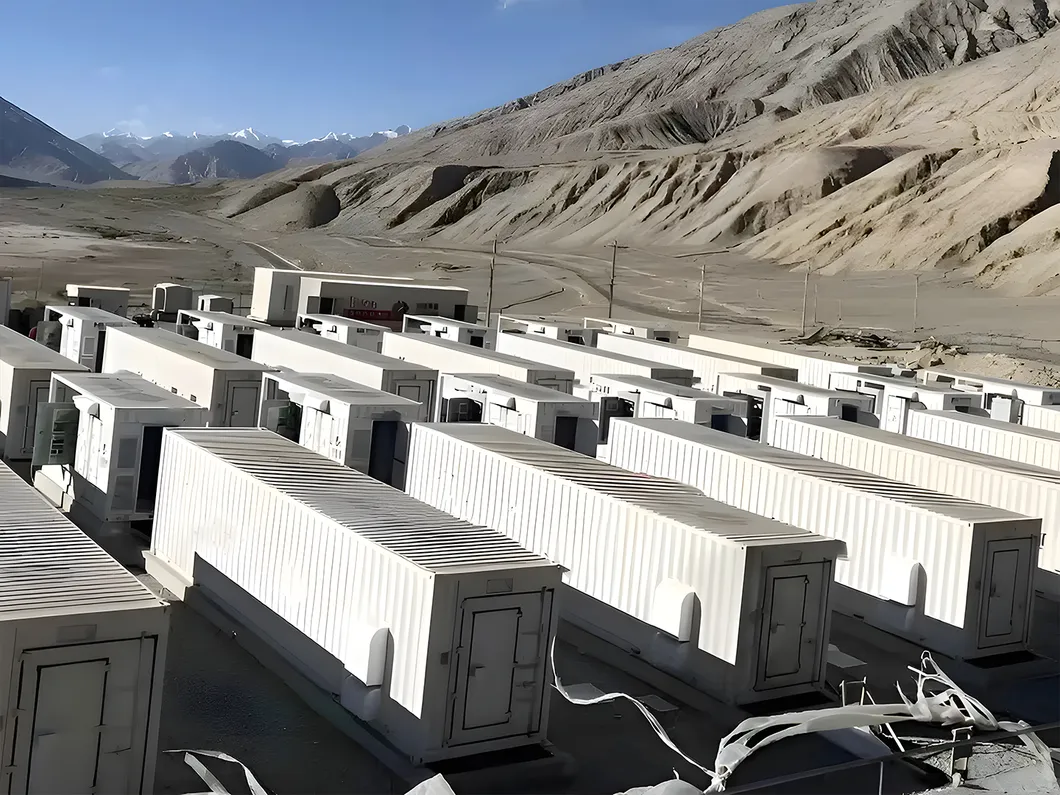

Project Case

Certifications

Recommended Products

Frequently Asked Questions

1. What is the expected cycle life of the battery system?

The system features a high-performance Lithium Iron Phosphate (LFP) battery with a cycle life of 8,000 cycles at 80% capacity retention.

2. What type of cooling system is integrated into the BESS?

The system utilizes a reliable air cooling system designed to maintain optimal operating temperatures between -20°C and 40°C.

3. Does the system support remote monitoring?

Yes, it includes RS485 and Ethernet communication interfaces for comprehensive signal collection and intelligent communication management.

4. What is the warranty for this energy storage solution?

We provide a 10-year warranty for the 1.1MW utility-scale solar power storage system.

5. Is the system suitable for harsh outdoor environments?

Absolutely. The system carries an IP65 protection rating, making it suitable for industrial and commercial applications in various environmental conditions.

6. Which safety certifications does the system hold?

The system is certified under international standards including UL9540, IEC62619, IEC62109, IEC62933, and UN3536.
