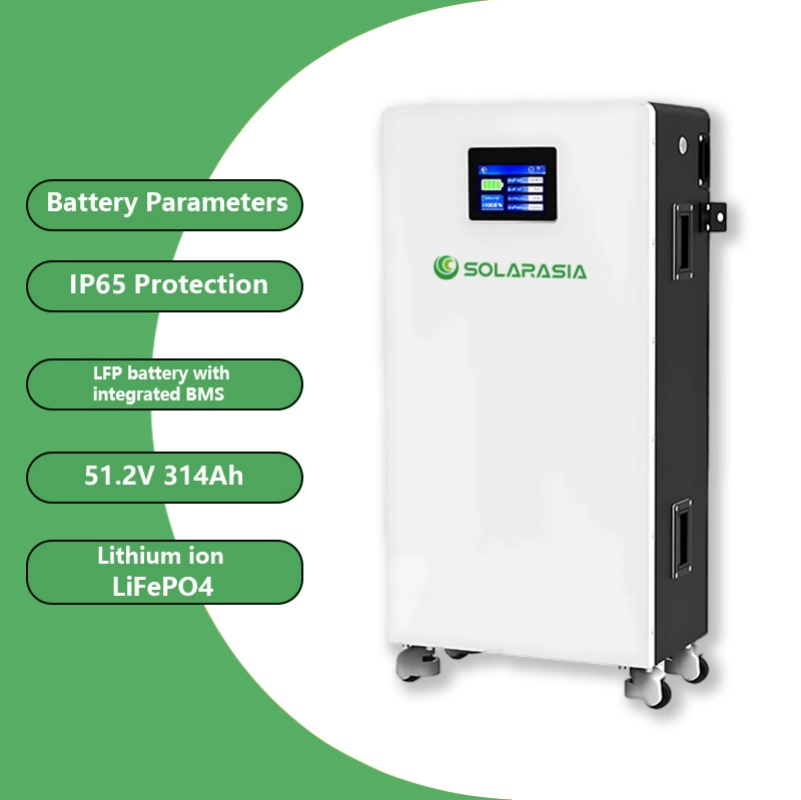

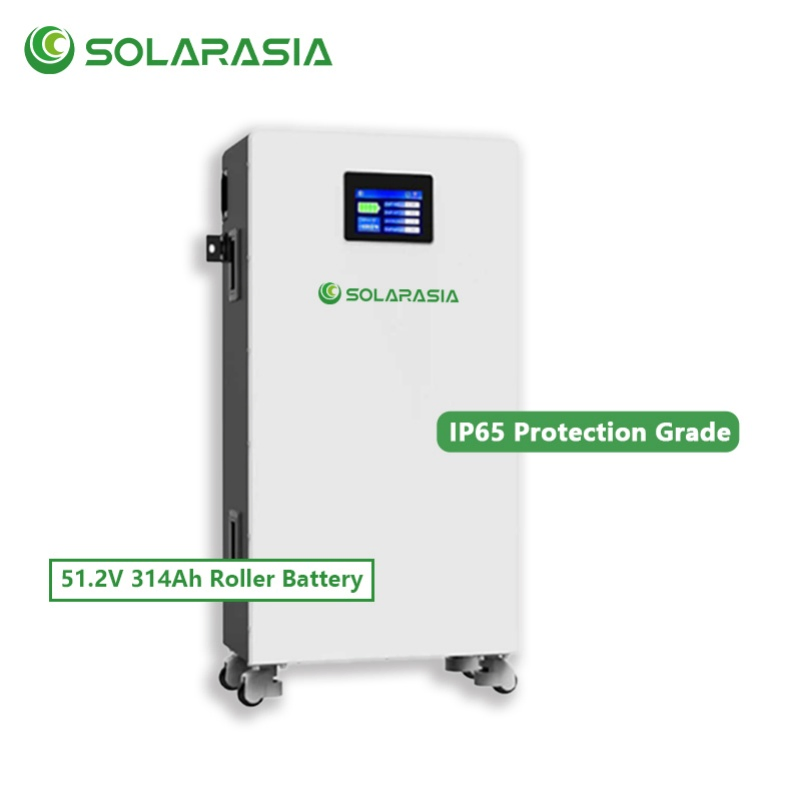

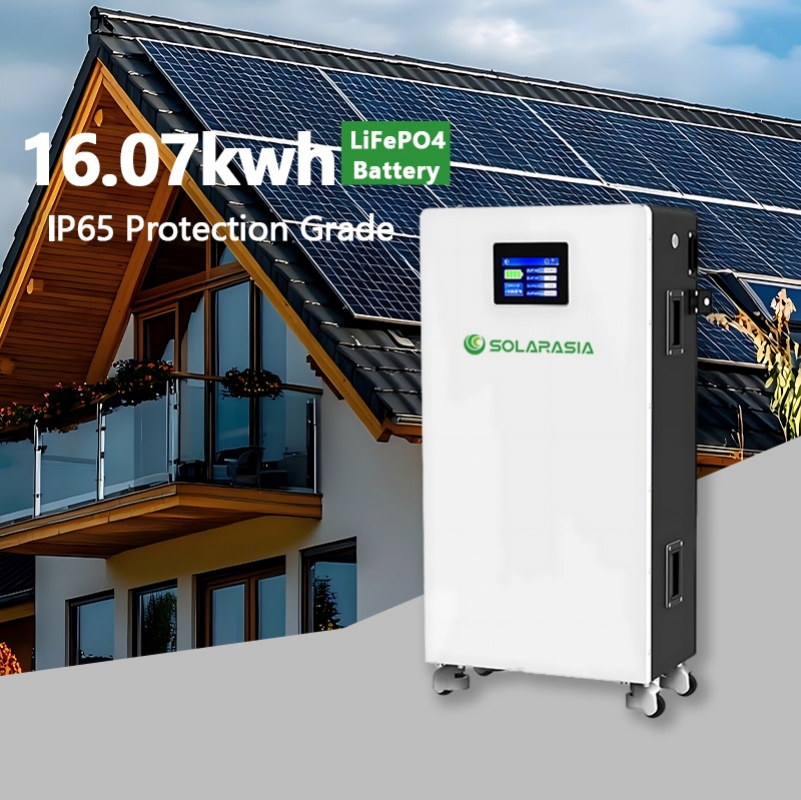

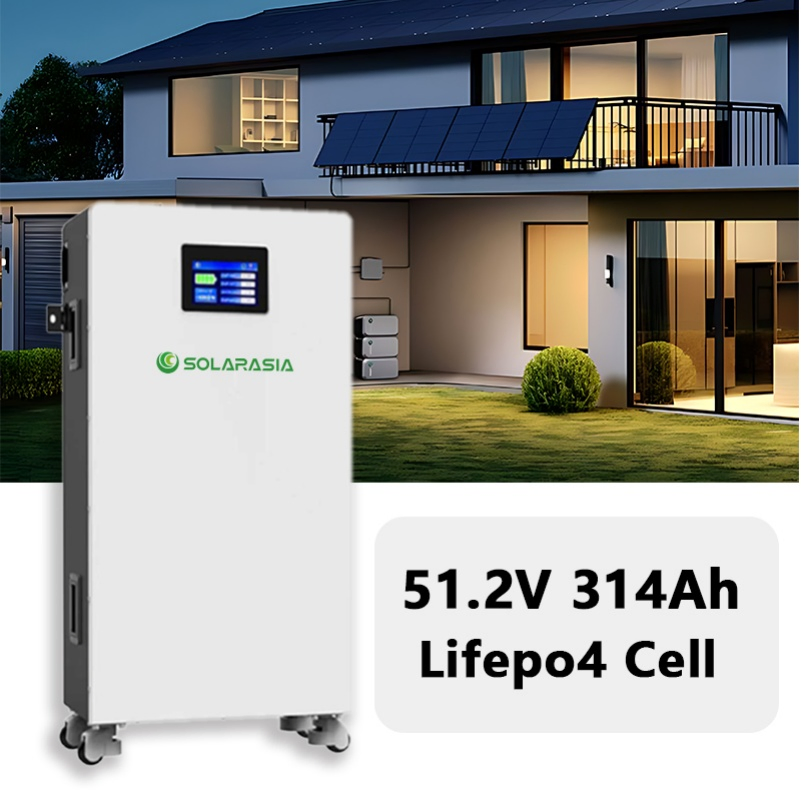

The Roller-16K is a high-capacity 51.2V 314Ah 16kWh LiFePO4 mobile energy storage battery designed for residential, off-grid, and small commercial solar applications. This all-in-one, wheeled (roller) LiFePO4 battery pack features Grade A cells in a 16S configuration, delivering 16.07kWh of reliable energy storage with exceptional safety, long cycle life, and easy mobility.
With IP65 protection, natural cooling, and built-in advanced BMS, it's perfect for home solar backup, peak shaving, emergency power, RV/camping use, and seamless integration with hybrid inverters (compatible via RS485 + CAN communication). The mobile design with integrated rollers and handles makes installation and relocation effortless—no heavy lifting required.
51.2V nominal, 314Ah rated capacity → 16.07kWh energy. Supports max 150A charge / 200A discharge currents for powerful output (up to ~10kW continuous).
Uses safe, stable LiFePO4 chemistry with no risk of thermal runaway. Built-in smart BMS provides full protection and supports CAN/RS485 for inverter communication.

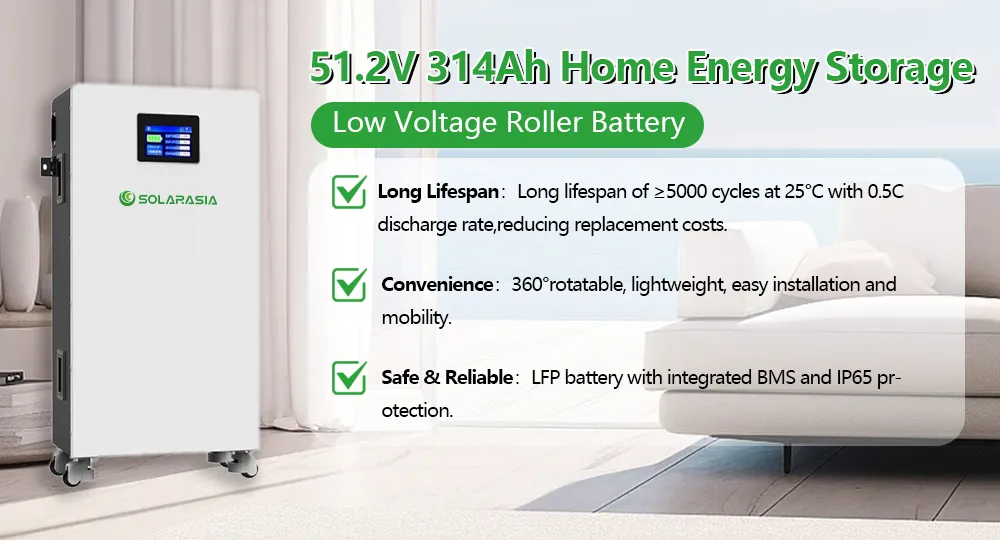

≥5000 cycles at 90% DoD (0.5C at 25°C), offering 10+ years of reliable service — far superior to lead-acid batteries.

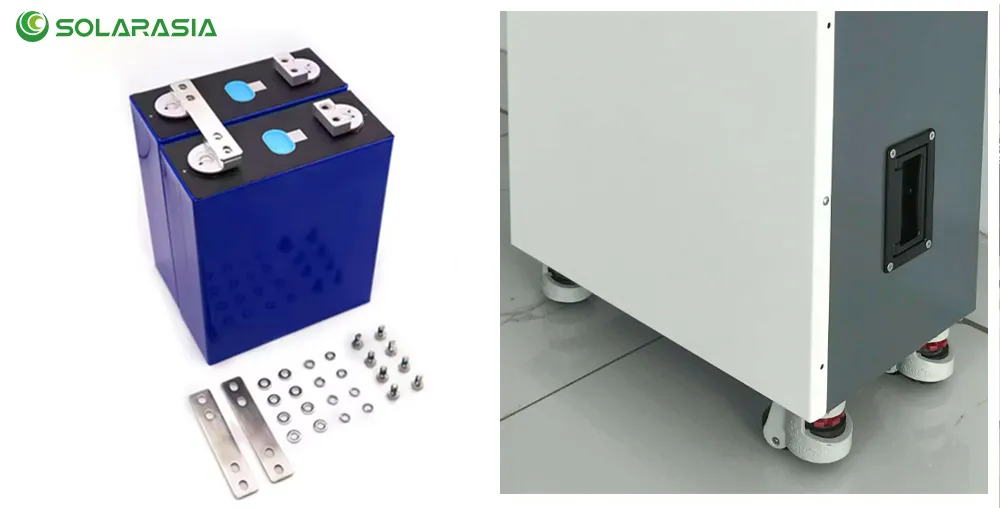

Roller wheels + handles for easy movement (floor-standing/mobile). Compact dimensions (881×480×251 mm) and 112.6 kg weight. 2 internal modules for serviceability.
Charge: 0°C to 55°C; Discharge: -20°C to 55°C. IP65 dust/waterproof rating, ≤3000m altitude, natural cooling (fanless, silent operation).
Supports parallel connection (multiple units for larger capacity). Wide operating voltage (40-58.4V) and high humidity tolerance (5-95% RH).
| Parameter | Specification (Model: Roller-16K) |
|---|---|
| Rated Capacity (Ah) | 314 |
| Nominal Voltage (V) | 51.2 |
| Number of Cells in Series | 16 |
| Operating Voltage (V) | 40~58.4 |
| Rated Energy (kWh) | 16.07 |
| Max. Charge Current (A) | 150 |
| Max. Discharge Current (A) | 200 |
| DOD | 90% |
| Charge Temperature (°C) | 0~55 |
| Discharge Temperature (°C) | -20~55 |
| Storage Temperature (°C) | -20~45 |
| Relative Humidity (%RH) | 5~95 |
| Cycle Life | ≥5000 (25°C, 0.5C) |
| Operating Altitude (m) | ≤3000 |
| Installation Method | Mobile |
| Protection Grade | IP65 |
| Cooling Method | Natural cooling |
| Weight (kg) | 112.6 |
| Dimensions (H×W×D, mm) | 881×480×251 |
| Number of Modules | 2 |

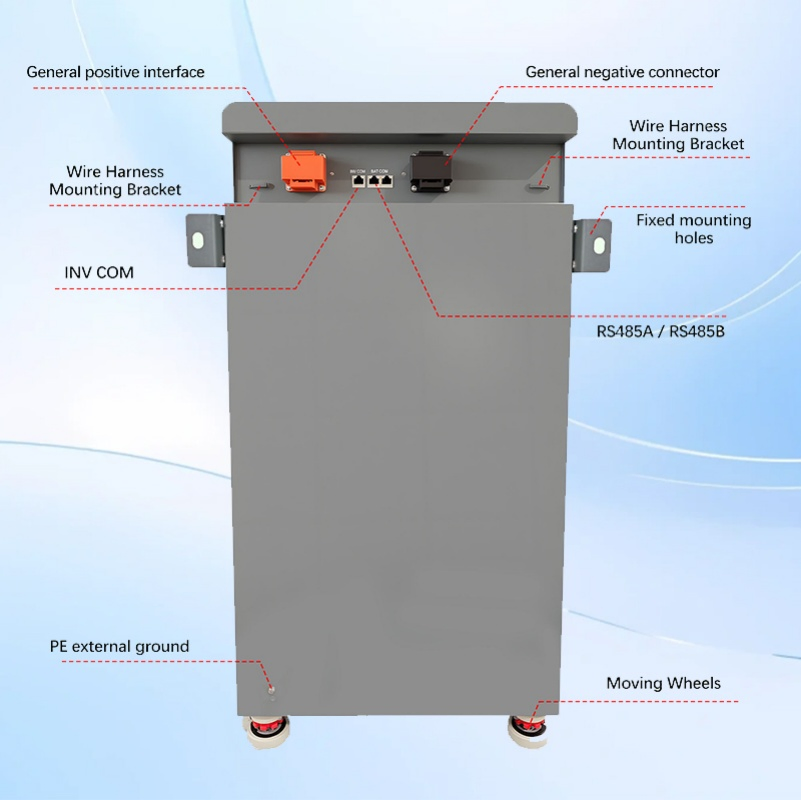

| Communication Method | CAN2.0B + RS485 |
Pair with hybrid inverters for self-consumption, peak-valley arbitrage, and blackout backup.
Power homes, cabins, farms, or remote sites with reliable, long-duration energy.
RV, camping, emergency power, or temporary setups — easy to roll and position.
Essential loads in shops, offices, or light industrial settings during outages.
This mobile powerhouse combines massive 16kWh capacity, top-tier safety (LiFePO4 + smart BMS), effortless mobility (rollers + IP65), and proven longevity (≥5000 cycles) — making it one of the most practical and popular choices for modern home solar energy storage. Enjoy lower electricity bills, energy independence, and peace of mind with a maintenance-free, eco-friendly solution.
Nominal 16.07kWh; typically 14.4–15kWh usable at 90% DoD.
Yes — supports parallel connection for expanded capacity (multiple packs).
Compatible with major hybrid brands (e.g., Growatt, Deye, Victron, Luxpower) via RS485 + CAN communication.
≥5000 cycles at 90% DoD (0.5C, 25°C) — equivalent to 10+ years of daily use.
Yes — LiFePO4 chemistry + IP65 rating ensures safety indoors or outdoors.

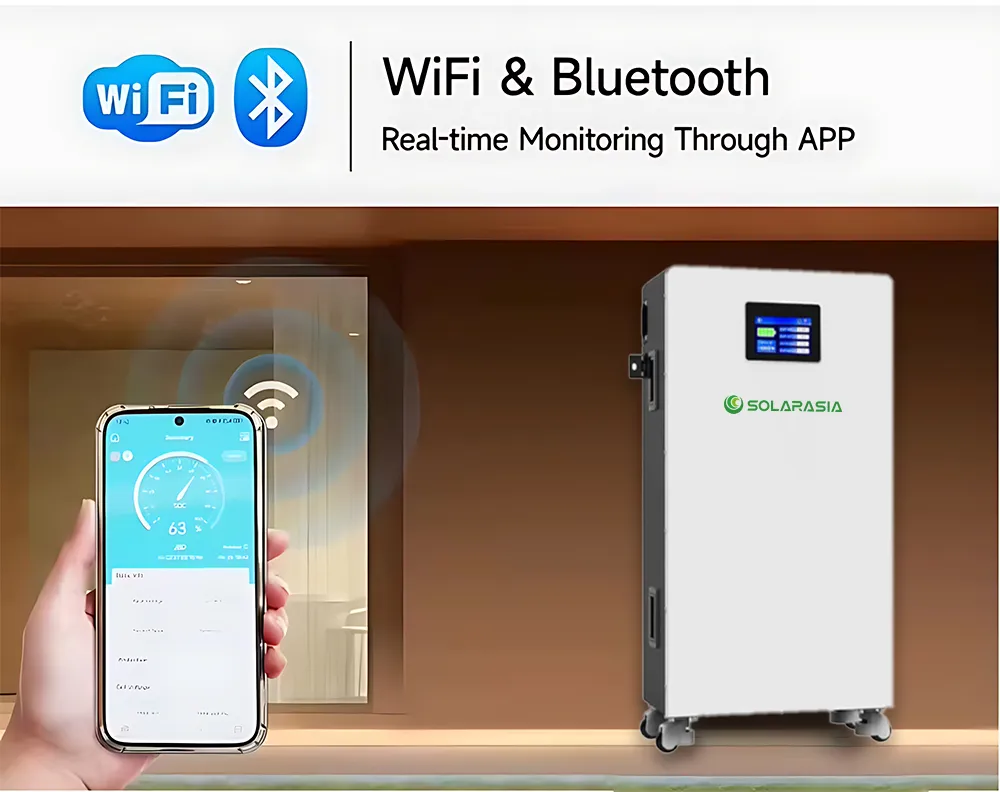

Built-in BMS supports communication; many models include optional LCD/button screen for SOC/voltage/status.
