Basic Information Overview
Model NO.DHN-LVWES15-G1
RechargeableYes
Battery TypeLiFePO4
Master LED6LED (Soc:16.6%~100%), 3LED (on/off,Run,Alarm)

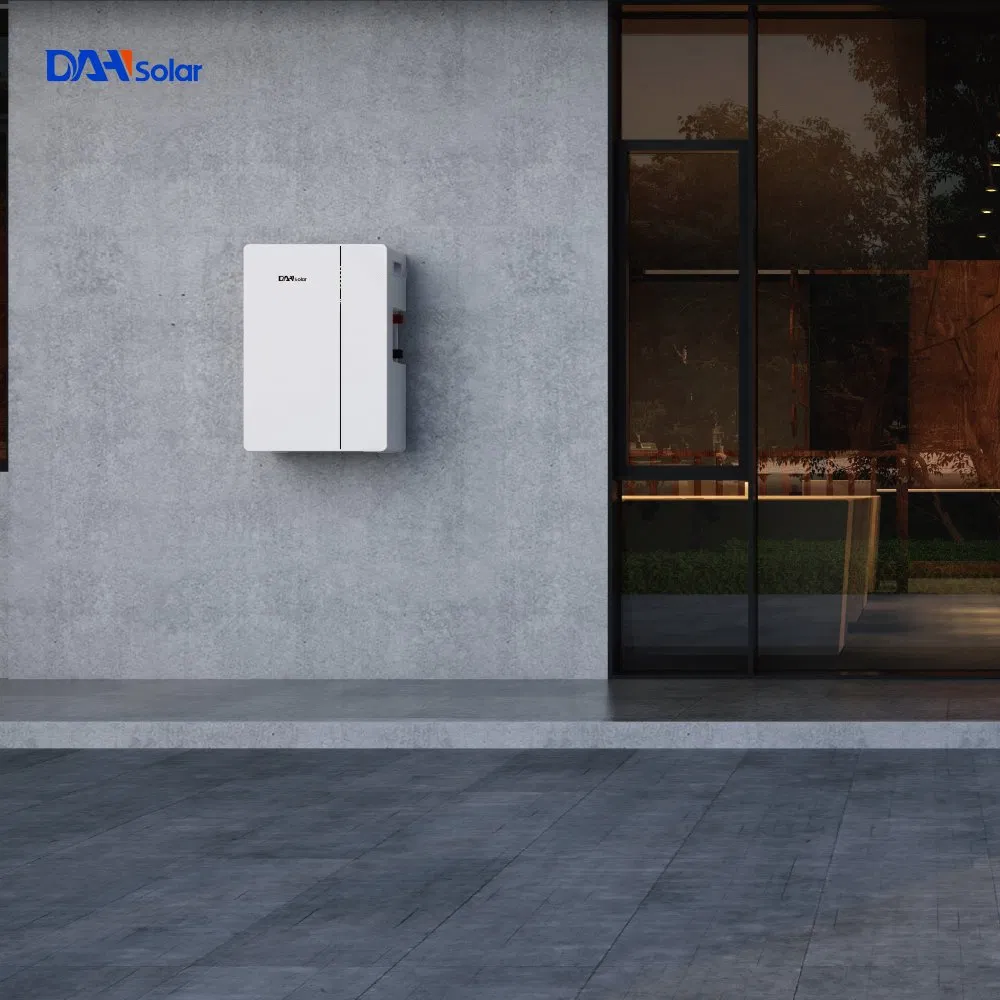

InstallationFloor/Wall-Mounted
CommunicationCan2.0/RS485
Warranty10 Years
Production Capacity8gw/Year
Product Description

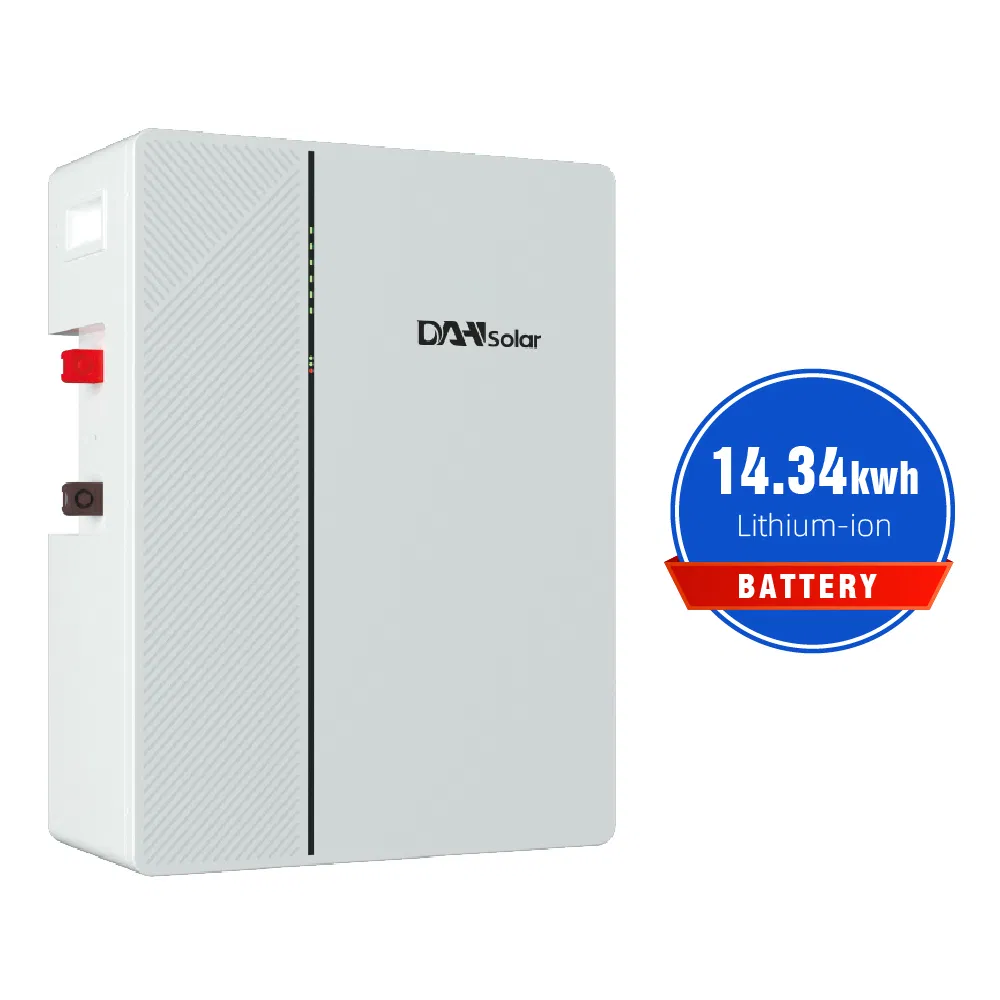

DHN-LVWES15-G1
Rechargeable Lithium-ion Battery

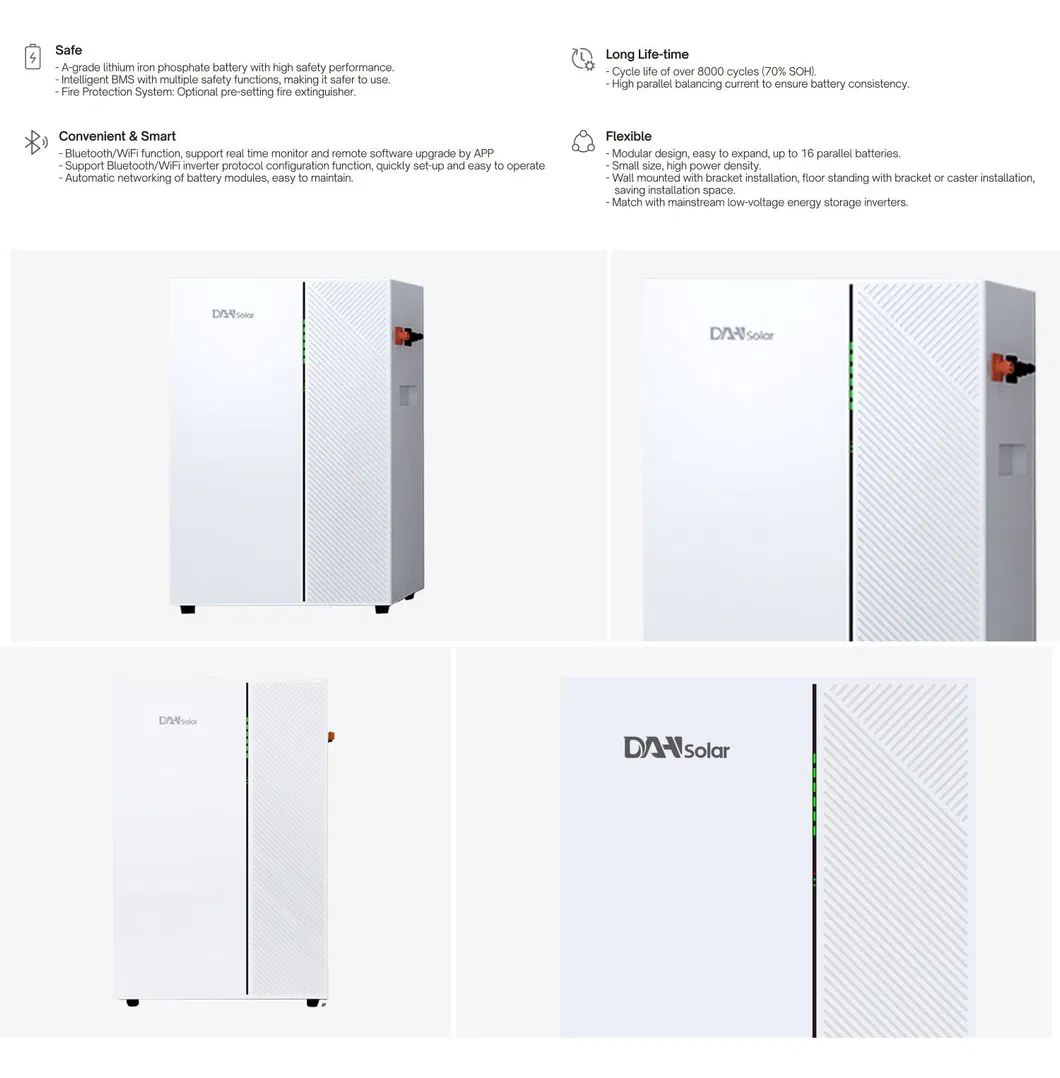

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built in efficient intelligent battery management system (BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable and high-performance operation.
| Model | DHN-LVWES15-G1 |
| Battery Type | LiFePO4 |
| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2~57.6 |
| Charge/Discharge Current (A) | Recommend: 140 / Max: 200 |
| Depth of Discharge (%) | ≤90% |
| Dimension (W/D/H, mm) | 520x680x232 |
| System Weight (kg) | 114 |
| IP Rating | IP20 |
| Cycle Life | ≥8000 (25±2ºC, 0.5C/0.5C, 70%EOL) |
| Communication Methods | CAN2.0/RS485 |
| Warranty Period | 10 Years |
| Compatible Inverters | LUXPOWERTEK/SENERGY/SRD etc |
Frequently Asked Questions
What is the expected lifespan of the DHN-LVWES15-G1 battery?
The battery features a long cycle life of ≥8000 cycles at 25±2ºC, ensuring reliable performance for over 10 years of daily use.
How many units can be connected in parallel?
The system is highly scalable, supporting the parallel connection of up to 16 units to increase your total energy storage capacity.
What kind of maintenance does the LiFePO4 battery require?
The built-in intelligent Battery Management System (BMS) automatically monitors and balances the cells, making it virtually maintenance-free.

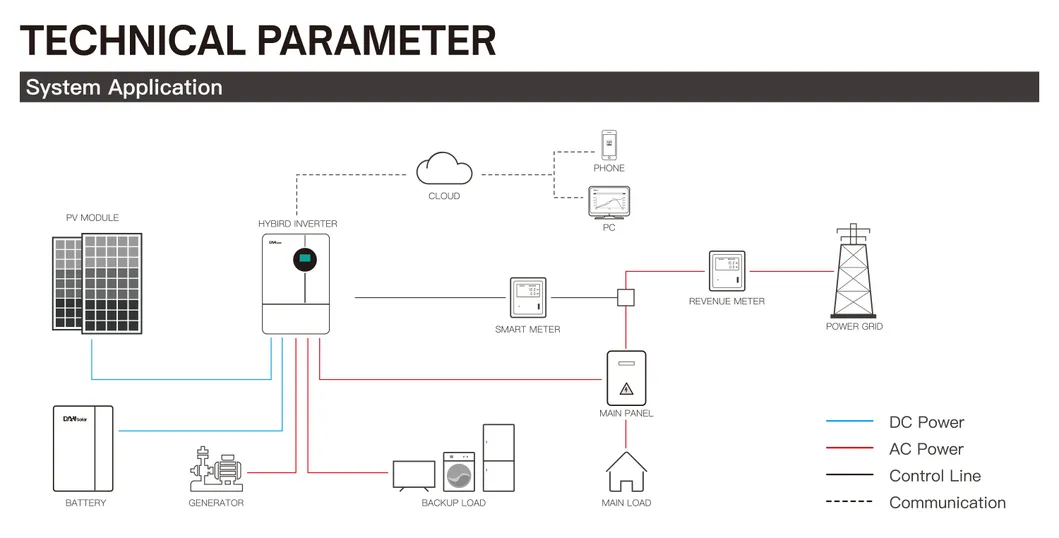

Is this battery compatible with my existing solar inverter?
It is compatible with major inverter brands including LUXPOWERTEK, SENERGY, and SRD through CAN2.0 or RS485 communication protocols.

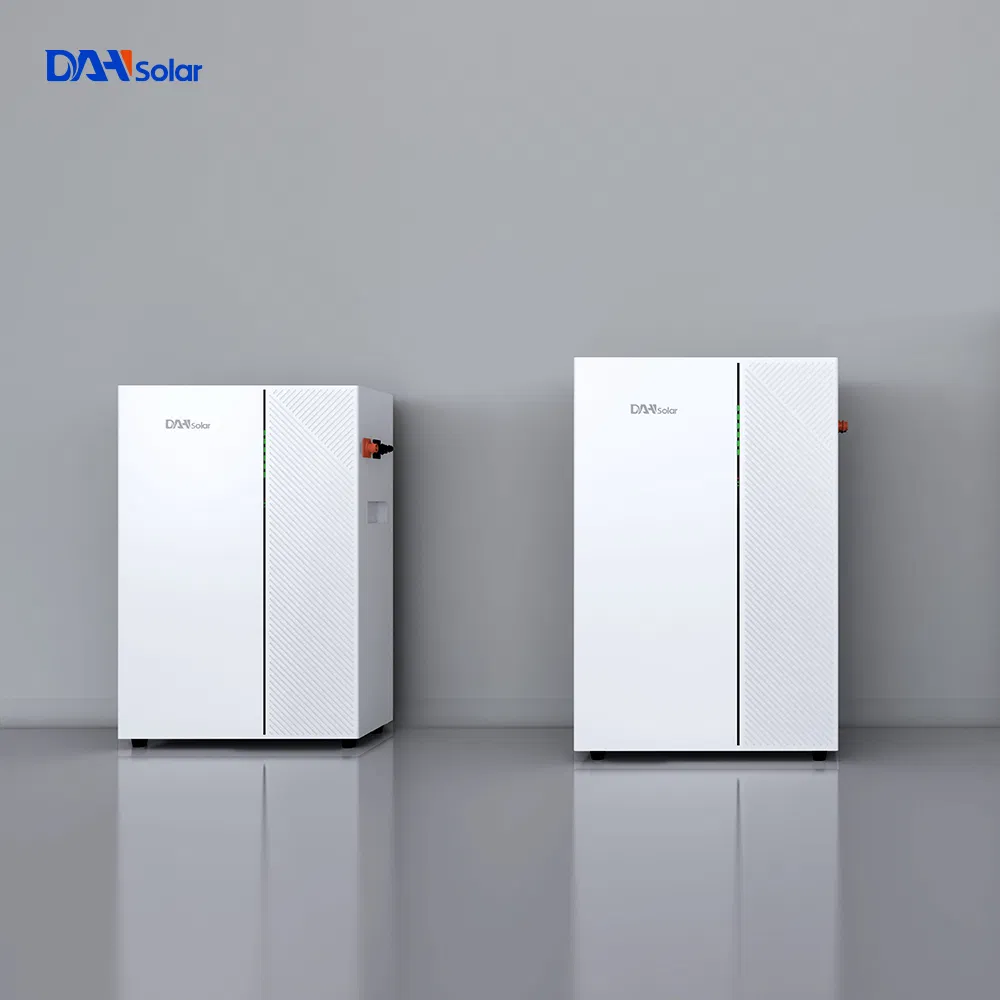

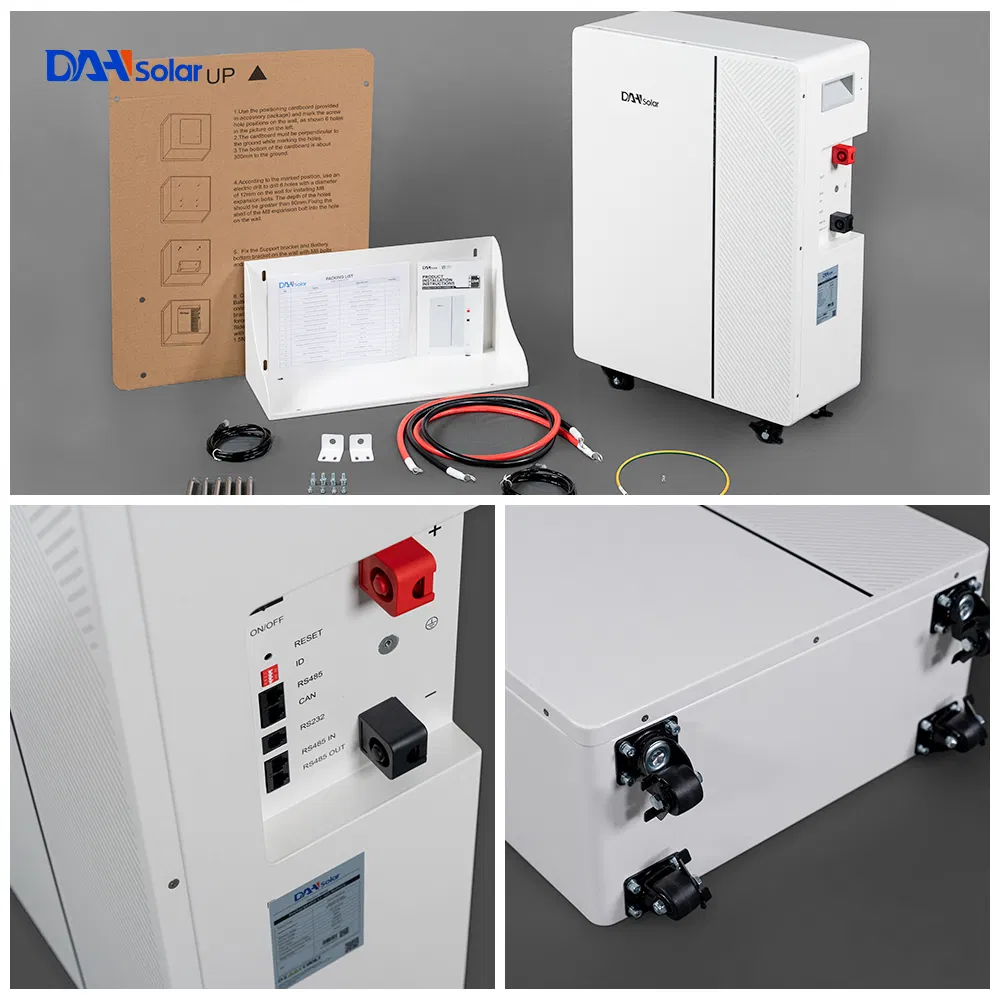

What are the installation options for this model?
The unit supports both floor-mounted and wall-mounted installations. Optional wheels can also be added for easier mobility.
Does the system include fire safety features?
Yes, the system supports an optional prefabricated whole fluorine ketone fire extinguishing device for enhanced safety.
