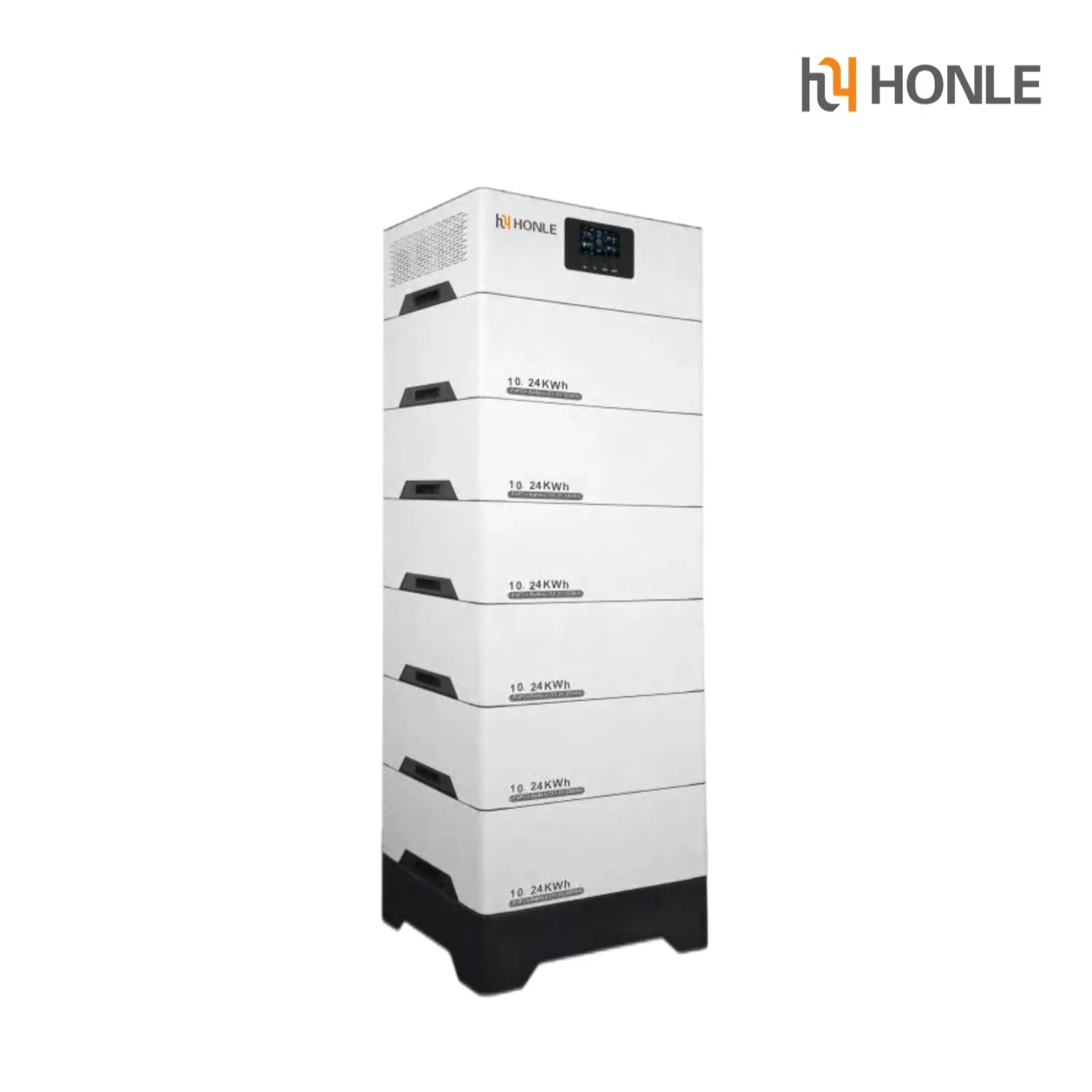

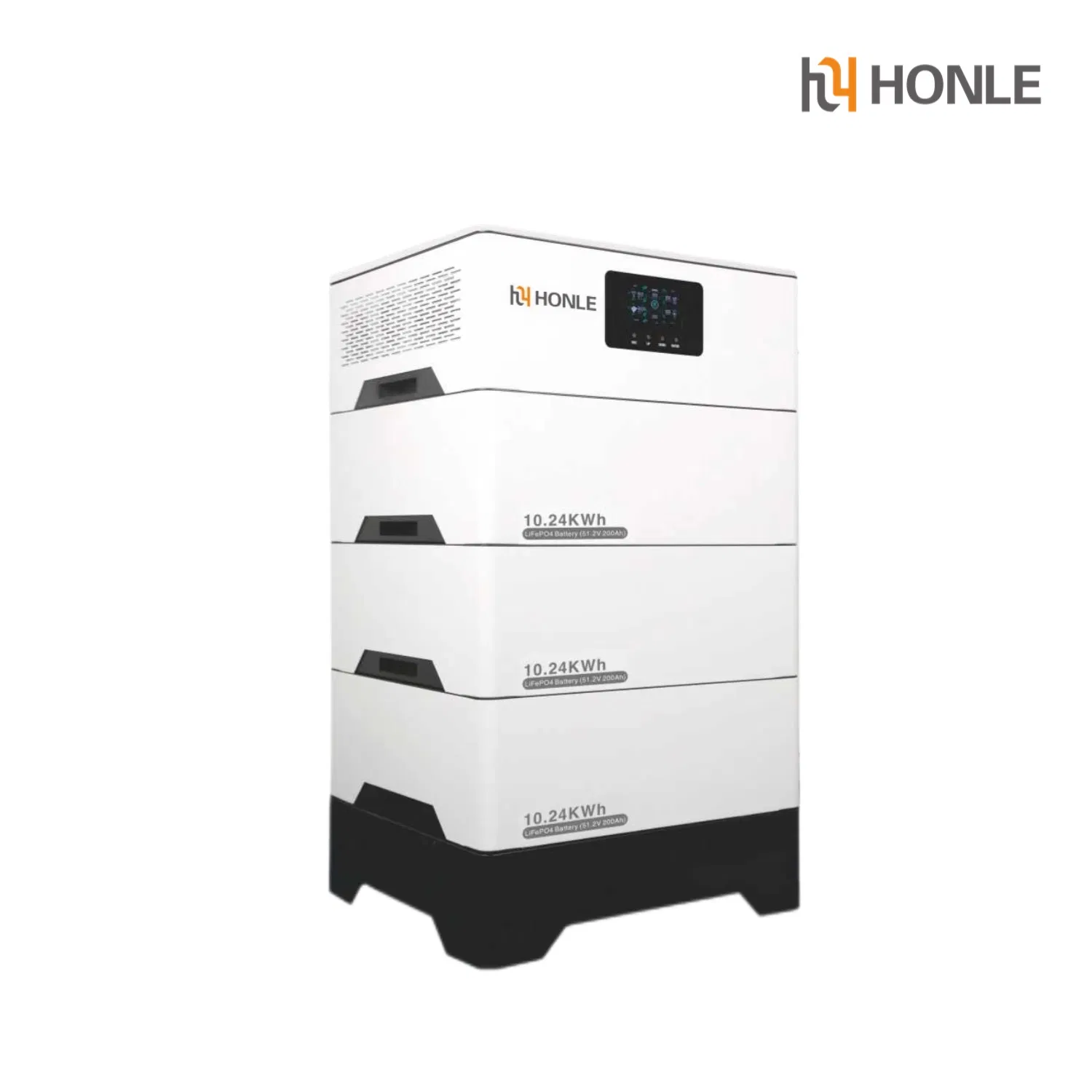

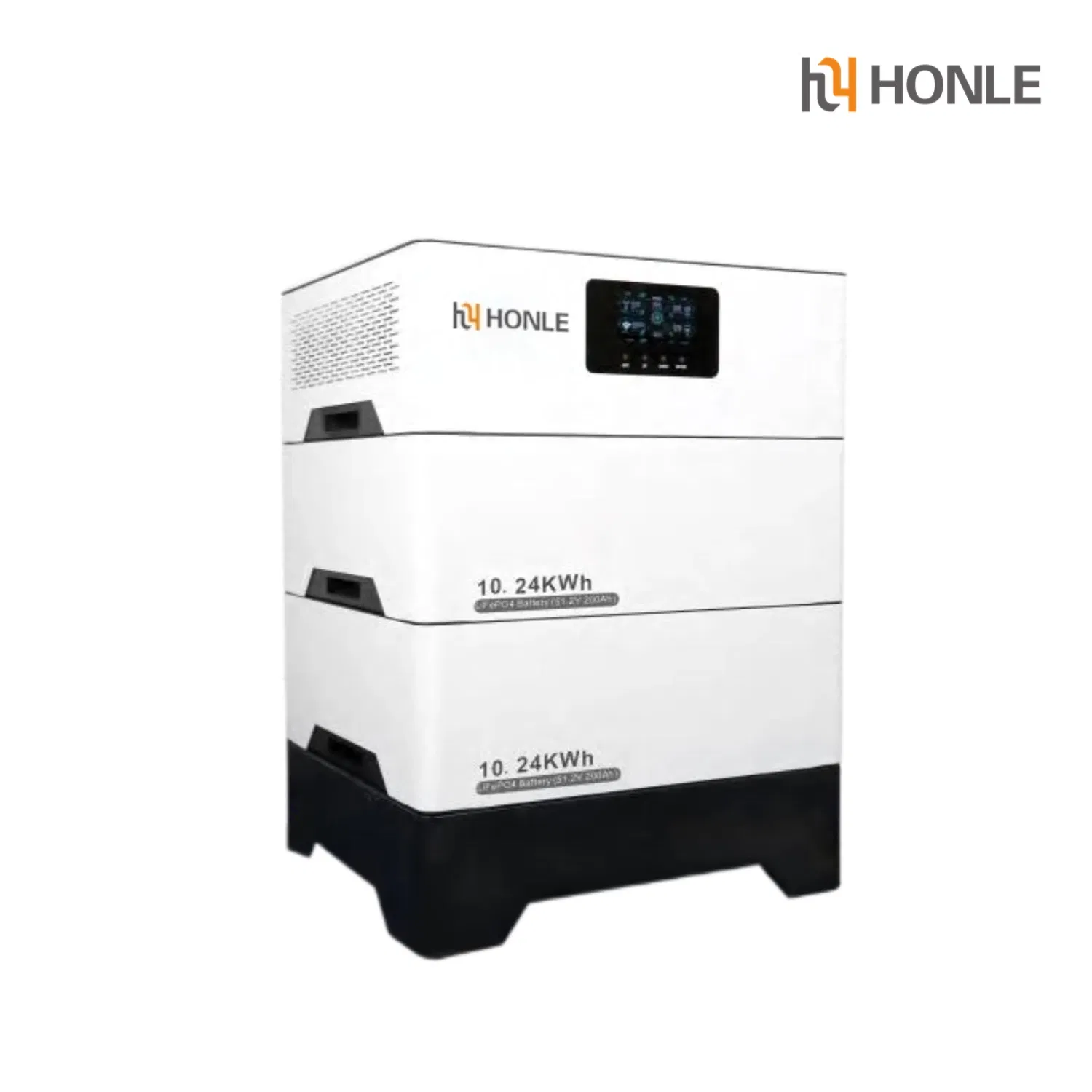

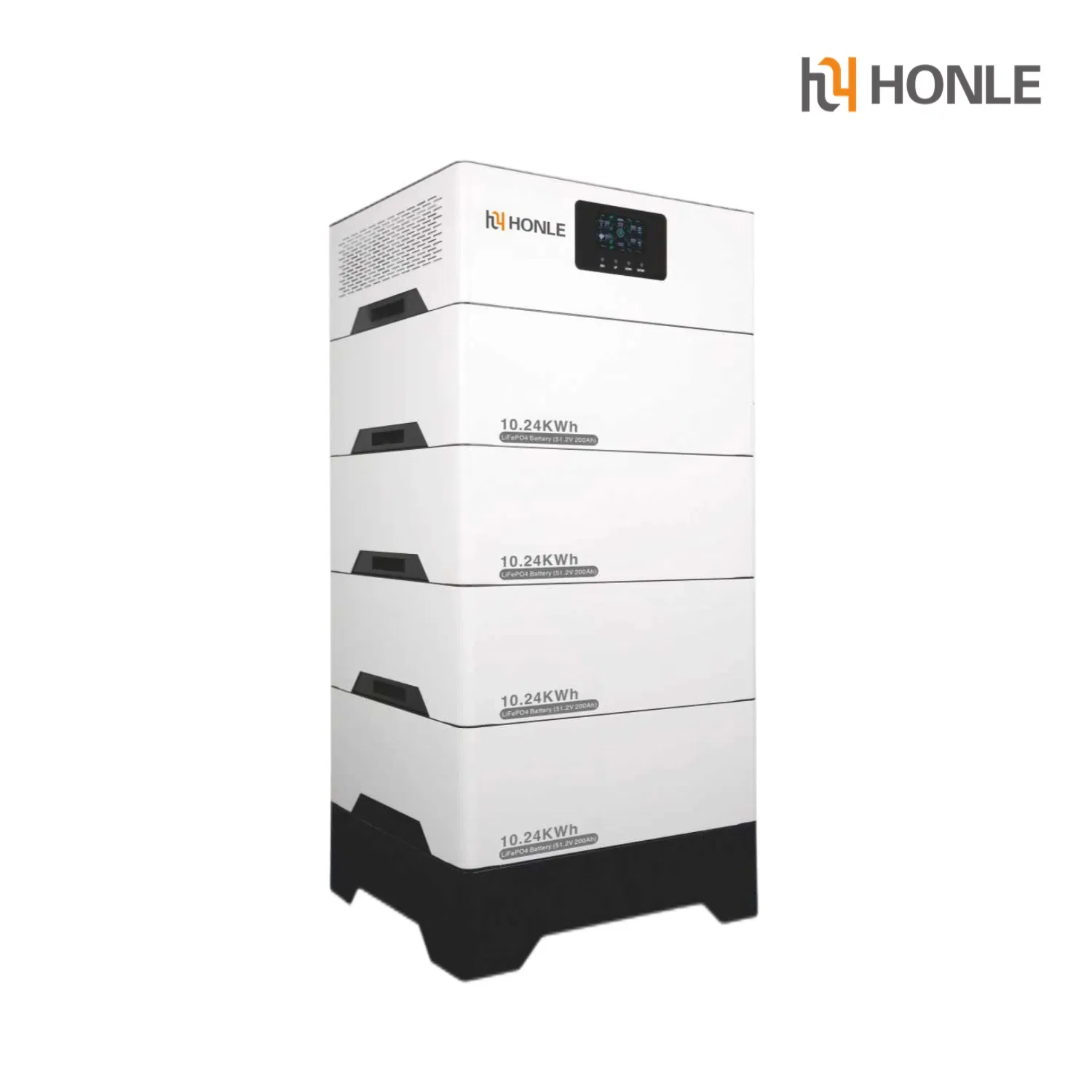

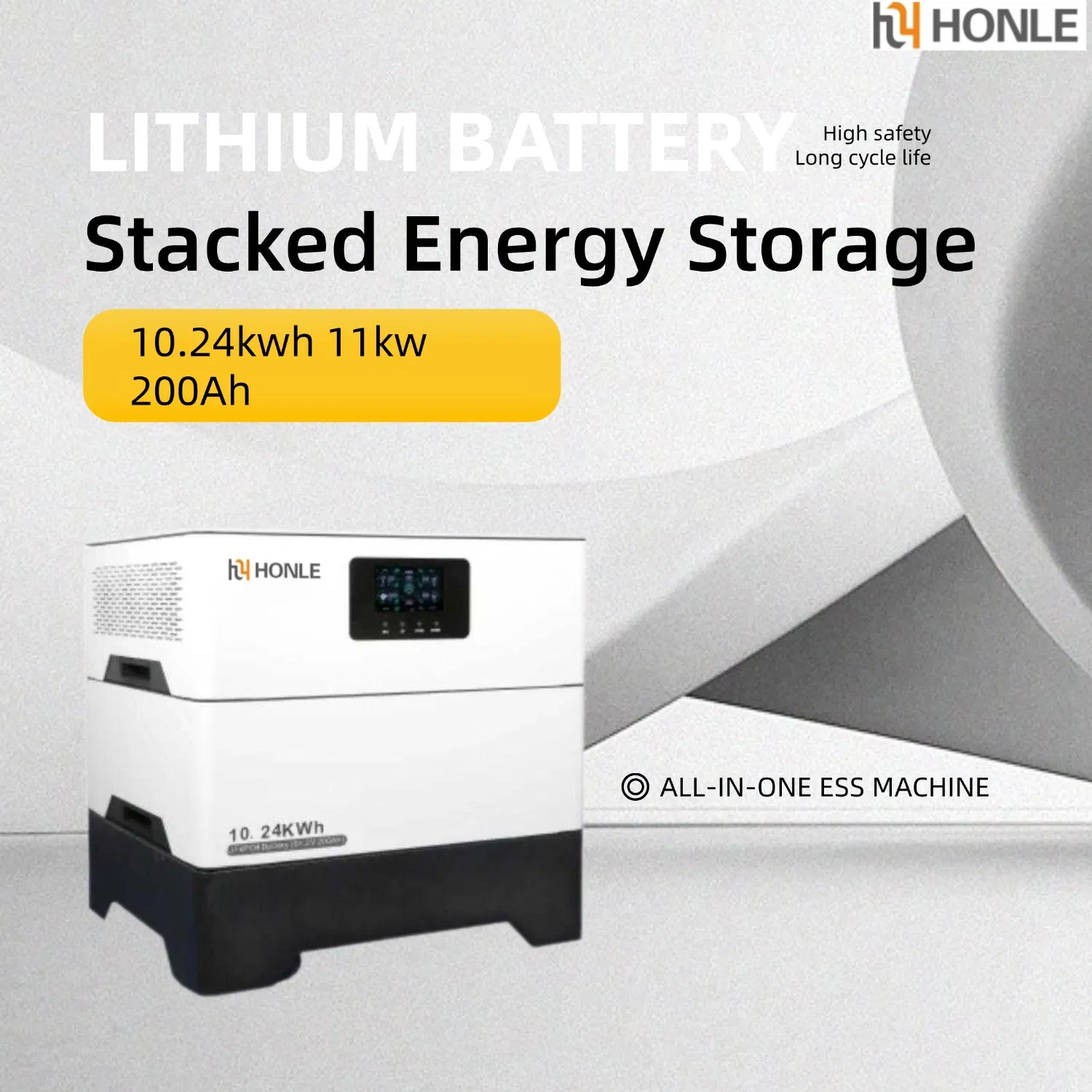

Honle Solar Panel Battery Residential 51.2V 200ah 11kw Lithium Battery Stacked Energy Storage System for Home

1 / 5

Honle Solar Panel Battery Residential 51.2V 200ah 11kw Lithium Battery Stacked Energy Storage System for Home

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Information

Model NO.	YQD-5122002-LFOESS	Cycle Life	6000 Cycles
Nominal Capacity	200ah	Standard Voltage	51.2V
Rated Capacity	10.24kwh	Useful Life	8-10 Years
Cell Type	LiFePO4	Installation	Floor Stand
Continuous Discharge	200A	Charging Cutoff	58.4V
Communication	RS232/RS485/Can	Certifications	Un38.3, MSDS, IEC

Product Description

All-in-One Stacked Energy Storage System

Key Features:

Built-in LiFePO4 Battery cells: Large capacity, long cycle life, high safety.
Intelligent communication and management.

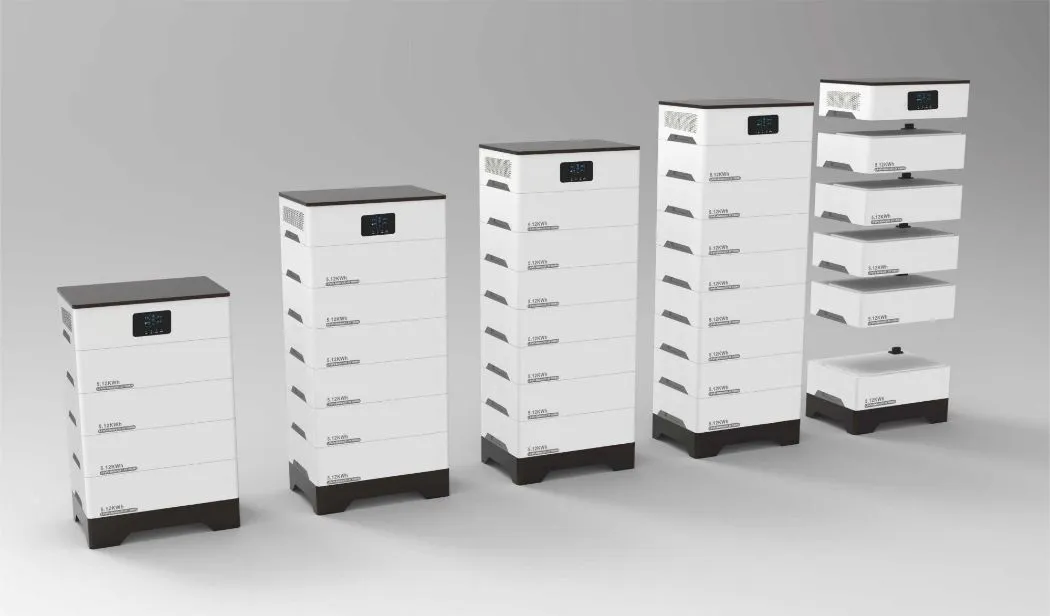

Support parallel capacity expansion and modular frame design.

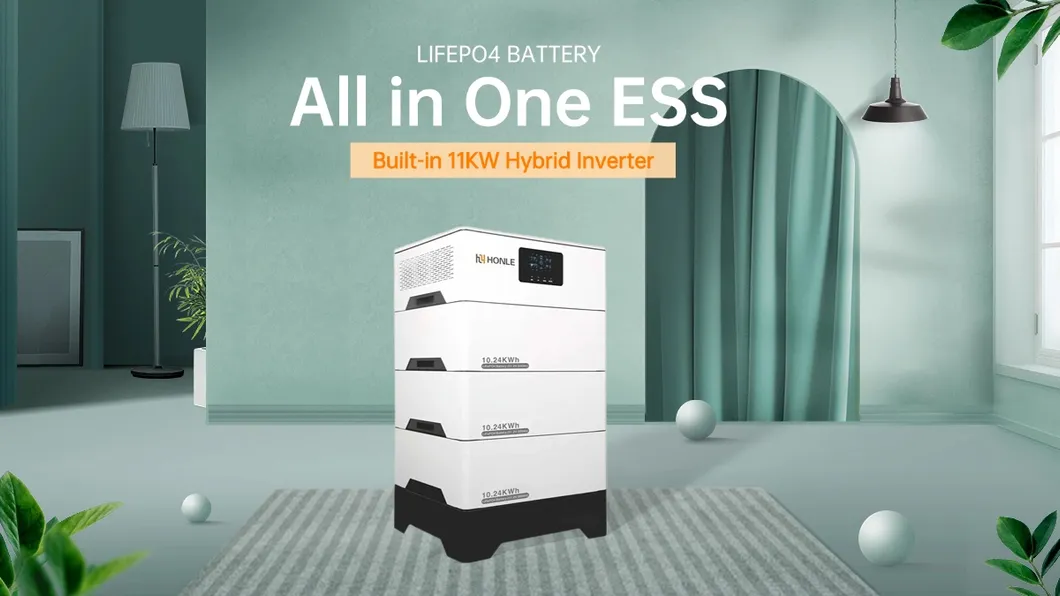

Our Advantages

Product Parameters

11KW Hybrid Inverter Details

Inverter Specification
Output Power Rating	11000W
AC Voltage Range	90~280VAC OR 170~280VAC
PV Voltage Range	360~500VDC (MPPT 90~450VDC)
Wave Form	Pure Sine Wave
Peak Power	22000VA

Lithium Battery Module

Performance Item	YQD-512200-LFOESS	YQD-512400-LFOESS
Nominal Voltage	51.2V	51.2V
Nominal Capacity	200Ah	400Ah
Battery Energy	10.24KWh	20.48KWh
Cycle Life	> 6000 Cycles

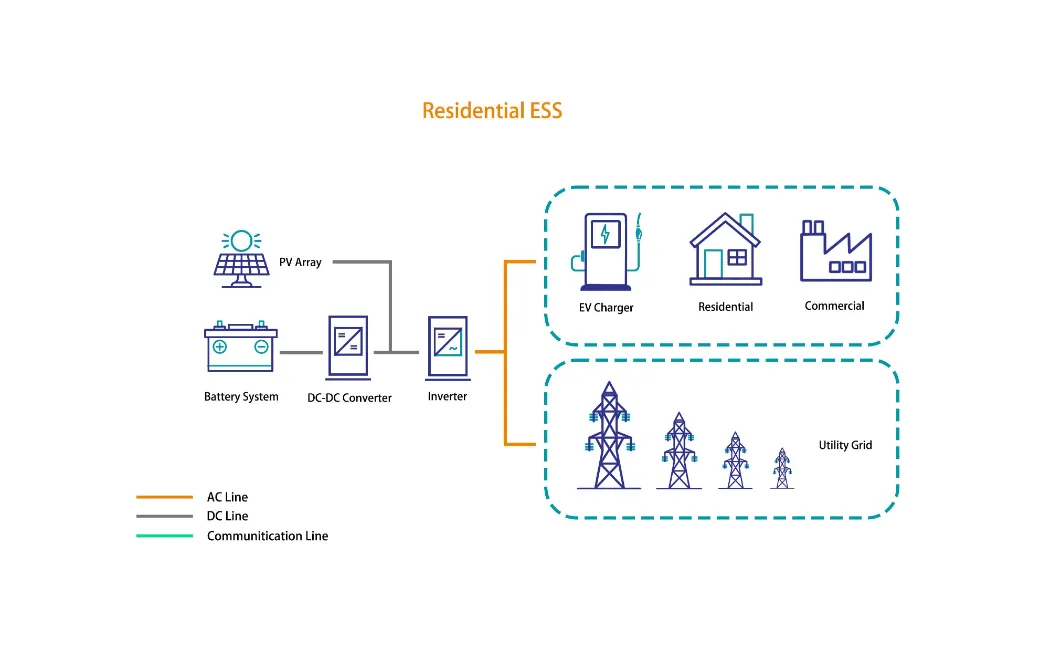

Application Scenarios

This stacked energy storage system is ideal for various energy needs:

Construction Housing & Home Energy Storage
Communication Base Stations
Ships and Remote Islands
Animal Husbandry and Field Equipment
Electricity-free areas

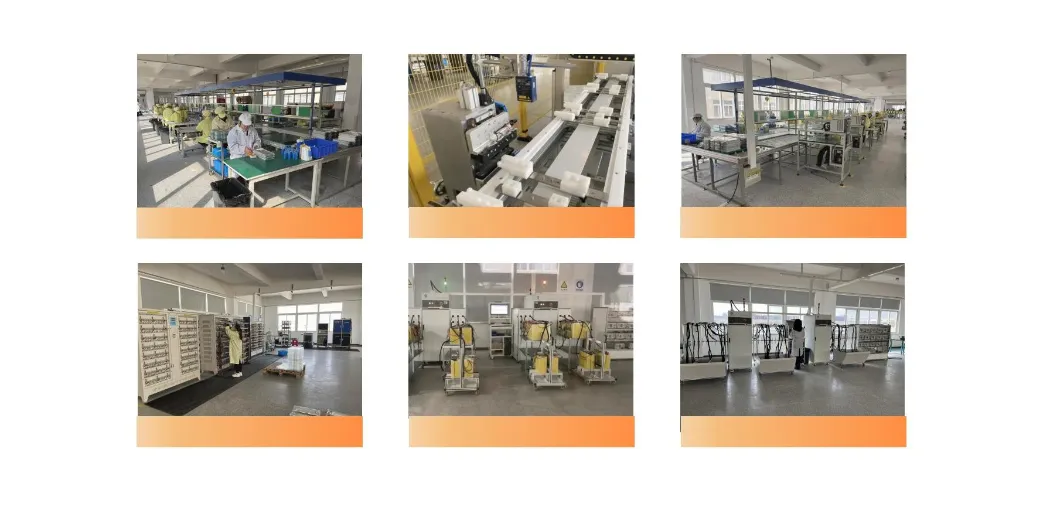

Production & Quality Control

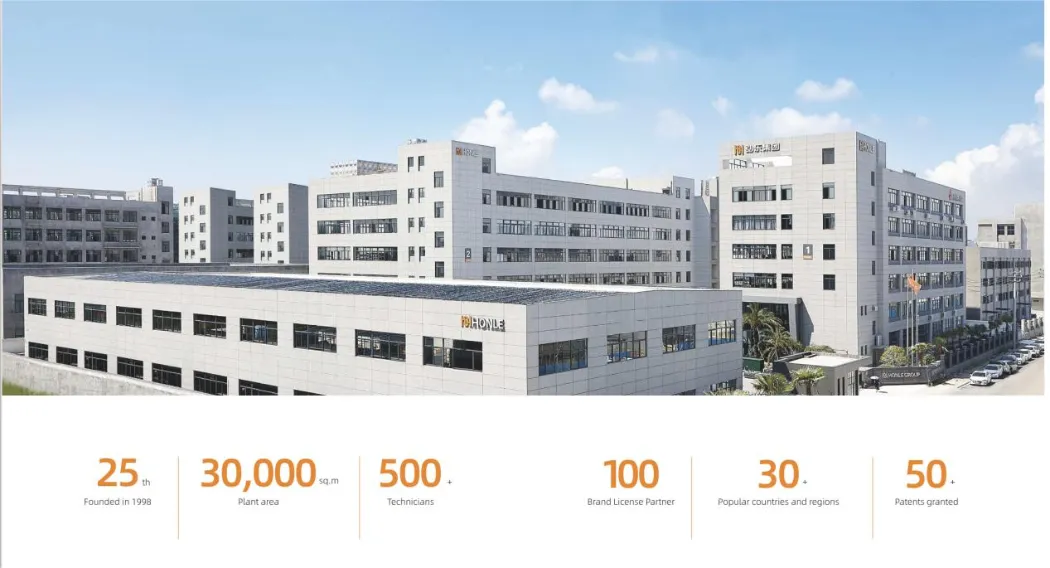

The Group provides globally recognized sustainable energy storage solutions. With state-of-the-art international production equipment and an annual production capacity of 30,000 square meters, we ensure high-level testing for every battery unit.

Certifications & Shipping

Quality Verified

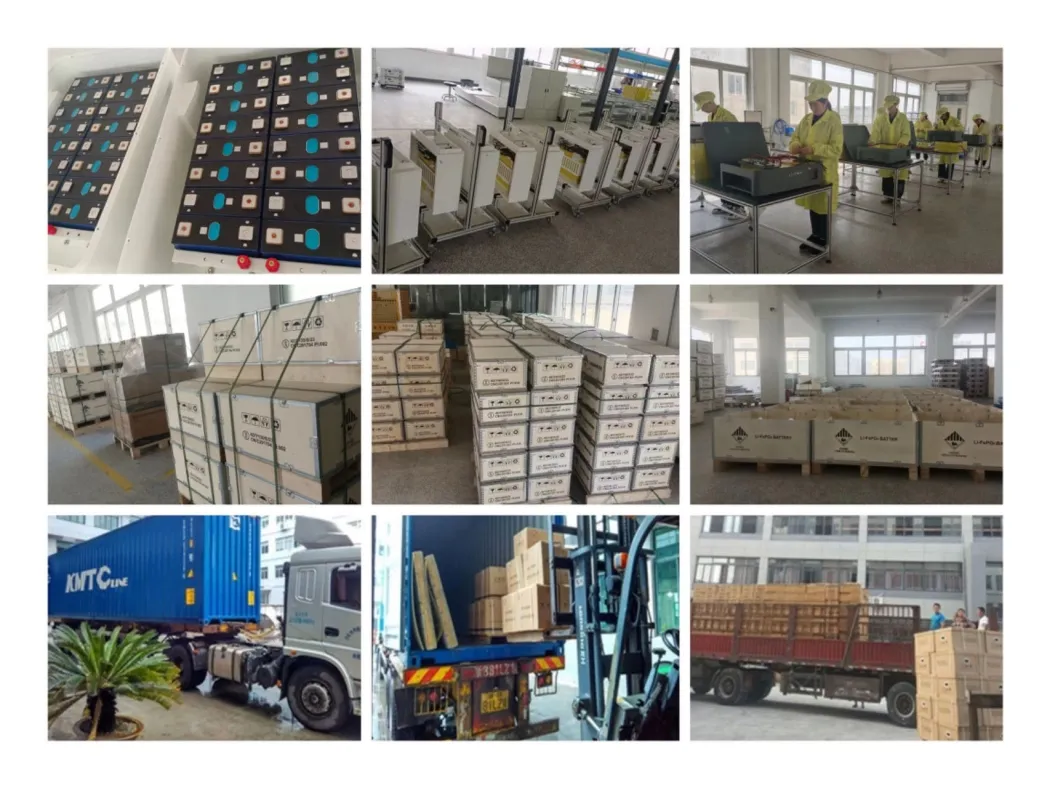

Safe Packaging

Frequently Asked Questions

What is the expected cycle life of this battery system?

The system features high-quality LiFePO4 cells designed to provide over 6,000 cycles, ensuring 8-10 years of useful life under standard conditions.

Can the capacity be expanded if my energy needs increase?

Yes, the stacked design supports parallel capacity expansion, allowing you to add more modules to meet larger power demands.

Which communication protocols does the system support?

The system supports RS232, RS485, and CAN protocols, making it compatible with various monitoring and management platforms.

What kind of protection does the built-in BMS provide?

The Battery Management System (BMS) includes comprehensive protection against overcurrent, overvoltage, overcharging, and over-discharge.

What is the standard delivery time for large orders?

For high-capacity orders, delivery typically takes around 25 days. If items are in stock, they can be shipped within 1-2 days.

Is the system suitable for off-grid or remote areas?

Absolutely. It is specifically designed for electricity-free areas, remote islands, and communication base stations, providing stable and reliable power.
