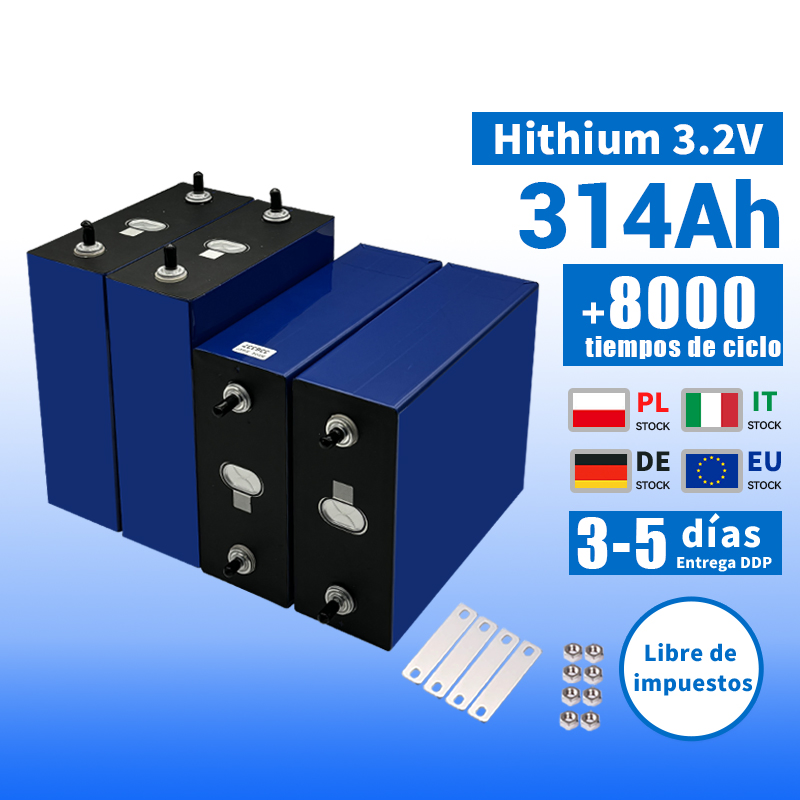

Hithium 3.2V 314ah Prismatic LiFePO4 Battery Cell High-Capacity, Long-Life for Commercial & Utility-Scale Ess 280ah 314ah 320ah 340ah

Still deciding? Get samples of $ !
Order Sample

Product Description

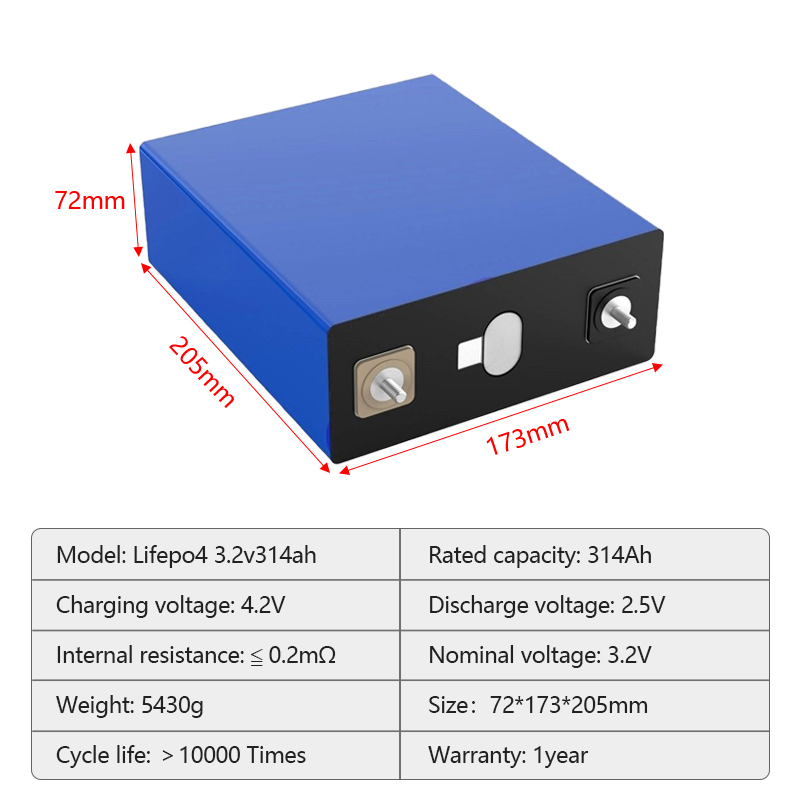

📊 Basic Specifications
Model NO.
Hithium 3.2v 314ah
Rechargeable
Yes
Size
72*174*204mm
Warranty
1 year
Cycle Life
8000 Times
Anode Material
LFP
Weight
5400g
Product Name
3.2V 314ah LiFePO4 Battery Cell
Capacity
314ah
Voltage
3.2V
Electric Energy
896 Wh
Operating Temp
-30~60℃
🏢 Overview

A high-tech company specializing in new energy lithium battery solutions, focusing on environmental energy, power, and energy storage lithium batteries. We provide intelligent solutions for small and medium-sized enterprises globally, prioritizing integrity, strength, and product quality to "create value for a better life."

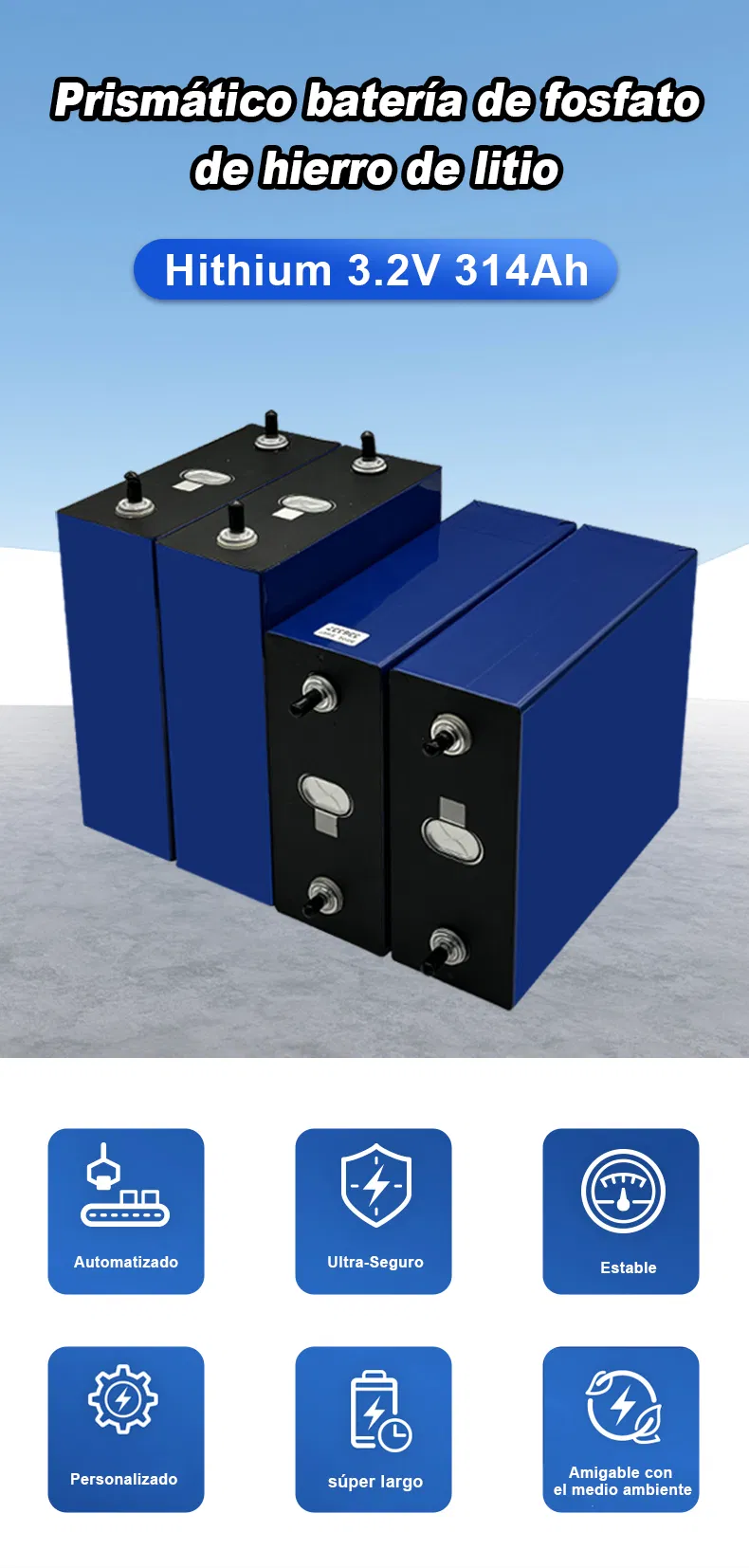

Technical Specs 1

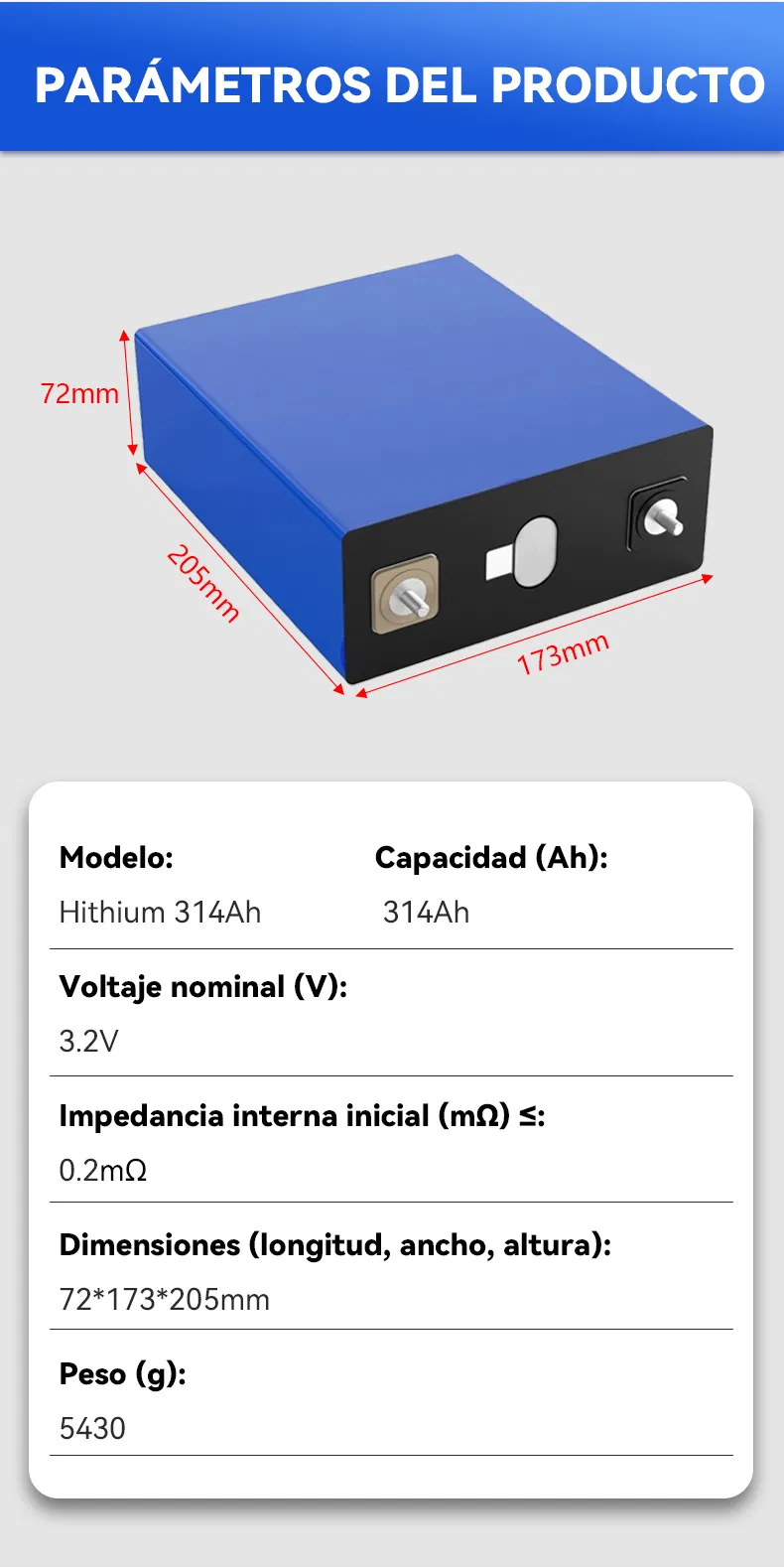

Technical Specs 2
📋 Recommended Prismatic Cells
Brand Model Number V & Ah Impedance (mΩ) Weight (kg)
CATL50AH3.7V 50Ah≤2.01.38
120AH3.2V 120Ah≤0.72.86
156AH3.2V 156Ah≤0.53.4
176AH3.2V 176Ah≤0.54.06
200AH3.2V 200Ah≤0.253.84
280AH3.2V 280Ah≤0.35.34
302AH3.2V 302Ah≤0.25.35
314AH3.2V 314Ah≤0.185.5
320AH3.2V 320Ah≤0.195.45
340AH3.2V 340Ah≤0.185.55
💡 System Configuration Notes
🔋
Verify your system requirements:
• 48V system: 16 pieces required
• 24V system: 8 pieces required
• 12V system: 4 pieces required
Applications: Solar Energy Storage (12V-108V+), RVs, Yachts, Home Backup Power.

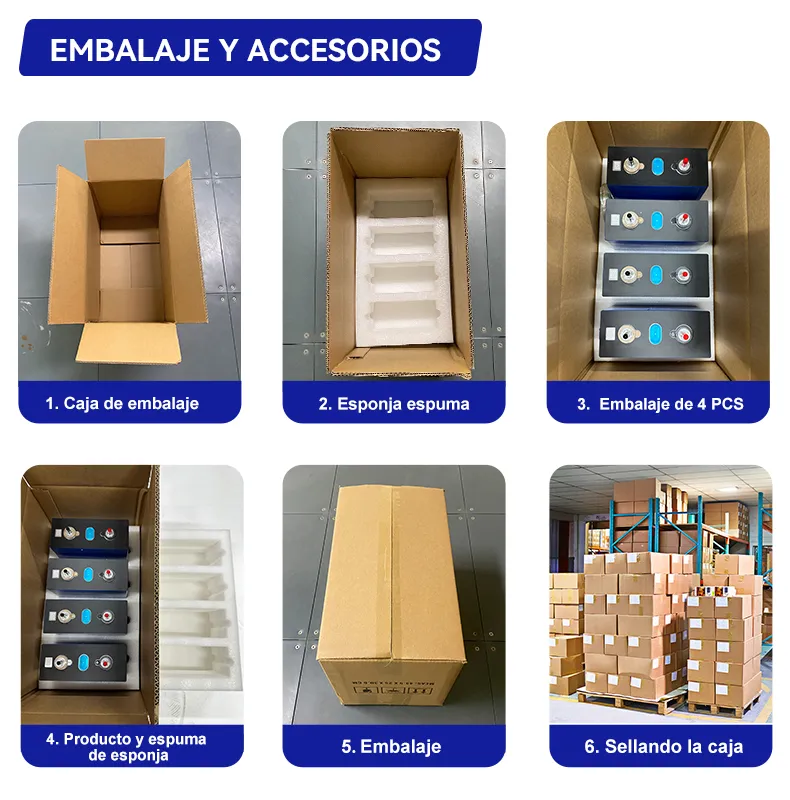

Packaging Details
📦 Packaging Standards:
  • High hardness custom sponge reinforcement
  • 5-layers dangerous goods export corrugated cartons
  • Positive and negative paste insulation tape
  • Test data labeled on each cell before delivery
  • Wooden packing available upon request
Shipping Inspection
Frequently Asked Questions
1. What should I do before assembling a DIY battery pack?
Cells must be balanced (same voltage) before assembly. It is critical to ensure proper connection to a BMS (Battery Management System). We ensure each single battery is good before shipment.
2. How do you handle shipping damage or missing items?
Please contact us immediately with photos or videos. If the battery is unusable or lost, we will communicate options for resending, replacement, or refunding the product cost.

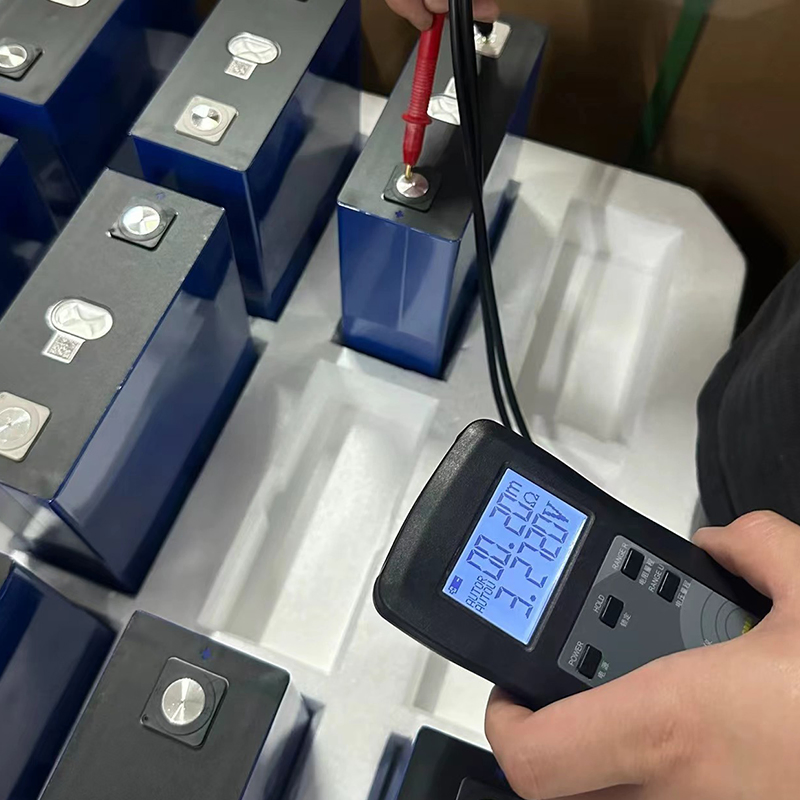

3. Do you test the batteries prior to shipping?
Yes, each battery undergoes capacity testing (less than 2% margin of error), voltage testing (deviation < 0.01V), and resistance testing (deviation < 0.05mΩ).
4. Are busbars and bolts included with the cells?
Yes, cells come with free busbars and bolts/studs. Each battery typically includes 1 busbar and 2 bolts or studs.
5. Under what conditions are returns or refunds not provided?
Returns are not accepted if damage occurs during DIY assembly (e.g., wrong BMS wiring, charger failure, or unbalanced assembly) or if the battery shows signs of use like welding, wear, or bulging caused by improper charging.
6. How can I place an order for Ready to Ship (RTS) products?
For RTS products, you can select the quantity and pay directly if the shipping cost is clear. Orders are given priority in shipping once payment is confirmed.
