| Model NO. | HTCI-100KW/200KWH | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Application | Home, Industrial, Commercial |
| System Type | Hybrid Solar Storage System | Output Voltage | 220/380V/400/480VAC 50/60Hz 3phase |
| Battery Type | Lithium Ion/LiFePO4 | Battery Capacity | 100-600kwh |
| Solar Panel Type | Mono Solar Panel | PV Inputs | 10 Mppts |
| Monitoring | WiFi/GPRS | Cooling | Smart Air Cooling |
| HS Code | 8501723000 | Production Capacity | 100000sets/Year |

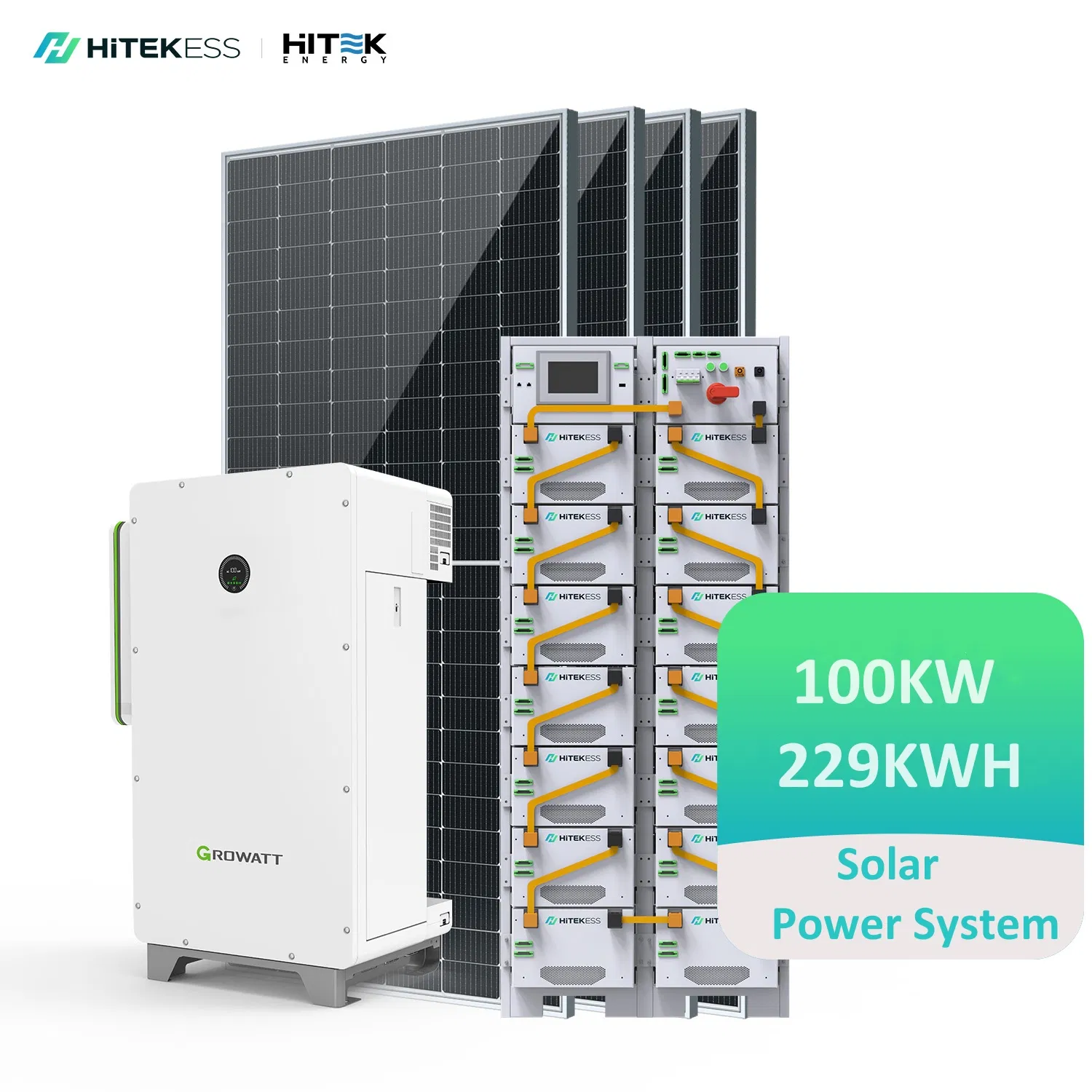

Core Features of Energy Storage System
| Component | Model | HTCI-100KW/200KWh | HTCI-300KW/600KWh |
|---|---|---|---|
| PV Module | HT565M-72H | 187 Units | 561 Units |
| Inverter | WIT-100K-HU | 1 Unit | 3 Units |
| Battery Pack | HT51280H | 14 Units | 42 Units |
| Control Box | Standard | 1 Unit | 3 Units |

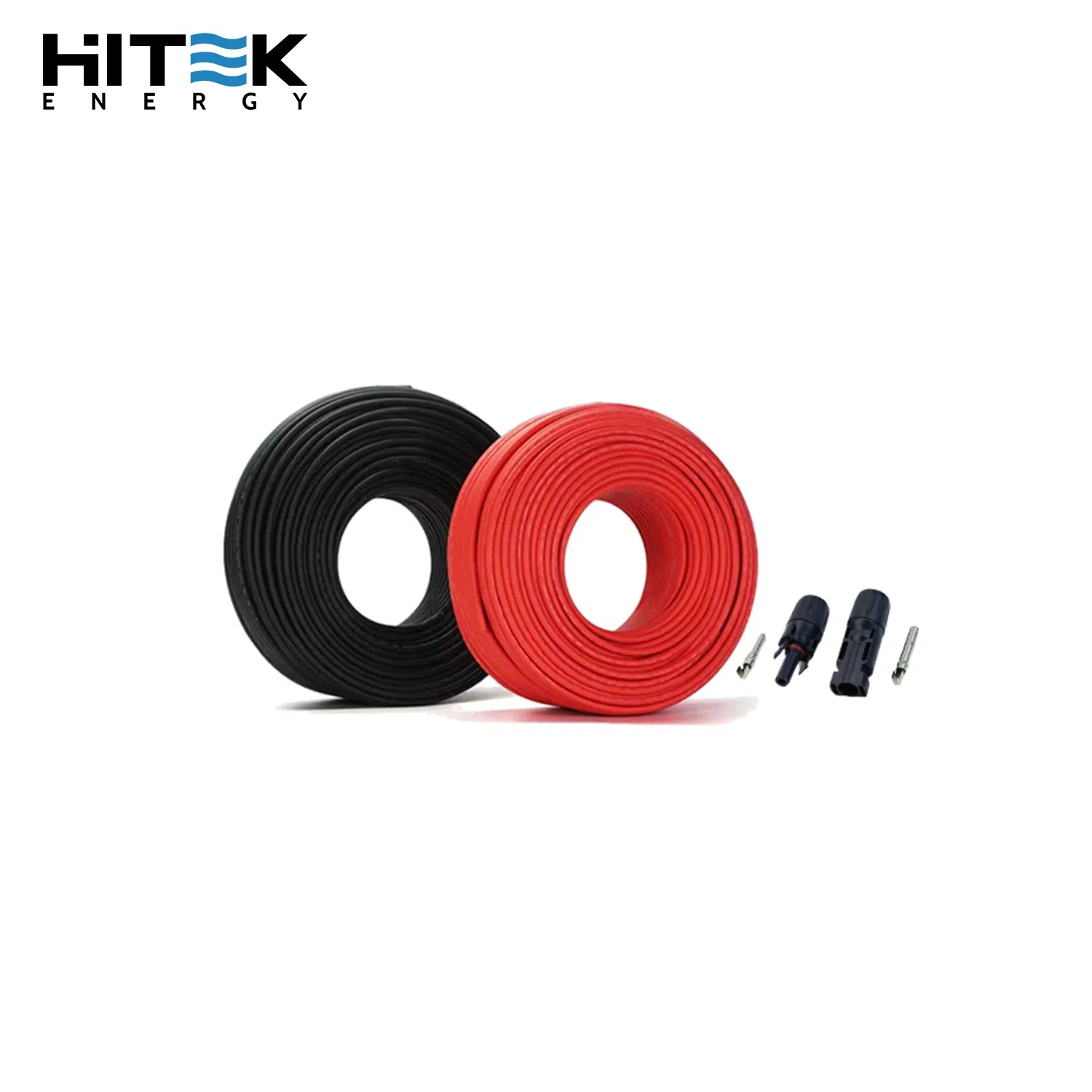

| PV Cable | 4mm2 | 1100m | 3300m |
| Monitoring | WIFI/SEM-X | Included | Included |

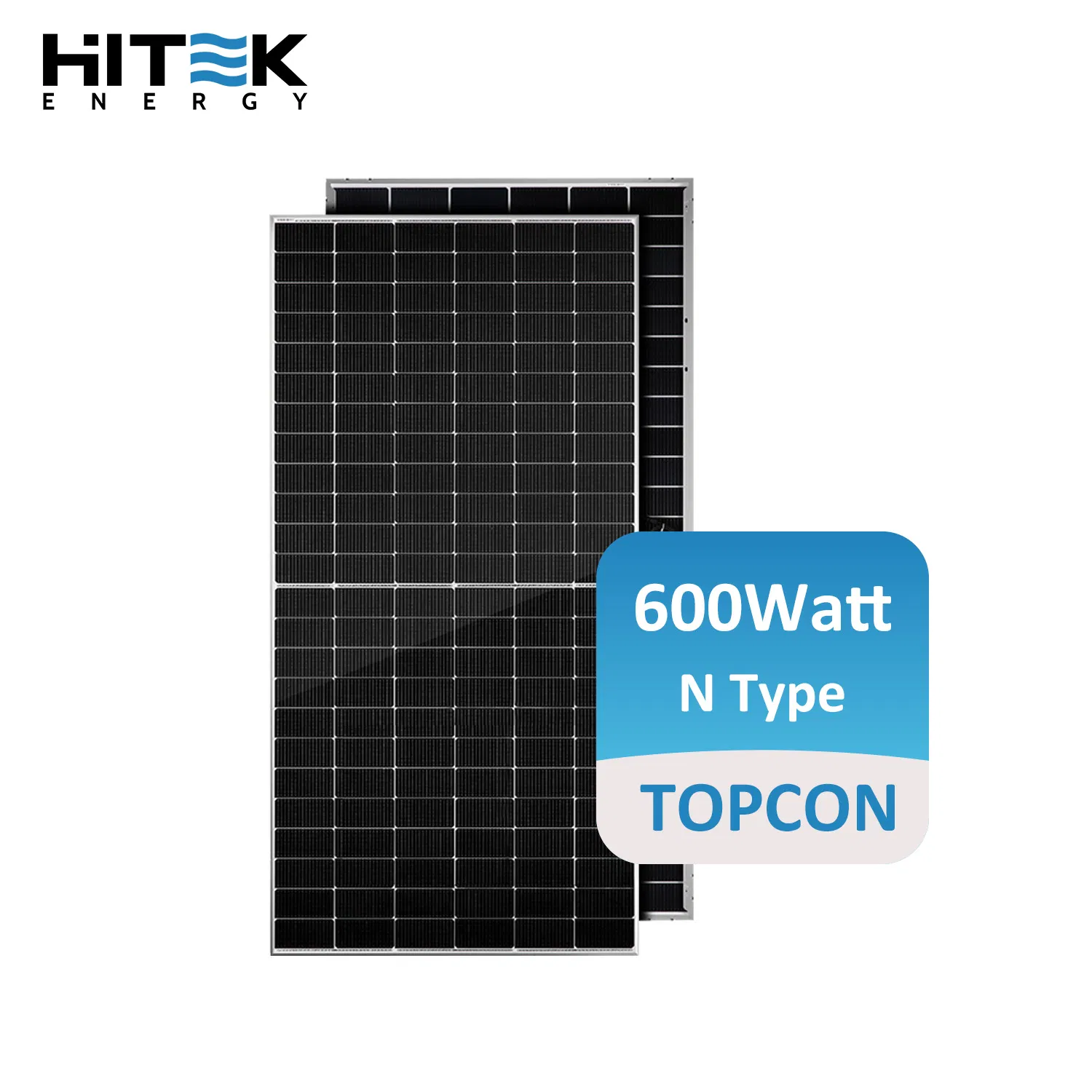

Mono Solar Panel
Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Size: 2279*1134*35mm

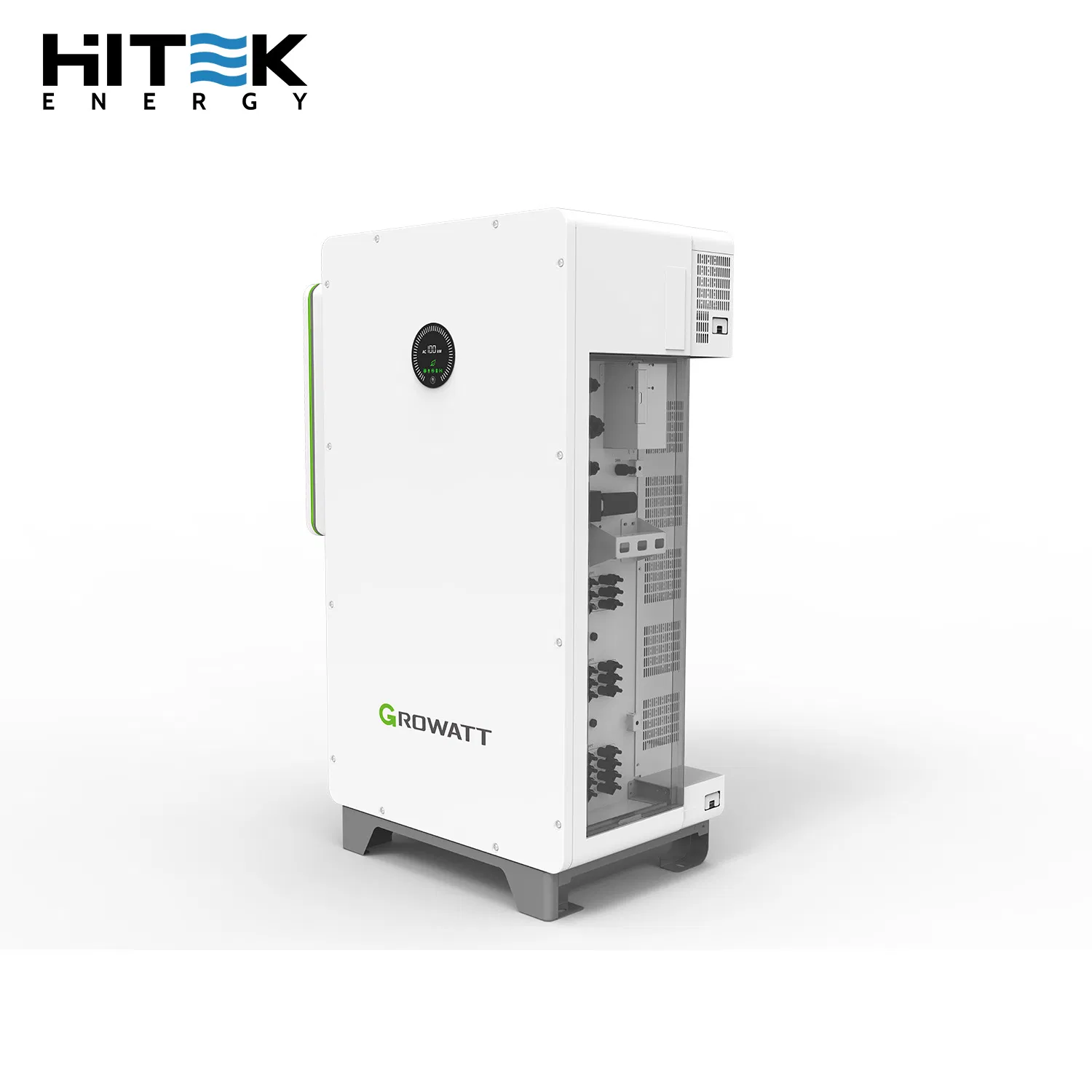

Hybrid Solar Inverter
Scalable to 300KW
Supports UPS and Black Start
100% Unbalanced load capability
110% Continuous AC overloading
Multiple MPPT inputs

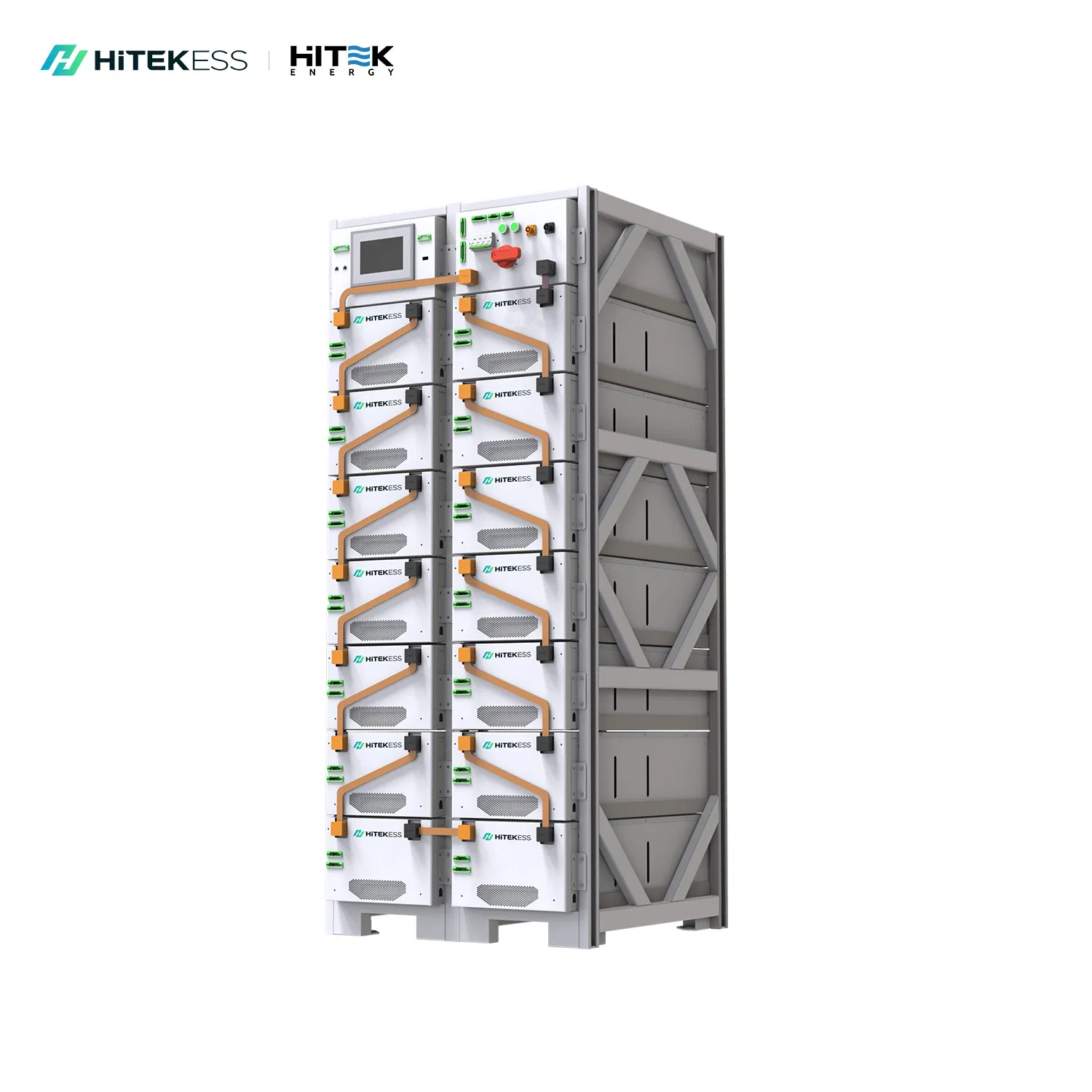

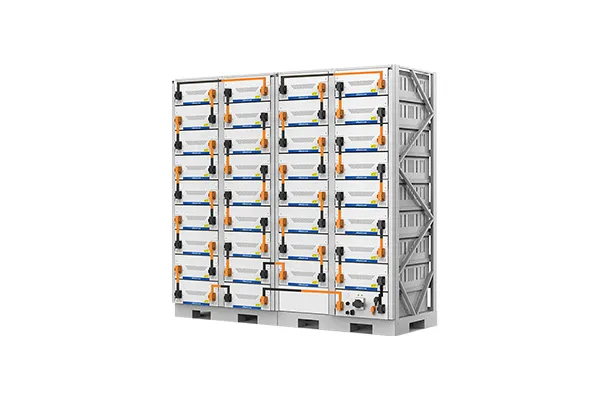

Solar Battery Packs
Rack-mounted design
Deep Cycle, 6000+ times lifespan
LiFePO4 Lithium Ion technology
Up to 90% DOD
Wide temperature suitability
Remote Monitoring
One-click installation
Real-time data tracking
Lifecyle data security
Traceable operation logs
Let's work together for a better, brighter and greener future.
A: It provides a balanced solution for peak shaving and backup power, allowing users to store solar energy and use it during high-tariff periods or power outages, specifically designed for industrial and commercial scales.
A: Yes, the system is highly scalable. The hybrid inverters support up to 3 units in parallel, allowing for configurations up to 300kW and 600kWh energy storage.
A: The system uses high-quality Lithium Ion (LiFePO4) battery packs that offer over 6,000 cycles at 90% Depth of Discharge (DOD), ensuring a long service life with minimal maintenance.

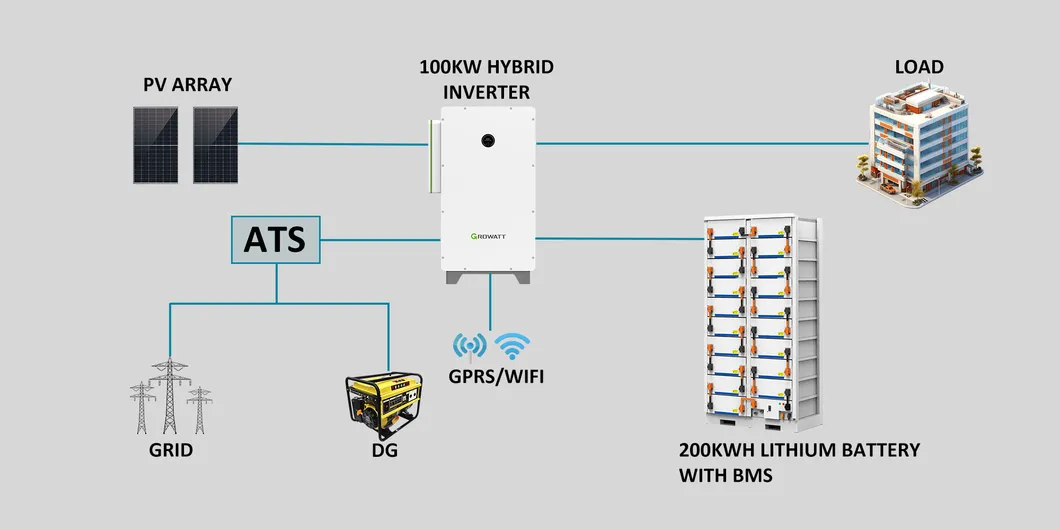

A: Yes, our hybrid inverter is designed with a dedicated port to support diesel generator access, providing an extra layer of energy security for off-grid or unstable grid locations.
A: Absolutely. Every system includes WiFi or GPRS monitoring modules that allow you to track energy production, battery status, and consumption levels in real-time via a mobile app or web portal.
A: For standard orders between 1 to 100kW, the lead time is approximately 20 days. Larger or customized configurations can be negotiated based on project requirements.
