📋 Basic Specification
Model NO.MBS25H-3A
RechargeableYes
Voltage Range20~29.2V
Plug TypeAmerican; European; Japanese; Australian
OutletAC; DC; USB
Weight35kg
Specification3000W 25.6V 100AH
OriginChina
🔋 Product Overview

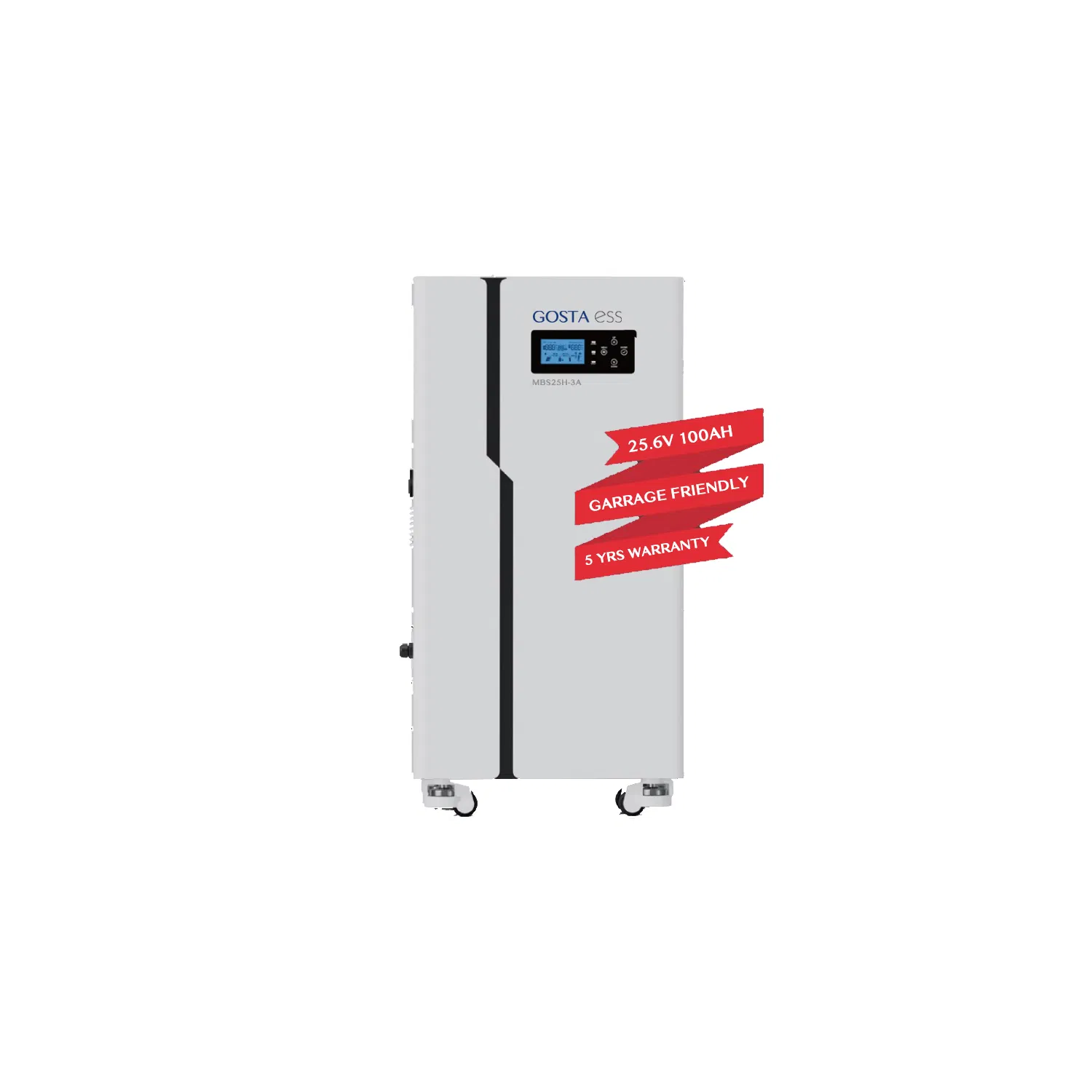

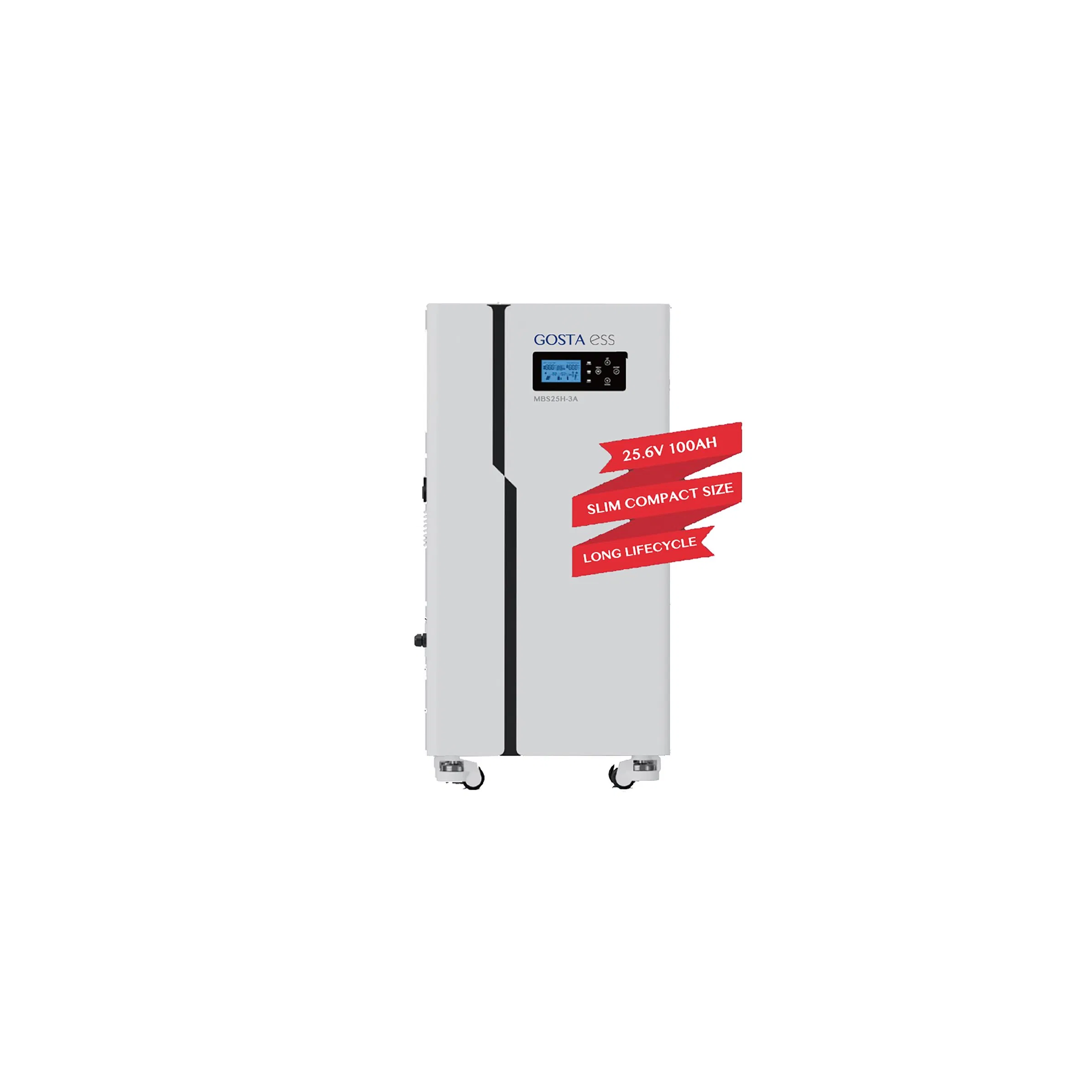

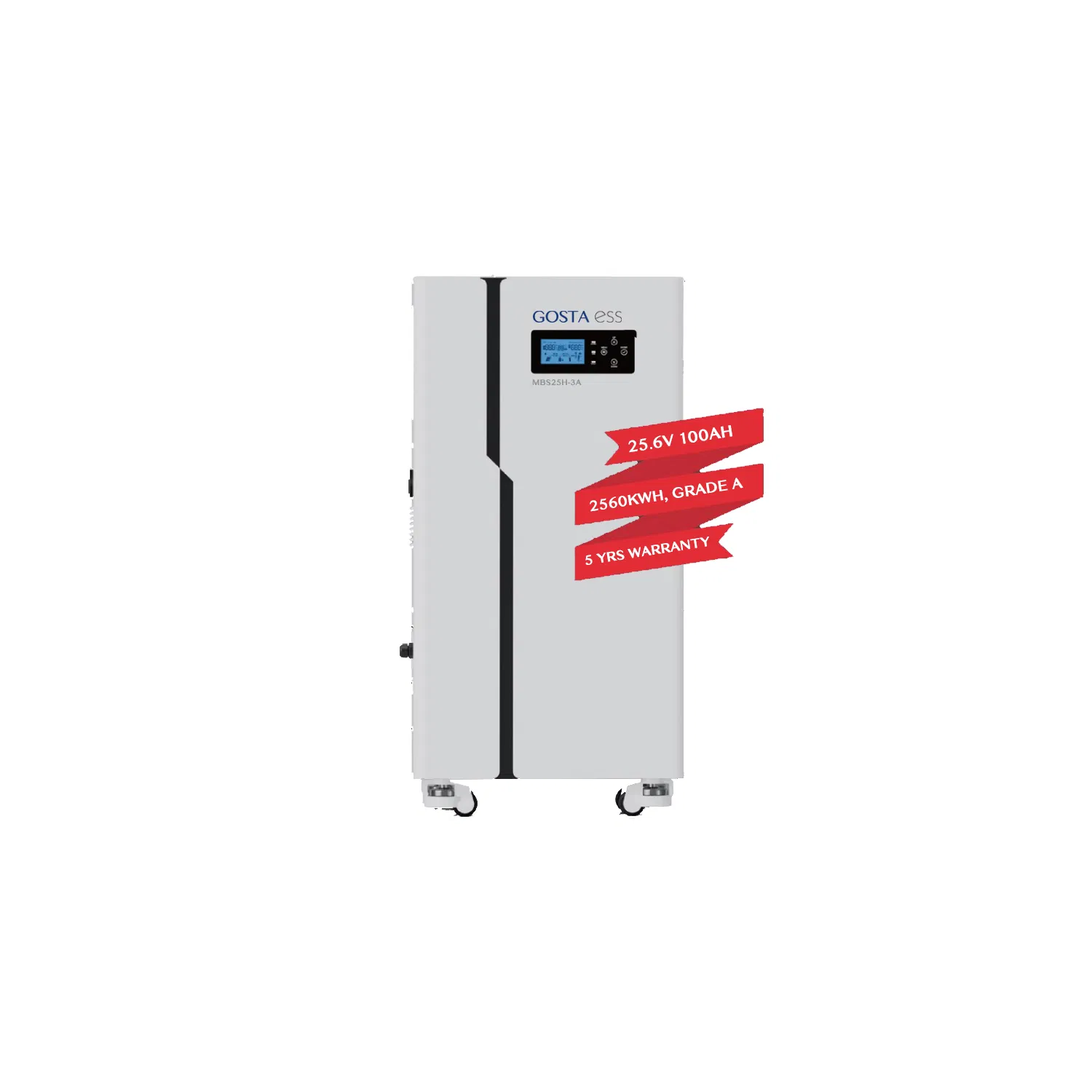

Rechargeable Flexible LCD UPS Home Use Lithium-Ion Phosphate LFP Battery
The MBS25H-3A is a highly popular model offering maximum mobility with a 2.5KWH battery capacity and 3000W output. It combines portability with high capacity, ensuring reliable home electricity use without worry.
🚀 High Mobility
Flexible and durable wheels for easy movement; includes wall mount bracket for versatile installation.
🔌 Versatile Output
Equipped with various output methods including AC, DC, and USB to power multiple devices.
☀️ Multi-Charging
Supports charging via solar panels, AC/Grid, EV chargers, and more.
🛡️ Advanced Safety
In-built full protection algorithm and Grade A LiFePo4 cells for maximum security.
⚙️ Technical Parameters
| Category |
Parameters |
Value |
| INPUT |
AC Charge |
Utility/Mains Power/EV/Inverter Charge |
| Switches |
Overload Protection; Quick Charge Switch |
| OUTPUT |
Nominal Power |
3000W (Max 5000W) |
| AC Waveform |
Pure Sine Wave (THD < 3%) |
| Protection |
Under/Over Voltage, Overload, Short Circuit, Reverse Connection |
| USB Output |
USB-A 2.0: 5V/2.4A Quick Charge |
| BATTERY |
Type |
Grade A LiFePo4 Cell |
| Capacity |
25.6V / 100Ah (2560Wh) |
| Life Cycle |
4,000 cycles @ 23°C |
| PHYSICAL |
Dimensions |
84 * 41 * 20 cm |
| Net Weight |
Approx. 45Kg |
❓ Frequently Asked Questions
Is the battery pack BMS included?
Yes. Most products are offered as a full system solution, meaning the integrated BMS provides comprehensive protection to ensure safe use for residential applications.

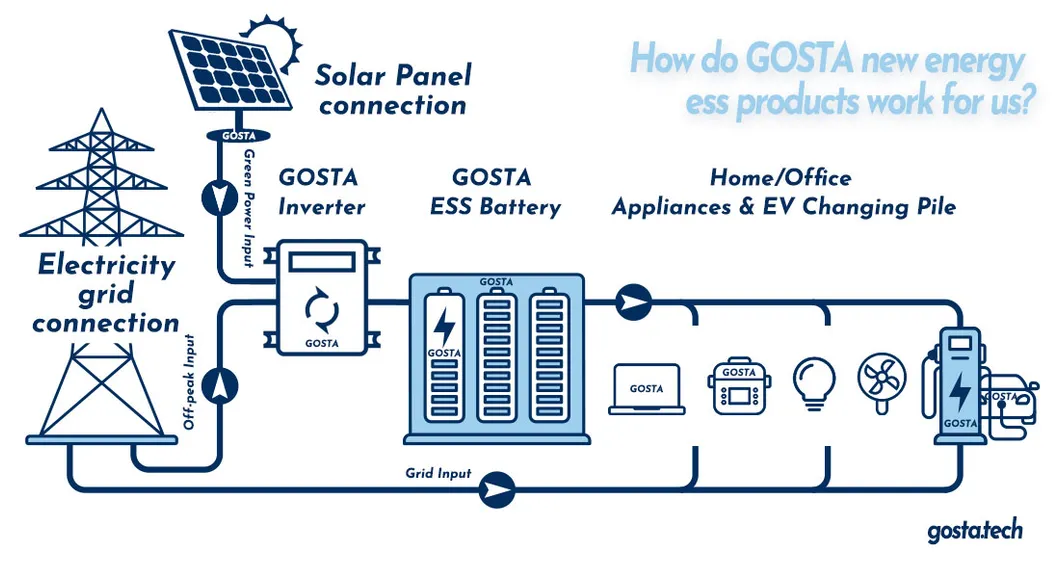

Why should I store my own generated electricity?
By storing energy from solar panels in an ESS, you can choose when to use it rather than sending it back to the grid. This optimizes consumption, reduces dependence on external power grids, and lowers electricity costs.
Can the unit be customized for specific needs?
Yes, we have a dedicated engineering team capable of tailoring solutions to your needs. OEM and ODM partnerships are welcomed based on specific volume requirements.
What is the standard lead time for orders?
The general lead time for electronics is approximately 4 weeks, while battery pack products typically have a lead time of around 20 days.
What are the available charging methods?
The system is highly flexible and can be charged via solar power, AC grid power, Electric Vehicle (EV) chargers, or inverters.
What is the expected lifespan of the battery?
Utilizing Grade A LiFePo4 cells, the battery supports over 4,000 cycles and has a design recycle life of approximately 10 years under normal environmental conditions.
