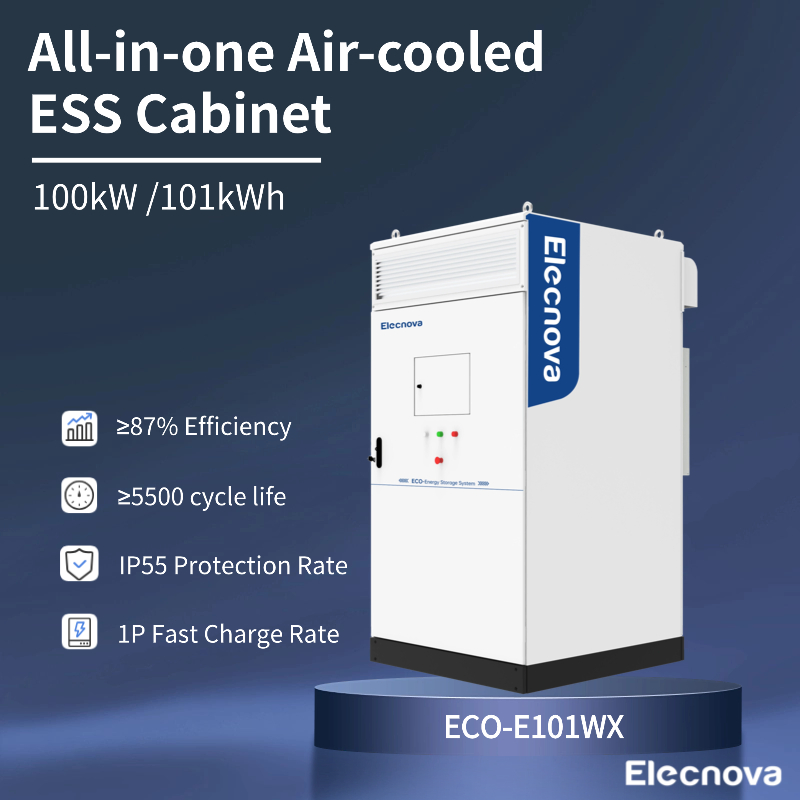

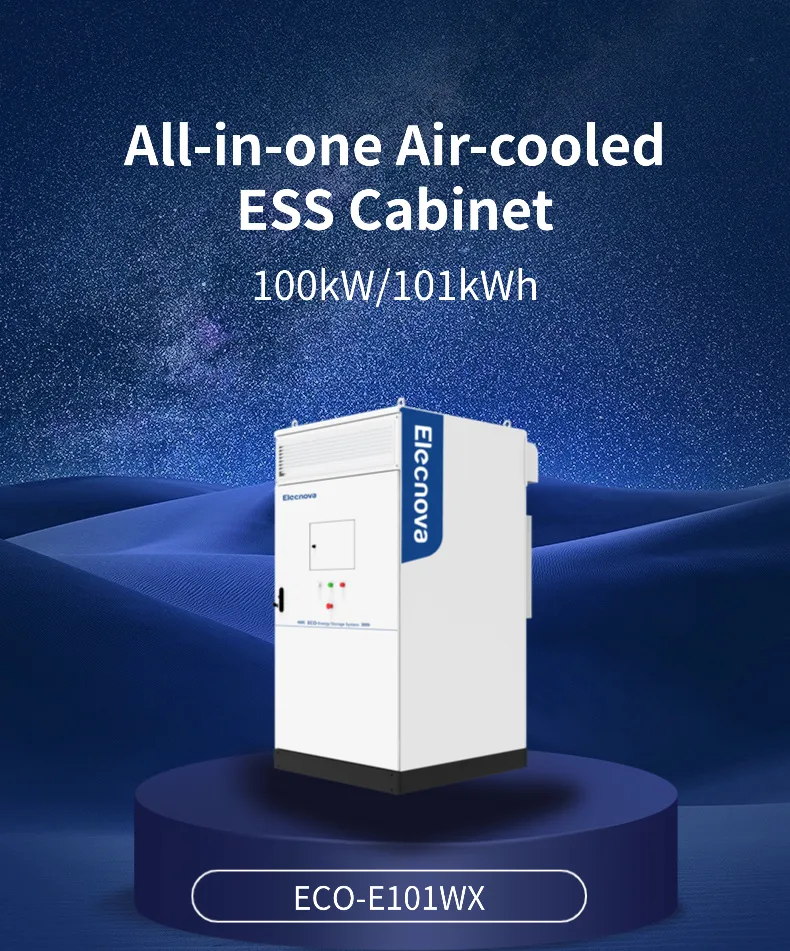

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

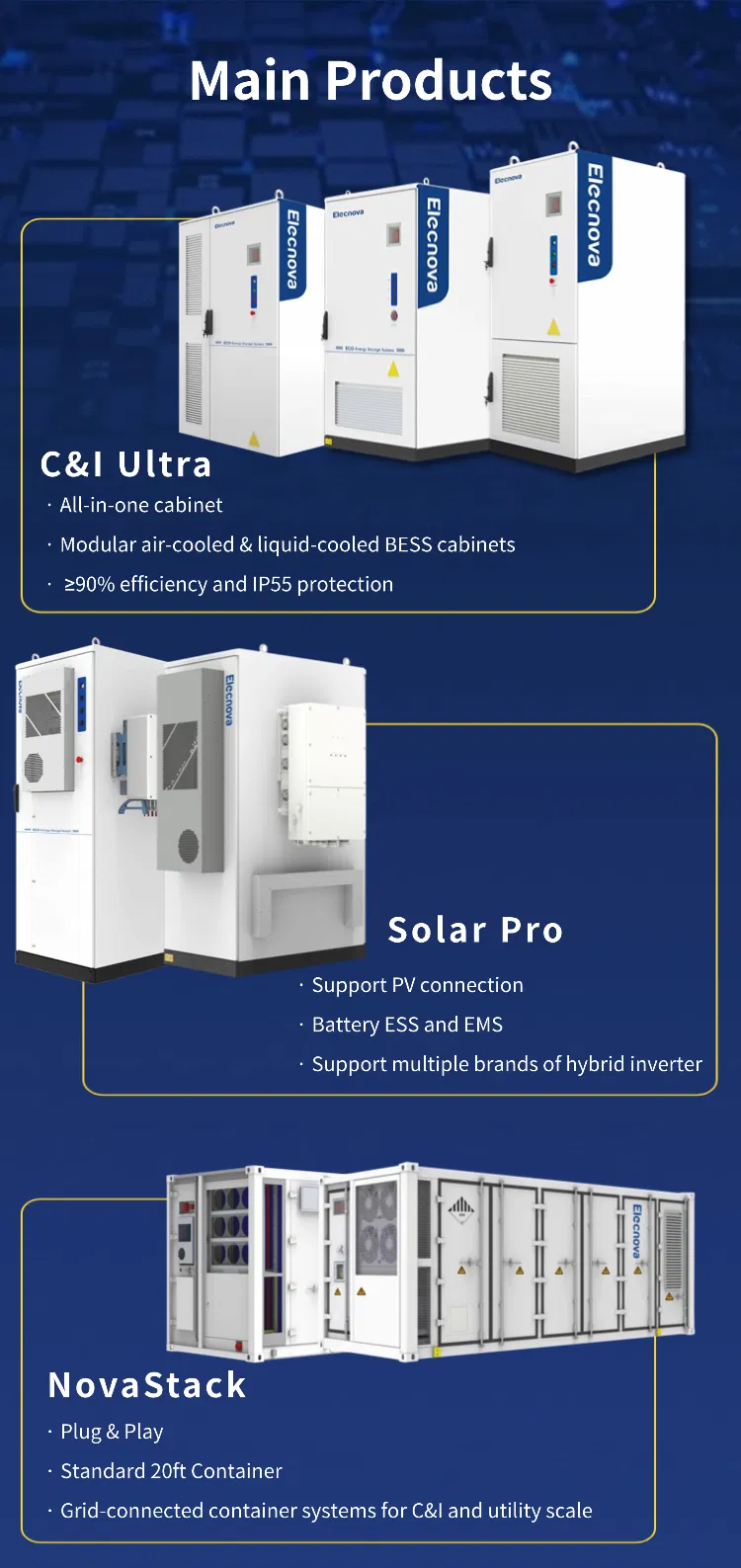

C&I Ultra: All-in-one modular BESS cabinets (air-cooled/liquid-cooled) with ≥90% efficiency and IP55 protection, ideal for commercial & industrial scenarios.
Solar Pro: Seamlessly integrates with PV systems, featuring battery ESS, EMS, and compatibility with multiple hybrid inverter brands.
NovaStack: Plug-and-play 20ft container systems, designed for grid-connected C&I and utility-scale energy storage projects.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| DC Voltage Range | 739.2 ~ 950.4 V |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Rated Frequency | 50 Hz / 60 Hz |
| General Information | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |

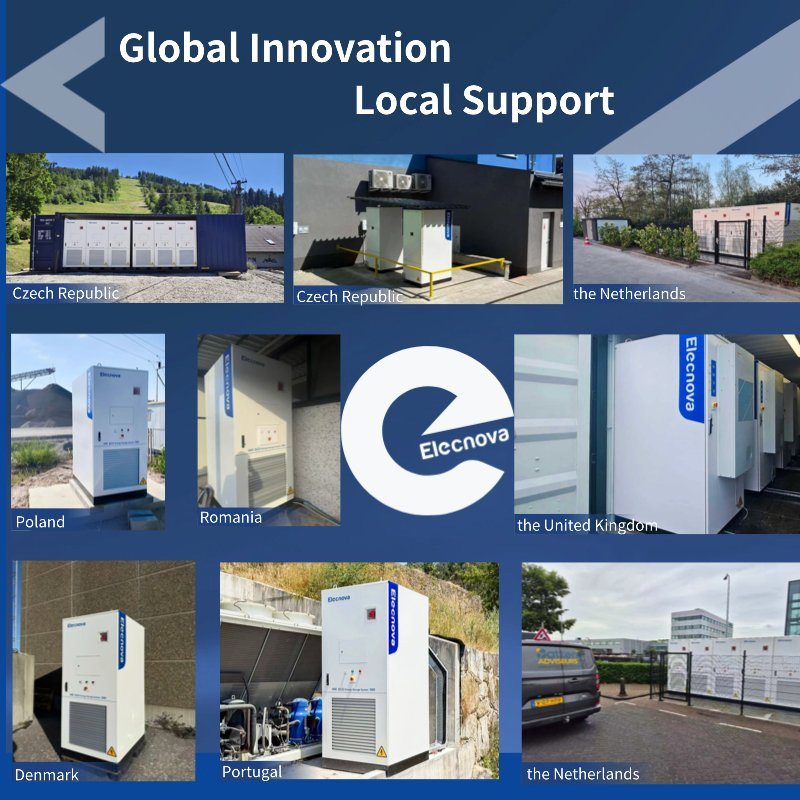

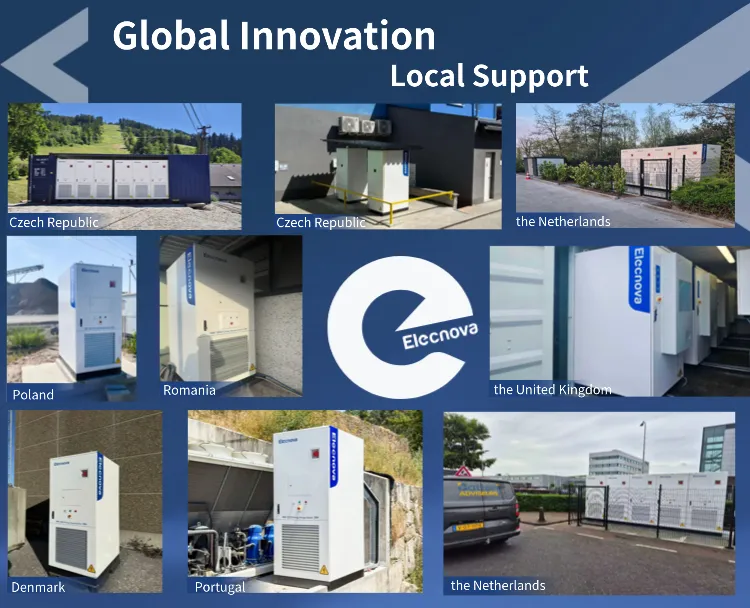

Our energy storage solutions are transforming landscapes worldwide, from Europe to Southeast Asia, Africa, and the Middle East. We provide localized timely support with a robust after-sales ecosystem, including overseas service centers and warehouses with ample spare parts. We offer an industry-leading warranty and comprehensive technical guidance.
* 2GWh annual production capacity across 2 specialized factories.
* Automated Module and PACK production lines for standardized manufacturing.

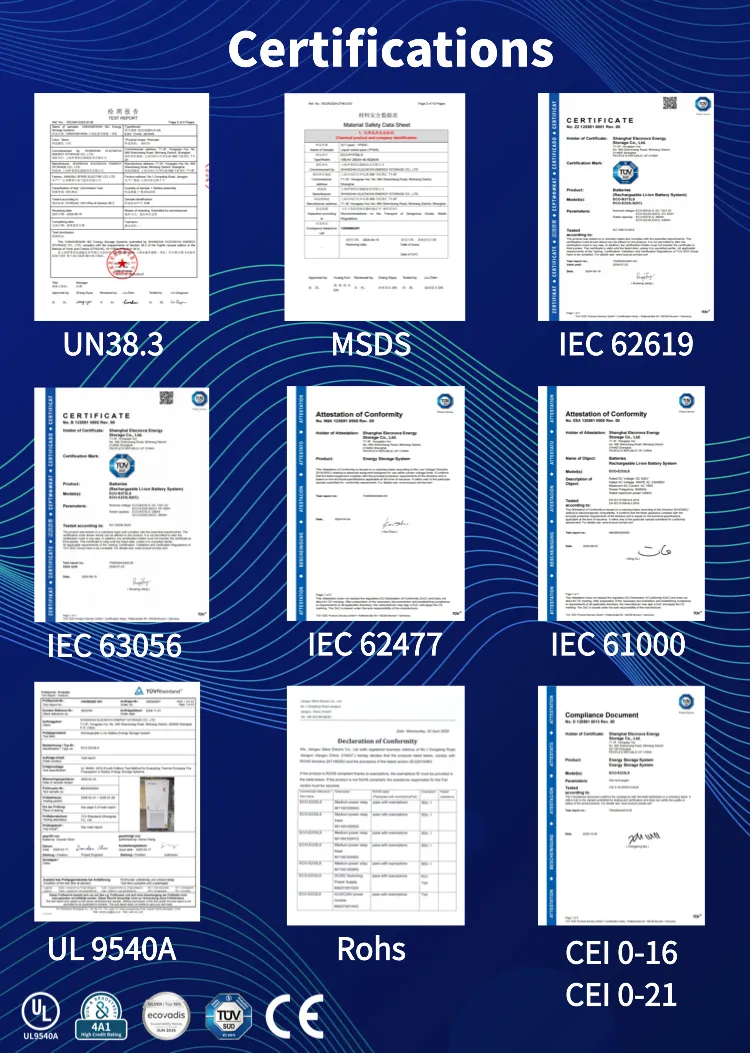

* Rigorous quality control with CNAS laboratory certification.
