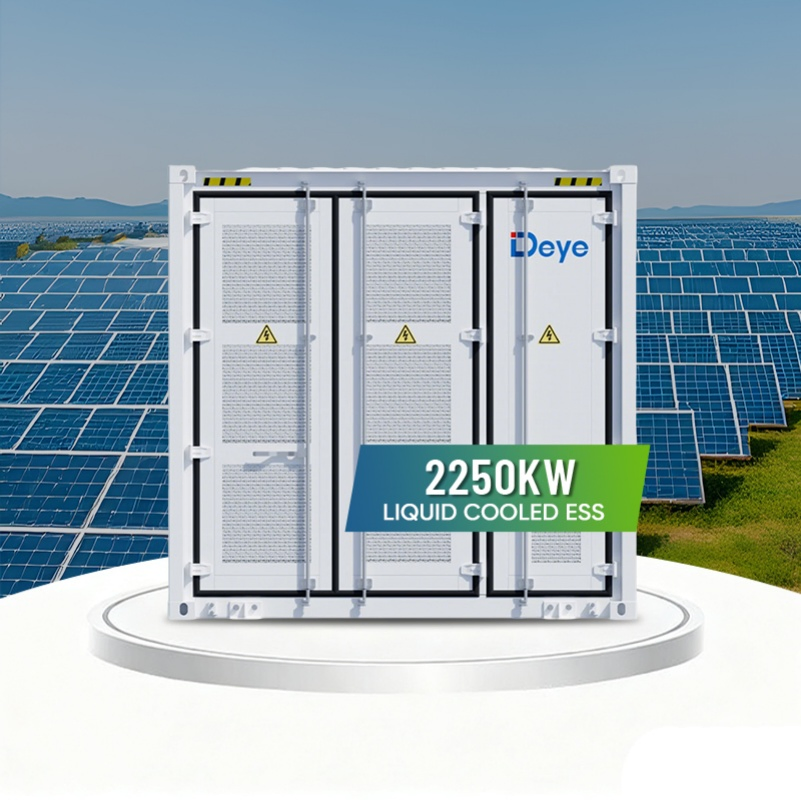

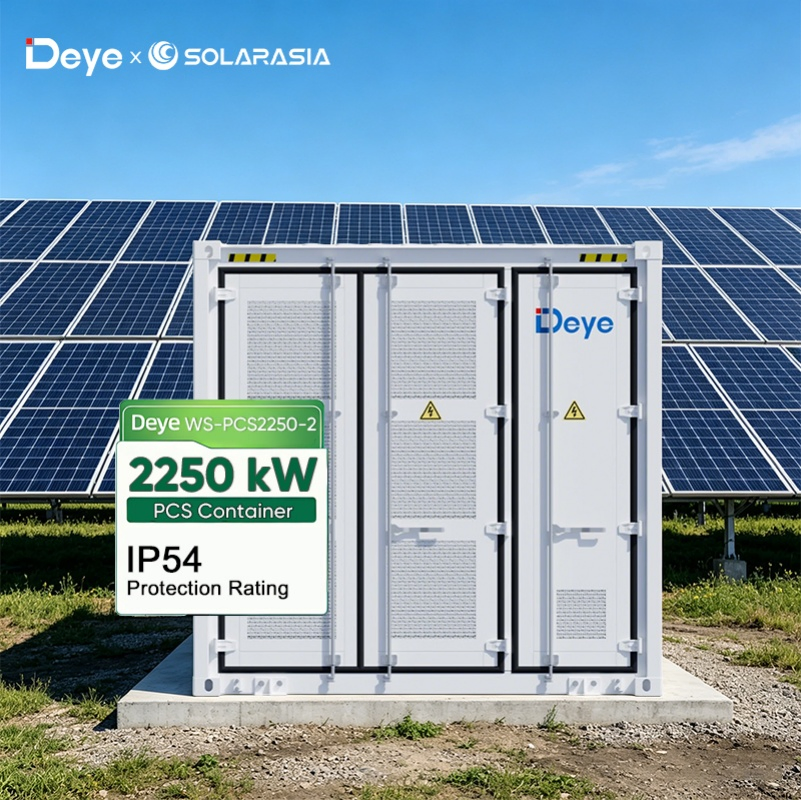

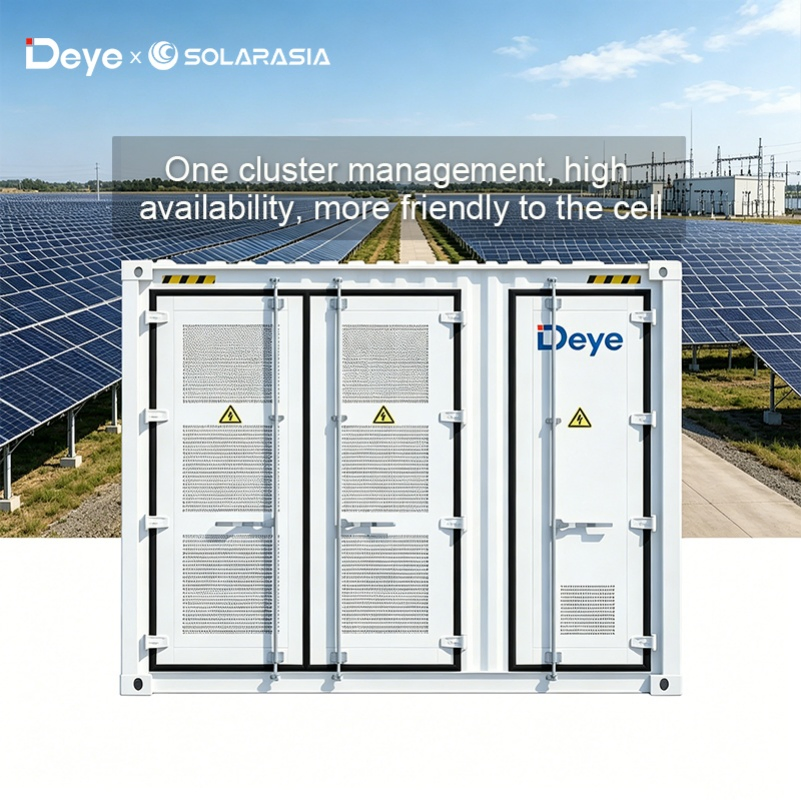

2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
1 / 5
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter
2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter

2250kw 2.25MW Energy Storage Power Conversion System Container Type Microgrid Solution Hybrid Solar PV Battery Inverter

Customization: Available
Container Size: 2991X2438X2896mm
Weight: 11500 Kg
Send Inquiry

Product Description

Product Description

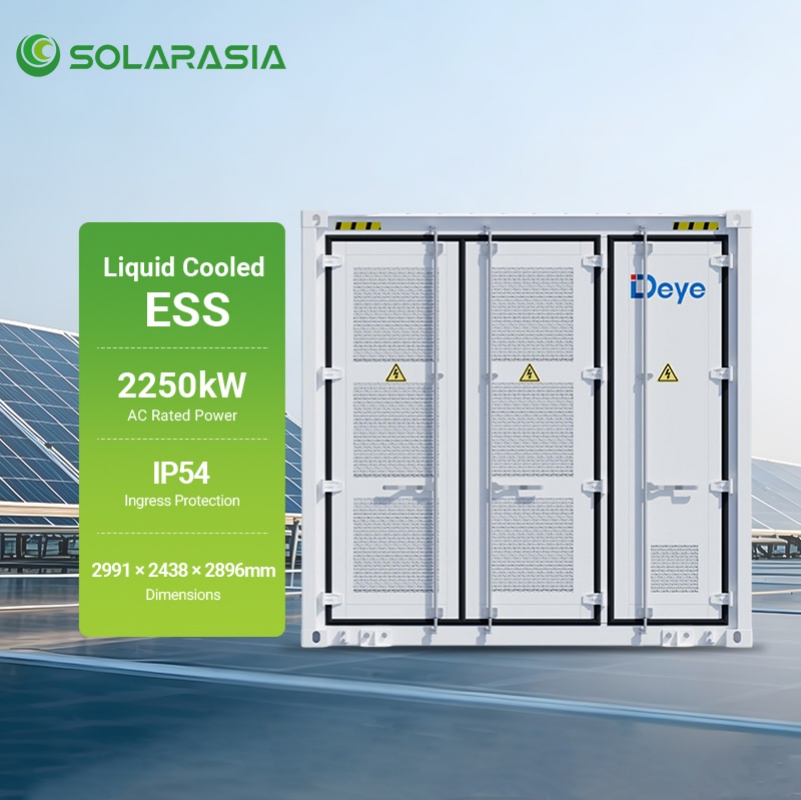

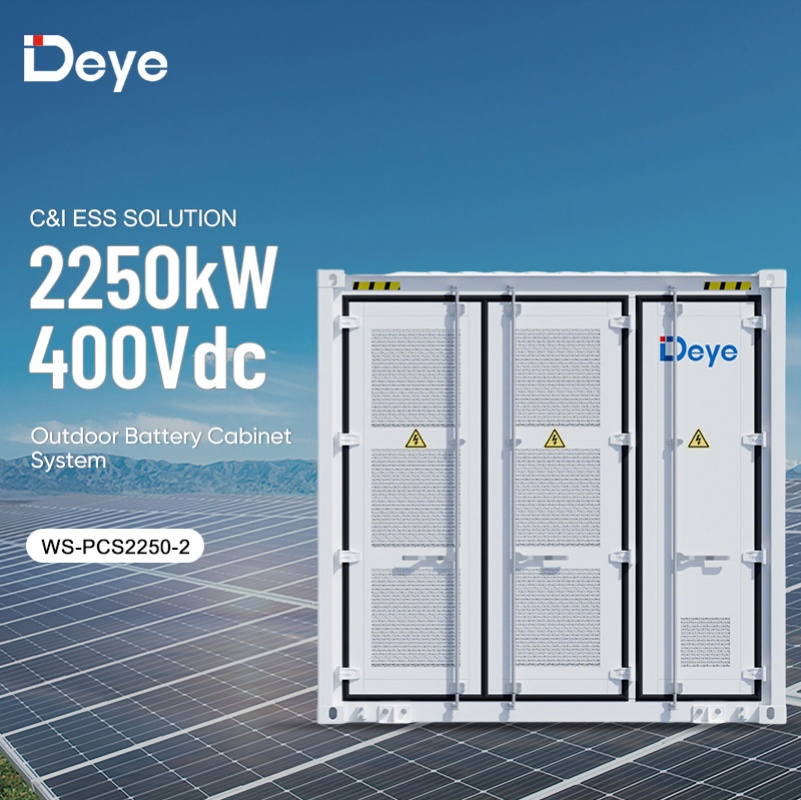

The WS-PCS2250-2 is a high-power utility-scale Power Conversion System designed for large-scale battery energy storage systems (BESS). It integrates bi-directional AC/DC conversion, PV inverter functionality, and grid-forming capability into a single 10ft compact container. Ideal for peak shaving, microgrids, VPP, and hybrid diesel-PV-storage applications.

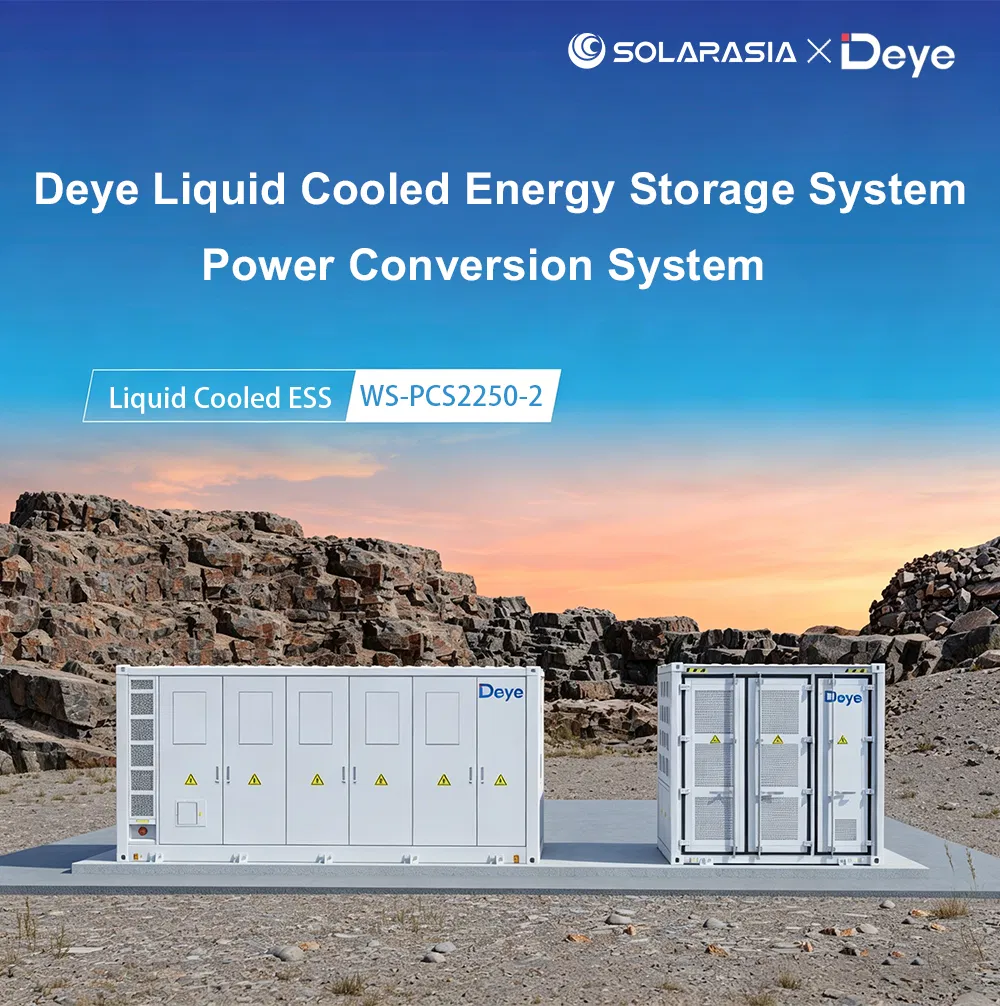

WS-PCS2250-2 Overview

Basic Info

Model NO.: WS-PCS2250-2
Nominal Voltage: 400V
Nominal Capacity: 2250 Kw (18 × 125 Kw)
Ingress Protection: IP54
Operating Temp: -25°C ~ +55°C
Power Factor: -1 ~ +1
Internal view 1
Internal view 2

Product Parameters

AC Rated Power2250 kW (18 × 125 kW)
AC Rated Voltage/Frequency400 Vac / 50 Hz (3L+N+PE)
AC Rated Current3248 A (18 × 180.4 A)
Battery Input Voltage Range630 Vdc – 1000 Vdc
Max PV Input Power3600 kW (18 × 200 kW)
No. of MPP Trackers144 (18 × 8)
Ingress ProtectionIP54
Anticorrosion GradeC4-M (C5 optional)
Weight11,500 kg
Dimensions (W×D×H)2991 × 2438 × 2896 mm

Application & Solutions

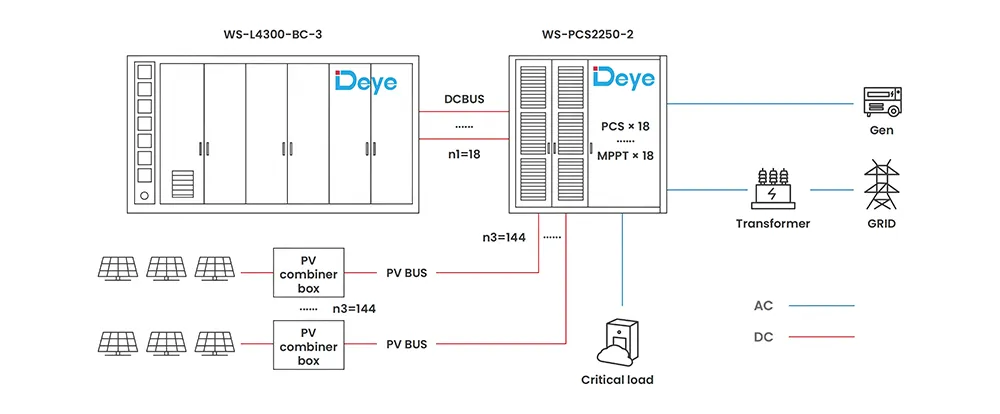

Microgrid Solution Diagram

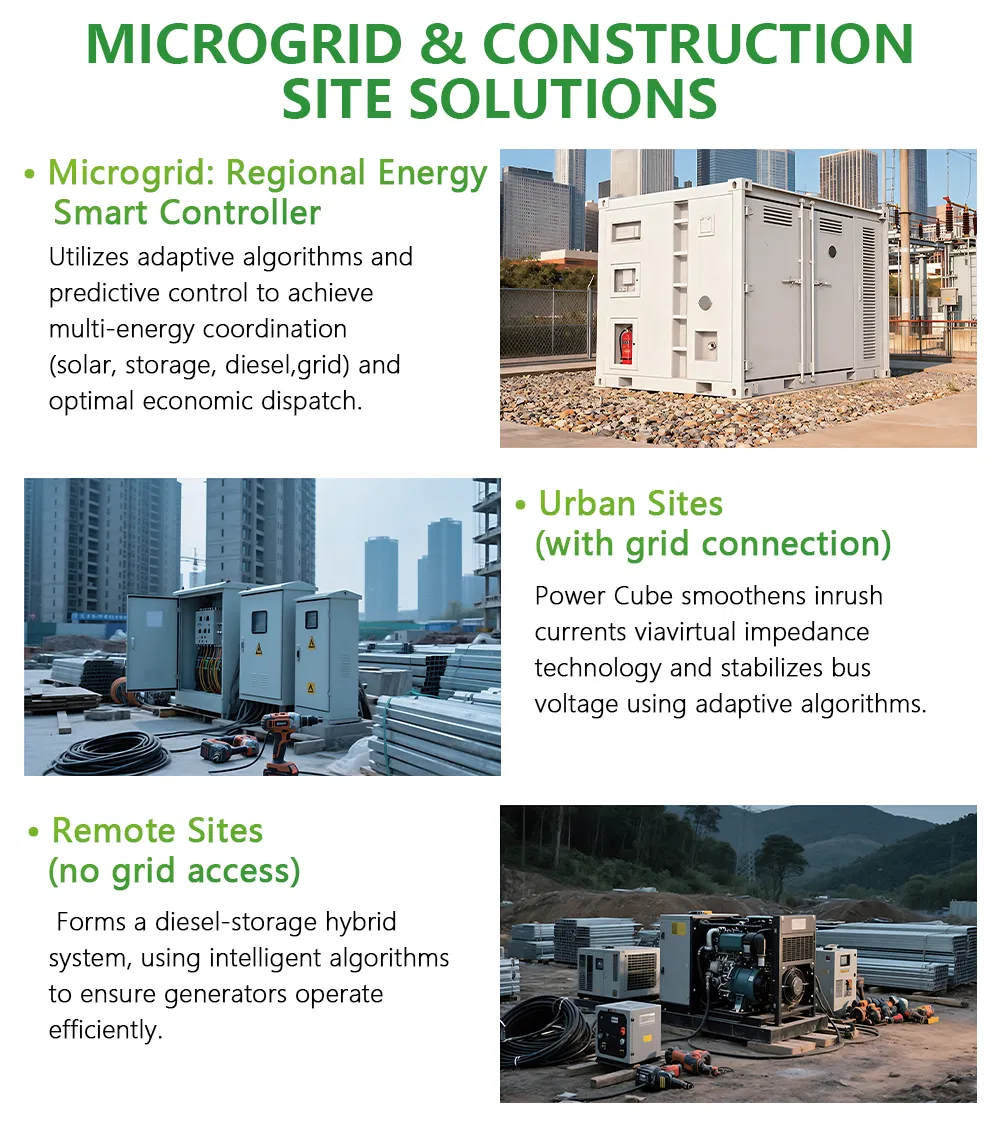

Hybrid Solar PV Battery Inverter Application

Packaging & Shipping

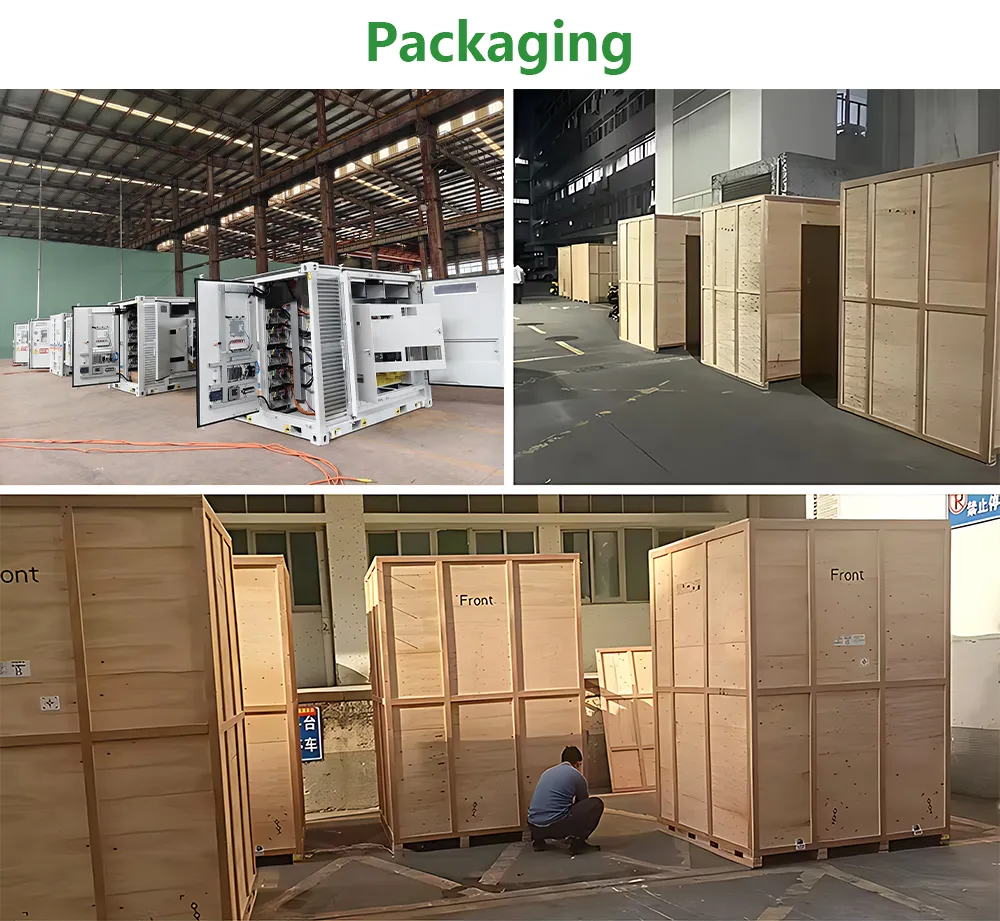

Containerized Packaging

Certifications & Production

Certifications
Production Facility
Testing Center

Frequently Asked Questions

Q1: Is the WS-PCS2250-2 a battery or an inverter? A: It is a PCS – a bidirectional power converter that connects batteries to the grid, loads, and PV arrays. It performs both inverter (DC to AC) and rectifier (AC to DC) functions.
Q2: Can this PCS work without PV input? A: Yes. The PV inputs are optional. The PCS can operate purely as a battery energy storage inverter using only the battery DC terminals.
Q3: What battery voltage range does it support? A: It supports a 630Vdc to 1000Vdc battery input voltage, compatible with most utility-scale LFP battery racks.
Q4: Does it support off-grid operation? A: Yes. It supports on-grid, off-grid, and microgrid modes, including seamless transition between grid-tied and islanded operation.
Q5: What is the IP rating? A: The WS-PCS2250-2 has an IP54 ingress protection rating, suitable for outdoor installation with protection against dust and splashing water.
Q6: Can multiple units be used together? A: Yes. The system is designed for modular scalability – multiple WS-PCS2250-2 units can be paralleled for larger energy storage projects.
