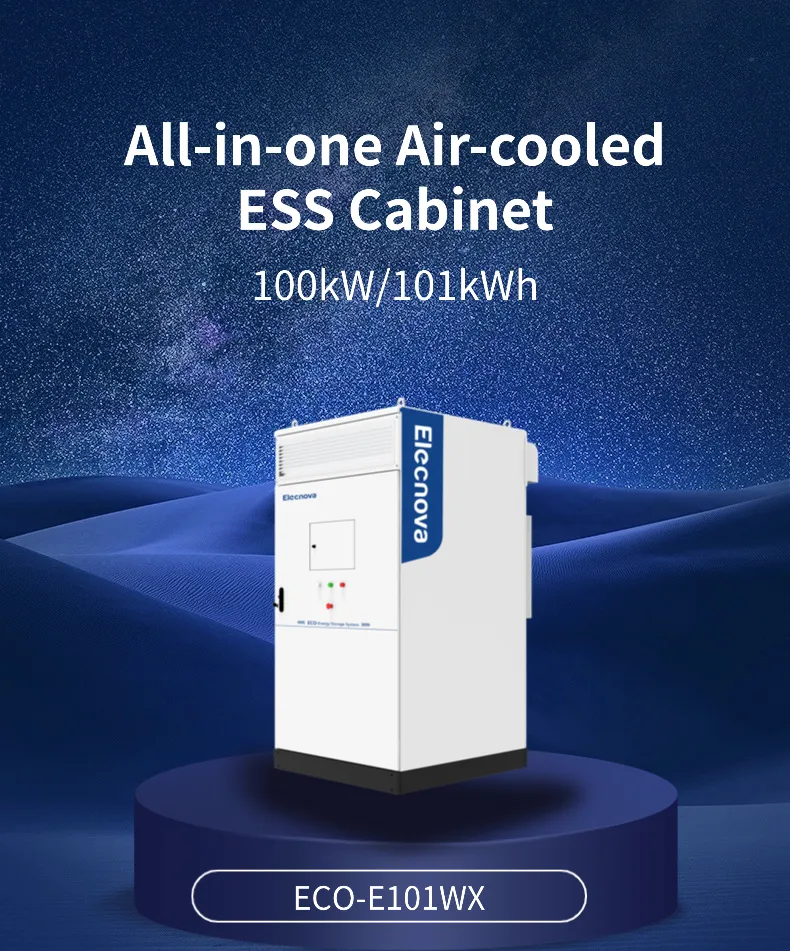

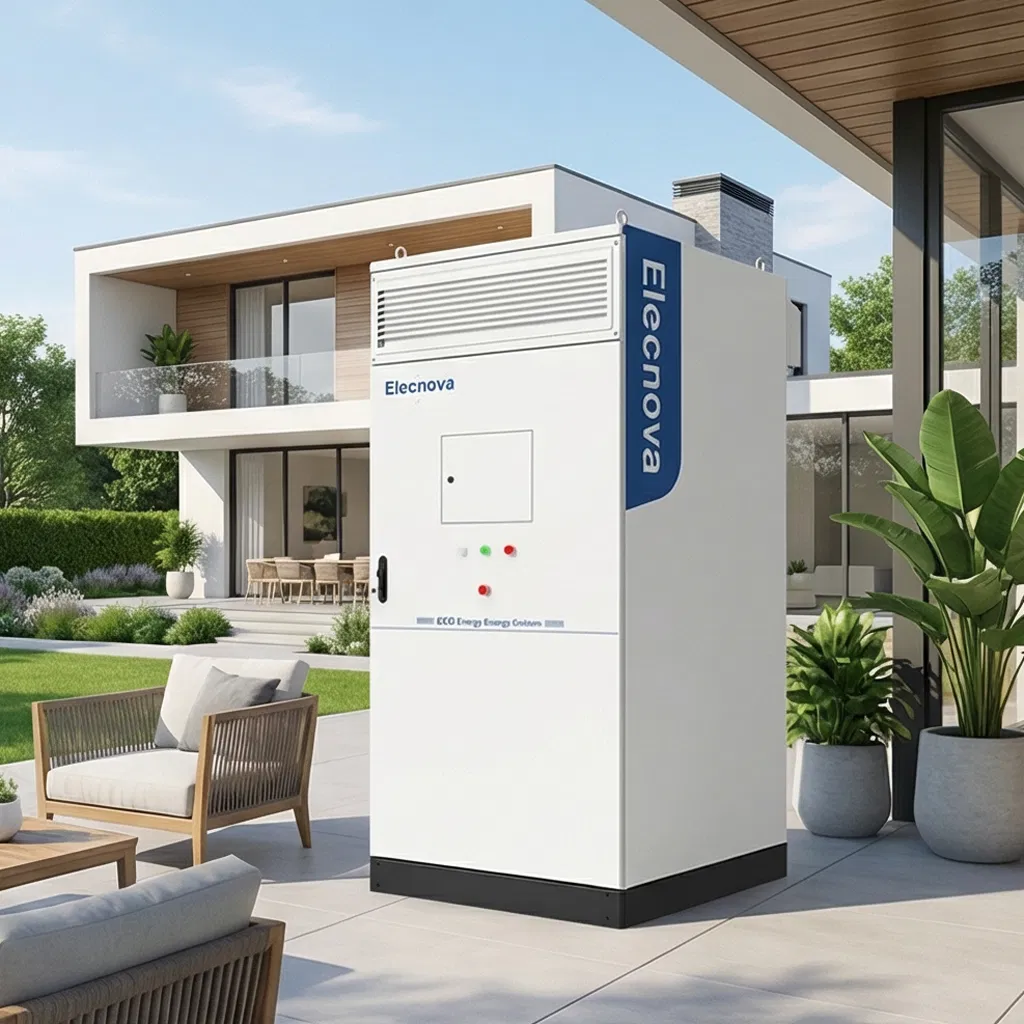

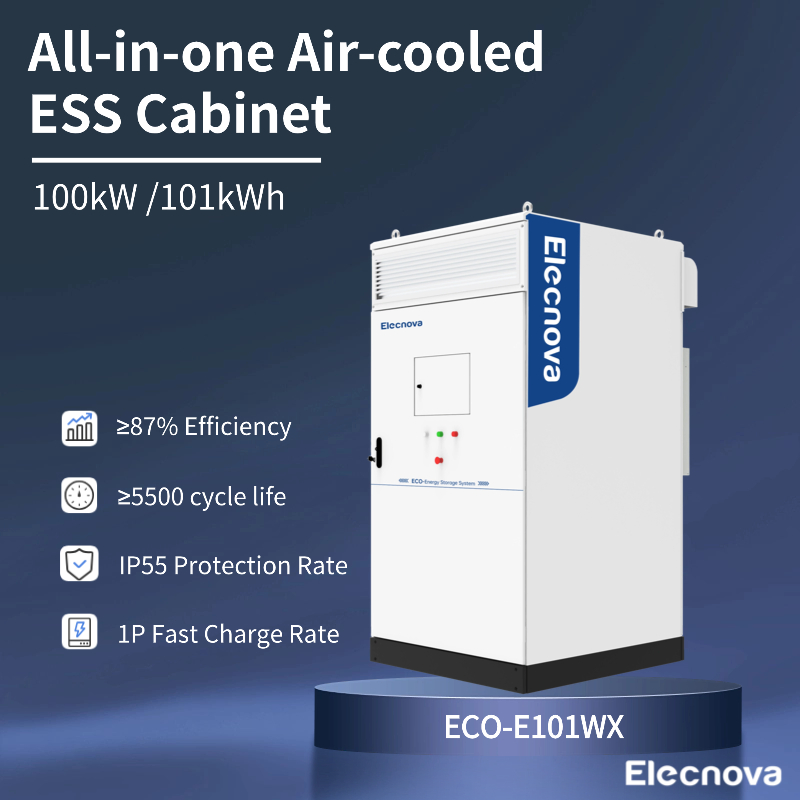

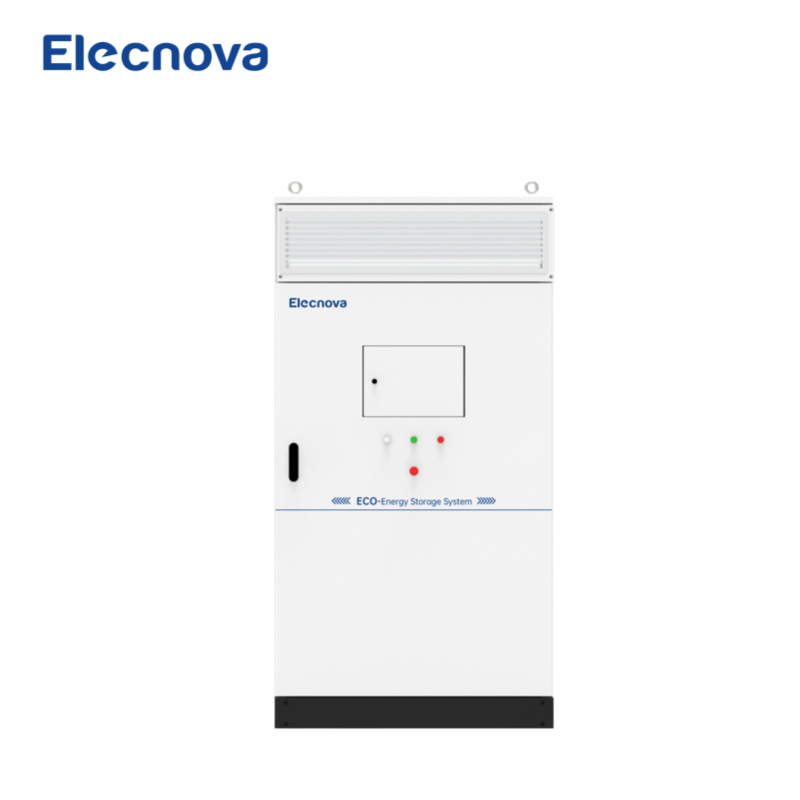

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99/ -1 ~ +1 |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Weight | 2,000 kg |
| Certification | UN38.3, IEC62619, IEC63056, EN50549 |

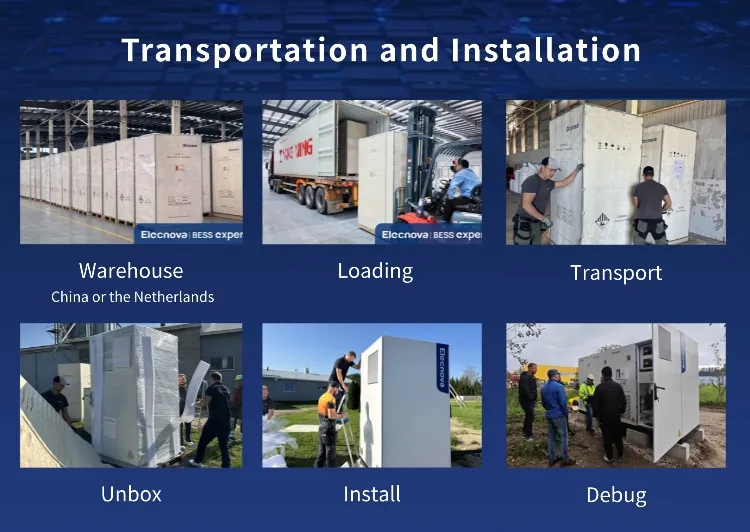

Our systematic delivery process ensures your BESS operates reliably from warehouse to commissioning:

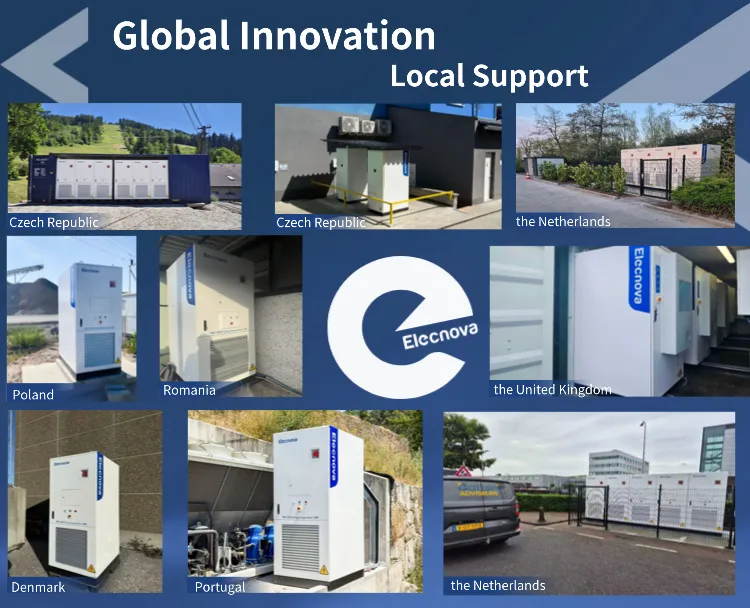

Trusted across Europe, Southeast Asia, Africa, and the Middle East, our solutions empower energy security worldwide. We offer an industry-leading max 5+5 years warranty, coupled with performance coverage of up to 8000 cycles at 75% SOH. Specialized support includes on-site training and 3rd party EMS testing.

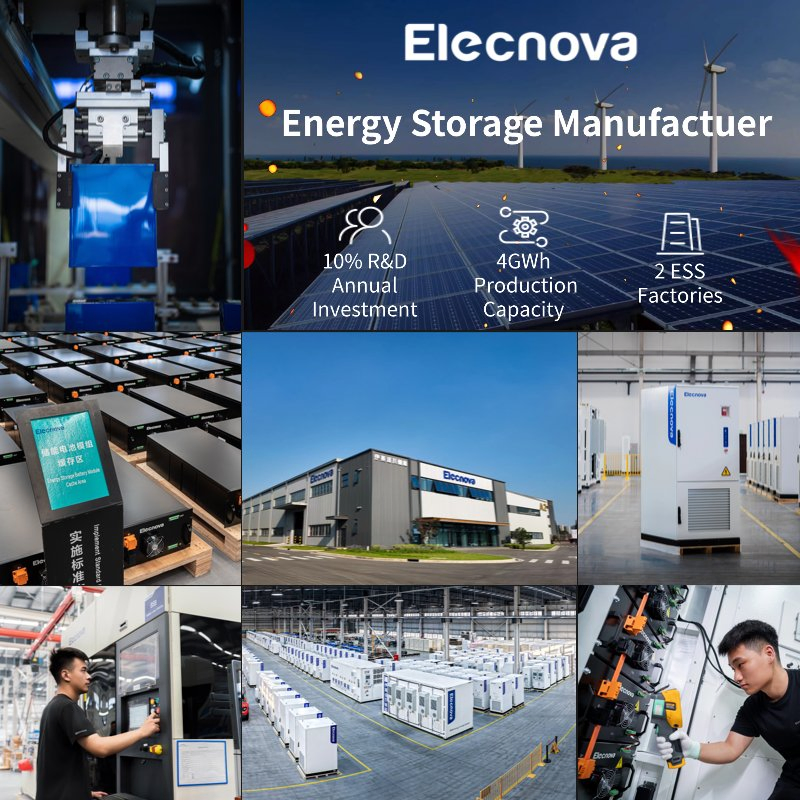

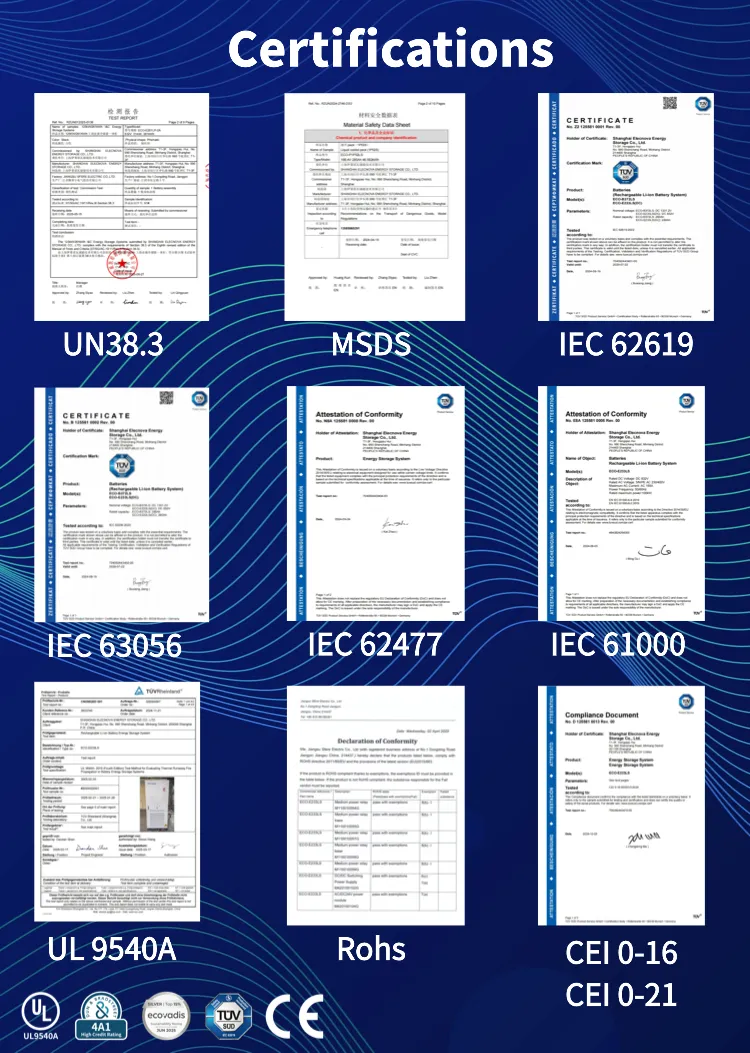

With 28 years of industry experience and 2GWh production capacity, we operate automated Module and PACK lines under CNAS laboratory certification. Our compliance includes UN38.3, IEC 62619, IEC 63056, and UL 9540A.
