Basic Product Information

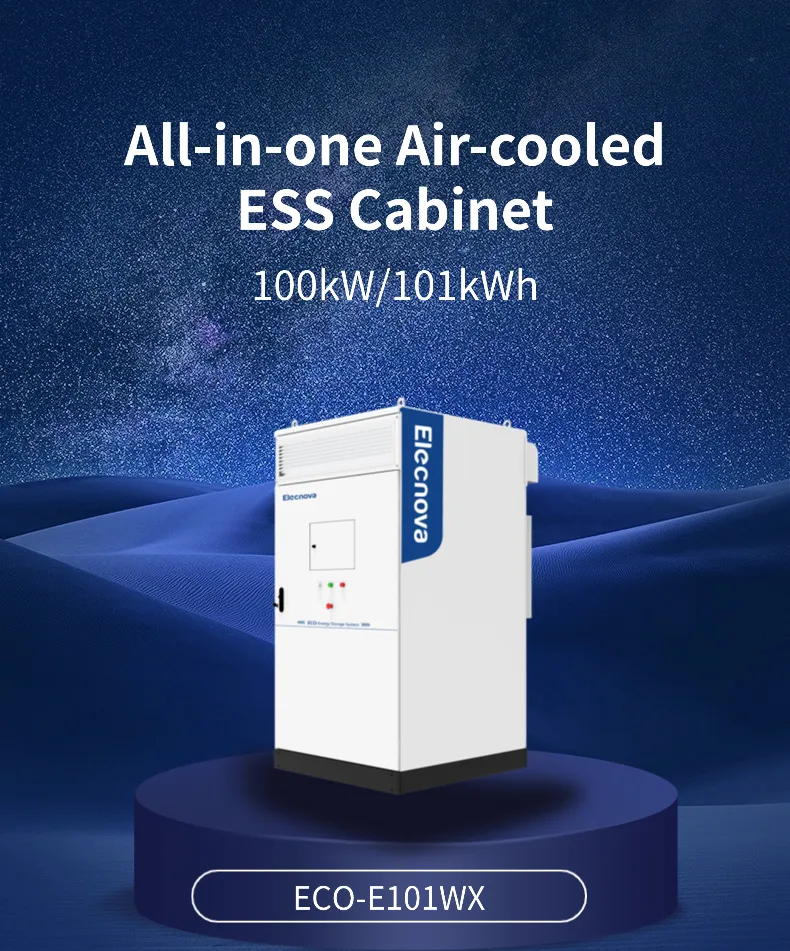

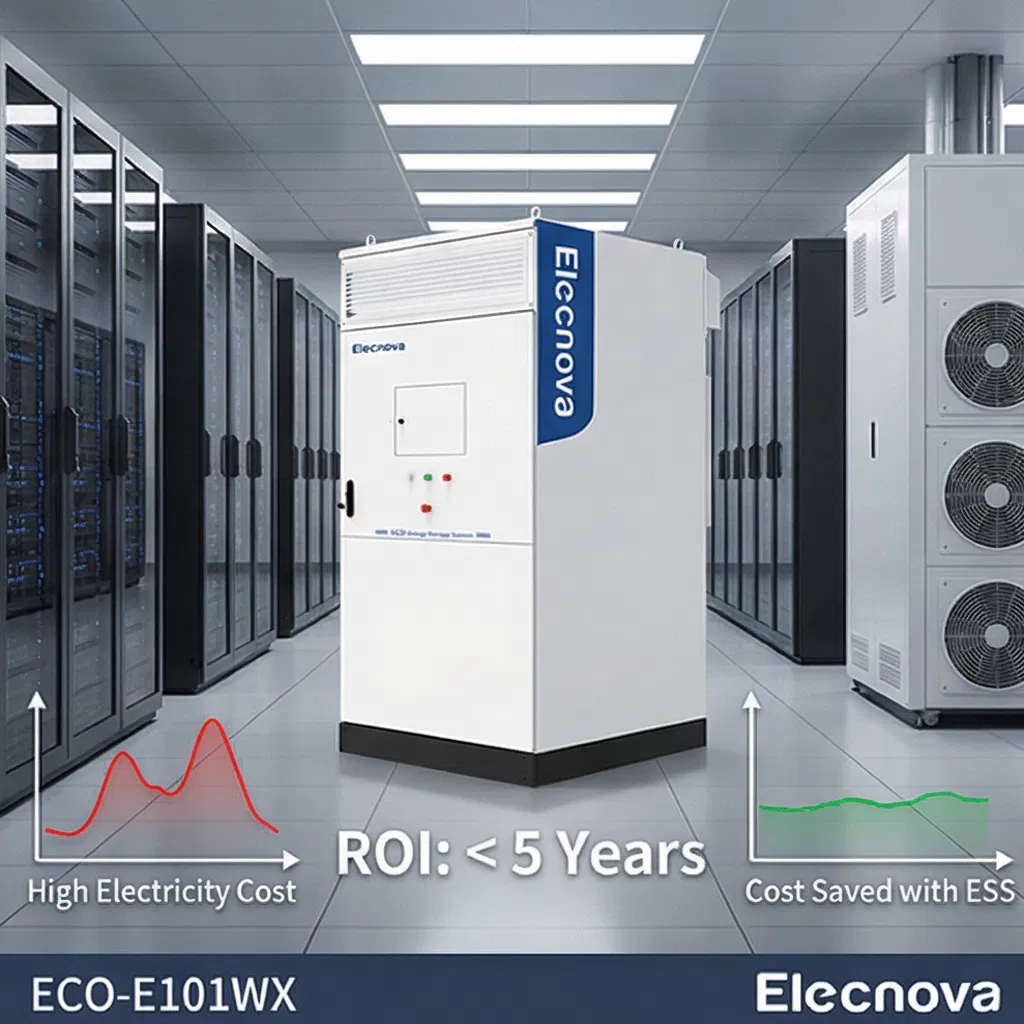

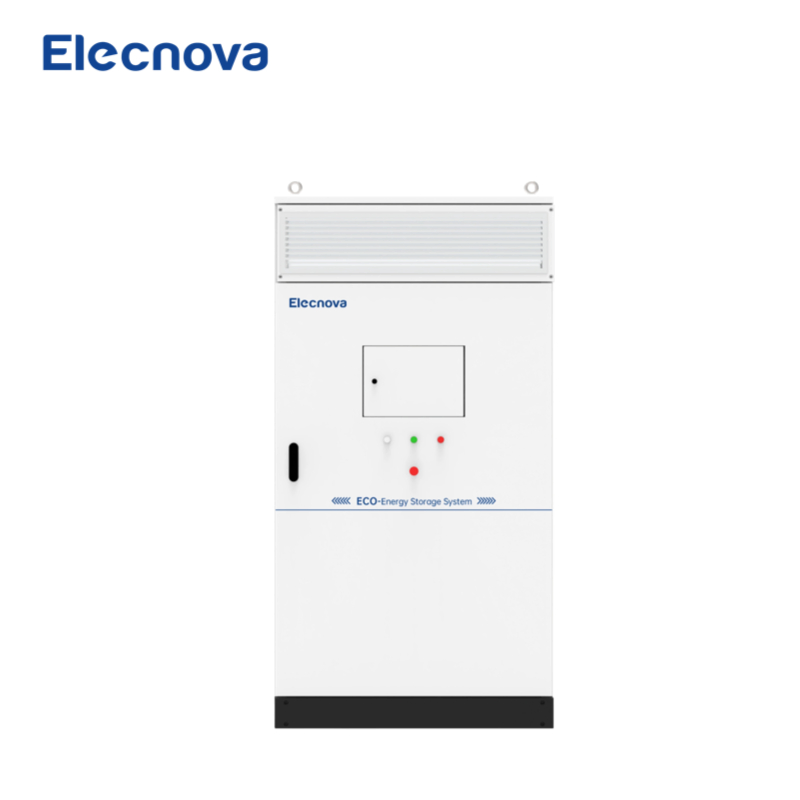

Model: ECO-E101WX
The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

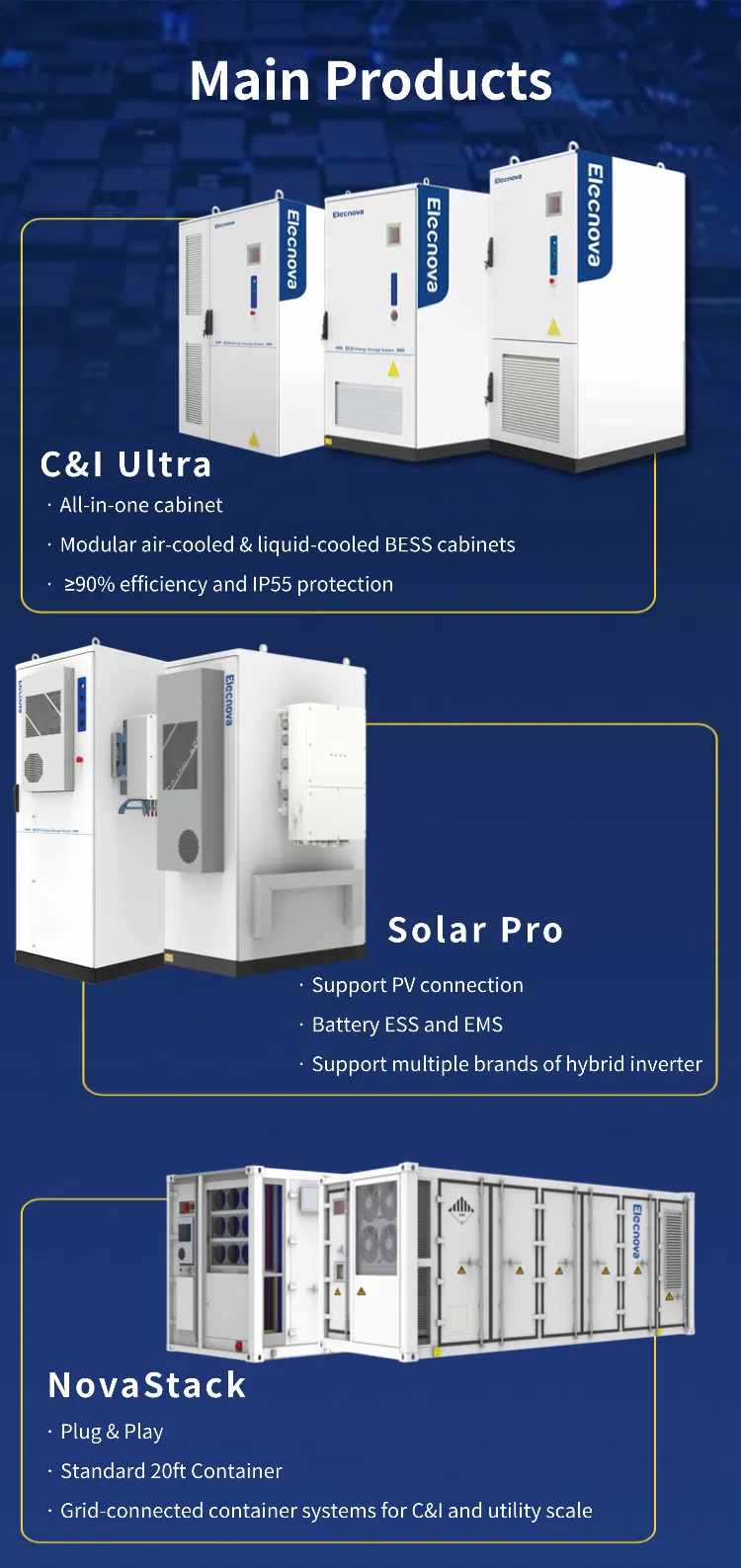

Flagship Product Lines
Technical Parameters
| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| PACK Configuration | 9.2 kWh / 1P24S |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General Data | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
| Certification | UN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056, EN50549 |

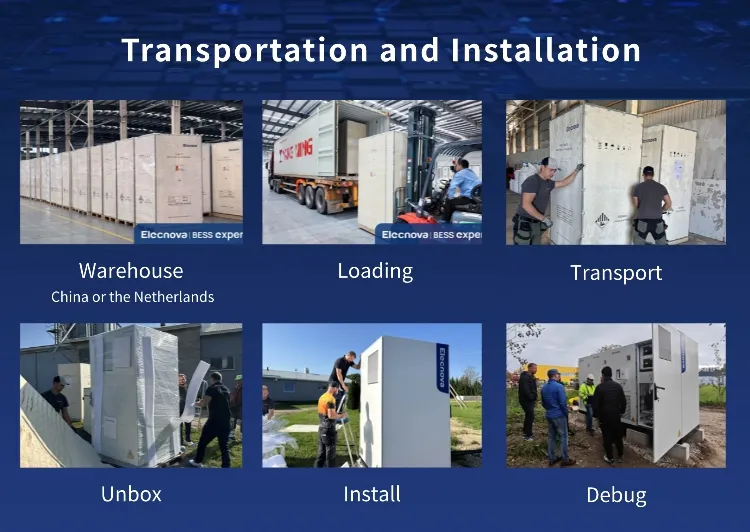

Packaging & Shipping Process

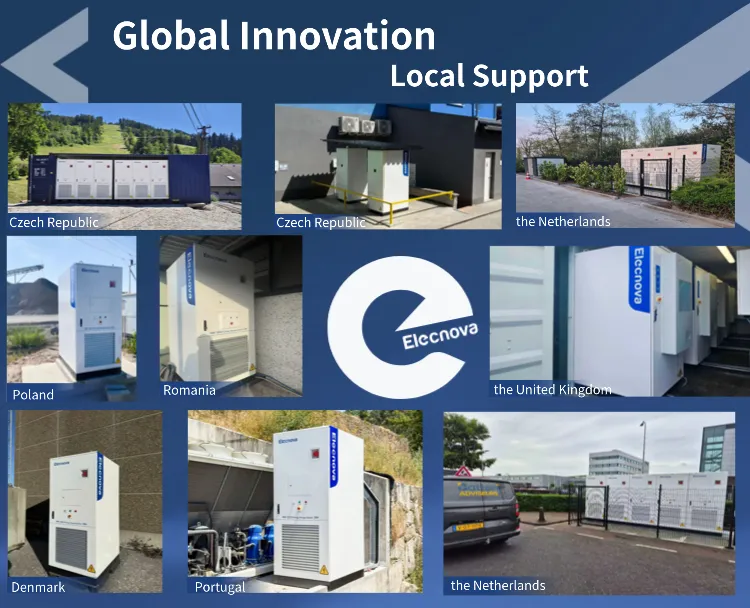

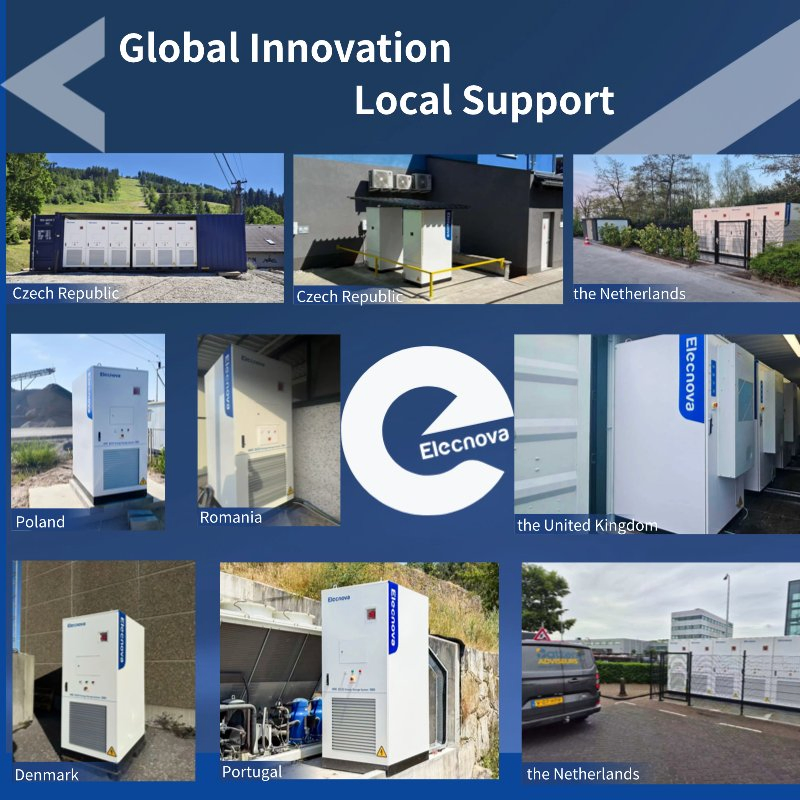

Global Presence & After-Sales

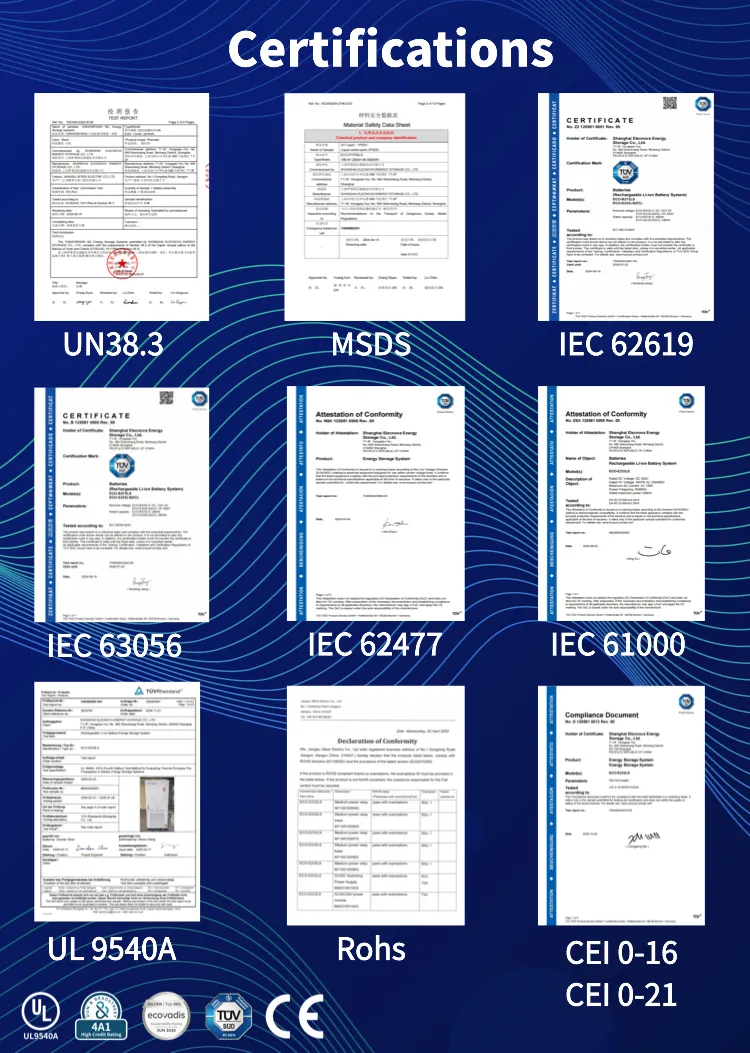

International Certifications

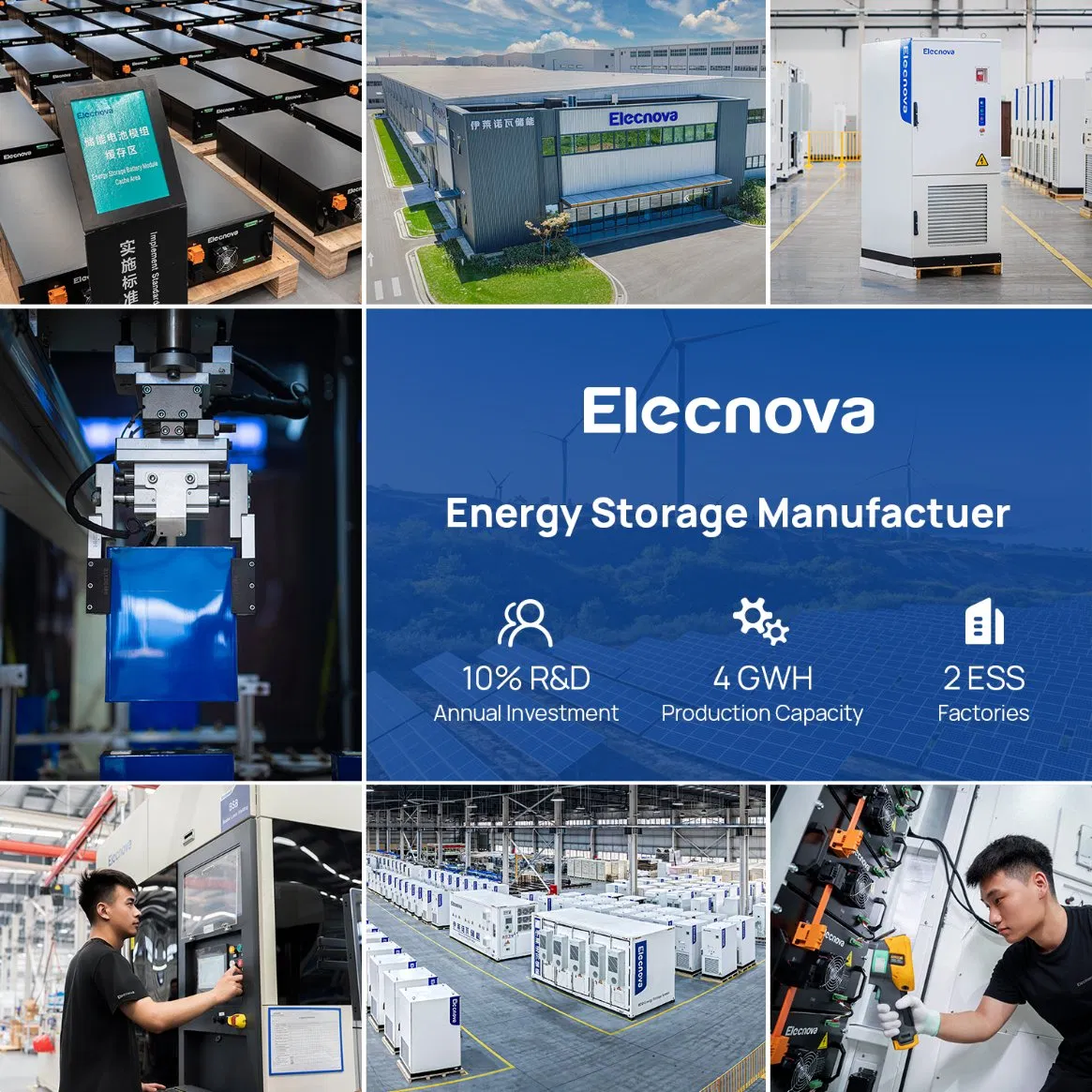

Manufacturing Excellence
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer based in China since 1998, with over 600 employees specializing in energy storage systems.
Do you provide OEM and ODM services?
Yes, we offer comprehensive OEM and ODM services, subject to minimum order quantity requirements.
How are the battery products shipped?
We work with professional long-term cooperated forwarders who specialize in safe battery shipments by sea or air.
What is the standard warranty period?
Our warranty typically ranges from 5 to 10 years, depending on the specific product configuration and project requirements.
What after-sales support do you offer overseas?
We have overseas branches and service partners (e.g., in the Netherlands) that provide localized repair, replacement, and technical training.
Can I request a sample of the system?
Yes, samples can be arranged. Please reach out to our team to discuss your specific requirements and contact details.
