| Model NO. | ECO-E101WX |
| Nominal Capacity | 101kwh |
| Cycle Life | 6000 Cycles |
| Application | Industrial Commercial Factory |
| Cooling | Air-Cooled |
| Communication Port | Modbus TCP/IP |
| Grid Type | on Grid / off Grid |
| BMS | Built-in BMS Protection |
| Transport Package | Wooden Case |

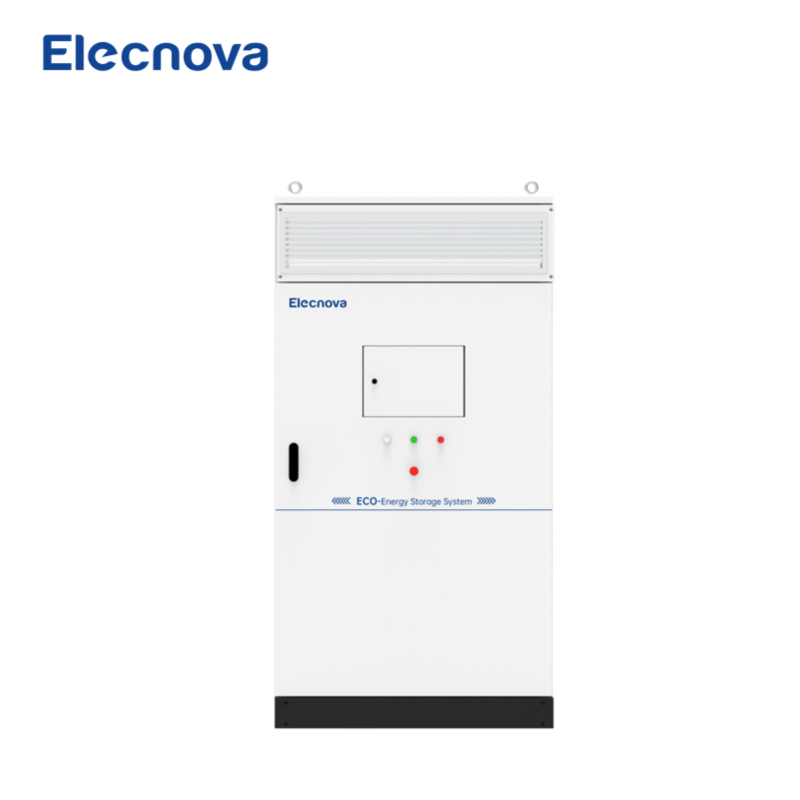

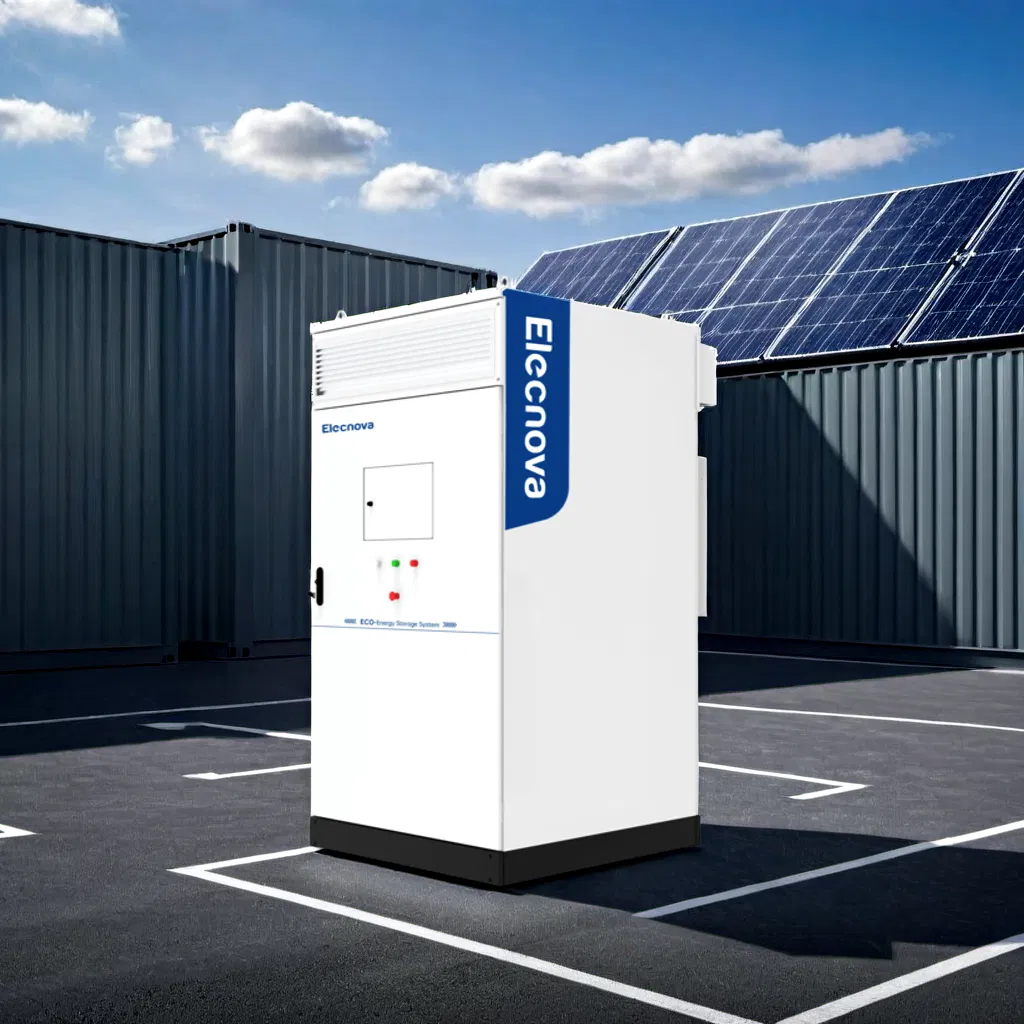

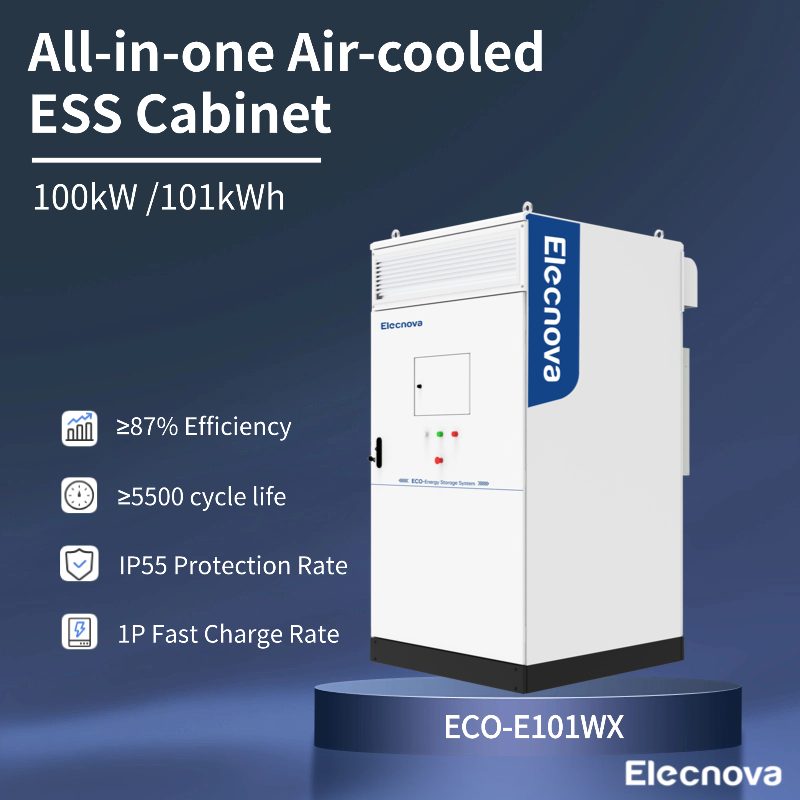

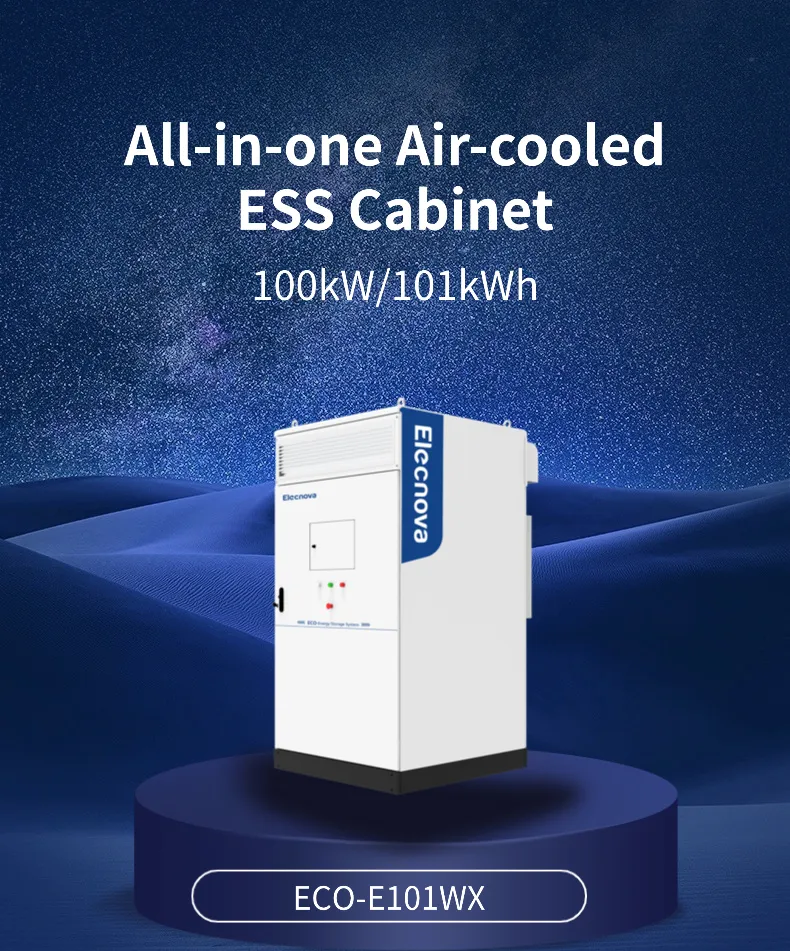

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet. It enables long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

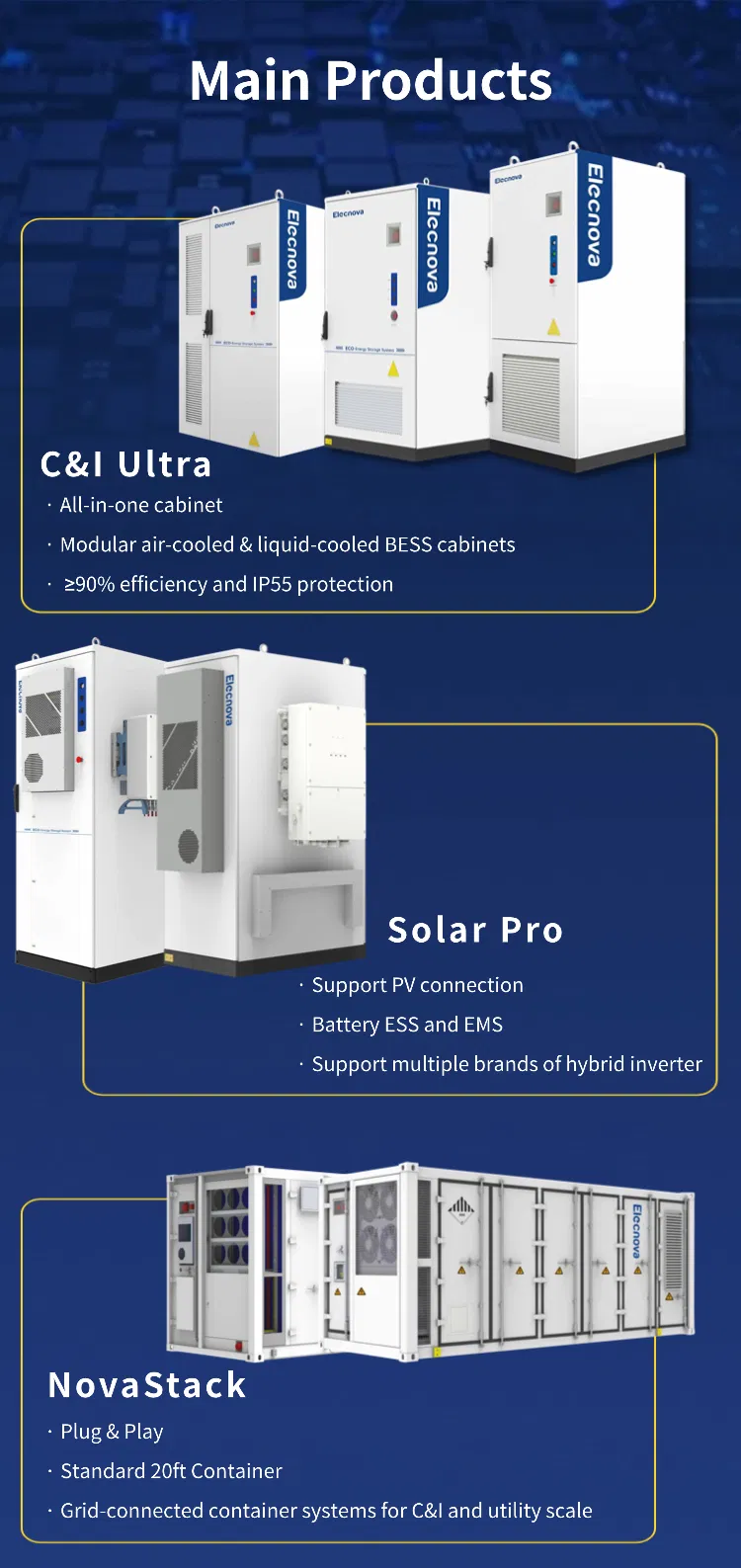

Modular BESS cabinets (air/liquid-cooled) with ≥90% efficiency and IP55 protection.
Integrates with PV systems, featuring battery ESS, EMS, and hybrid inverter compatibility.
Plug-and-play 20ft container systems for utility-scale energy storage projects.
| DC Side Specifications | |
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General Data | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

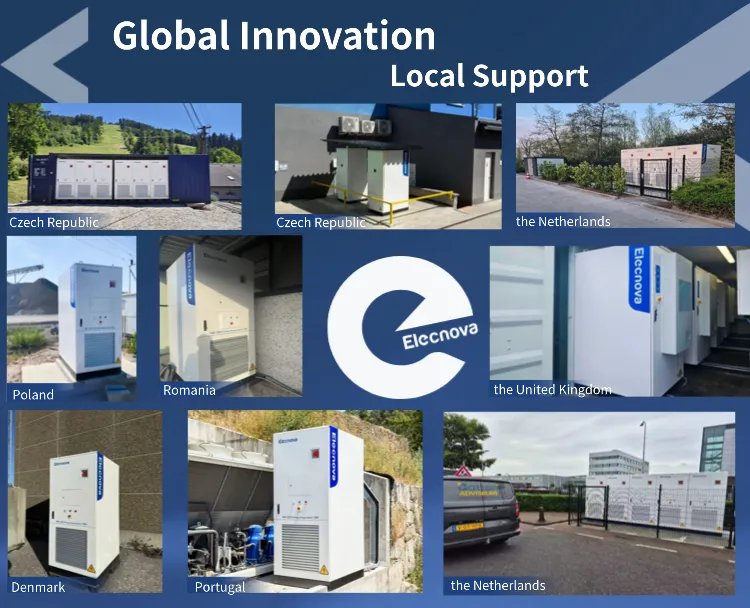

Our energy storage solutions are transforming energy landscapes worldwide, from Europe (Italy, Netherlands, Belgium) to Southeast Asia and the Middle East. We offer an industry-leading max 5+5 years warranty and comprehensive technical guidance.

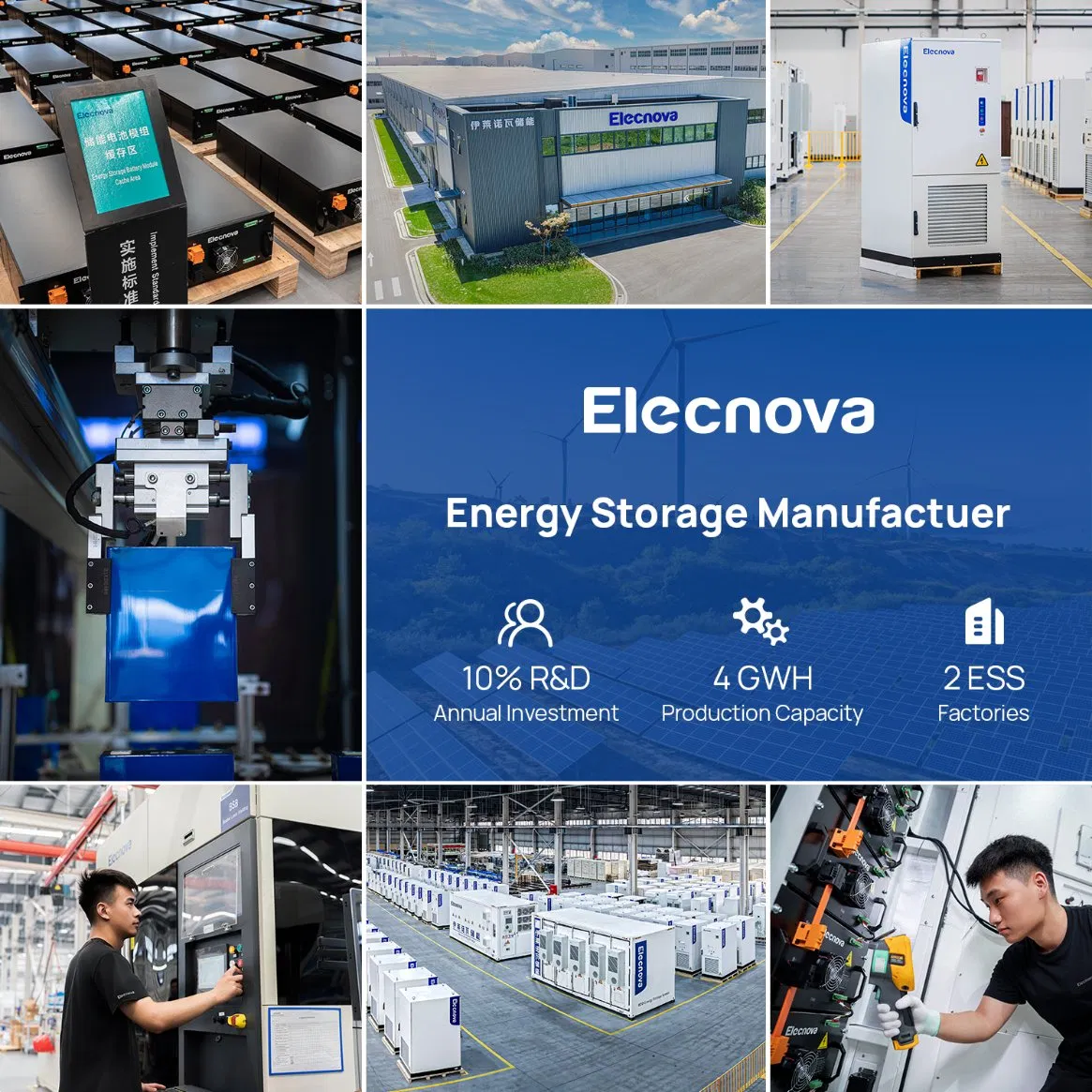

With nearly 30 years of industry experience, we operate 2 ESS factories with a production capacity of 2GWh. Our facilities hold CNAS laboratory certification, ensuring rigorous quality control and professional OEM & ODM manufacturing.
