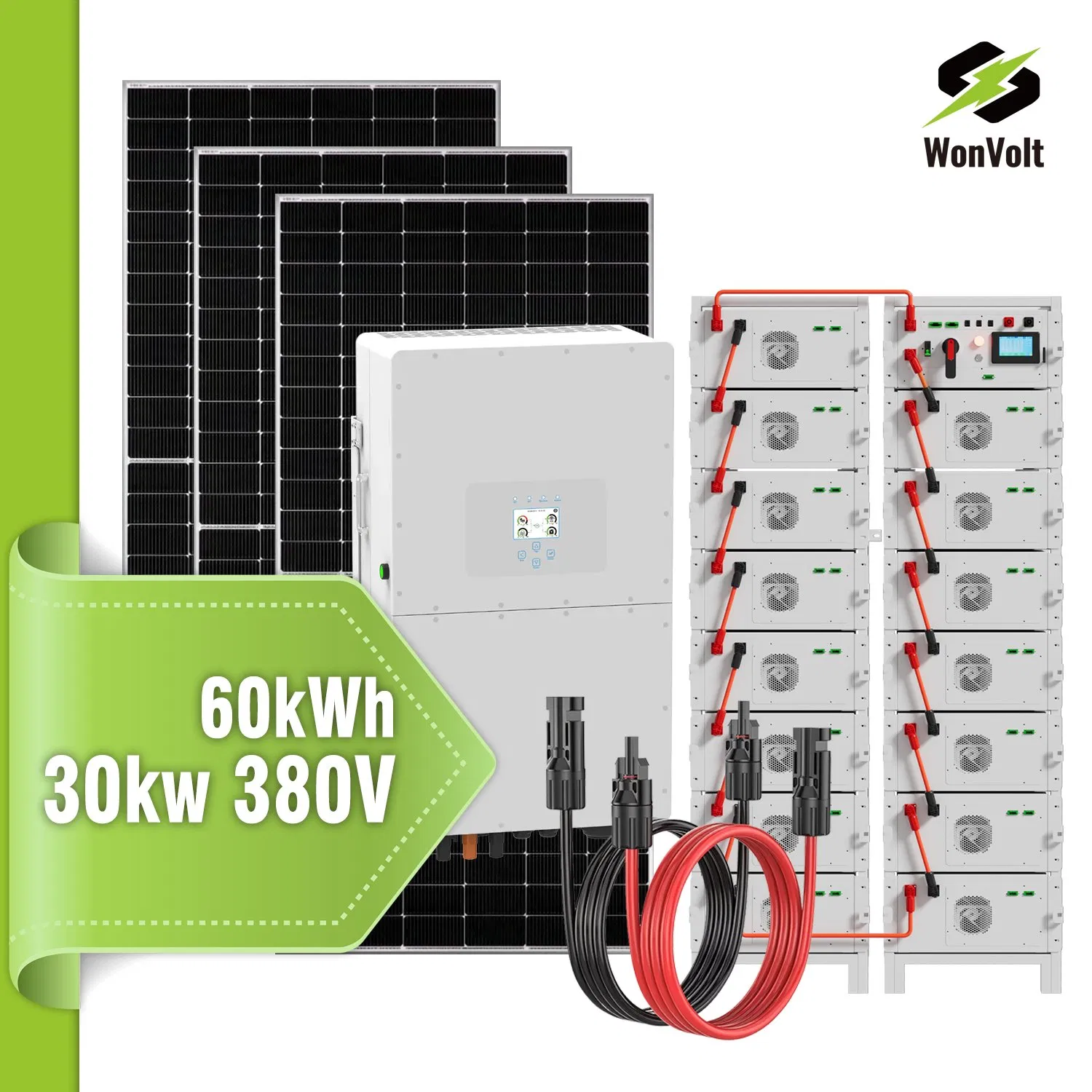

Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
1 / 5
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery
Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery

Deye 30kw 64kwh Low Voltage Parallel Bess for Microgrid Solar Energy System with Lithium Battery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information Overview
Model NO.
WV-30KW-64KWh-EU
Condition
New
Certification
ISO, CB, CE, Un38.3 MSDS
Application
Home, Industrial, Commercial, Microgrid
Cycle Life
10000 Times Solar Battery
Nominal Capacity
32kwh - 200kwh Lithium Battery
AC Output
380V/400V/415V/480VAC/220V
Battery Type
LiFePO4/Lithium Battery 48V 51.2V
Origin
China
Production Capacity
50000 sets/Year
Commercial Energy Storage System

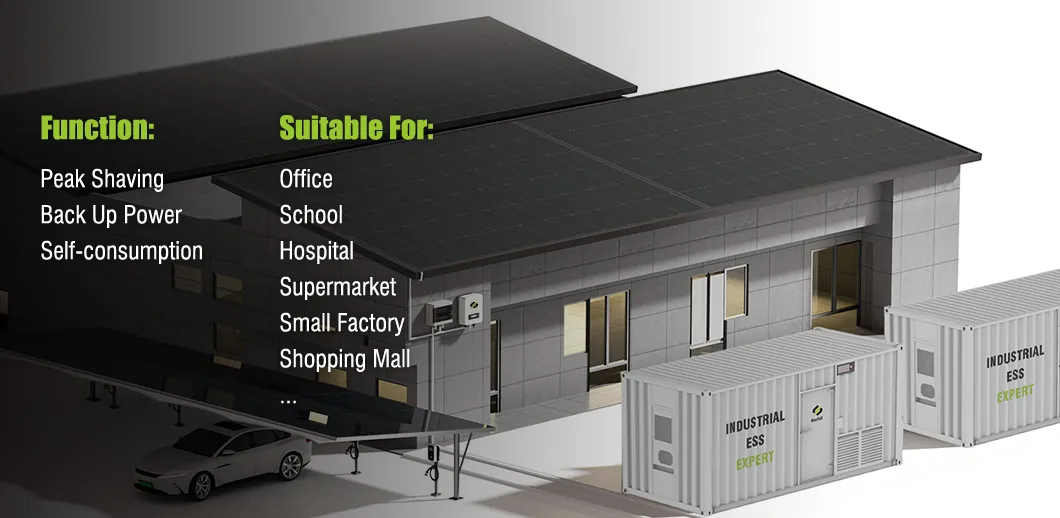

Commercial ESS Overview
System Configuration Specifications
Equipment Model 30KW/64kWh 50KW/97kWh 80KW/161kWh
N type Solar PanelWV-66KUN660-H12S48pcs80pcs120pcs
Hybrid Inverter220 / 380 / 480VAC30KW50KW80KW
Lithium Ion BatteryWV51314H4pcs6pcs10pcs
ConnectorMC410 pairs20 pairs28 pairs
PV cablePV1-F 1*4/6mm2200m400m500m
ATS (Optional)ATS**KWATS30KWATS50KWATS80KW
Remote ControlWIFI/Enterlog/BR300111
Mounting StructureRoof/Ground111
Equipment Model 100KW/193kWh 125KW/241kWh 160KW/322kWh
N type Solar PanelWV-66KUN660-H12S160pcs204pcs240pcs
Hybrid Inverter220 / 380 / 480VAC100KW125KW80KW*2pcs
Lithium Ion BatteryWV51314H12pcs15pcs20pcs
ConnectorMC428 pairs42 pairs56 pairs
PV cablePV1-F 1*4/6mm2500m800m1000m
ATS (Optional)ATS**KWATS100KWATS125KWATS150KW
Remote ControlWIFI/Enterlog112
Mounting StructureRoof/Ground111
Core Components
1

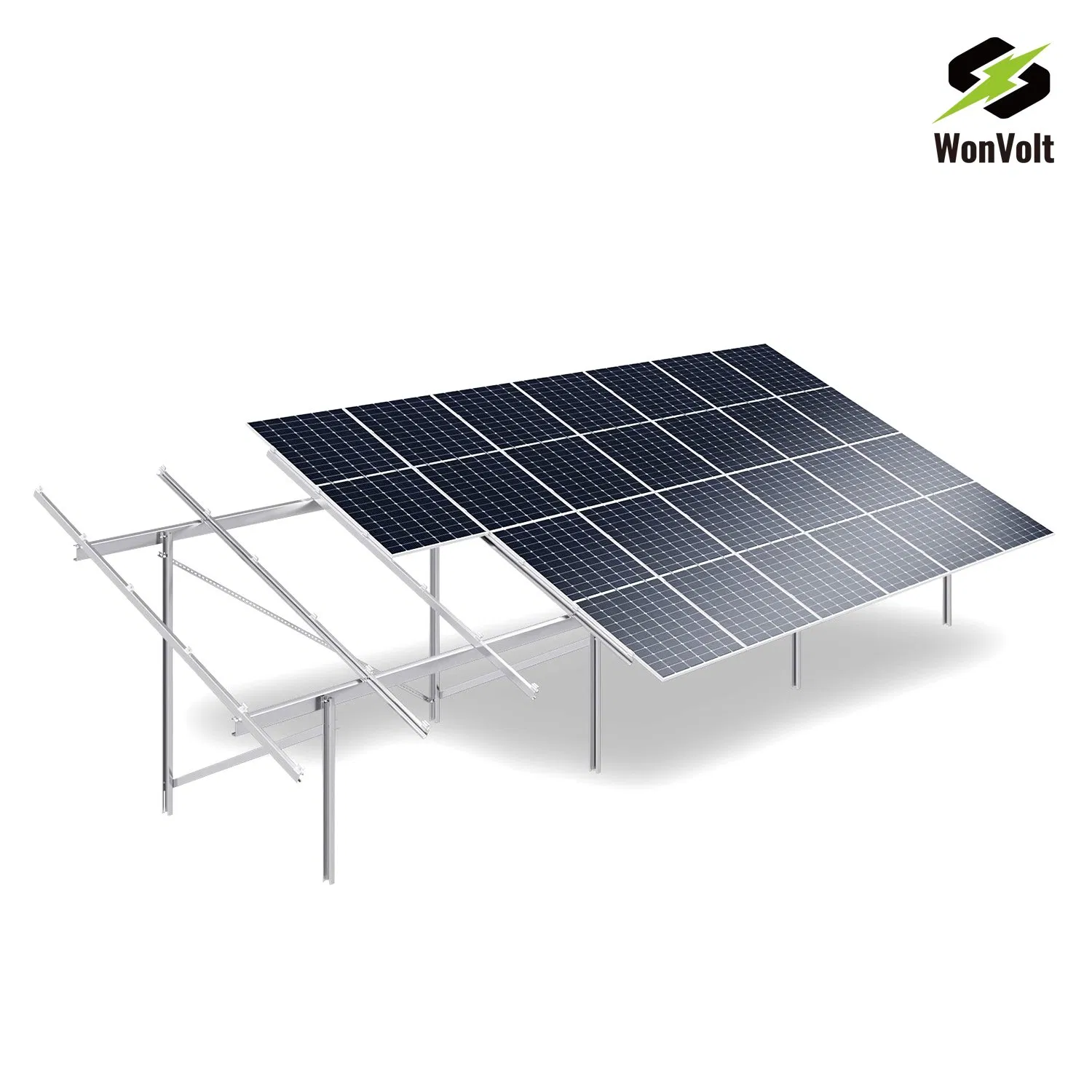

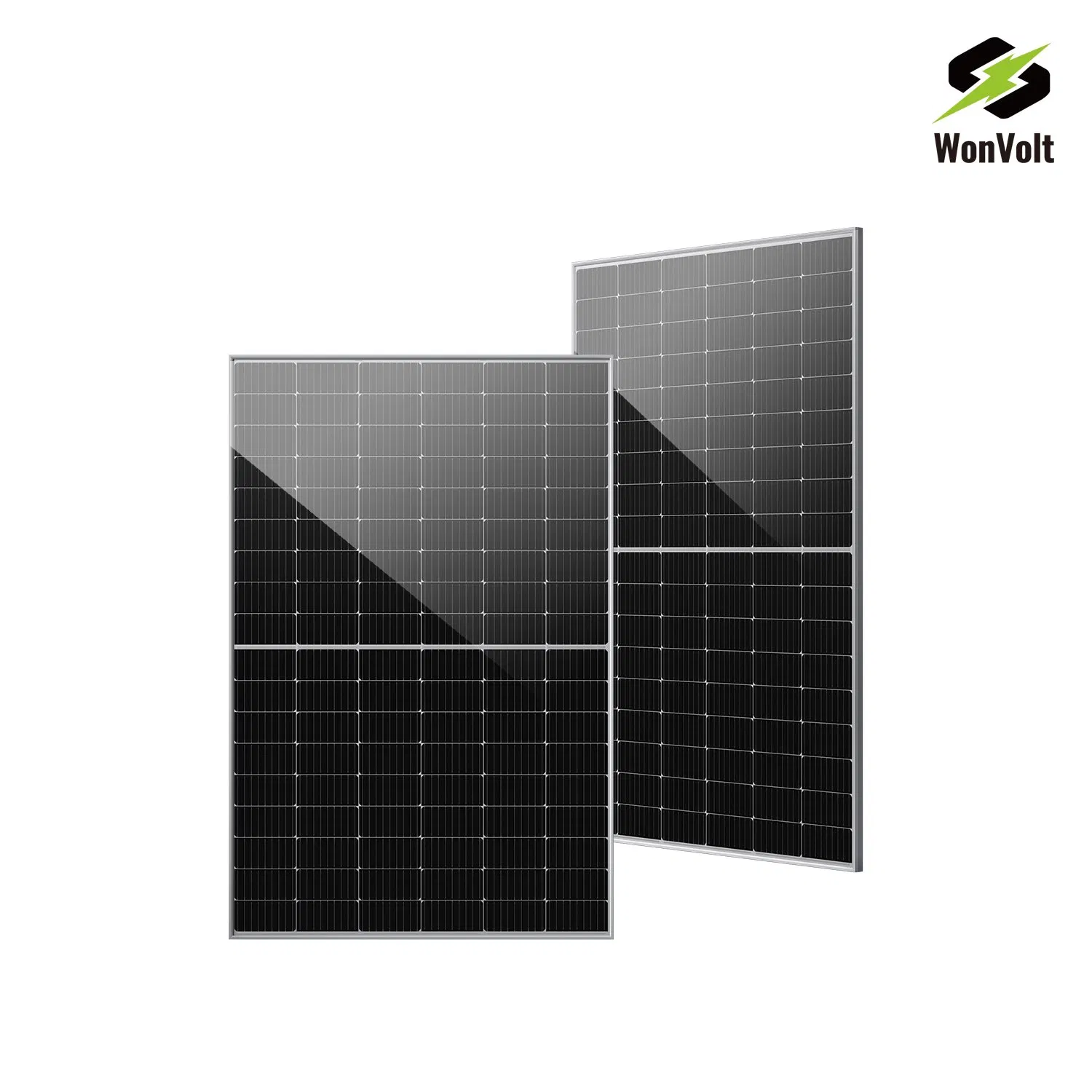

Solar Panels: N-type Monofacial or Bifacial dual glasses solar PV panels (420W-750W optional), available in black or silver frames.
2

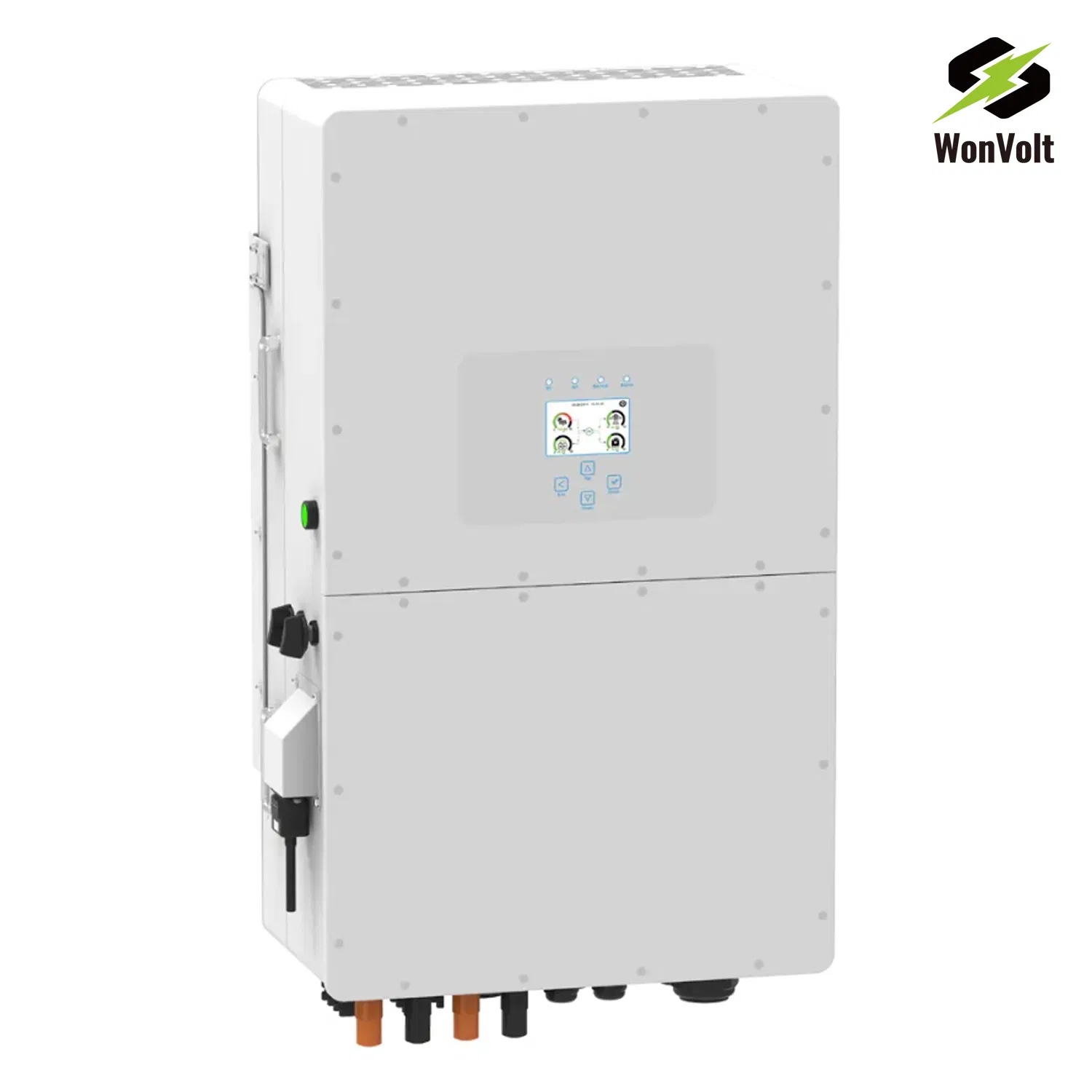

Solar Inverters: On-grid systems with PCS battery inverters and lithium batteries. Supports stand-alone off-grid and hybrid systems (1KW-100MWH).
3

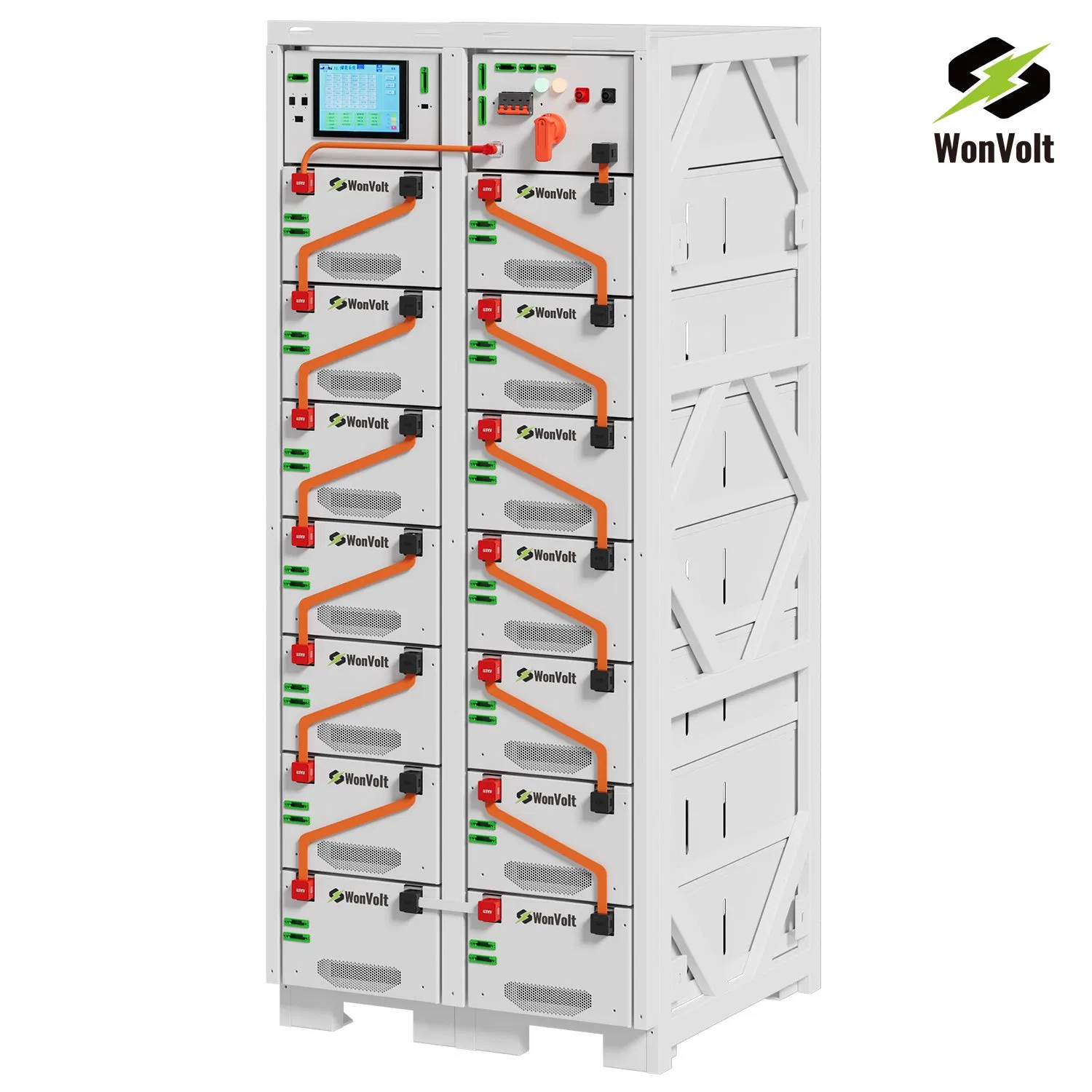

Battery Storage System: 0.5C or 1C battery cell solutions, battery cluster with BMS, EMS optional for advanced energy management.
4
BESS Container & Cabinet: Outdoor IP65 cabinets with fire protection and ventilation. Options include 10ft, 20ft, or 40ft configurations.
Topology and Technical Support

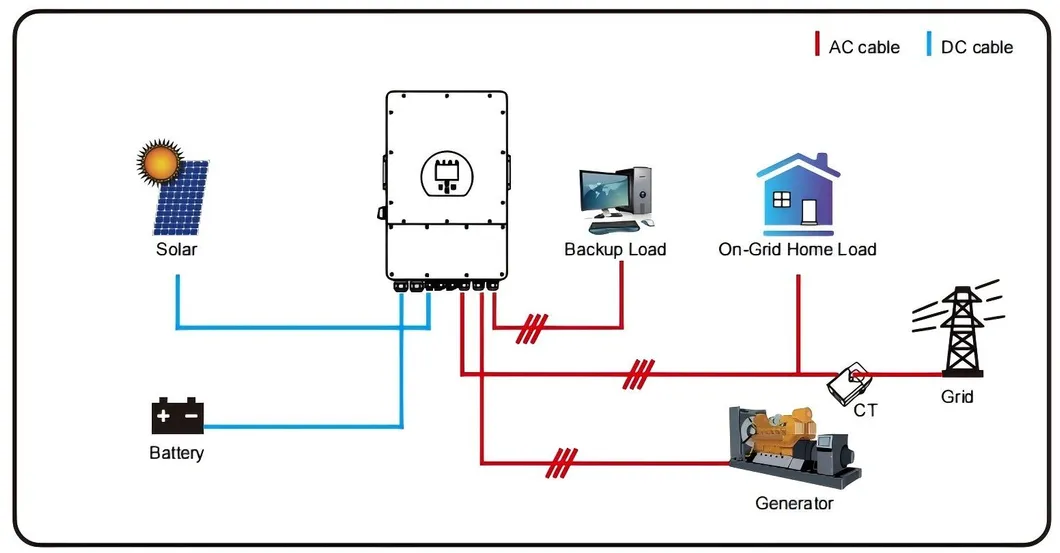

Topology Diagram

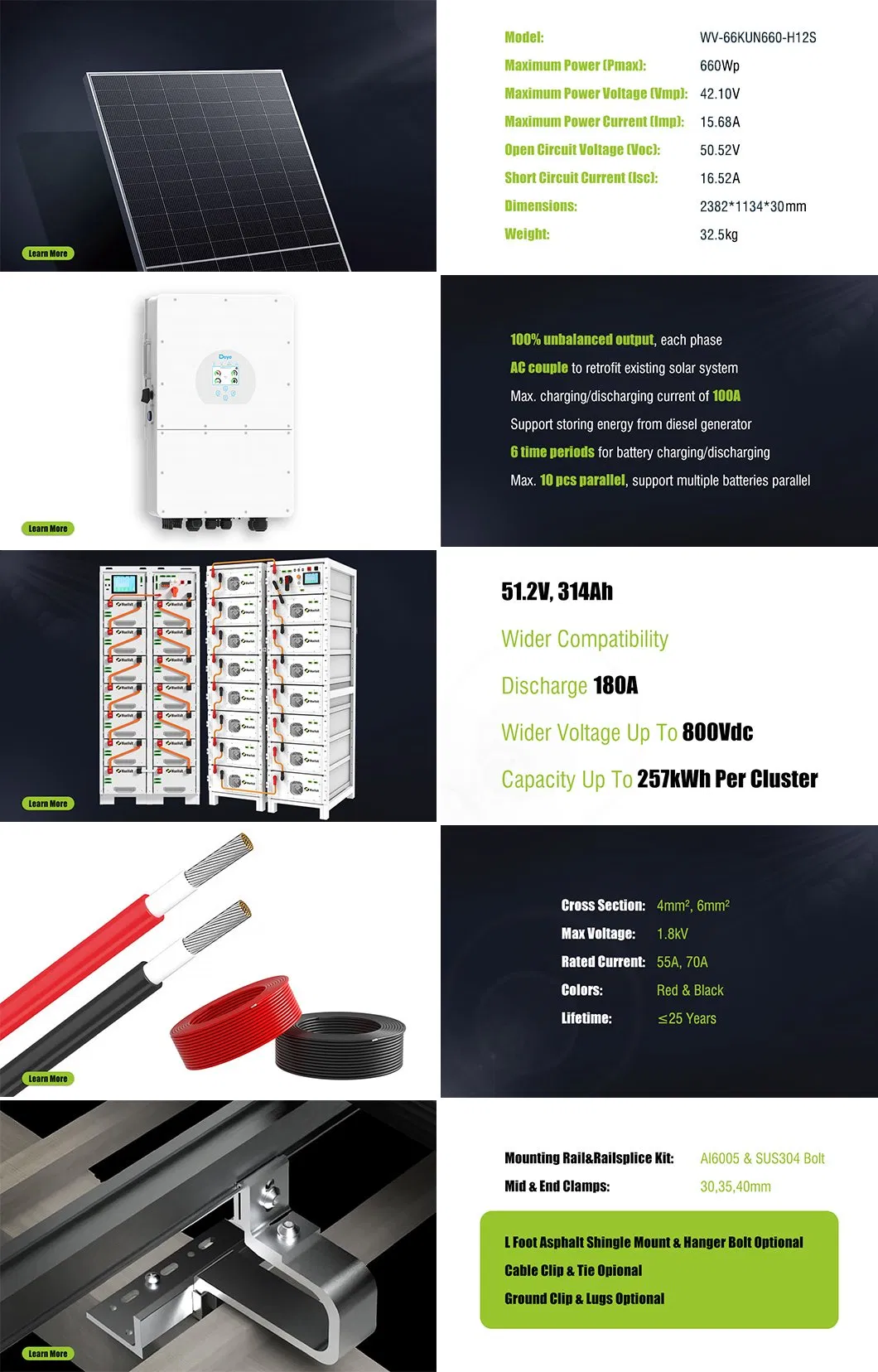

Product Description Details
System Performance Graphs
Technical Graph 1

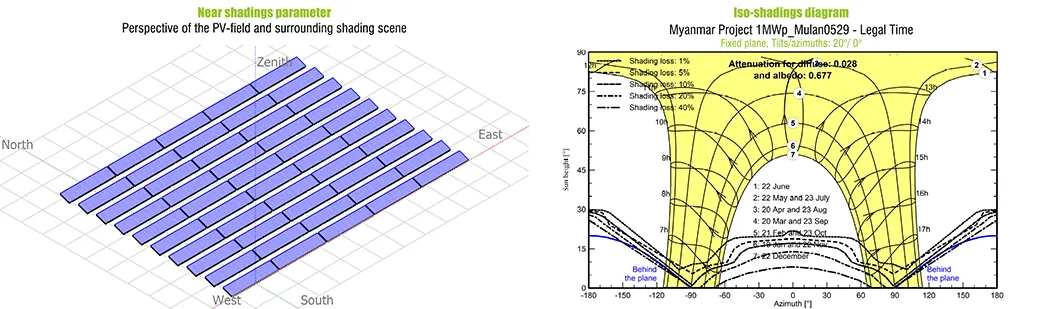

Technical Graph 2

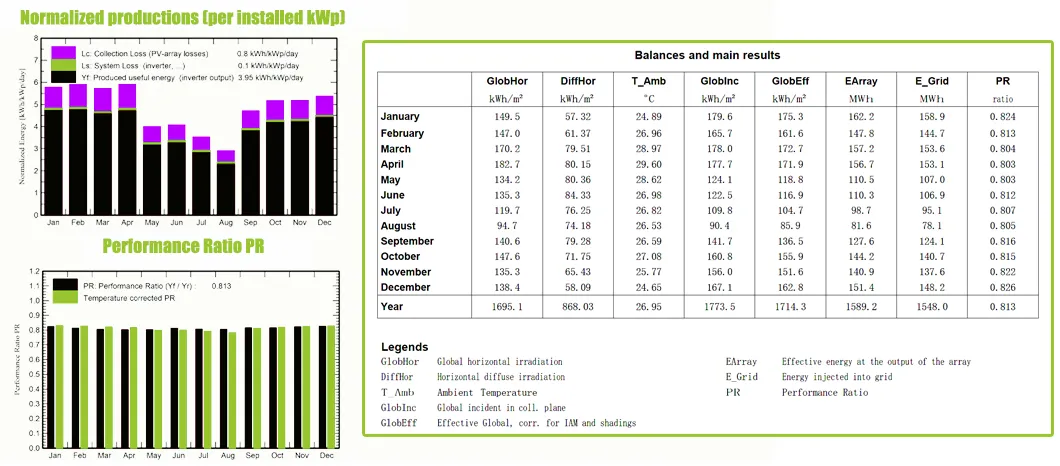

Technical Graph 3
Production and Reference Projects

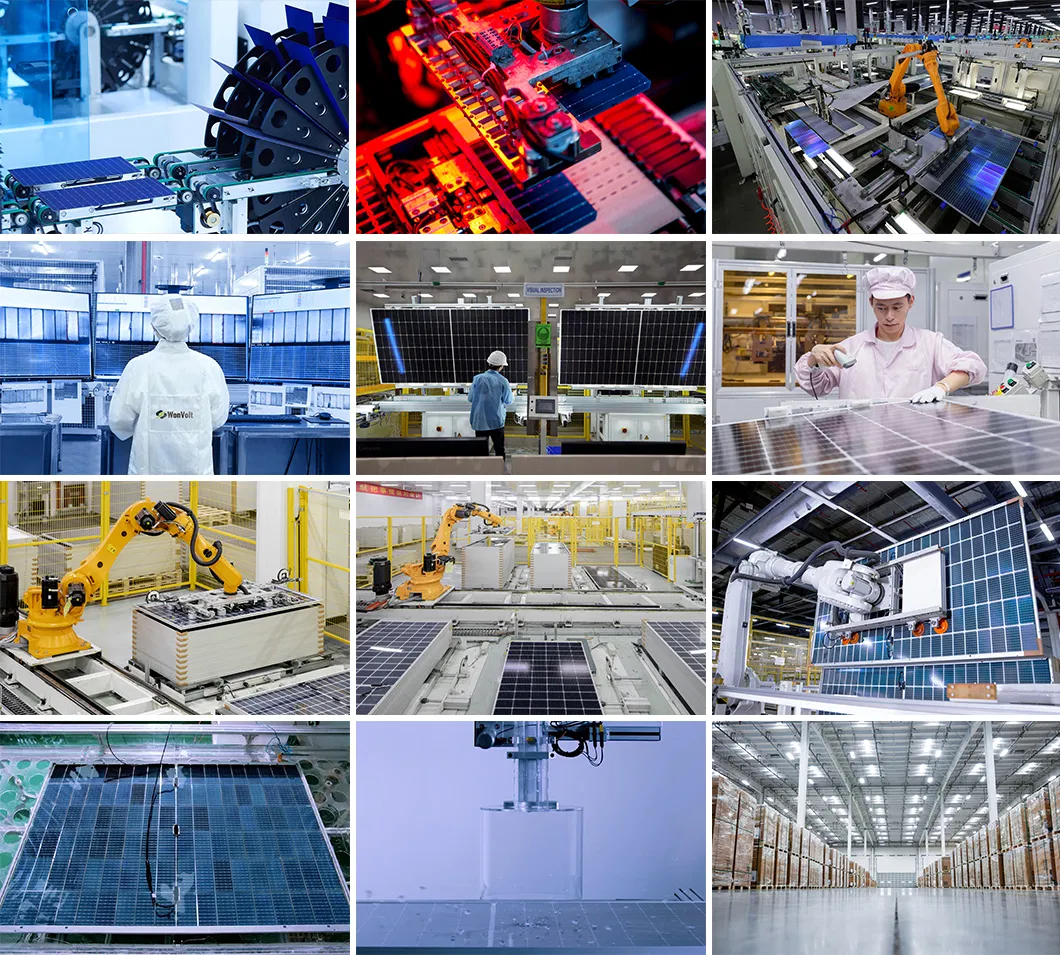

Factory Facility

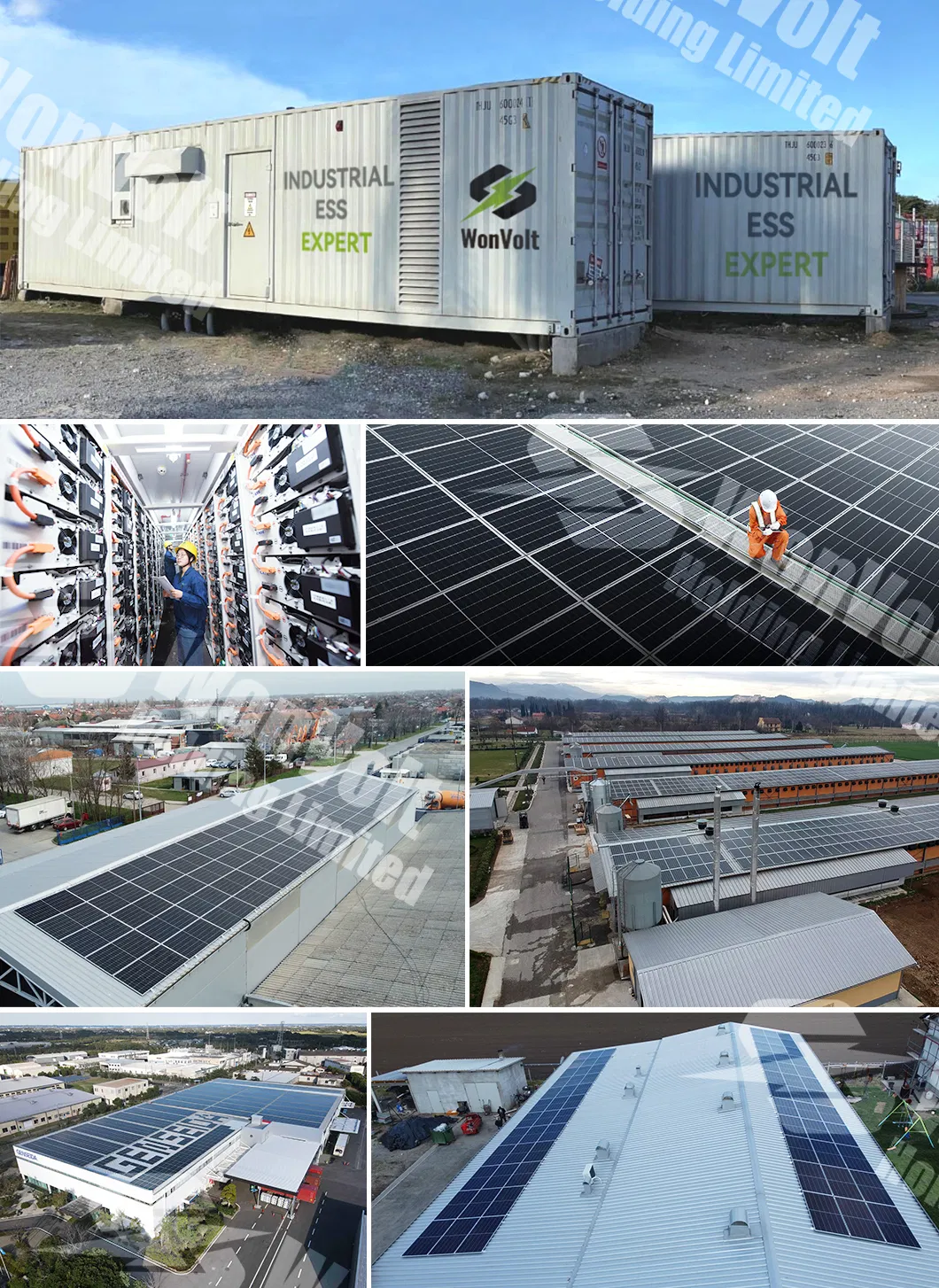

Project Reference 1

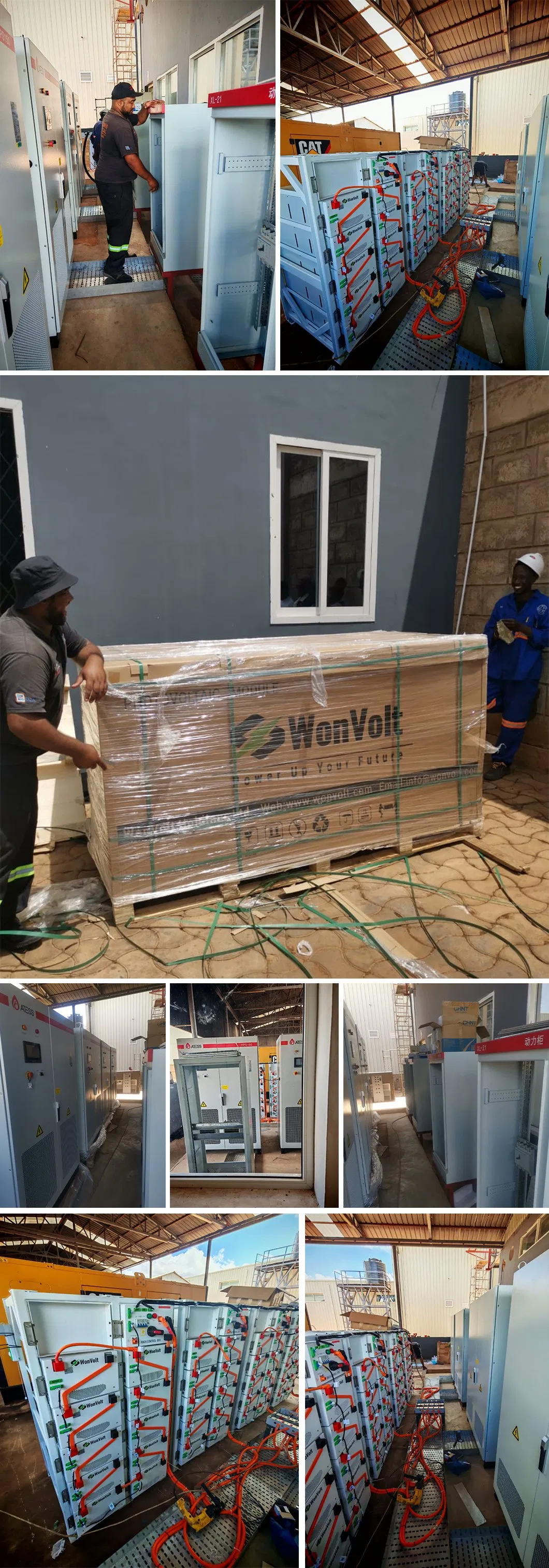

Project Reference 2
Frequently Asked Questions
What is the expected cycle life of the energy storage battery?
The system features high-quality LiFePO4 lithium batteries with a cycle life of up to 10,000 times.
What applications are suitable for this commercial ESS?
It is designed for a wide range of applications including residential homes, industrial facilities, commercial buildings, schools, hospitals, and microgrid systems.
Does the system support remote monitoring?
Yes, the system includes remote control capabilities via WIFI, Enterlog, or BR300 for real-time monitoring and management.
Can the energy storage capacity be customized?
Absolutely. We offer customized solutions ranging from 32kWh, 64kWh, up to MWh-scale storage systems to meet specific energy needs.
What certifications does the system hold?
The products are fully certified with ISO, CE, CB, UN38.3, MSDS, and IEC En50549 standards for global compliance and safety.
What type of mounting structures are available?
We provide various mounting options including metal rooftop, tile rooftop, and ground-based structures using aluminum or adjustable brackets.
