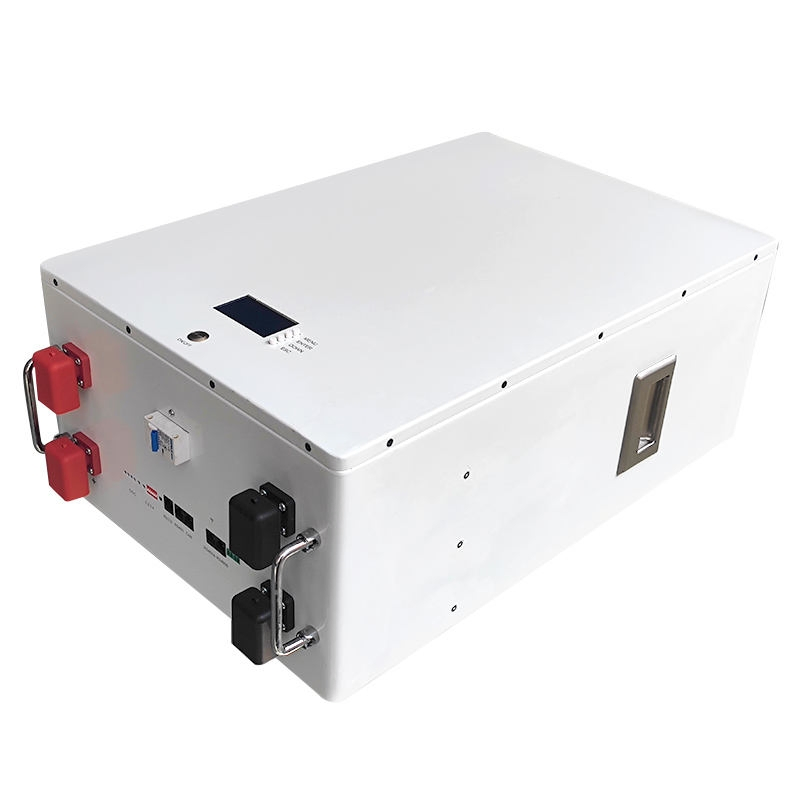

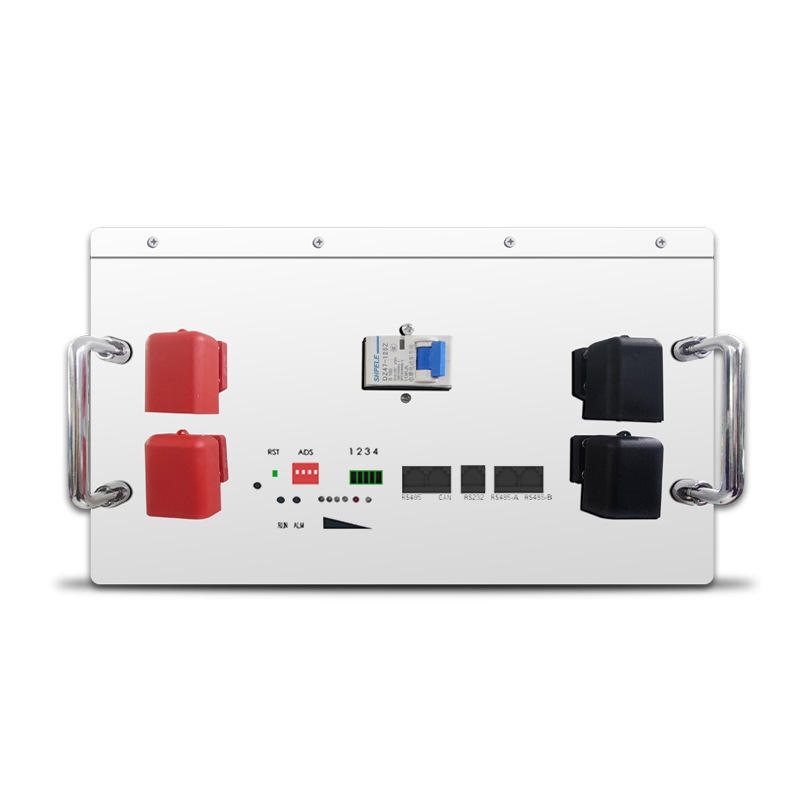

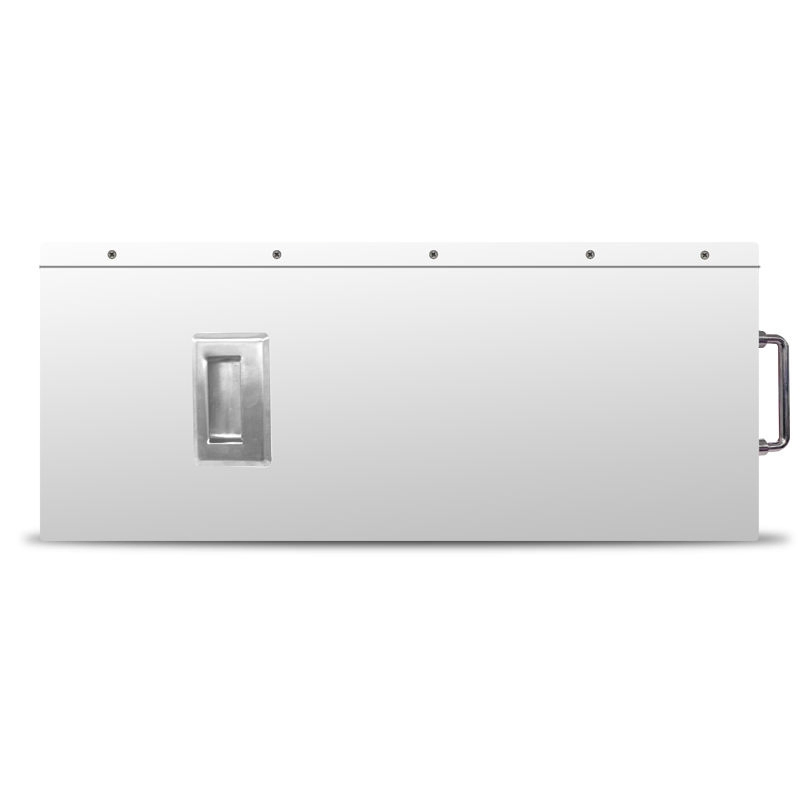

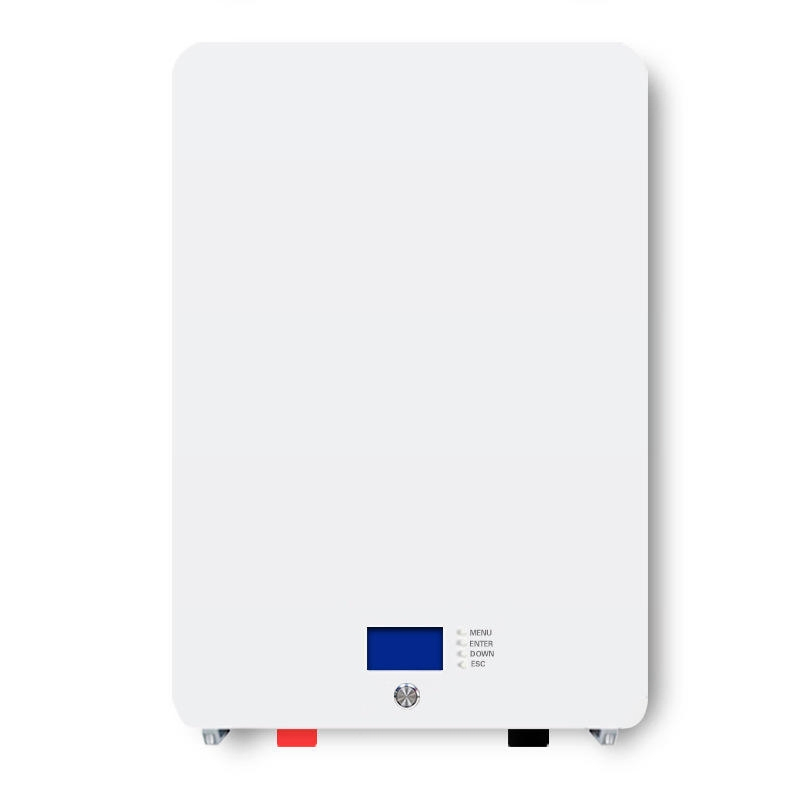

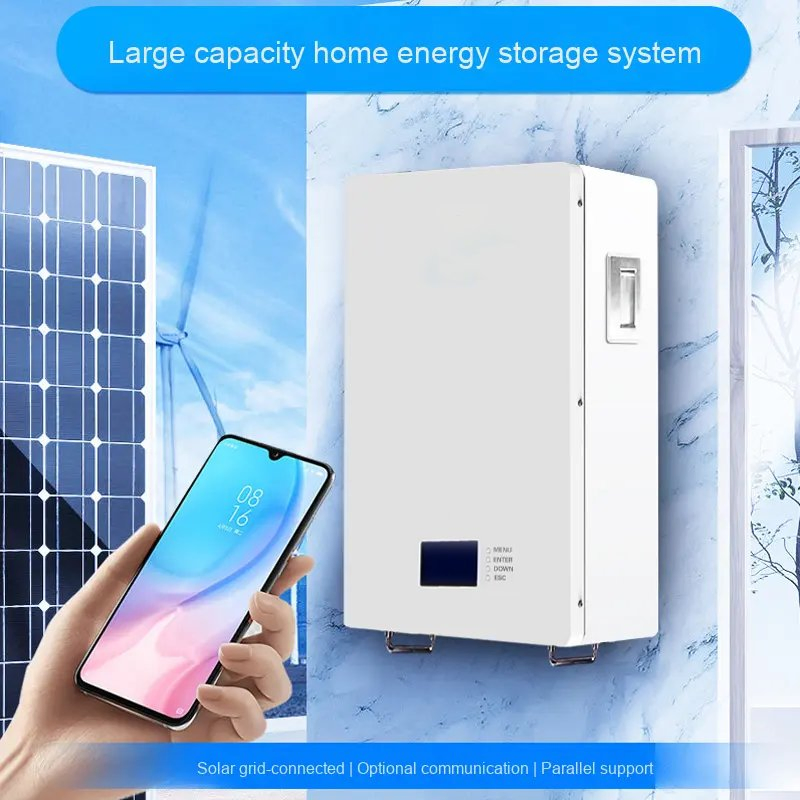

10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
1 / 5
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage
10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage

10kwh 51.2V LiFePO4 100ah Wall-Mounted Lithium Battery IP55 Protection All-in-One Home Solar Power Storage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GLGWCN-J48100-100
Cycle Life
6000 Cycles
Nominal Capacity
5/7.5/10kwh
Battery Type
LiFePO4
System Voltage
48 V
Output Power Range
10-20kw
Grid Connection
off Grid, Hybrid Grid
System Type
Wall-Mounted
Application
Energy Storage System
Voltage
48V/51.2V
Packaging & Delivery
Package Size
55.00cm * 40.00cm * 20.00cm
Gross Weight
50.000kg
Product Description

Wall Mounted LiFePO4 Cell Hybrid Solar Energy Storage System Lithium Battery 10kwh Home Battery

✓
High-Capacity Storage: 10kWh provides ample energy for extended use.
✓
Lithium Iron Phosphate: Offers long lifespan and safety compared to other types.
✓
Wall-Mounted Design: Easy installation and space-saving solution.
✓
Grade A Cells: Ensures high-quality performance and reliability.
✓
No Grid Connection Required: Suitable for off-grid applications.

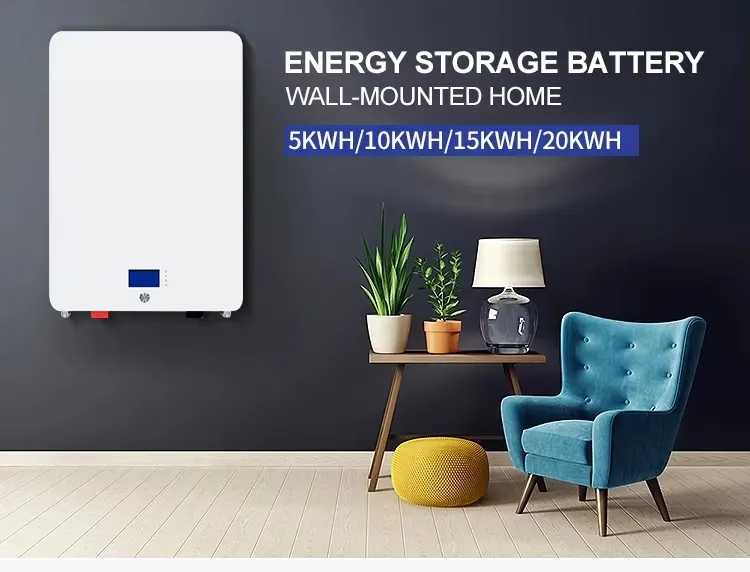

Home Solar Power Storage

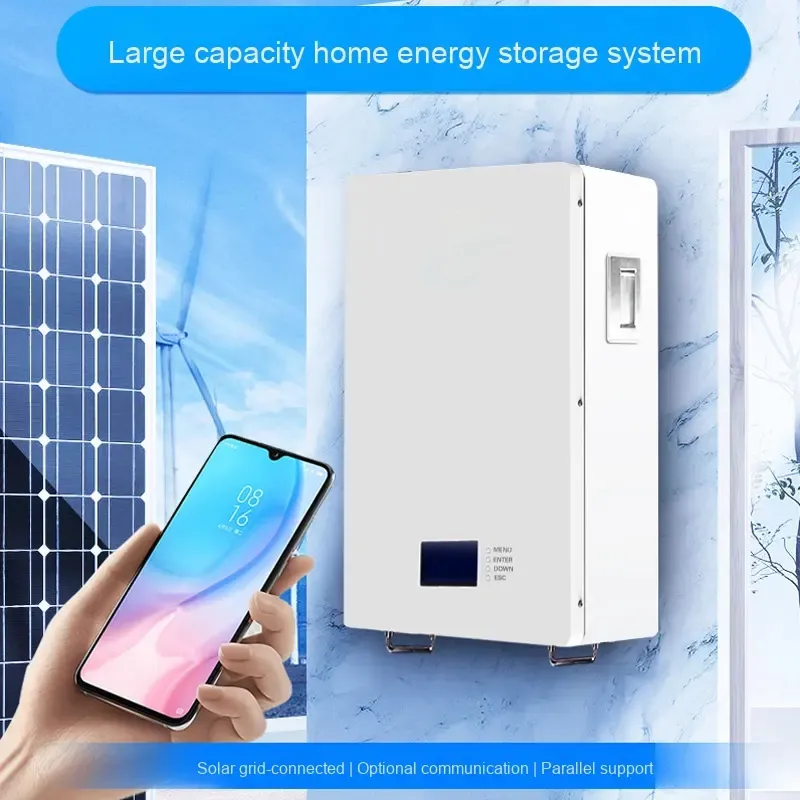

LiFePO4 Lithium Battery
10kwh Solar Battery

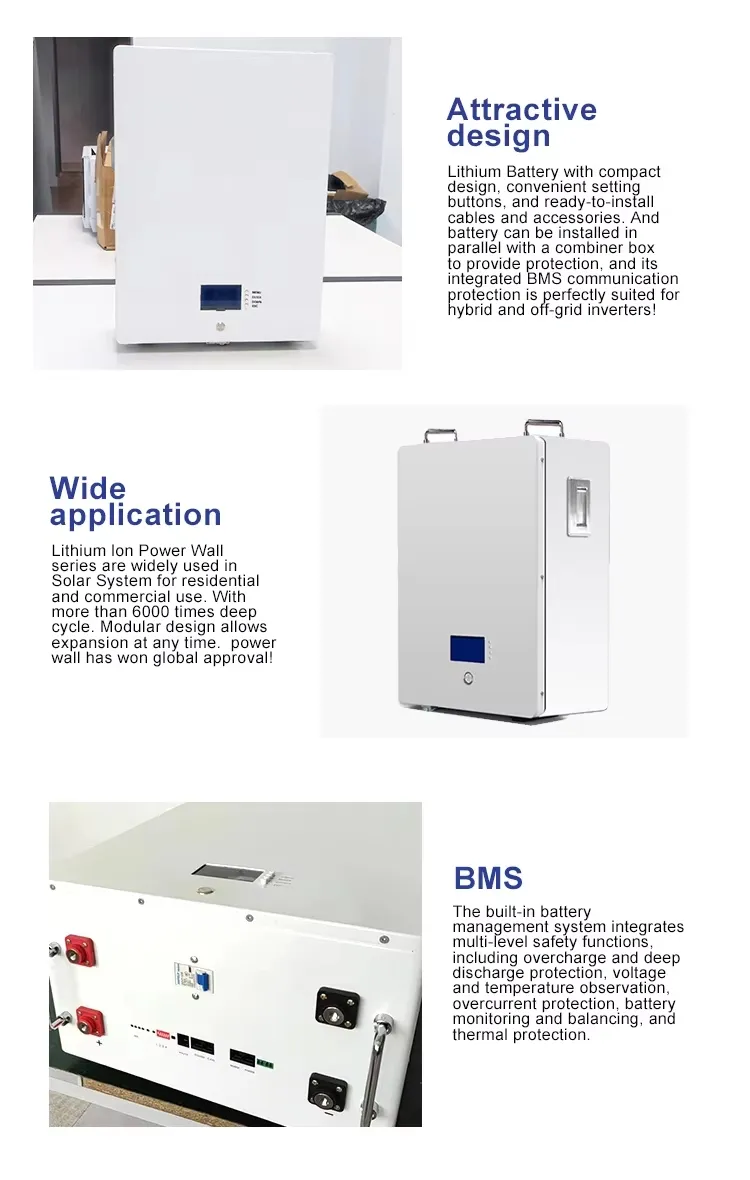

Wall-Mounted Battery System
Energy Storage Solution
Technical Specifications
Items Parameter
Charging MethodCC-CV
Charging Voltage57.6±0.2V
Over Charging Protect3.75±0.025V
Standard Charging Current20A (0.2C)
Max. Charging Current100A
Cut-off Charging Current2A (0.02C)
Standard Discharging Current20A (0.2C)
Max. Continue Discharging Current100A
Maximum instantaneous current200A (1mS)
Discharging cut-off Voltage40V
Cell Balance current40±10mA
Internal Resistance<60mOhm
Standard Charge Temperature0~55℃
Standard Discharge Temperature-20~60℃
Weight48kg

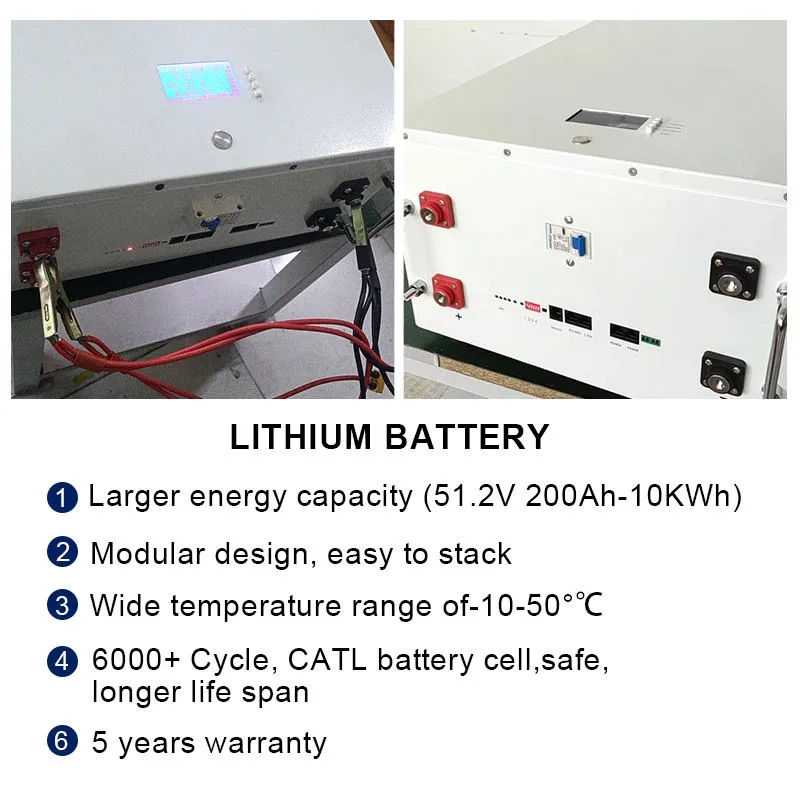

Battery Detail

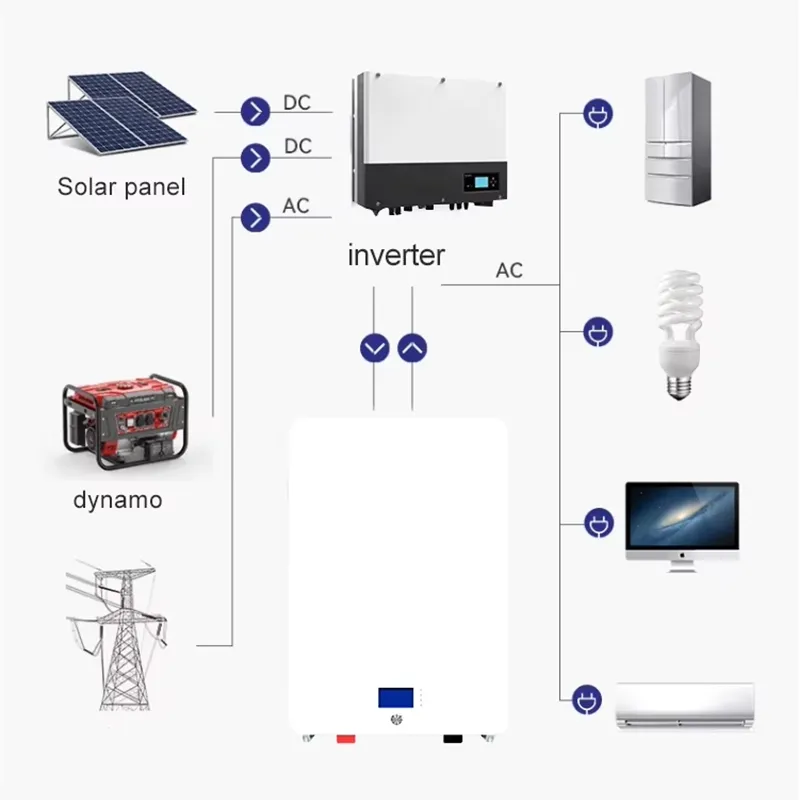

Energy System Diagram
Production Facility
Manufacturing
Quality Control
Frequently Asked Questions
What core advantages do commercial energy storage systems have for industrial users?
Our systems adopt high-performance lithium batteries and advanced BMS, featuring high energy density, long cycle life (≥6000 cycles), and intelligent grid connection. They help users reduce electricity costs via peak-valley arbitrage and ensure stable power supply.
Can your energy storage systems integrate with photovoltaic (PV) systems?
Yes. Our systems are fully compatible with PV systems, enabling solar energy storage and on-demand power supply, which maximizes the utilization of renewable energy and reduces reliance on the grid.
What is the lead time for custom commercial energy storage projects?
The lead time varies by project scale—typically 4–12 weeks for design, production, and commissioning. We provide a detailed project timeline and real-time progress updates for clients.
What after-sales services do you offer for energy storage systems?
We provide one-stop after-sales services, including on-site installation guidance, system debugging, operation training, and 24/7 remote monitoring. The warranty period is 24–36 months for the core components.
Are your energy storage systems compliant with grid connection standards?
Yes. Our systems meet IEC, UL, and GB standards, and we can provide grid connection certification documents required by different countries to ensure smooth project implementation.
What is the typical lifespan of the LiFePO4 cells used?
The Grade A LiFePO4 cells are designed for long-term reliability, offering over 6000 cycles at standard discharge rates, ensuring years of consistent performance in residential or commercial settings.
