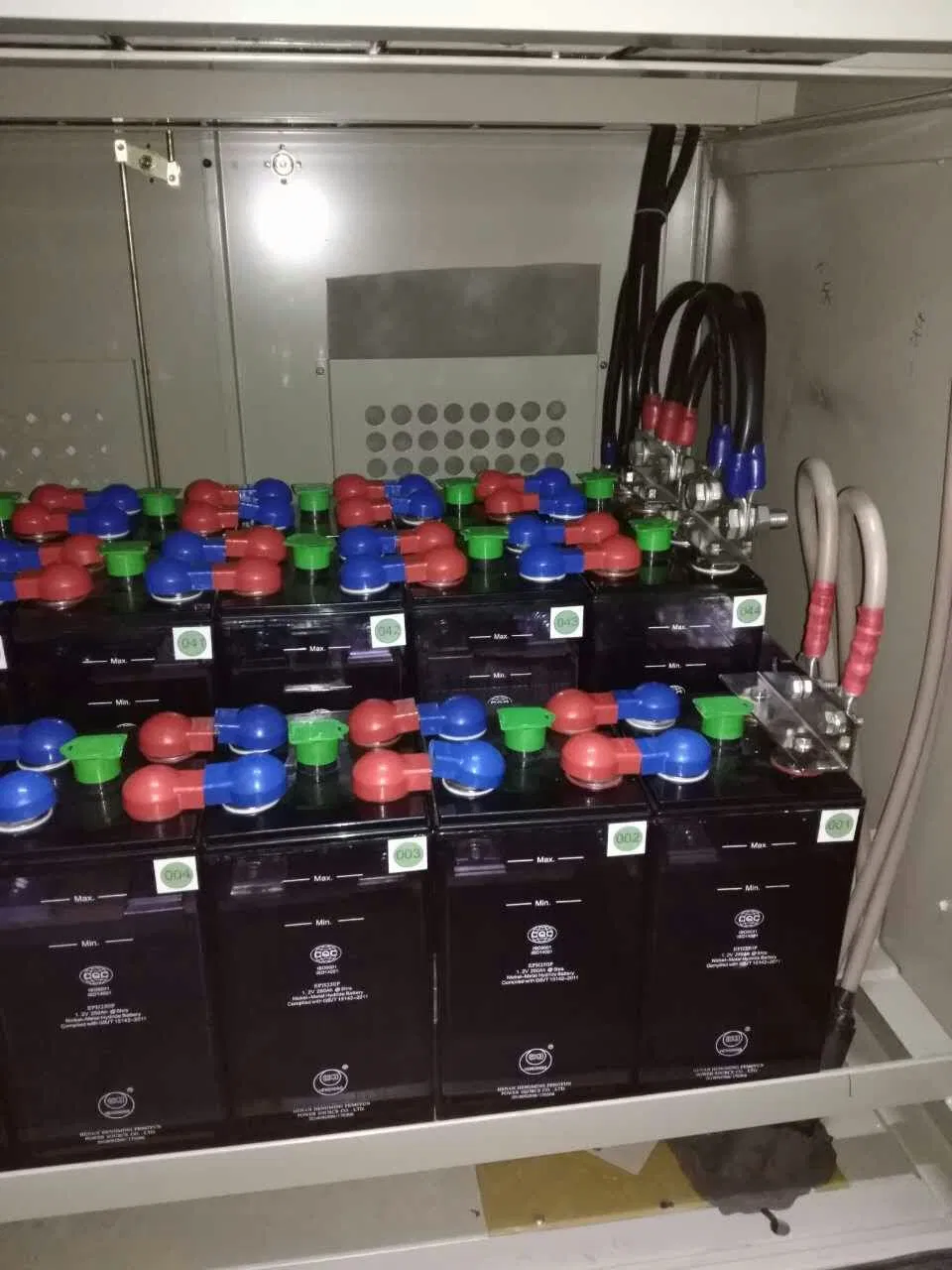

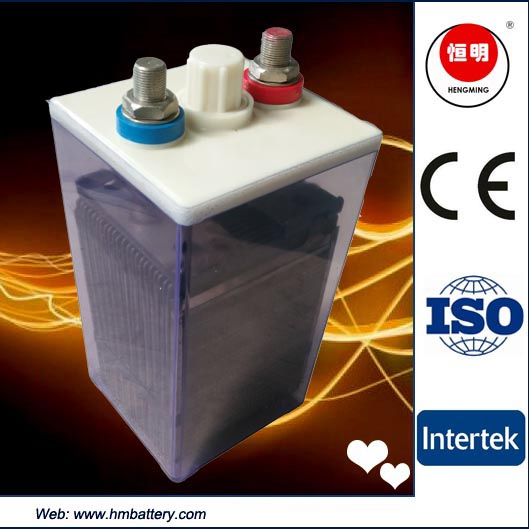

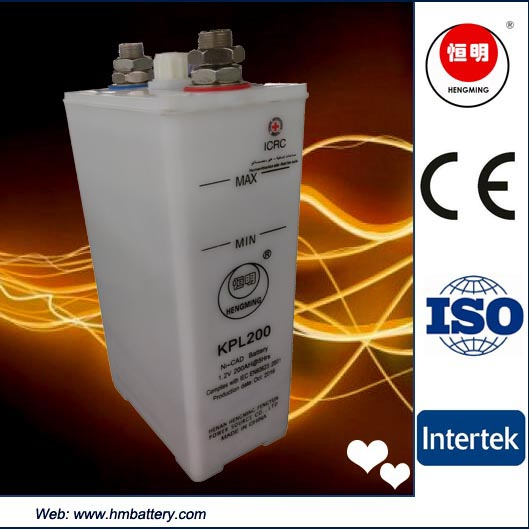

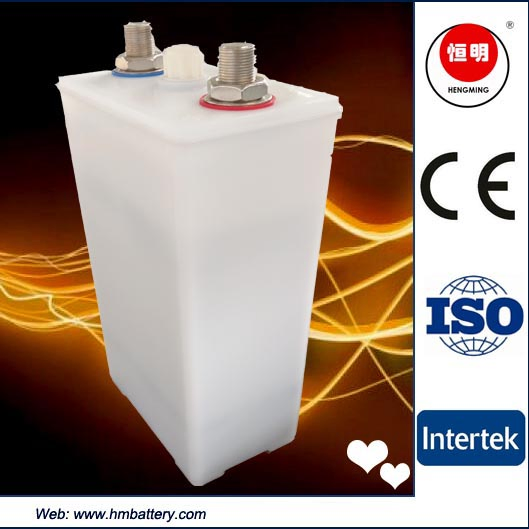

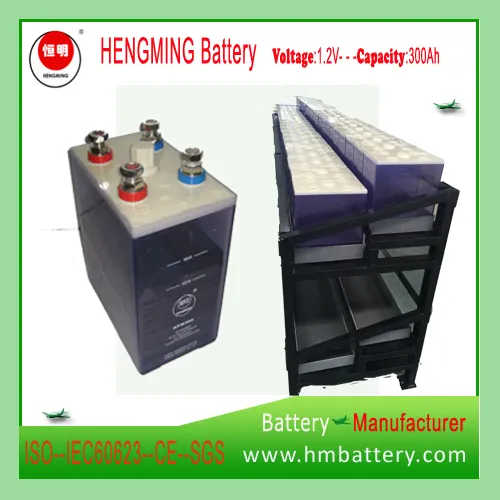

KPL Series nickel cadmium batteries are engineered for general industrial applications where absolute reliability is a necessity. Service-proven pocket-plate technology ensures long uninterrupted battery life without the risk of sudden loss of power. These batteries are ideal for low discharge rate applications (between 1 hour to 100 hours).
Ensures consistent power for railroad signaling and control systems.
Operating range from -40°C (-40°F) up to +55°C (+131°F).
Minimal maintenance needs over a long, predictable lifetime.
Perfectly compatible with photovoltaic and solar energy systems.
| Cell Type | Nominal Voltage (V) | Rated Capacity (Ah) | Dimension (mm) | Thread of Pole | Weight (Kg) | Container | ||
|---|---|---|---|---|---|---|---|---|
| L | W | H | ||||||
| GN10 | 1.2 | 10 | 85 | 39 | 156 | M8 | 1.0 | PP |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10 | 2.0 | ABS |
| GN40 | 1.2 | 40 | 135 | 54 | 265 | M10 | 2.4 | ABS/PP |
| GN60 | 1.2 | 60 | 143 | 76 | 275 | M10 | 4.0 | ABS |
| GN100 | 1.2 | 100 | 139 | 79 | 362 | M10 | 6.0 | ABS/PP |

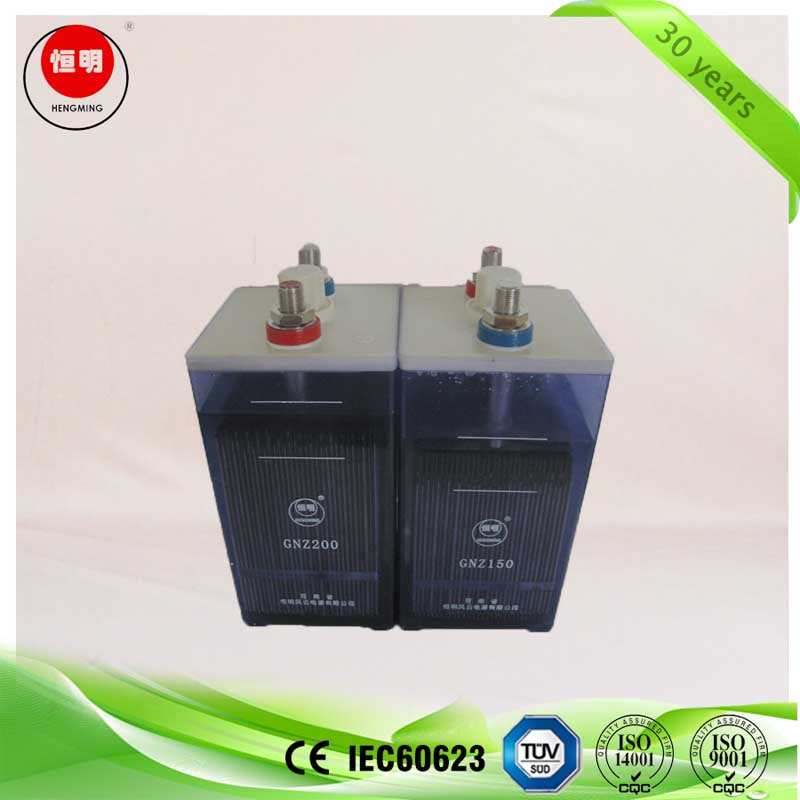

| GN150 | 1.2 | 150 | 167 | 162 | 345 | M20 | 12.0 | ABS |
| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20 | 14.0 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20 | 33.6 | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20 | - | ABS |
