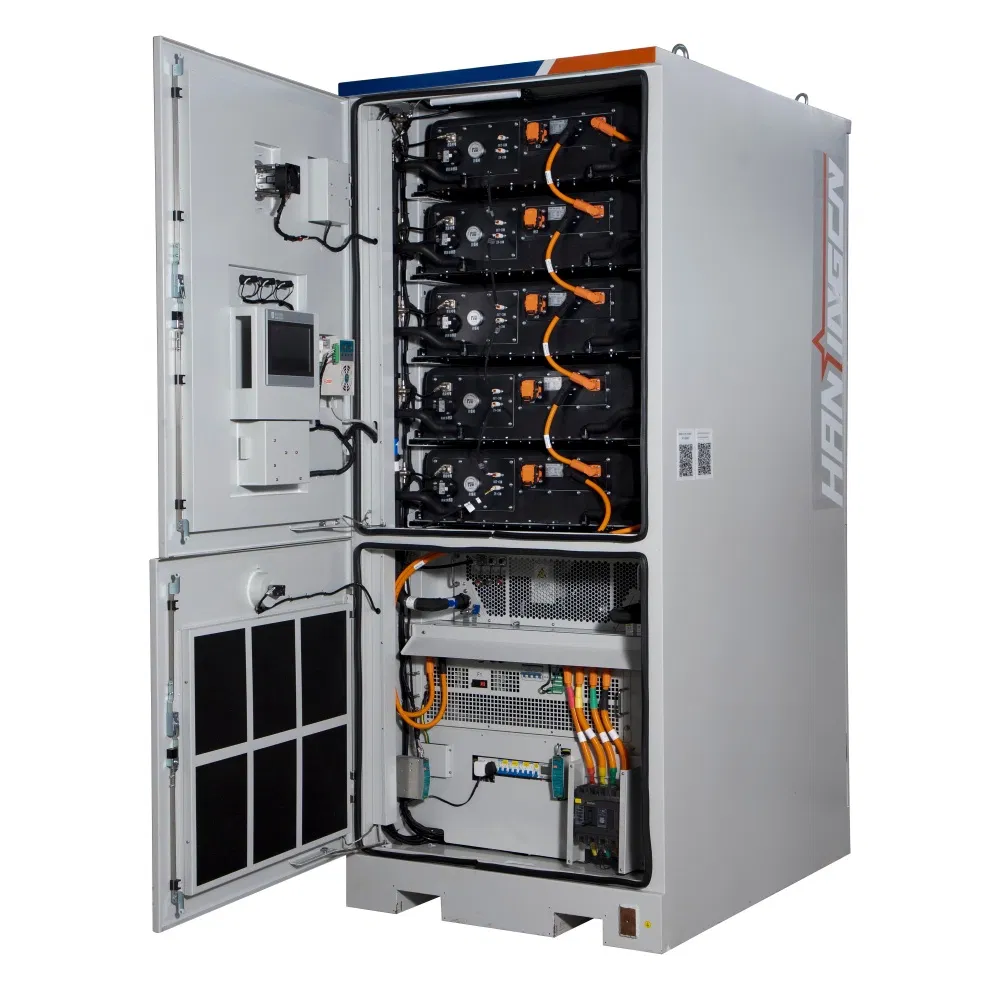

Our energy storage battery systems deliver cutting-edge power solutions designed for residential, commercial, and industrial applications.
These high-performance battery systems serve as dependable emergency backup power sources, ensuring uninterrupted operation during grid outages while optimizing energy consumption for maximum cost savings.
| TECHNICAL PARAMETERS | |
|---|---|

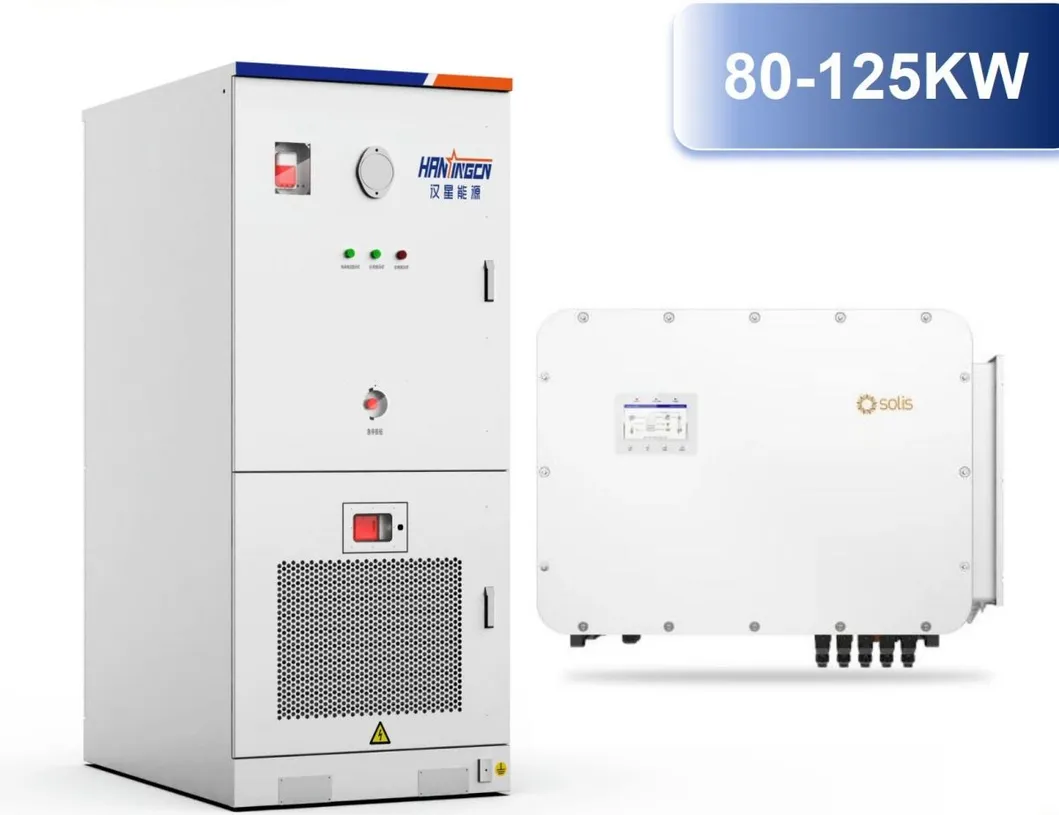

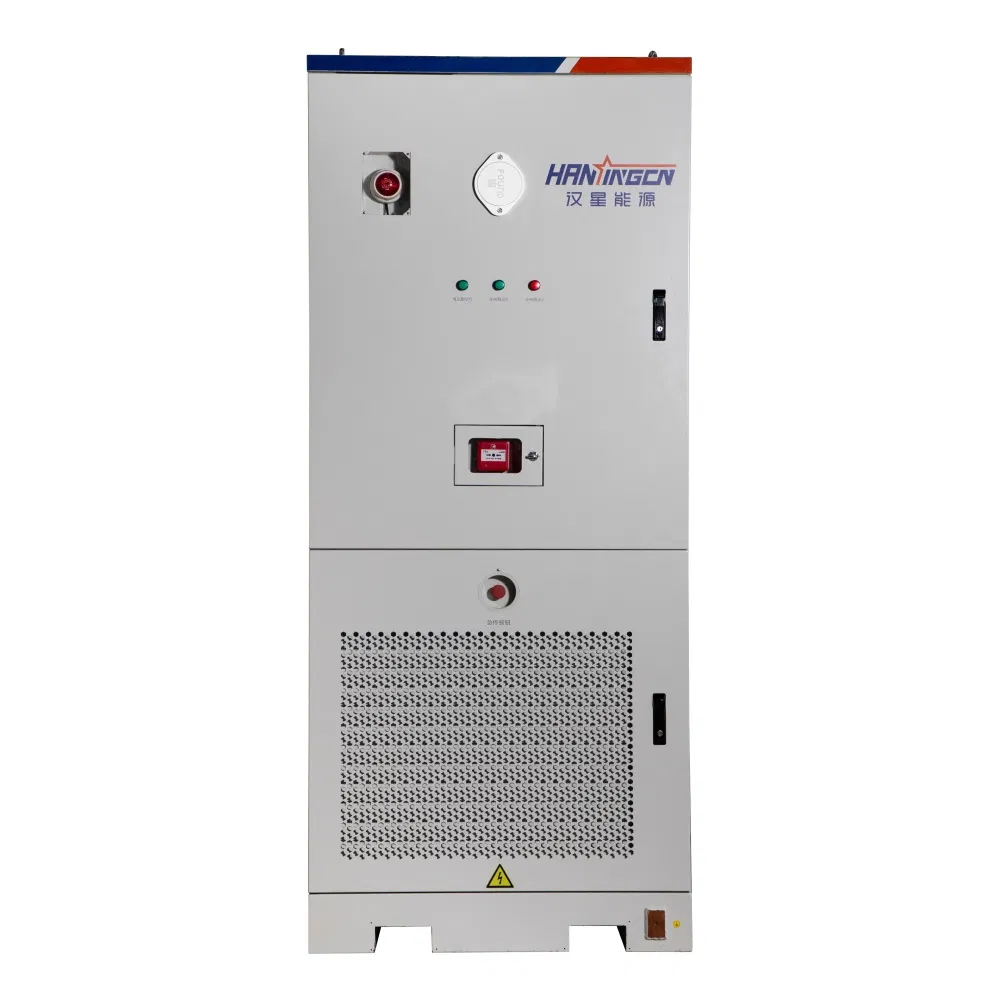

| Product Name | Commercial Energy Storage Battery |
| Nominal Voltage | 230V/400V |
| Nominal Capacity | 80KW-125KW |
| Cycle Life | 8000 cycles+ |
| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314Ah LFP |
| System Efficiency | >90% |
| Communication Method | 4G/LAN |
| Operating Temperature | -25°C~55°C |

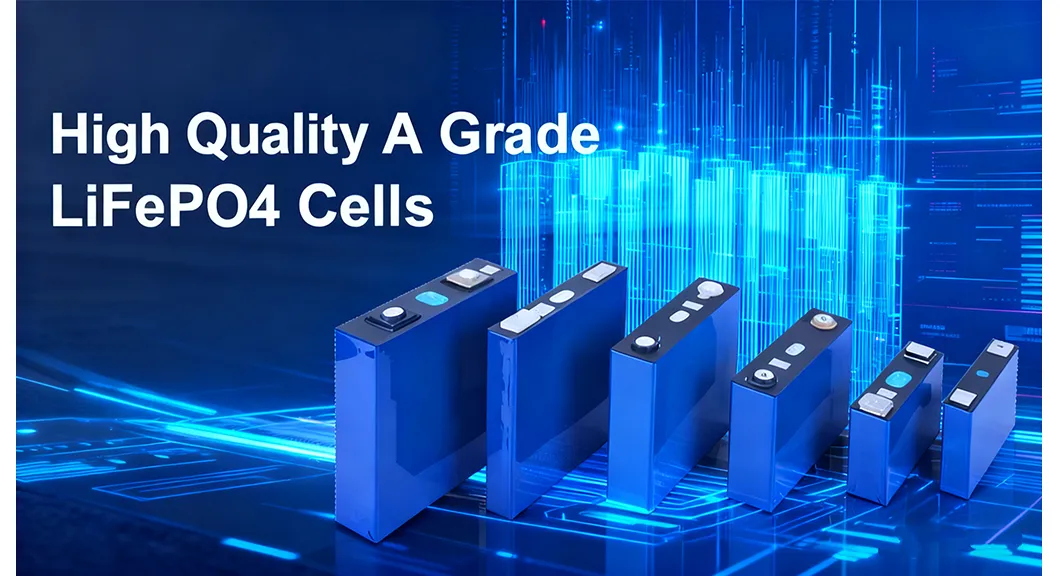

Function: Achieve the conversion between chemical energy and electrical energy, serving as the basic unit for storing electrical energy.
Advantages: High-quality cells with long cycle life can reduce long-term usage costs.

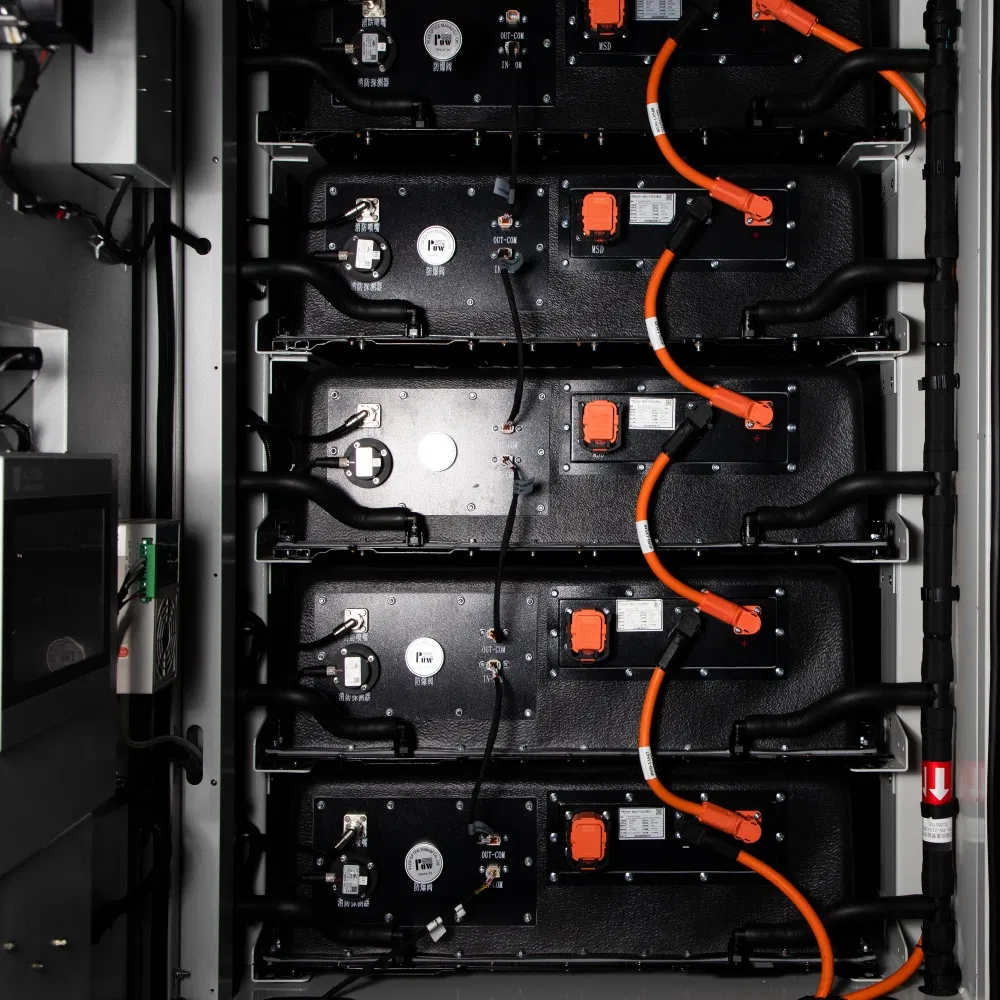

Function: Combines multiple battery cells in series and parallel to achieve stable voltage and capacity, integrates cooling and protection mechanisms.
Advantages: Modular design facilitates installation, maintenance, and expansion while enhancing system safety.

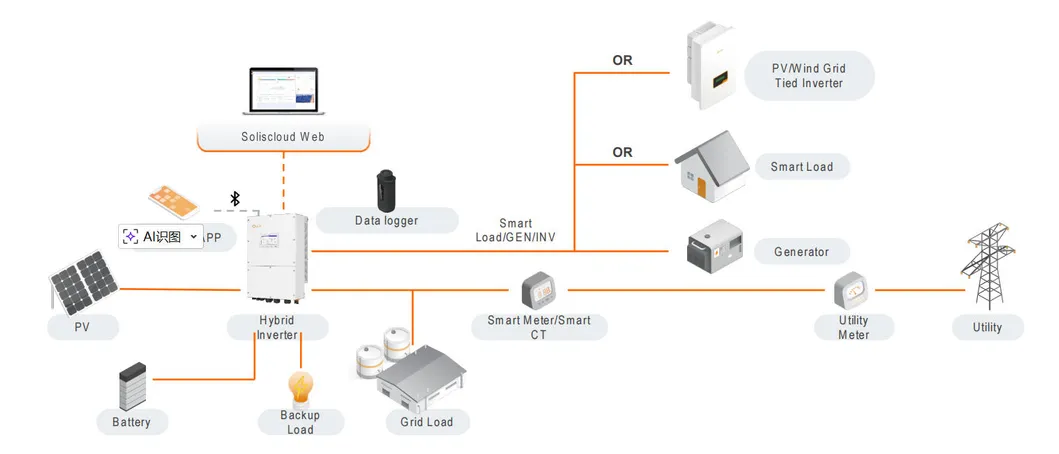

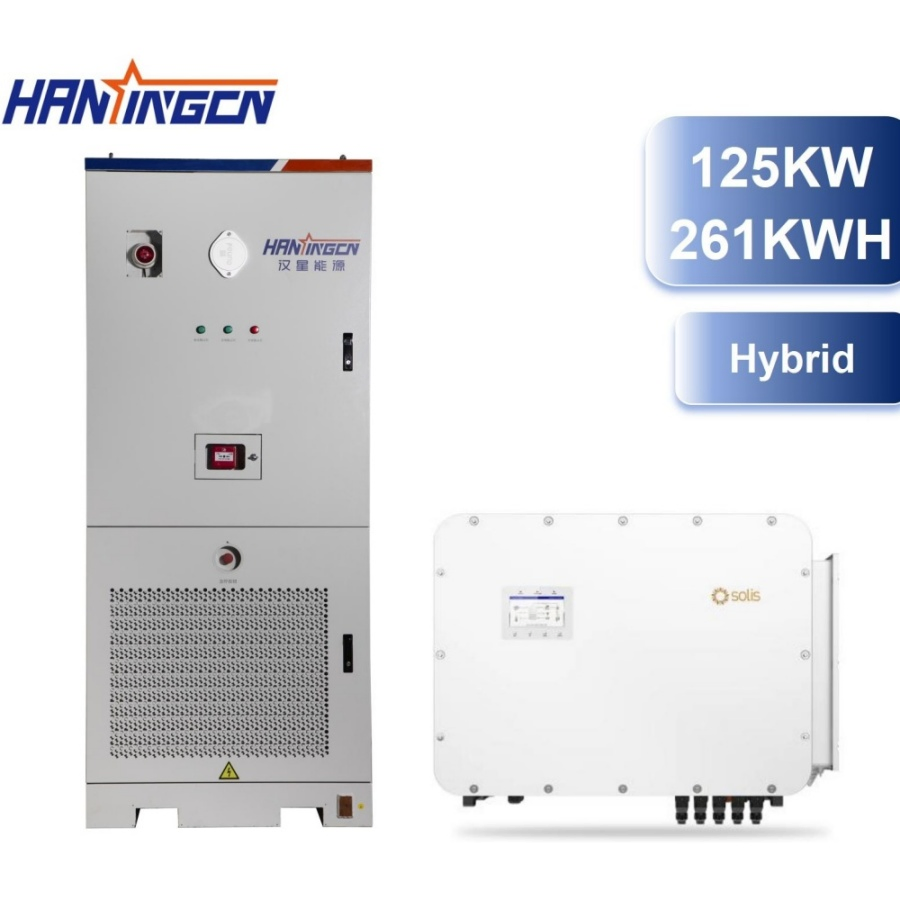

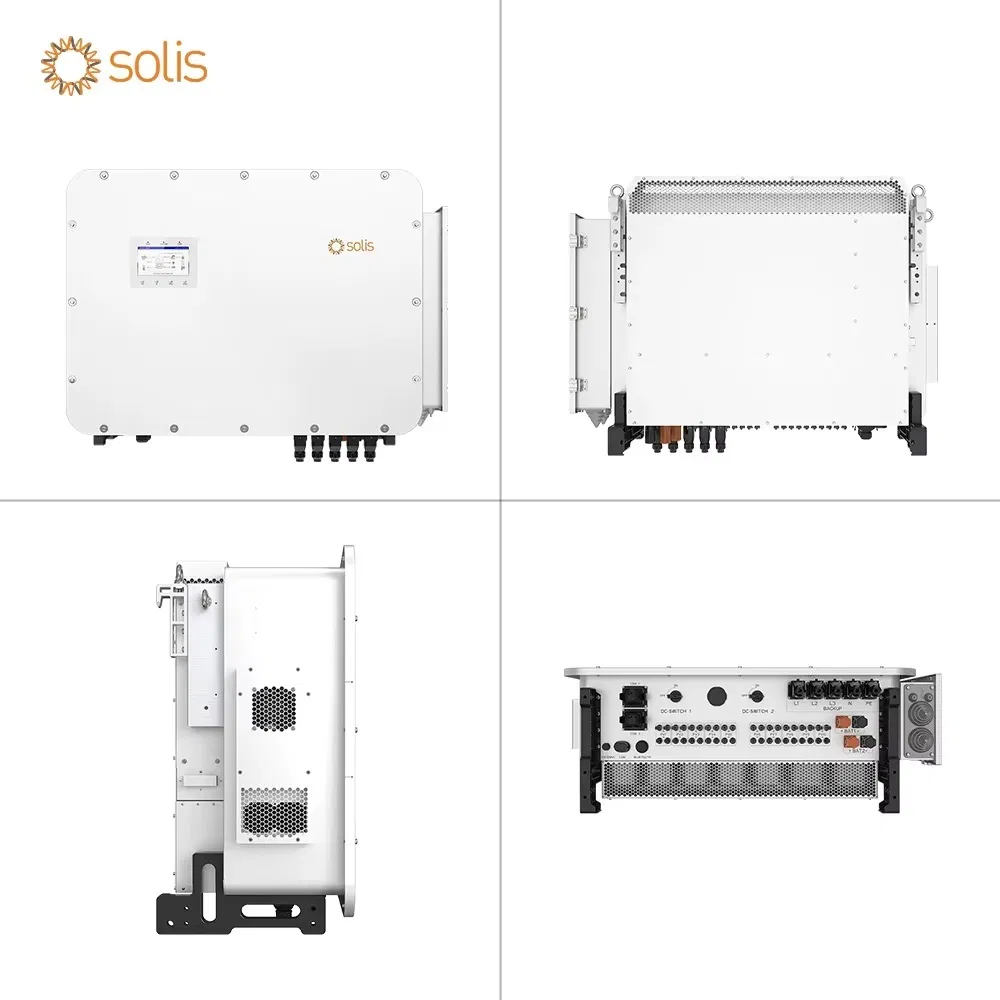

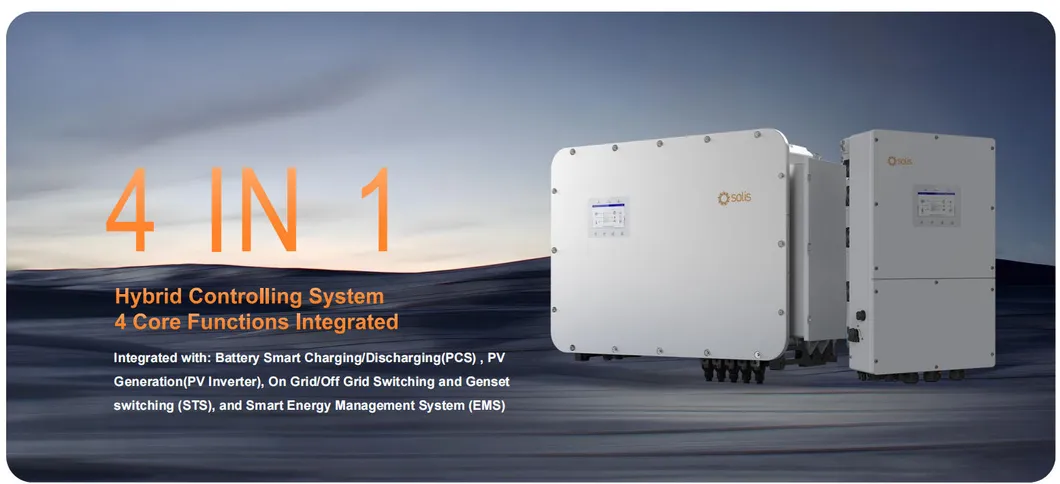

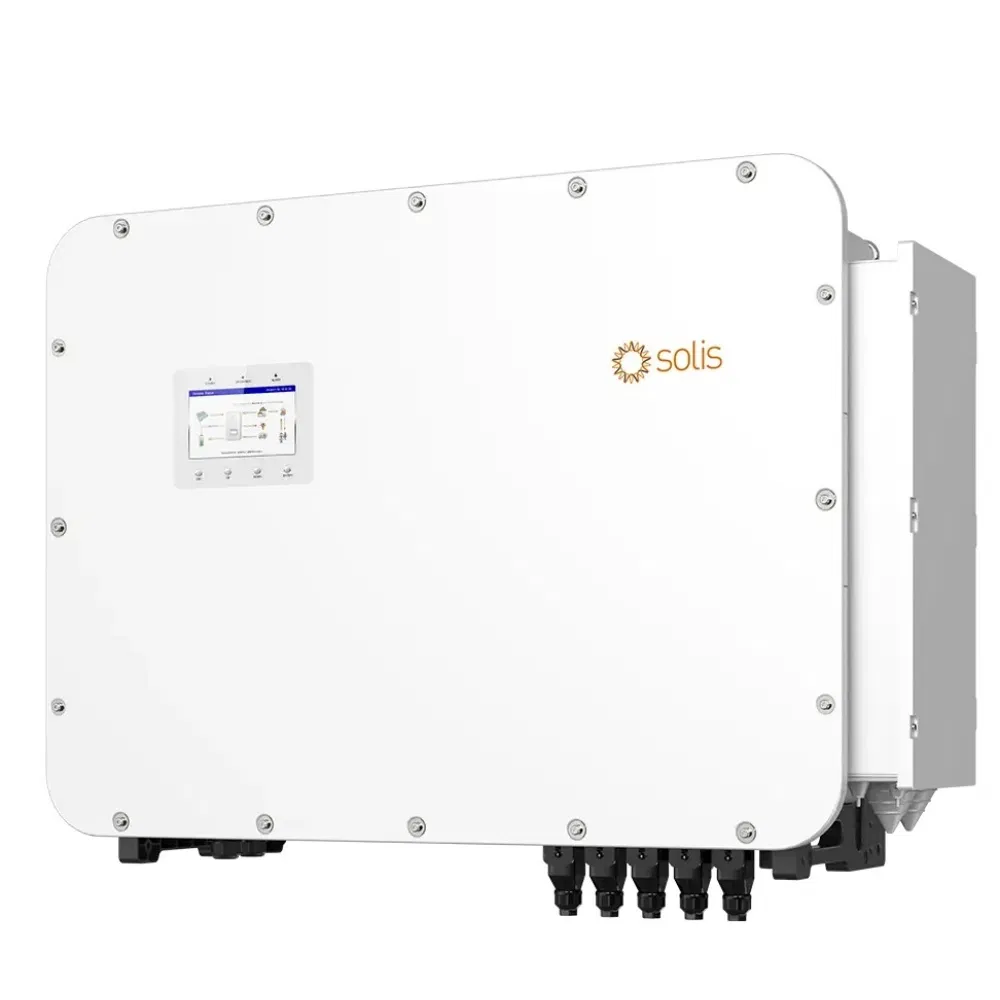

Integrates four major functions: PCS charging/discharging, PV grid-connected generation, off-grid switching, and EMS management.
High Efficiency: 200% DC oversizing, increasing generation by 20%.
Intelligent: Built-in AI EMS optimizes strategies based on price fluctuations.

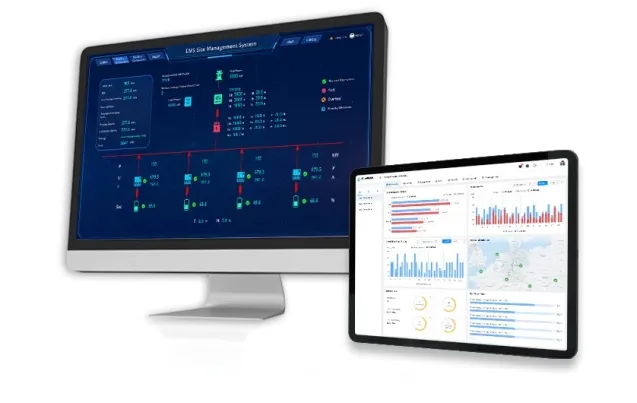

EMS: Real-time monitoring and optimal strategy formulation for energy utilization.

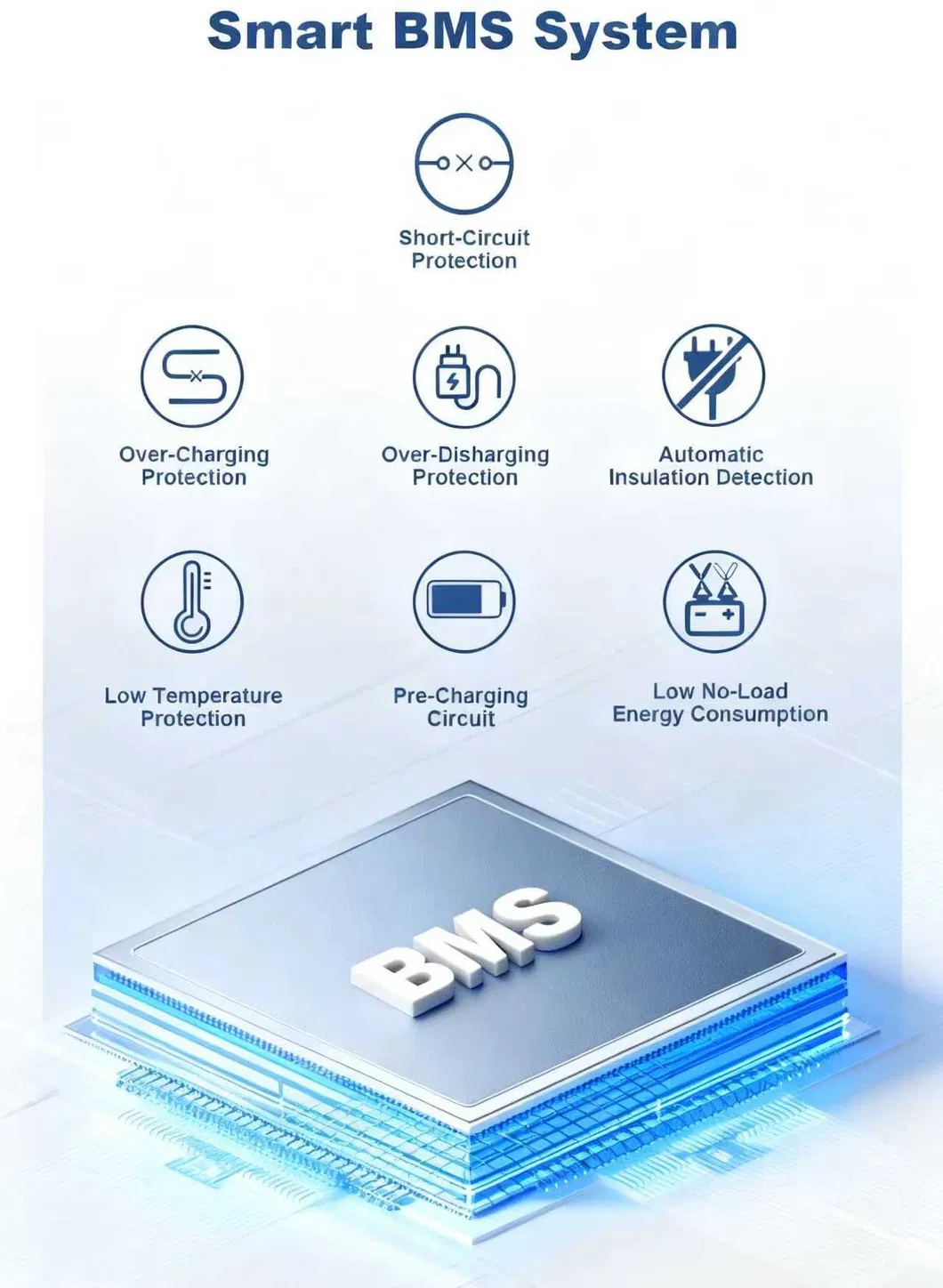

BMS: Monitors voltage, temperature, SOC, and SOH of each cell to ensure balanced operation and safety.
PEAK-VALLEY ARBITRAGE: Buying low-cost electricity during off-peak hours and discharging during peak periods to maximize profit margins.
LOAD MANAGEMENT: Minimizing short-term peak loads to lower demand charges and improve power quality.
DEMAND RESPONSE: Voluntarily reducing consumption during shortages to earn economic incentives and support grid stability.
