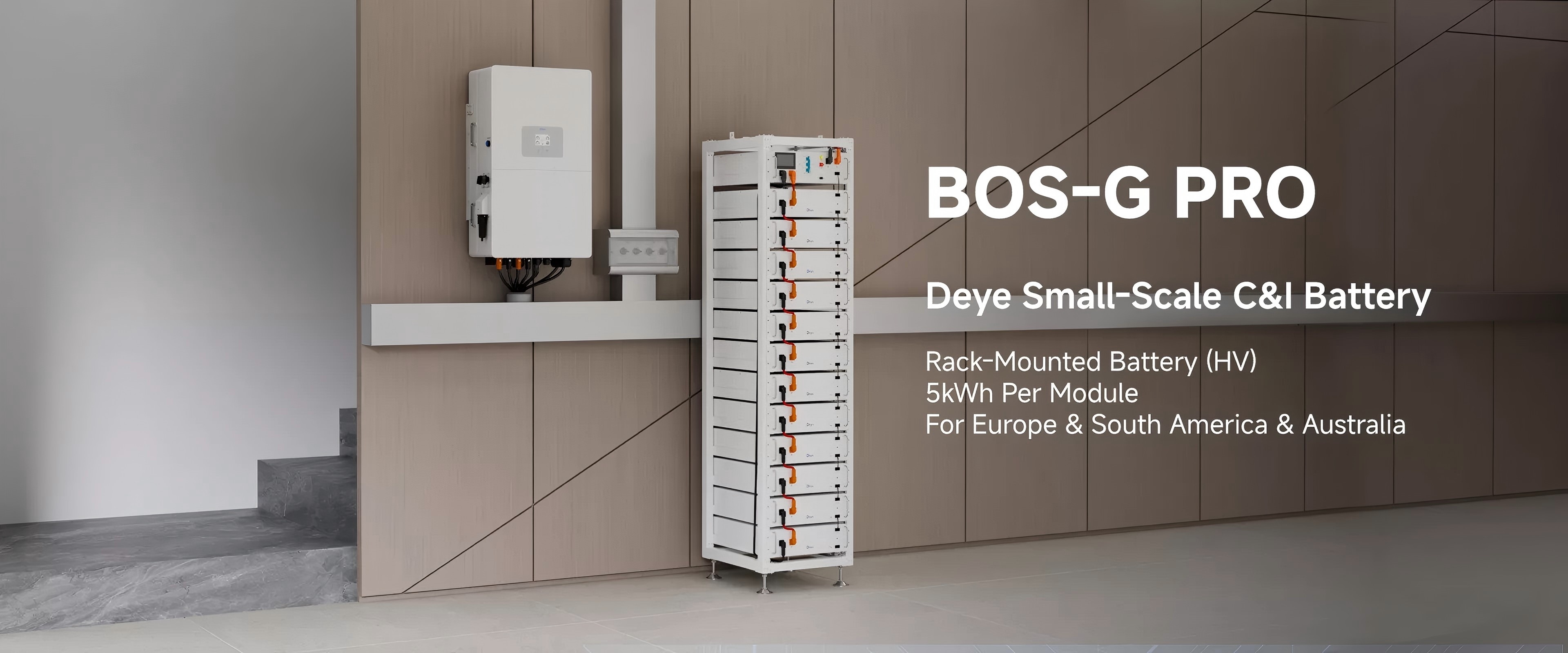

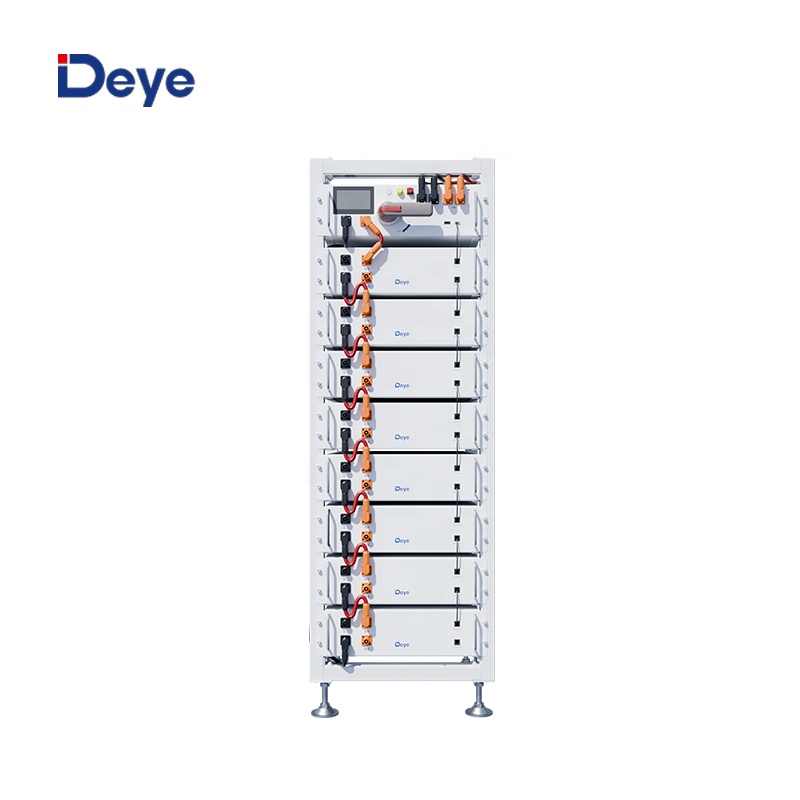

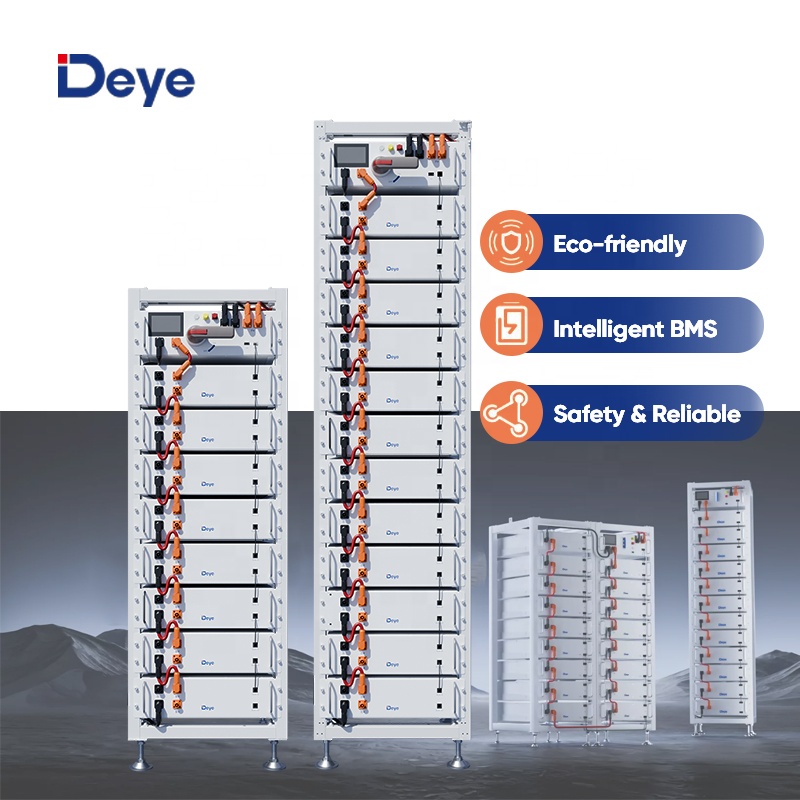

The Deye BOS-G-Pro is a high-voltage lithium-iron phosphate (LiFePO4) battery designed for small scale commercial and industrial energy storage systems (ESS). It serves as a reliable backup solution, storing energy from solar panels or the grid for use during outages, peak rate periods, or night time.
Quick installation, standard of 19-inch embedded designed module is comfortable for installation and maintenance.
Cathode material is made from LiFePO4 with safety performance and long cycle life. Low self-discharge (up to 6 months on shelf), no memory effect, and excellent shallow charge performance.
Protection functions include over-discharge, over-charge, overcurrent, and extreme temperature management. Automatically balances current and voltage of each cell.
The whole module is non-toxic, non-polluting, and environmentally friendly.
Multiple battery modules can be in parallel for expanding capacity. Supports USB, WiFi (optional), and remote upgrades.
Working range from -20°C to 55°C, with excellent discharge performance and cycle life.
| Model | BOS-G-Pro |
| Battery Chemistry | LiFePO4 |
| Capacity | 100 Ah |
| Nominal Voltage | 51.2 V |
| Battery Module Number | BOS-G-Pack5.1 |
| Charge/Discharge Current – Maximum | 100 A |
| Charge/Discharge Current – Peak | 125 A (10 seconds) |
| Dimensions | 530 × 602 × 1629mm |
| Weight | Approximately 290 kg |
| IP Rating | IP20 (suitable for indoor use) |
| Charge Temperature Range | 0°C to 55°C |
| Discharge Temperature Range | -20°C to 55°C |
| Relative Humidity | 95% (maximum) |
| Installation | Rack Mounting |
| Warranty Period | 10 years |
Multiple battery packs connection: The number of battery packs in each cluster must be the same in each group, while the number of battery packs in group A and Group B can be different.

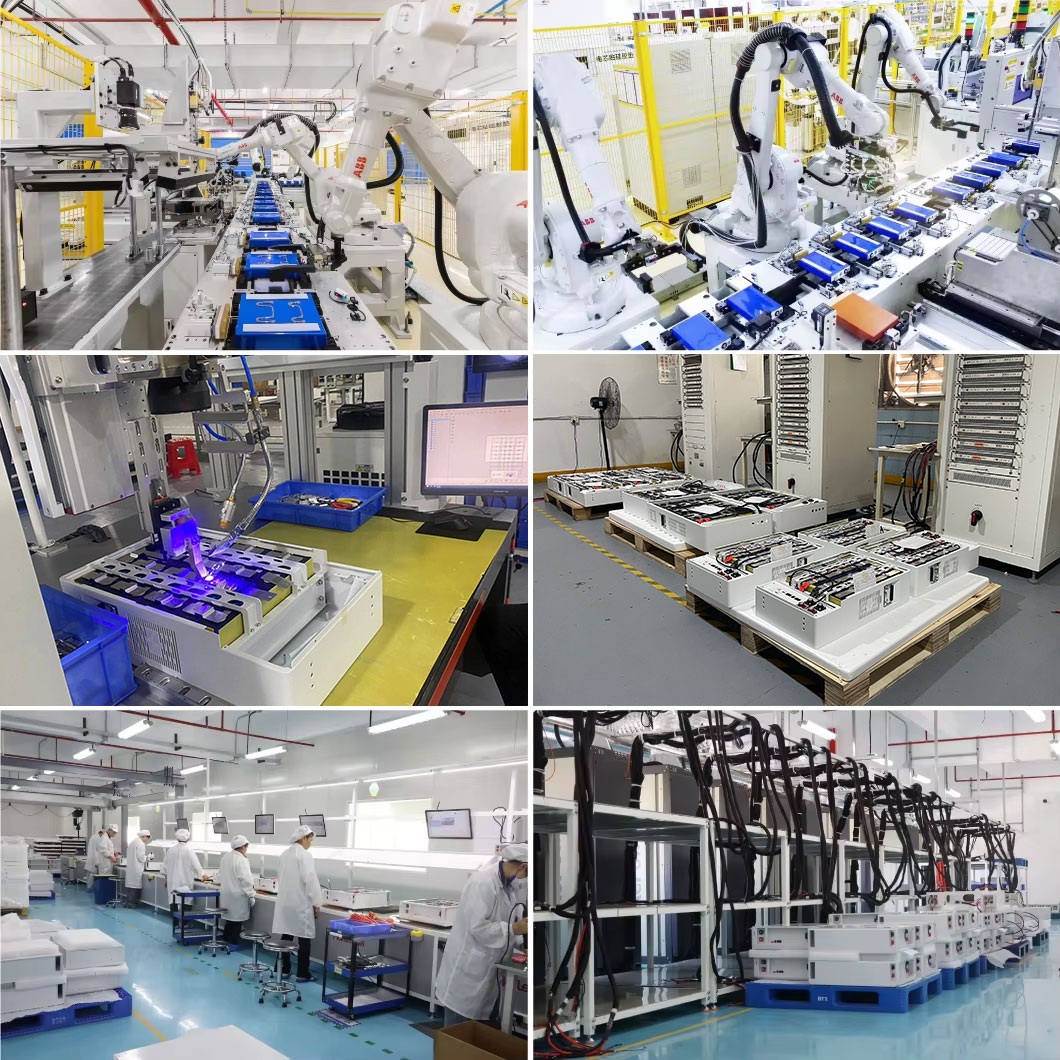

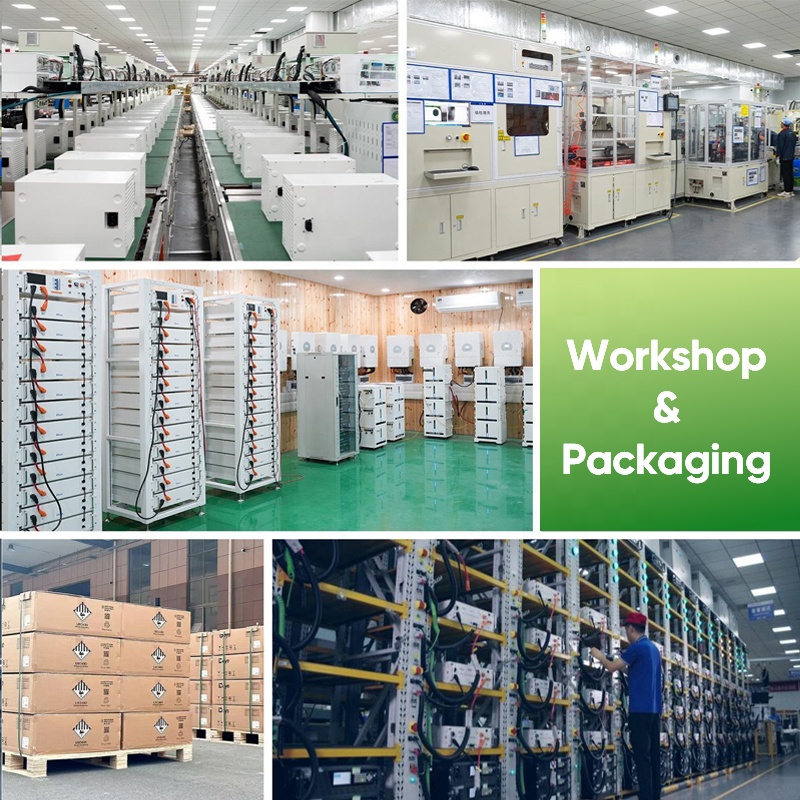

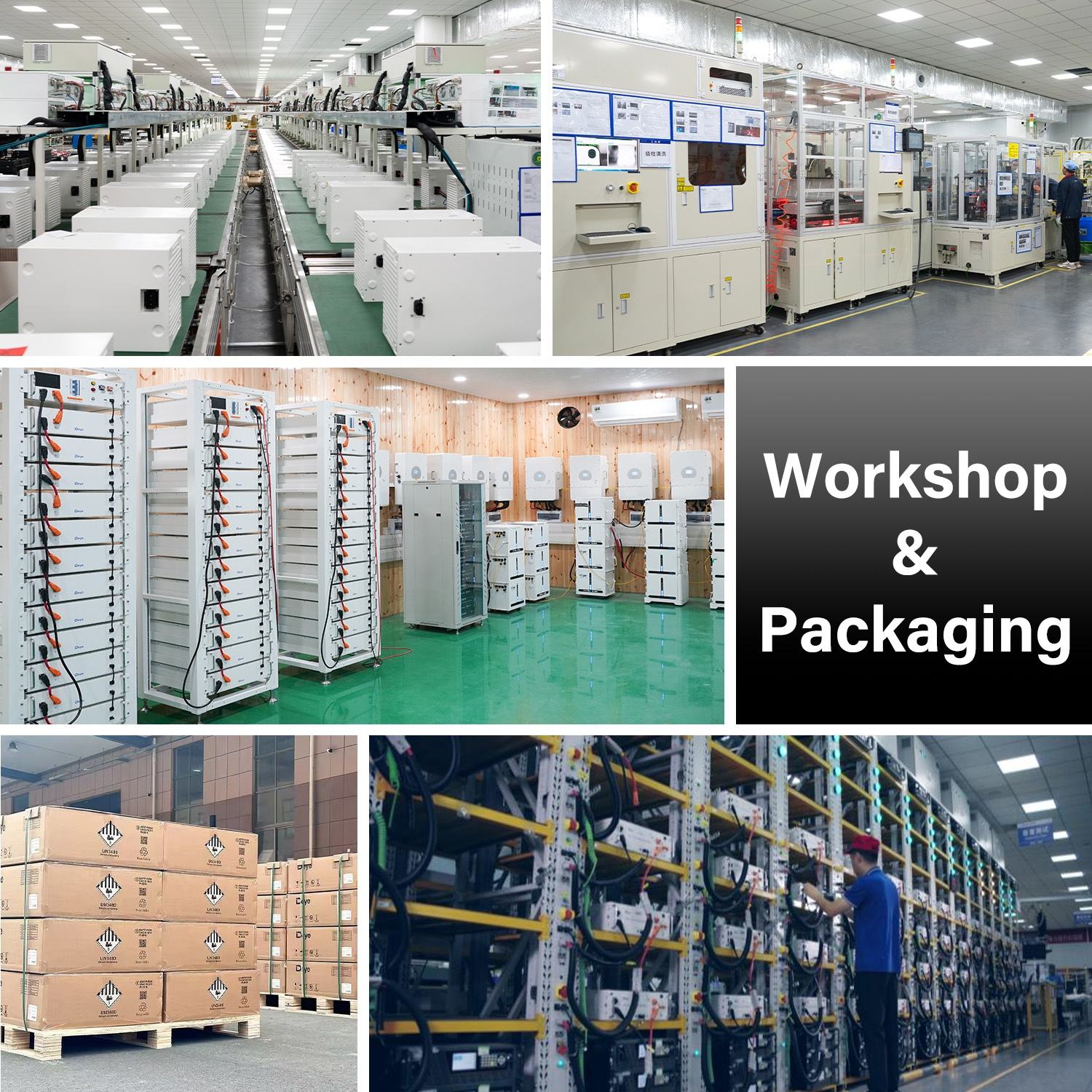

The manufacturing facility utilizes an industry-leading intelligent manufacturing system, employing technologies such as AI, image recognition, machine learning, predictive algorithms, and 5G. The production process has passed IEC62619, IEC/EN60730, UL1973, and CE-EMC testing and certifications.
Participating in more than 20 exhibitions worldwide each year across Asia, Europe, and the Americas, providing comprehensive residential and commercial lithium battery solutions ranging from 5kWh to 1000mWh.
