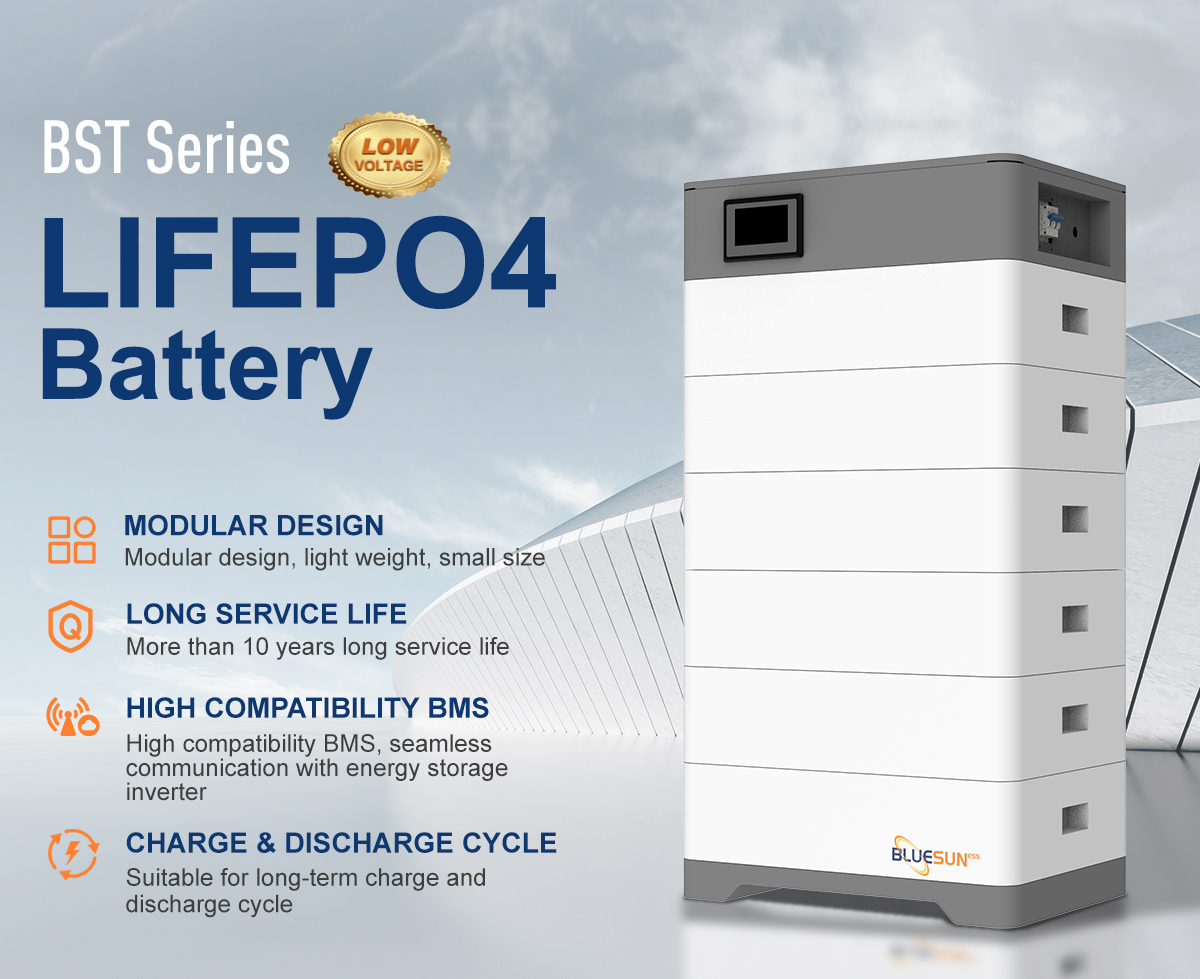

Bluesun Factory ALL In One Solar Battery 15kwh 20kwh Lithium Battery 48V 51.2V 200ah 300ah Stacked Lifepo4 Battery With Inverter

Send Inquiry

Product Description

Products Description

Product Parameter

MODEL	BST-5.0LV	BST-10.0LV	BST-15.0LV	BST-20.0LV	BST-25.0LV	BST-30.0LV
Battery Type	LiFePO4 (LFP)
Nominal Voltage (V)	51.2V
Nominal Capacity (KWH)	5.42KWH	10.85KWH	16.28KWH	21.7KWH	27.13KWH	32.56KWH
Usable Capacity (KWH)	4.87KWH	9.76KWH	14.65KWH	19.53KWH	24.41 KWH	29.30KWH
Design Life	10+ Years (25℃ / 77F)
Physical
Dimension (mm)	600400385	600400534	600400683	600400832	600400981	6004001130
Weight (kg)	80	125	170	215	260	305
ELECTRICAL
Cycle Life	>6000 @ 25°C
Discharge Voltage (V)	40-48
Charge Voltage (V)	56 - 58.4
Charge/Discharge Current (A)	83 (Recommended) / 100A (Max)
Internal Resistance	≤30mΩ
BMS
Power Consumption	<2W (Work) / <100mW (Sleep)
Monitoring Parameters	System voltage, current, cell voltage, cell temperature, module temperature
SOC	Intelligent algorithm
Communication	CAN / RS-485 / RS-232
WARRANTY
Product Warranty	5 Years
Performance Warranty	10 Years

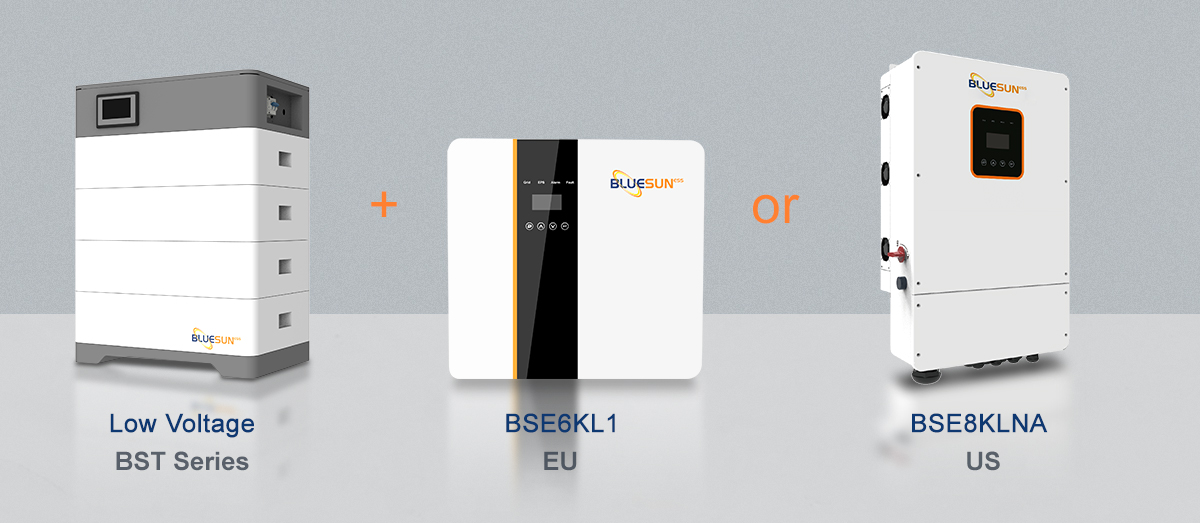

Matching Inverter

High compatibility BMS, seamless communication with energy storage inverter.

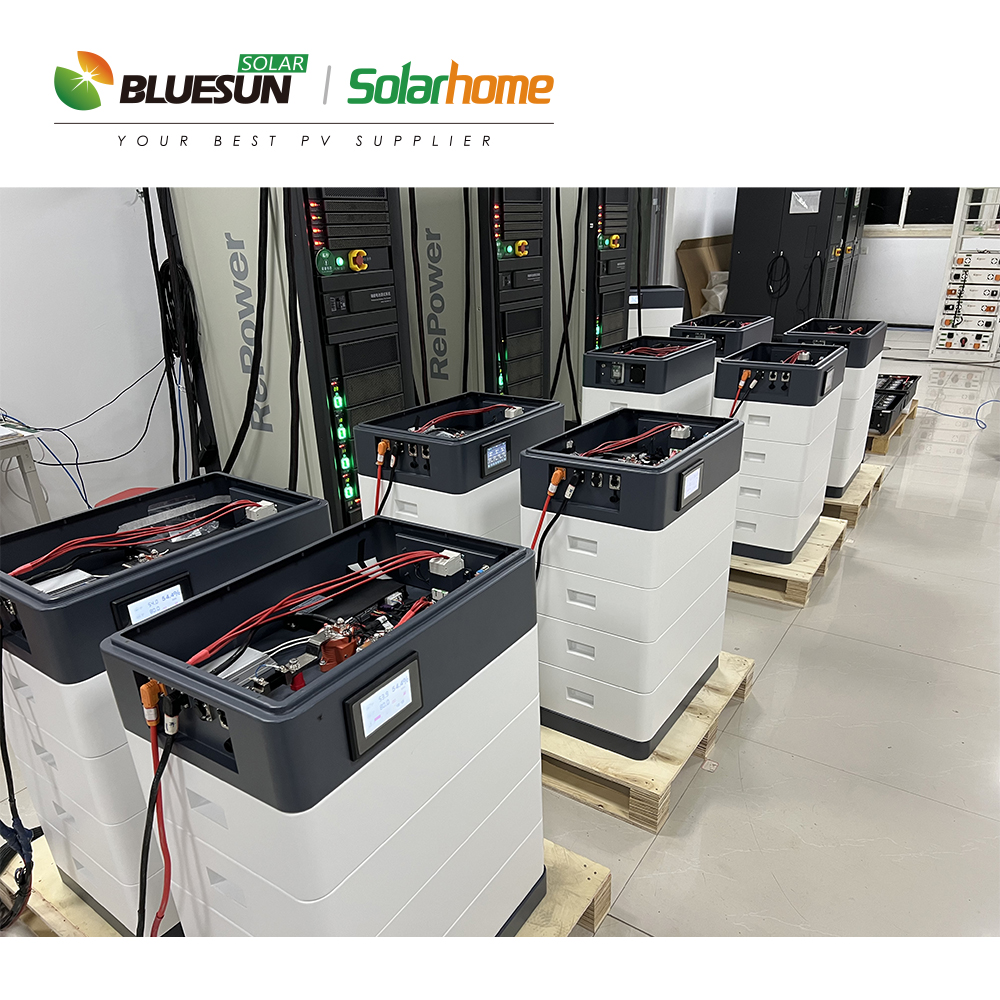

Our Factory

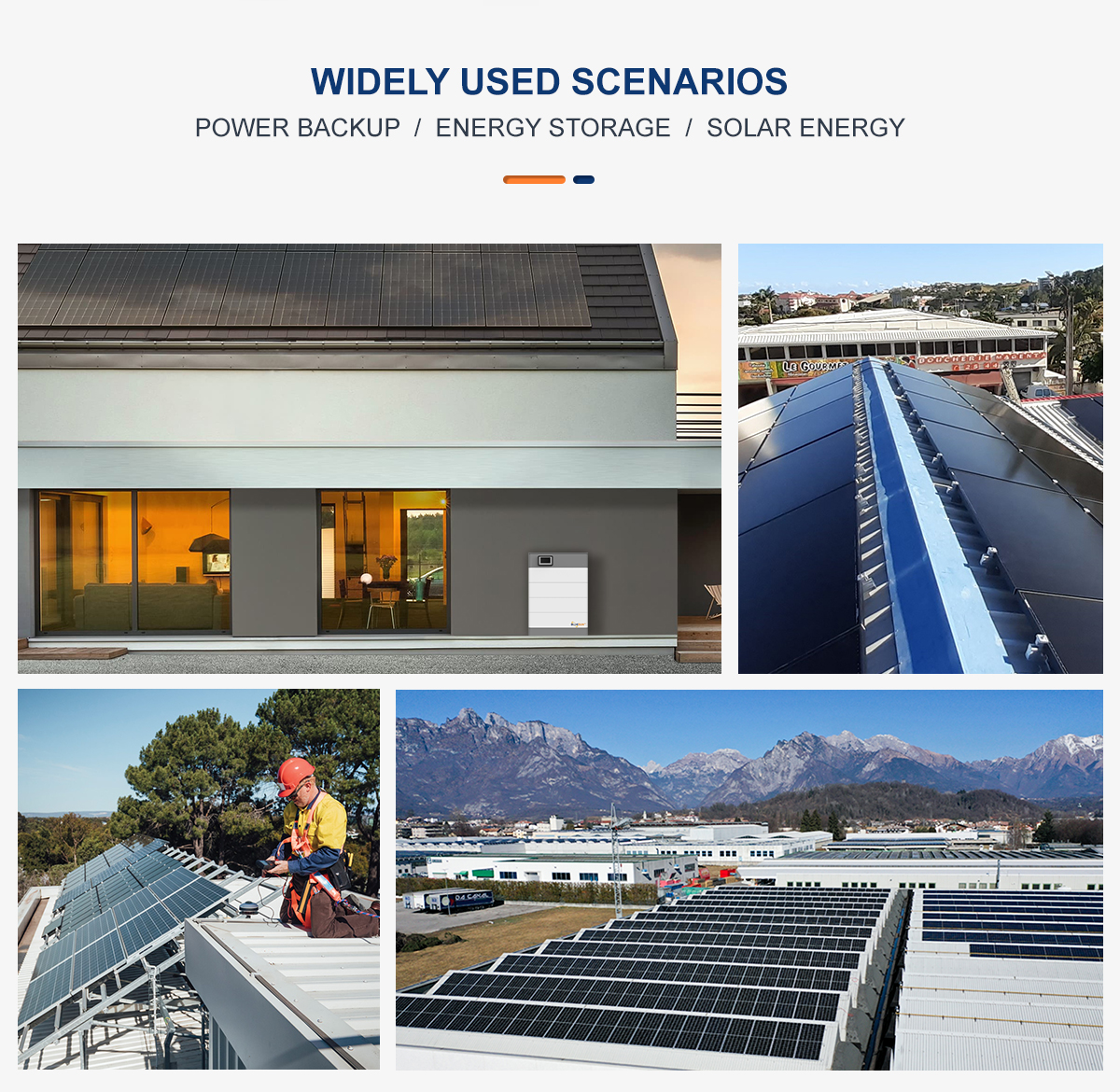

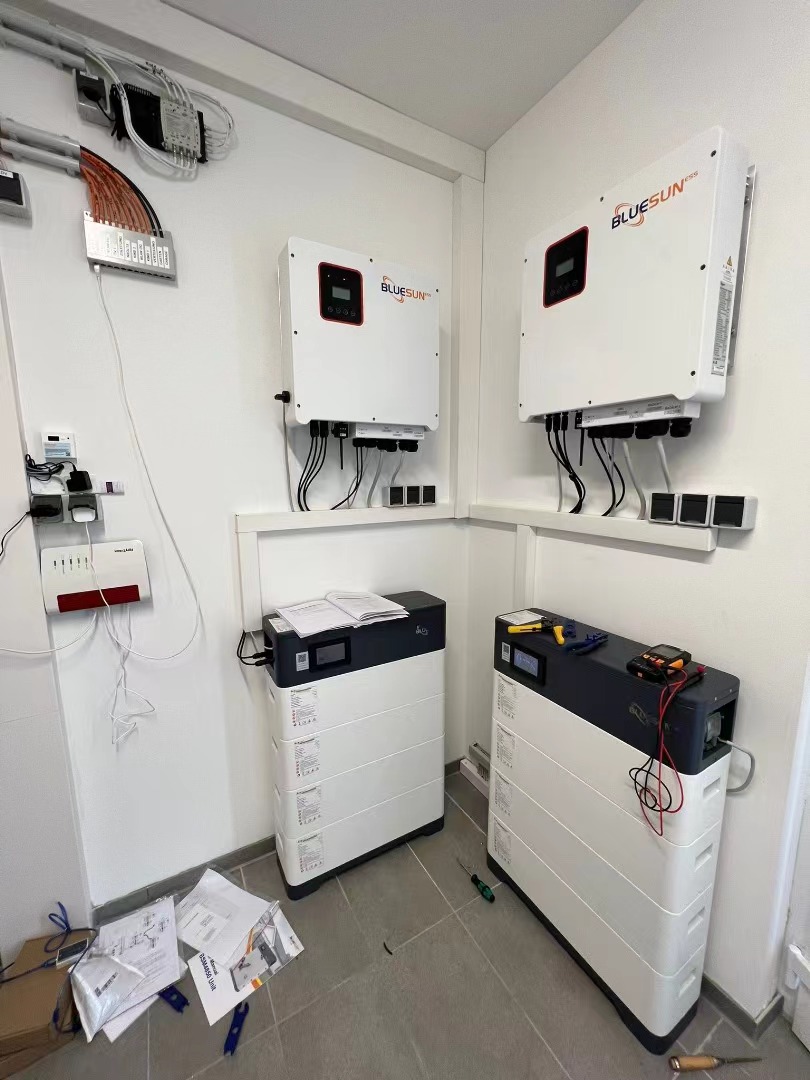

Project

Payment & Delivery

Payment Term	Method	Condition	Notes
Standard Terms	T/T	EXW	30% T/T in advance, balance before shipment
		FOB	30% T/T in advance, balance before shipment
		CFR(C&F)	30% T/T in advance, balance against copy of B/L
		CIF	30% T/T in advance, balance against copy of B/L
Large Amount	L/C	L/C amount above 50,000 USD, we can accept L/C at sight
Small Amount	Paypal / West Union	Amount lower than 5000 USD
Delivery Time	7~10 days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

Frequently Asked Questions (FAQ)

What is the cycle life of the LiFePO4 battery?

The battery system offers a cycle life of more than 6000 cycles at 25°C, ensuring long-term reliability and performance.

Is the battery compatible with my existing inverter?

Yes, it features a high-compatibility BMS designed for seamless communication with most standard energy storage inverters via CAN, RS-485, or RS-232.

What safety monitoring features are included?

The integrated BMS monitors system voltage, current, individual cell voltage, cell temperature, and module temperature to maintain safety.

What is the warranty period for this system?

We provide a 5-year product warranty and a 10-year performance warranty for our battery systems.

How long is the delivery time for a bulk order?

Standard delivery time is approximately 7 to 10 days after receiving payment for a full container.

Can the system operate in extreme temperatures?

The operating temperature range is -10°C to 50°C, and it can be stored or transported in temperatures ranging from -20°C to 45°C.
