Product Description

Basic Specifications

Model:Uhome-LFP 5000
Constant Current:60A
Protection:Over-Current/Voltage/Short Circuit
Cooling:Natural 160 Cooling
Dimensions:500*442*177 mm
Total Energy:5.12kwh
Peak Power:7.0kw for 3 Seconds
Capacity:100ah LiFePO4
Voltage:48V Standard
Application:Solar Power System

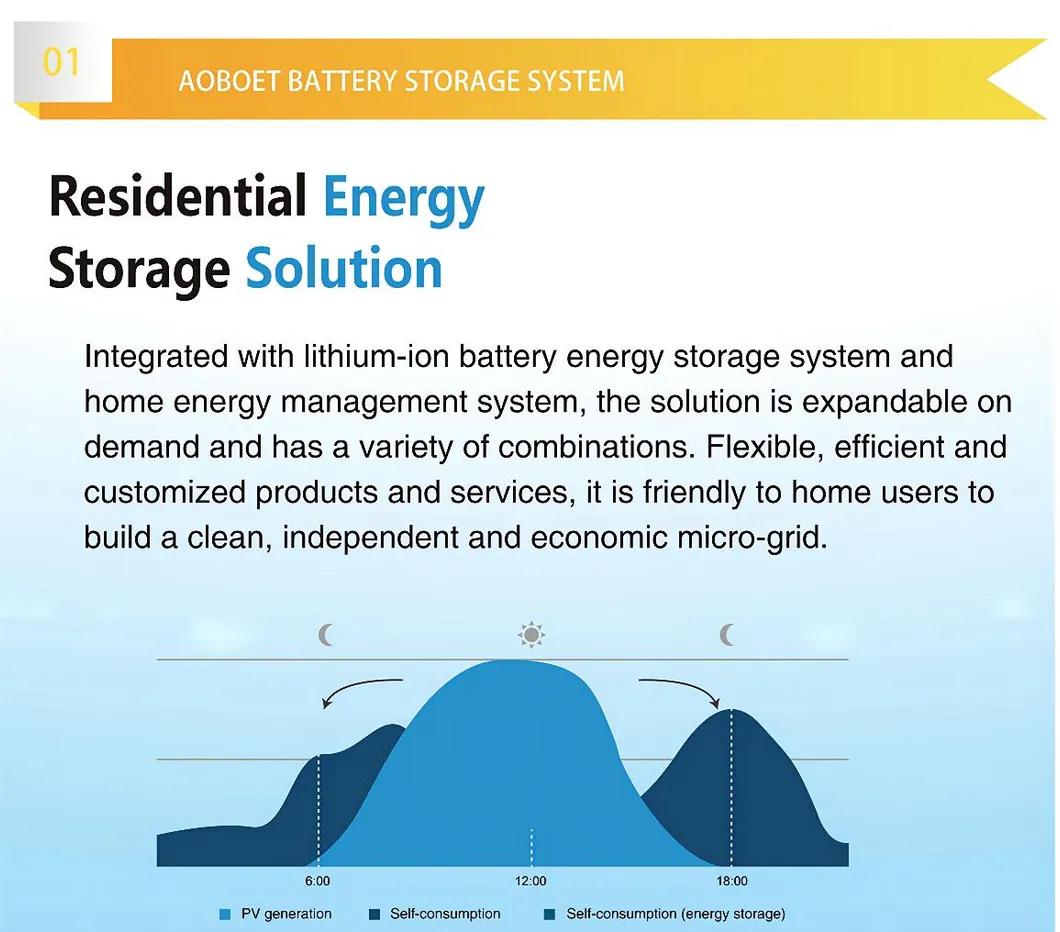

48V 100ah LiFePO4 Battery

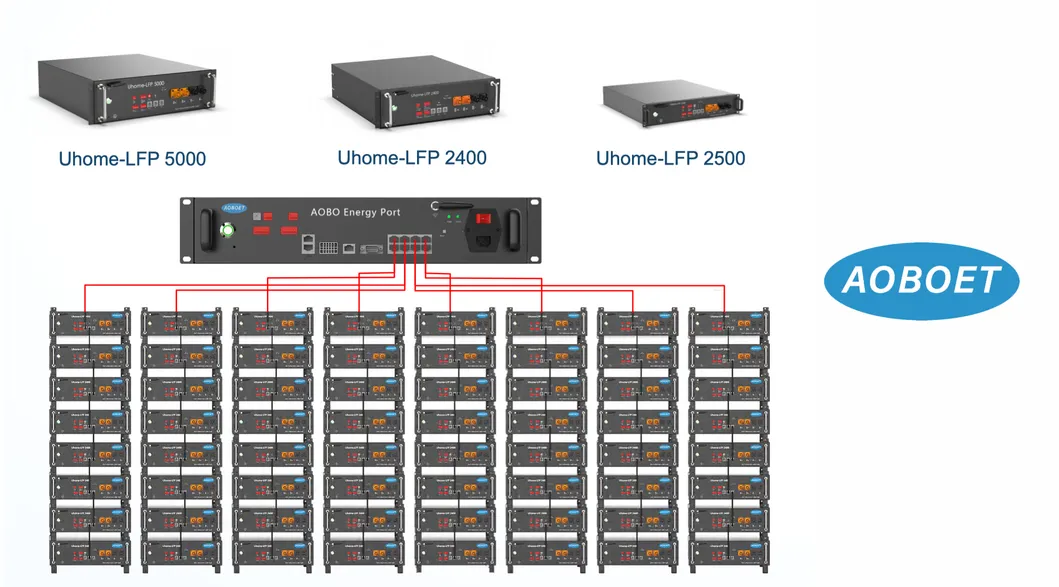

Energy Storage Systems

Model Comparison & Technical Data

Model Uhome-LFP 5000 Uhome-LFP 2400 Uhome-LFP 2500
Total Energy5kWh2.4kWh2.5kWh
Usable Energy (DC)4.6kWh2.2kWh2.2kWh
Nominal Dis-/Charge Power3.0kW1.5kW1.5kW
Constant Current (Discharge)80A40A40A
Nominal Voltage51.2Vd.c51.2Vd.c51.2Vd.c
Dimensions (mm)500*448*135500*442*133500*442*88
Weight45kg27.5kg23kg
Life Span>15 years
Warranty10 years

Key Features

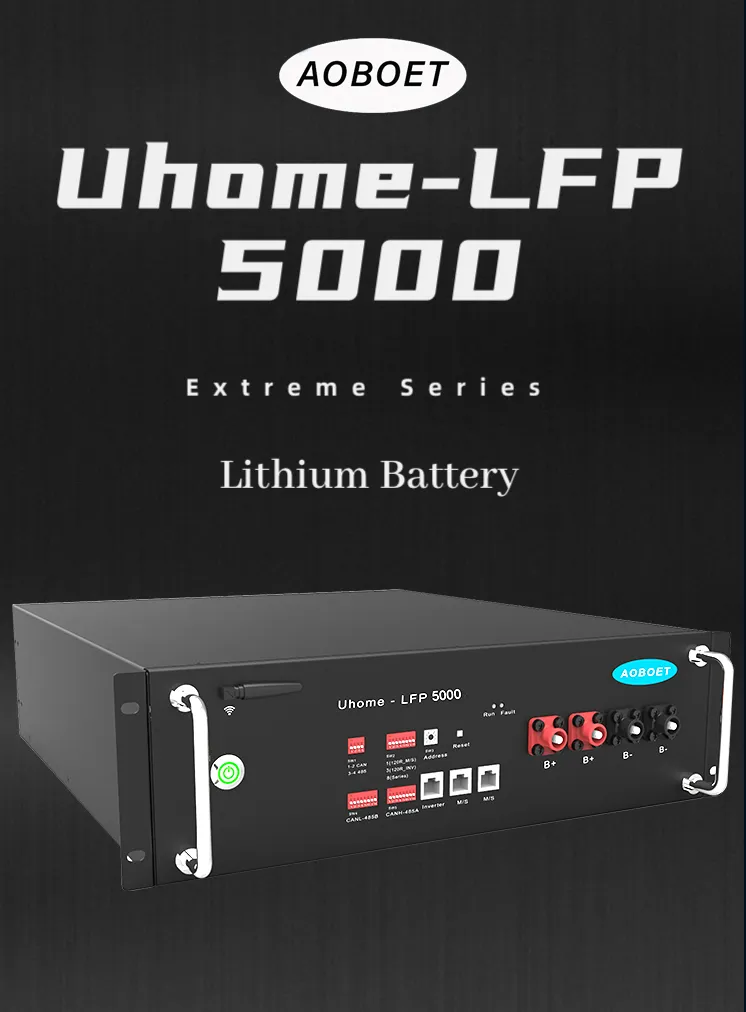

Battery Structure
🔌 High Inverter Compatibility

Works seamlessly with major inverter brands globally.

🛡️ Reliable LiFePO4 Cell

Utilizes stable Lithium Iron Phosphate technology for safety.

📈 Scalable Design

Up to 8 units can be connected in series or parallel.

📱 Smart Monitoring

Built-in WIFI module for mobile and computer remote monitoring.

Solar System Integration

Off-Grid & Hybrid System Operation

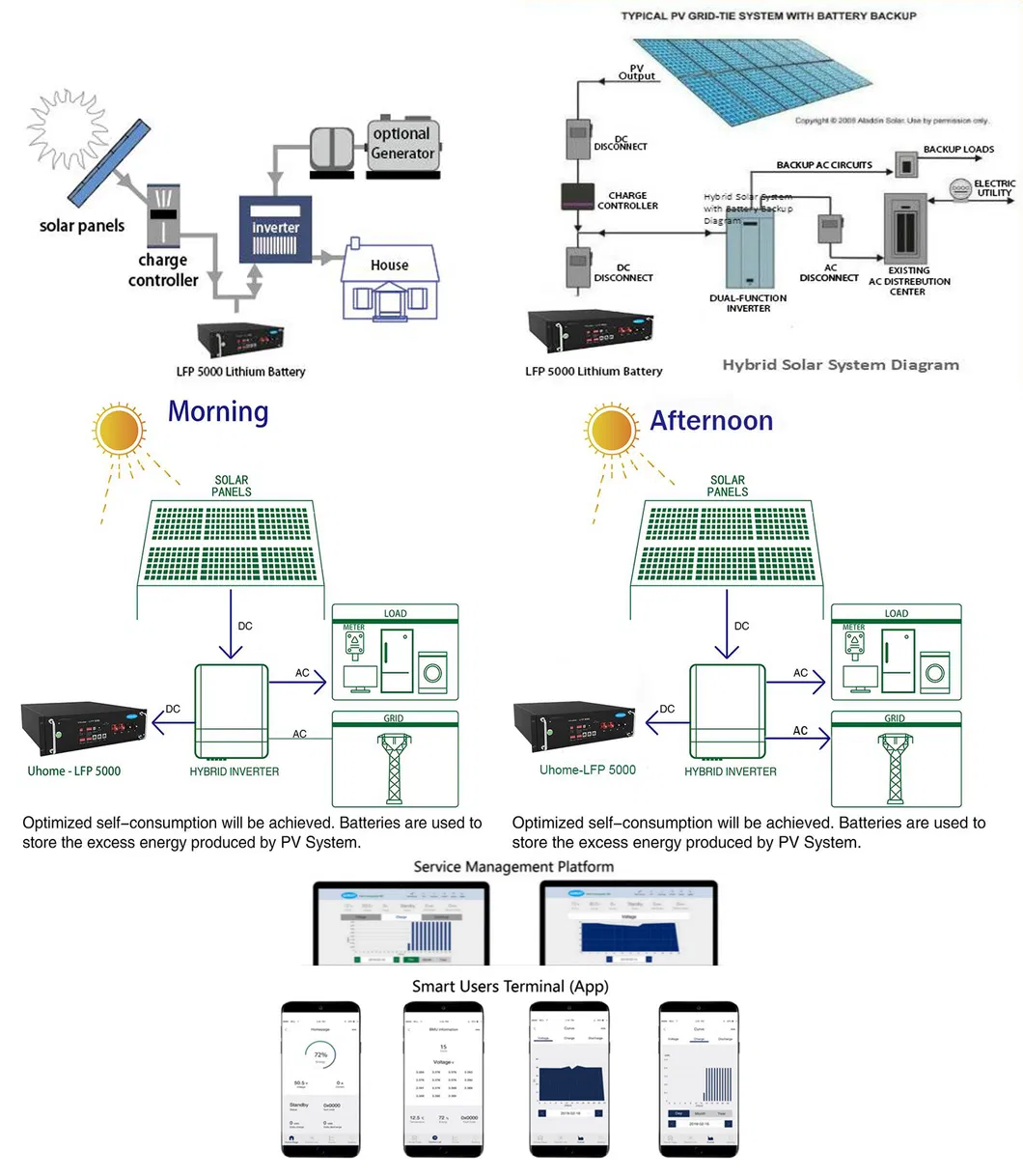

Solar PV System Diagram

Tested Inverter Brands

Supported: SOLIS, GROWATT, DEYE, MEGAREVO, LUXPOWER, KEHUA, SOFAR, INVT, and more.

Brand Hybrid Inverter AC Coupled Inverter
LUXPOWERLXP-(3-5)K hybridLXP-3600ACS
SOLISRHI-(3-5)k-48ESRAI-3k-48ES-5G
SOFARSOLARHYD (3000-6000)-ESME3000
GROWATTSPH3000-6000-
DEYESUN-(5~8)K-SG01-

Smart BMS Functions

  • Energy balance between single LiFePO4 cells
  • SOC calculation: estimate remaining power
  • Dynamic monitoring: prevent over-charging/discharging
  • Real-time data display and remote recording
  • Total voltage and current measurement
  • Dual hardware protection for extreme reliability

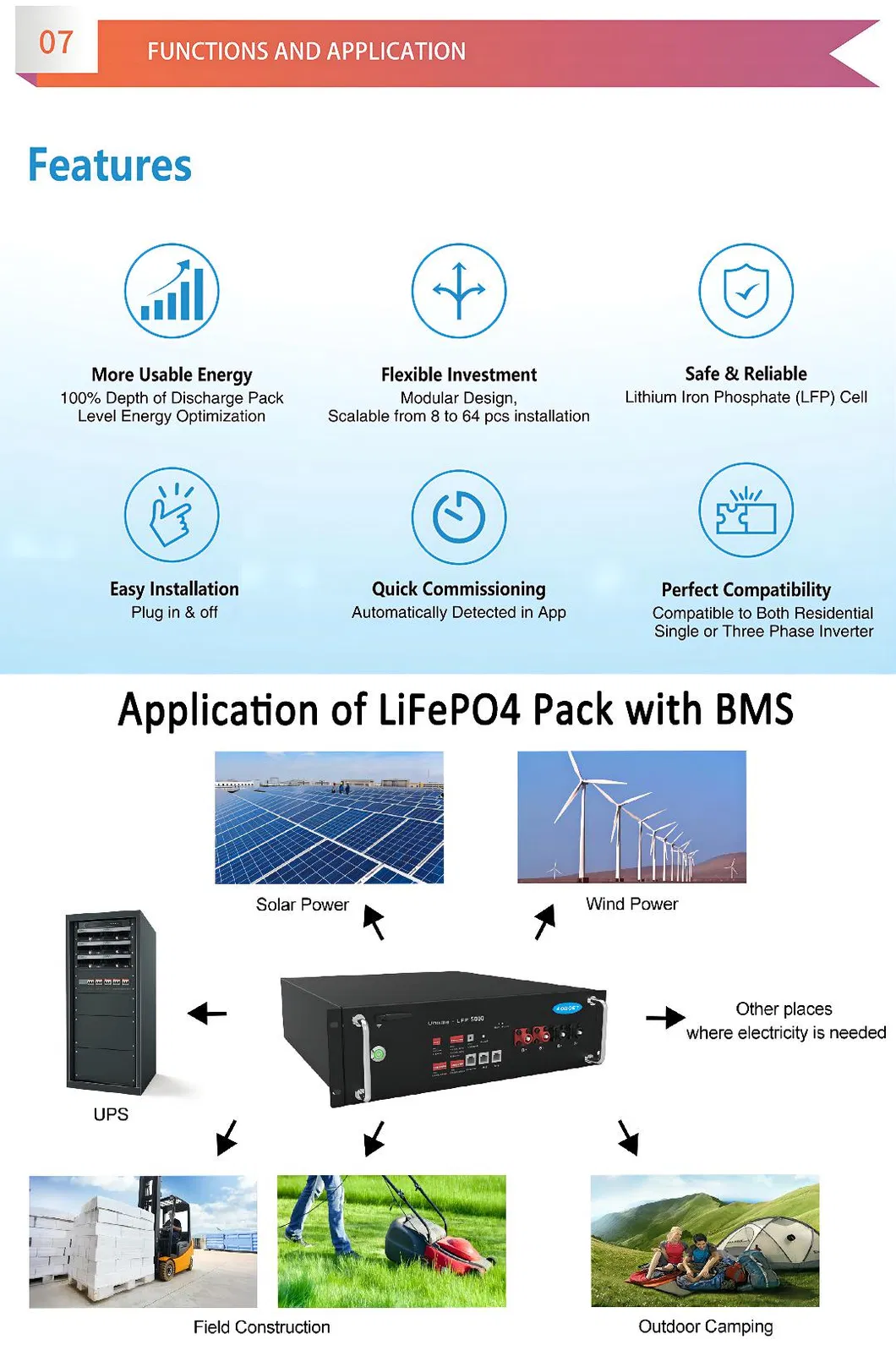

BMS Monitoring
App Monitoring

Frequently Asked Questions

What is the expected lifespan of this lithium battery?
The battery is designed for long-term use with a life span exceeding 15 years and a warranty of 10 years.
Can I monitor the battery status remotely?
Yes, the BMS features a built-in WIFI module, allowing you to monitor real-time information via a mobile app or computer.
Is this battery compatible with my existing inverter?
It is compatible with most major brands including Solis, Growatt, Deye, Luxpower, and many others using CAN/RS485 communication.
How many batteries can I connect together?
The system is highly scalable, supporting up to 8 units connected in series or parallel to increase capacity.
What safety protections does the BMS provide?
The Smart BMS provides dual hardware protection against over-current, over-voltage, short circuits, under-voltage, and over-temperature.
Can the battery firmware be updated?
Yes, the BMS firmware can be easily updated to the latest version to ensure optimal performance and compatibility.
