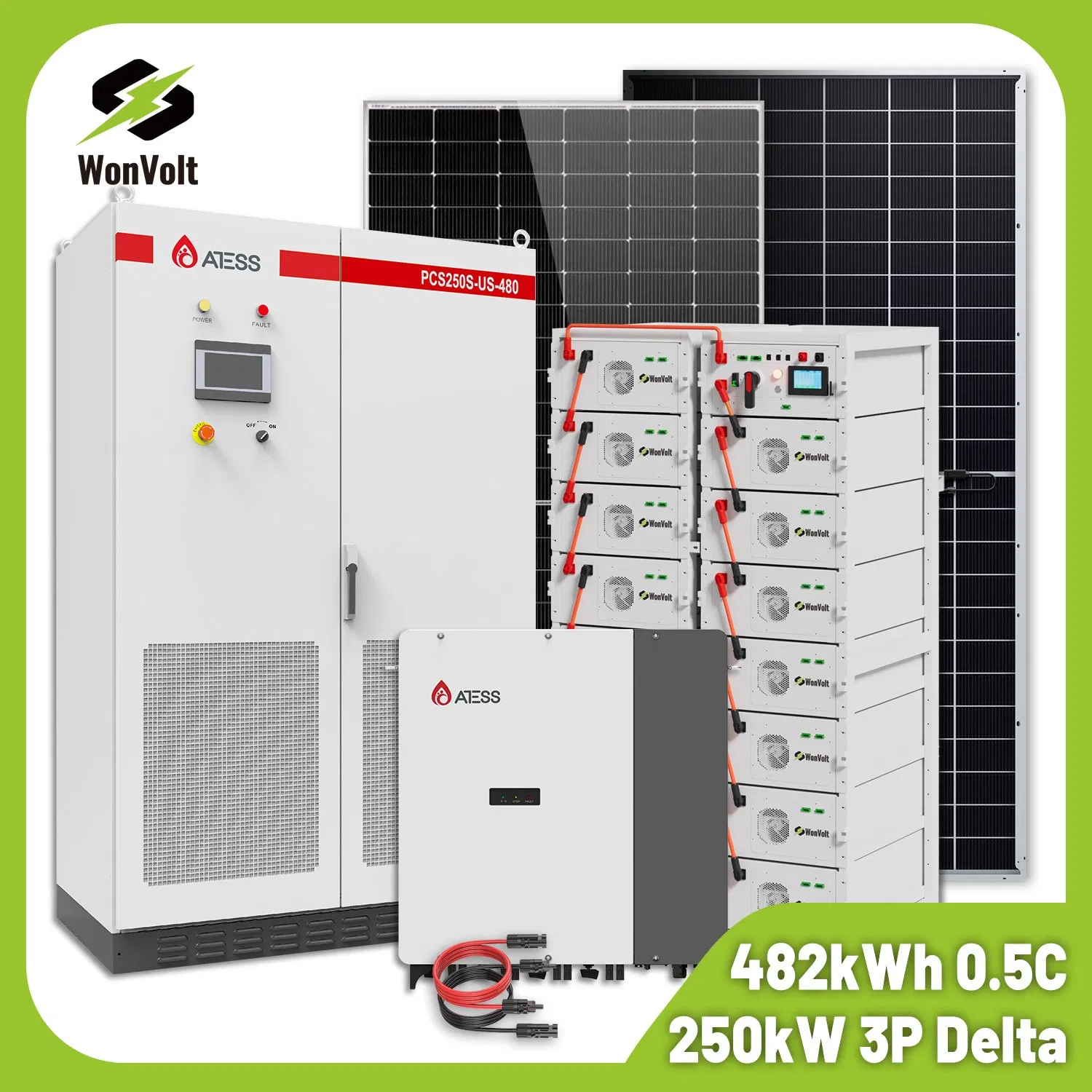

Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery

1 / 5

Wonvolt off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 200kwh 500kwh LiFePO4 Battery

Send Inquiry

Product Description

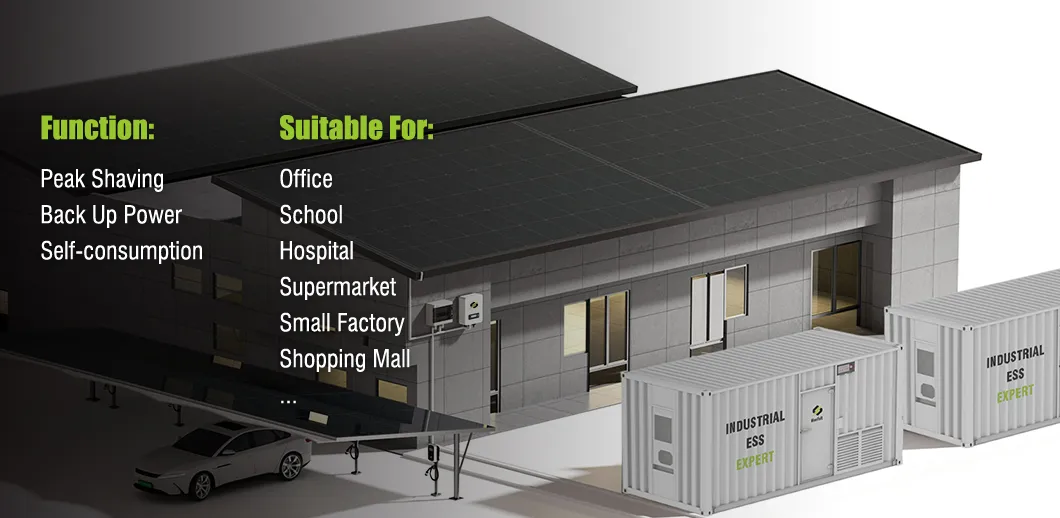

🔋 Commercial ESS

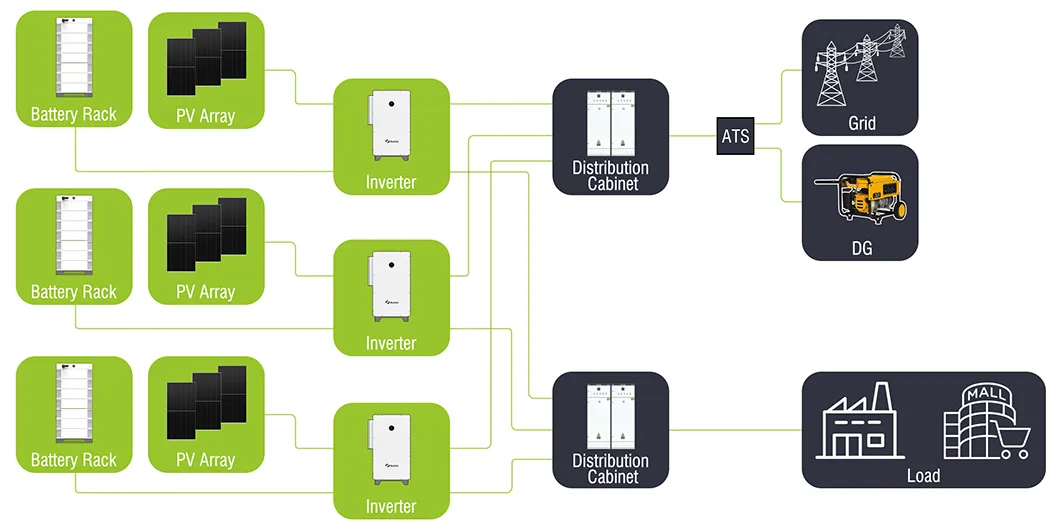

⚙️ System Configuration

Equipment	Model	100KW-200.7KWh-C	200KW-401KWh-C	300KW-602KWh-C
PV Module	72KUN-565	187	374	561
Inverter	WIT-100K-HU	1	2	3

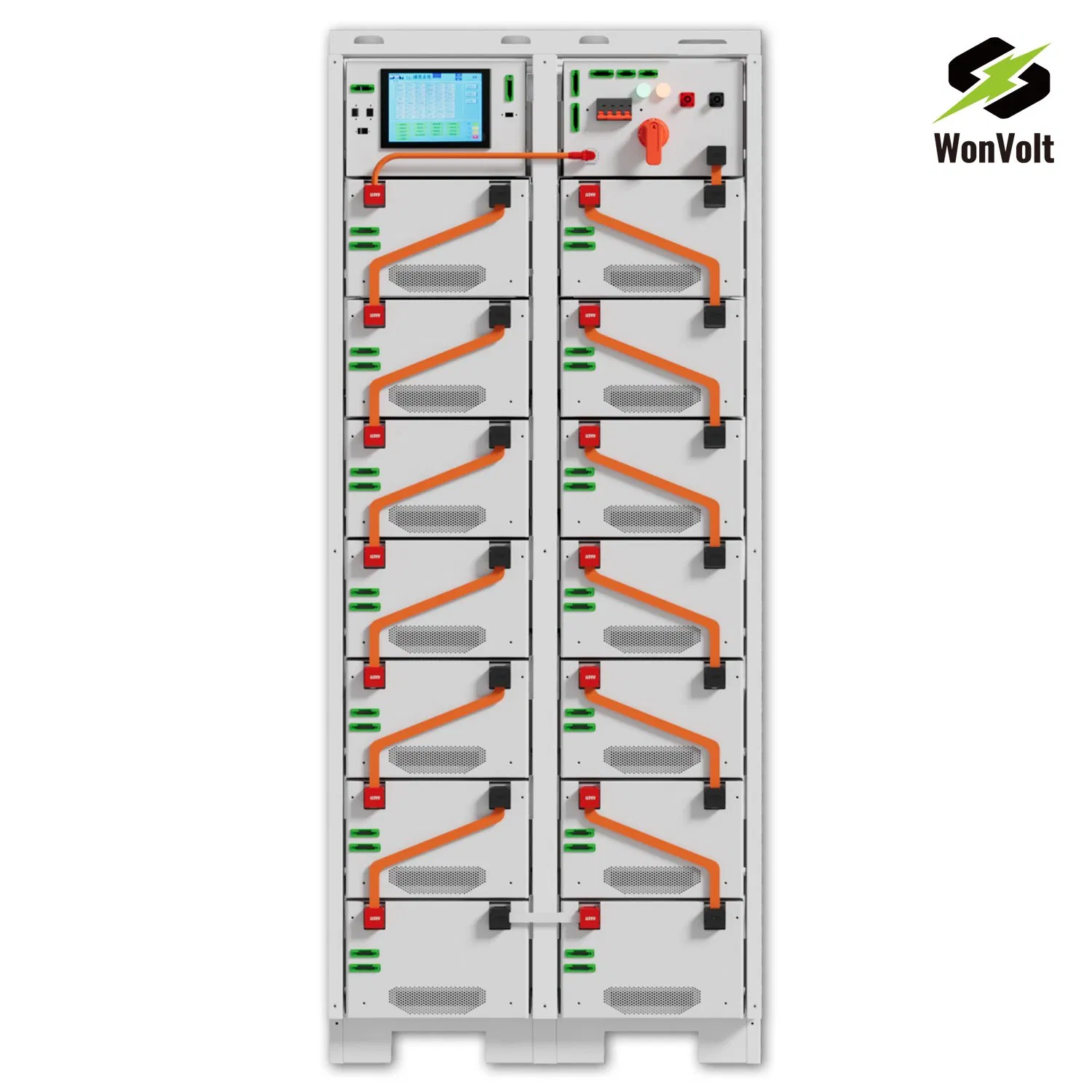

Battery	51280H	14	28	42
Control Box	BMS Box	1	2	3
Connector	MC4	40	80	120
PV cable	PV1-F 1*4mm2	1100	2200	3300
ATS (opt)	ATS300KW	1	1	1
AC Cabinet (opt)	XL-1	0	2	2
Remote monitoring	WIFI or SEM-X	1	1	1
Mounting Structure	Roof/Ground	1	1	1

📋 Product Description

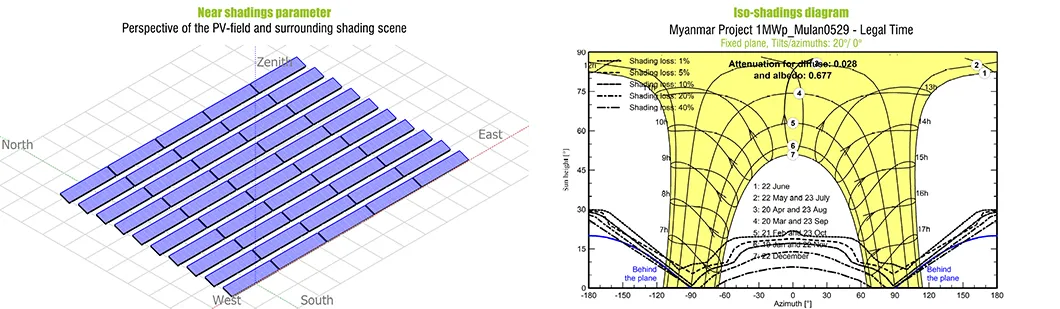

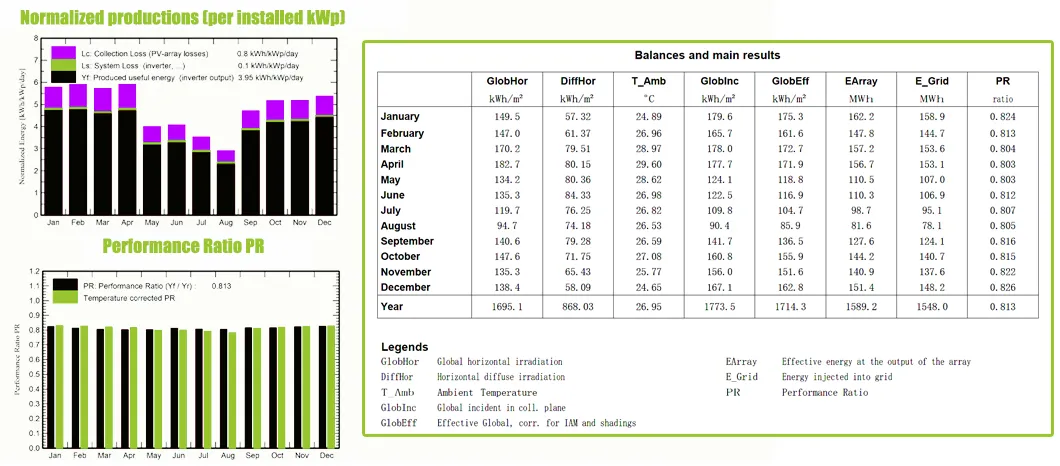

🛠️ Technical Support

🏭 Production Factory

📦 Packaging & Shipping

🏗️ Reference Projects

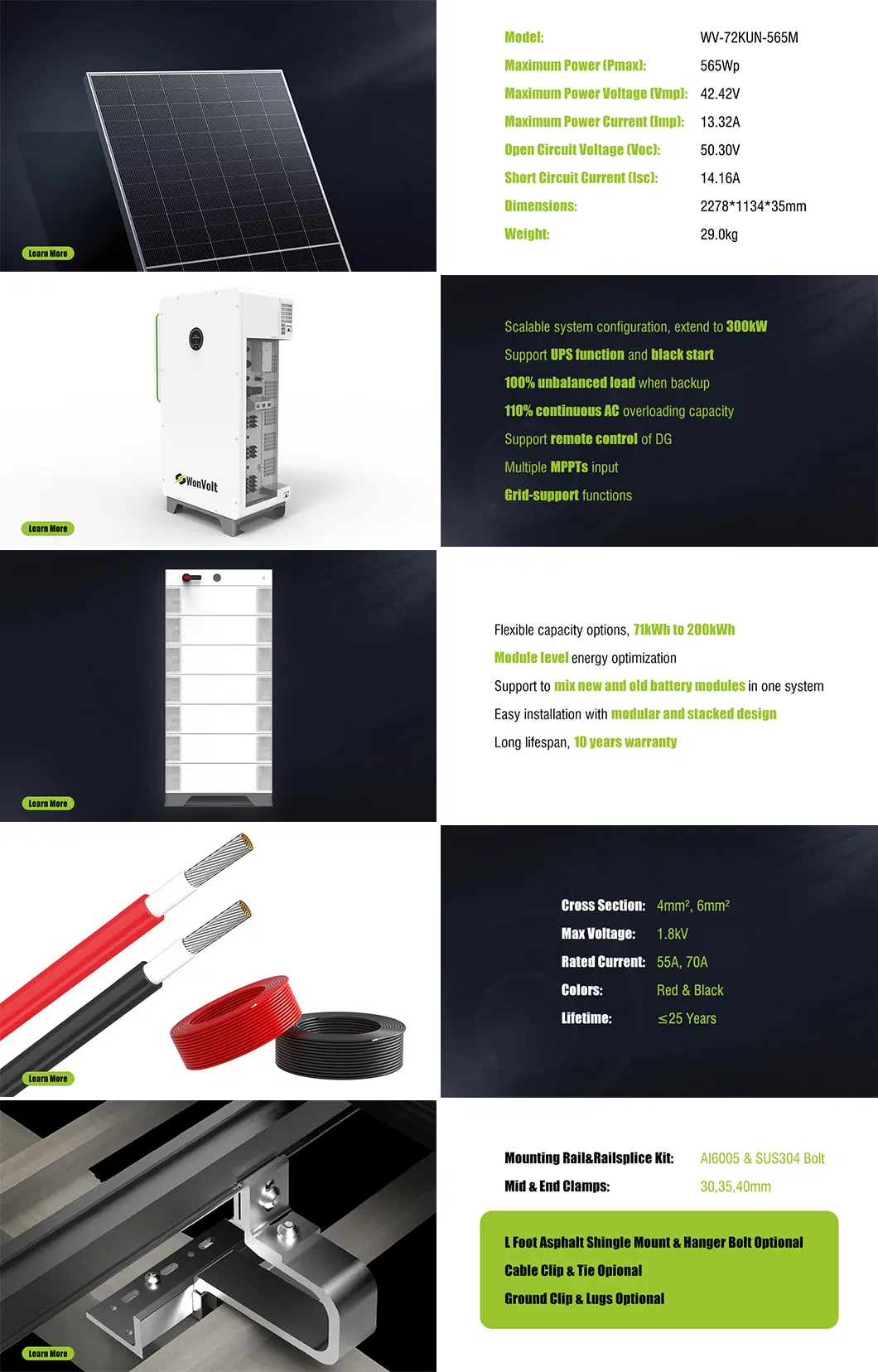

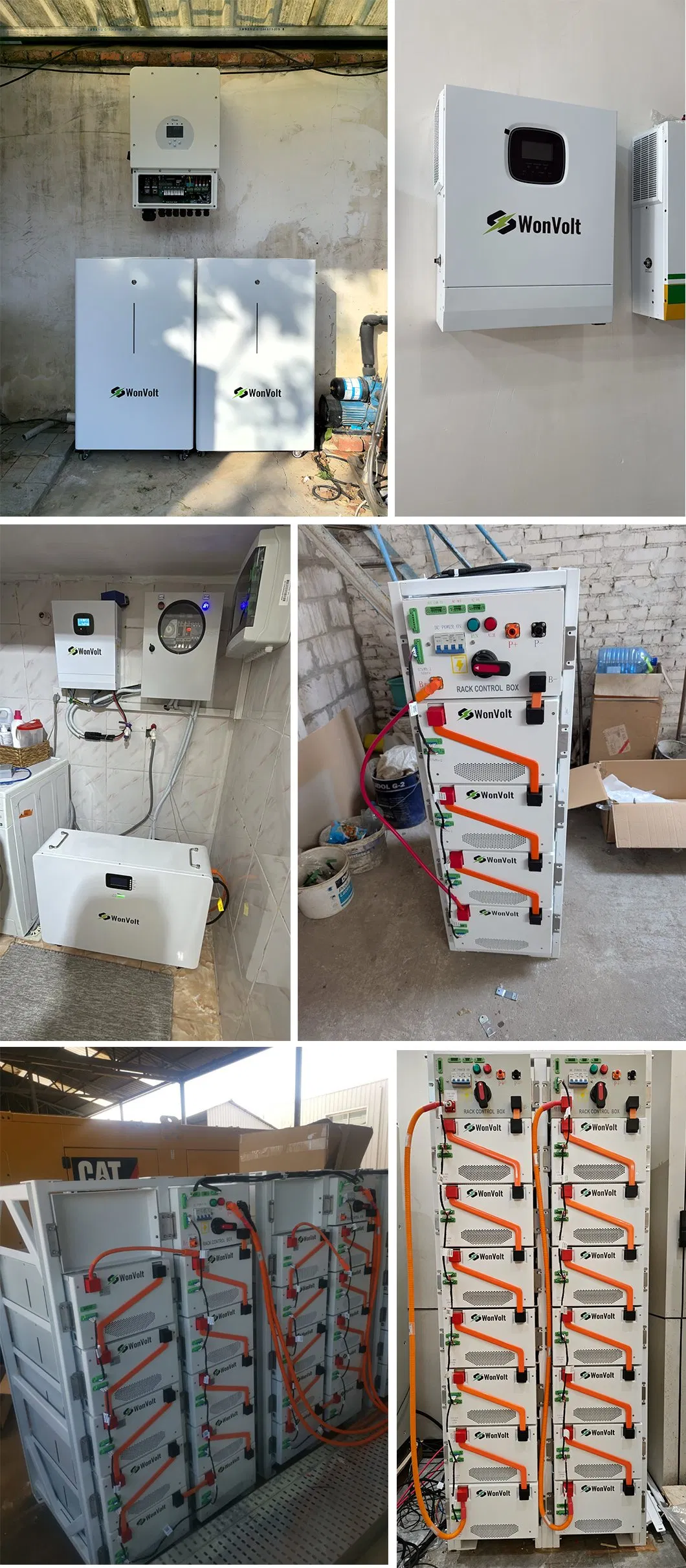

📸 Detailed Photos

Off Grid Solar Power System 60kw 100kw 120kw 150kw 200kw 250kw 300kw 400VAC Hybrid Energy Storage System with 500kwh LiFePO4 Battery

❓ FAQ

What is the expected lifespan of the LiFePO4 battery storage?

The LiFePO4 battery modules are designed for long-term stability, typically offering over 6000 cycles at 80% DOD, which equates to approximately 10-15 years of service life under standard operating conditions.

Can this hybrid system work during a complete grid outage?

Yes, the system is designed to operate in both on-grid and off-grid modes. With the integrated ATS (Automatic Transfer Switch), the system can seamlessly transition to battery power during a grid failure to keep your critical loads running.

Is the system scalable if our power needs increase?

The modular design of our energy storage systems allows for expansion. You can parallel multiple inverters and battery cabinets to increase both the power output (kW) and energy capacity (kWh) as required.

How can I monitor the performance of the solar system?

The system includes remote monitoring via WIFI or SEM-X. Users can track real-time power production, battery status, and consumption levels through a dedicated mobile app or web portal.

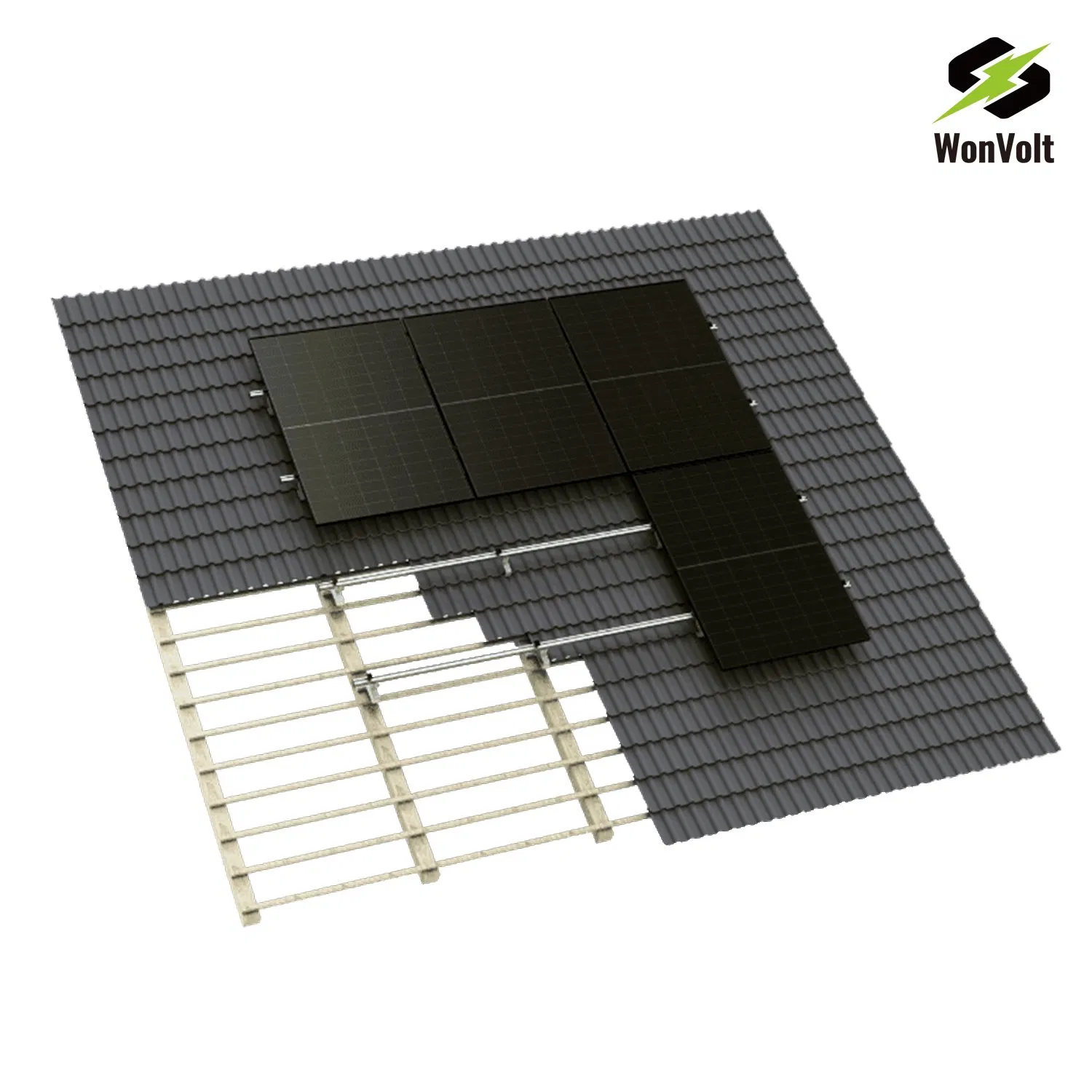

What mounting structures are compatible with the PV modules?

Our systems are flexible and can be supplied with mounting hardware suitable for flat roofs, pitched roofs, or ground-mounted installations, depending on your site requirements.

Does the system require professional installation?

Yes, due to the high voltage (400VAC) and complex configuration of commercial ESS, we recommend installation by certified electrical engineers. We provide comprehensive technical support and wiring diagrams to assist the installation process.
