| Model | KM48V200 | KM48V200 (Series 16) |
| Nominal Energy | 9.6KWH | 10.24KWH |
| Nominal Voltage | 48V (LFP-15 series) | 51.2V (LFP-16 series) |
| DC Discharge Range | 37.5-54.75V | 40-58.4V |
| Standard Charge | 54.75±1V | 40-58.4V |
| Charge Current | 50A | 50A |
| Max Discharge | 100A | 100A (120A optional) |
| Dimensions | 552*168*802mm | 552*168*802mm |
| Weight | 84kg | 86kg |

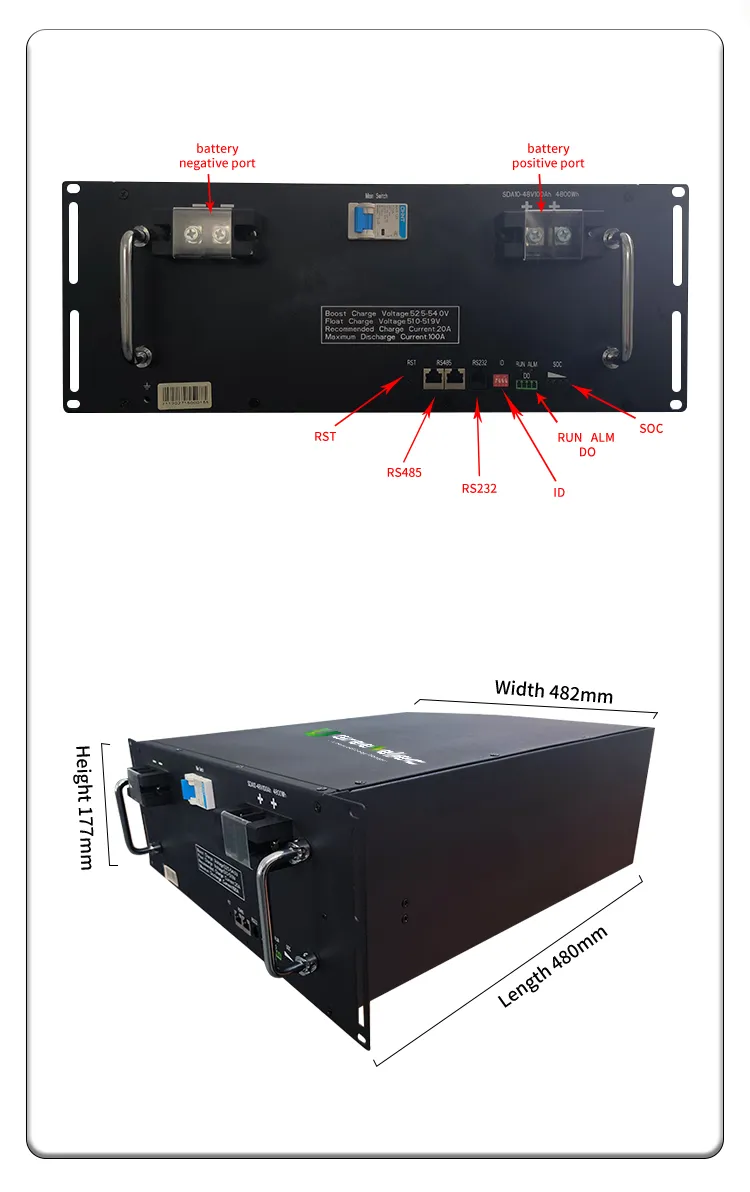

| Communication | RS485, RS232, CAN | |
| Temp Range | 0~50ºC (Charge); -20~60ºC (Discharge) | |
| Certification | CE, MSDS, UN38.8, TUV | |
| Design Life | 15 Years | |
| Waterproof Rate | IP54 | |
Intelligent Integrated Battery Management System (BMS):
Built-in BMS automatically protects internal cells from over-charge, over-discharge, over-temperature, and short-circuit. It ensures battery safety and reliability while balancing each cell to prolong service life.
Environmental Performance: Eco-friendly, non-polluting materials (No lead, cadmium, or mercury). High safety with no explosion risk under collision.
