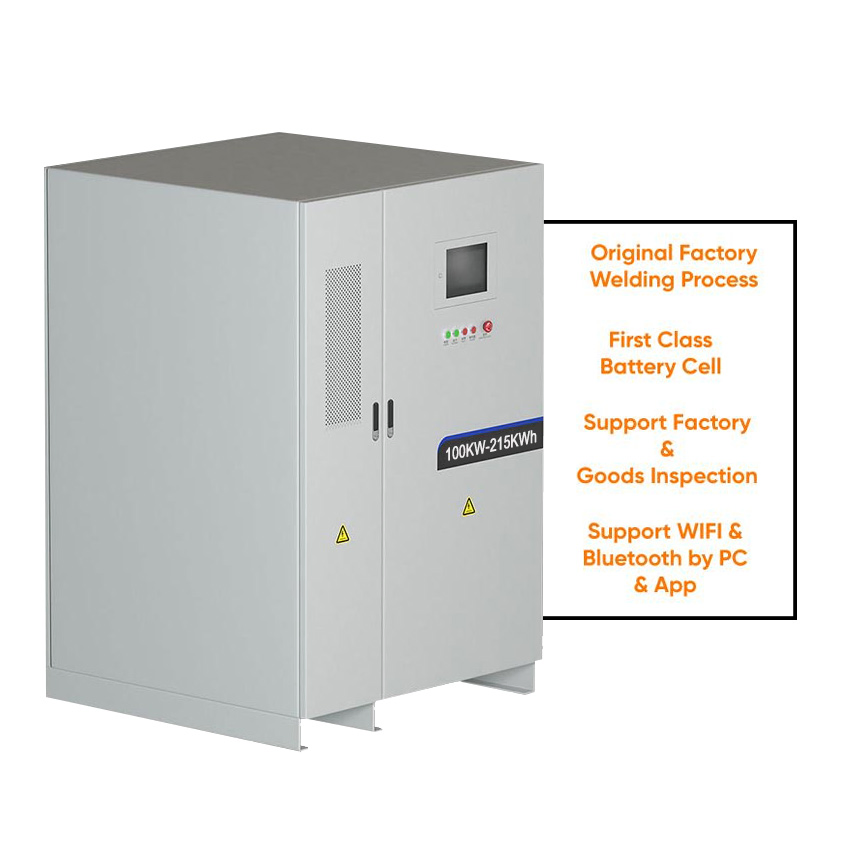

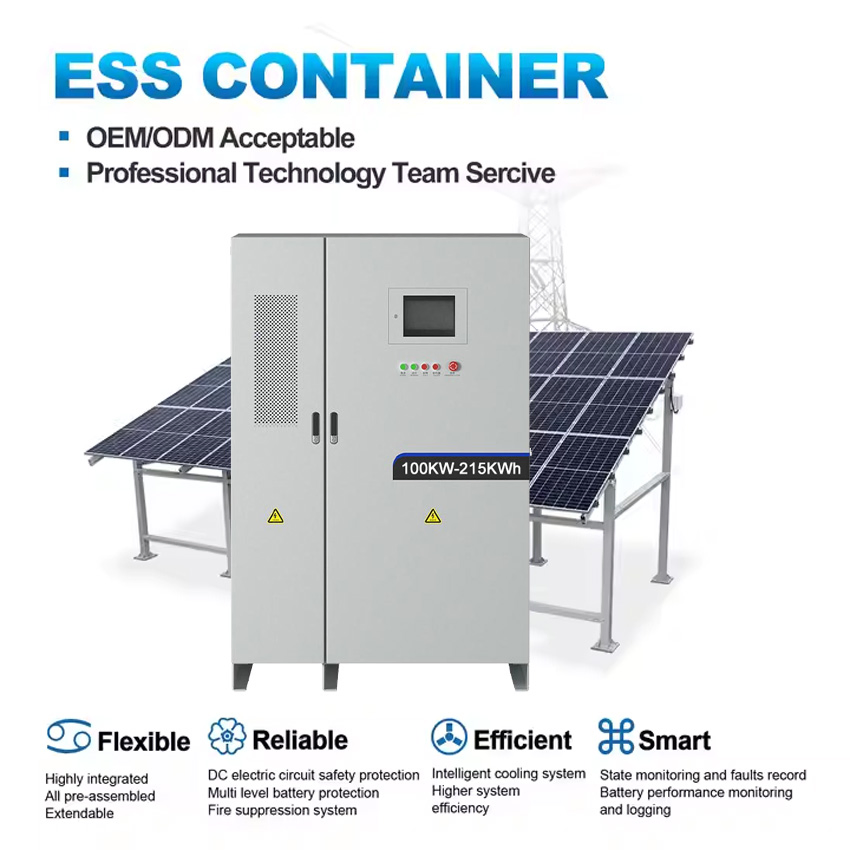

High Voltage 614.4V 172kwh LiFePO4 Battery 576V-672V Hv Solar Lithium Battery 172kwh Lithium Ion Batteries Ess Bess

Customization: Available
Battery Capacity: 50kwh~232kwh
Cell Chemistry: LiFePO4

Product Description

Basic Specifications

Model NO.
C&I Ess 2
Certification
CE, UL, Un38.3, MSDS
Application
Solar, Wind, UPS, Telecom
IP Rating
IP54
Cooling Method
Air-Cooled / Natural / Liquid-Cooled
Display
LCD Display
Capacity
50000 PCS Per Year
Cabinet Size
1500*2306*1539mm

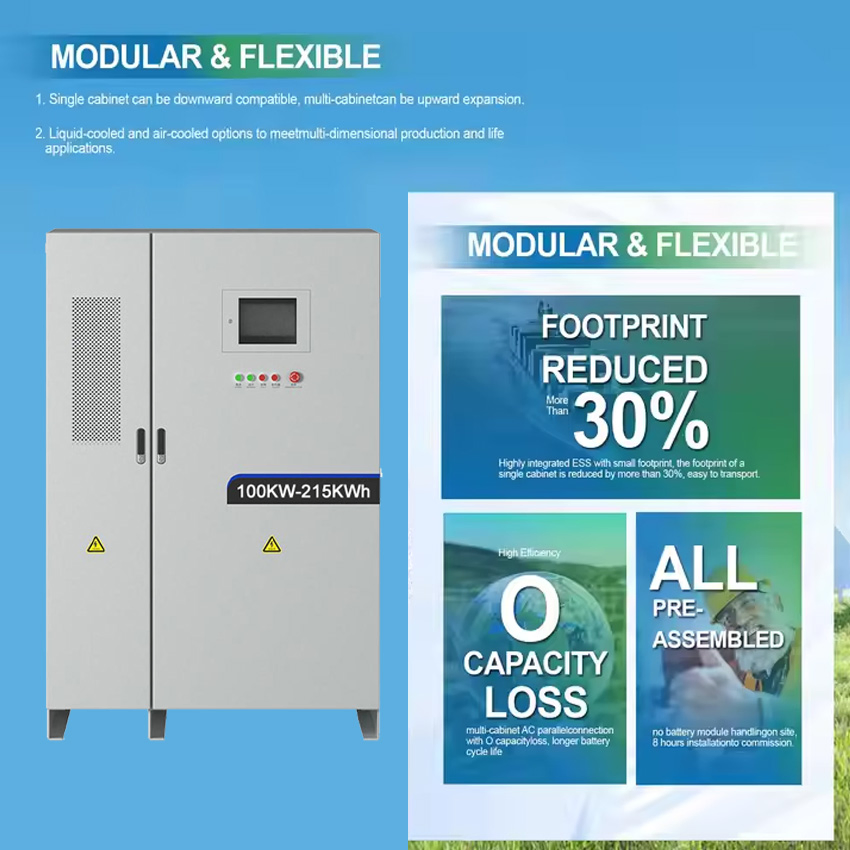

All-In-One Commercial Energy Storage

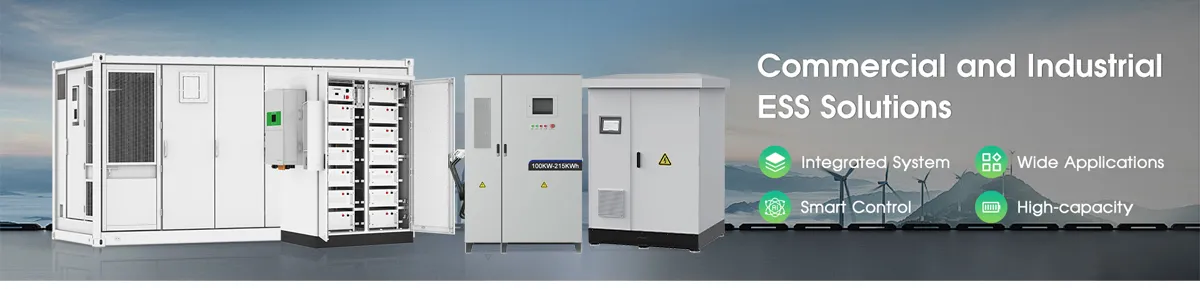

Energy Storage System Overview
The 100kW 215kWh battery storage cabinet integrates energy storage batteries, PCS modules, EMS, 3-level battery management system, photovoltaic modules, distribution boxes, and industrial air conditioning. Optimized through specialized pipeline design, the thermal management system ensures safe and efficient operation. Equipped with rack-mounted modular PCS, it supports multi-machine parallel connection and excellent scalability. The system capacity is expandable up to 215kWh. Featuring a door-mounted embedded integrated air conditioner, it maximizes internal cabinet space and maintains structural integrity with superior waterproof effects.

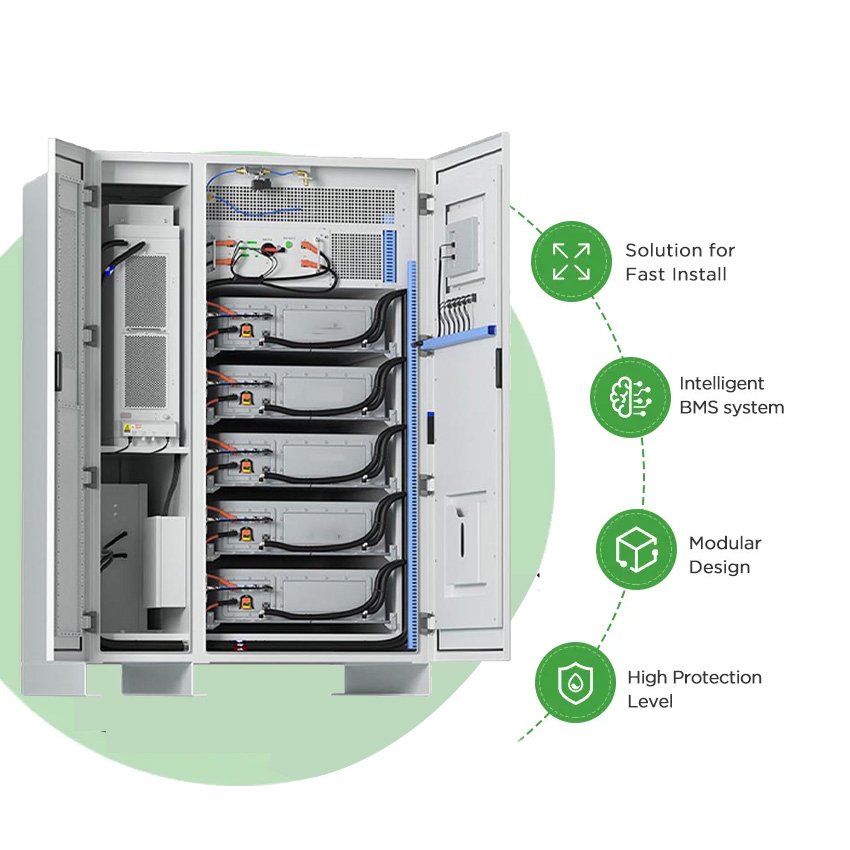

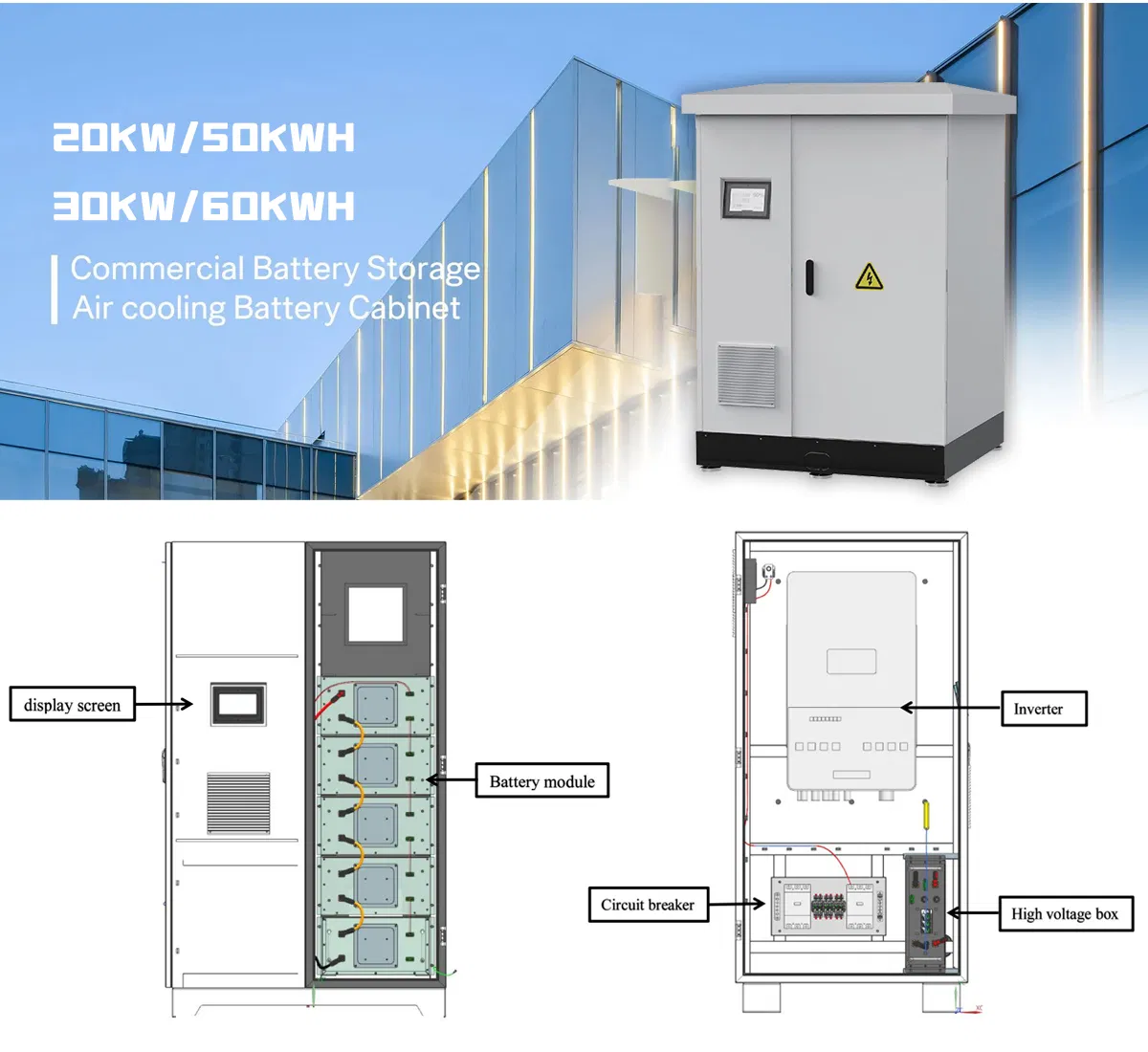

System Structure

Technical Parameters

Model LWN-20kW50kWh LWN-30kW60kWh
Module Energy10.24kWh
Module Number5PCS6PCS
Rated Energy51.2kWh61.4kWh
Standard Voltage512V614.4V
Working Voltage Range432 ~ 576 V518.4 ~ 691.2V
CommunicationCAN/RS485/WIFI (Optional)
IP ProtectionIP54
Working Temp0-55℃

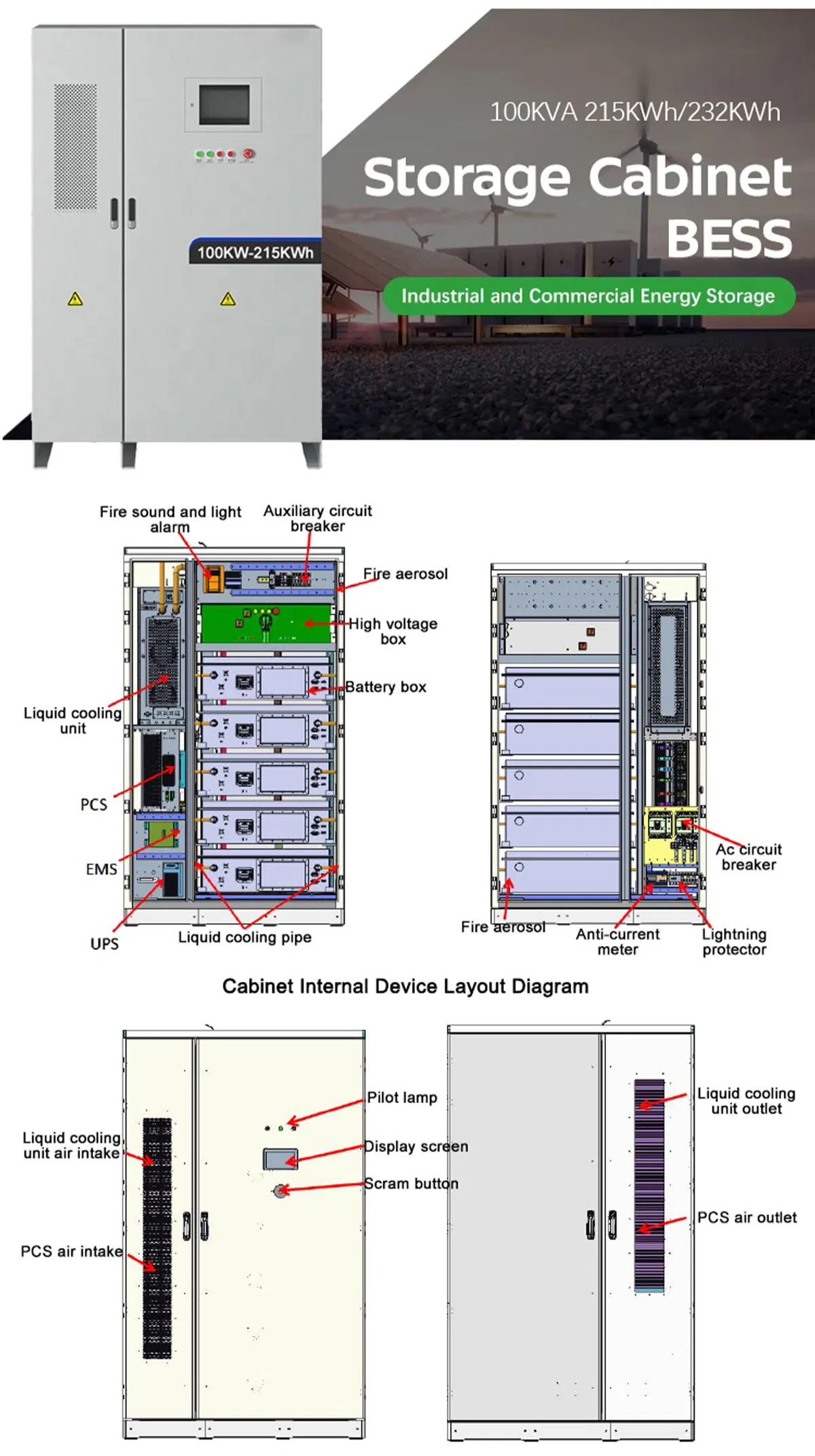

Detailed Specs Chart

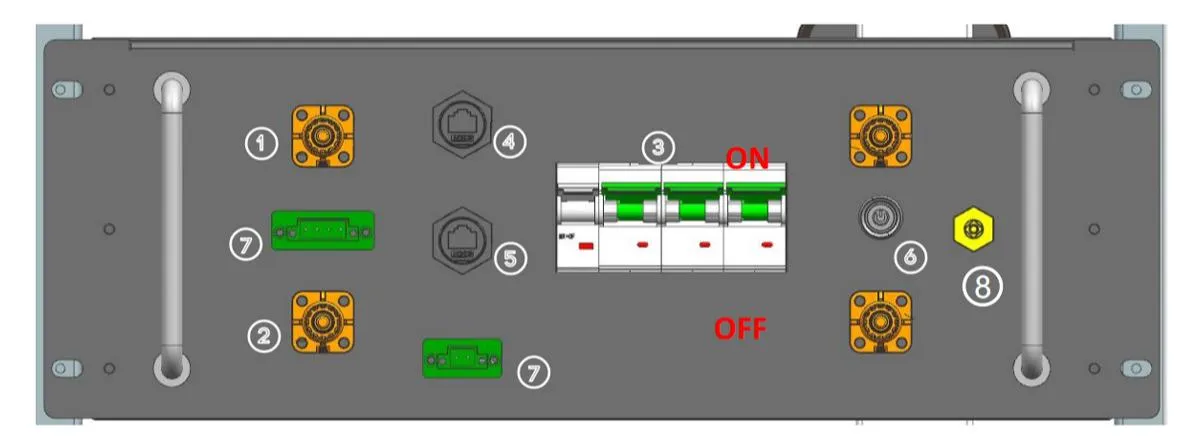

PDU Interface Description

PDU Interface
  • Positive/Negative Terminals: Battery output for 6AWG cable connection.
  • Breaker: Control circuit output with manual ON/OFF switch.
  • PCS Communication: RJ45 8P8C interface for inverter integration.
  • System Controls: Includes DBUG maintenance port and Start button for BMS initialization.
  • Connectivity: Supports WiFi connection and display screen communication.

Product Applications

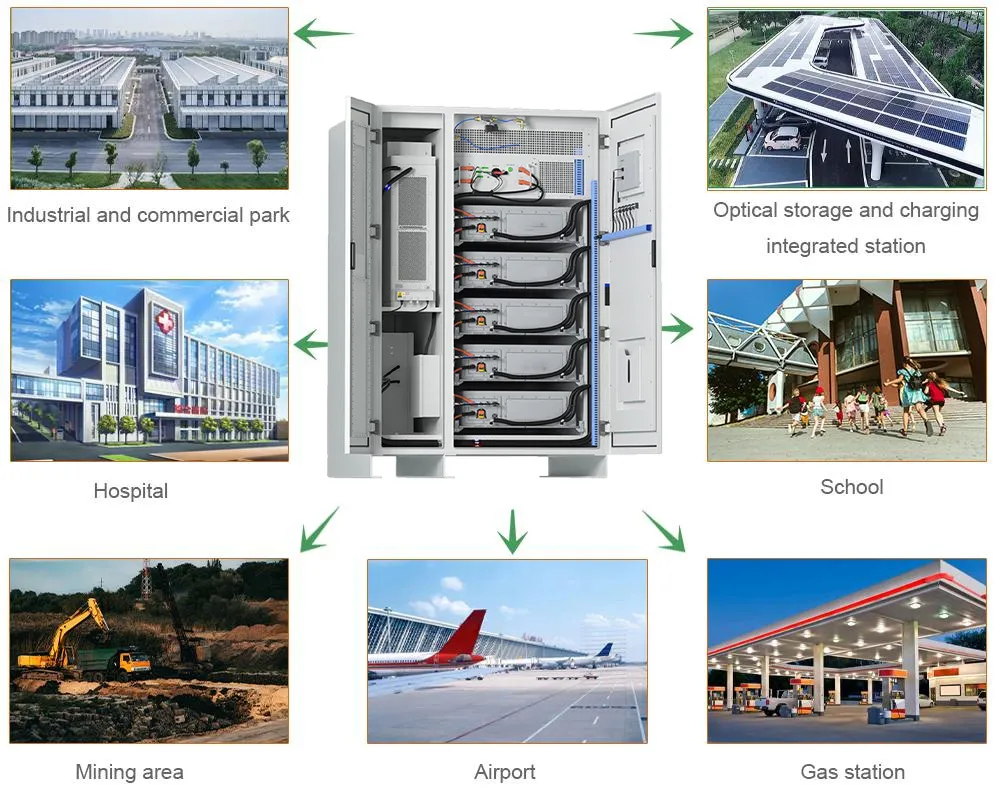

Application 1

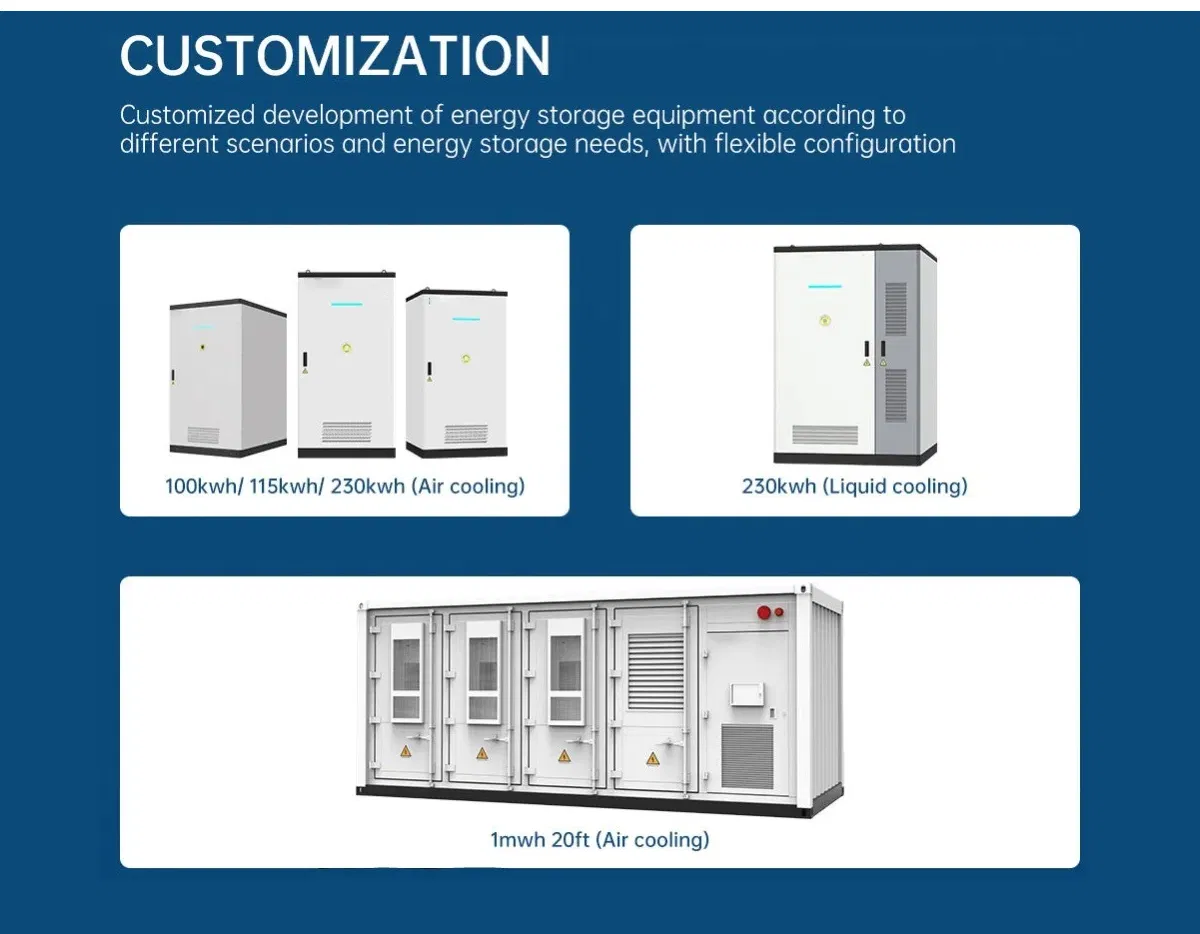

Application 2

Project Cases

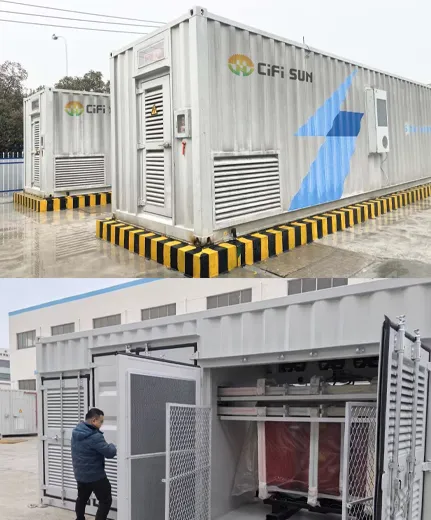

Case 1

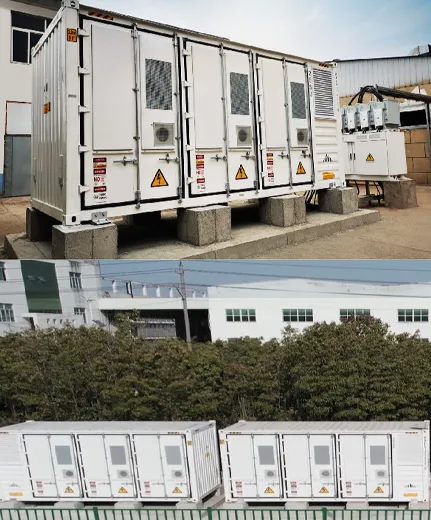

Case 2

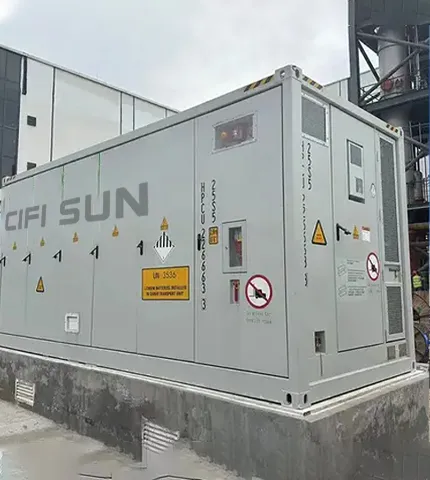

Case 3
Case 4

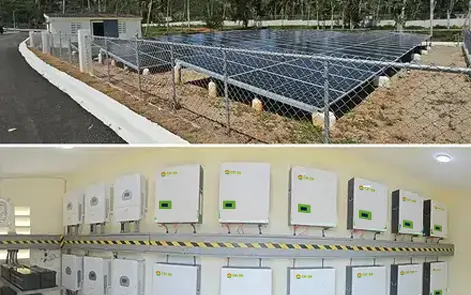

Case 5

Manufacturing Excellence

Factory Overview
6 Production Lines
30GW+ Export Capacity
8,000+ Clients Served
OEM/ODM Available

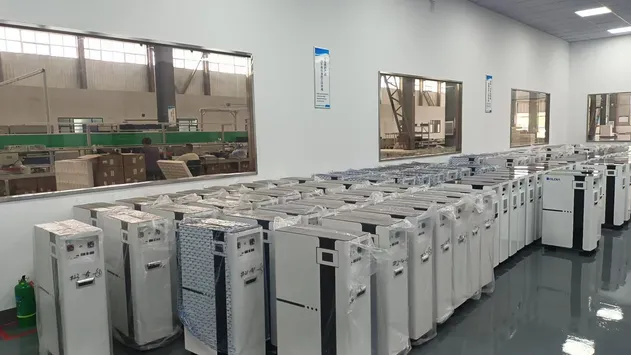

Workshop 1

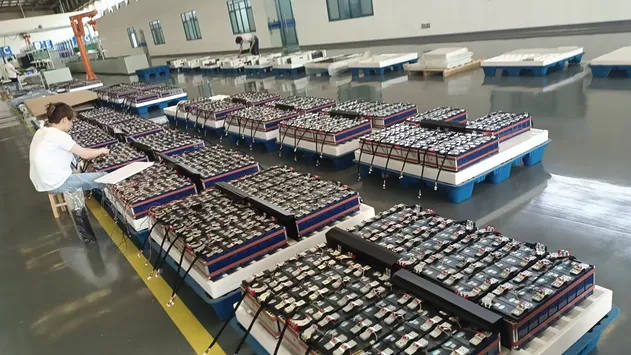

Workshop 2

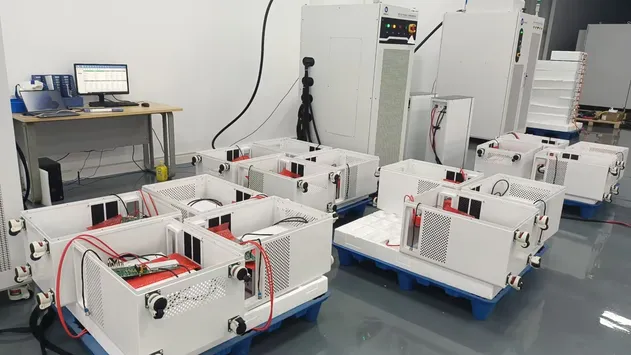

Workshop 3

Packaging & Shipping

Packing 1
Packing 2
Shipping 1

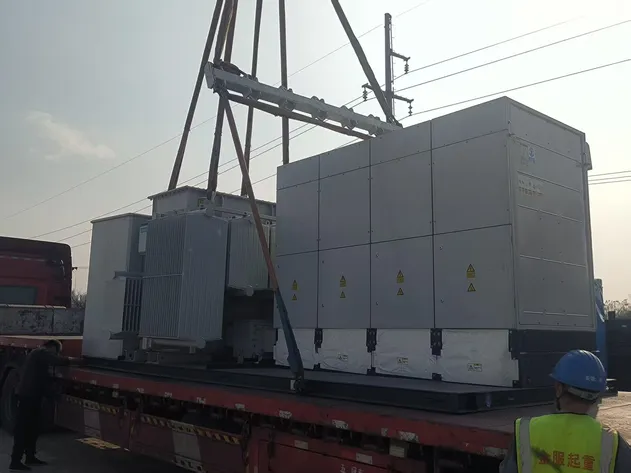

Shipping 2
Shipping 3

Frequently Asked Questions

Q1: Are the LiFePO4 battery cells brand new?

Yes, all batteries are top-quality, brand new from the original factory with intact QR codes.

Q2: Does the system include a Battery Management System (BMS)?

Absolutely. Each unit is equipped with a professional 3-level BMS that monitors voltage, temperature, and internal resistance to ensure safety.

Q3: Can the energy storage capacity be expanded?

Yes, our commercial cabinets are designed with modularity in mind. The 100kW system is expandable up to 215kWh or 232kWh depending on the model.

Q4: What is the expected delivery time for an order?

Small orders typically ship within 1-15 working days. For large-scale project orders, the timeline will be confirmed based on quantity and specifications.

Q5: How is the thermal management handled in the cabinet?

We use integrated industrial air conditioning (air-cooled or liquid-cooled options) to maintain an optimal temperature range (0-55℃) for battery longevity.

Q6: What certifications do these storage systems have?

The systems are fully certified with CE, UL, UN38.3, and MSDS, ensuring they meet international safety and transport standards.
