Our ESS is committed to using freshly produced LiFePO4 cells, ensuring that the entire process from cell production to assembly into battery PACKs is strictly controlled within 90 days. This approach consistently maintains the cells at their best in terms of performance, reliability, and long-term stability.

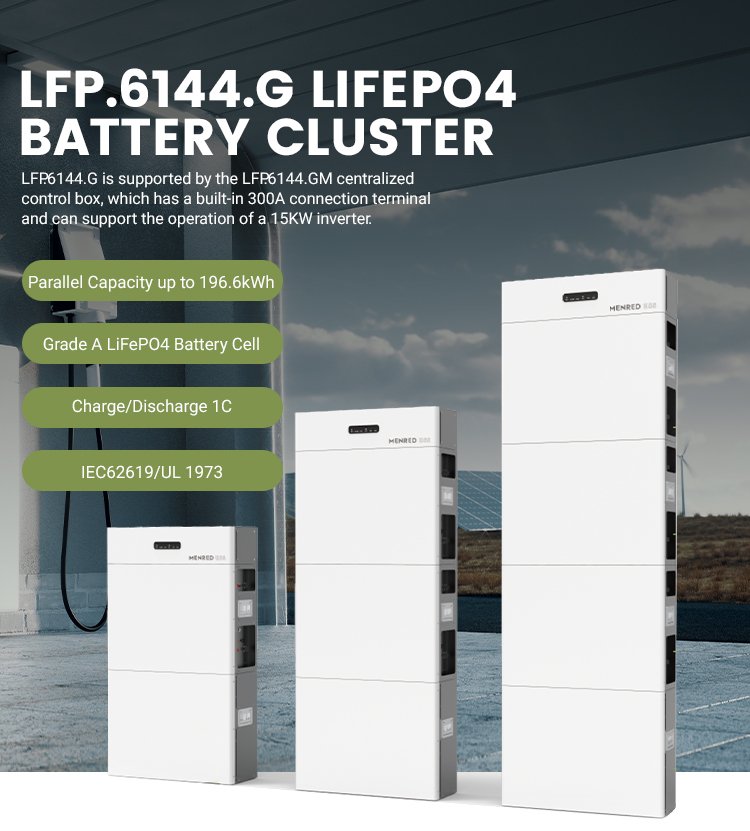

Products Description

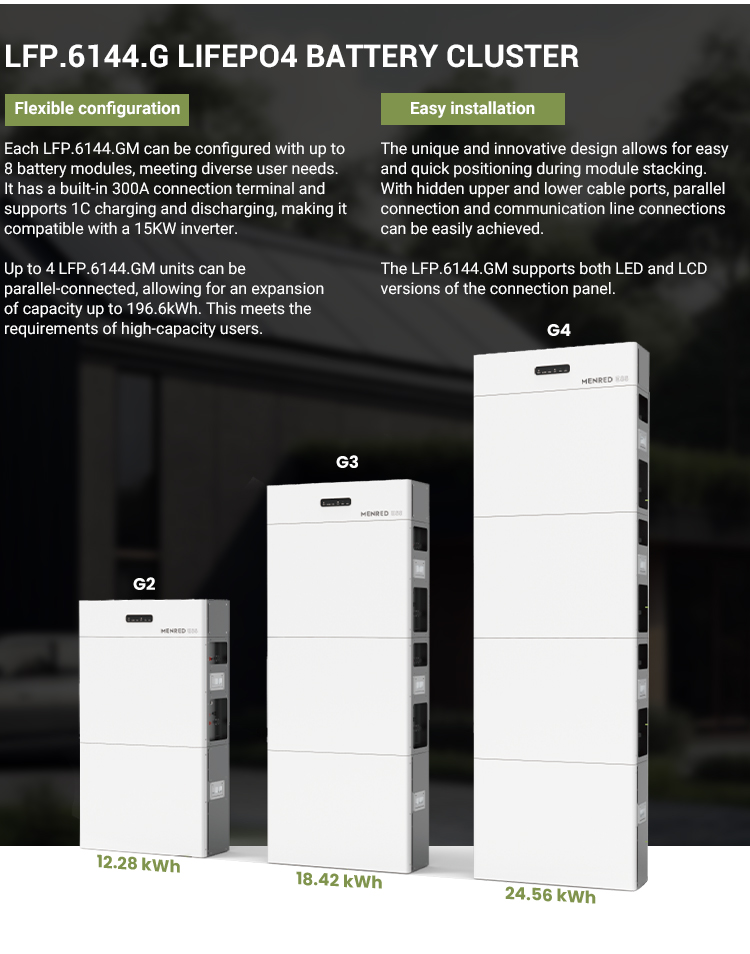

| Model |
LFP.6144 .G2 |
LFP.6144 .G3 |
LFP.6144.G4 |
| Battery Cell |
Lithium Iron Phosphate (cobalt-free)-LiFePO4 |
| Energy Capacity |
12.28kWh |
18.43kWh |
24.57kWh |
| Usable Capacity |
11.66kWh (DoD 95%) |
17.50kWh (DoD 95%) |
23.34kWh (DoD 95%) |
| Assembly Method |
1 Control Box + 2 Packs |
1 Control Box + 3 Packs |
1 Control Box + 4 Packs |
| Nominal Voltage |
51.2Vdc |
| Current Max |
300Amp Max @ 15kW Inverter System |
| Cycle Life |

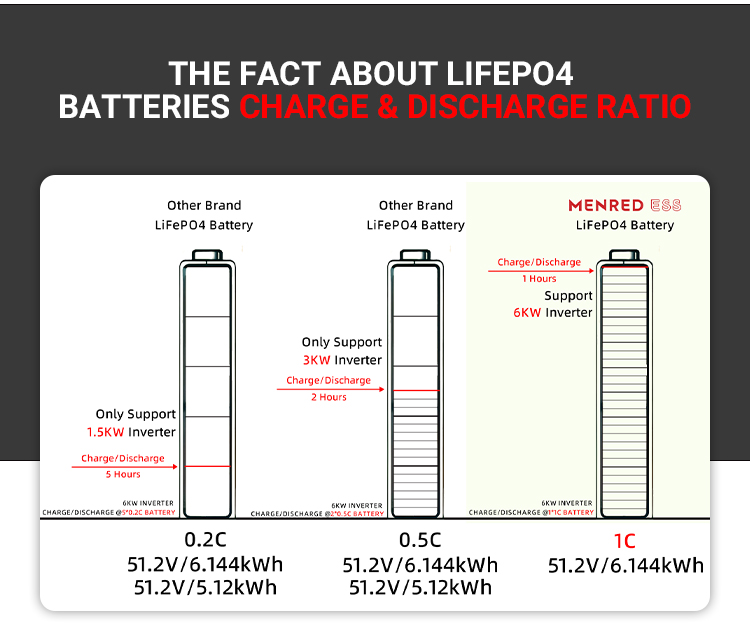

≥6000 times @ 1C 0.5C & 25±2°C |
| Warranty |
5 Years / 10 Years (Optional) |
| Communication |
CAN / RS485 (Compatible with Victron, SMA, Goodwe, Solis, Deye, etc.) |

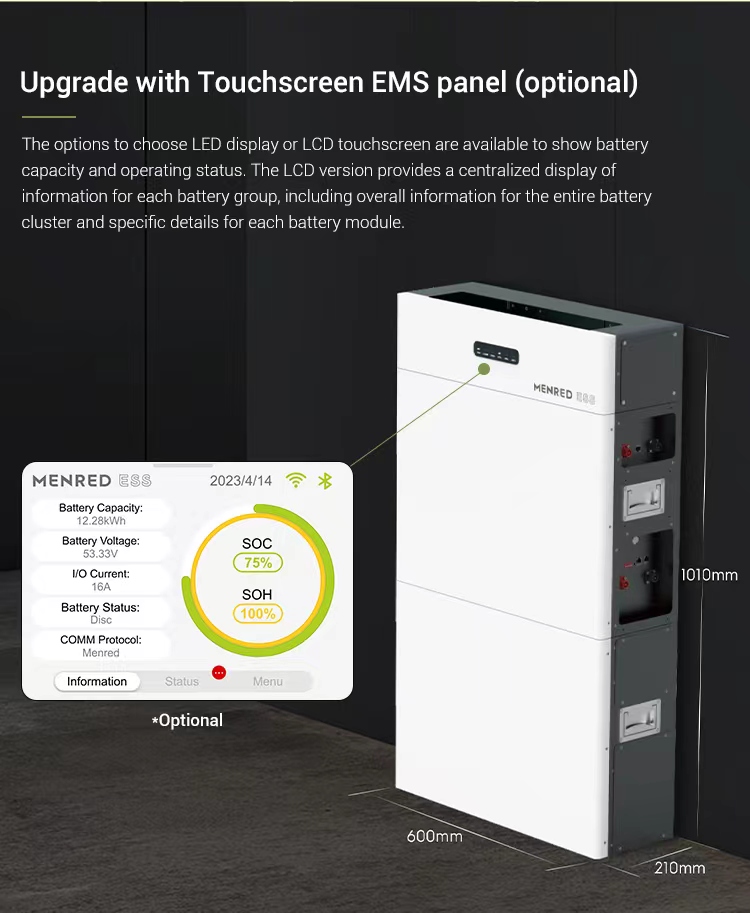

| Dimensions (W*D*H) |
600*1010*210 mm |
600*1440*220 mm |
600*1870*220 mm |
| Weight |
140kg |
205kg |
270kg |

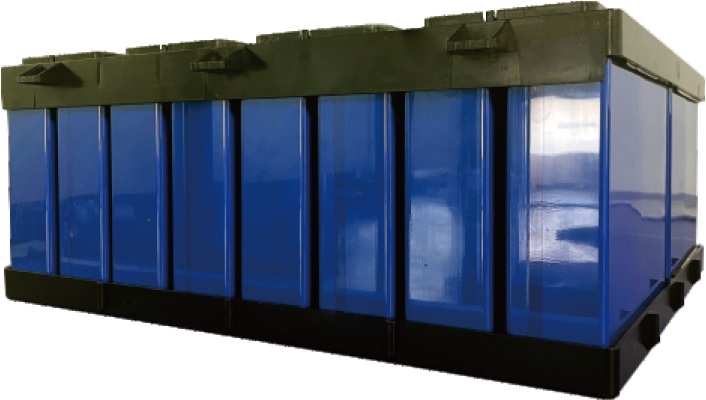

Optimized Structural Safety

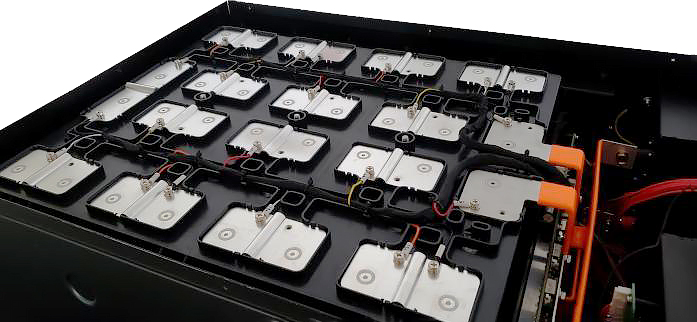

The unique design of integrated plastic fixed modules ensures a gap of 7mm between battery cells. Ensure sufficient and uniform heat dissipation space during full load charging and discharging to avoid rapid aging and cell swelling caused by insufficient heat dissipation.
Efficient Laser Welding
Using aluminum connection straps that are three times the rated current to reduce series losses. Laser seamless integrated automation production ensures reliable connection, avoiding detachment risks.

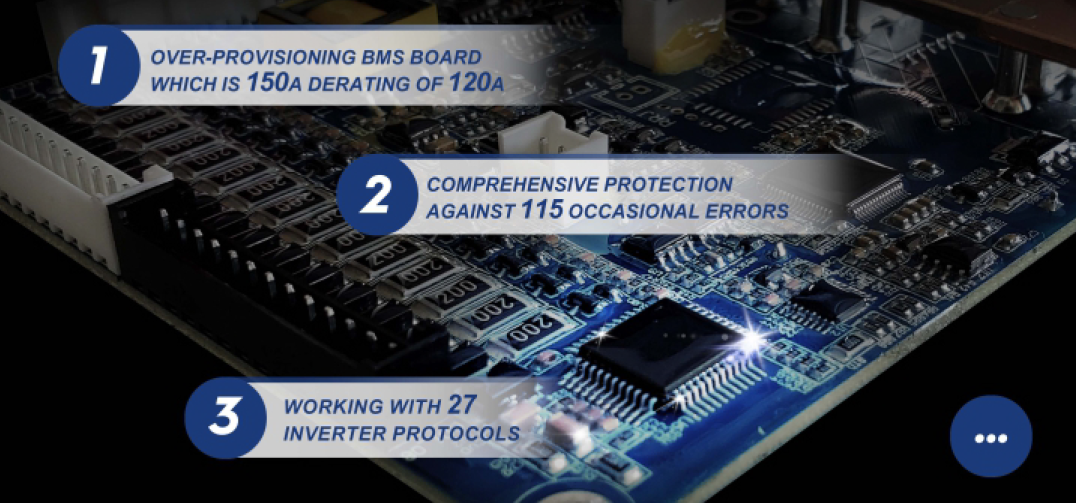

Comprehensive Protection BMS
The battery protection system with up to 115 sensing protections provides comprehensive coverage for cells. It features passive balancing to ensure high level cell consistency and minimal degradation.

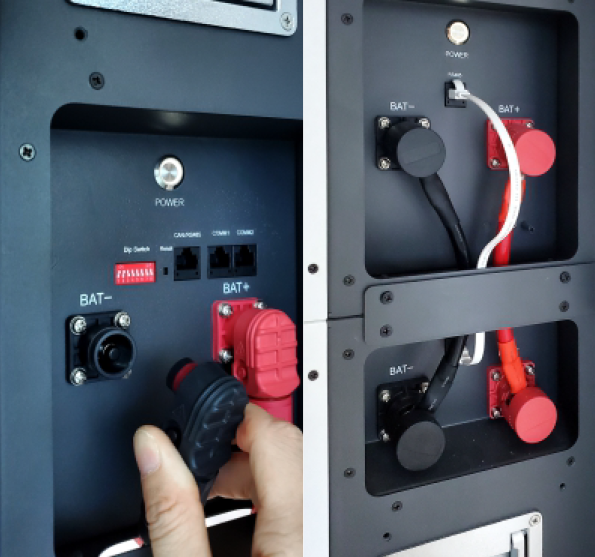

Unique Connection Design
Features hot-pluggable interfaces and concealed entry/exit terminals. Supports both wall mounting and stacking, expanding up to 98.3 kWh capacity.
Inverter Compatibility & Quality Control

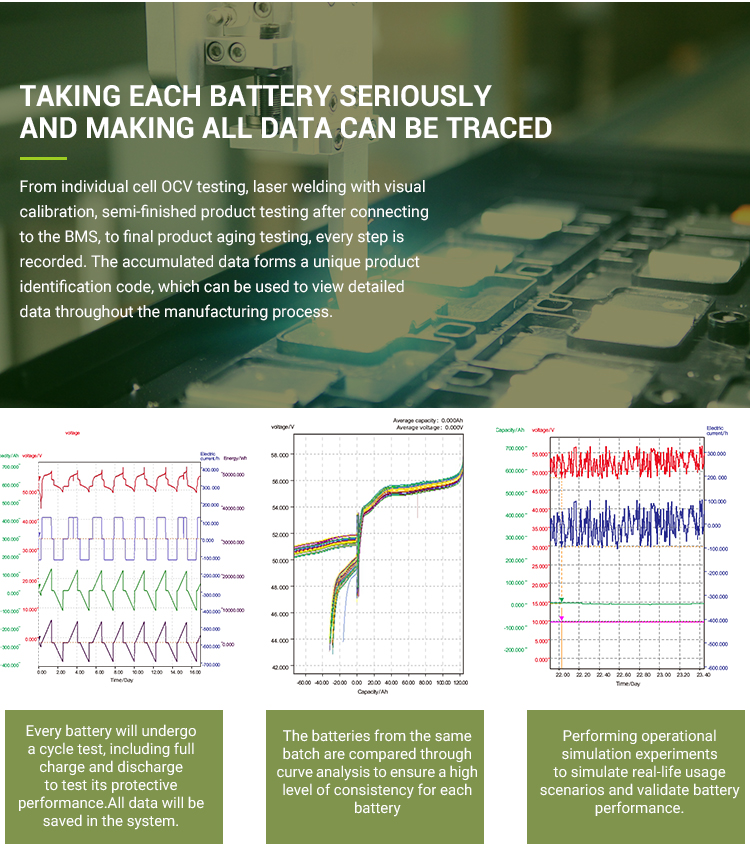

🛡️ EVERY battery undergoes a full cycle test, including protective performance validation. All data is saved for tracking.
📉 CONSISTENCY: Batteries from the same batch are compared via curve analysis.
🔬 SIMULATION: Operational experiments simulate real-life usage scenarios to validate long-term performance.

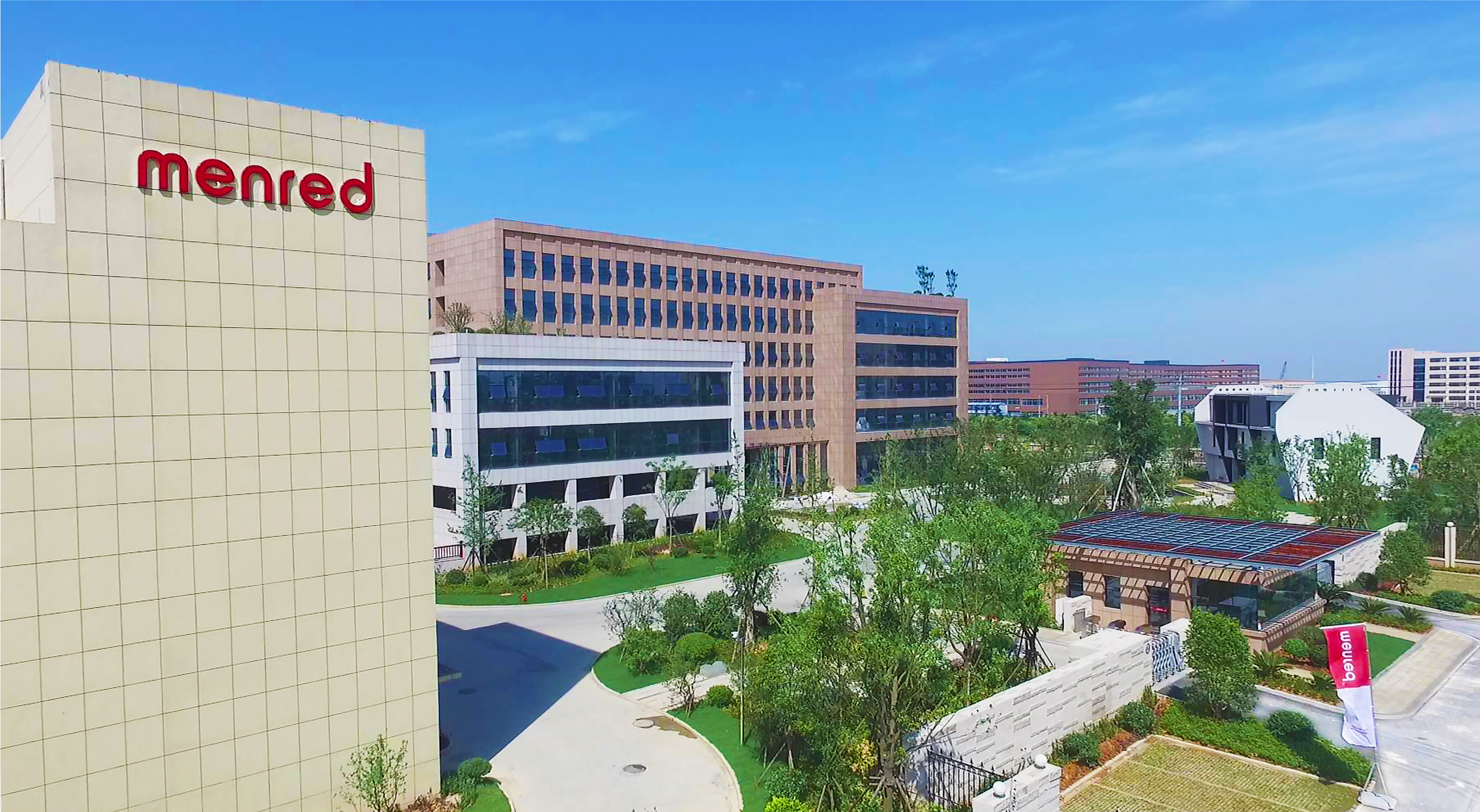

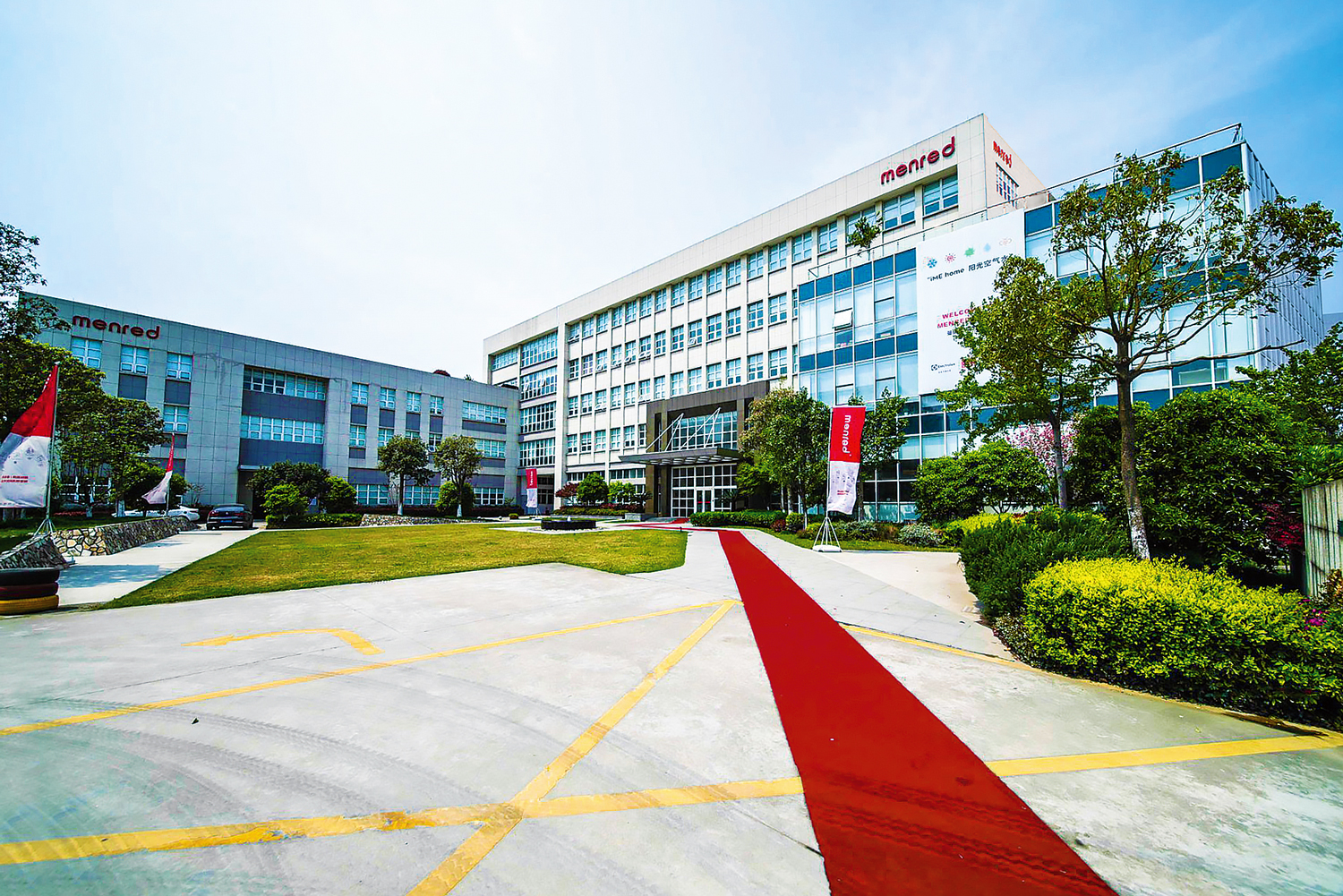

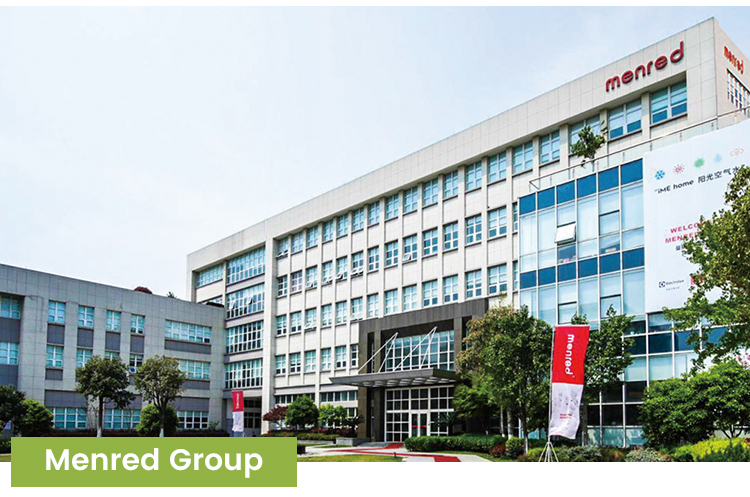

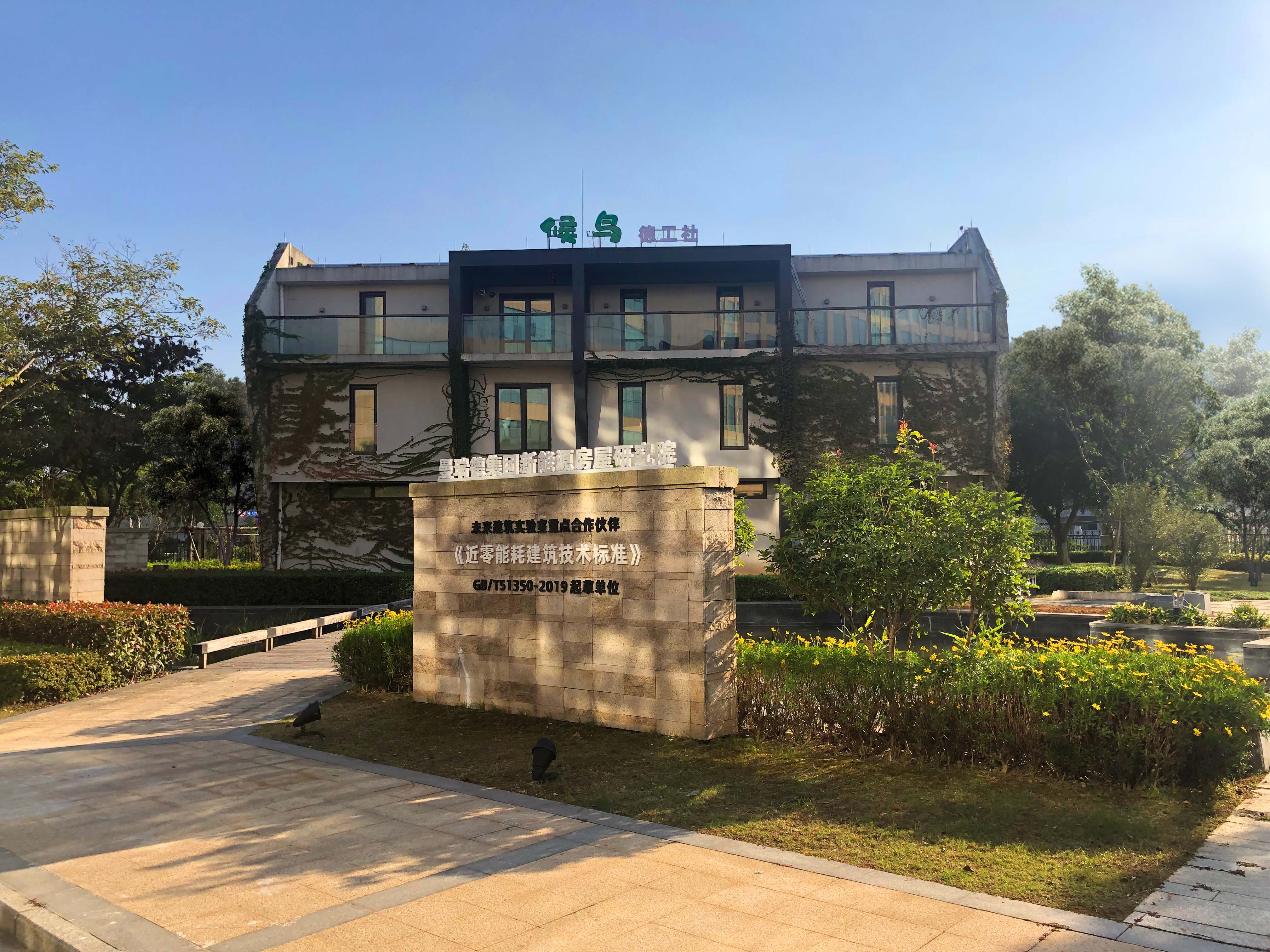

Manufacturing Base
Our industrial cluster manufactures a full range of products including heat pump air conditioning, radiant heating, and energy storage systems. Our facilities are certified by global standards and partner with national key laboratories for "Future Building" research.

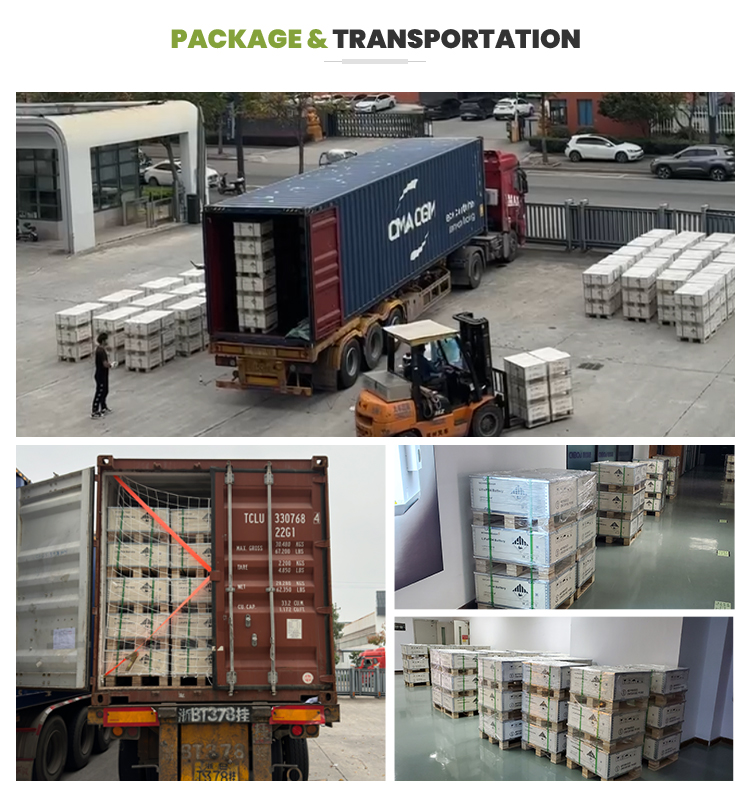

Product Packaging
Frequently Asked Questions
Q1: How do you ensure the quality of the battery cells?

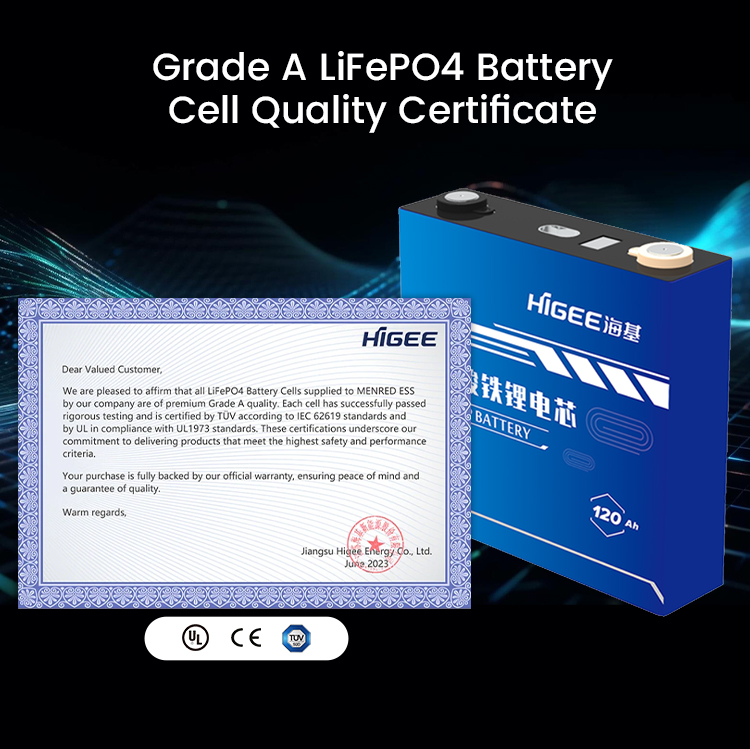

A: We use only freshly produced LiFePO4 cells. Every battery undergoes a rigorous cycle test, including full charge and discharge, to ensure high performance and consistency before delivery.
Q2: Are these batteries compatible with my current inverter?
A: Our systems are compatible with most popular inverter brands (Victron, SMA, Deye, Growatt, etc.) via CAN or RS485 communication. We can also update our system if provided with specific communication protocols.
Q3: Is the LiFePO4 chemistry safe for home use?
A: Yes, LiFePO4 offers higher thermal stability compared to other lithium types. They do not catch fire or explode during overcharging or short circuits, and are free from cobalt and cadmium.
Q4: What is the expected lifespan of the battery?
A: Under standard 25°C conditions and 0.5C charge-discharge rates, the battery cycle life exceeds 6,000 cycles, providing long-term reliability for over 10 years.
Q5: Do you offer customization for large projects (OEM/ODM)?
A: Yes, we provide full OEM/ODM services including hardware, software, and structural design. This typically requires a minimum purchase volume and covers necessary certification and mold costs.
Q6: What technical support is available if I have issues?
A: We offer remote technical support using advanced AR technology (Zoho Lens) to diagnose and guide repairs. Authorized local dealers also provide professional on-site support.
